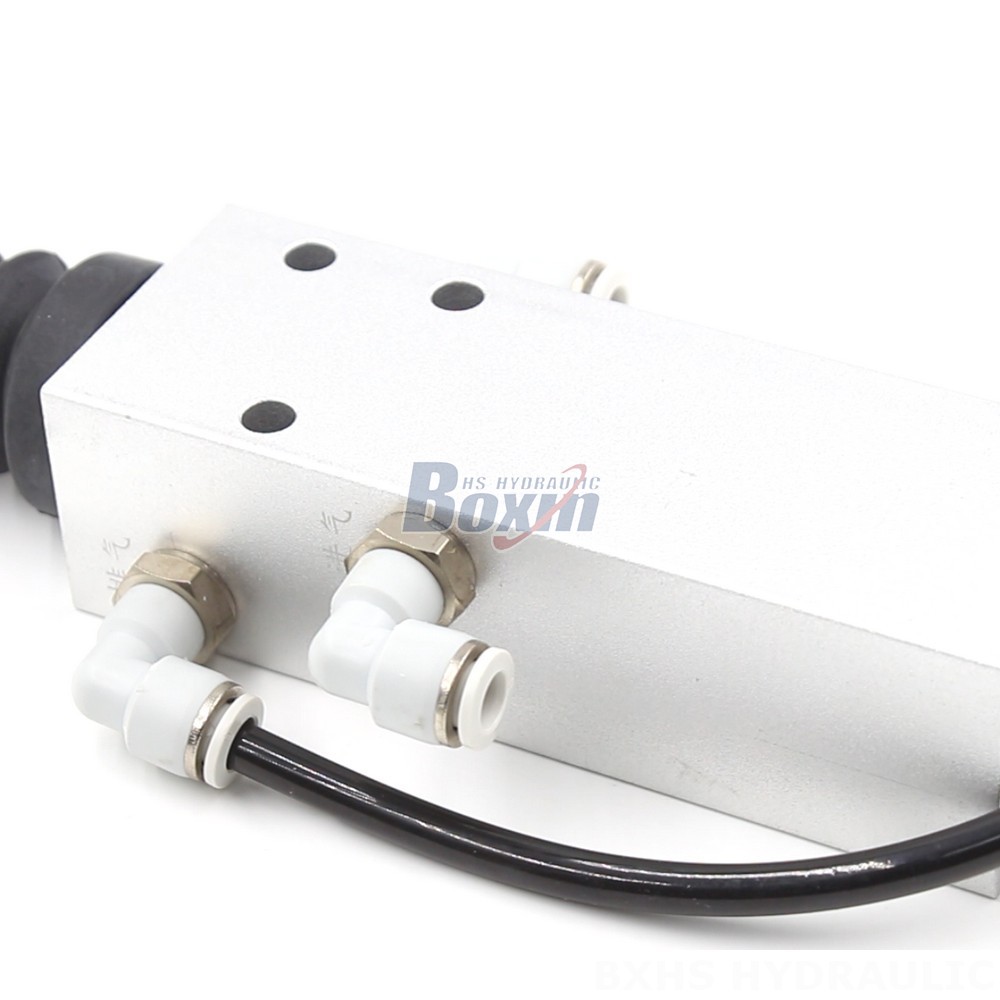

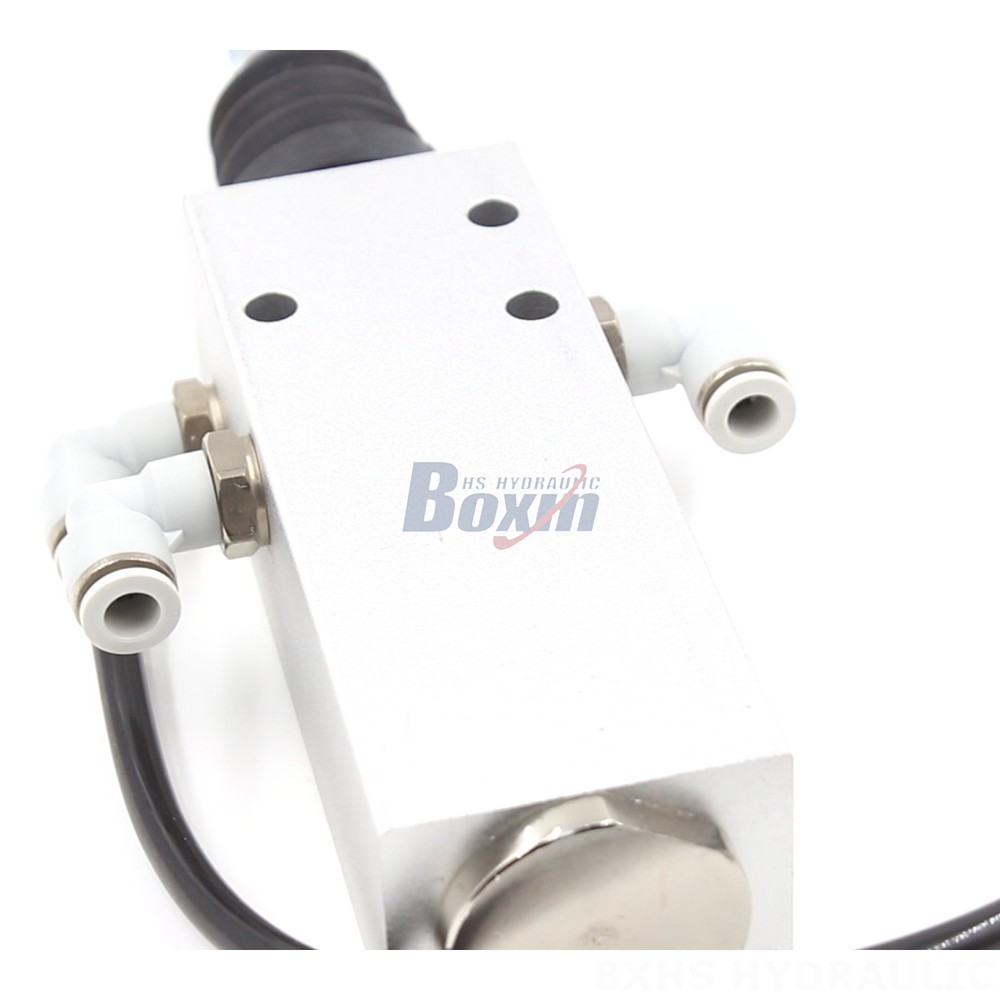

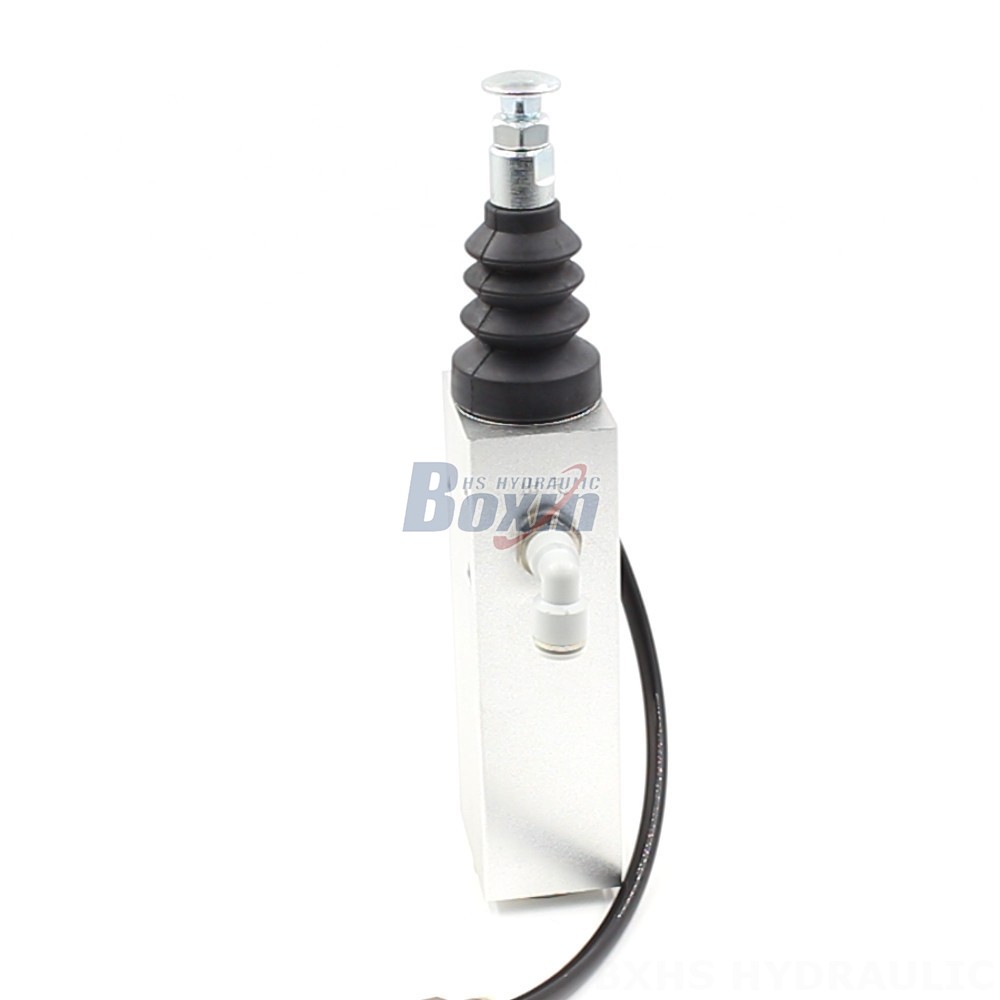

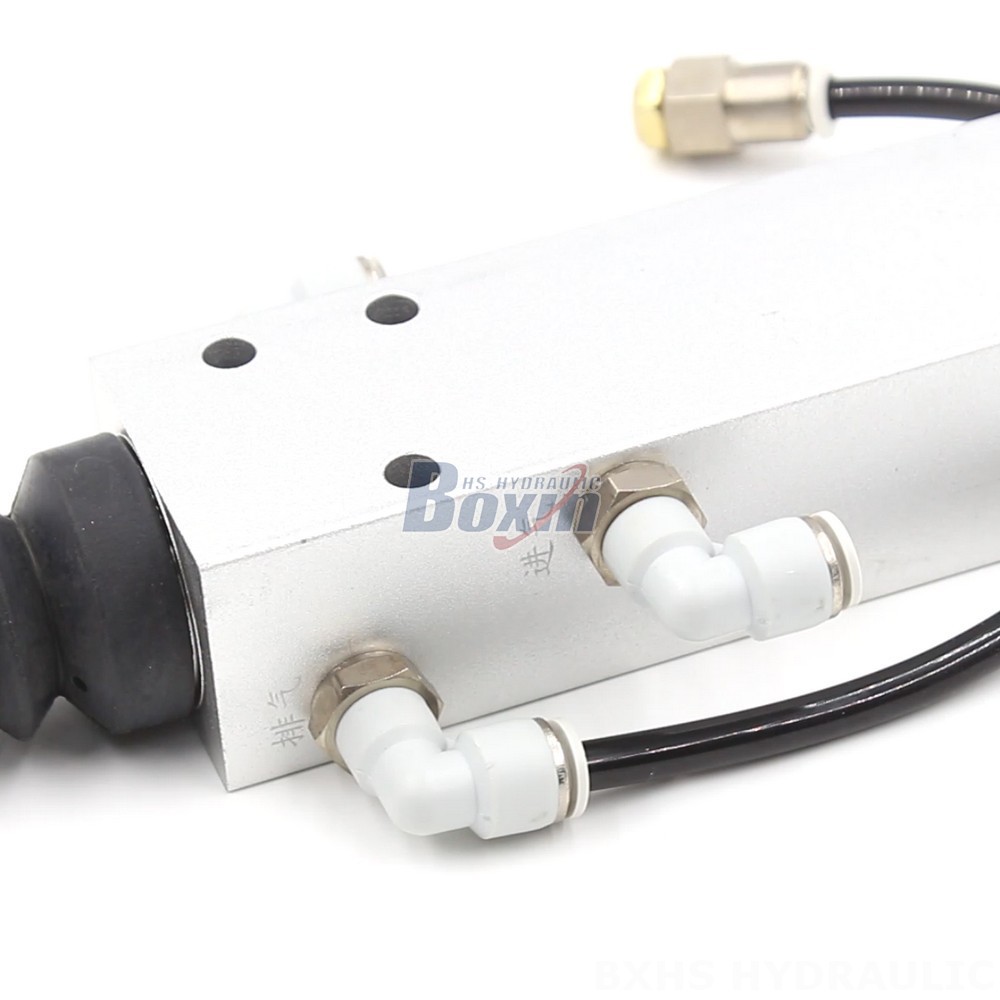

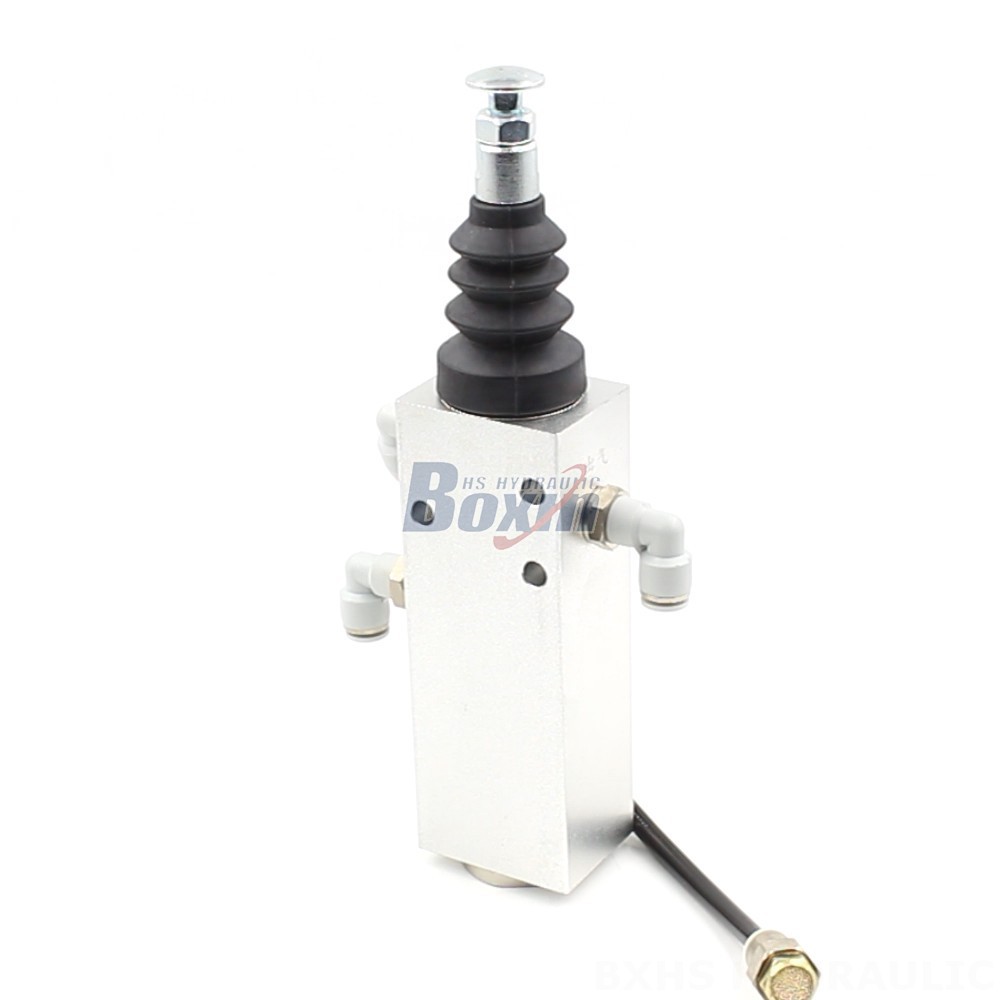

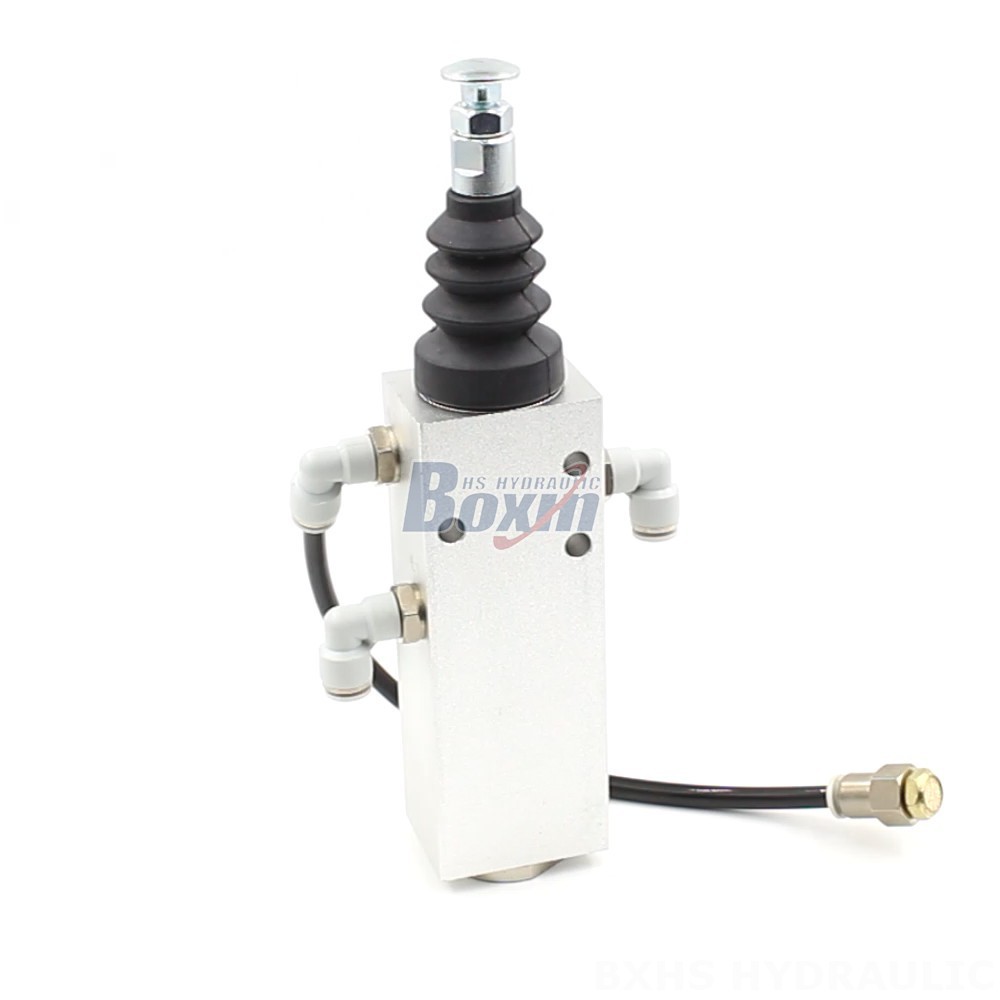

The XQF23 Pneumatic Directional Valve is a reliable and robust solution for controlling hydraulic systems in a variety of applications, including construction, agriculture, and material handling. This monoblock valve features a 1-section design, a maximum pressure of 200 bar (2900 psi), and is suitable for use with a wide range of hydraulic fluids.
| XQF-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Pneumatisch |
| Steuerkolben | 1 Spule |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 50 l/min (13,2 US gal/min) |
| Maximaldruck | 200 bar (2900 psi) |
| Einlassanschluss | G1/4 |
| Auslassanschluss | G1/4 |
| Anschlussgröße | G1/4 |
The XQF23 Pneumatic Directional Valve is a high-performance, 1-section monoblock valve designed for use in demanding applications. It features a pneumatic control method, a maximum pressure rating of 200 bar (2900 psi), and an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). This valve is ideal for use in a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi excavators, and mini excavators. It offers reliable and precise control of hydraulic systems, ensuring optimal performance and efficiency in various industries.
