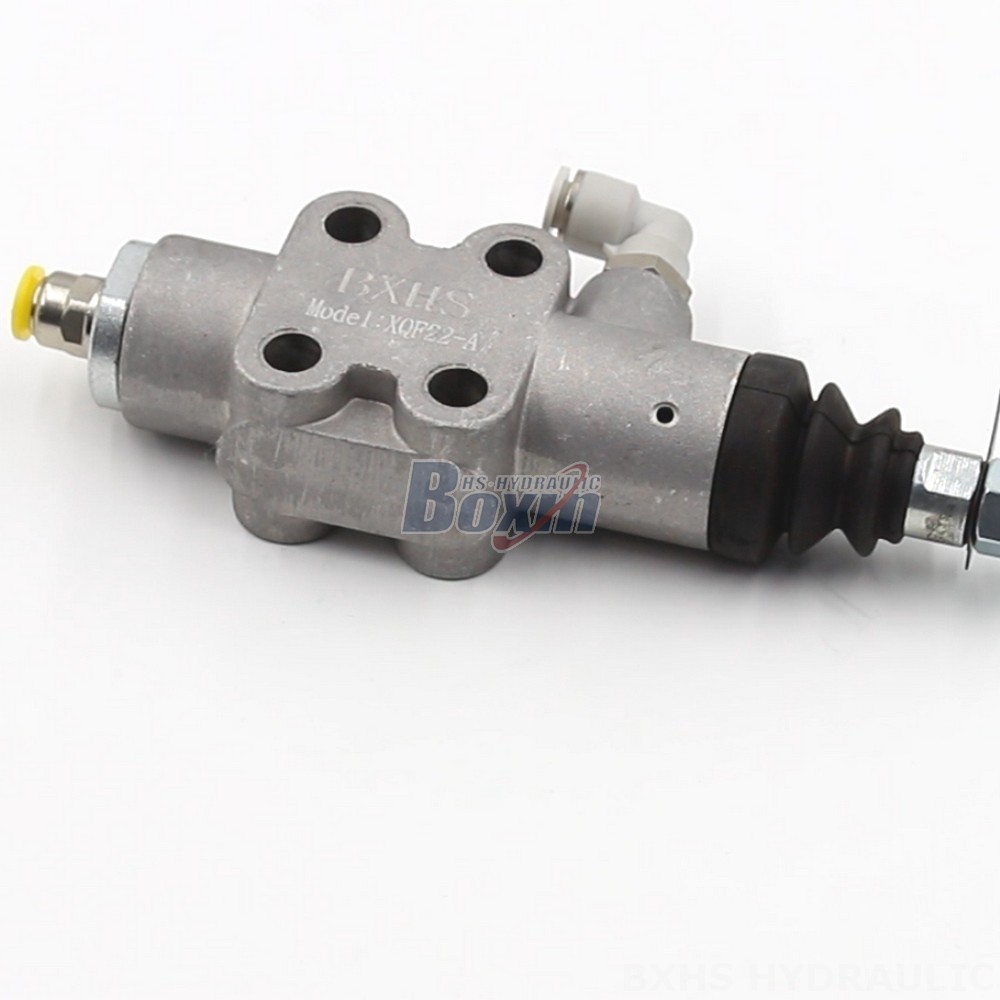

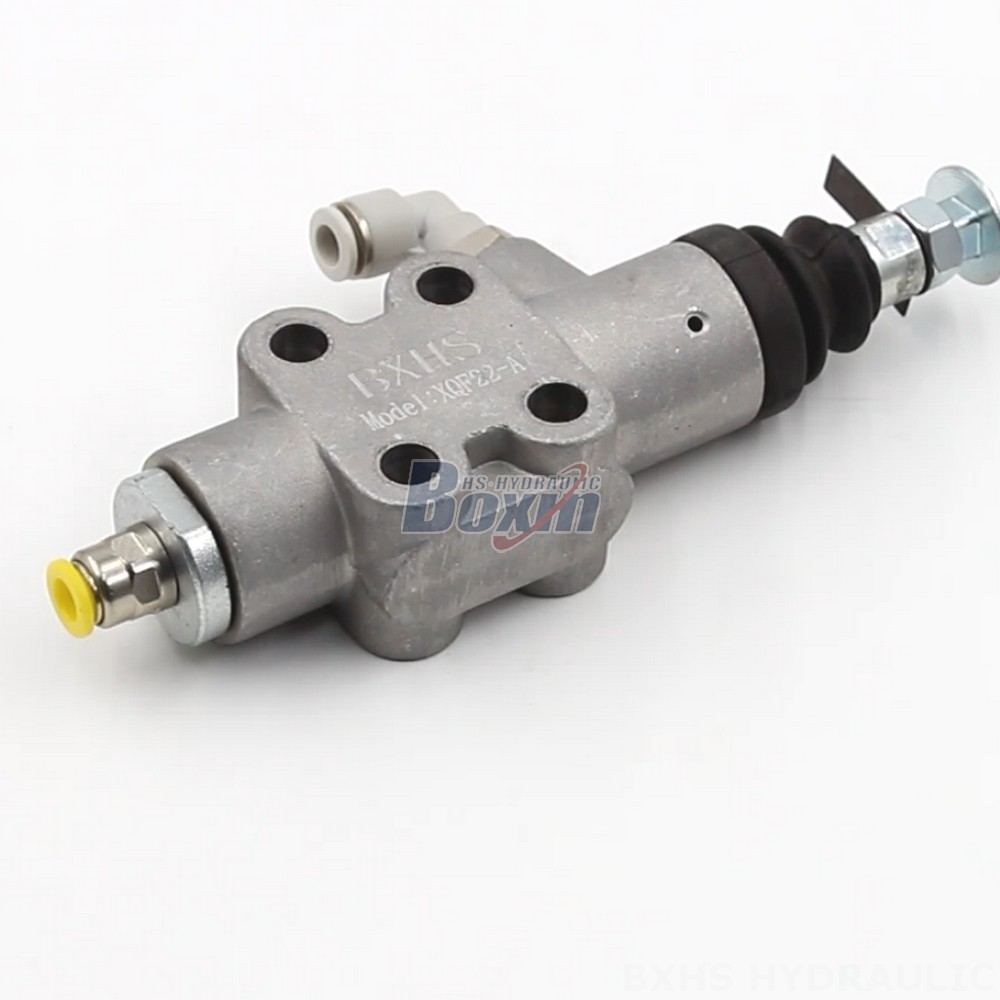

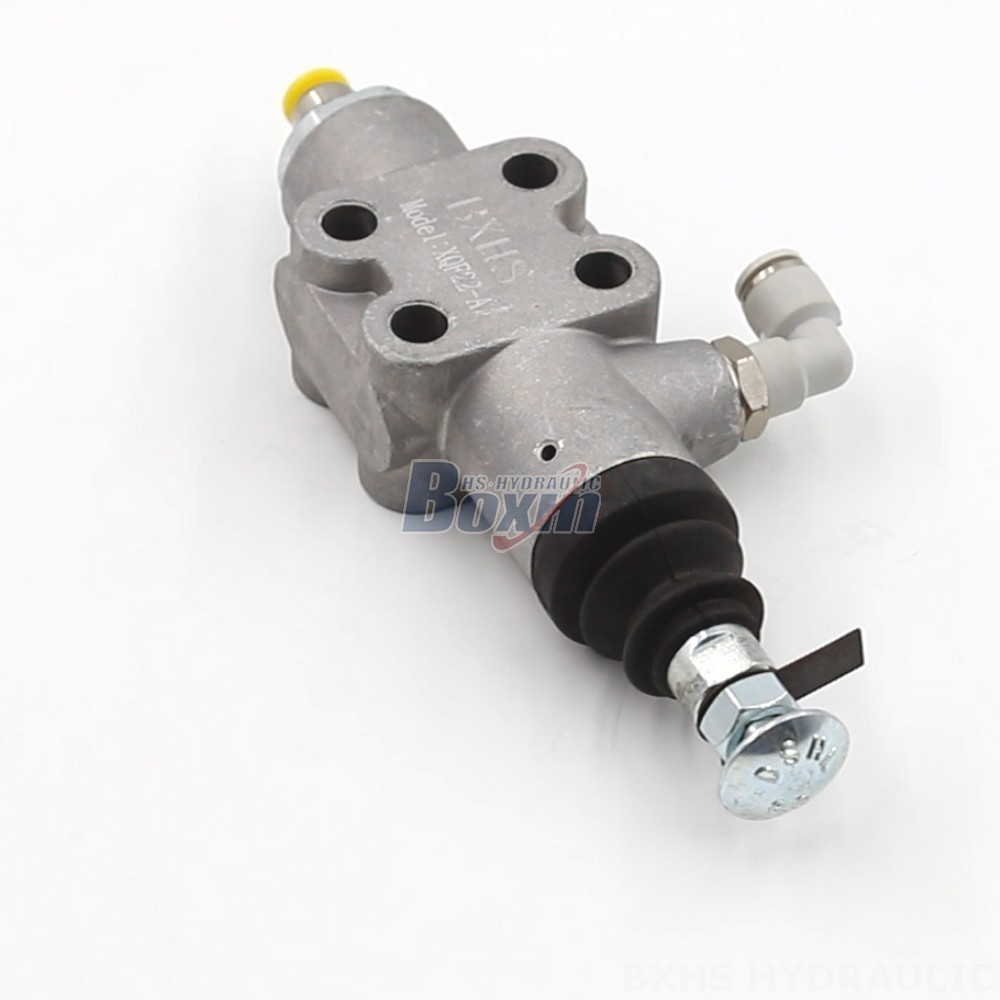

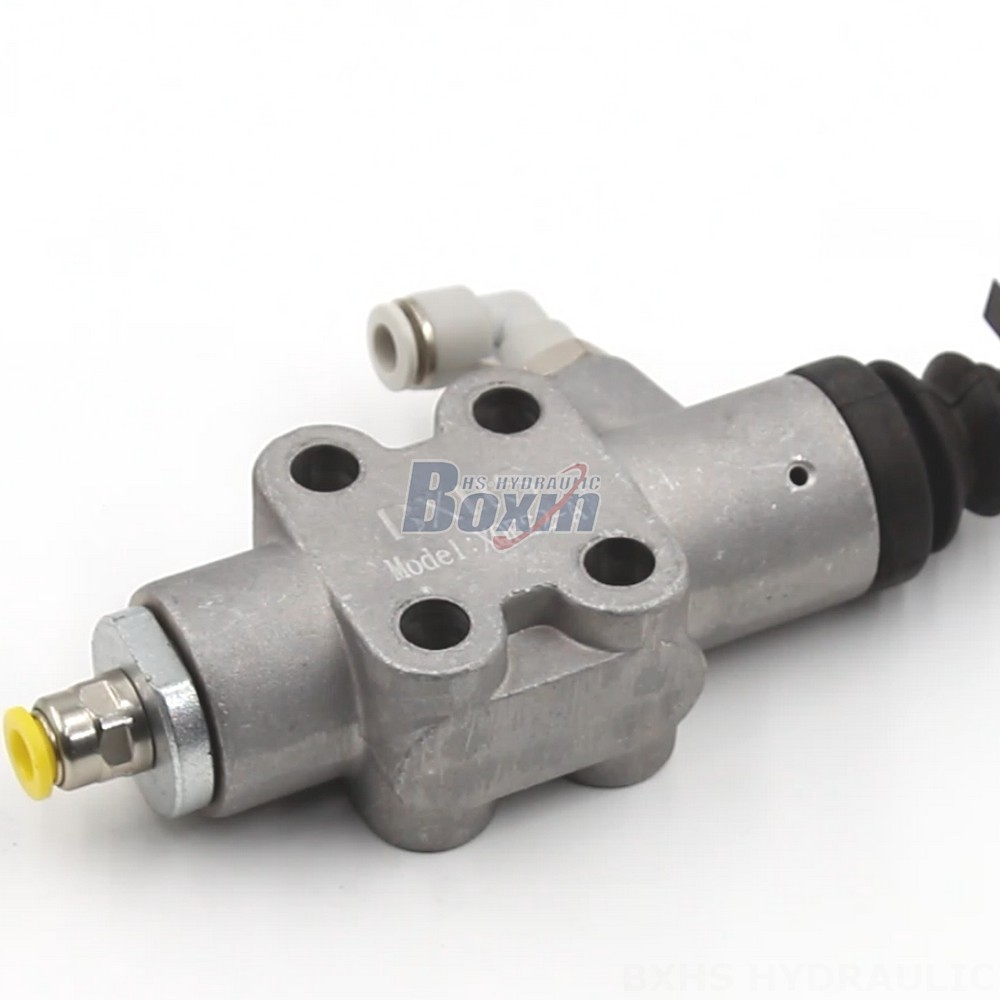

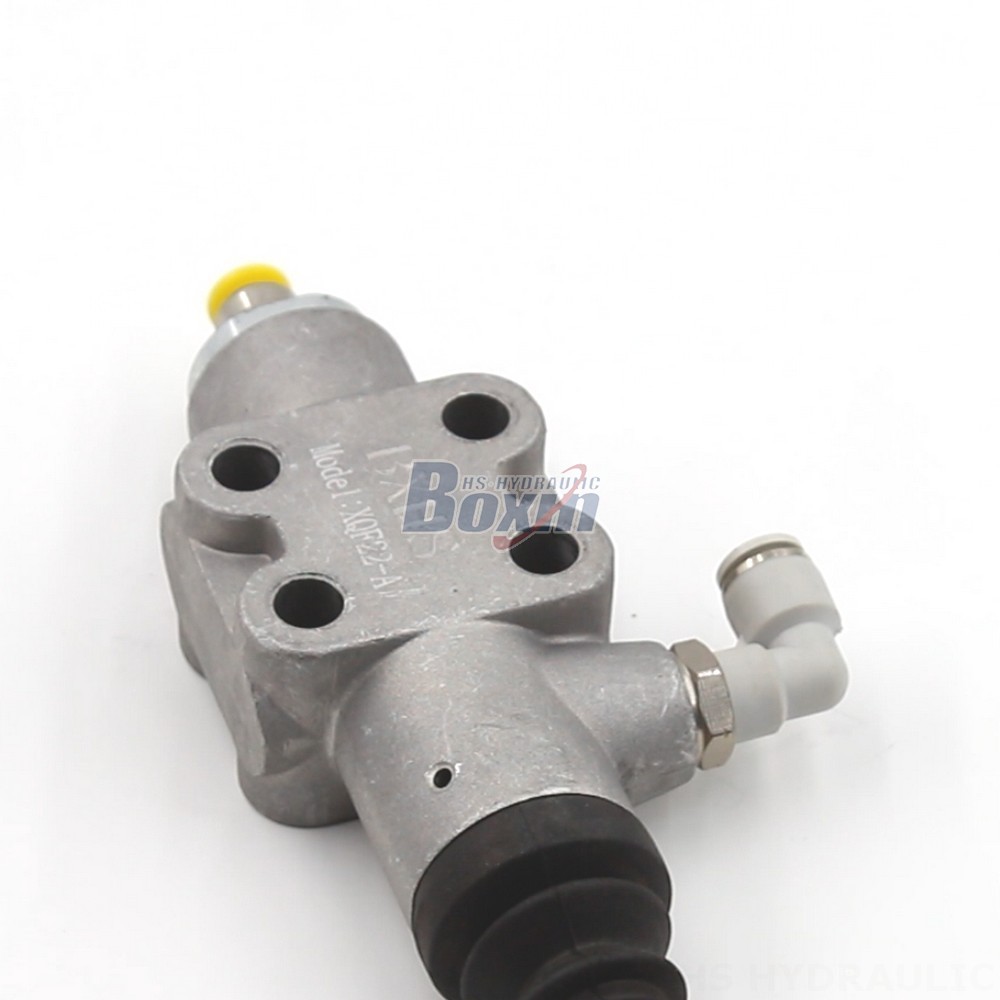

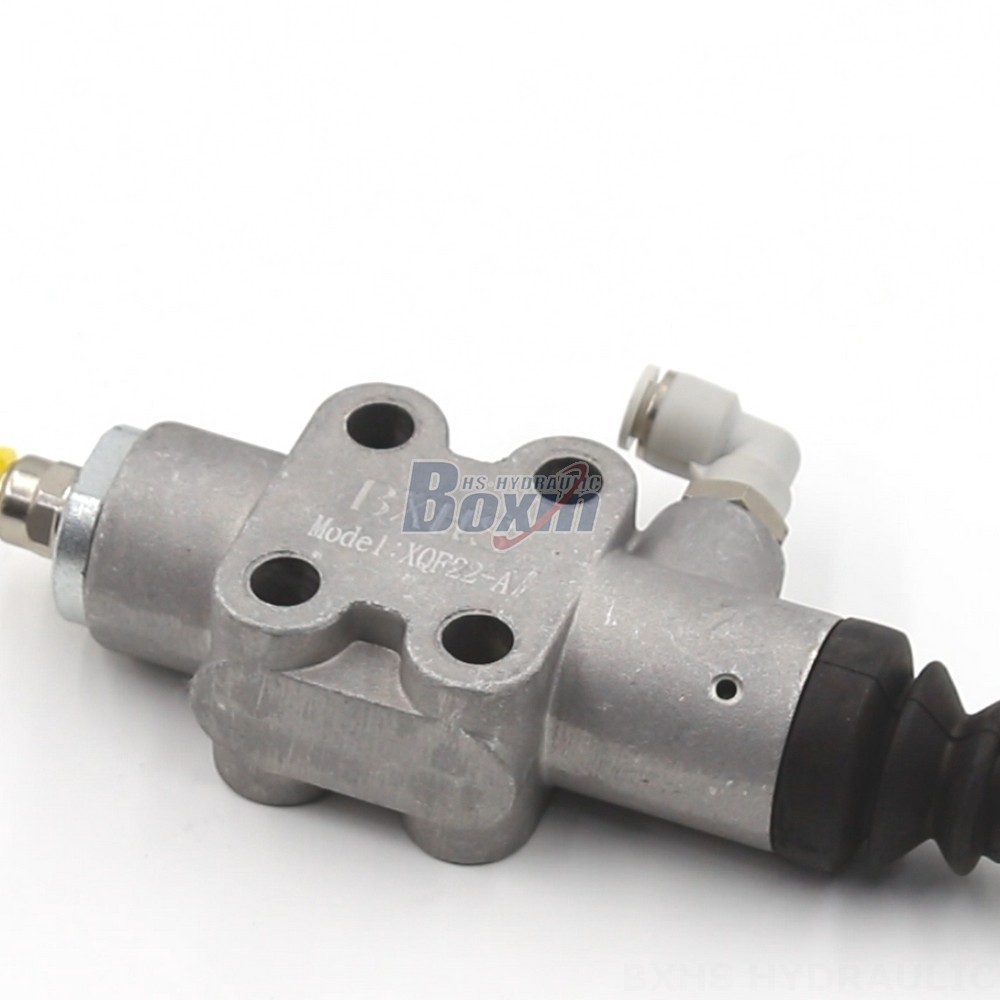

The XQF22-A Pneumatic 1 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 60 L/min and a maximum pressure of 200 bar, this valve is well-suited for handling demanding hydraulic systems. Its compact design and monoblock construction make it ideal for applications where space is limited.
| XQF-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Pneumatisch |
| Steuerkolben | 1 Spule |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 50 l/min (13,2 US gal/min) |
| Maximaldruck | 200 bar (2900 psi) |
| Einlassanschluss | G1/4 |
| Auslassanschluss | G1/4 |
| Anschlussgröße | G1/4 |
**XQF22-A Pneumatic 1 Spool Monoblock Directional Valve**
**Control Method:** Pneumatic
**Section:** 1 Section
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 200 bar (2900 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** XQF22-A Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,TRACTOR AND FRONT-END LOADER
The XQF22-A Pneumatic 1 Spool Monoblock Directional Valve is a versatile and reliable valve that is well-suited for a wide range of applications. Its compact design and high performance make it an ideal choice for demanding hydraulic systems.
