Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

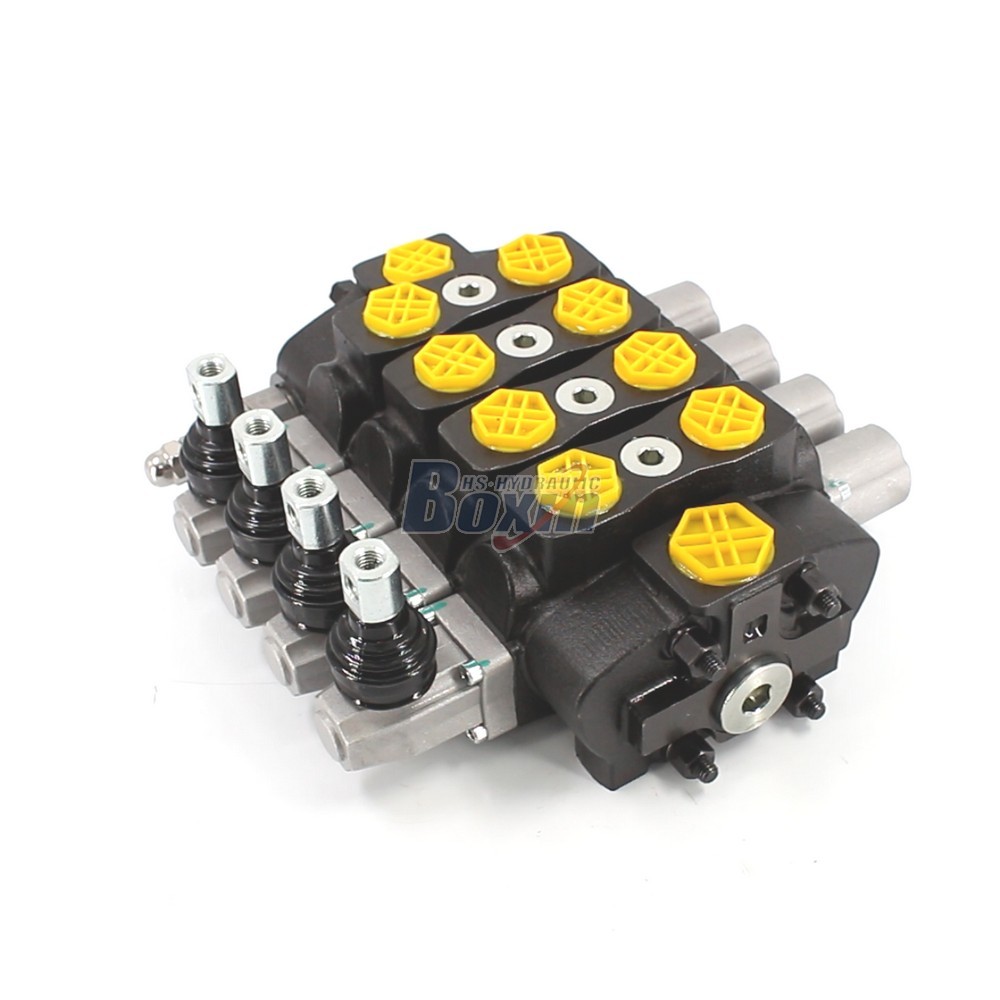

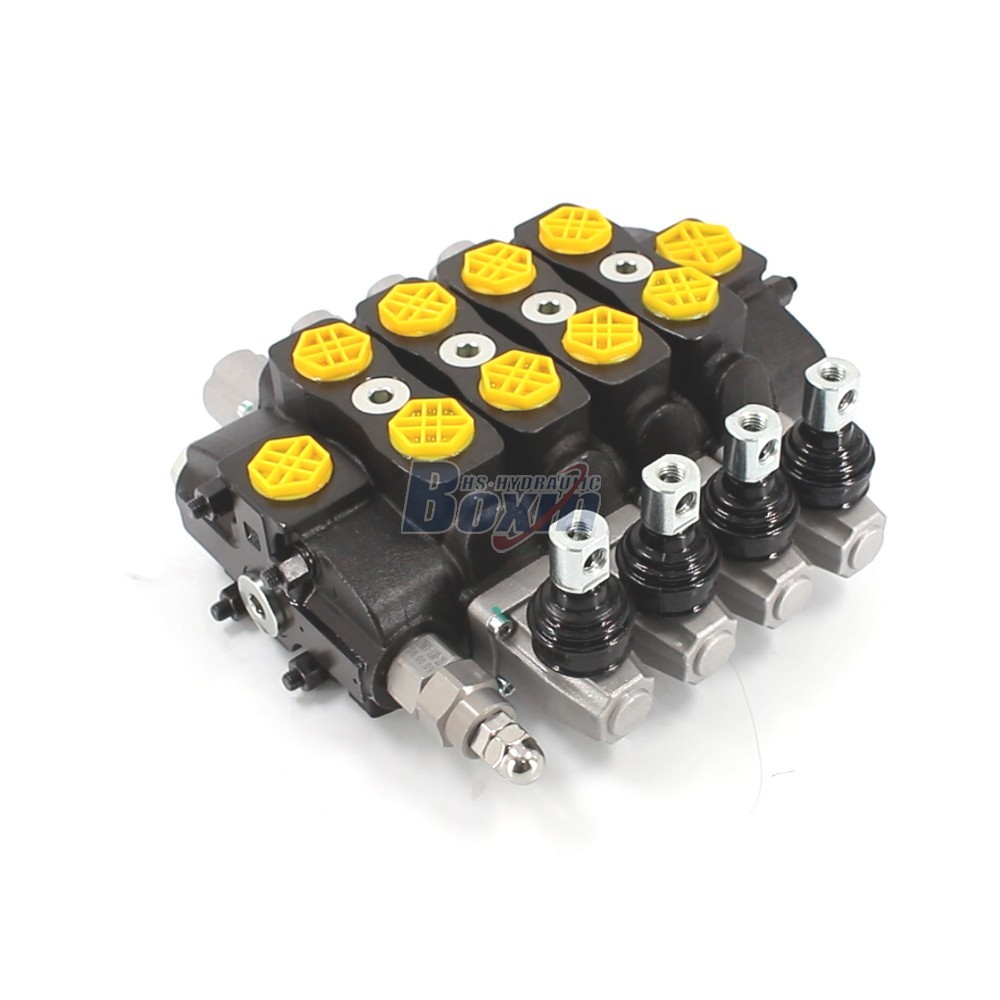

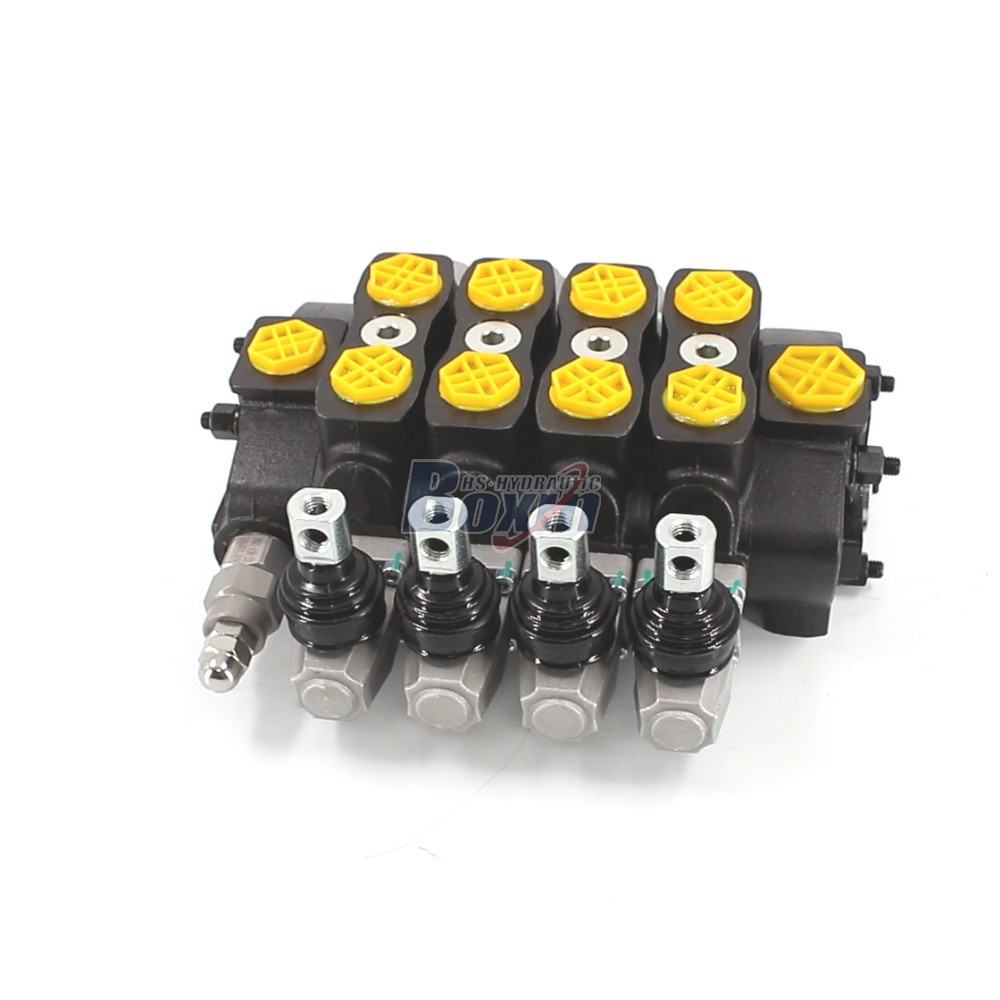

High-performance SD8 series 4-spool manual sectional directional valve, designed for 80 L/min flow and 315 bar pressure, ideal for demanding agricultural and construction machinery applications.
| SD8-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 90 l/min (23,8 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, SAE 10 |
| Auslassanschluss | G1/2, G3/4, SAE 10, 3/4 NPT |
| Anschlussgröße | G1/2, SAE 10 |
As a prominent hydraulic manufacturer, we offer the SD8 series manual 4-spool sectional directional valve engineered for precision and durability. This versatile valve supports a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 315 bar (4600 psi), featuring G1/2 inlet and G3/4 outlet ports. Our factory specializes in large-scale production, providing extensive opportunities for OEM, ODM, and private labeling (branding) to meet specific technical requirements. The SD8 series is widely applied in forklifts, skid steer loaders, mini-excavators, and wood splitters across the material handling and agricultural sectors. We are actively seeking global partners, including distributors, wholesalers, and international traders, to expand our market reach. Benefit from factory-direct wholesale pricing, reliable supply chains, and customizable hydraulic solutions. Our manufacturing excellence ensures consistent quality for heavy-duty industrial vehicles and specialized machinery manufacturers worldwide.
