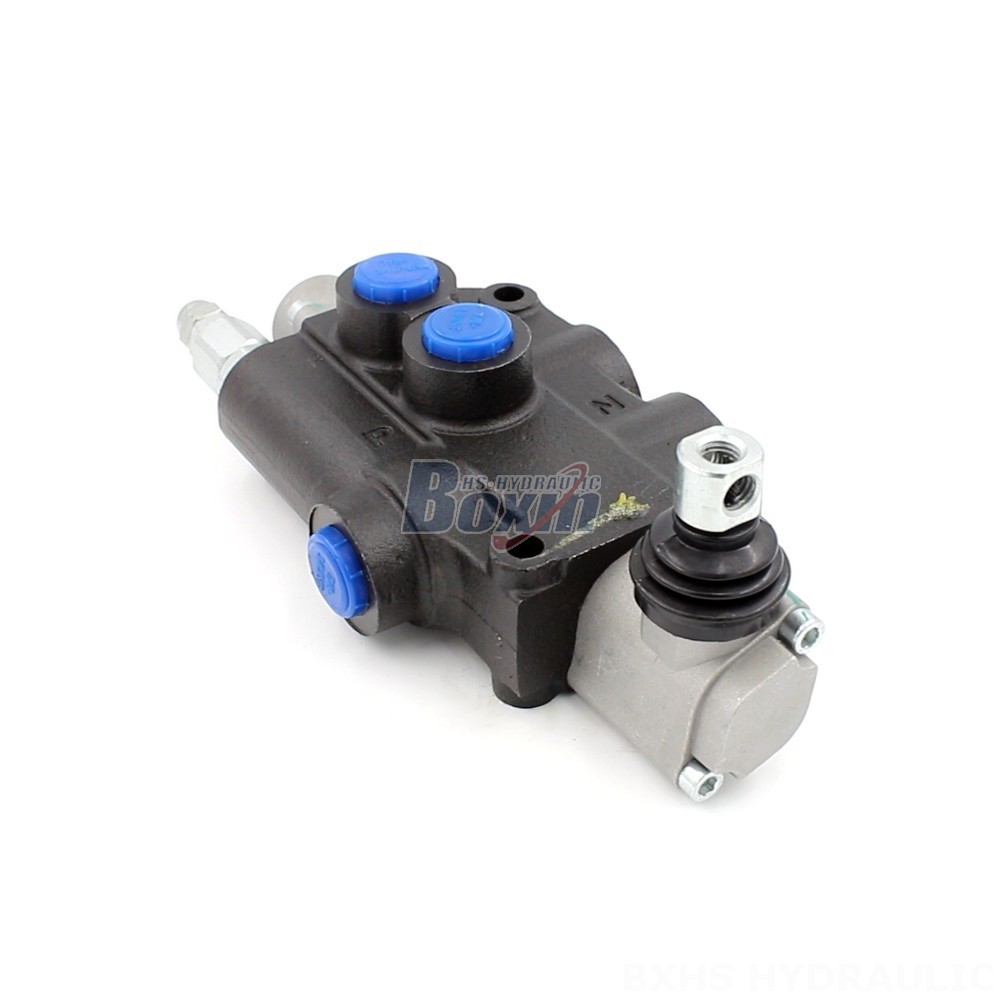

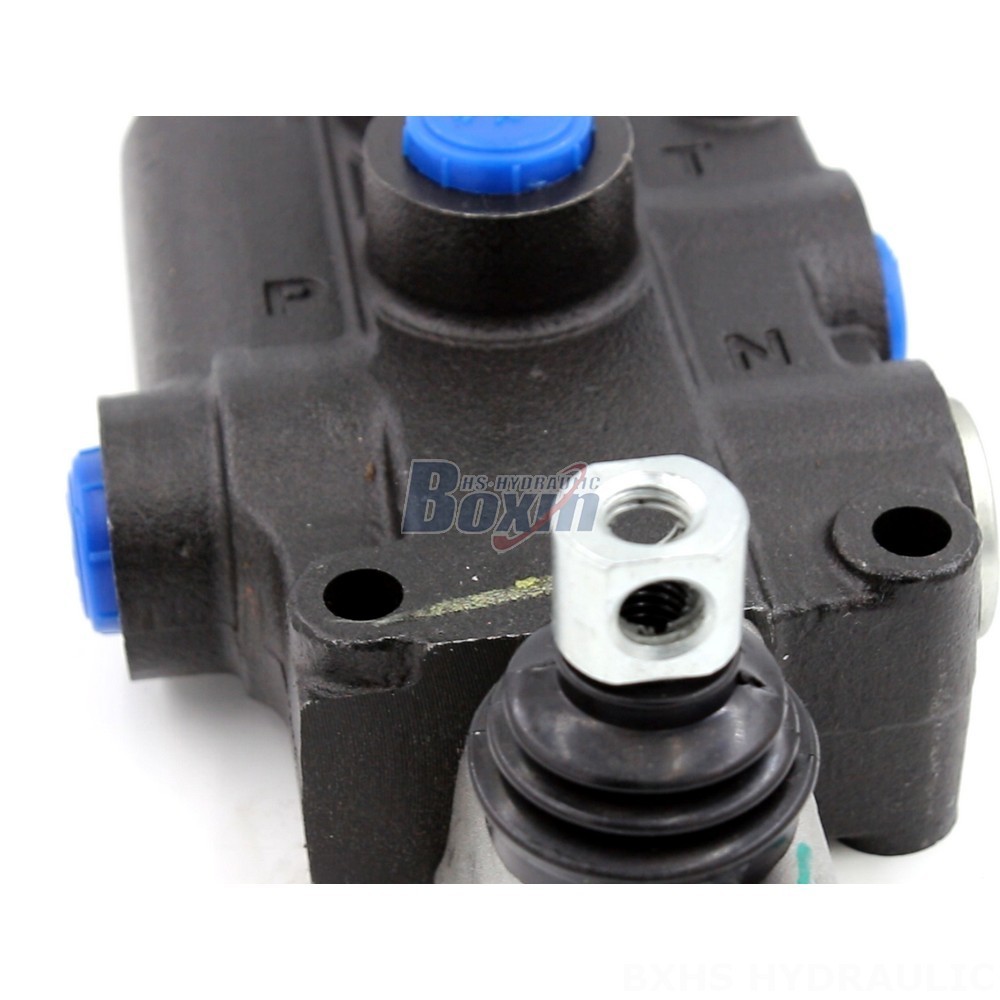

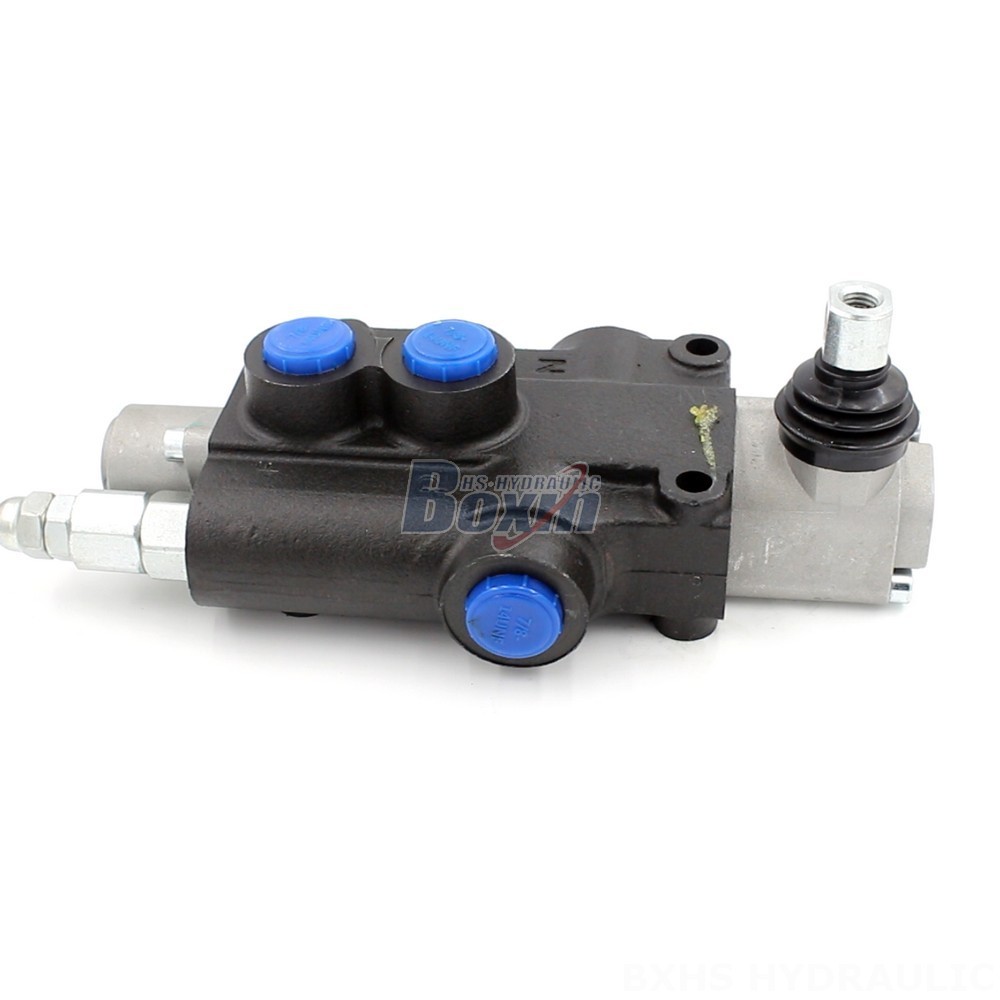

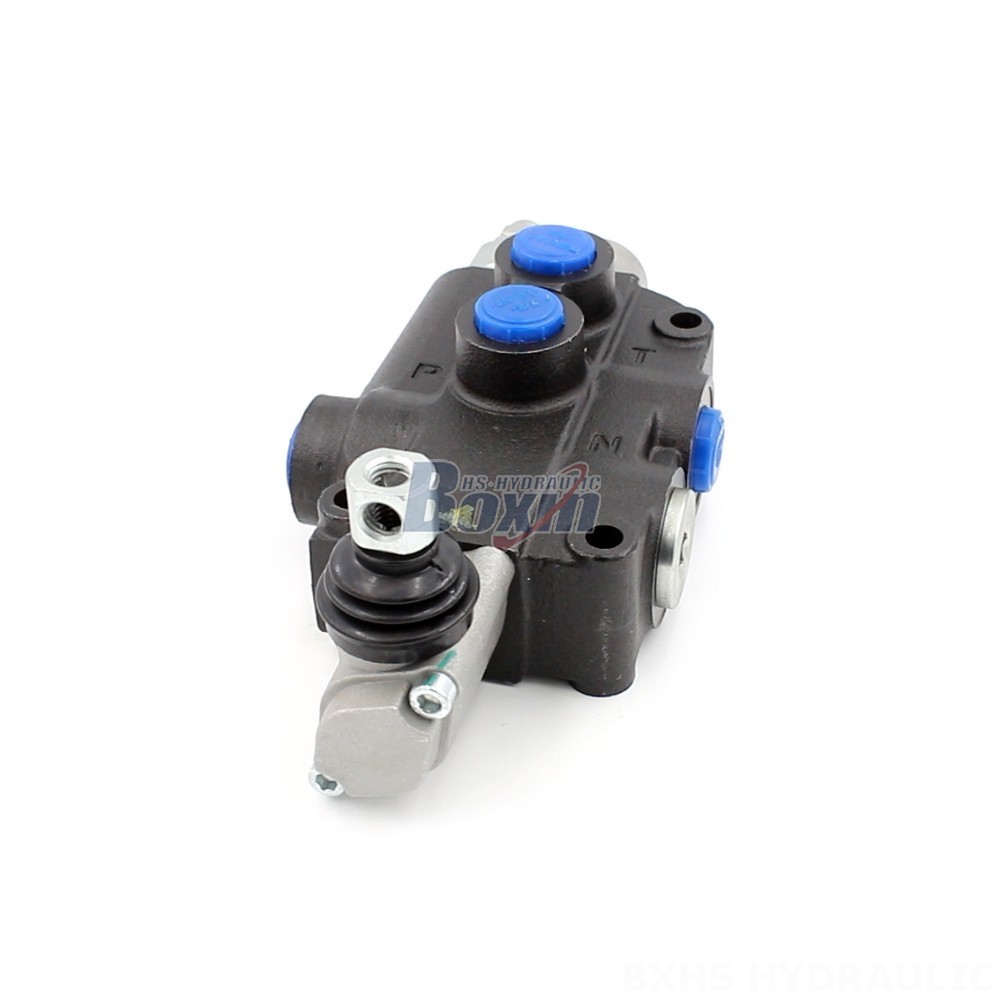

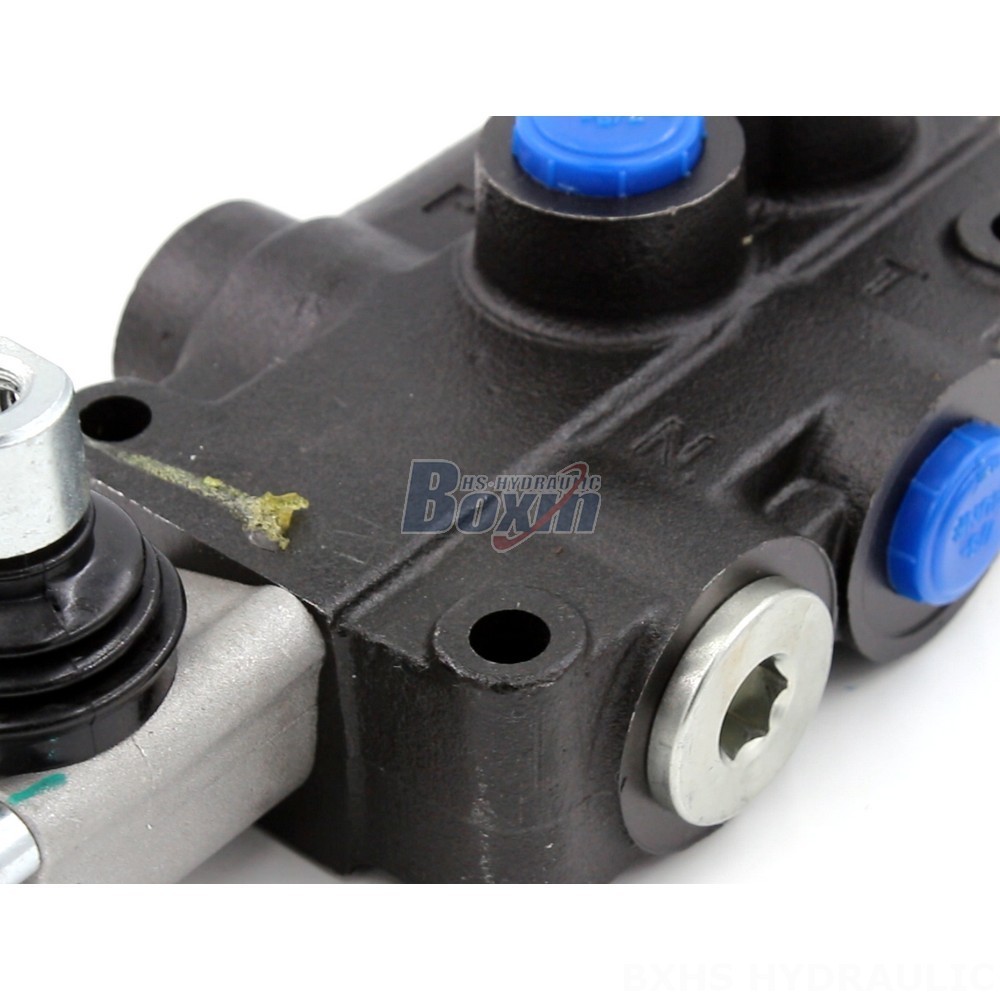

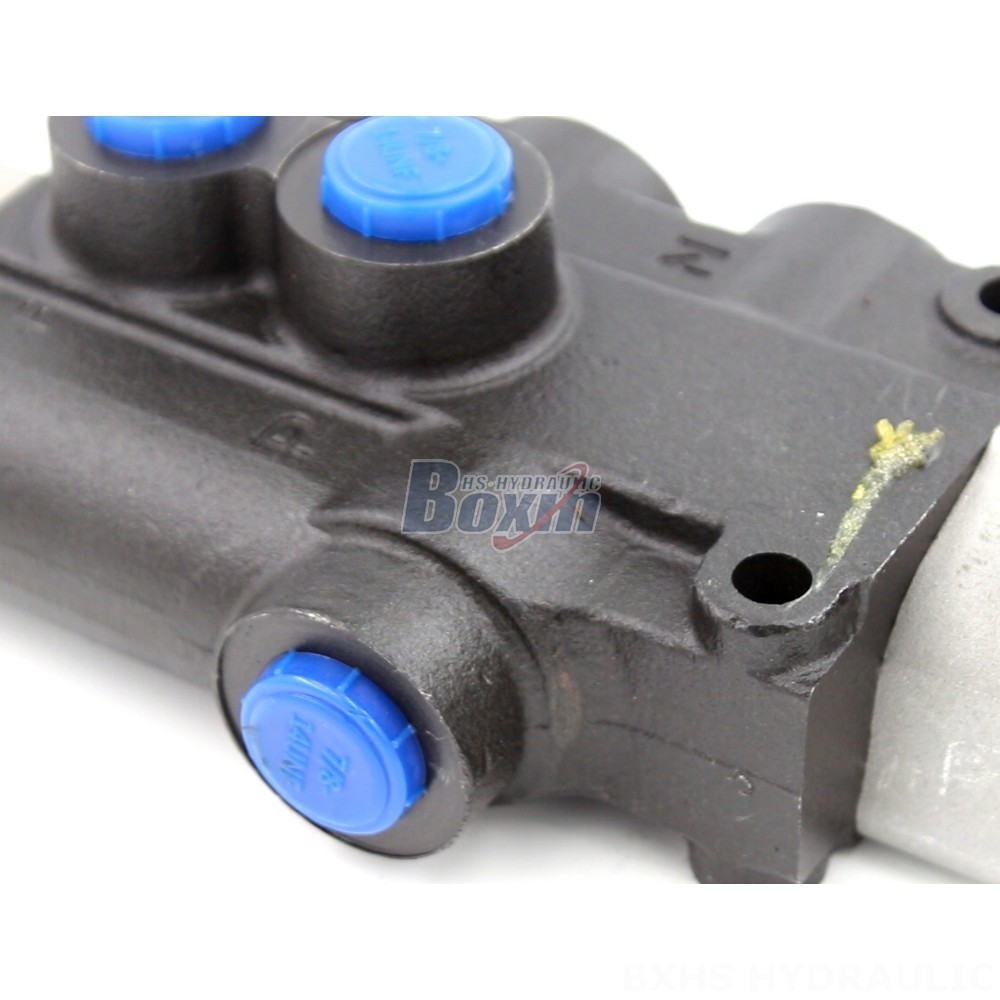

The P80-U78-1OT Series Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise flow control and reliable operation in challenging hydraulic systems.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- **Manual Control:** Allows for direct and intuitive operation of the valve.
- **1 Section Design:** Simplifies system integration and reduces potential leak points.
- **Monoblock Construction:** Provides structural rigidity and durability, ensuring long-term performance.
- **High Flow Capacity:** Handles high flow rates with minimal pressure drop, optimizing system efficiency.
- **Wide Operating Pressure Range:** Suitable for various hydraulic applications, from low to high-pressure systems.
- **Optimal Viscosity Range:** Operates effectively with a wide range of hydraulic fluids, ensuring compatibility with different system requirements.
- **Versatile Applications:** Ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
**Benefits:**
- Enhanced system control and precision
- Improved efficiency and reduced energy consumption
- Increased durability and reliability in demanding operating conditions
- Ease of installation and maintenance
