Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

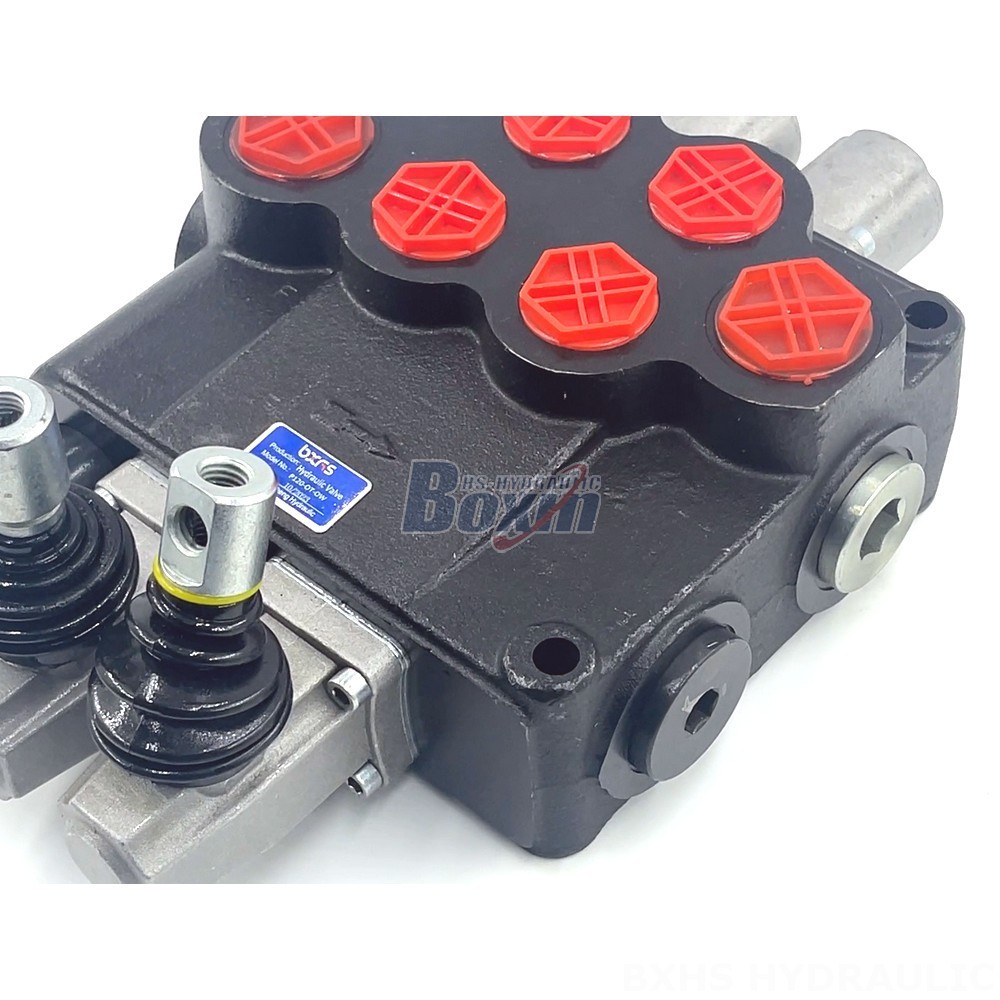

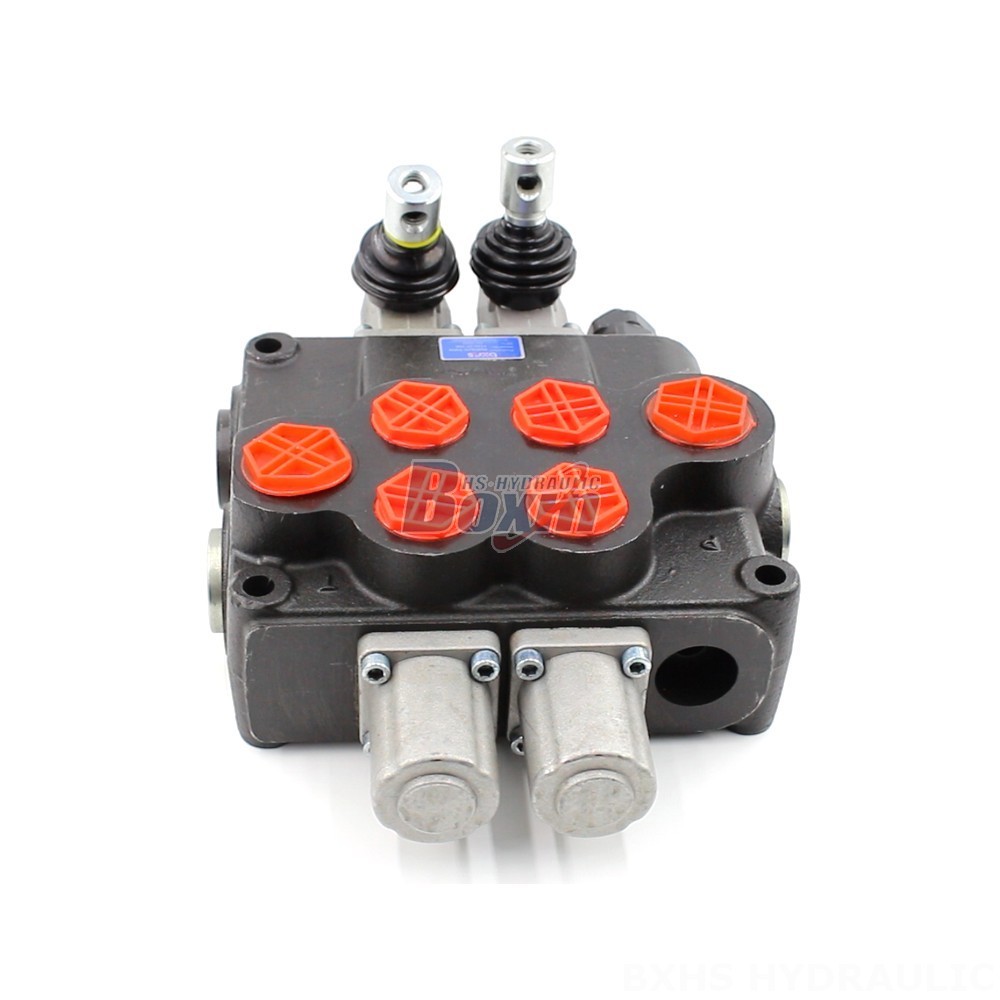

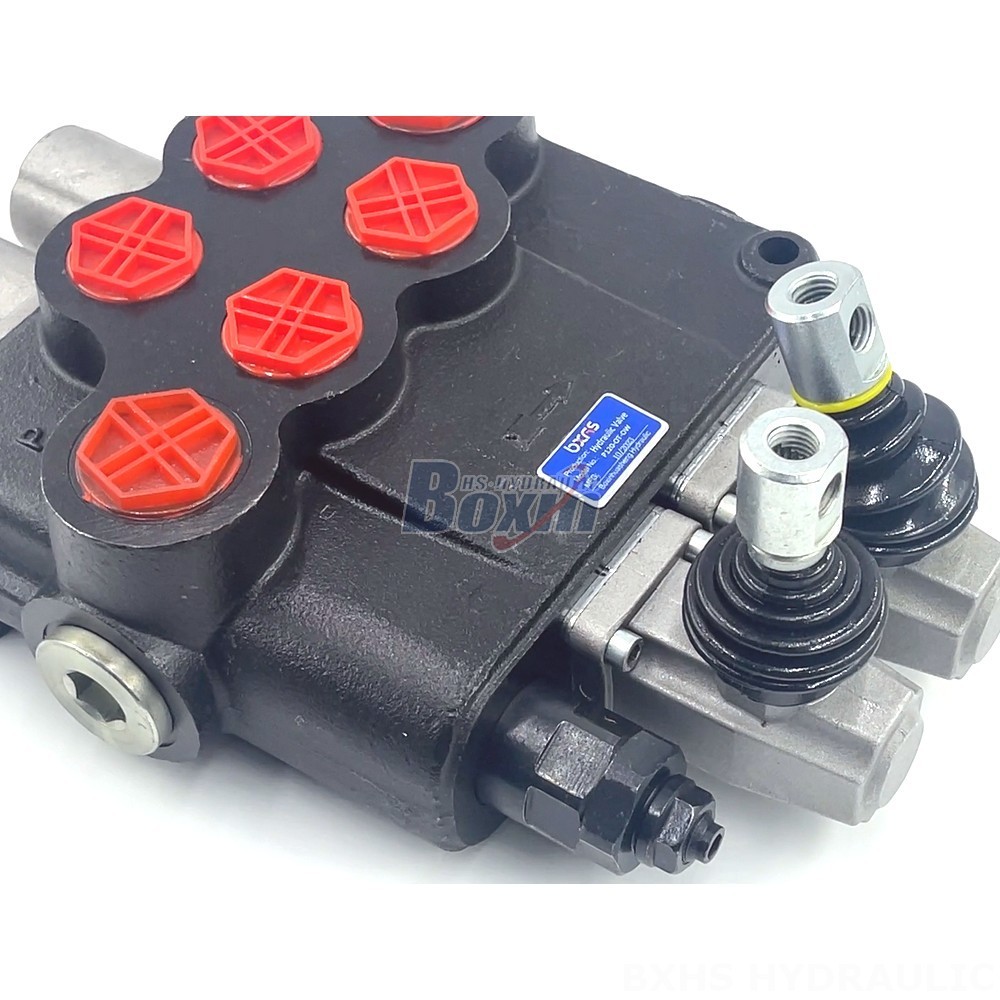

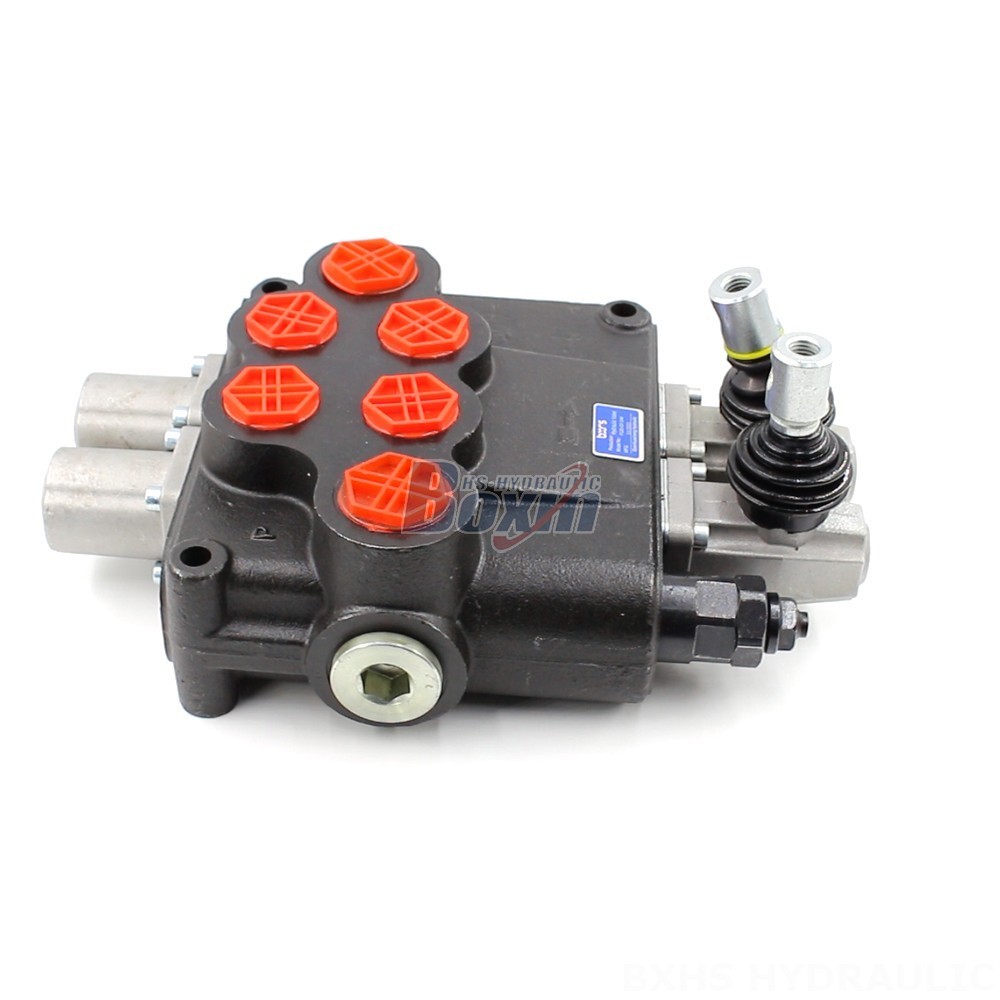

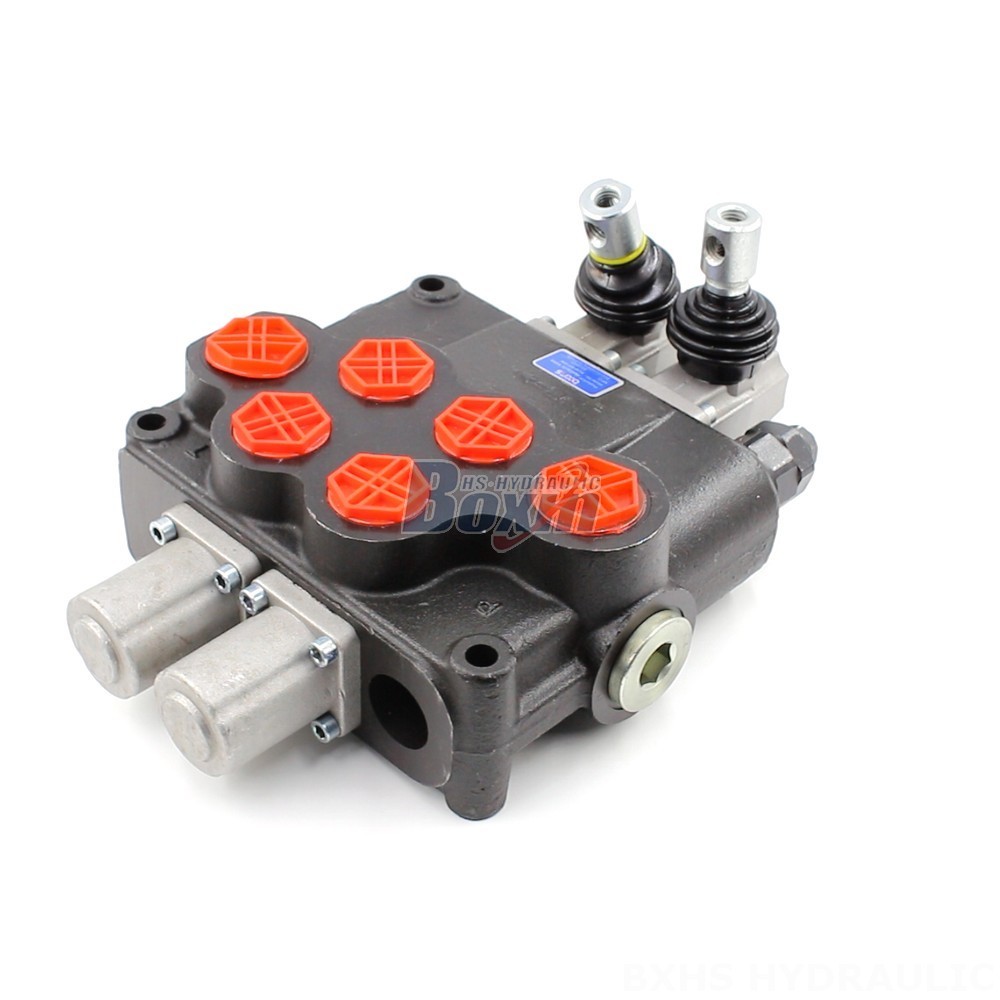

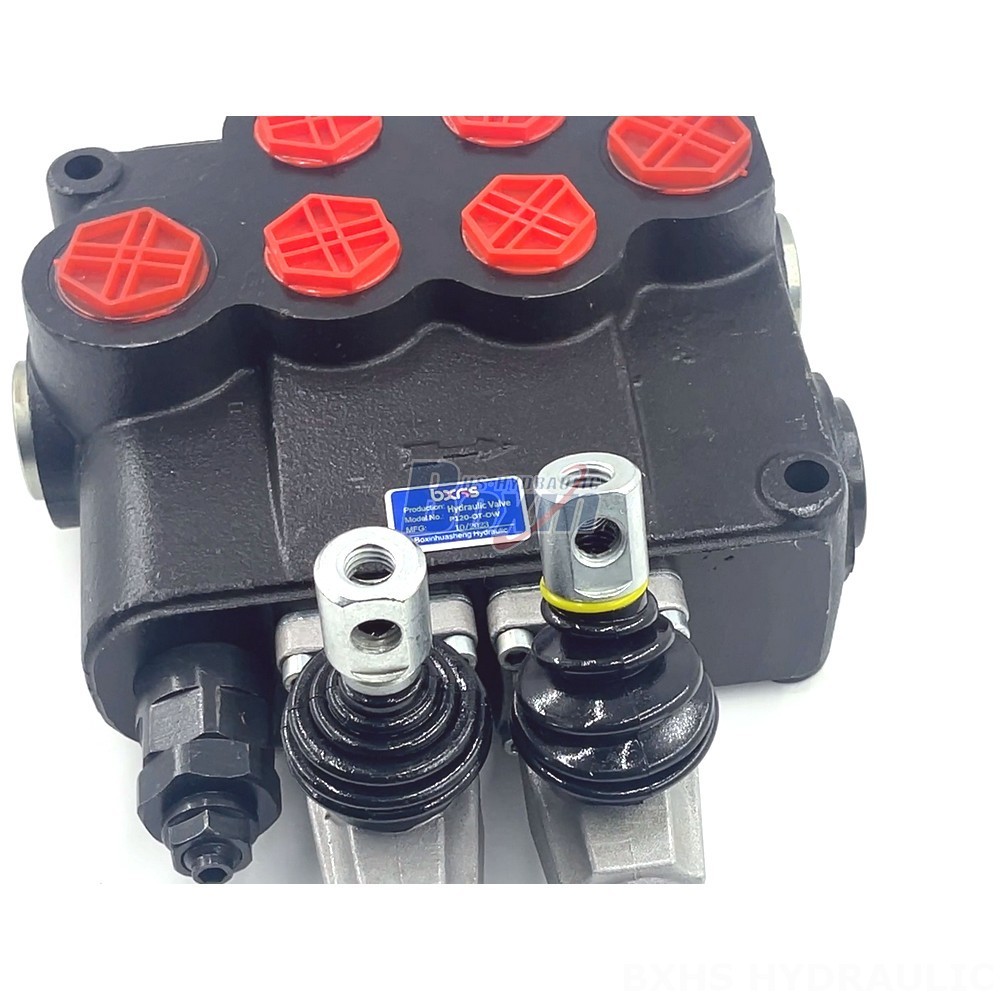

This P120 Series 12V Hydraulic Spool Valve is a 2-section, monoblock valve designed for directional control applications. It offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of machinery, including material handling, construction, agriculture, and industrial vehicles.
| P120 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen |
| Nennfluss | 120 L/min (31,7 US gpm) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Auslassanschluss | G1, SAE 16, 1 NPT, M36×2 |
| Anschlussgröße | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt |
| Strukturtyp | Monoblockventil |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
The P120 Series 12V Hydraulic Spool Valve is a reliable and durable solution for your directional control needs. This manual control valve features a 2-section, monoblock design with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosities from 15 to 75 mm²/s and can operate in ambient temperatures ranging from -40°C to +80°C. This valve is ideal for a variety of applications, including material handling equipment like telehandlers and forklifts, construction machinery such as all-terrain cranes and excavators, agricultural equipment, and industrial vehicles. With its robust construction and high performance, this P120 Series valve ensures reliable operation in demanding environments.
