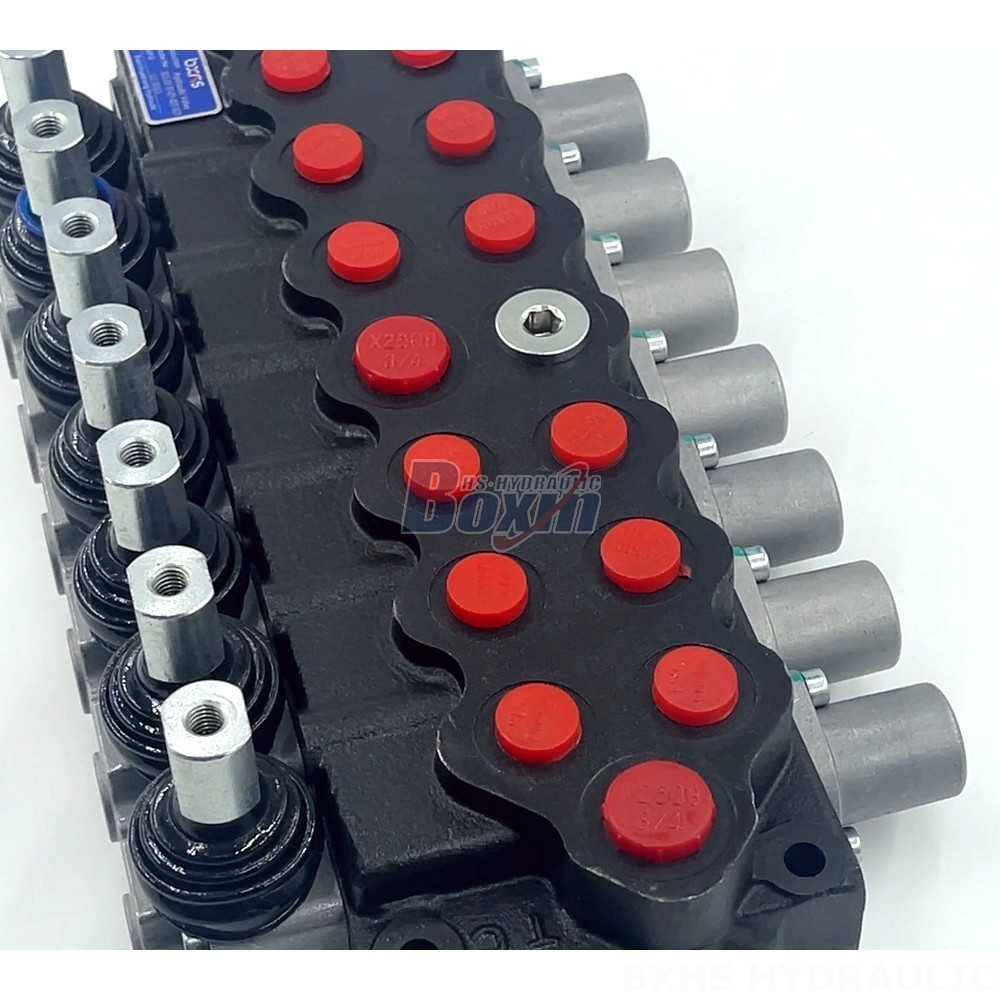

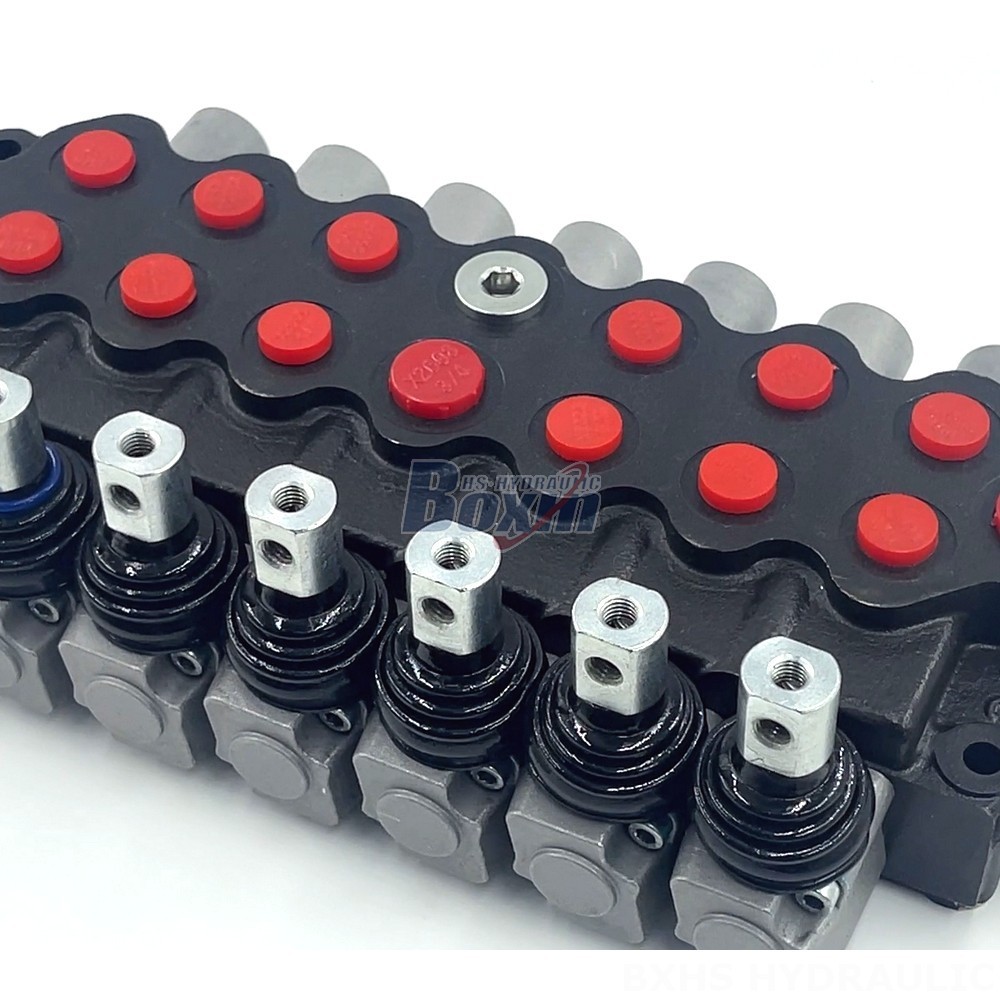

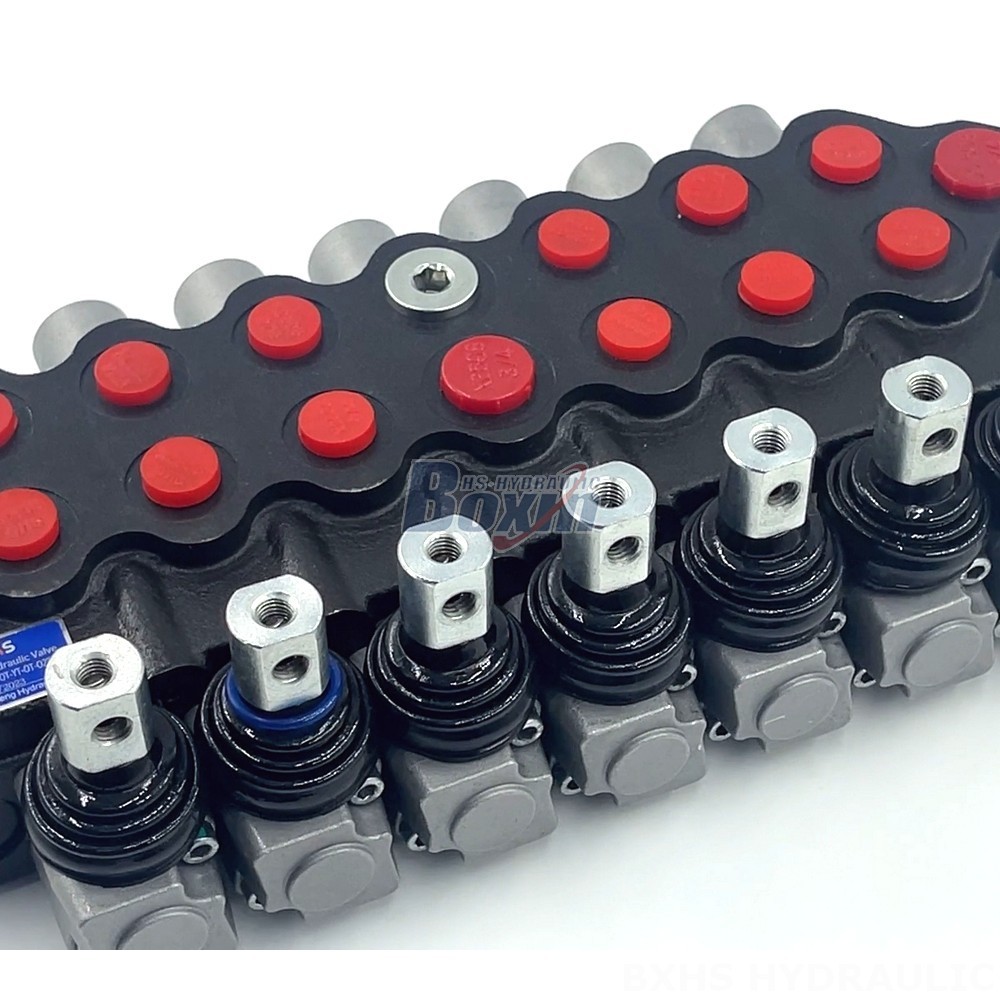

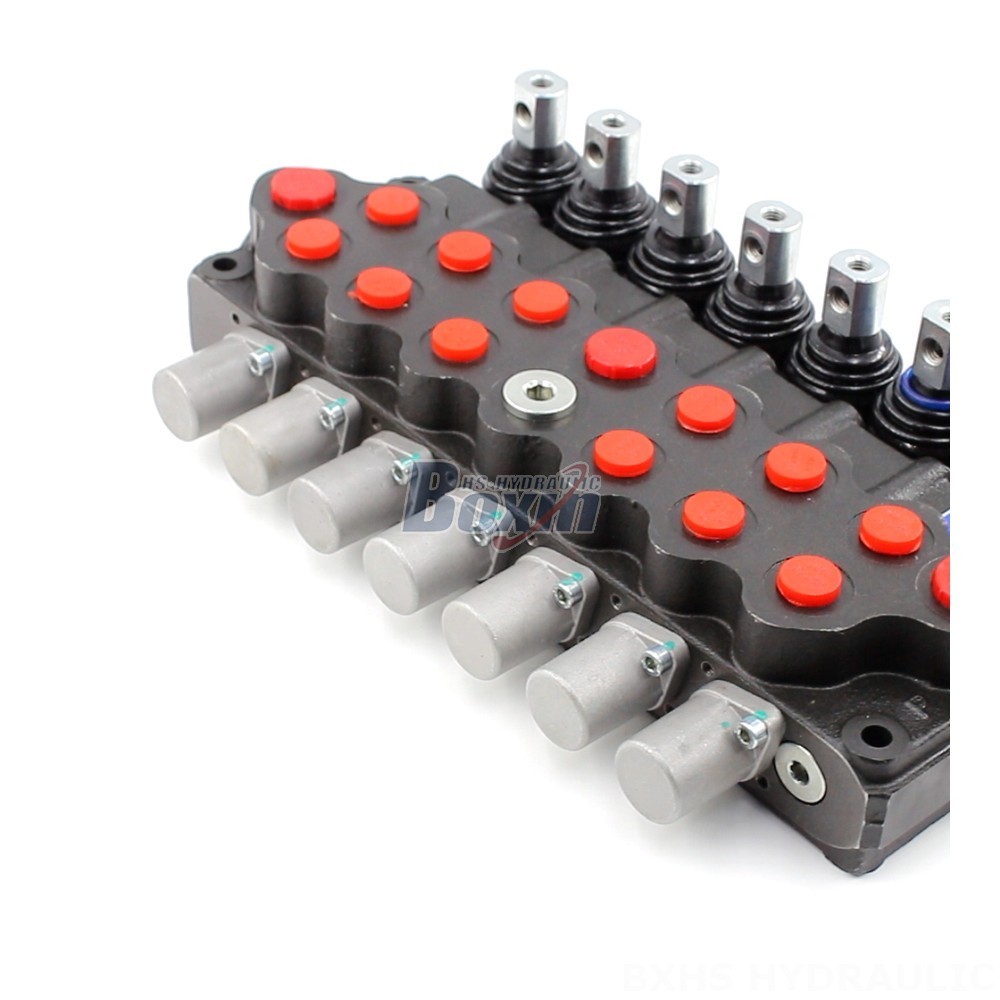

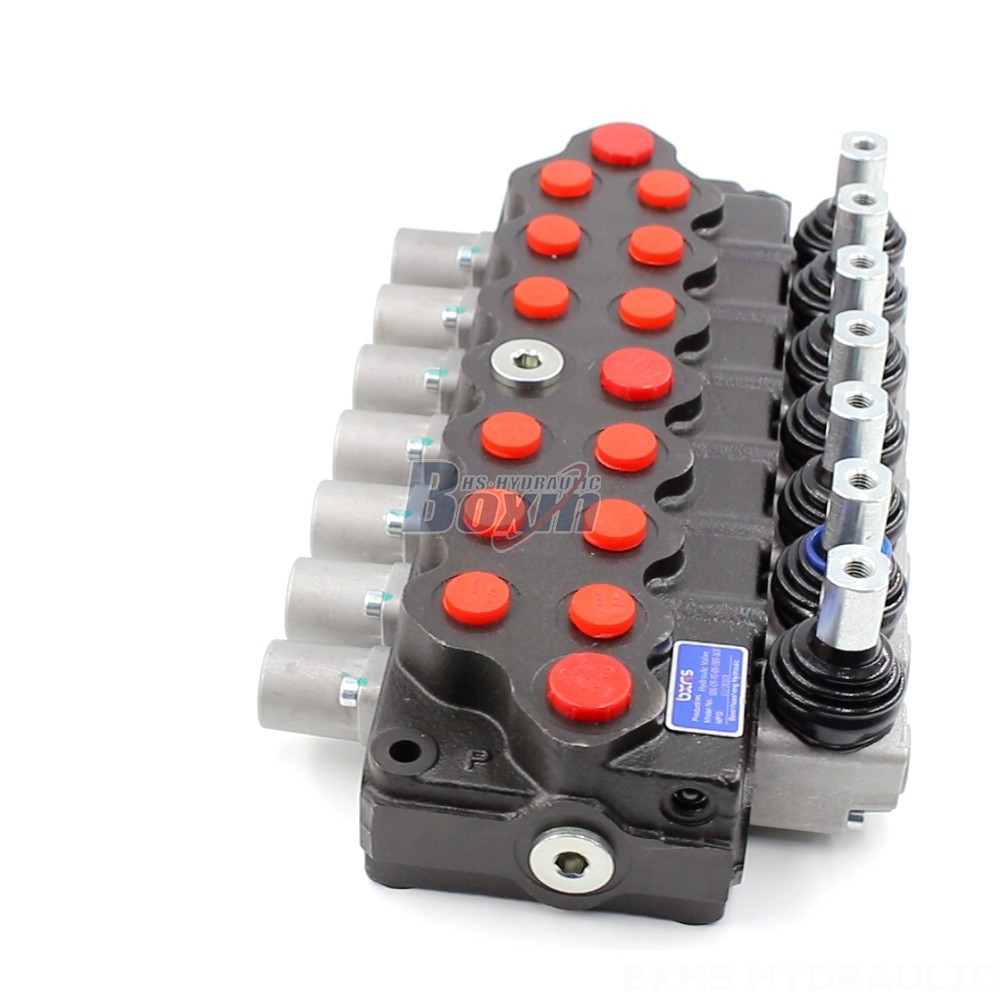

The SD5 Series Solenoid Valve is a high-performance 7-section monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 24V hydraulic valve offers reliable operation, high flow rate (40 L/min), and high pressure capacity (305 bar). It's ideal for various equipment, including telehandlers, forklifts, stackers, aerial platforms, mini excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters.
| SD5-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 305 bar (4400 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Anschlussgröße | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Solenoid Valve is a robust 7-section monoblock valve with a manual control method. It boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). Designed for demanding applications, this valve operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and withstands ambient temperatures from -40°C to +60°C (-40°F to +140°F). With its 7 spools, the SD5 Series valve delivers precise control for various hydraulic systems. It is specifically designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles. Some typical applications include telehandlers, forklifts, stackers, aerial platforms, mini excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. Its robust construction and reliable performance make it an ideal choice for demanding applications requiring high flow and pressure.
