The SD5 Solenoid Valve is a high-quality hydraulic spool valve designed for tractors and other heavy-duty equipment. It offers a reliable and efficient way to control hydraulic flow, providing smooth operation and long service life. This valve is available in a variety of configurations to meet your specific application requirements.
| SD5-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 305 bar (4400 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Anschlussgröße | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

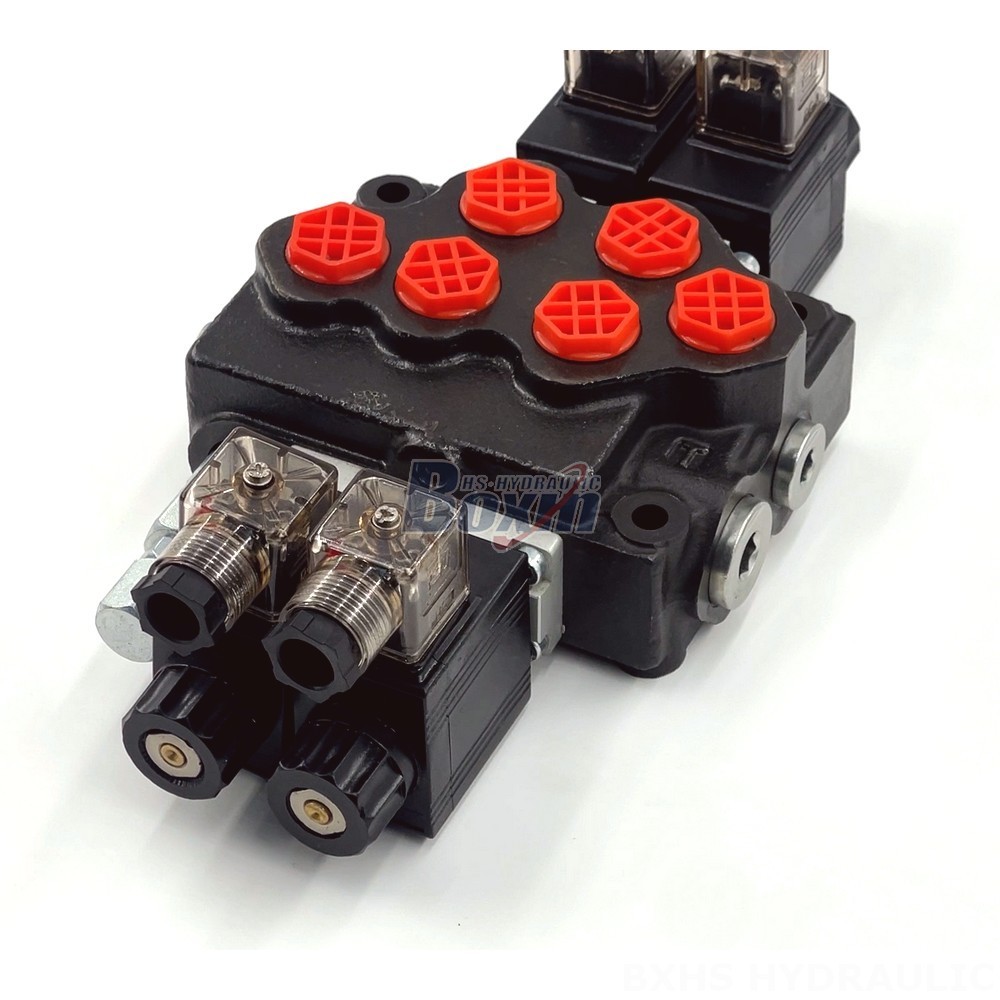

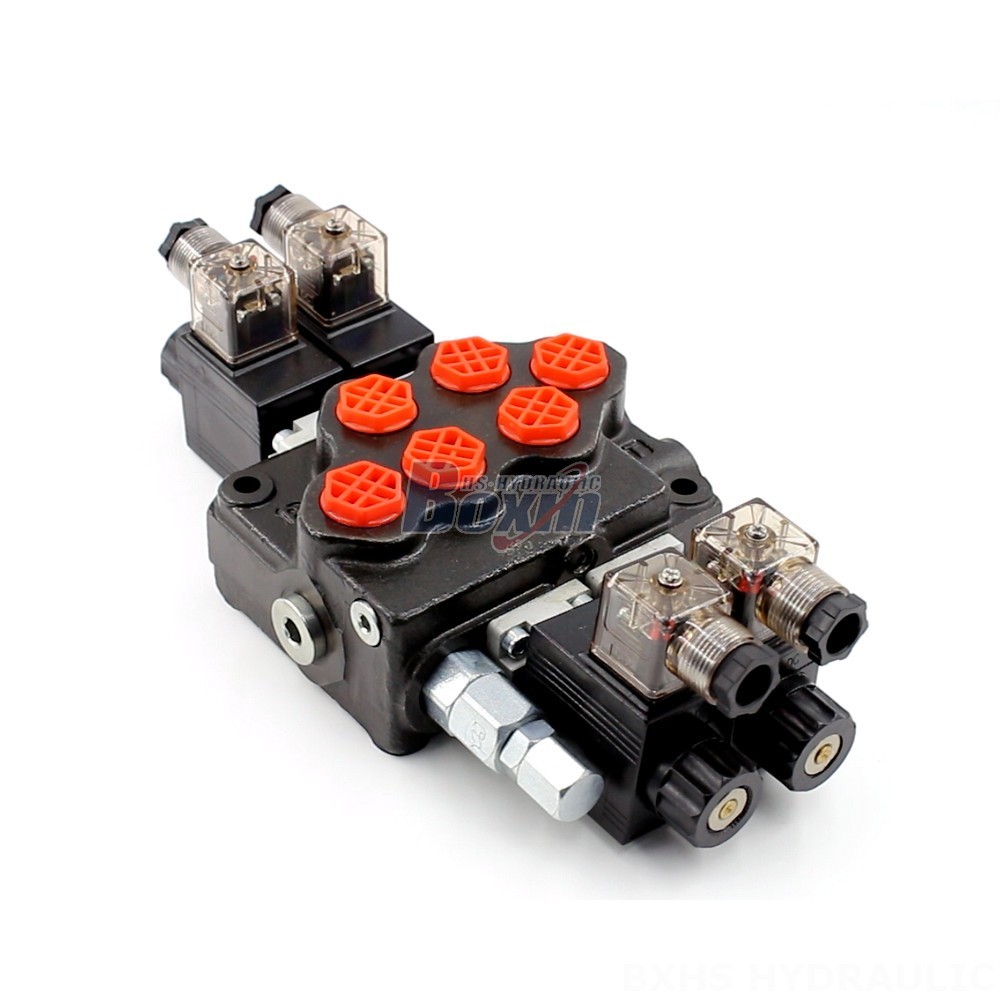

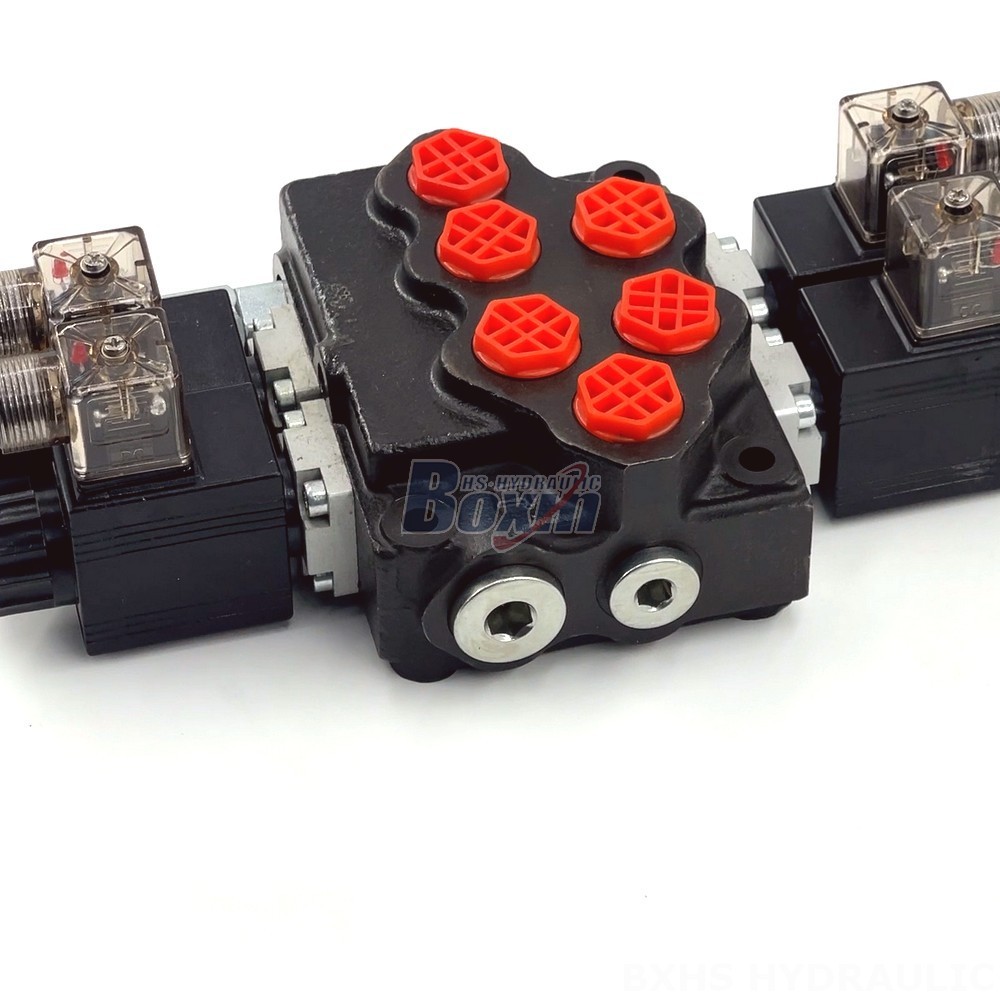

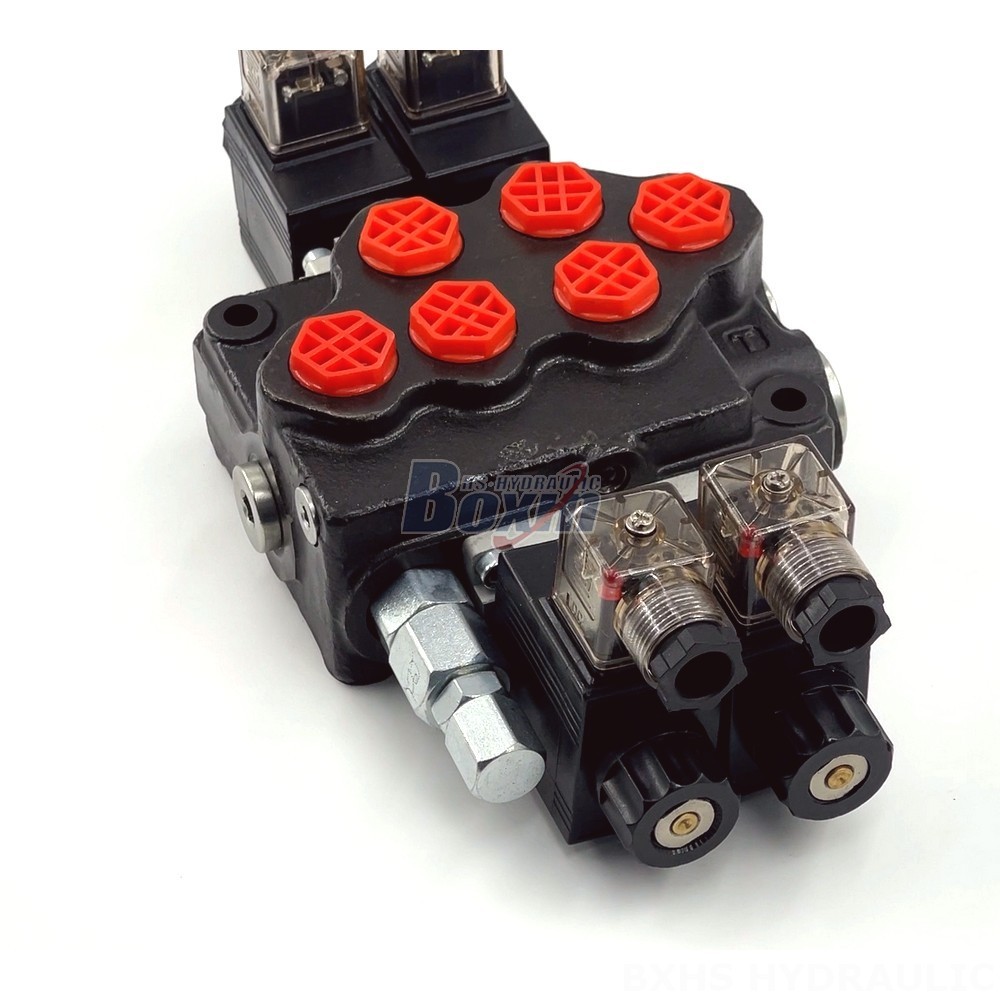

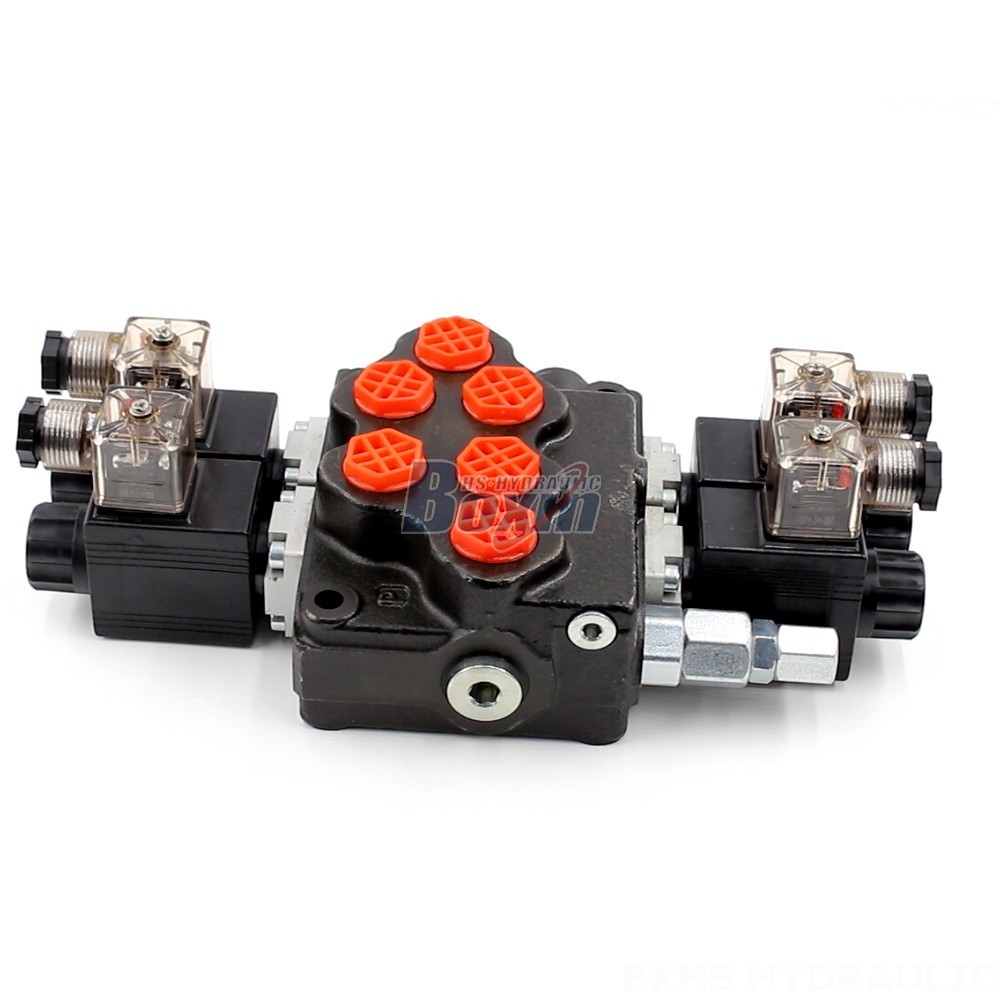

The SD5 Series Solenoid Valve is a high-performance hydraulic valve manufactured for tractors and other heavy-duty machinery. This 2-section monoblock valve is built to withstand demanding conditions with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve features a solenoid control method, offering precise and responsive operation. It is suitable for a wide range of applications, including material handling, construction and earthmoving, agriculture, and industrial vehicles. We are a manufacturer, offering factory supply, factory wholesale, and customized options to meet your specific needs. Our commitment to quality and customer satisfaction ensures that you receive a reliable and durable product that exceeds your expectations.
