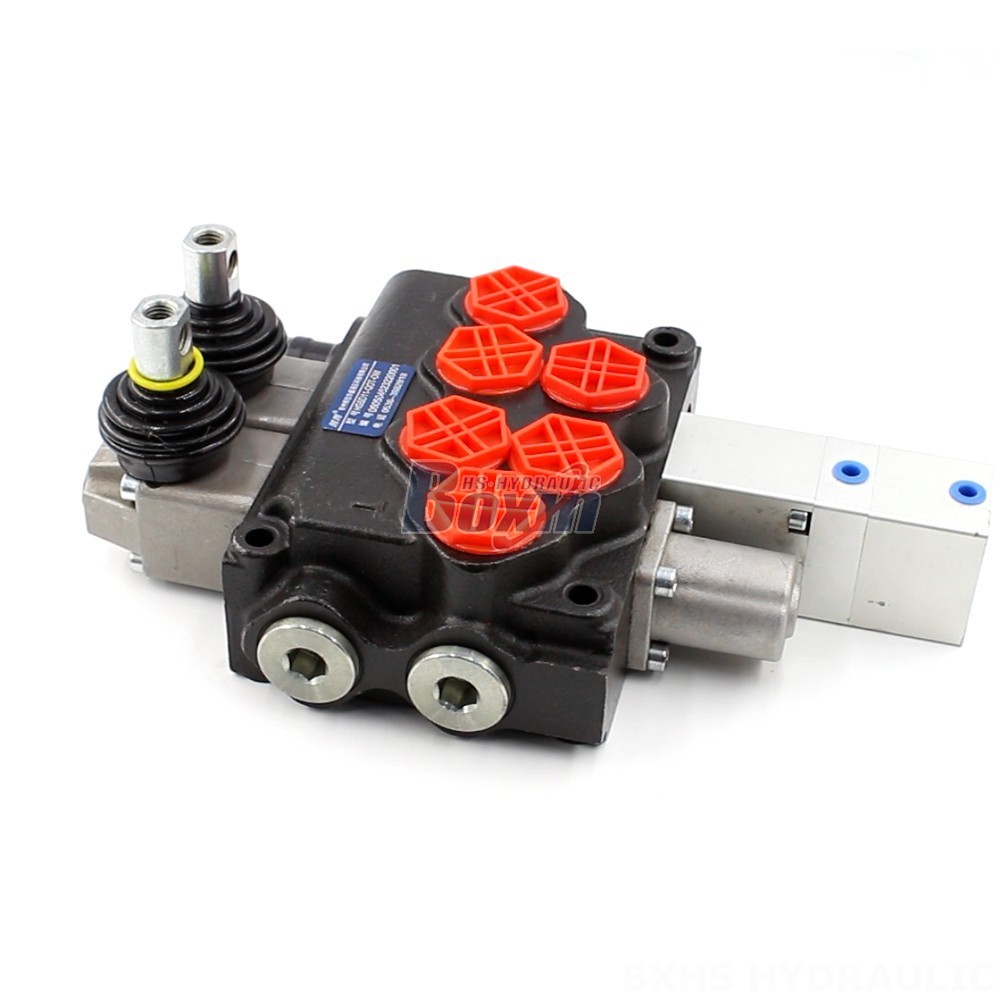

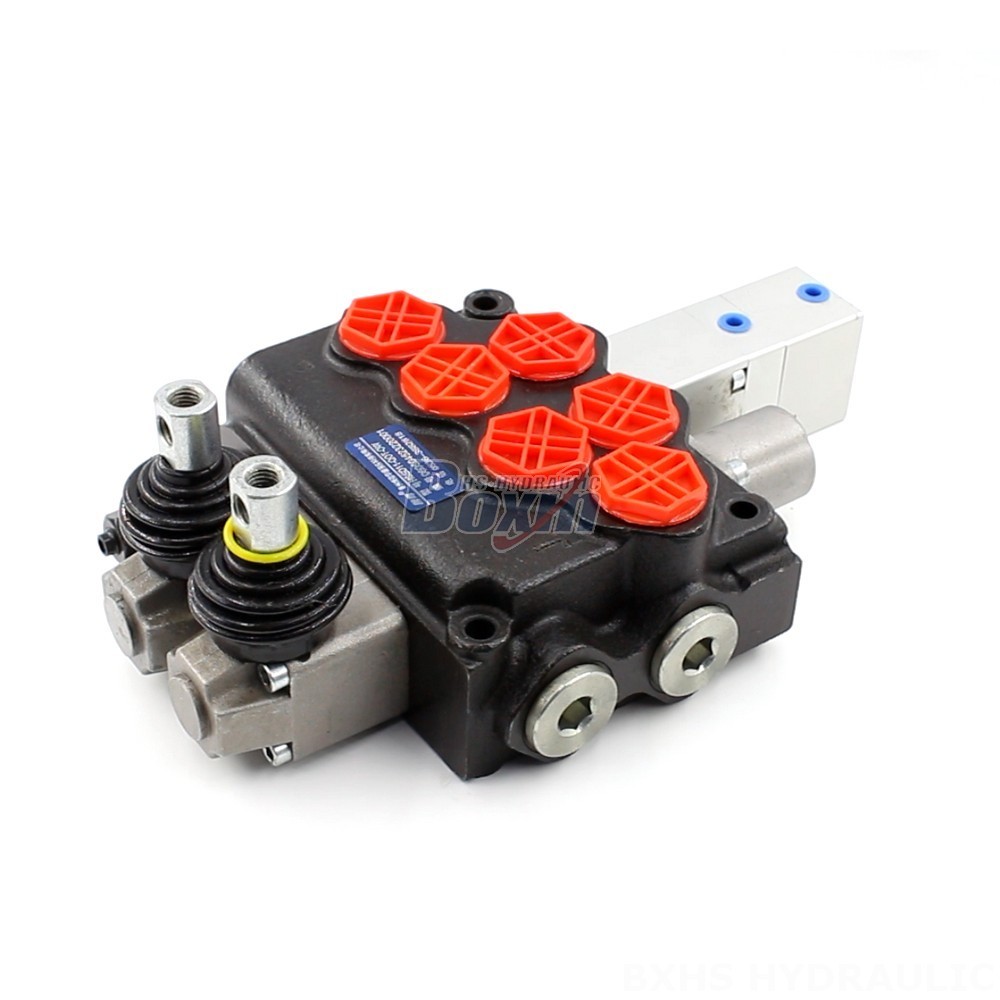

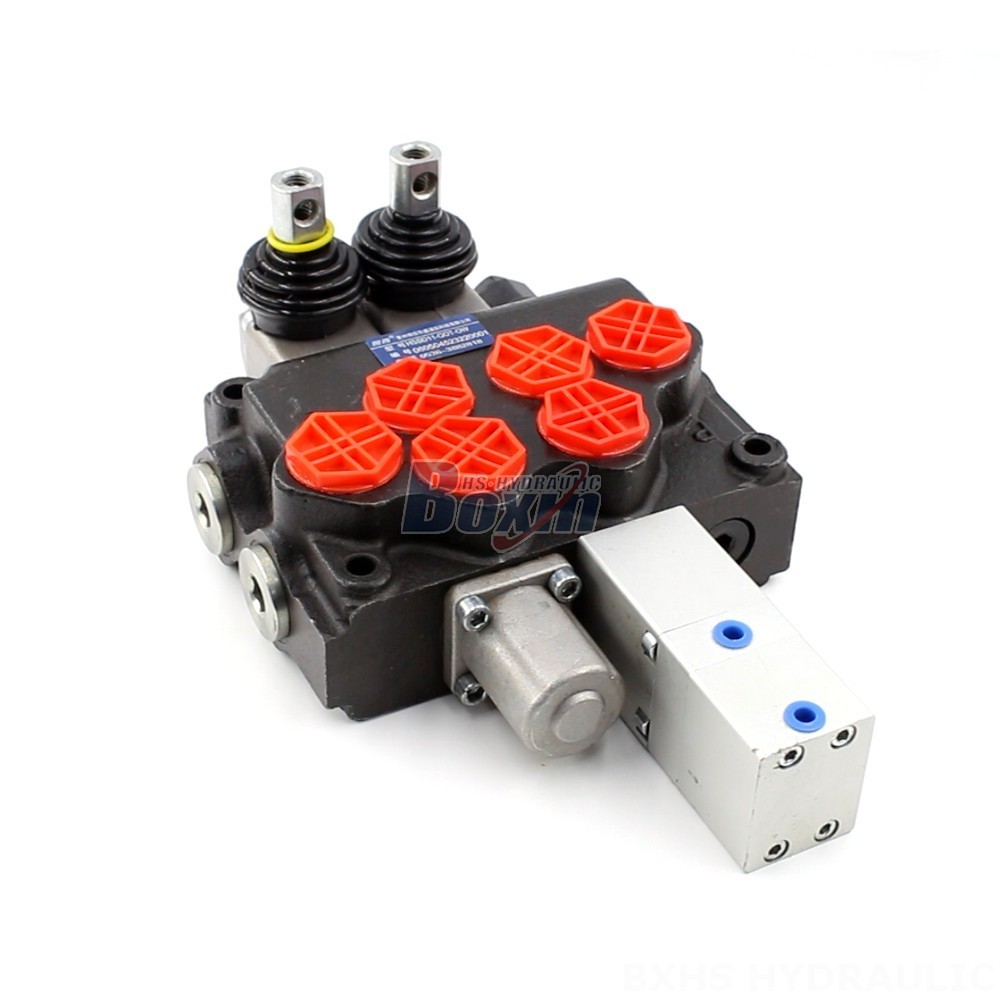

Introducing the SD11 Valve, a high-performance hydraulic valve from our manufacturing facility. This valve is designed for global distribution, wholesale, and customized applications, and it meets the highest standards of quality and reliability. With a rated flow of 70 L/min (18.5 US gpm) and a maximum pressure of 250 bar (3600 psi), the SD11 is suitable for a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Serie SD11 Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Elektrisch, Pneumatisch und manuell |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 70 l/min (18,5 US gal/min) |
| Maximaldruck | 305 bar (4400 psi), 315 bar (4600 psi) |
| Einlassanschluss | G3/4, SAE 12 |
| Auslassanschluss | G3/4, SAE 12 |
| Anschlussgröße | G3/4, SAE 12 |
The SD11 Valve features a manual control method and a monoblock valve structure. It operates in an ambient temperature range of -40°C to +60°C (-40°F to +140°F) and has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). The valve comes with 1 spool and is part of the SD11 Series. It is applicable to various models, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dump trucks, face drill rigs, concrete boom pumps, pave rollers, rotary drilling, crushers, stone cutters, screeners, and tractors with front-end loaders.
