Solenoid Hydraulic Valve | P40-DKL | Contact Us for Specifications

Steuermethode:Magnet

Steuerkolben:3 Spulen

Nennfluss:40 l/min (10,5 US gal/min)

Maximaldruck:250 bar (3600 psi)

Einlassanschluss:G1/2

Auslassanschluss:G1/2

Anschlussgröße:G3/8

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:P40-DKL-Serie Monoblock-Wegeventil

Verpackungsgröße:31*21*17

Bruttogewicht:9.00 kg

Verfügbarkeit: Auf Lager

1298 Personen sehen sich dieses Produkt an

Solenoid Hydraulic Valve | P40-DKL | Contact Us for Specifications

Solenoid Hydraulic Valve | P40-DKL | Contact Us for Specifications

Solenoid Hydraulic Valve | P40-DKL | Contact Us for Specifications drawing image

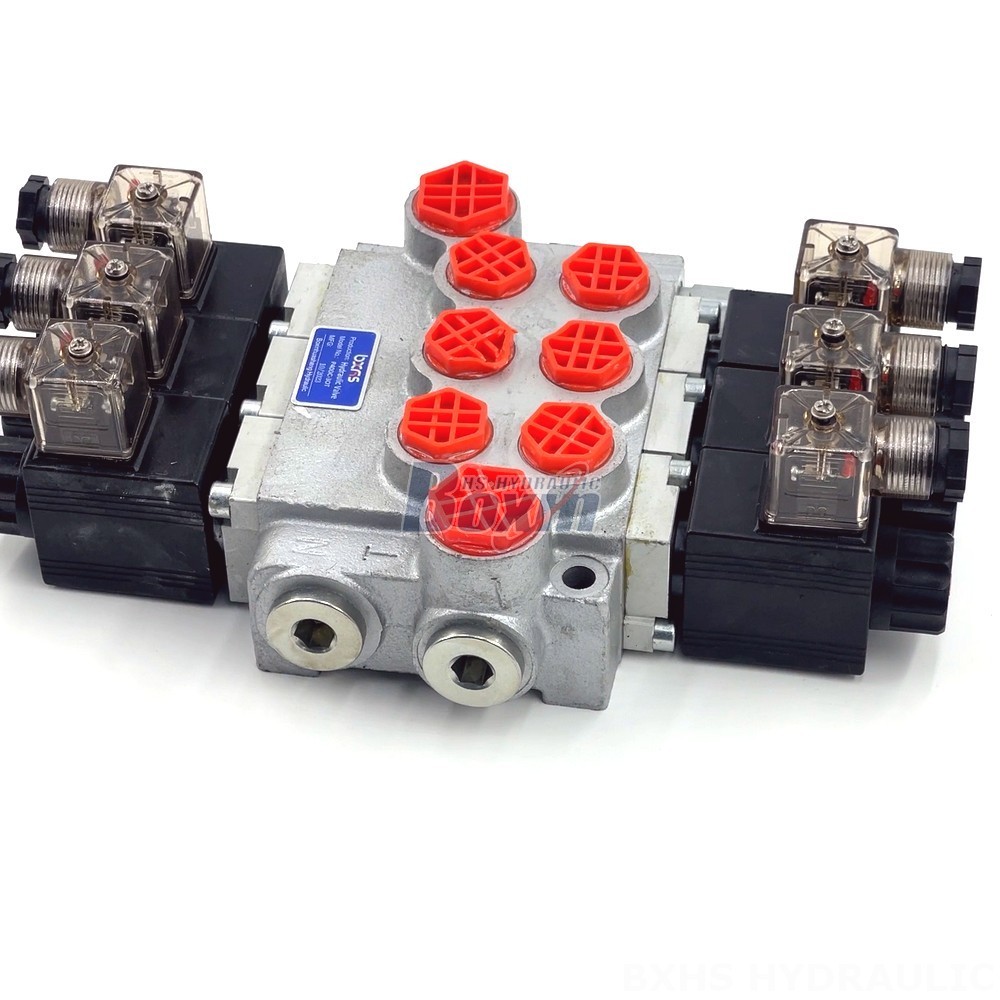

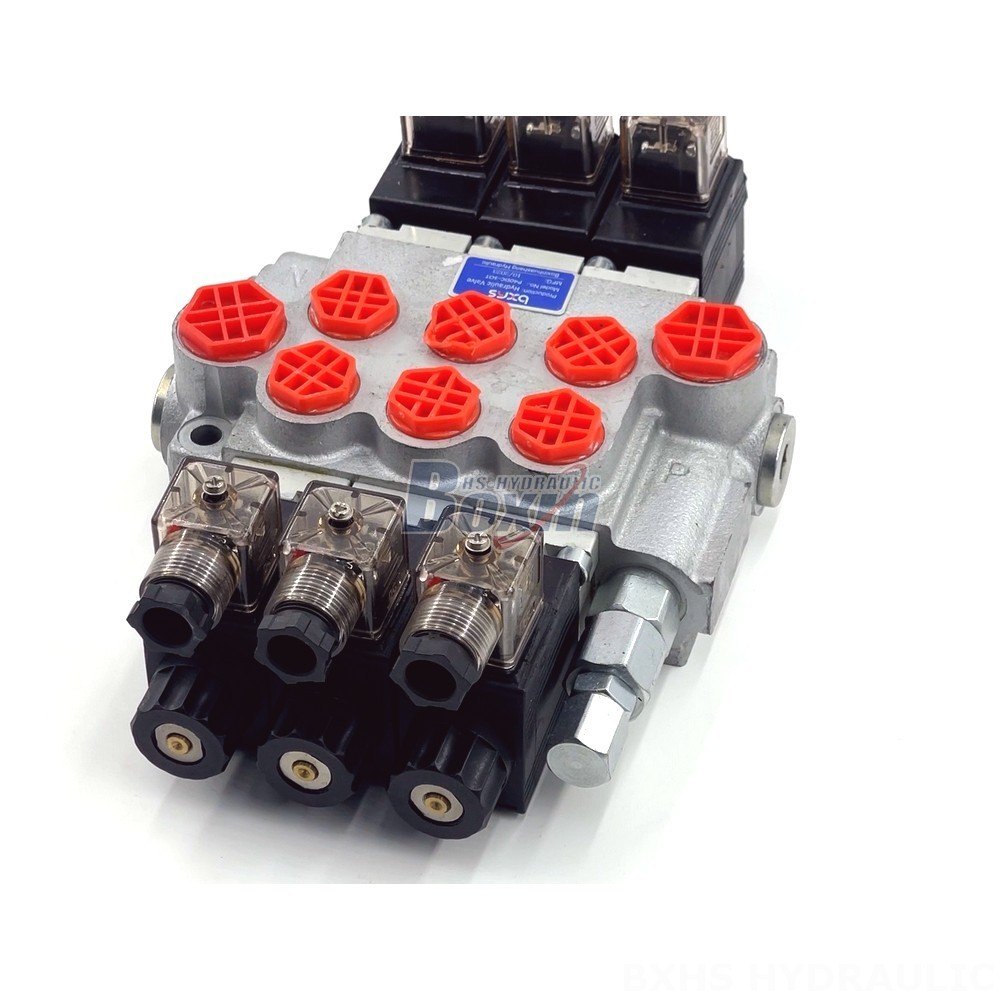

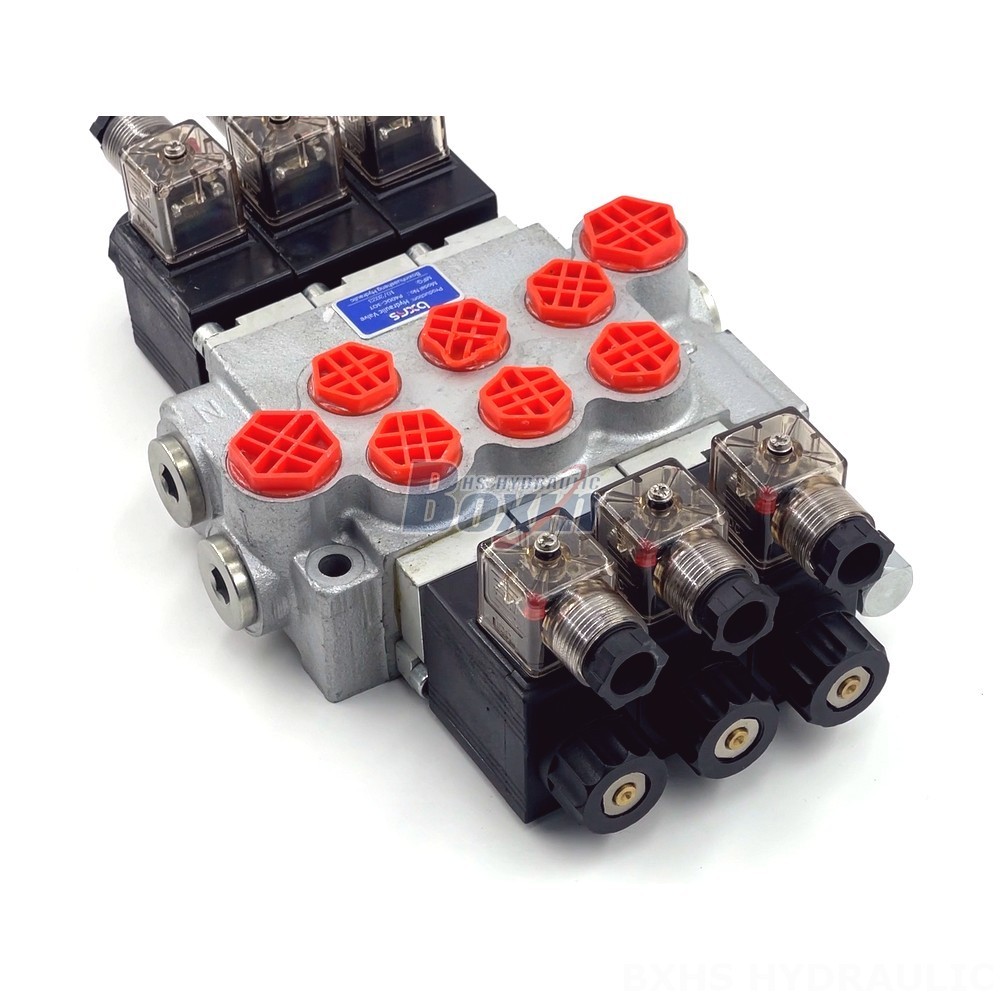

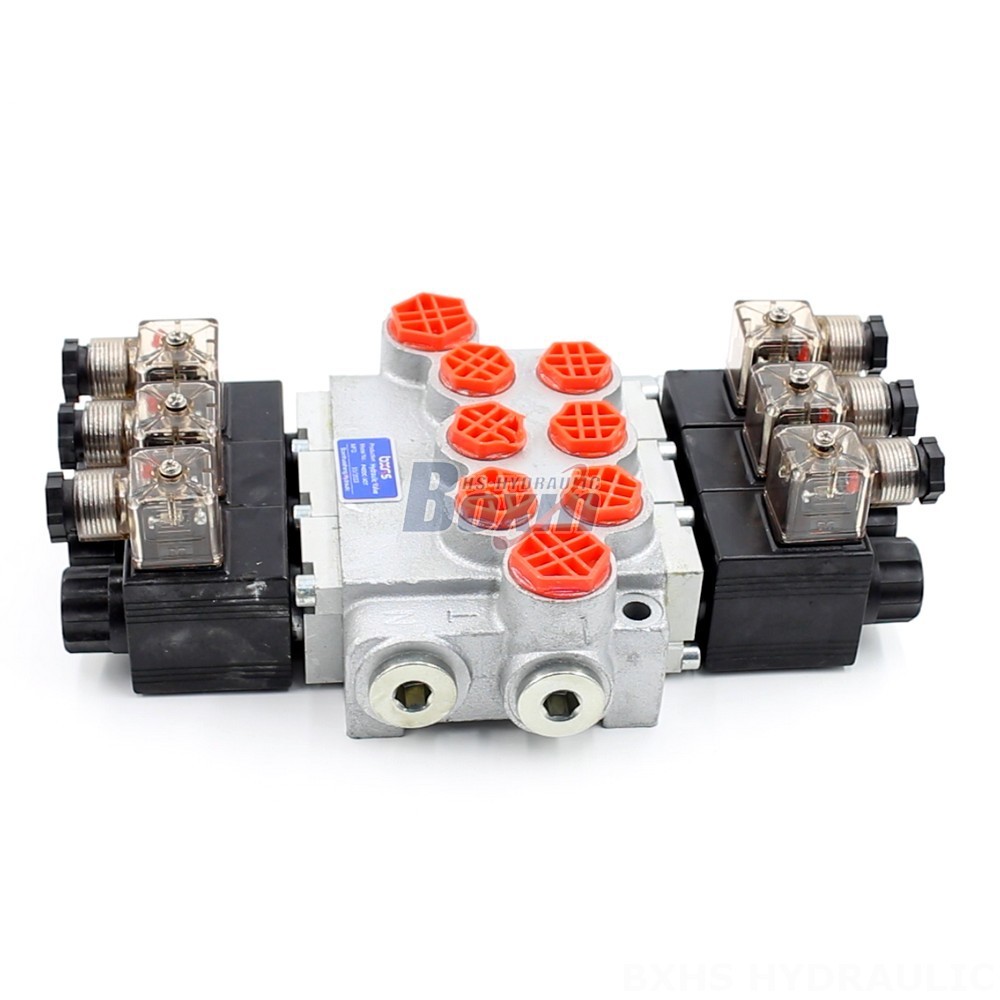

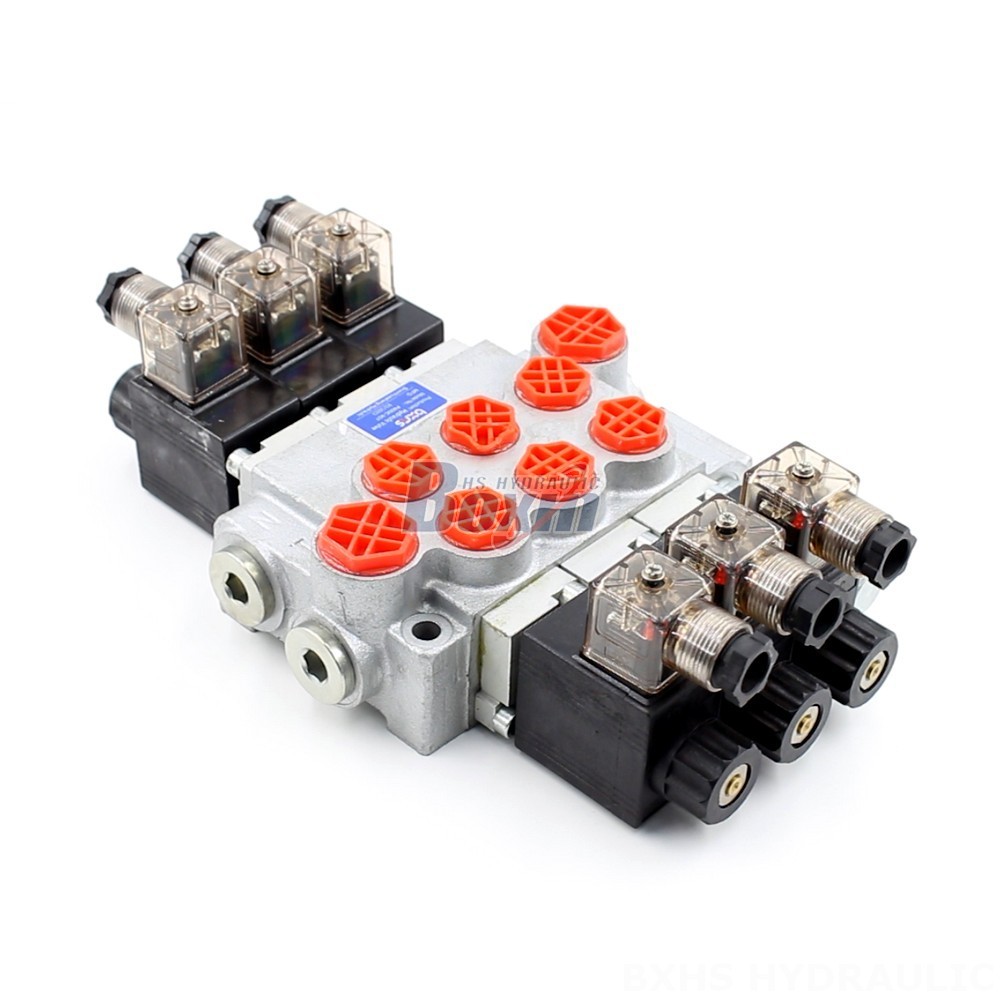

The P40-DKL series is a 3-section monoblock solenoid valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve is ideal for controlling hydraulic actuators in a variety of equipment, including telehandlers, forklifts, and excavators.

P40-DKL-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Nennfluss 40 l/min (10,5 US gal/min)
Maximaldruck 250 bar (3600 psi)
Einlassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Auslassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Anschlussgröße G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Strukturtyp Monoblockventil
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)

This P40-DKL series tractor 3-point control valve features a solenoid actuation method for precise control of hydraulic functions. Its 3-section design provides separate control of multiple hydraulic circuits. The valve is constructed with a robust monoblock design, ensuring long-lasting durability in demanding applications. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve is suitable for a wide range of equipment in industries such as material handling, construction, and agriculture. The P40-DKL series is compatible with a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
