Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

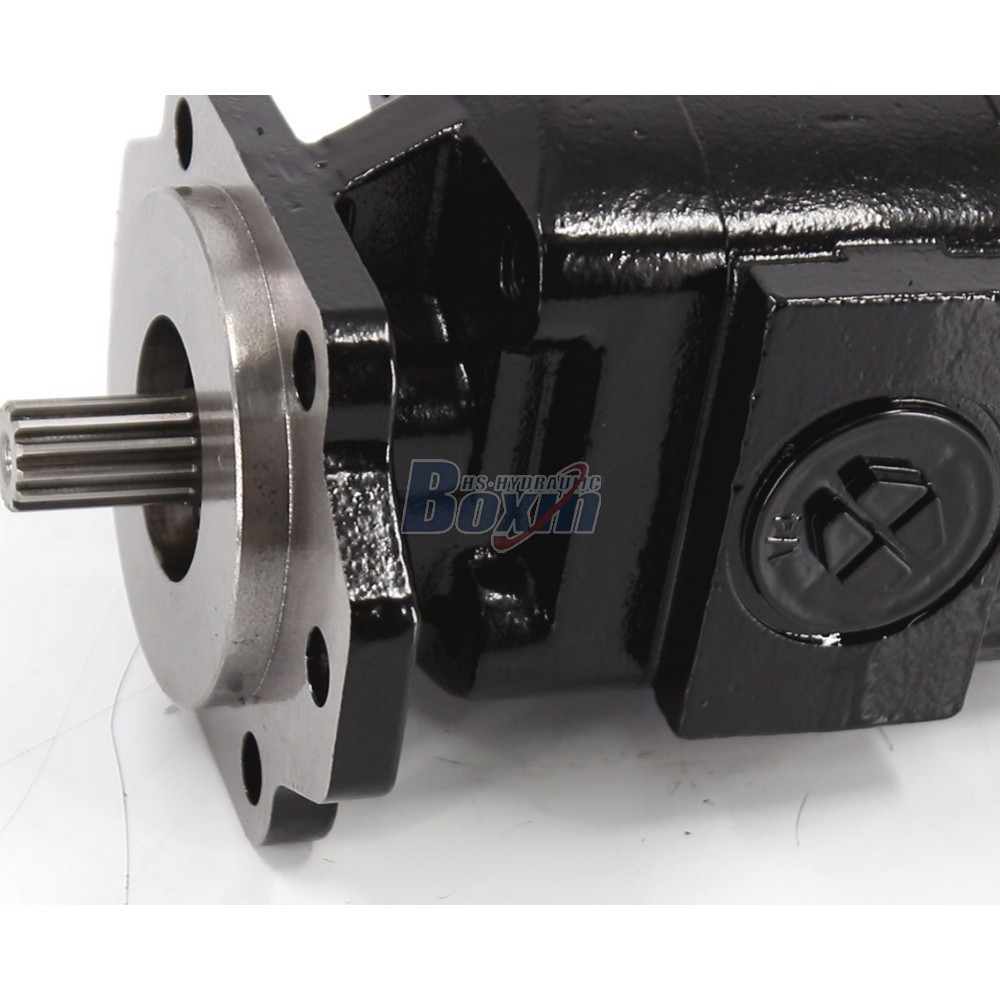

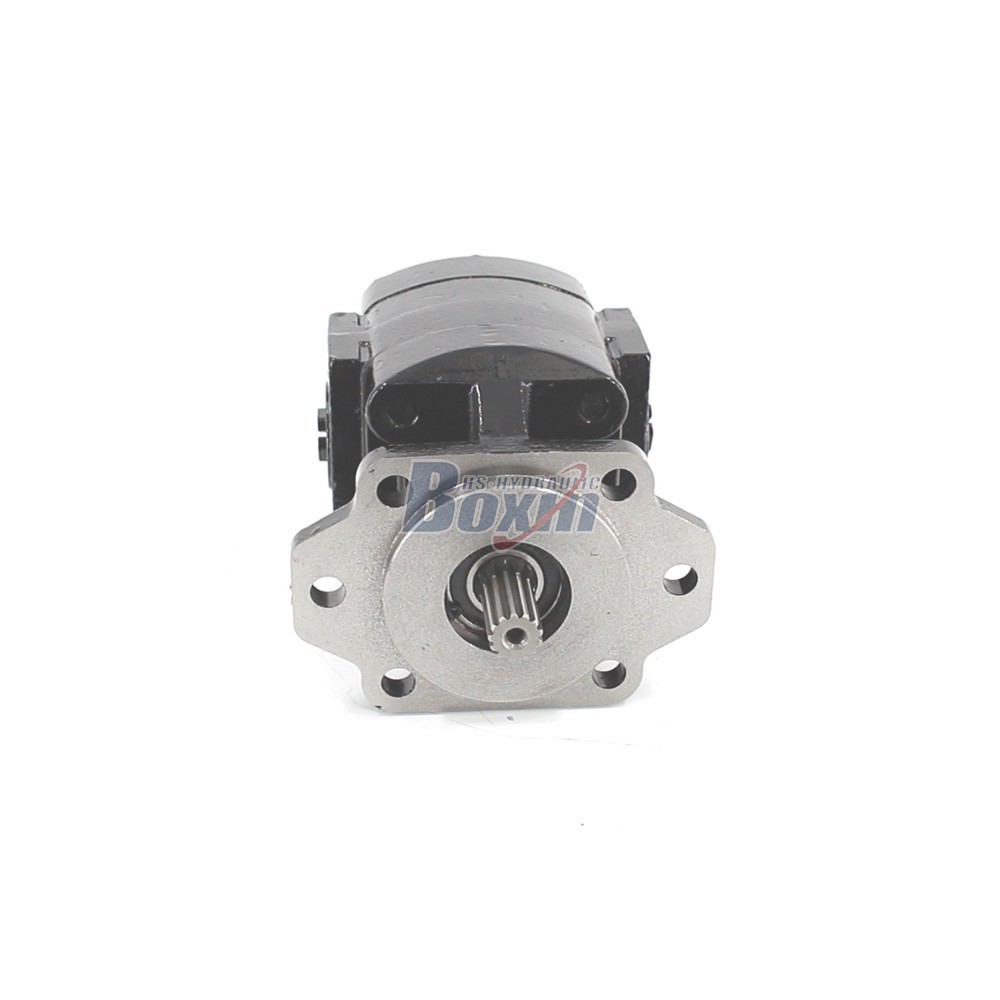

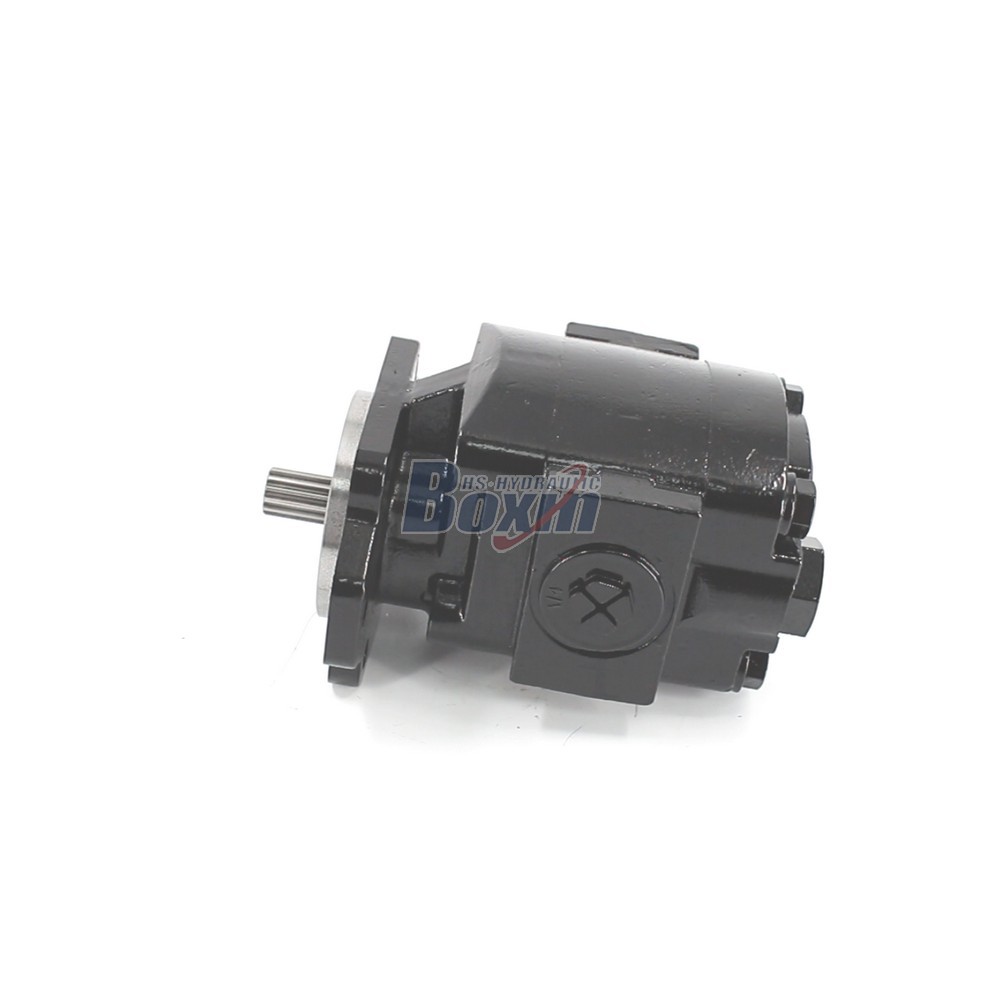

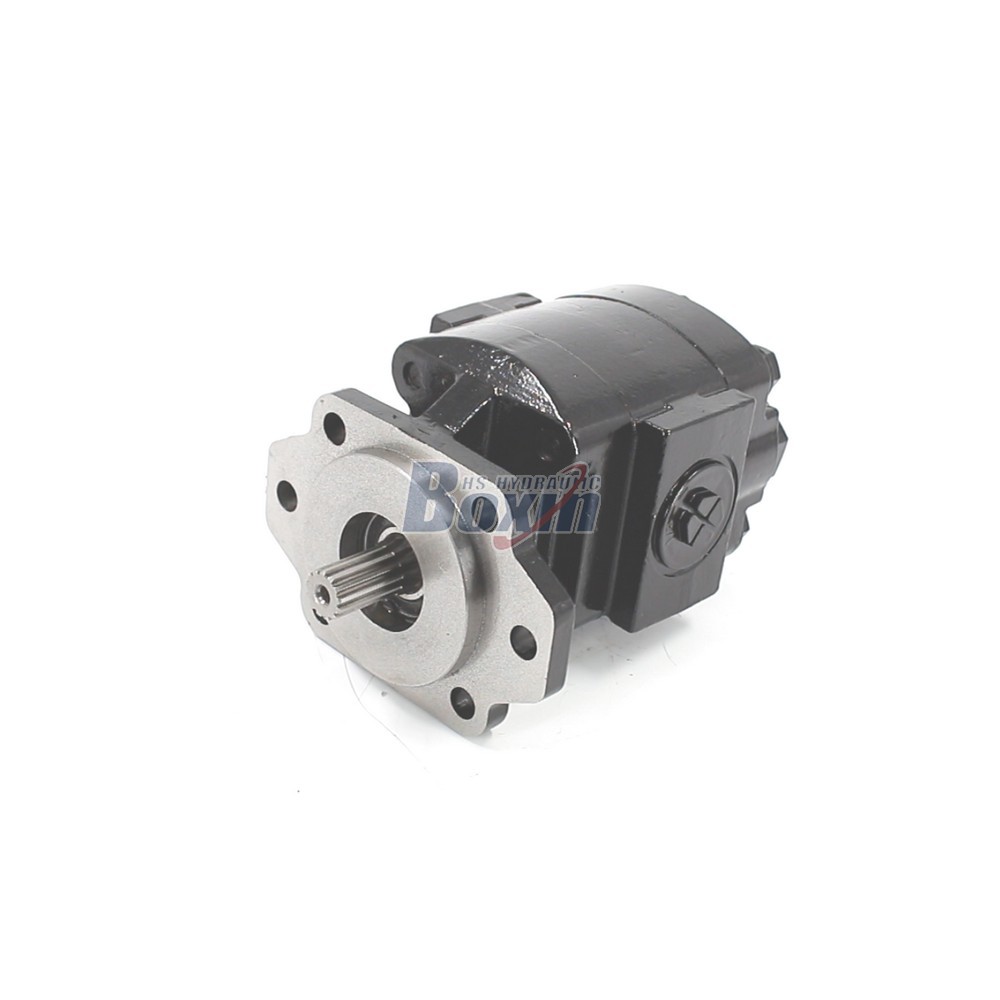

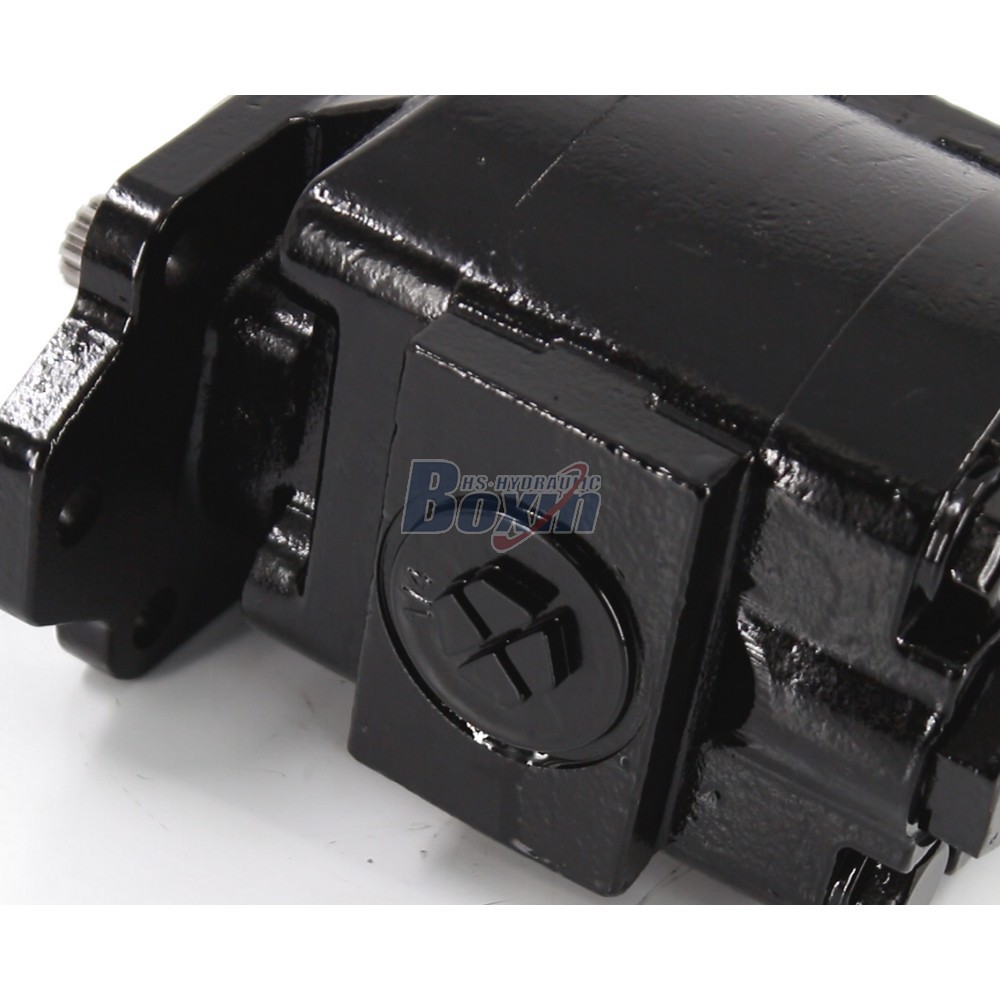

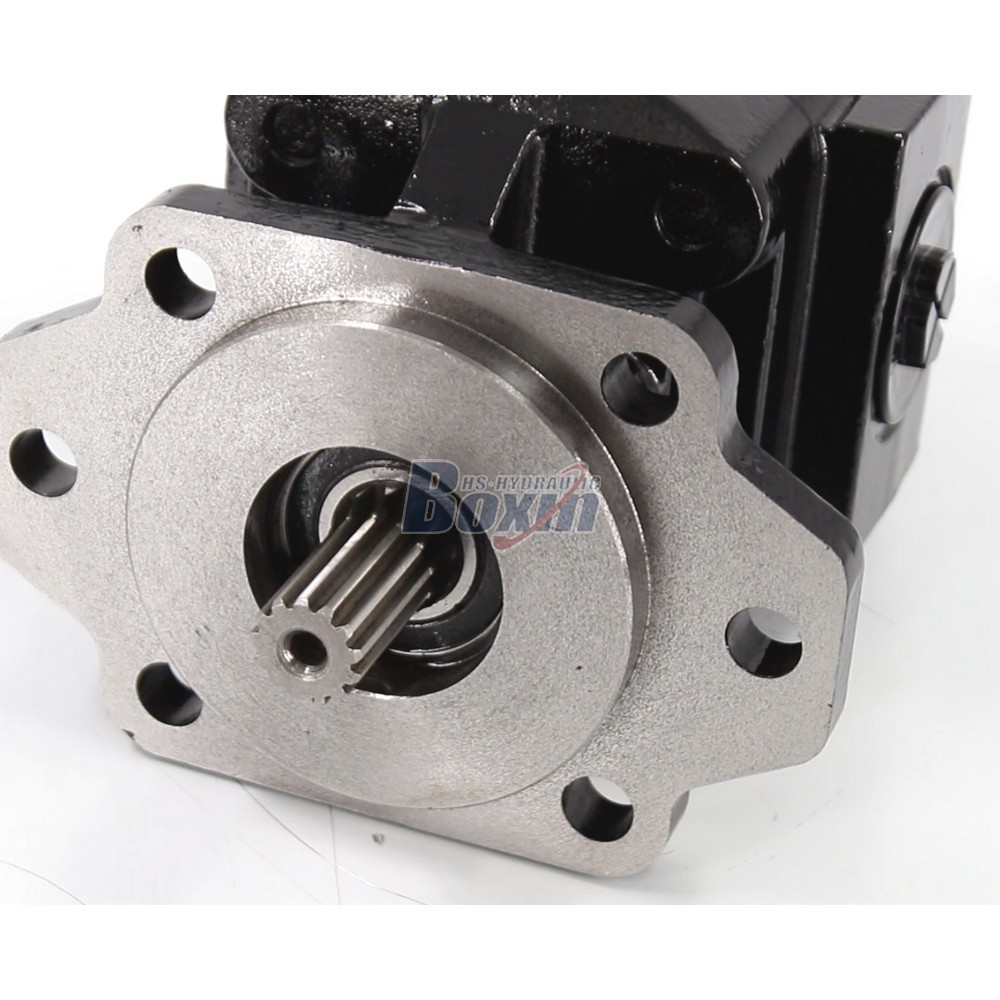

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for wheel loaders and excavators. Manufactured by a 25-year IATF 16949 certified factory with 1.5M annual capacity, it ensures reliable performance for construction and agricultural machinery.
| P21-Serie Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 64,6 cm³/U |
| Nenndruck | 16 MPa (2320 psi) |
| Maximaldruck | 17 MPa (2465 psi) |
| Nenndrehzahl | 600 U/min |
| Maximaldrehzahl | 2400 U/min |
| Drehrichtung | Bidirektional |
| Material | Gusseisen |
| Struktur | Außenverzahnte Pumpe |
| Flanschversion | A-Ovalflansch, B-Vierkantflansch, ISO-4-Befestigungslöcher, UNI-3-Befestigungslöcher, SAE-Flansch |
| Wellentyp | X: Evolventenverzahnte Keilwelle |
**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise 64.6 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa.
- Supports bidirectional rotation at speeds up to 2400 r/min, ensuring versatile integration into complex hydraulic systems.
**2. Professional Manufacturer with IATF 16949 Certification**
- Backed by 25+ years of expertise, 4 modern factories, and 260+ CNC machining centers for consistent quality.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, guaranteed by CE and SGS certifications.
**3. Versatile P21 Series Gear Pump Applications**
- Specifically engineered for heavy-duty equipment including wheel loaders, backhoes, skid steers, and forklifts.
- Perfectly compatible with major international brands, offering a cost-effective replacement solution for OEMs and distributors.
**4. OEM/ODM Available for Custom Branding**
- Supported by 35+ senior engineers, we offer tailored solutions including custom castings, logos, and private label services.
- Flexible manufacturing allows for specific port configurations and mounting flanges to meet unique project requirements.
**5. Factory Direct Sales with Global Logistics**
- Benefit from wholesale direct sales pricing with an annual production capacity of 1,500,000 units for fast lead times.
- Products are secured with anti-rust treatment and heavy-duty wooden crate packaging, ensuring safe worldwide delivery.
