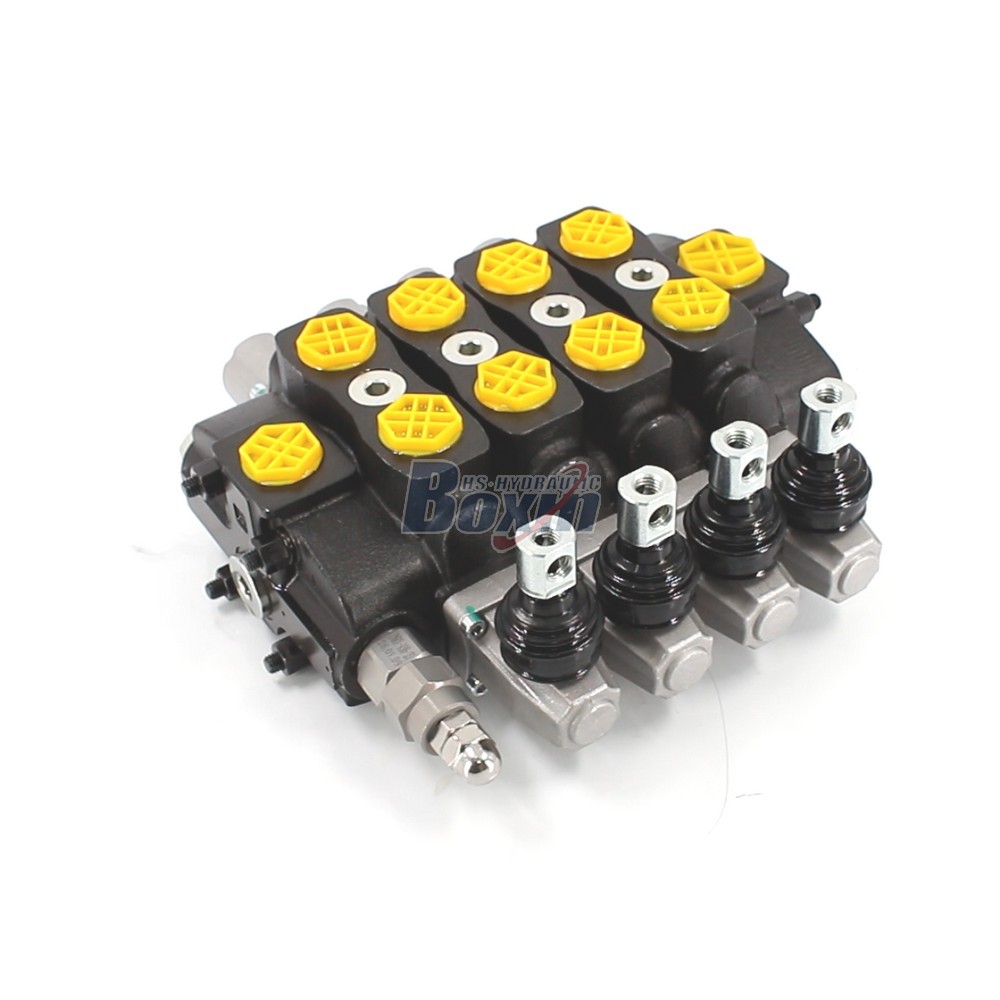

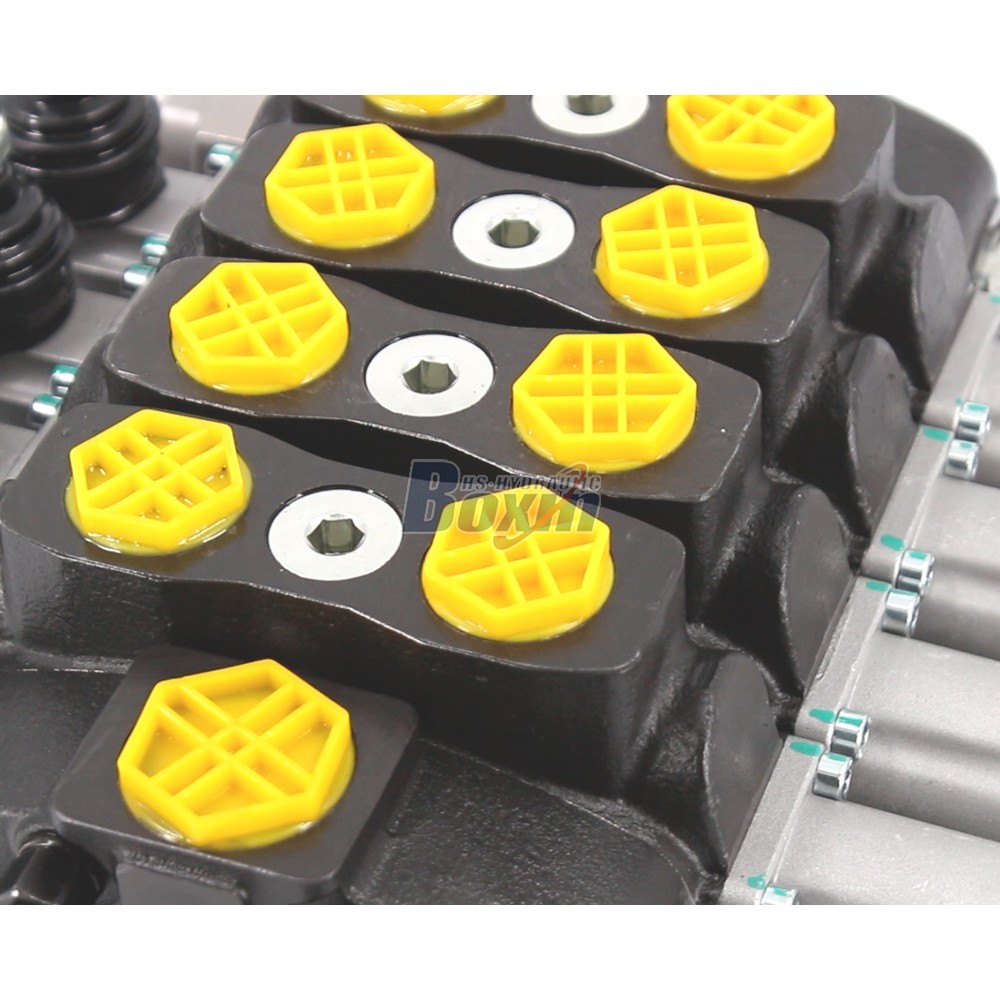

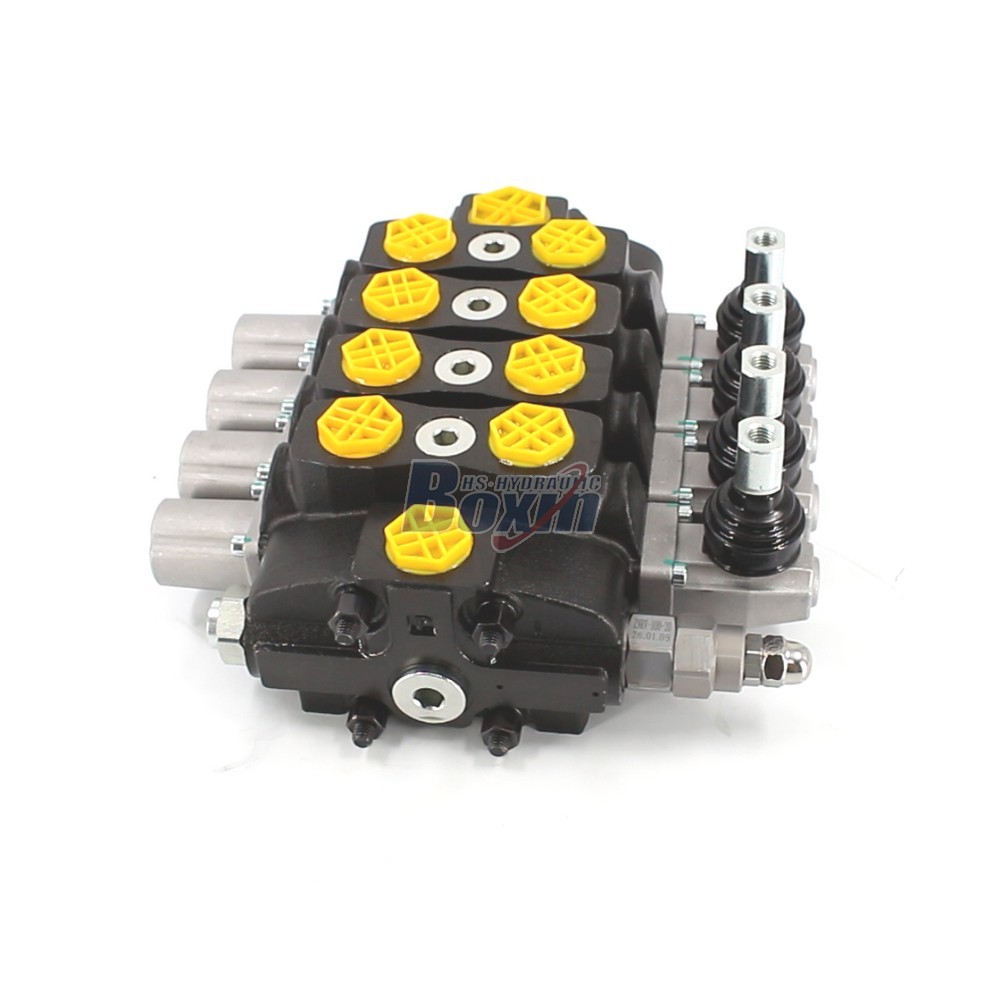

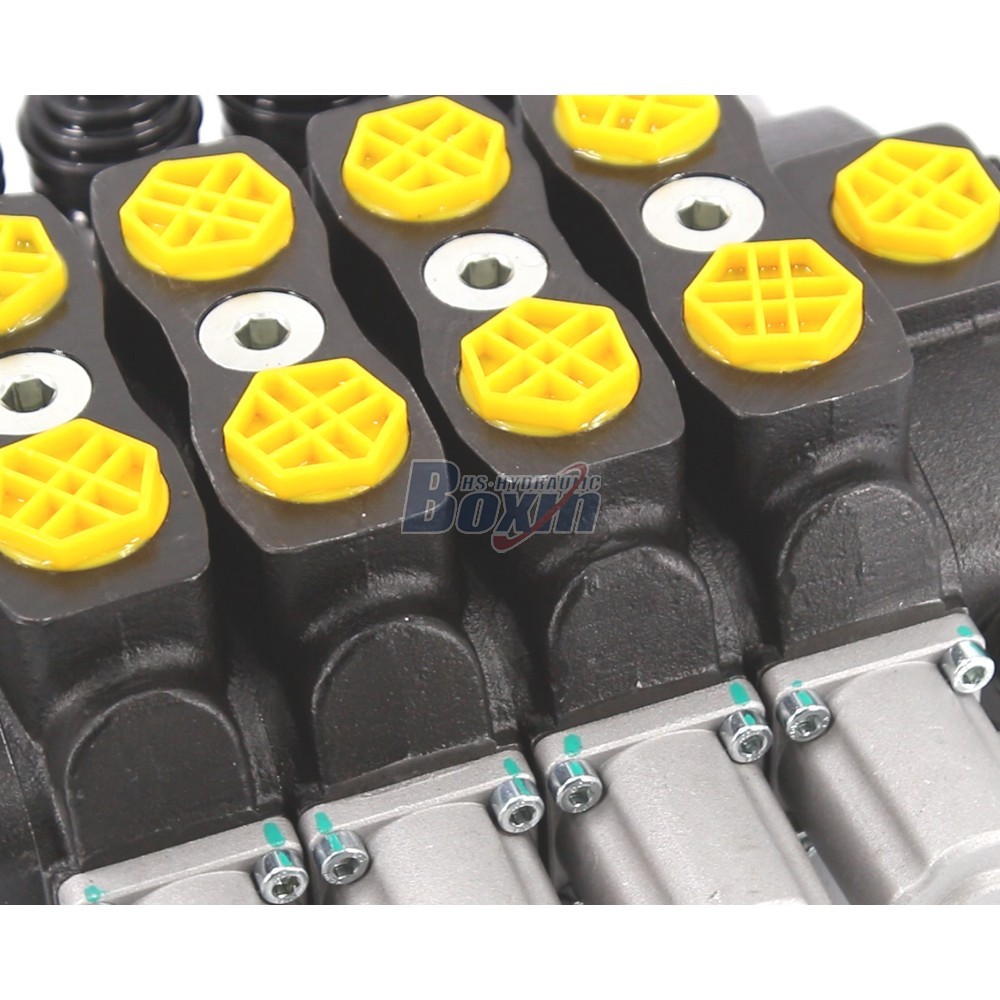

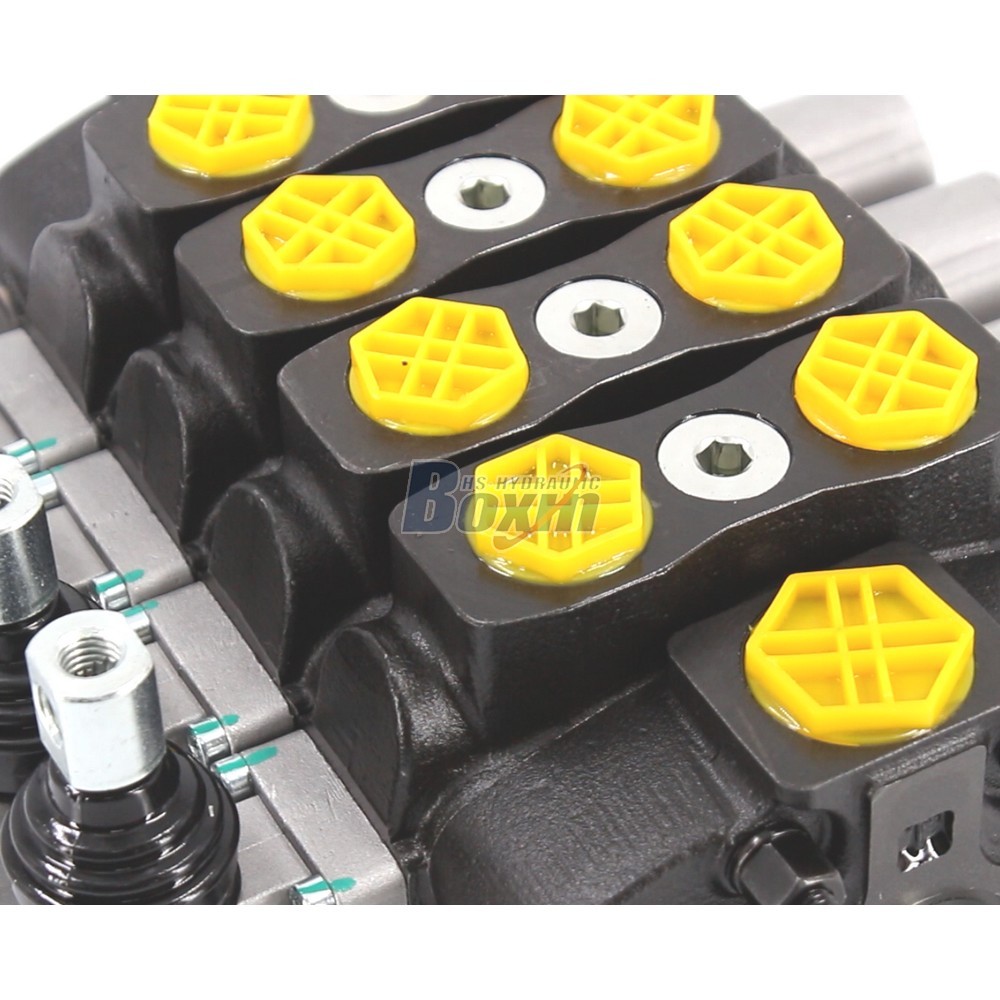

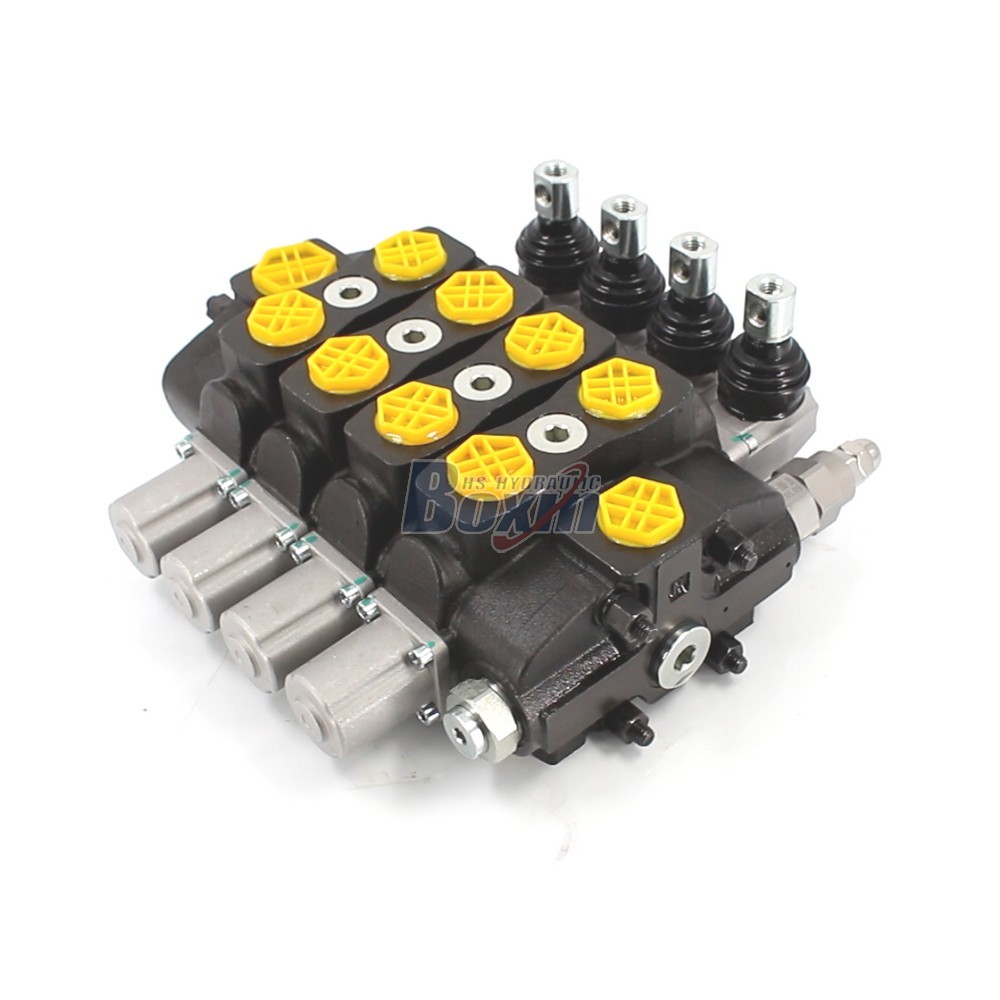

Sectional Type SD8 Manual 4 Spool Directional Valve

Steuermethode:Manuell

Steuerkolben:4 Spulen

Nennfluss:90 l/min (23,8 US gal/min)

Maximaldruck:315 bar (4600 psi)

Einlassanschluss:G1/2

Auslassanschluss:G3/4

Anschlussgröße:G1/2

Hersteller:BXHS

Produkttyp:Sektionalwegeventil

Produktserie:SD8-Serie Sektionalwegeventil

Verpackungsgröße:32*36*16

Bruttogewicht:18.00 kg

Verfügbarkeit: Auf Lager

112 Personen sehen sich dieses Produkt an

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve drawing image

The SD8 Series 4-spool manual sectional directional valve is a high-performance hydraulic solution designed for flow rates up to 80 L/min and pressures up to 315 bar. This versatile valve offers precise manual control for a wide range of mobile and industrial applications, including construction, agriculture, and material handling equipment.

SD8-Serie Sektionalwegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Strukturtyp Schieberventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt
Bereich der Betriebsviskosität 12 - 400 mm²/s (12 cSt bis 400 cSt)
Nennfluss 90 l/min (23,8 US gal/min)
Maximaldruck 315 bar (4600 psi)
Einlassanschluss G1/2, G3/4, SAE 10
Auslassanschluss G1/2, G3/4, SAE 10, 3/4 NPT
Anschlussgröße G1/2, SAE 10

As a leading manufacturer of hydraulic solutions, we offer the SD8 Series Sectional Type Manual 4 Spool Directional Valve, engineered for demanding environments. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 315 bar (4600 psi), making it ideal for machinery such as forklifts, skid steer loaders, mini-excavators, and tractors. The sectional design provides flexible configuration, while G1/2 inlet and G3/4 outlet ports ensure standard connectivity. We specialize in factory-direct supply, providing extensive OEM, ODM, and custom branding (Private Label) services to meet specific technical requirements. Our facility is equipped for large-scale production, supporting wholesale orders with competitive pricing. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need a reliable supplier for forestry wood splitters or complex aerial platforms, our factory provides the expertise and manufacturing capacity to support your business growth.
