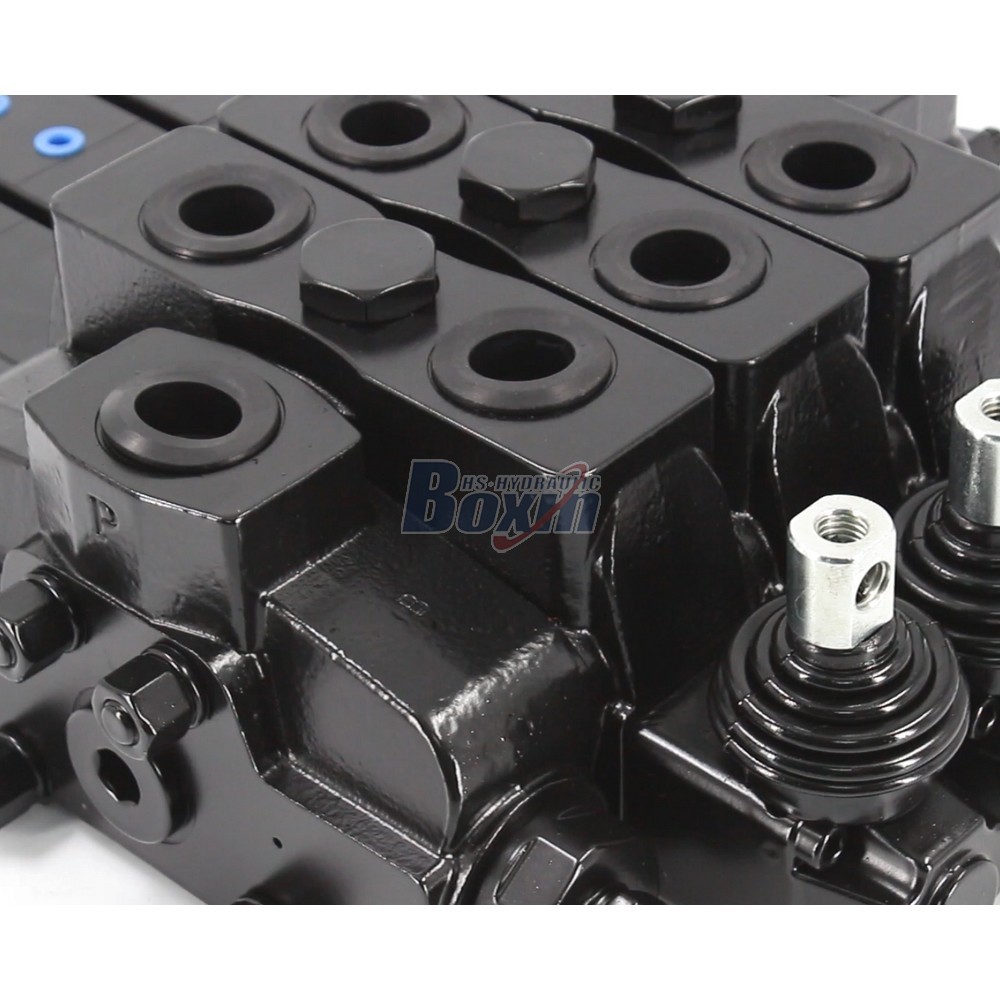

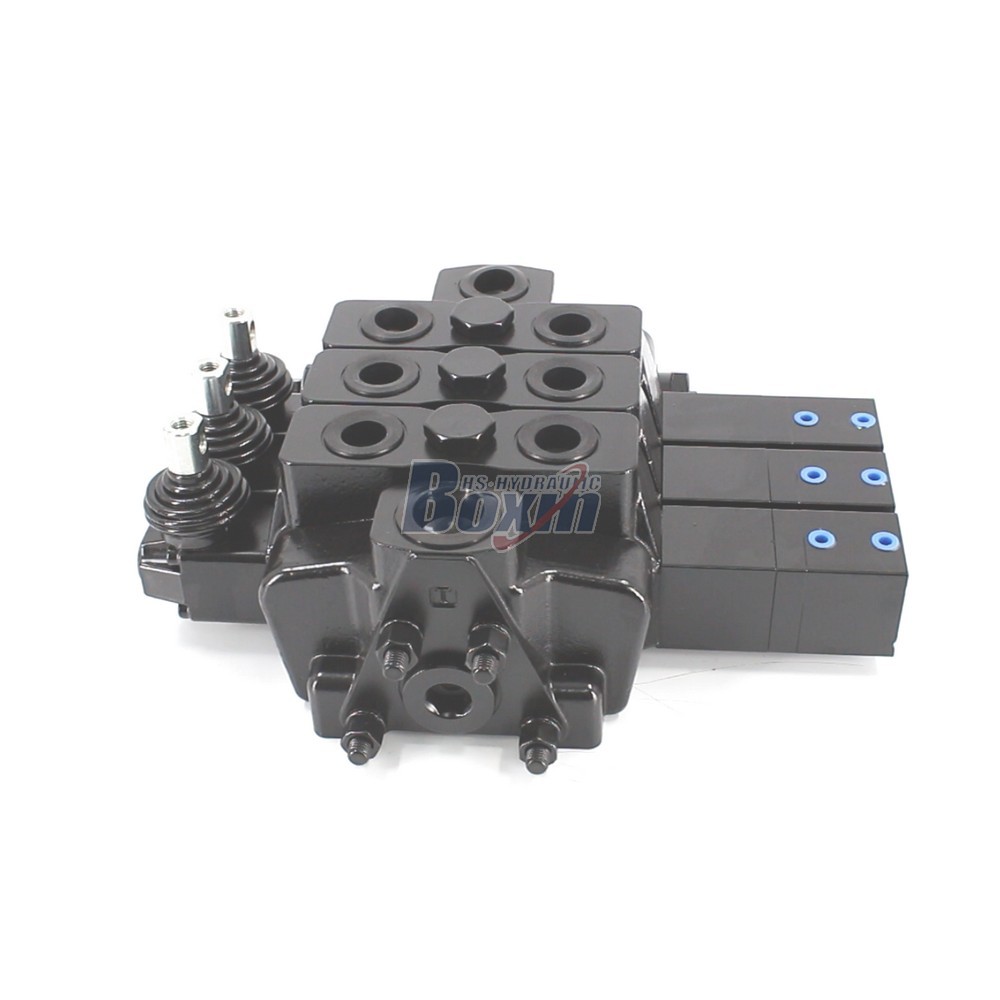

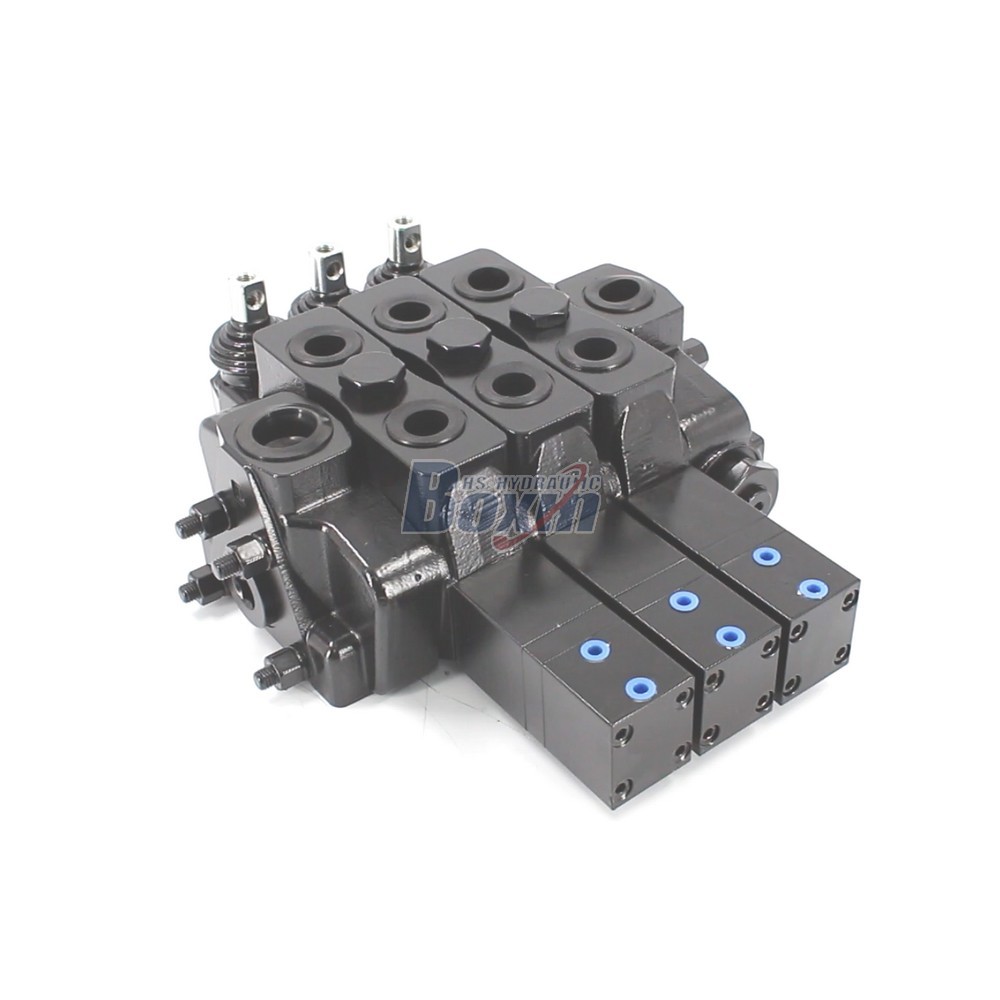

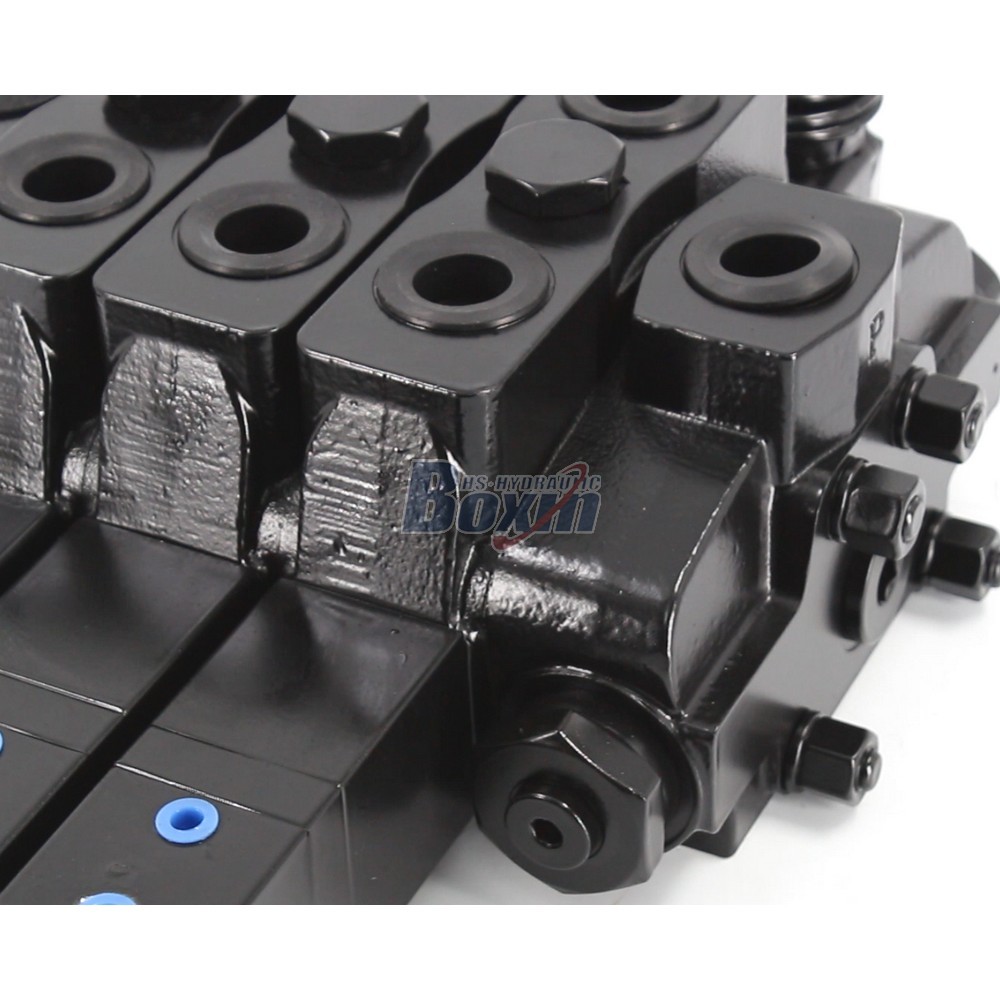

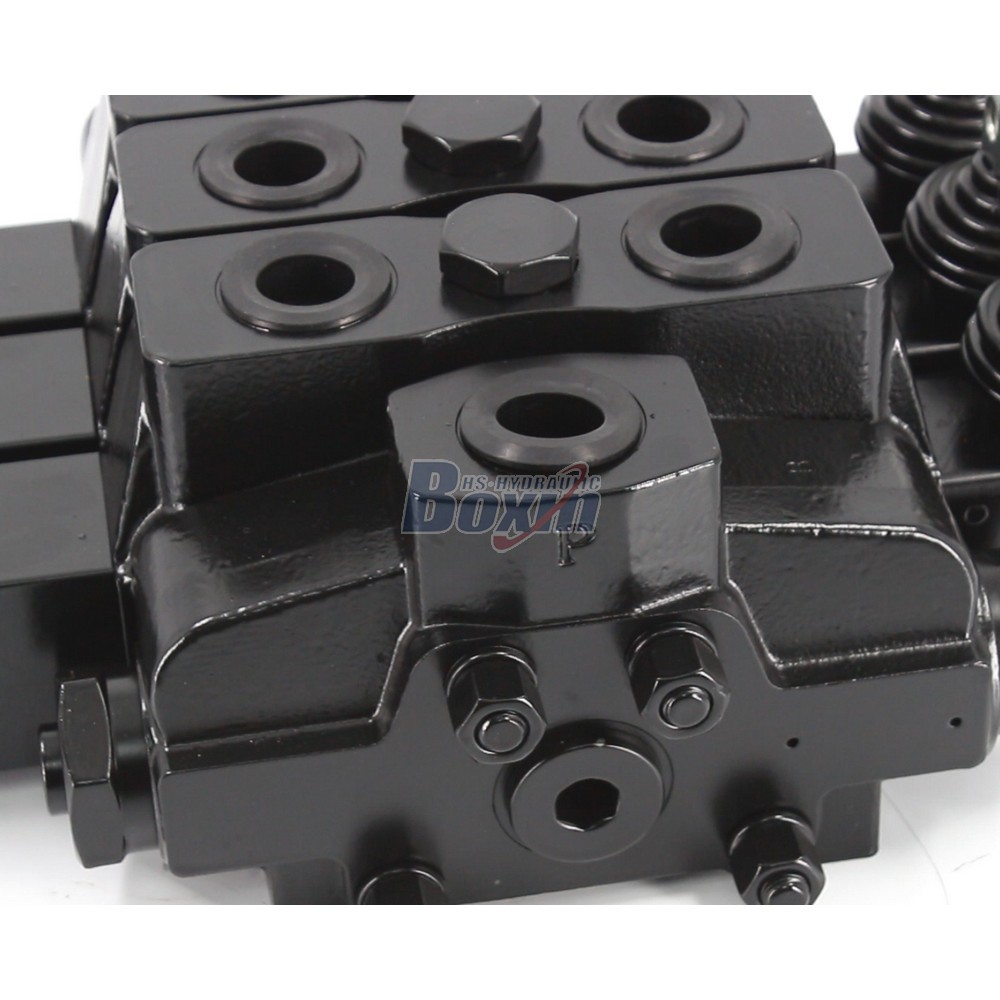

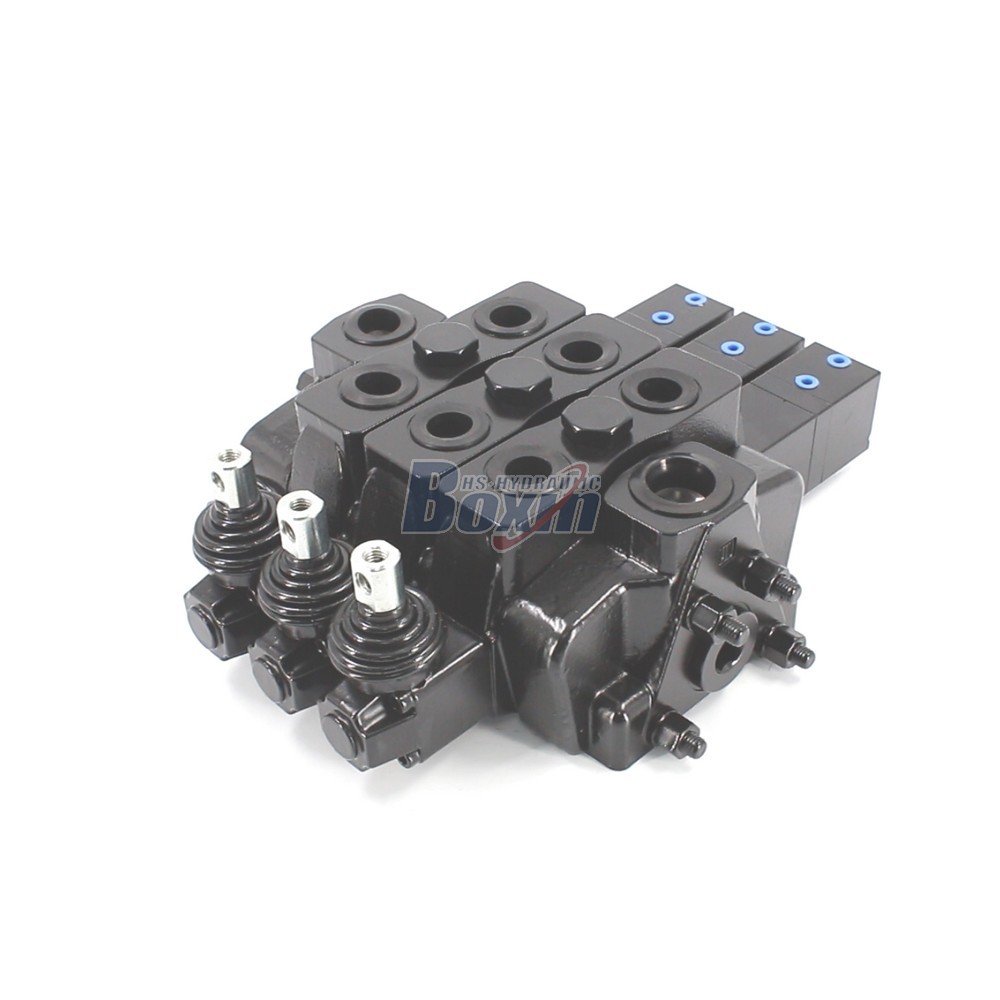

SDS180Q 3 Spool Sectional Directional Valve supports manual/pneumatic control with 160 L/min flow and 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliability for mini-excavators and loaders.
| SDS180 Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Hydraulisch, Pneumatisch und manuell |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 160 l/min (42,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi), 350 bar (5100 psi) |
| Einlassanschluss | G3/4, G1, SAE 12 |
| Auslassanschluss | G1, SAE 16 |
| Anschlussgröße | G3/4, G1, SAE 12 |
**1. High-Flow Sectional Directional Valve Specs**
- Rated for 160 L/min (42.2 US gpm) flow and 315 bar (4600 psi) max pressure, ensuring efficient power transmission.
- Features G3/4 inlet and G1 outlet ports, optimized for compact hydraulic circuits in heavy-duty applications.
**2. Versatile Hydraulic Directional Control Valve Operation**
- Dual control method: Manual lever and Pneumatic operation provide flexible integration for automated or manual systems.
- 3 Spool design allows independent control of multiple actuators, ideal for complex machinery like telehandlers and backhoes.
**3. Reliable Pneumatic Operated Hydraulic Valve Quality**
- Produced in a 68,000 sqm facility with 260+ CNC machines; every unit undergoes 100% pressure and leakage testing.
- Certified under IATF 16949 and CE standards, guaranteeing consistent performance and durability in harsh environments.
**4. Customizable 3 Spool Hydraulic Valve Solutions**
- OEM/ODM Available: Support for private label, custom logo laser marking, and specific port configurations to match your brand.
- Backed by 35+ senior engineers with 10+ years of experience, offering tailored solutions for unique vehicle requirements.
**5. Factory Direct Sales & Global Compatibility**
- Wholesale China Factory direct supply eliminates middlemen, offering competitive pricing for distributors and wholesalers.
- Perfectly compatible with major international brands, serving mini-excavators, skid steers, and agricultural tractors worldwide.
