The SDS180 Manual 2 Spool Sectional Directional Valve is a versatile and high-performance hydraulic valve designed for a wide range of applications in industries such as material handling, construction, and agriculture. With its robust construction, precise control, and durability, it offers reliable operation and enhanced system efficiency.
| Serie SDS180 Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Hydraulisch |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 160 l/min (42,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi), 350 bar (5100 psi) |
| Einlassanschluss | G3/4, G1, SAE 12 |
| Auslassanschluss | G1, SAE 16 |
| Anschlussgröße | G3/4, G1, SAE 12 |

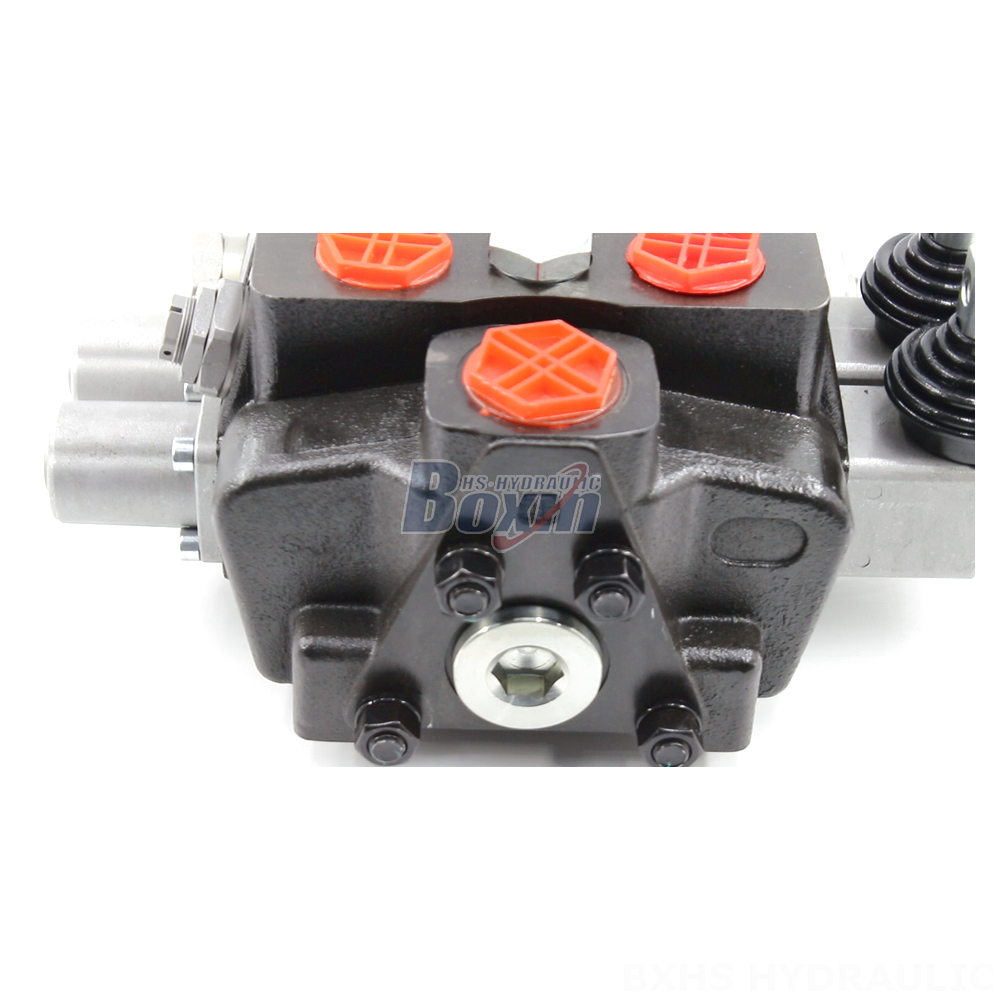

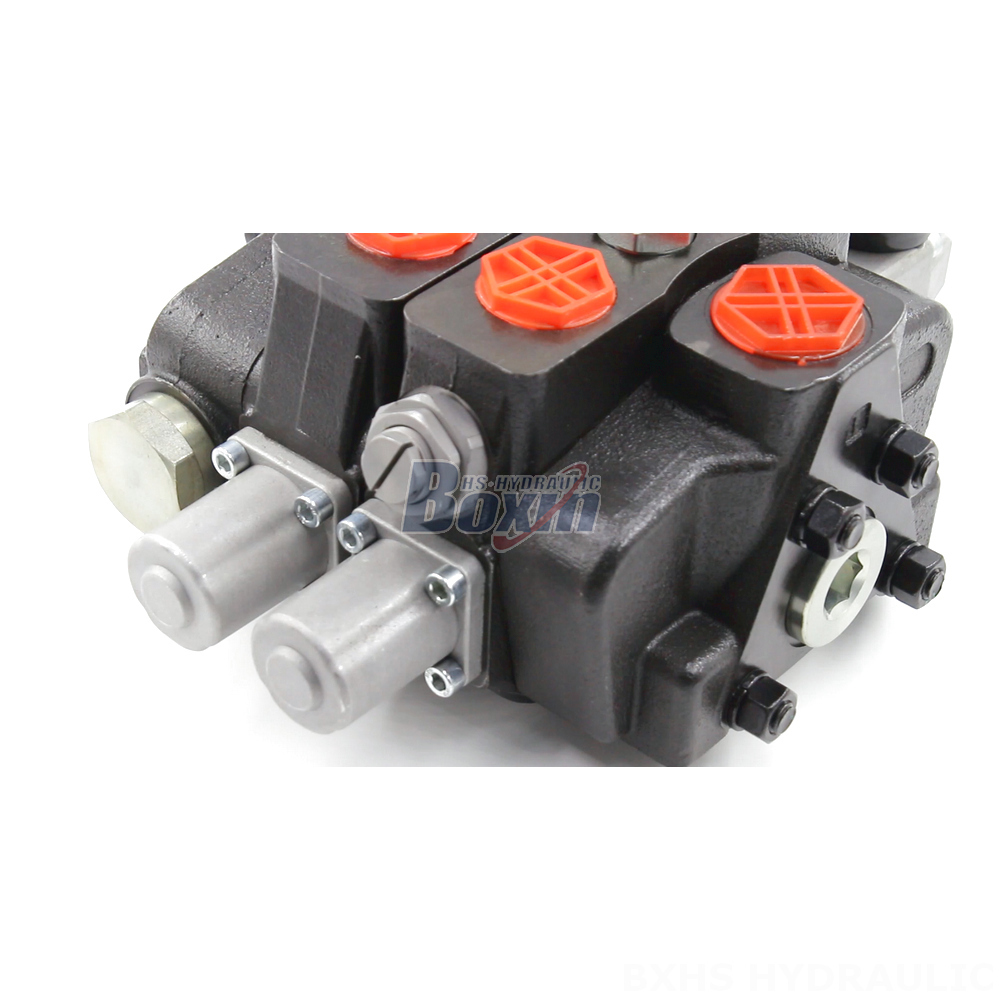

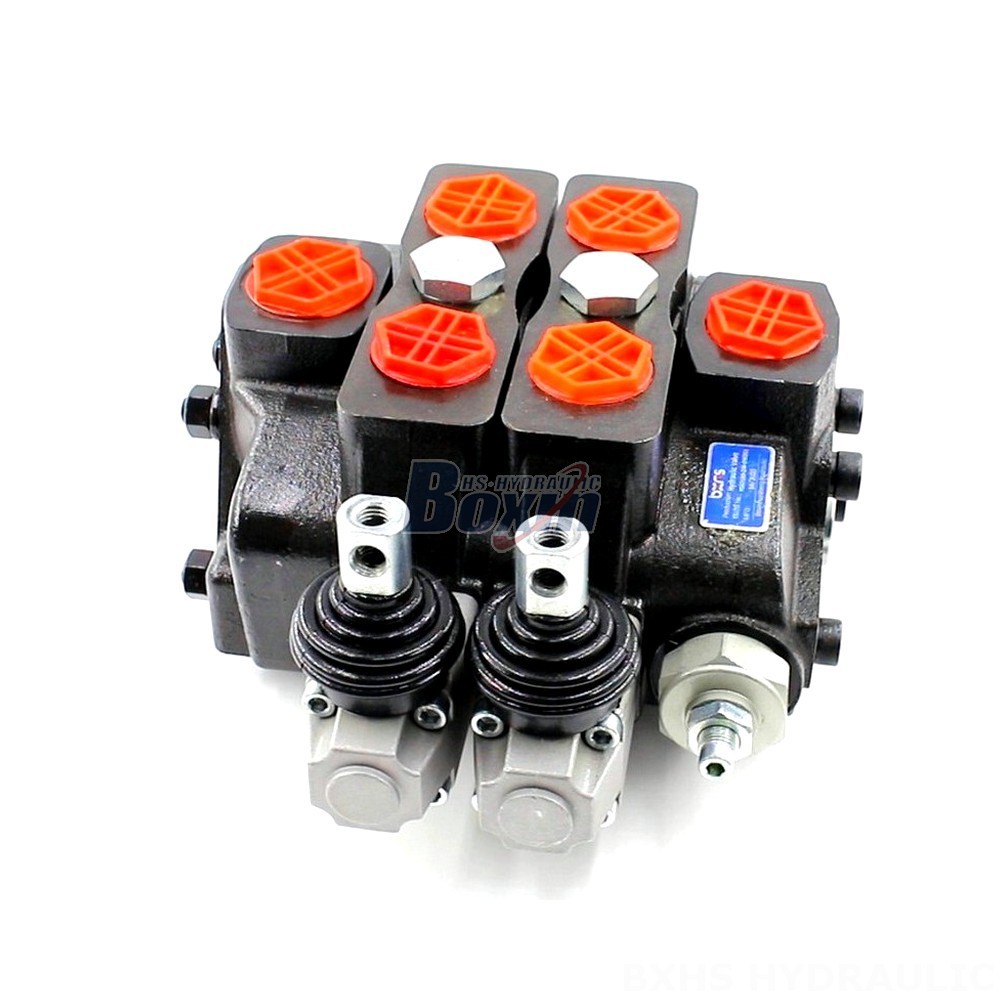

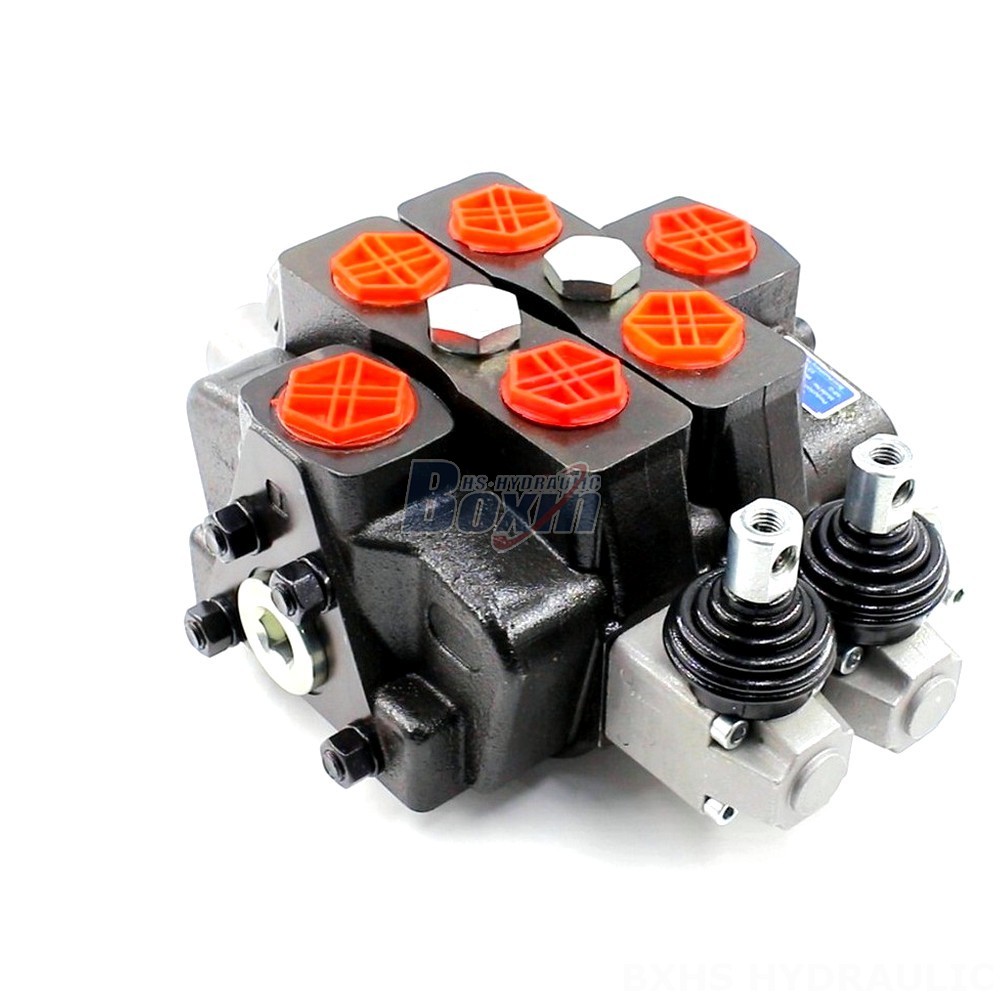

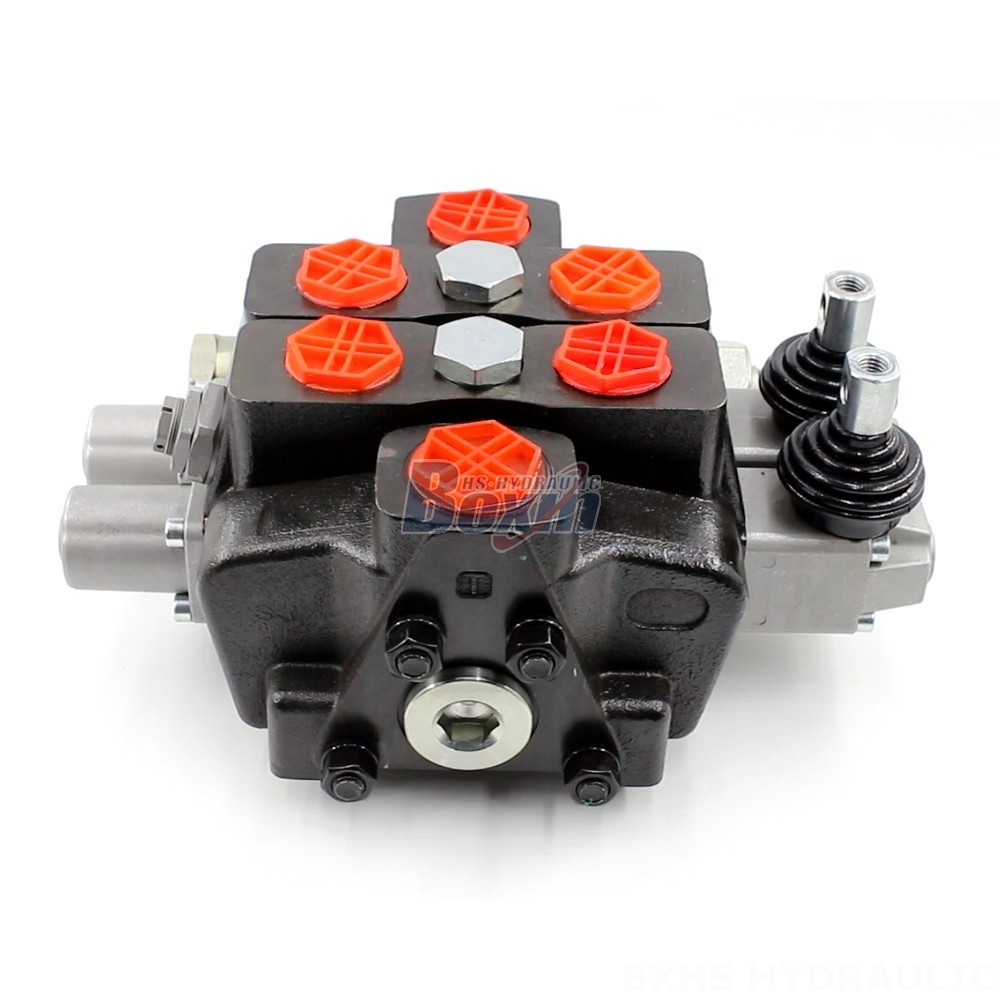

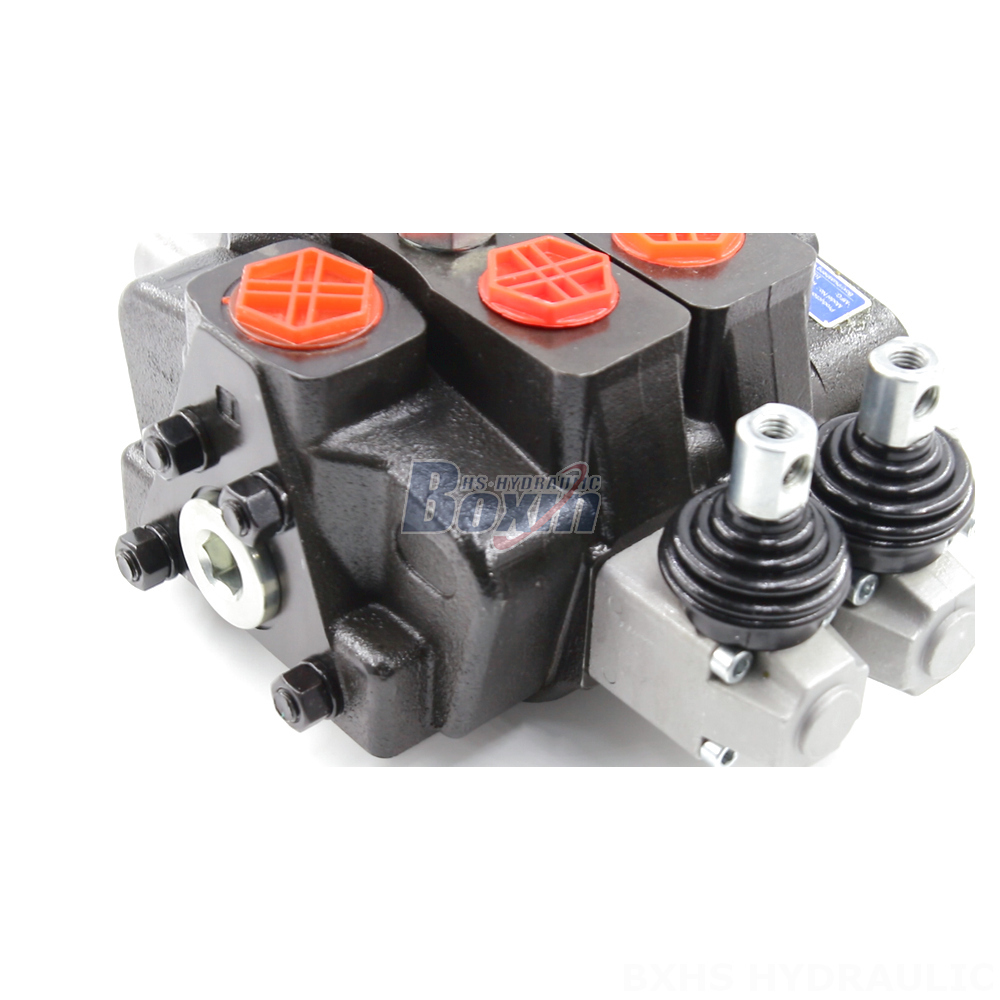

**Product Name:** SDS180 Manual 2 Spool Sectional Directional Valve
**Product Description:**
The SDS180 Manual 2 Spool Sectional Directional Valve is a 2-section, manually controlled hydraulic valve that provides precise and efficient flow control in hydraulic systems. It features a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi), making it suitable for demanding applications.
**Key Features:**
* Manual control for precise and responsive operation
* 2-spool design for versatile flow control
* Sectional valve construction for modularity and flexibility
* Rated flow of 160 L/min (42.2 US gpm)
* Maximum pressure of 350 bar (5100 psi)
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt)
* Wide range of applications in material handling, construction, and agriculture
* Applicable models include telehandlers, forklifts, cranes, stackers, and excavators
