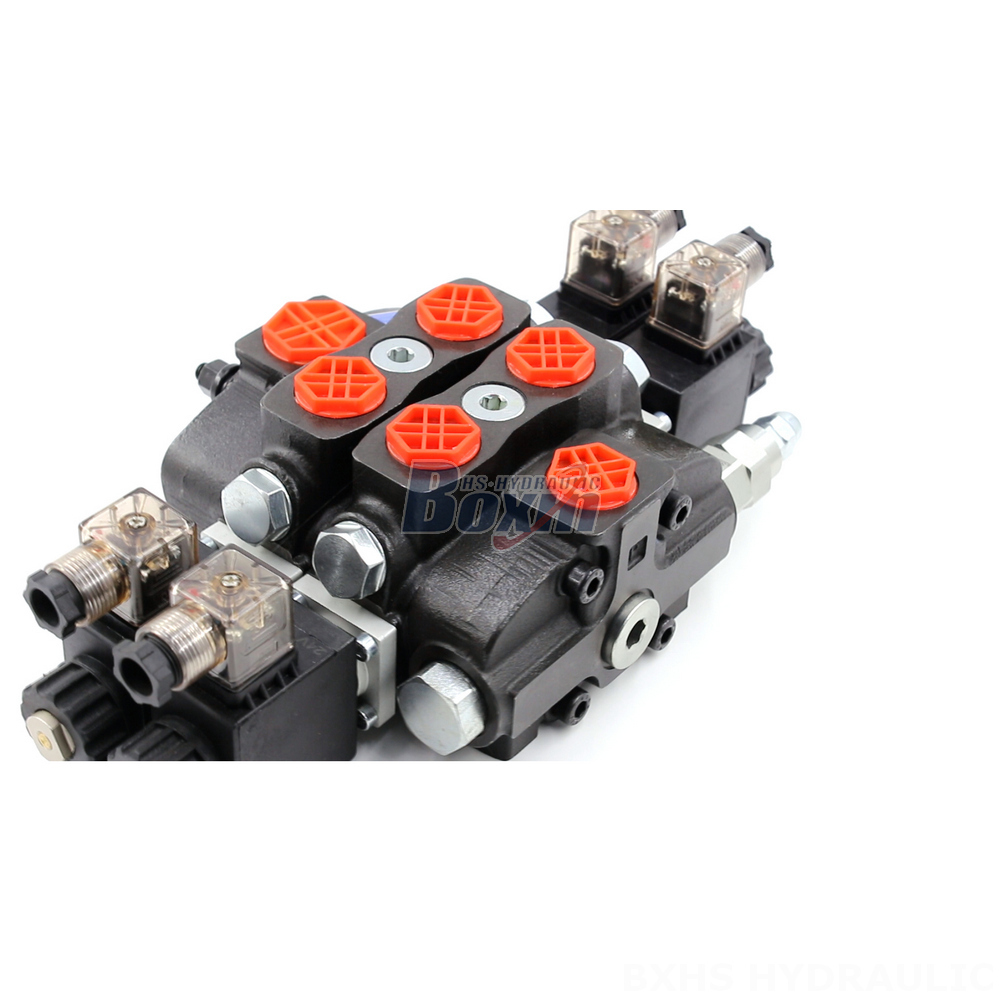

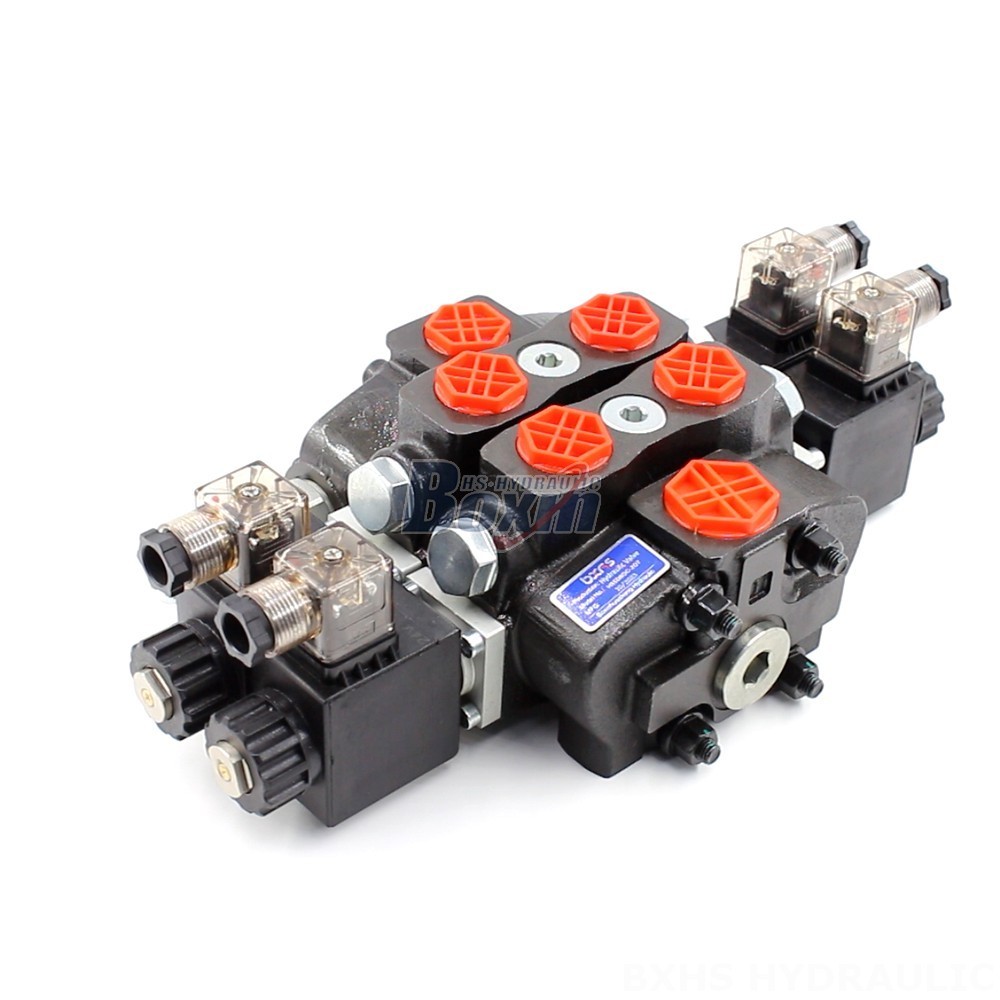

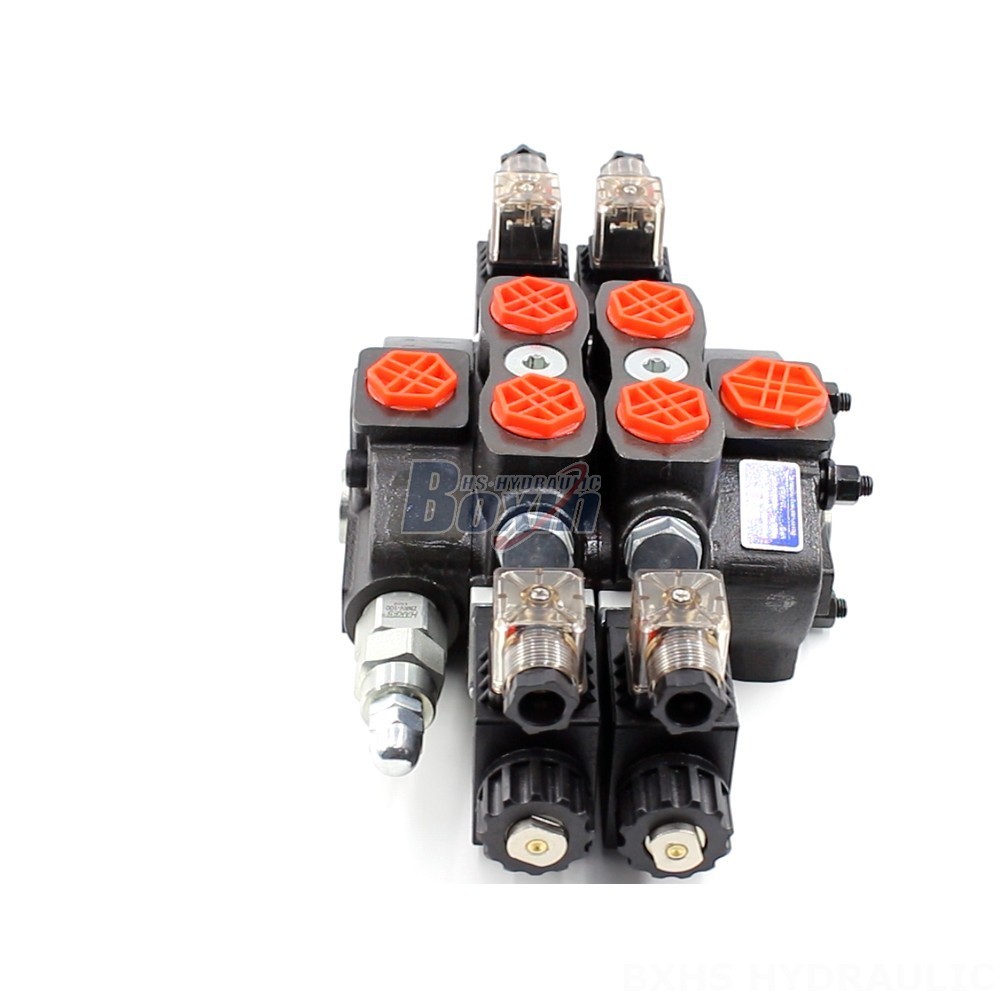

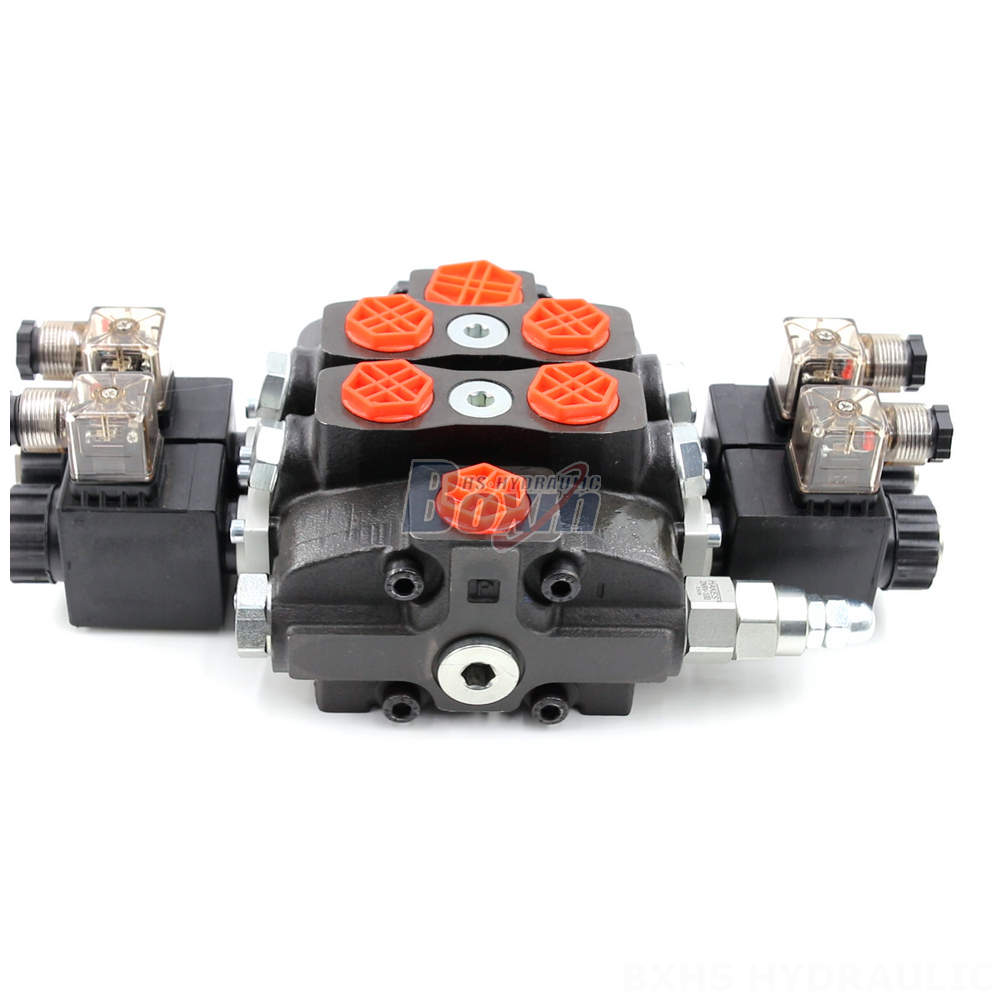

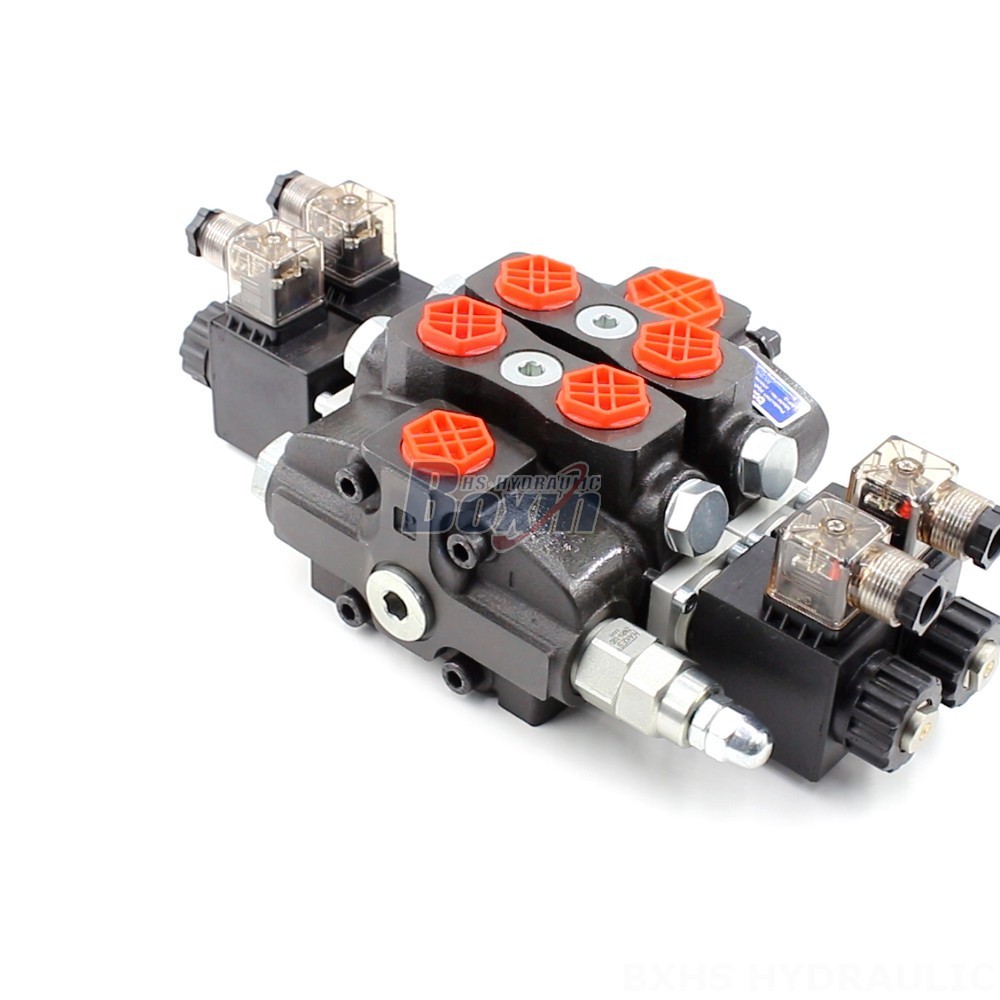

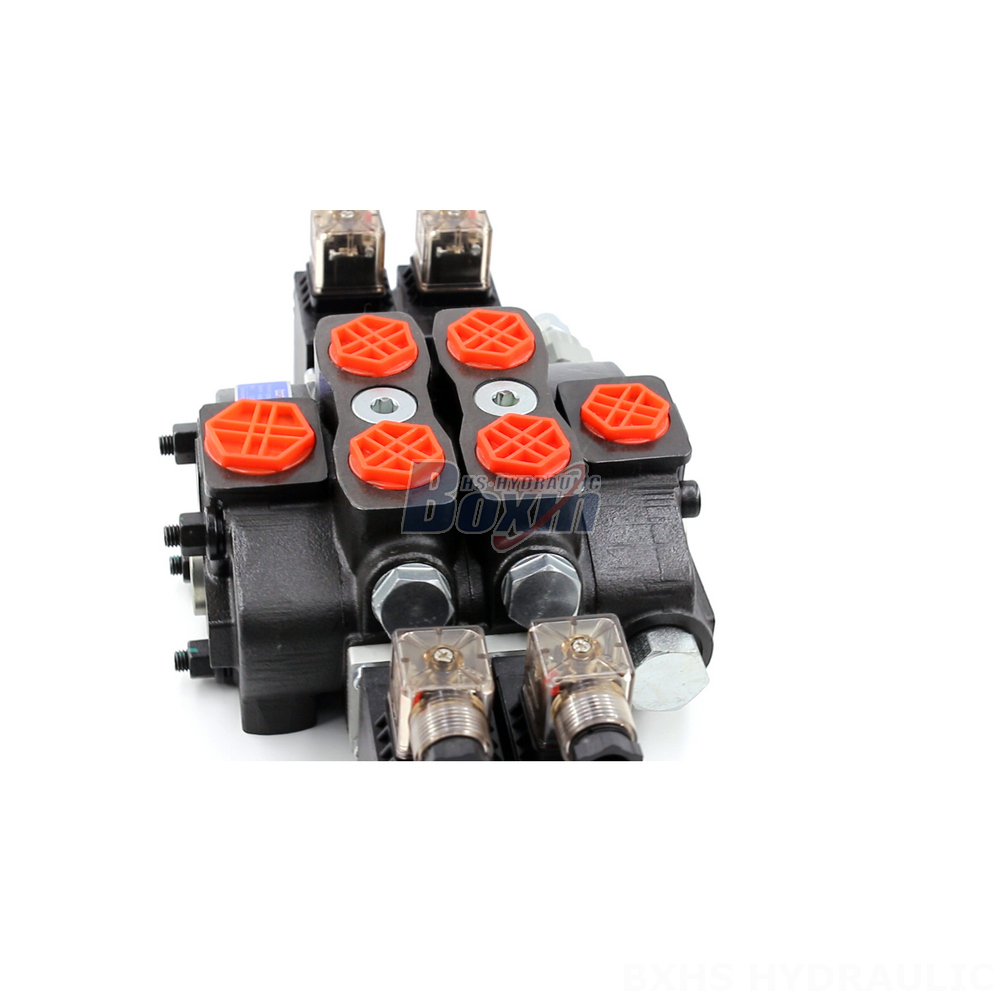

The SD8 series normally closed hydraulic solenoid valve is a high-performance, heavy-duty valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. With a rated flow of 90 L/min and a maximum pressure of 350 bar, this valve is ideal for controlling hydraulic systems in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and various types of excavators.
| SD8-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Elektromotor |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 90 l/min (23,8 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M22×1.5, SAE 10 |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Anschlussgröße | G1/2, M22×1.5, SAE 10 |
The SD8 series normally closed hydraulic solenoid valve is a high-performance, heavy-duty valve designed for demanding applications. Featuring a 2-section, sectional valve design with a 2-spool configuration, it delivers a rated flow of 90 L/min and a maximum pressure of 350 bar. The valve is suitable for operating viscosity ranges from 12 to 400 mm²/s and operates reliably in ambient temperatures ranging from -40°C to +80°C. Its robust construction and reliable performance make it suitable for use in construction equipment, material handling equipment, agriculture equipment, and industrial vehicles. Common applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, telehandlers, midi-excavators, mini-excavators, and skid steer loaders.
