Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

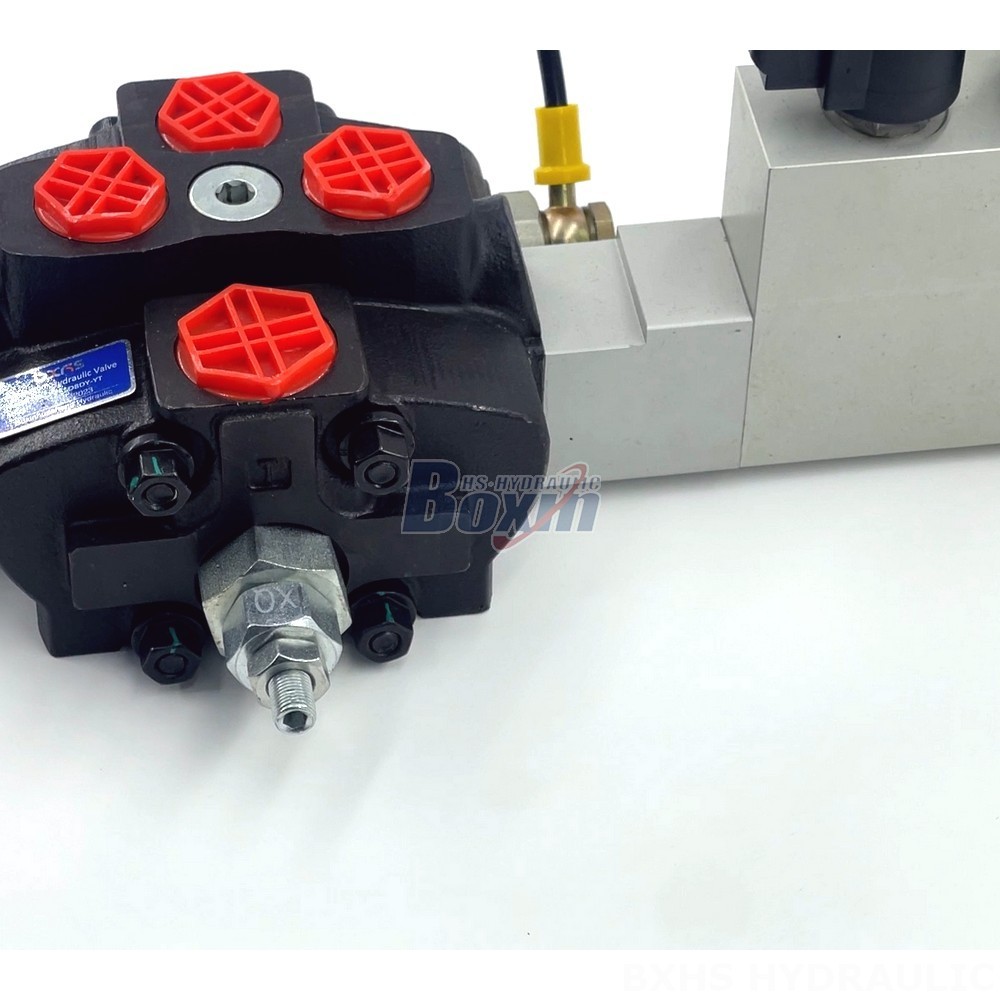

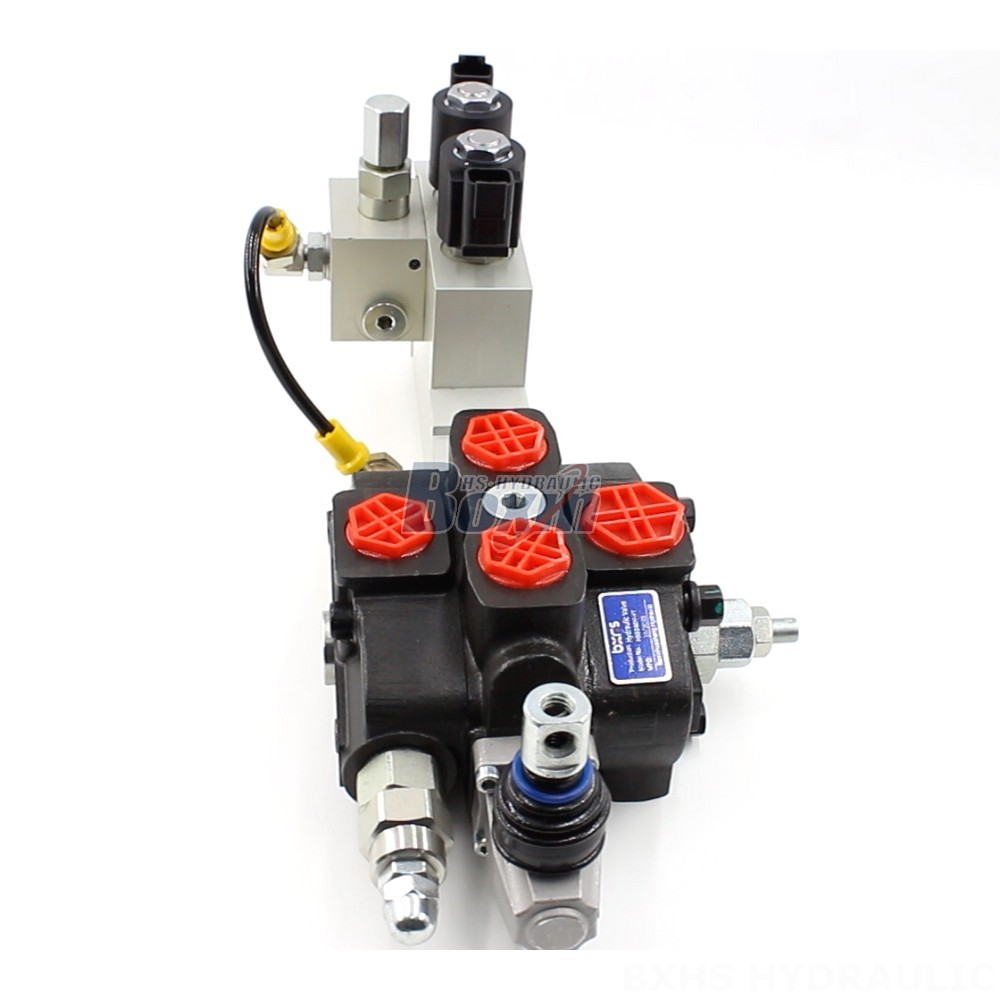

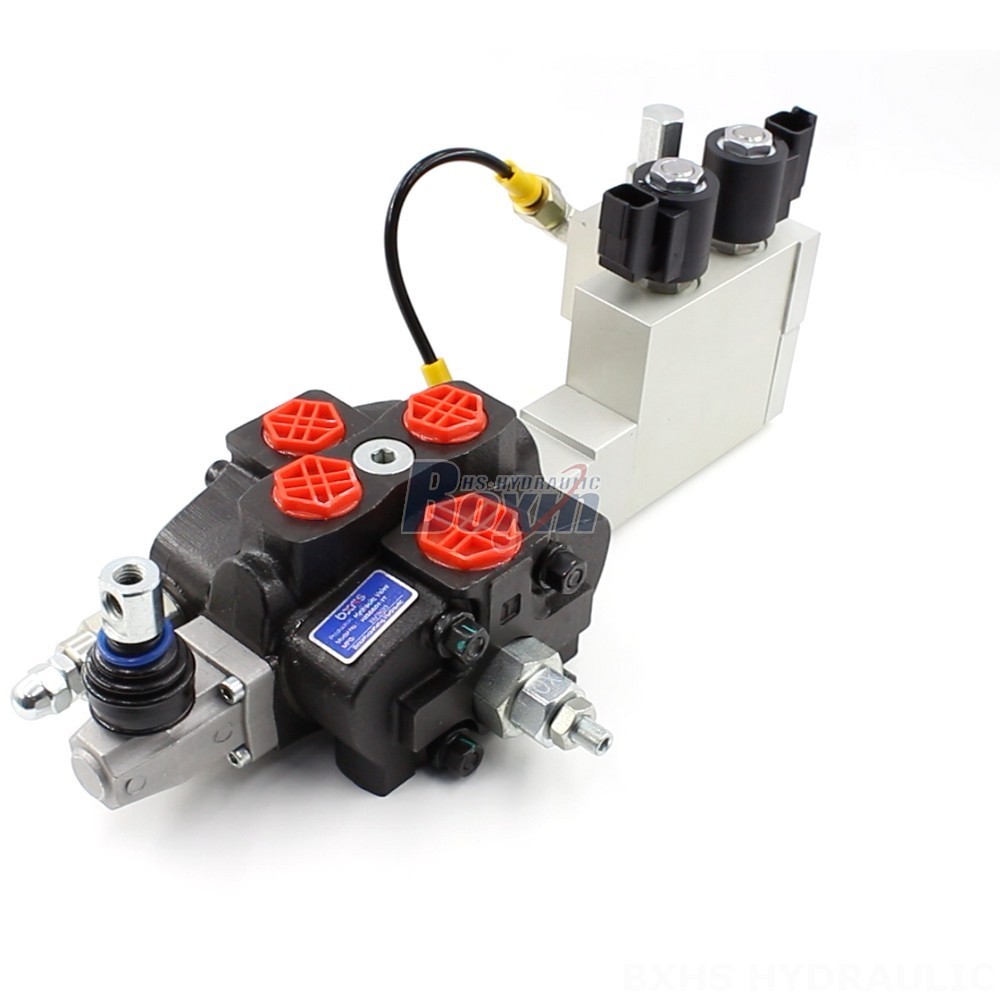

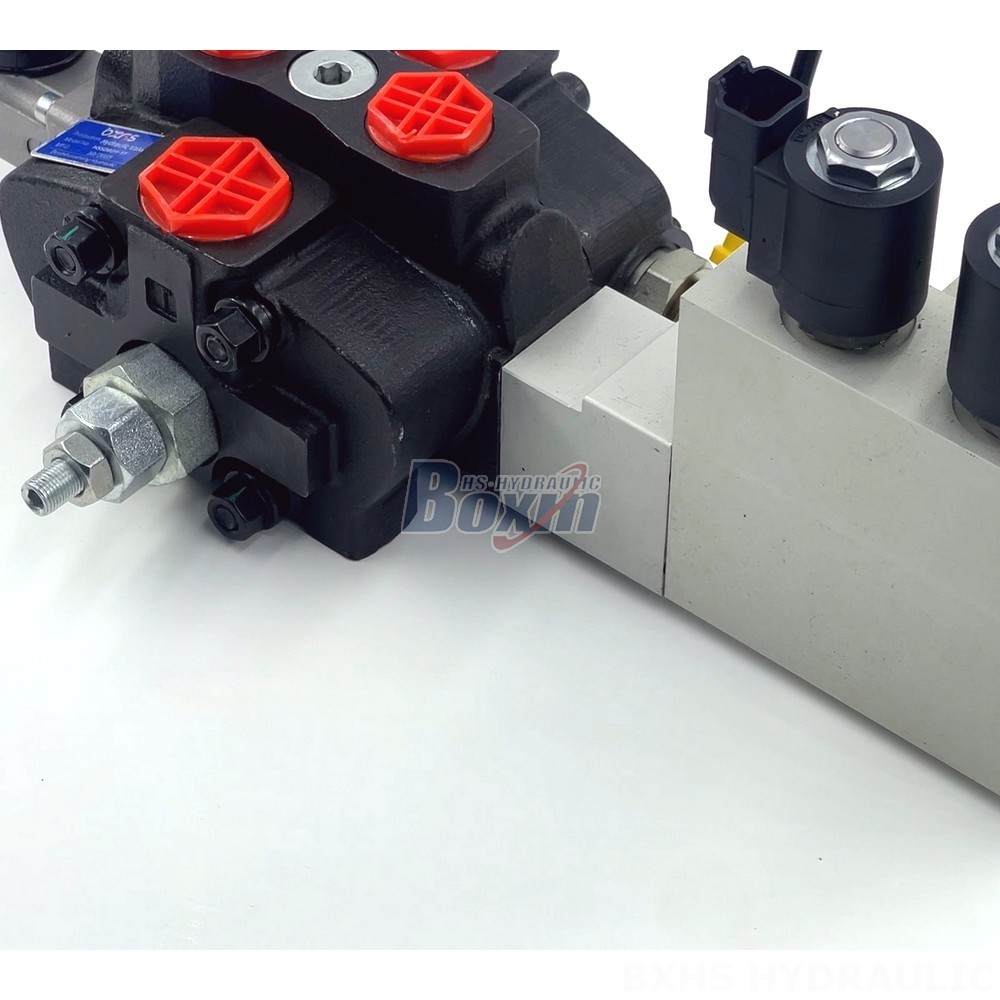

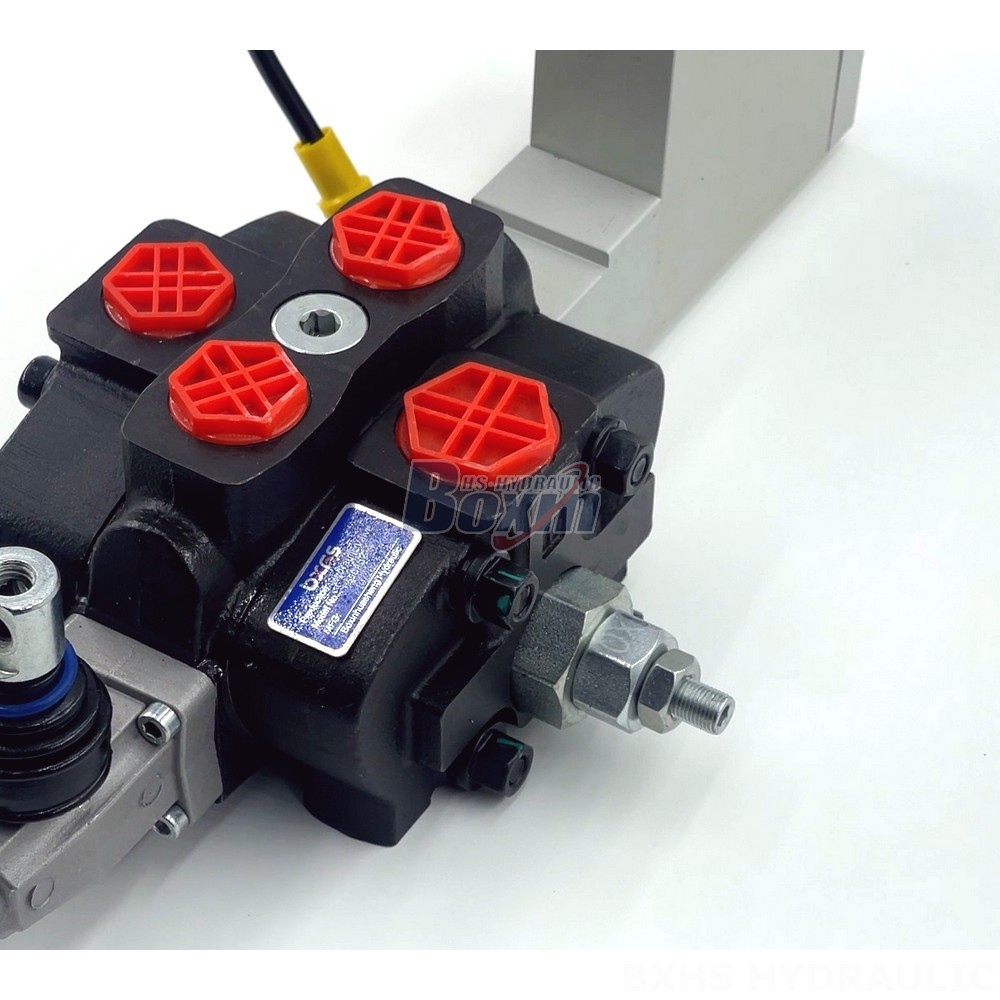

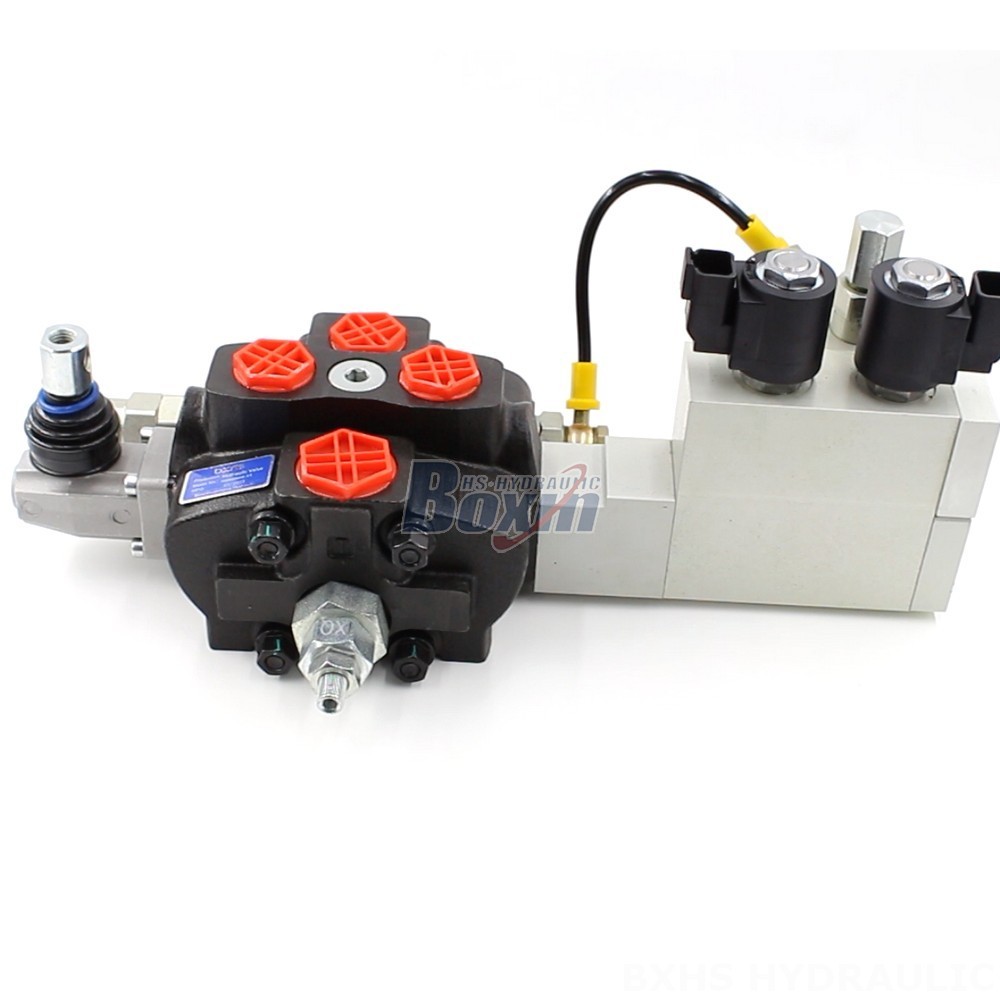

The SD8 Electro-hydraulic Sectional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This versatile valve features a 1-section design, a rated flow of 90 L/min, and a maximum pressure of 350 bar. Available for direct factory supply and global distribution.
| SD8-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 90 l/min (23,8 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, SAE 10 |
| Auslassanschluss | G1/2, G3/4, SAE 10, 3/4 NPT |
| Anschlussgröße | G1/2, SAE 10 |
The SD8 Electro-hydraulic Sectional Valve is a robust and reliable hydraulic valve manufactured to the highest standards. It offers a 1-section design, a rated flow of 90 L/min, and a maximum pressure of 350 bar. The valve is suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer direct factory supply and global distribution, enabling us to meet the needs of customers worldwide. As a manufacturer, we also provide OEM, ODM, and customized solutions to meet specific requirements. Contact us today to discuss your hydraulic valve needs and explore our comprehensive product offerings.
