The SD8 Electro-hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications. It features a compact and lightweight design, making it ideal for use in space-constrained applications. The valve is also highly efficient and reliable, making it a cost-effective solution for demanding applications.
| SD8-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 90 l/min (23,8 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, SAE 10 |
| Auslassanschluss | G1/2, G3/4, SAE 10, 3/4 NPT |
| Anschlussgröße | G1/2, SAE 10 |

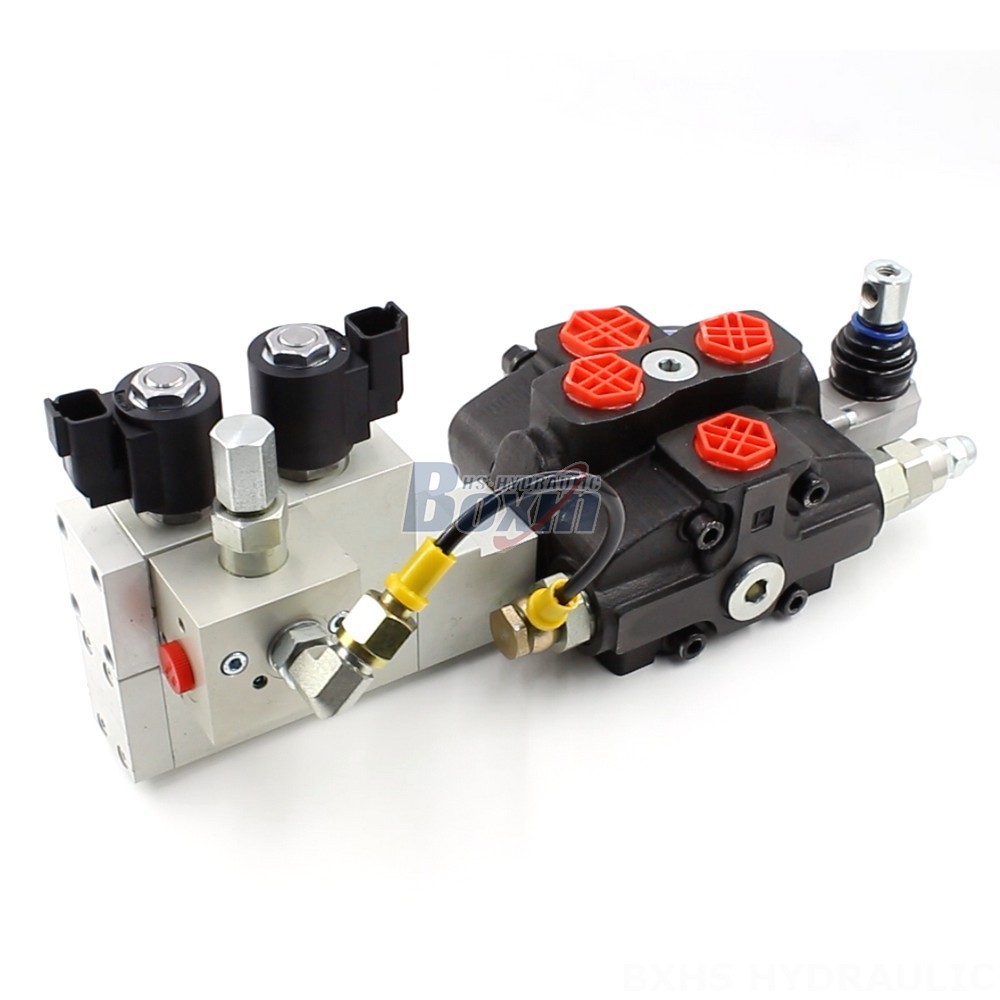

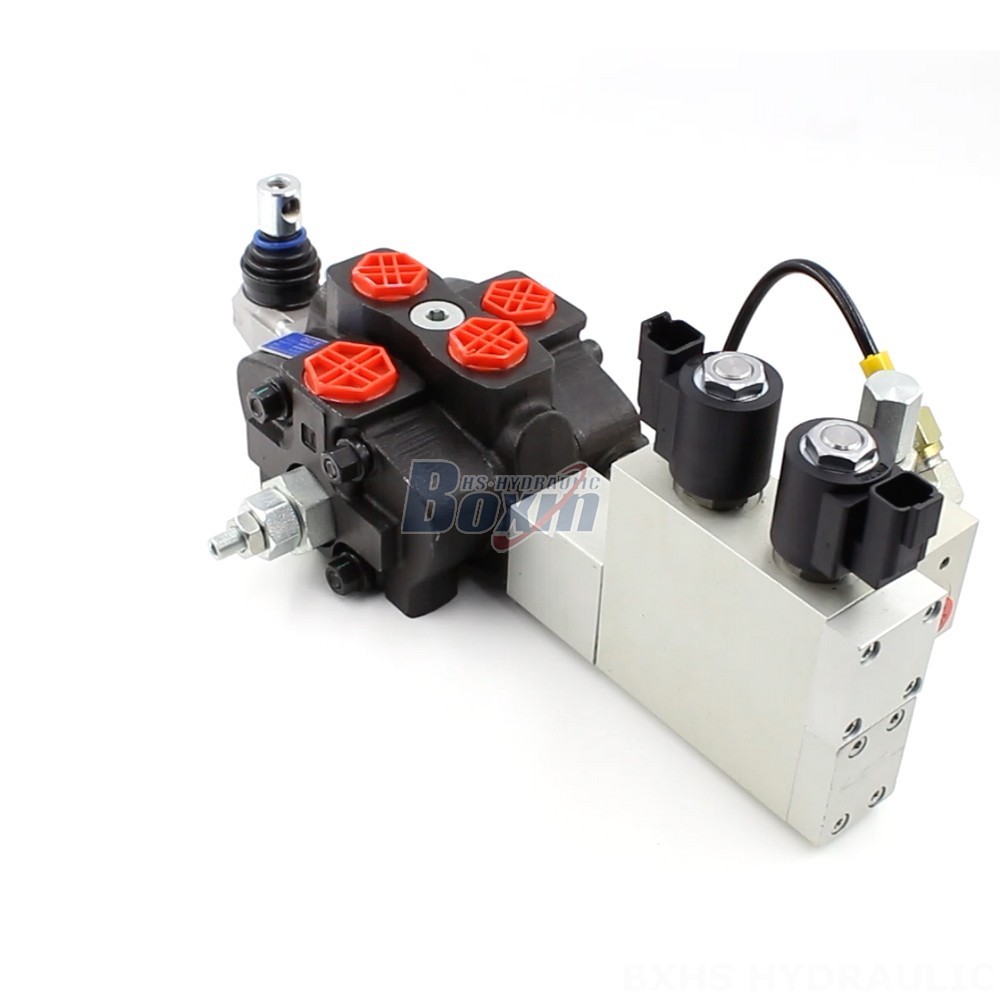

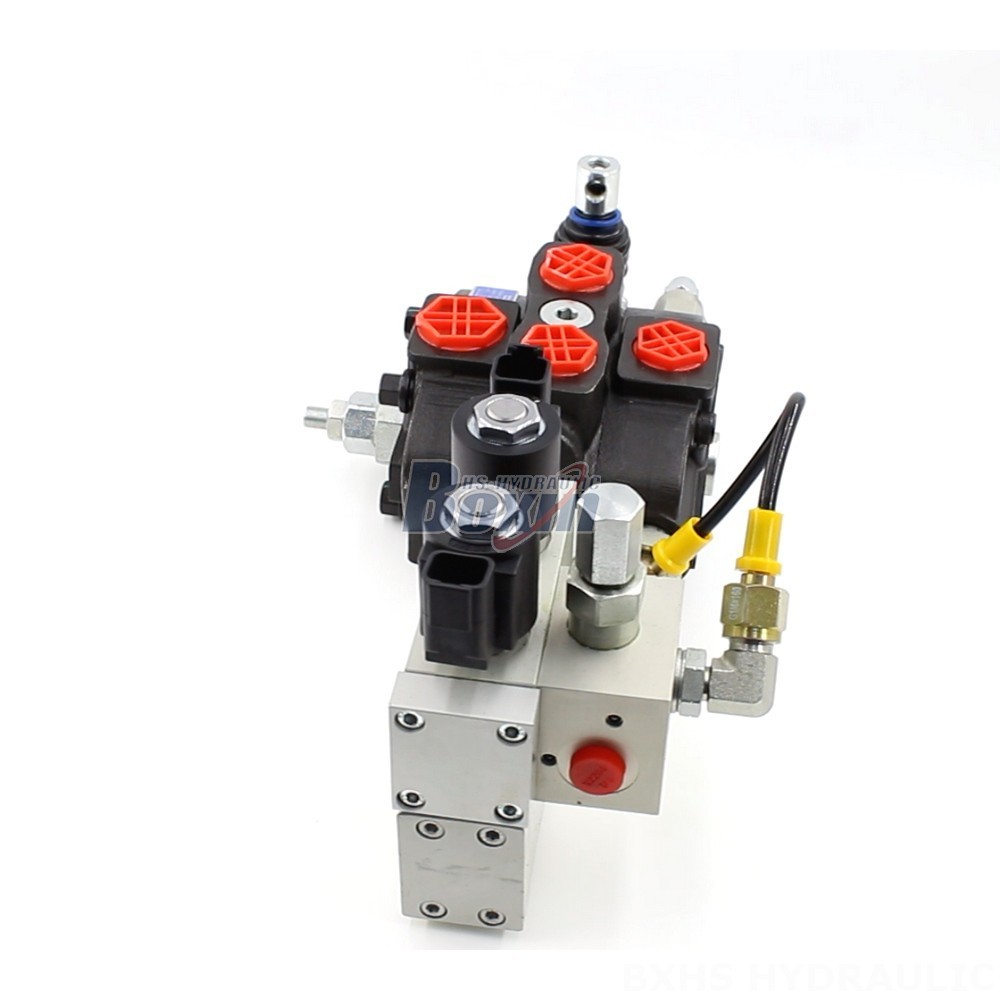

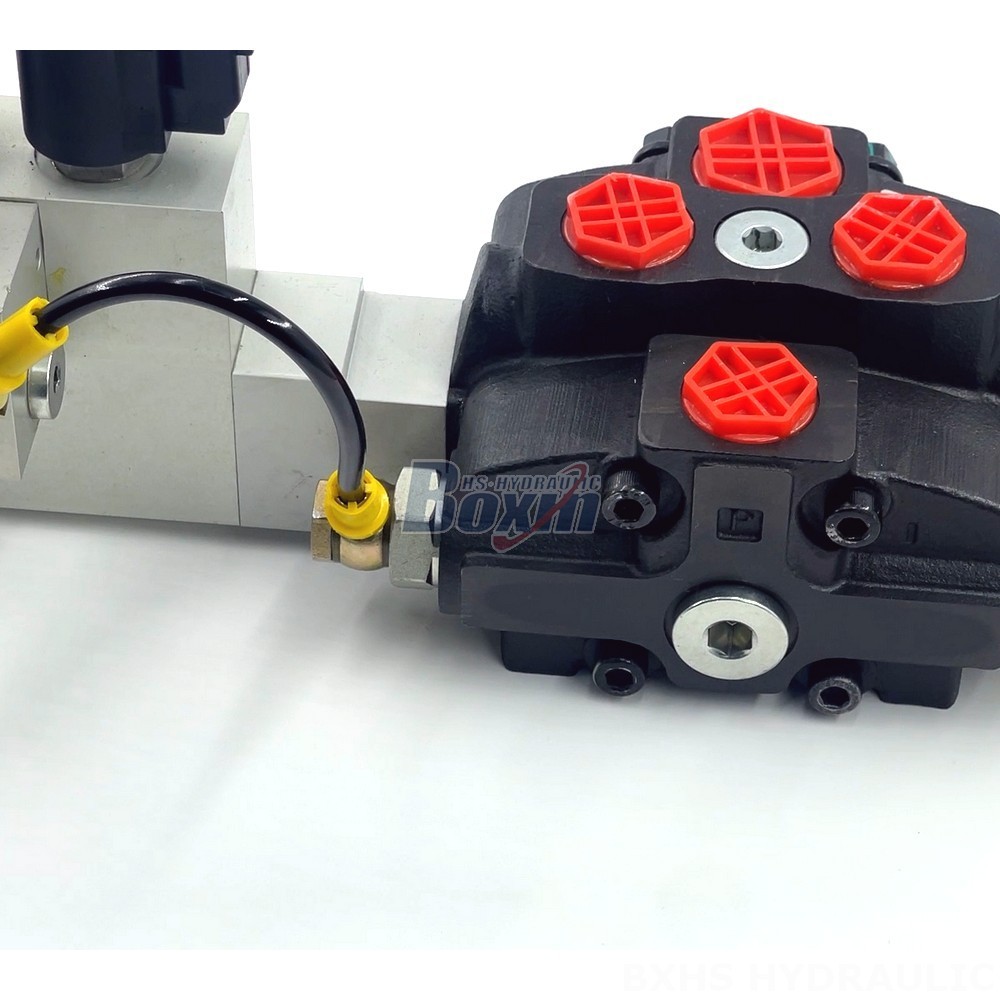

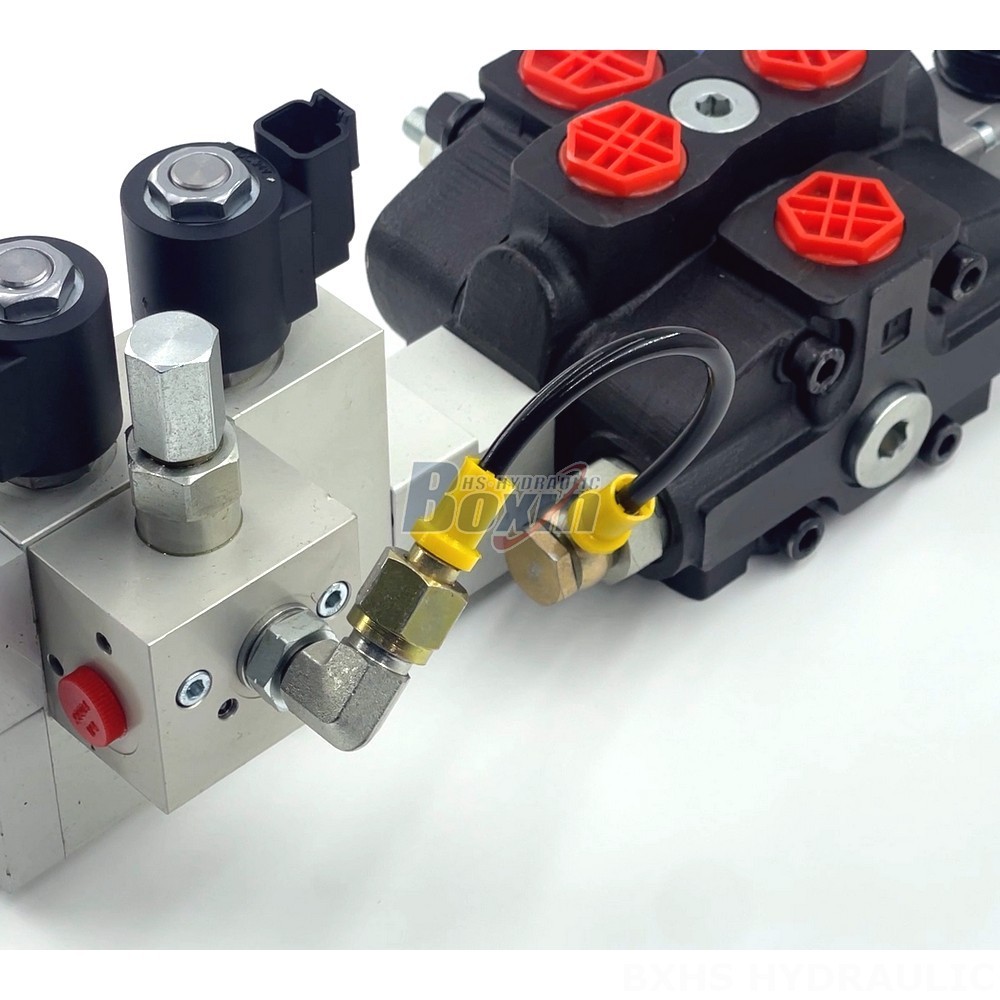

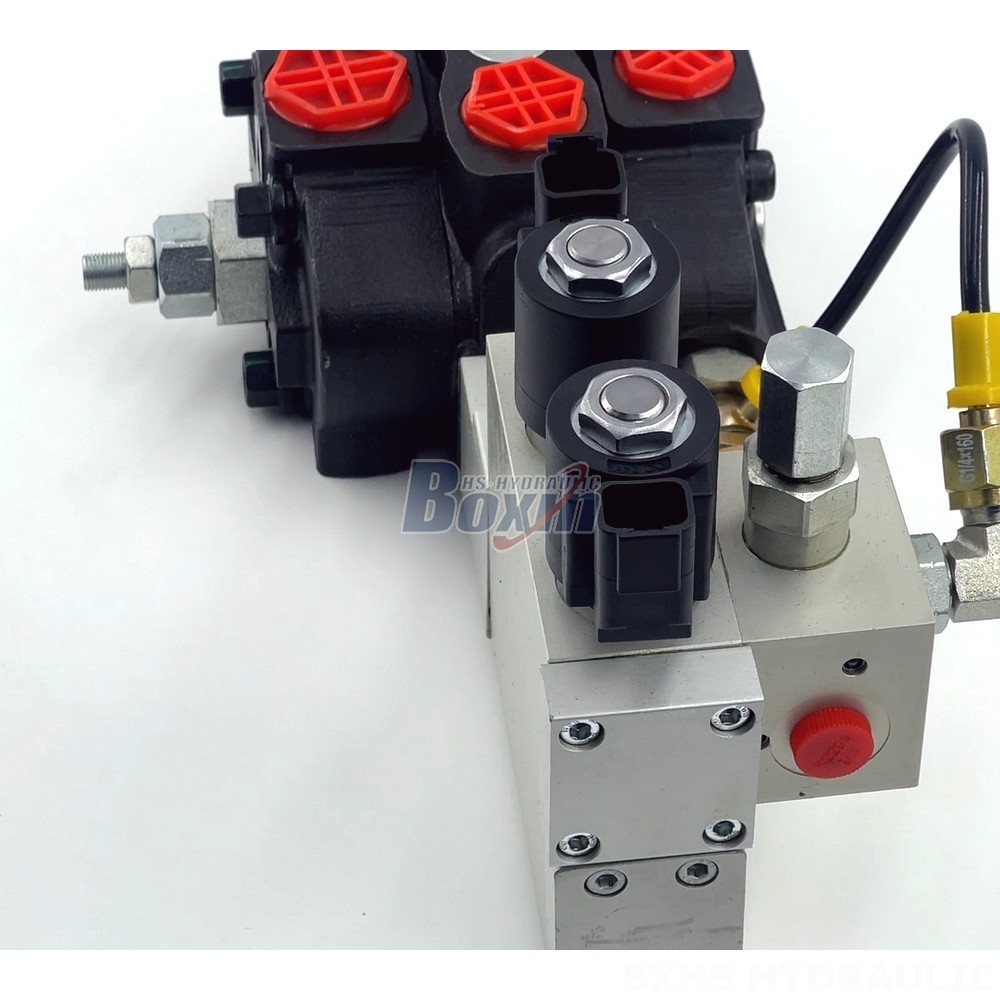

**SD8 Electro-hydraulic Directional Control Valve**
The SD8 Electro-hydraulic Directional Control Valve is a 1-section, electro-hydraulically controlled valve with a rated flow of 90 L/min and a maximum pressure of 350 bar. It is a sectional valve, which means that it can be easily customized to meet the specific requirements of an application. The valve is available with a variety of spool options, including single-acting, double-acting, and float. It is also available with a variety of porting options, including NPT, SAE, and BSPP.
The SD8 Electro-hydraulic Directional Control Valve is a versatile and reliable valve that is suitable for use in a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Key Features**
* Compact and lightweight design
* High efficiency and reliability
* Easy to customize to meet the specific requirements of an application
* Available with a variety of spool and porting options
