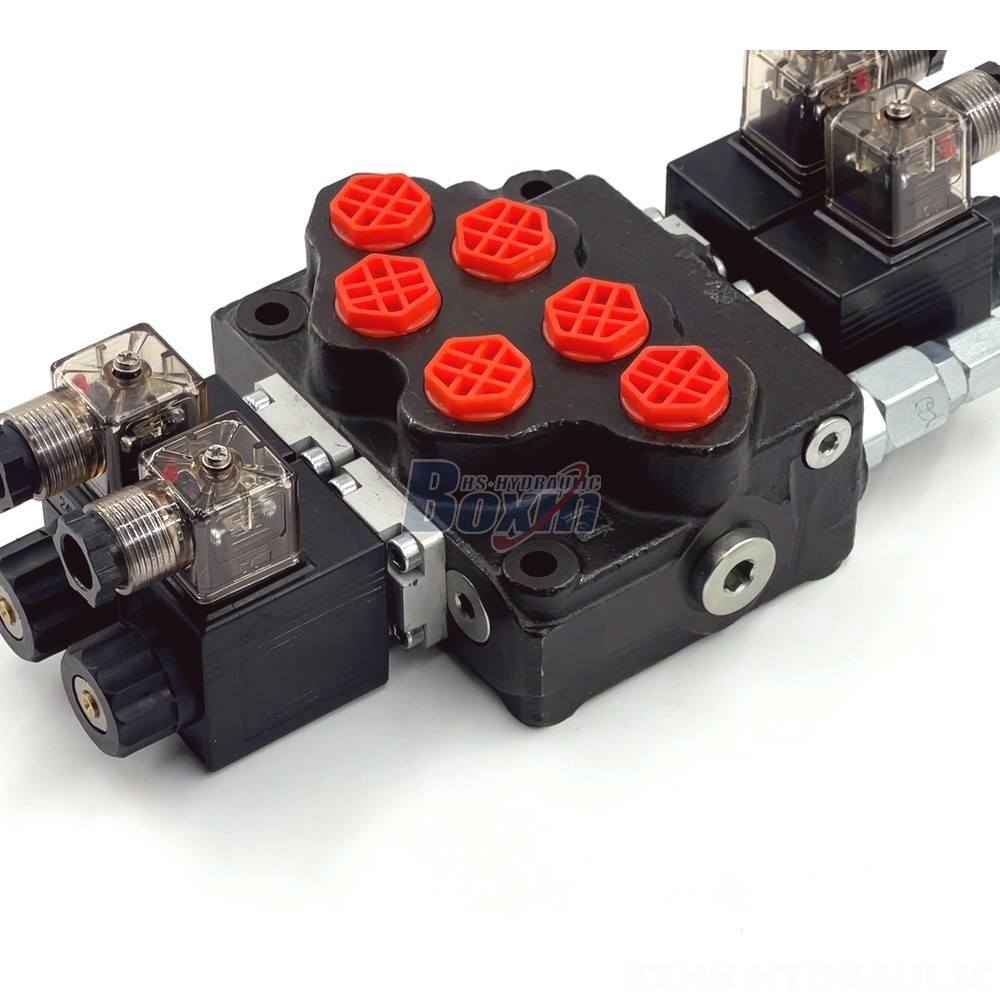

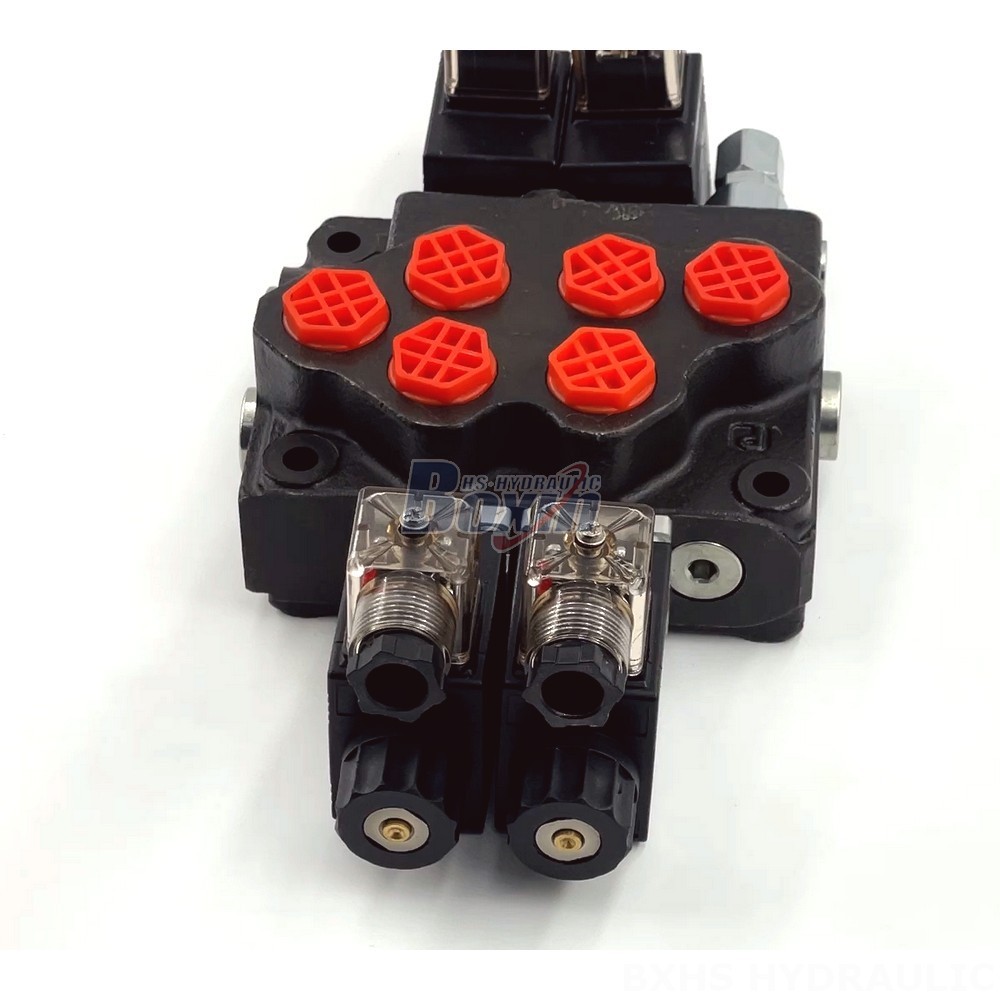

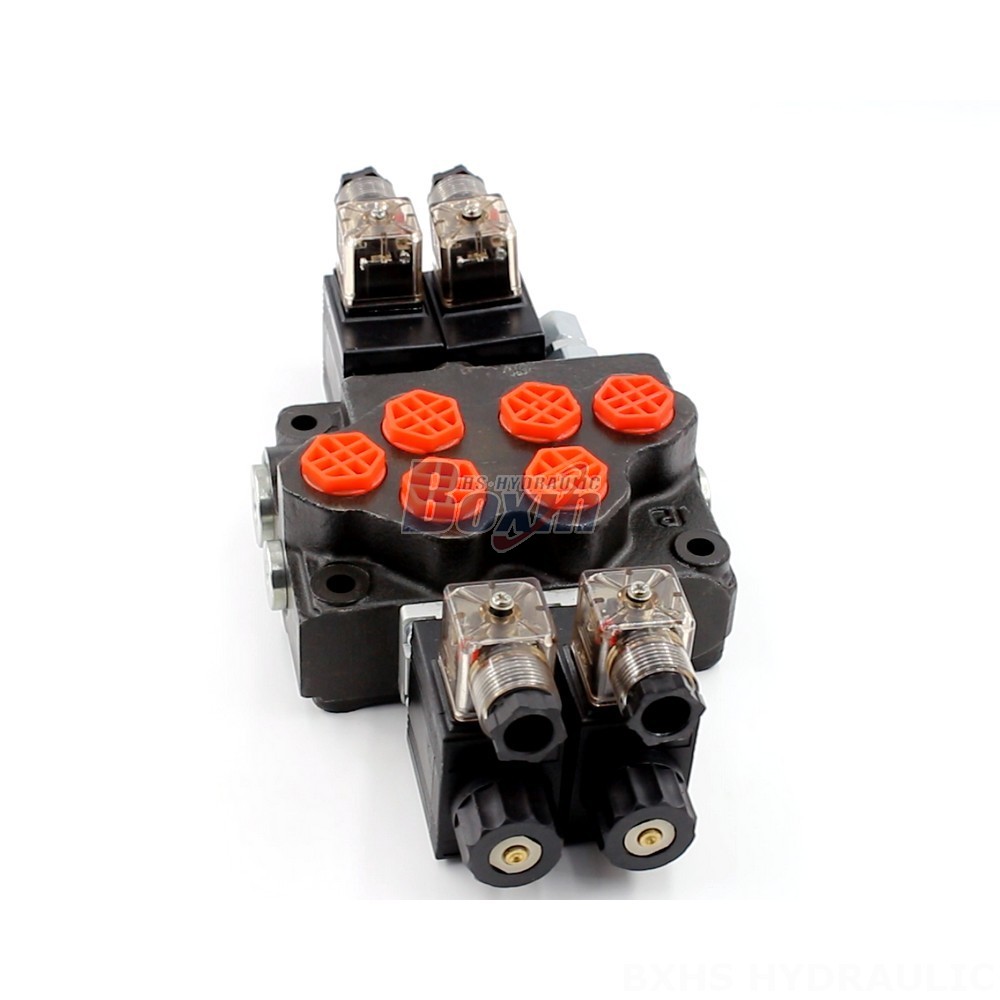

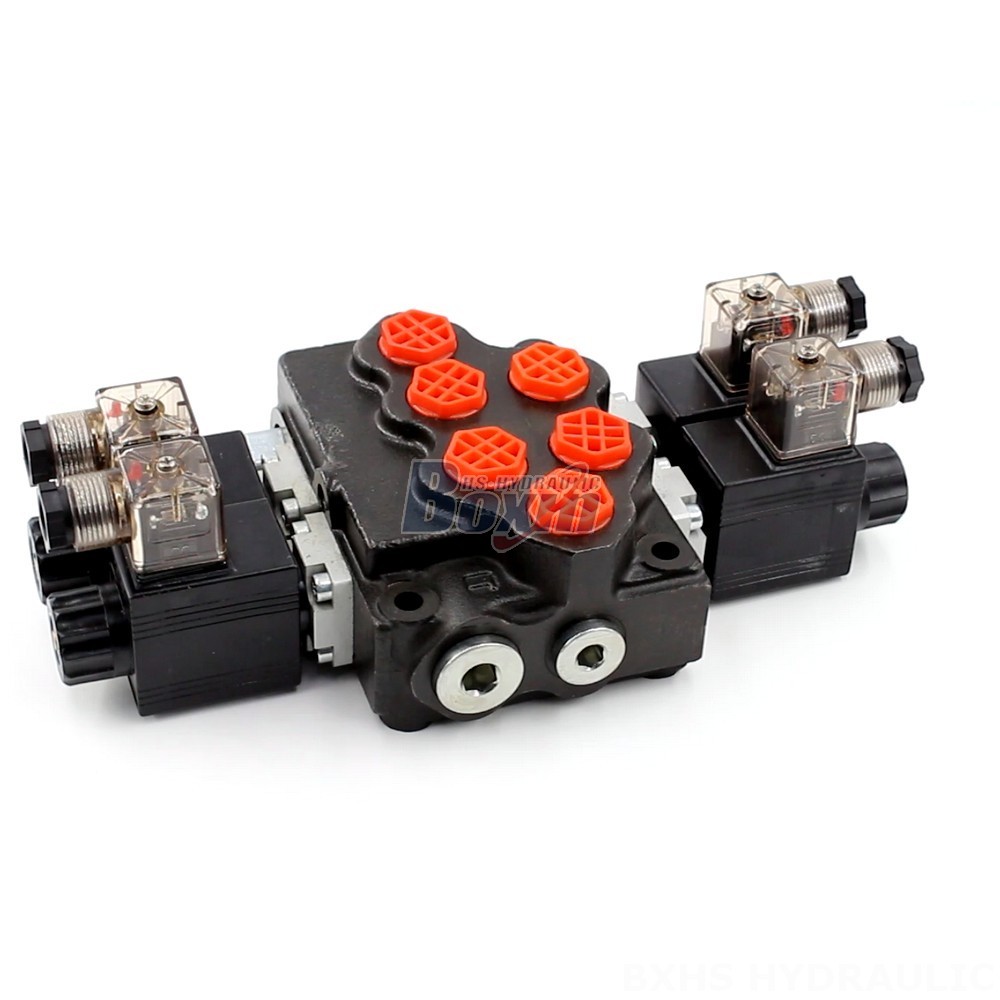

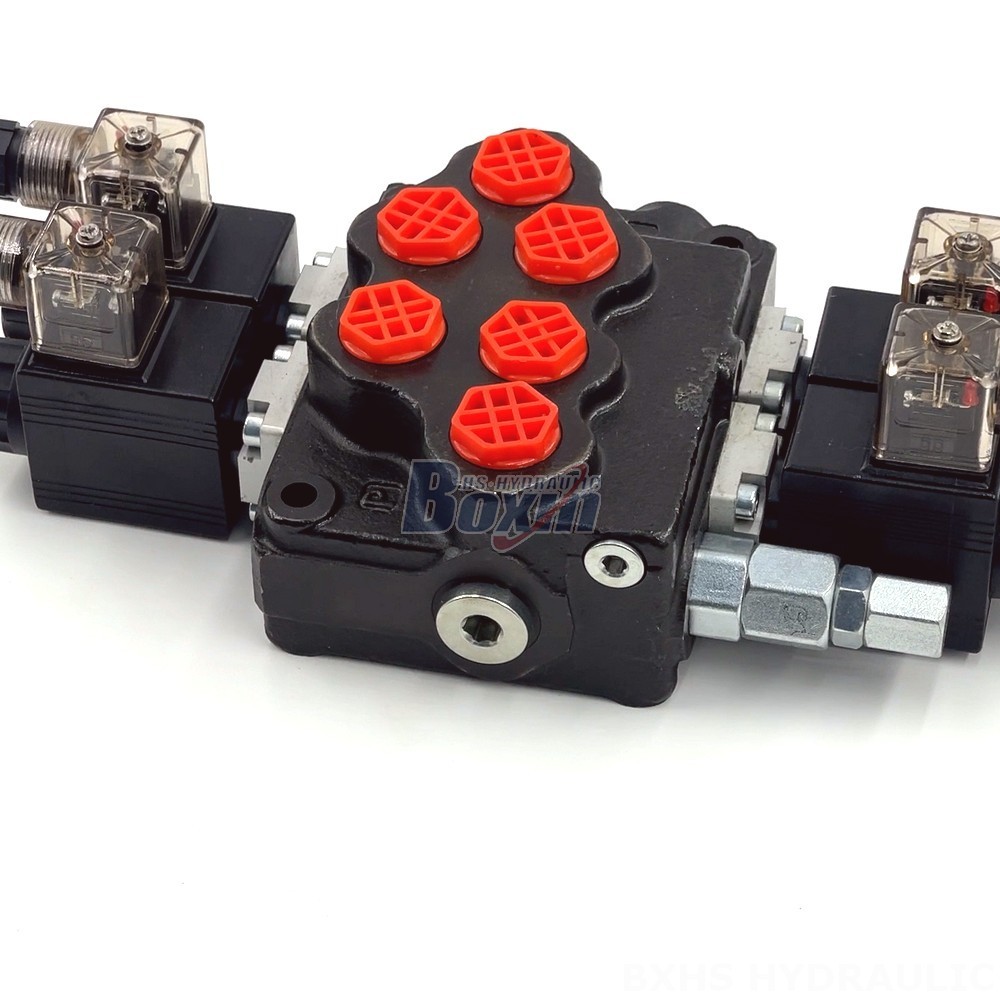

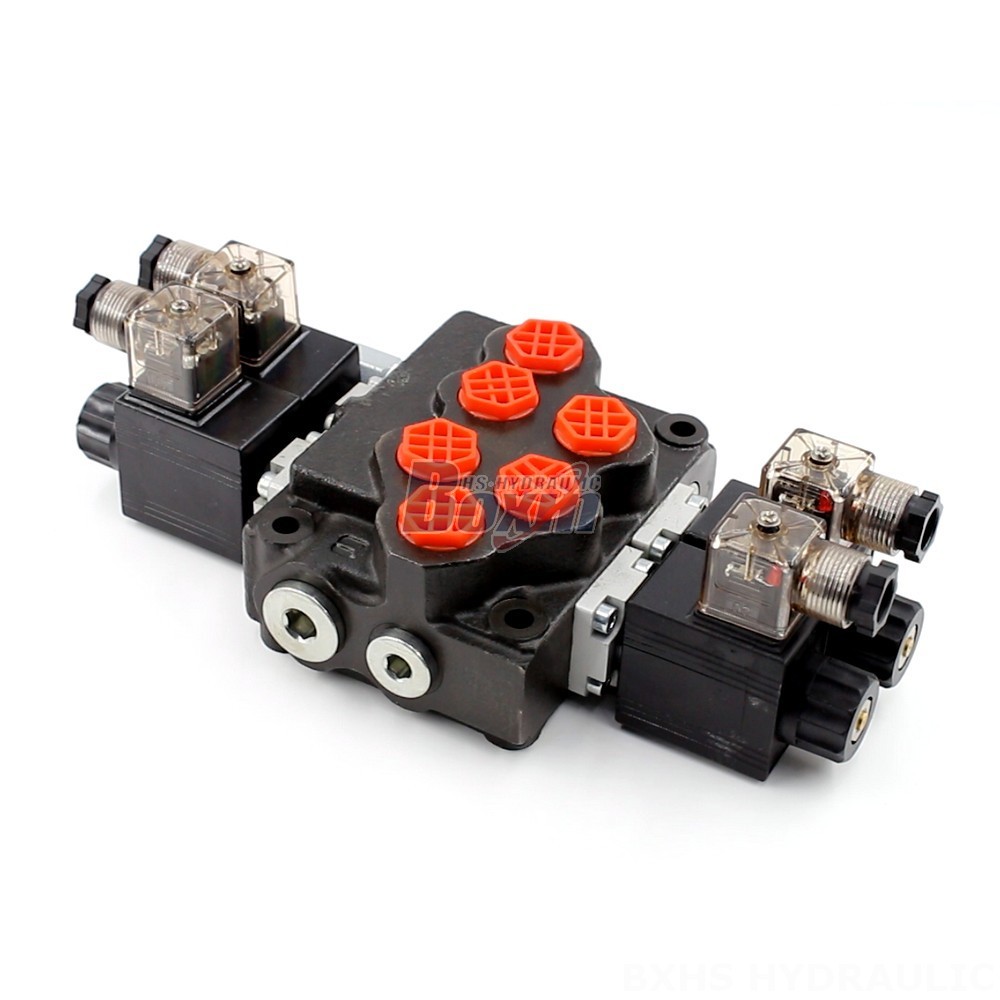

The SD5 Series Hydraulic 4/3 Valve is a solenoid directional control valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It features a monoblock valve structure, a rated flow of 40 L/min (10.5 US gpm), and a maximum pressure of 305 bar (4400 psi).
| SD5-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 305 bar (4400 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Anschlussgröße | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This high-performance SD5 Series Hydraulic 4/3 Valve is a solenoid directional control valve designed for use in demanding applications. It features a robust monoblock valve structure, providing high reliability and durability. The valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), making it suitable for a wide range of hydraulic systems. The valve's operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), allowing it to function effectively in various temperature conditions (-40°C to +60°C/-40°F to +140°F). The SD5 Series Hydraulic 4/3 Valve is ideal for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
