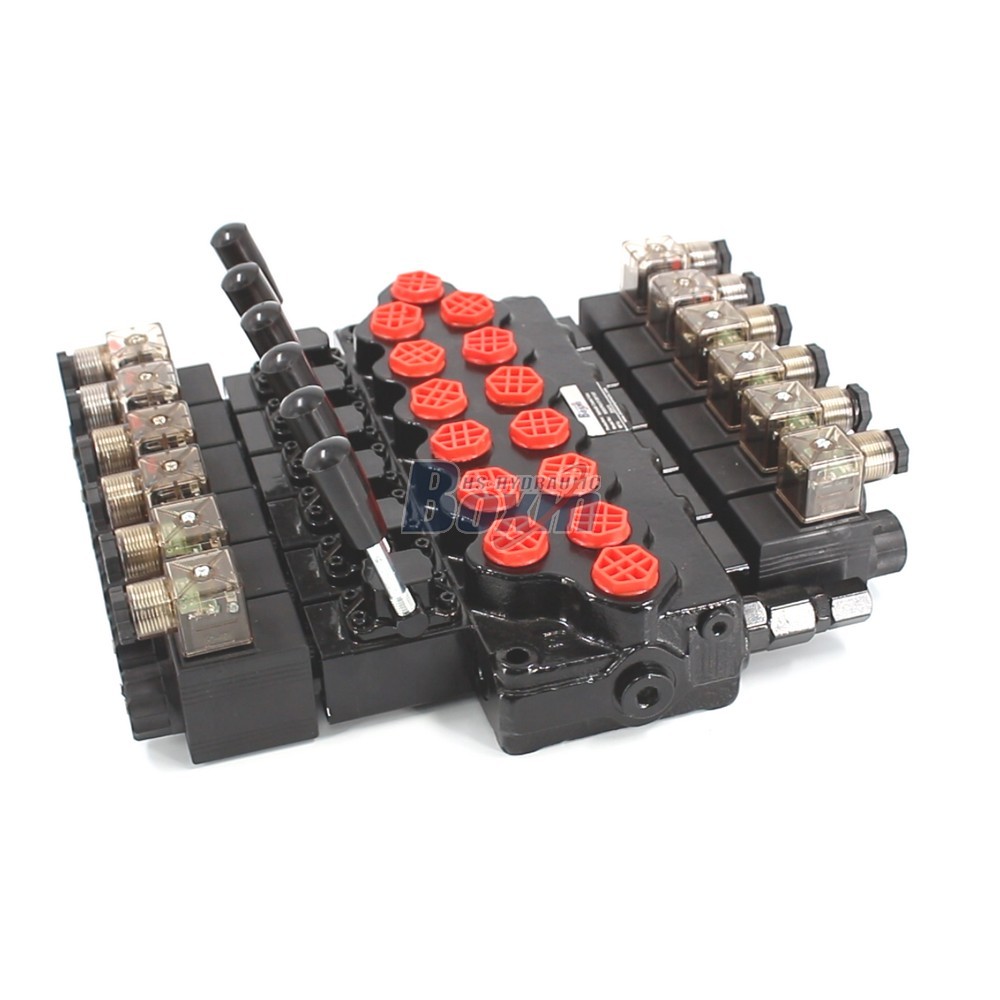

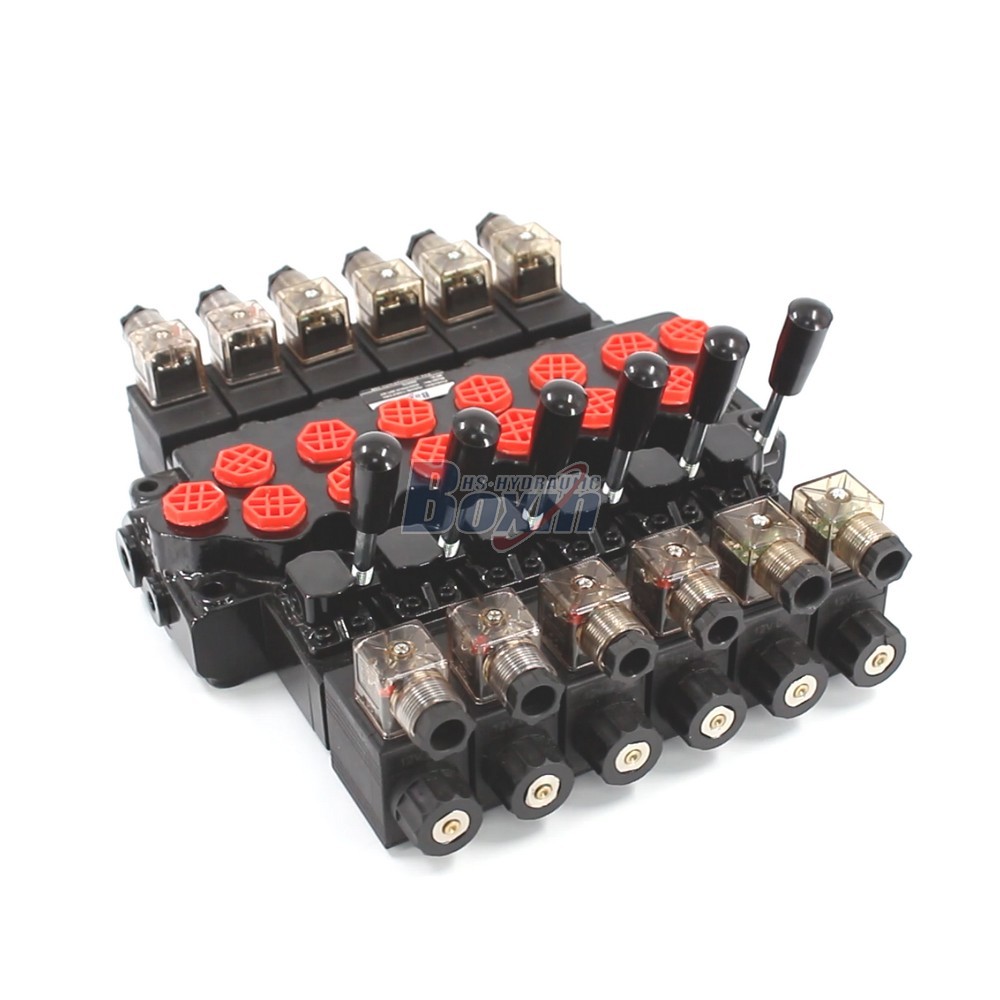

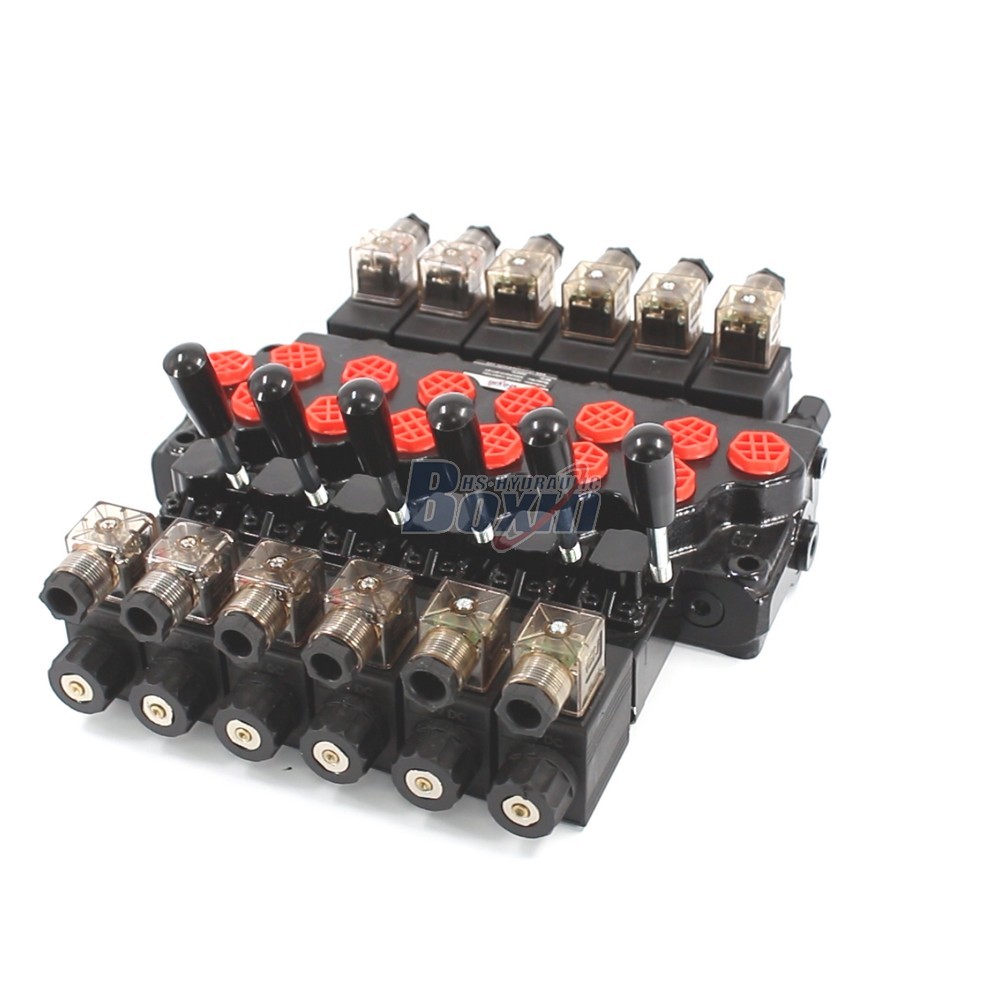

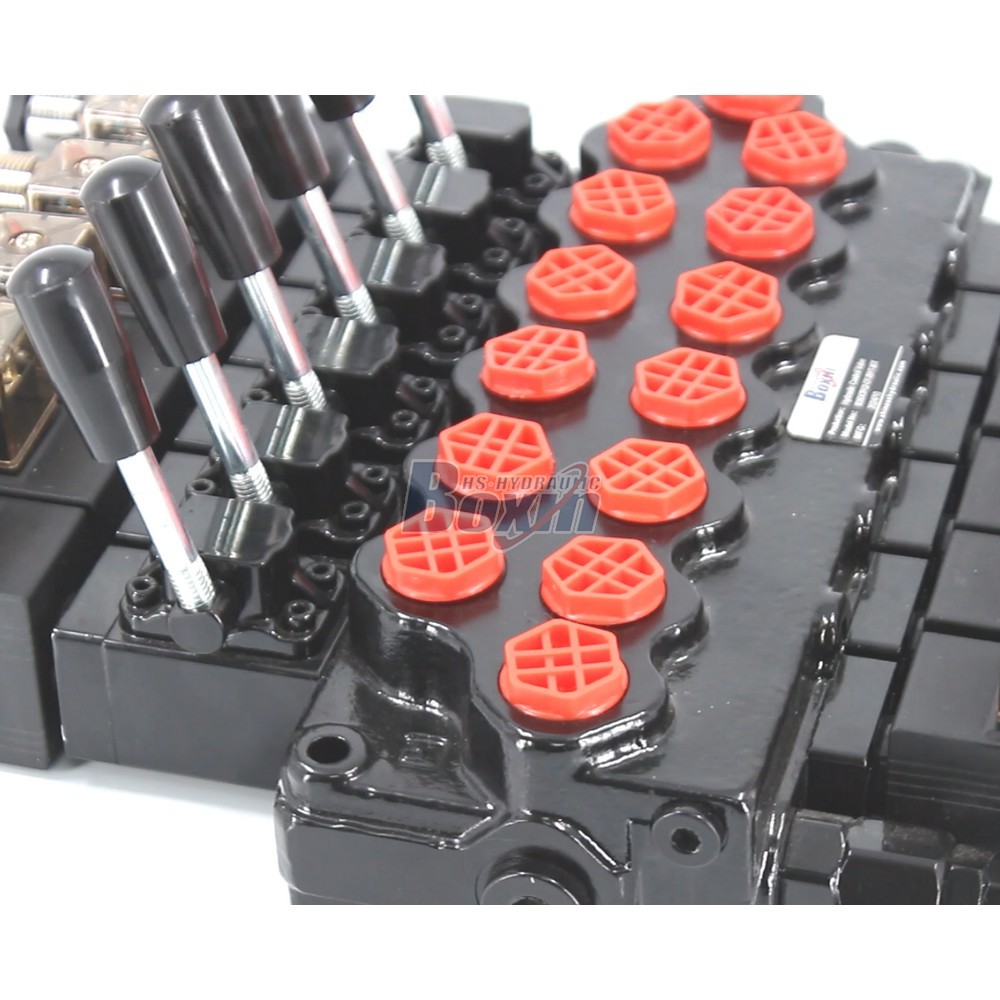

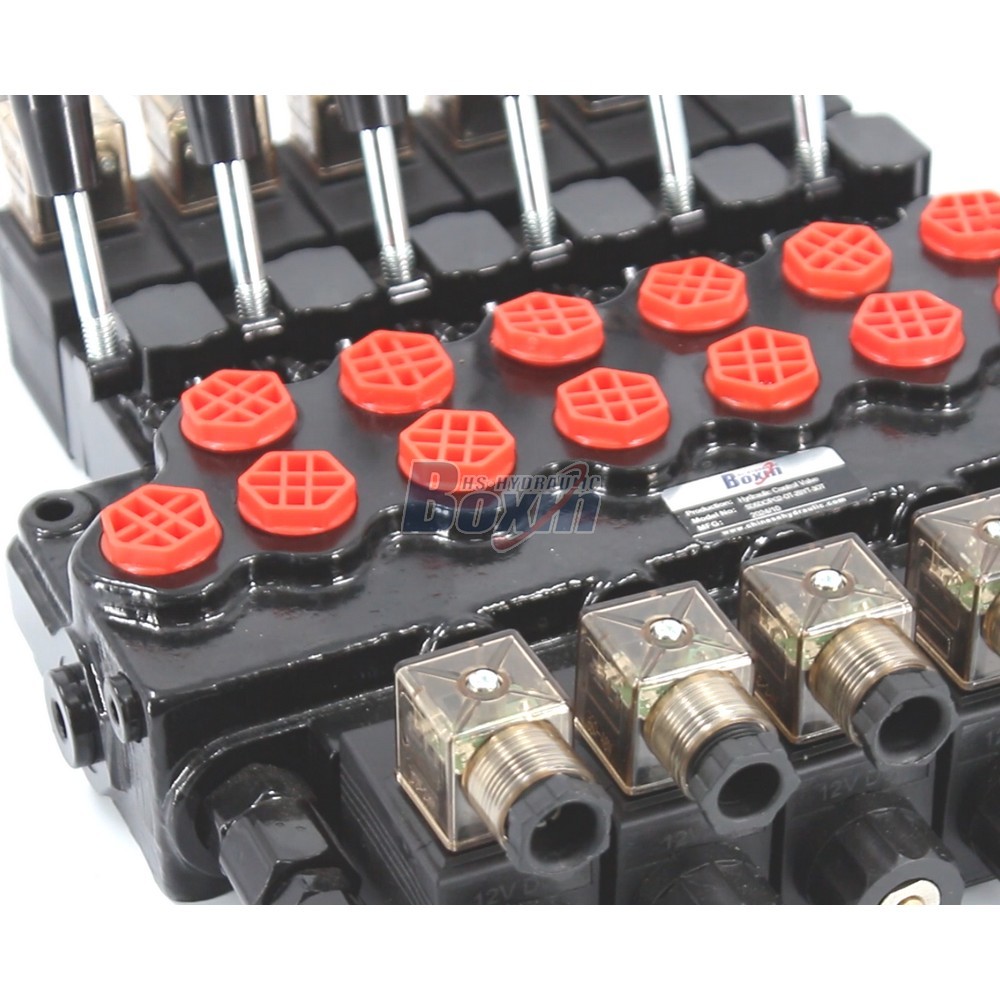

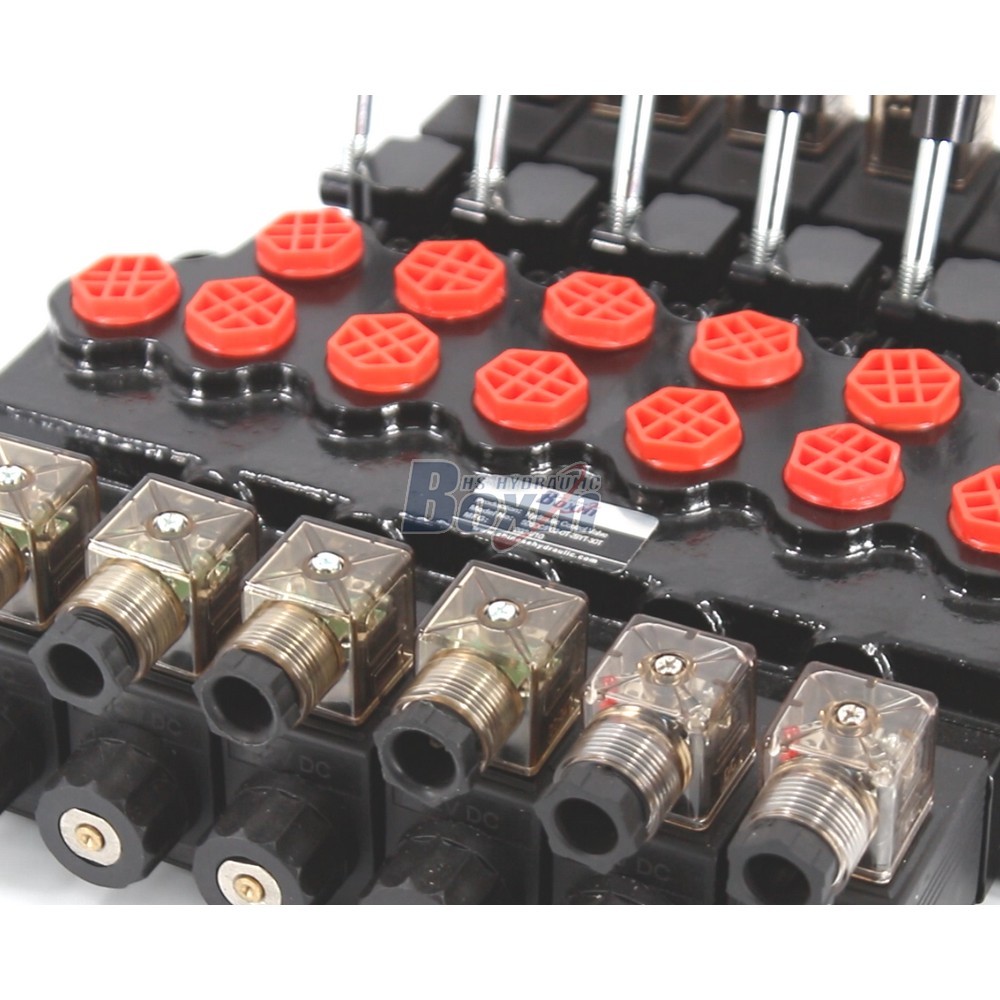

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

Steuermethode:Magnet

Steuerkolben:6 Spulen

Nennfluss:45 l/min (11,8 US gal/min)

Maximaldruck:315 bar (4600 psi)

Einlassanschluss:G1/2

Auslassanschluss:G1/2

Anschlussgröße:G3/8

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:SD5-Serie Monoblock-Wegeventil

Verpackungsgröße:31*29*10

Bruttogewicht:14.00 kg

Verfügbarkeit: Auf Lager

92 Personen sehen sich dieses Produkt an

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation drawing image

The SD5-PG2 Series is a high-performance 6-spool solenoid directional control valve designed for precision flow management. With a 45 L/min flow rate and 315 bar pressure capacity, it serves diverse heavy-duty applications including construction, agriculture, and material handling machinery.

SD5-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Umgebungstemperaturbereich -40 °C bis +60 °C (-40 °F bis +140 °F)
Strukturtyp Monoblockventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)
Nennfluss 40 l/min (10,5 US gal/min)
Maximaldruck 305 bar (4400 psi)
Einlassanschluss G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Auslassanschluss G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Anschlussgröße G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

As a prominent manufacturer specializing in advanced fluid power solutions, we provide the SD5-PG2 Series 6 Spool Solenoid Directional Control Valve to global markets. Our facility excels in precision engineering, offering comprehensive services in manufacturing, OEM, private labeling, and custom design to meet specific project requirements. We support large-scale factory wholesale and are actively seeking long-term partnerships with distributors, wholesalers, agents, and international traders. Our valves are engineered for reliability in demanding environments such as tractors, forklifts, mini-excavators, and harvesters. By choosing our factory direct supply, partners gain access to competitive pricing, robust logistical support, and consistent manufacturing quality. We welcome inquiries for tailored hydraulic solutions and invite industry professionals to discuss partnership opportunities to expand our reach in the global construction and industrial vehicle sectors.
