Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

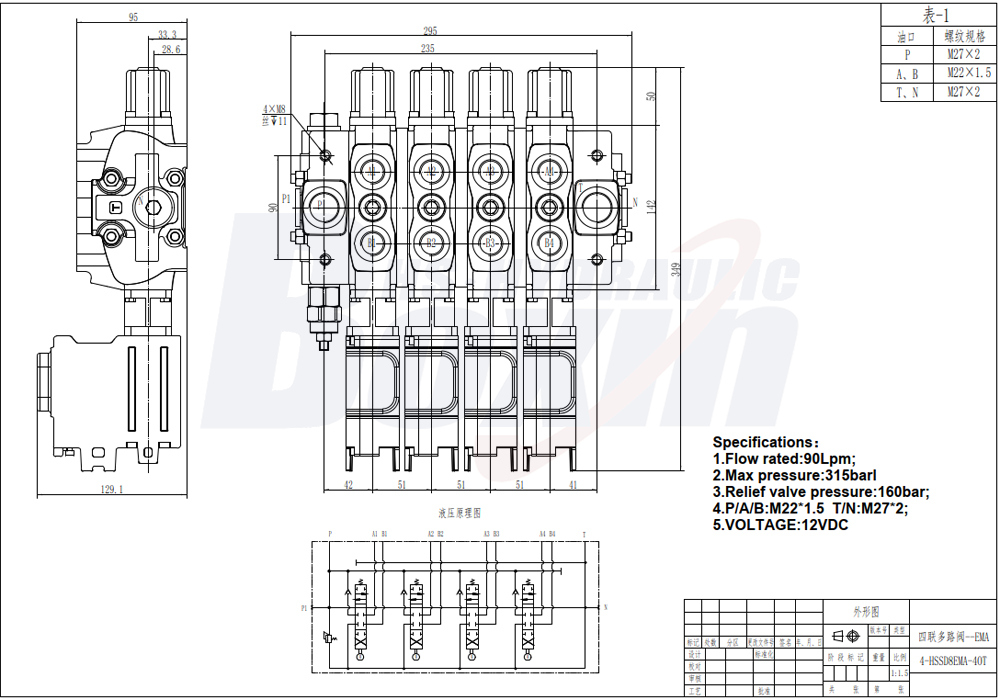

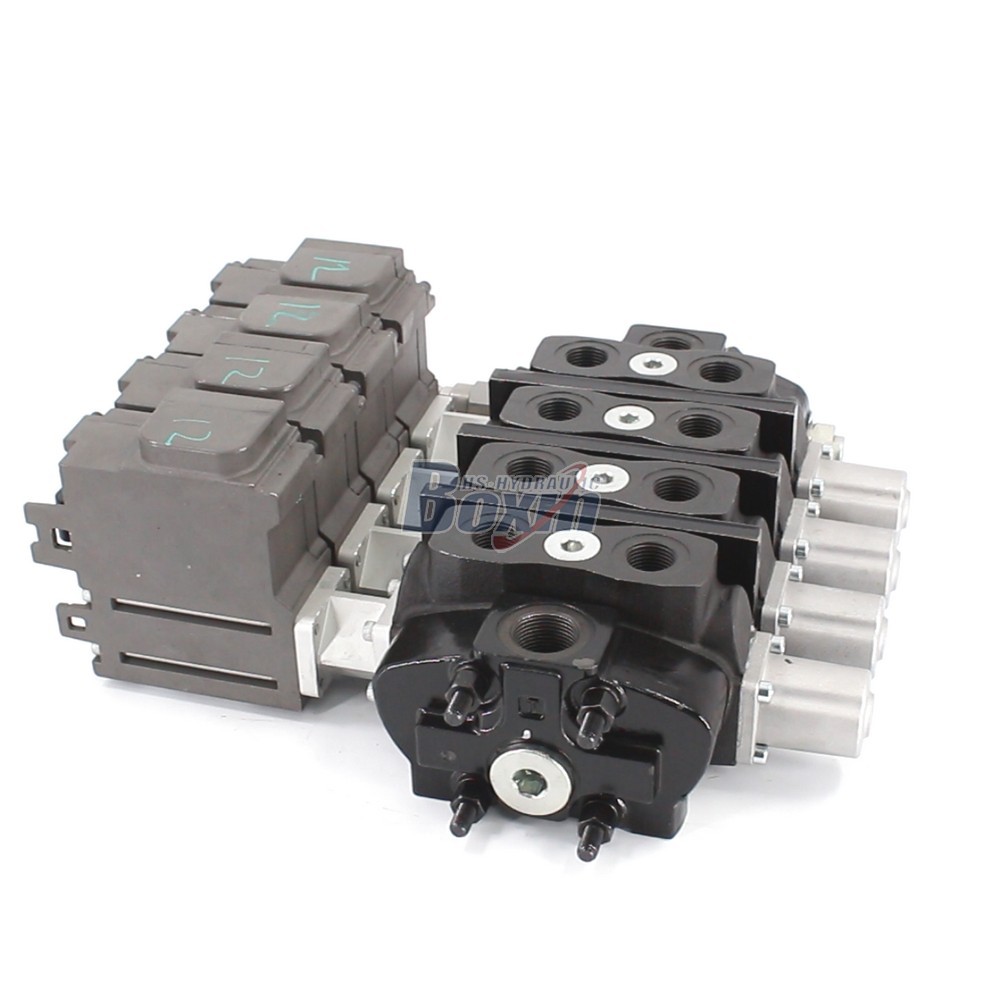

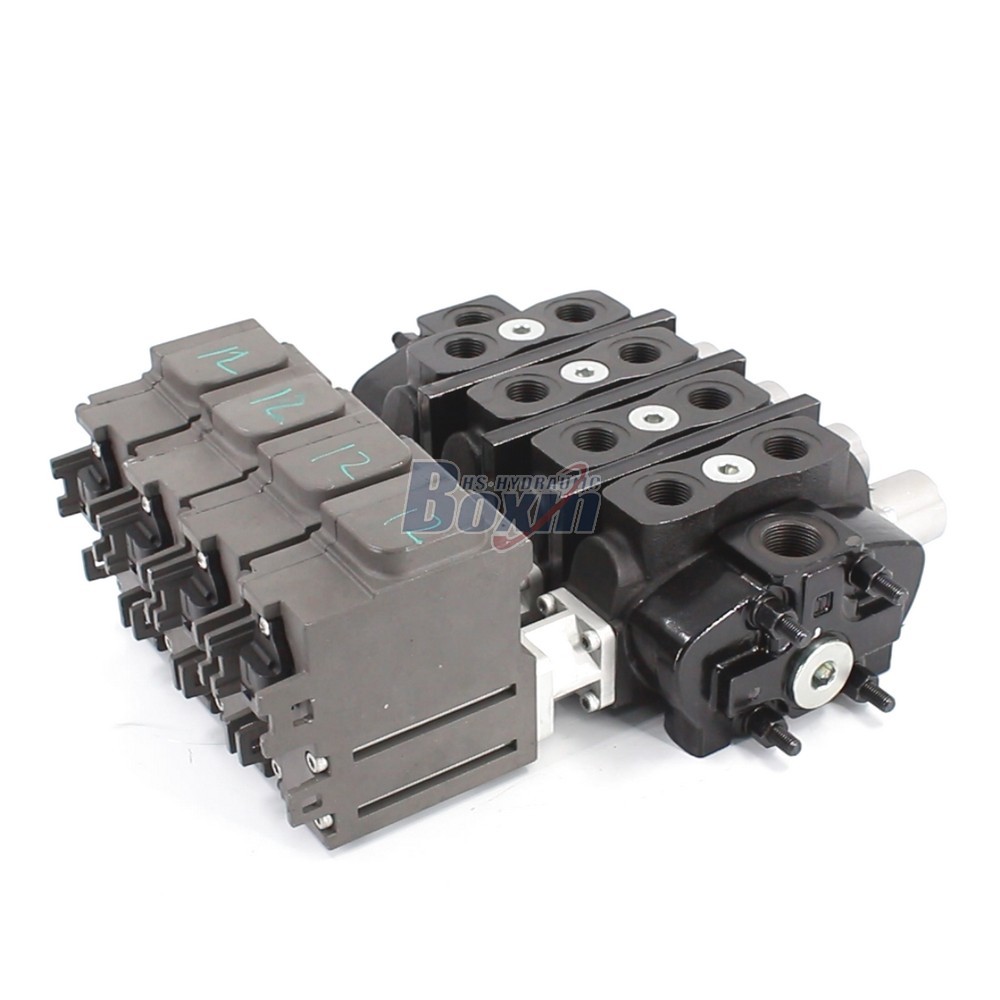

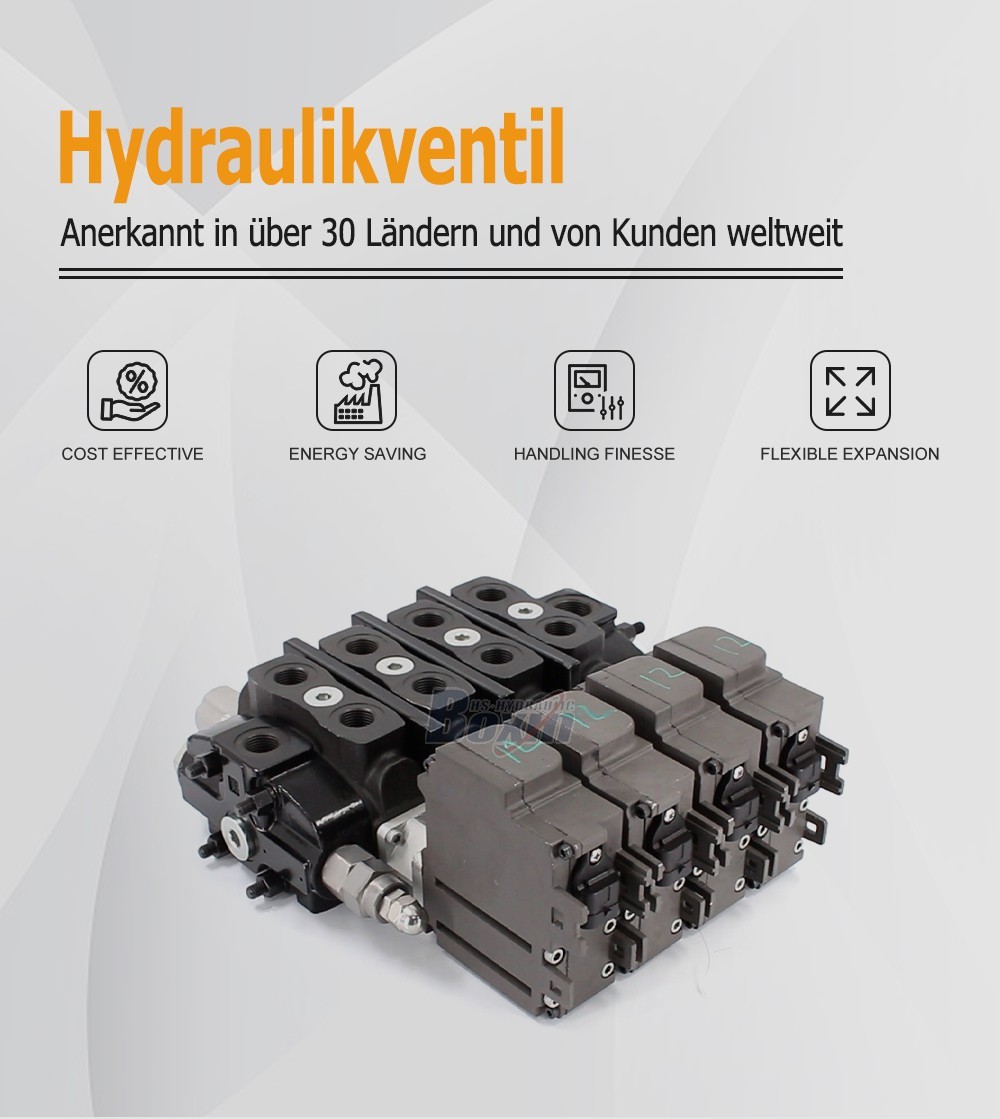

This SD8EMA-4OT 4 Spool Sectional Directional Valve features electric motor control, handling 90 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and mini-excavators with 100% tested quality.
| SD8-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Elektromotor |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 90 l/min (23,8 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M22×1.5, SAE 10 |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Anschlussgröße | G1/2, M22×1.5, SAE 10 |
**1. Reliable 4 Spool Directional Valve for Heavy Duty Use**
- Engineered with 4 spools to manage complex hydraulic circuits, supporting a rated flow of 90 L/min (23.8 US gpm) and max pressure of 315 bar (4600 psi).
- Ideal for material handling and construction machinery like skid steer loaders and backhoe loaders, ensuring smooth operation under high load.
**2. Precision Electric Solenoid Valve with CE Certification**
- Features advanced electric motor control for precise directional changes, compatible with M22×1.5 inlet and M27×2.0 outlet ports.
- Backed by CE compliance and SGS testing, this unit guarantees safety and stability for industrial vehicles and aerial platforms.
**3. Factory Direct Sales from 25-Year Professional Manufacturer**
- Sourced directly from our 68,000㎡ facility with 1.5 million annual capacity, offering competitive Wholesale China Factory pricing.
- Benefits from 260+ vertical machining centers and strict IATF 16949 quality control, ensuring every valve meets global standards.
**4. OEM/ODM Available for Custom Hydraulic Solutions**
- Supported by 35+ senior engineers, we provide full customization including logo laser marking, casting modifications, and private label services.
- Perfectly compatible with international major brands, allowing distributors to offer seamless replacements with customized branding options.
**5. 100% Tested Hydraulic Control Valve for Global Export**
- Every unit undergoes rigorous bench testing for pressure, flow, and sealing before shipment, ensuring zero-defect delivery.
- Packaged in heavy-duty wooden crates with anti-rust treatment, this Exported Worldwide product is ready for immediate integration into your supply chain.
