Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit
Innovation treibt Entwicklung voran Technologie gestaltet die Zukunft
931 Personen sehen sich dieses Produkt an

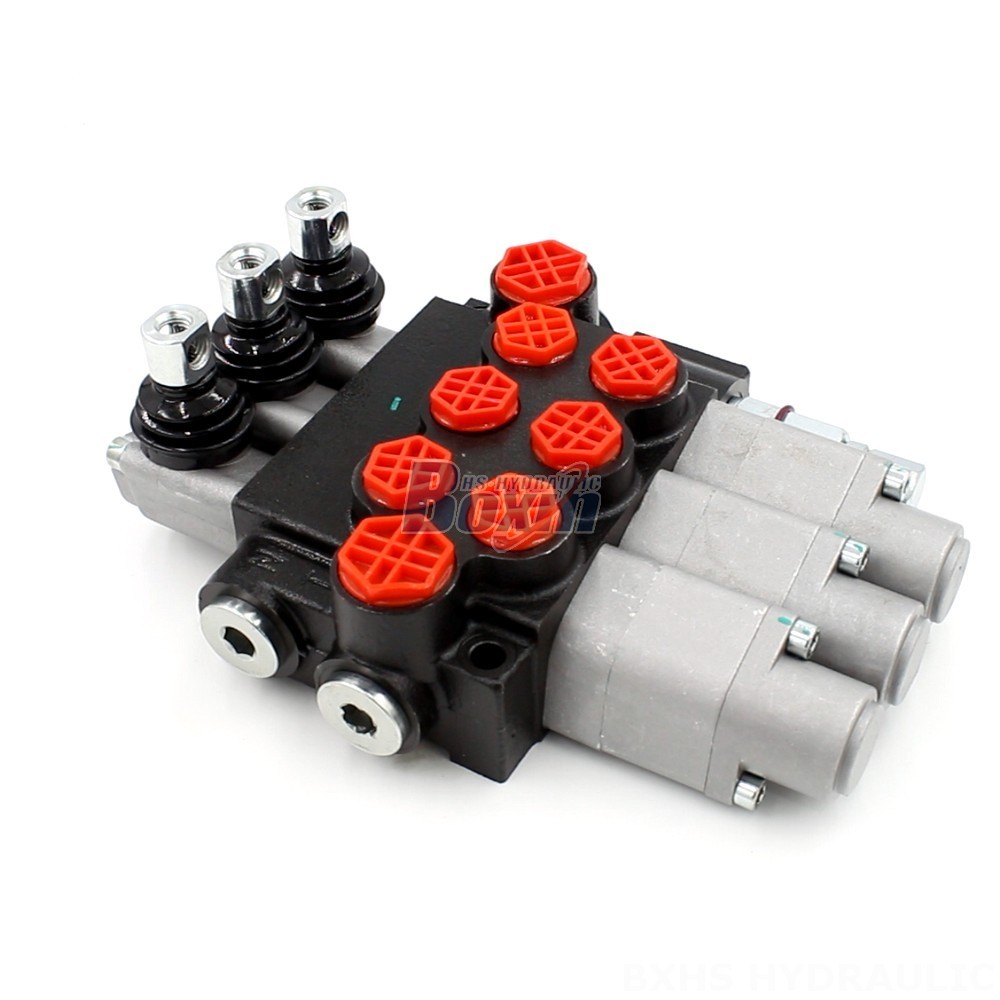

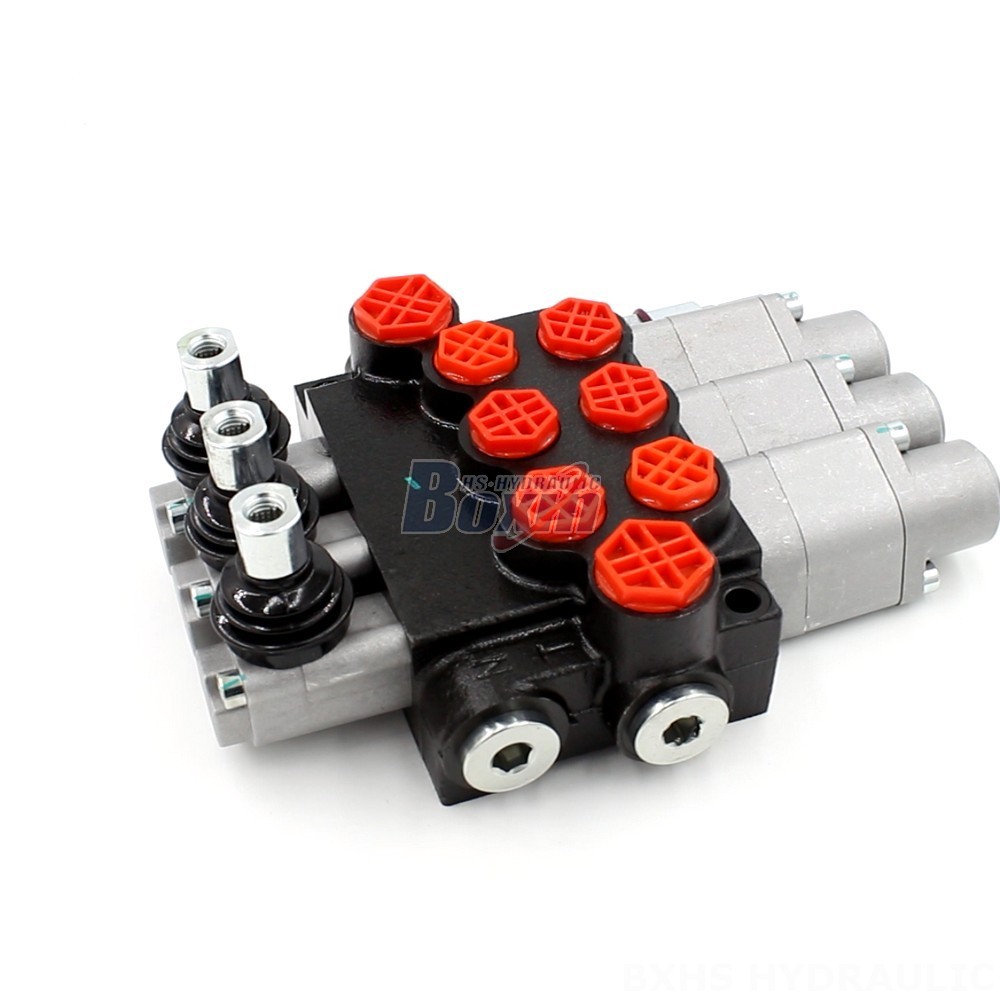

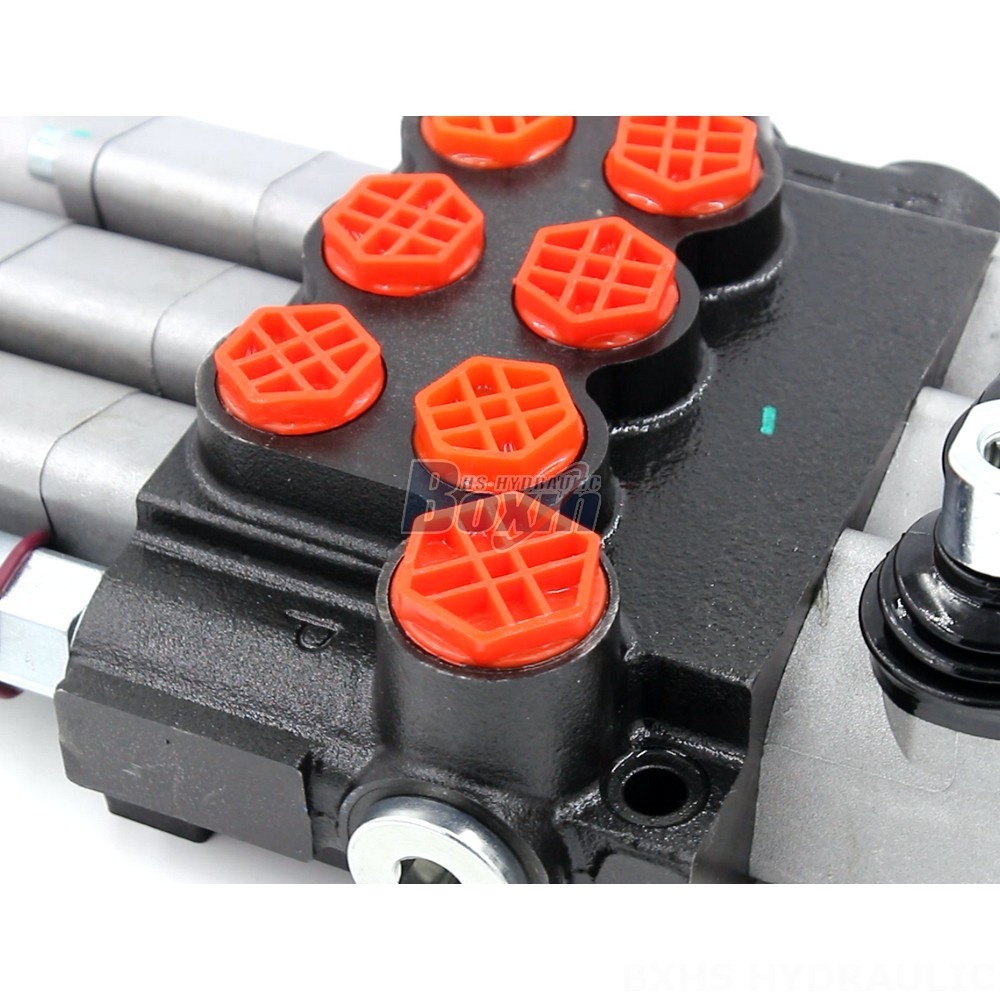

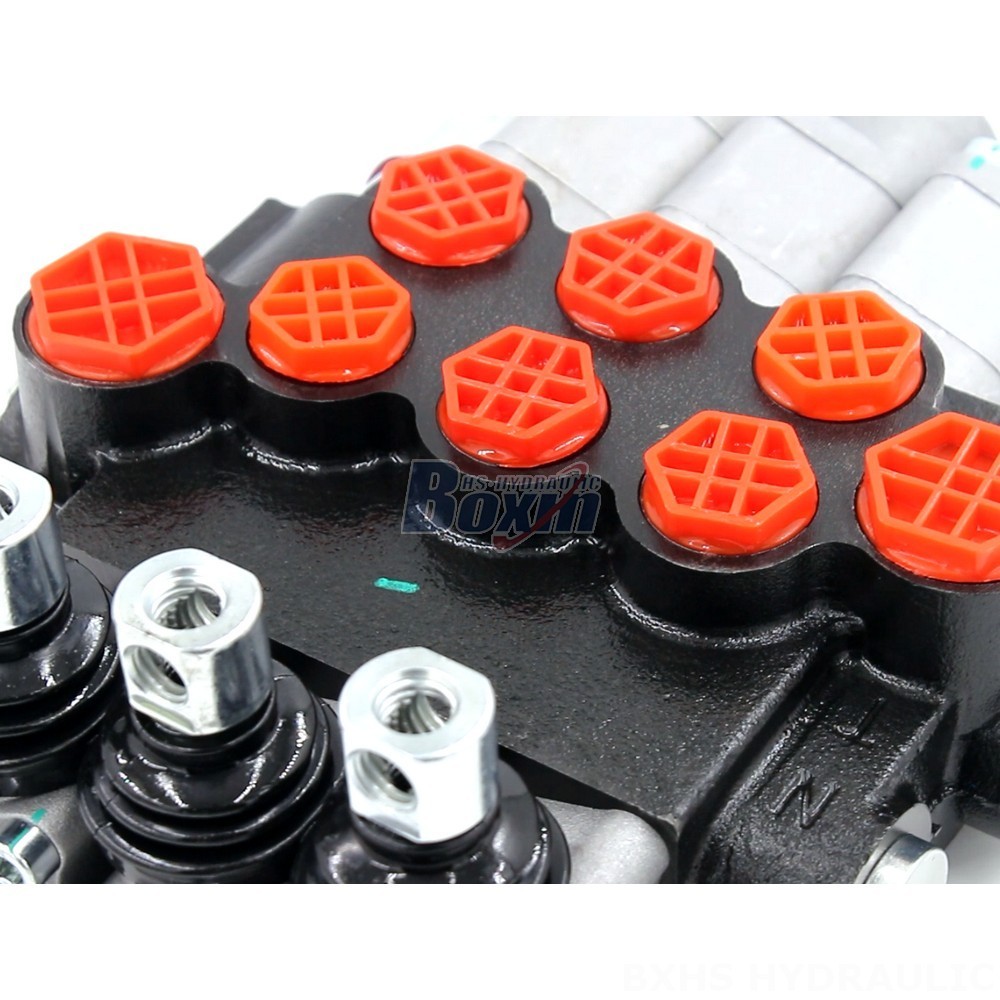

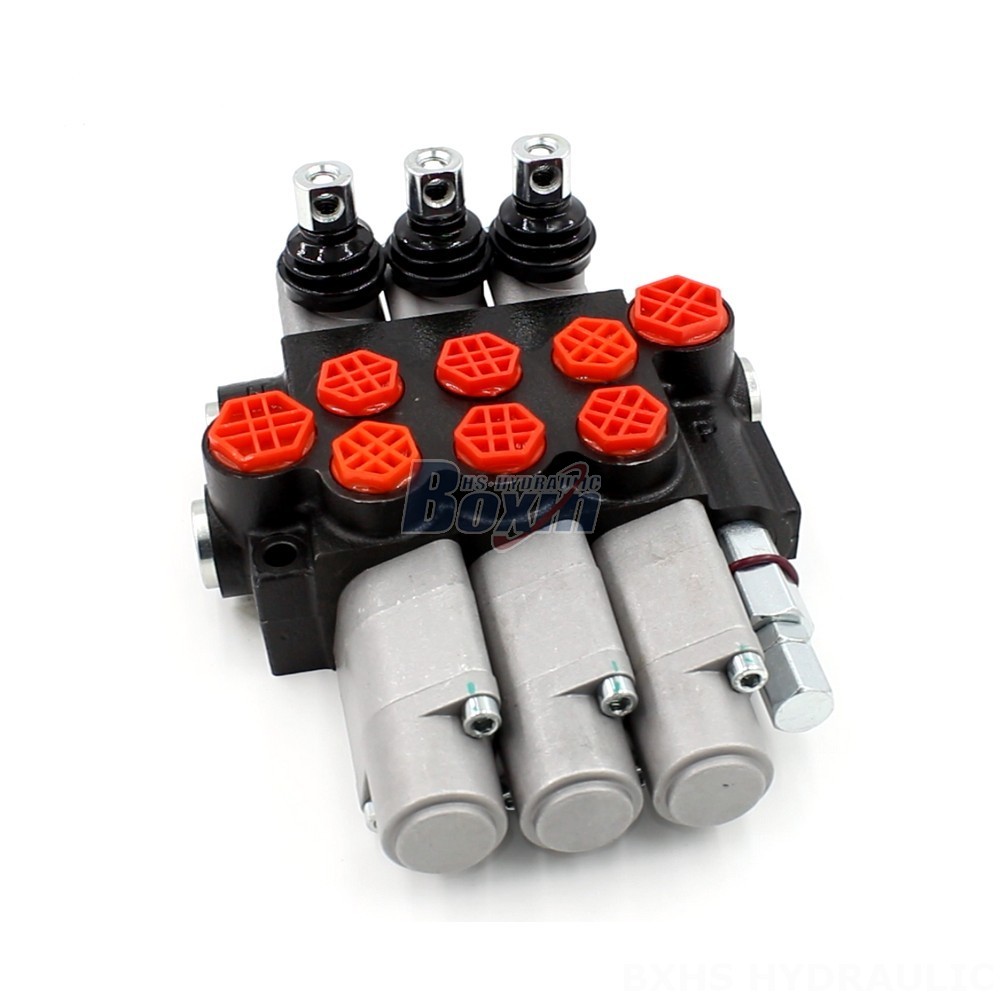

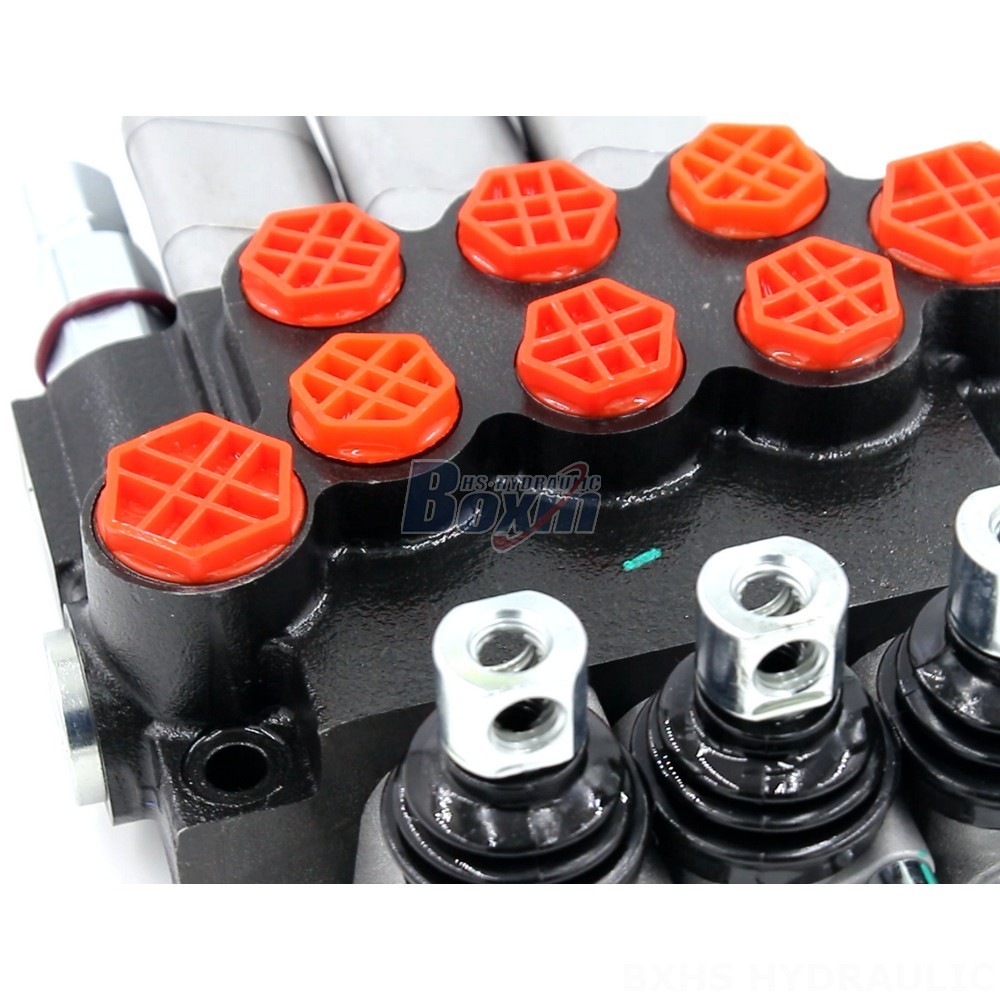

Our P40-G12-G38-3QTW monoblock valve is a high-performance hydraulic component designed to meet the demanding requirements of various industrial and mobile applications. With its sturdy construction, precise control, and customizable options, this valve is an ideal solution for OEMs and system integrators seeking reliable and tailored hydraulic solutions.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
- Manual control for precise and responsive operation
- 3-section design for versatility and control over multiple hydraulic circuits
- 40 L/min rated flow capacity to handle high flow demands
- 250 bar maximum pressure rating for durability and reliability
- Wide operating viscosity range from 15 to 75 mm²/s for compatibility with various hydraulic fluids
- Temperature range of -40°C to +80°C for operation in extreme environments
- 3 spool options to suit specific application requirements
- P40 series compatibility for interchangeability and ease of integration
**Applications:**
- Material handling equipment
- Construction and earth-moving machinery
- Agricultural vehicles
- Industrial vehicles
**OEM, ODM, and Private Label Services:**
We offer flexible OEM, ODM, and private label services to meet your specific requirements. Our team of experienced engineers can work closely with you to develop and manufacture customized solutions that align with your brand and application needs. Whether you require tailored valve configurations, custom labeling, or complete design and manufacturing services, we have the expertise and capabilities to deliver the ideal solution for your business.
