The SDS180 Sectional Valve is a precision hydraulic control valve designed for use in various applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It offers precise control with a manual operation, a rated flow of 160 L/min, and a maximum pressure of 350 bar.
| Serie SDS180 Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Hydraulisch |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 160 l/min (42,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi), 350 bar (5100 psi) |
| Einlassanschluss | G3/4, G1, SAE 12 |
| Auslassanschluss | G1, SAE 16 |
| Anschlussgröße | G3/4, G1, SAE 12 |

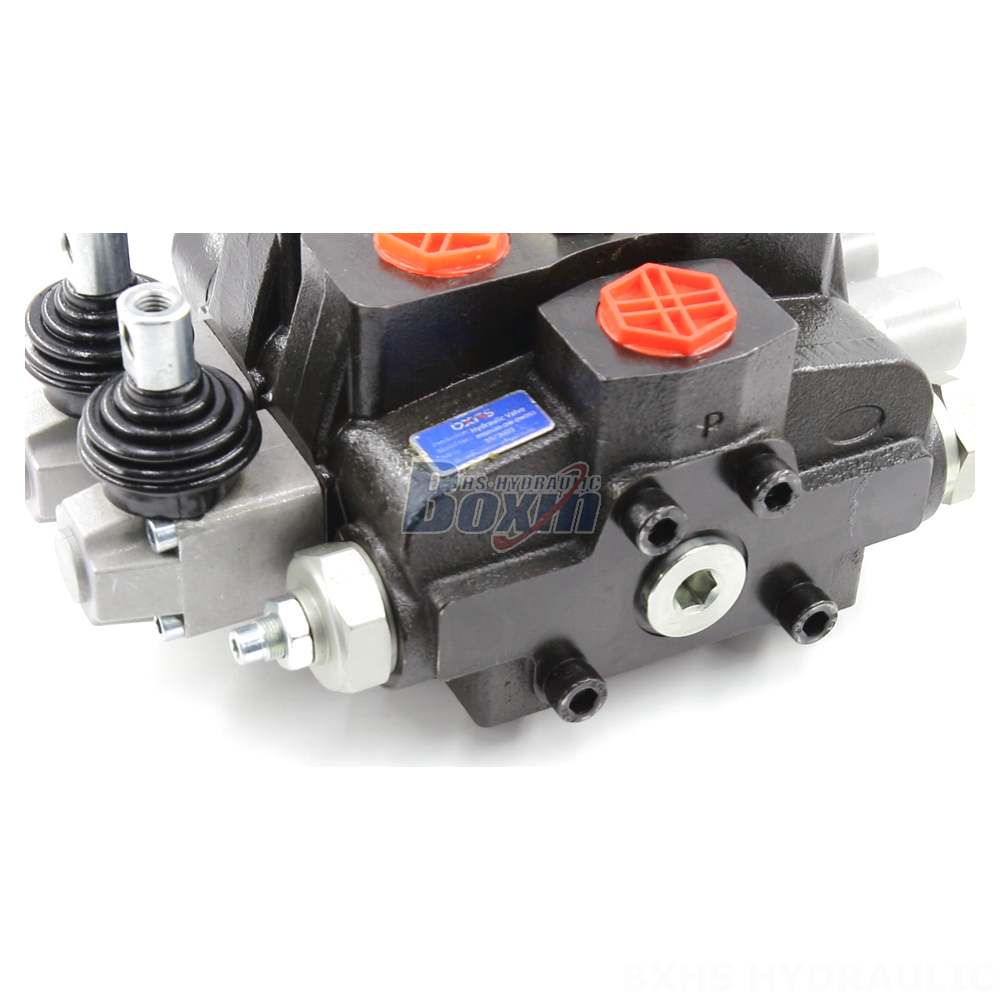

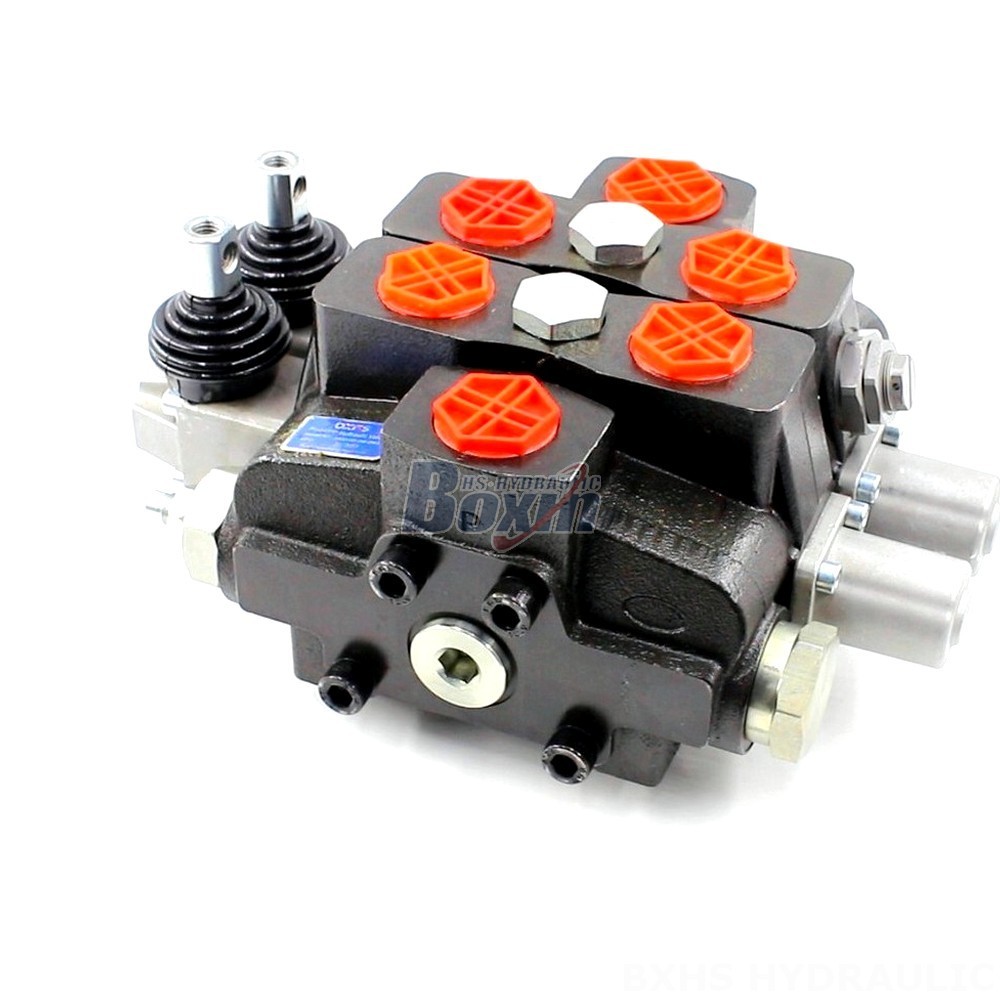

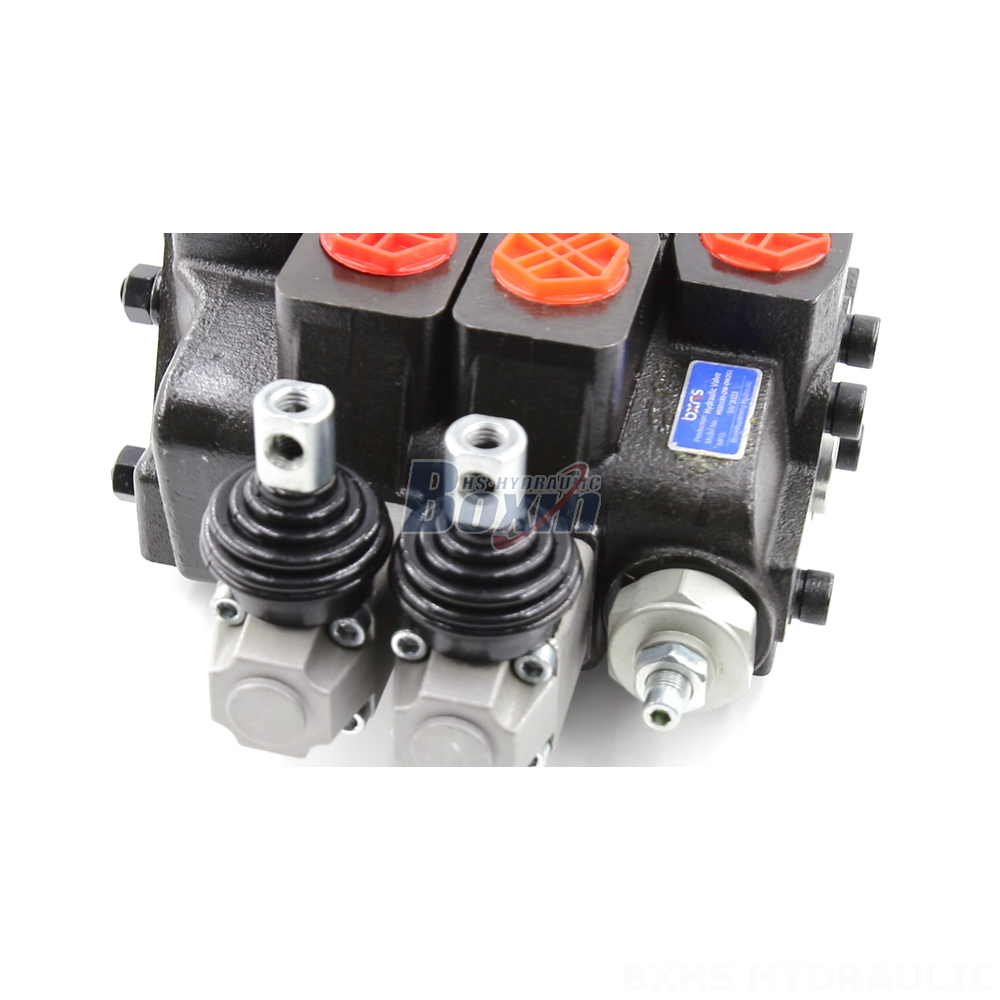

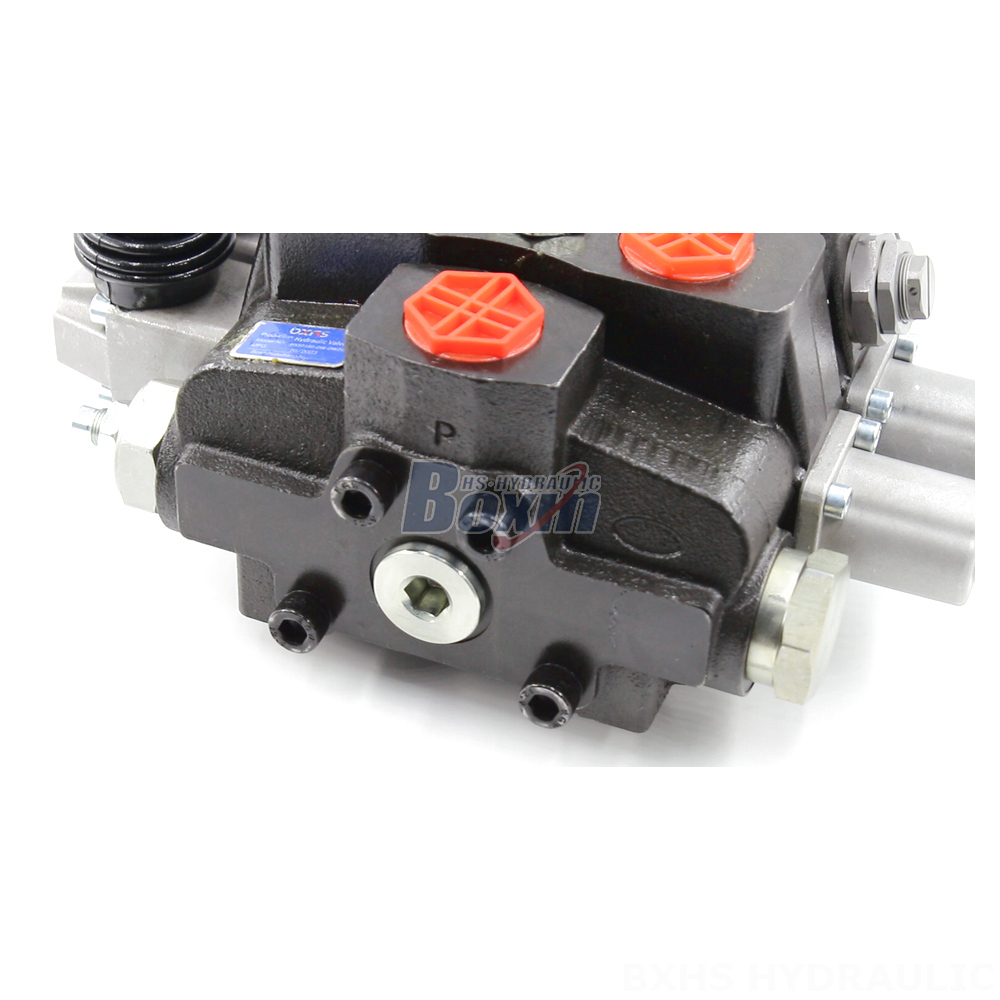

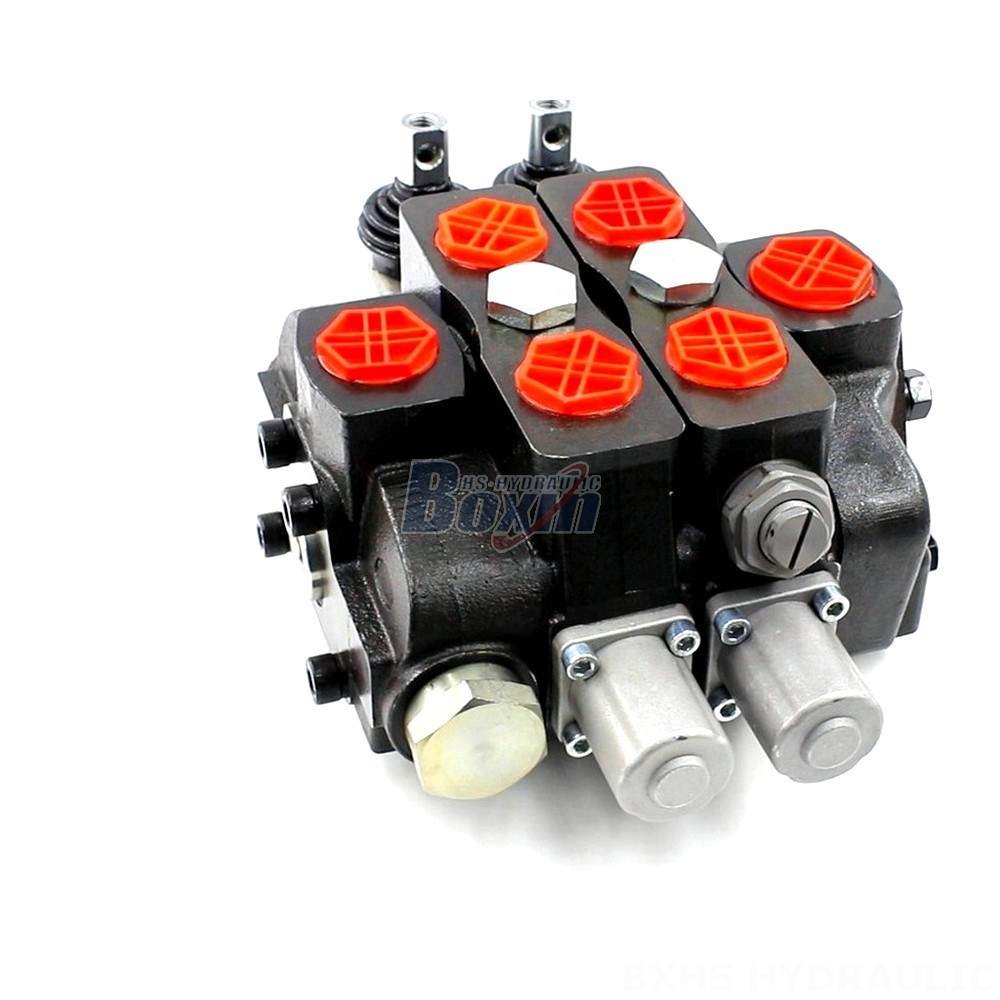

**SDS180 Sectional Valve**
The SDS180 Sectional Valve is a 2-section, manually operated hydraulic valve designed to provide precise control of hydraulic systems. It features a rated flow of 160 L/min, a maximum pressure of 350 bar, and an operating viscosity range of 12 - 400 mm²/s. The valve is constructed using high-quality materials and is engineered to meet the demands of demanding applications.
**Key Features:**
* Manual control for precise operation
* 2-section design for versatility
* Rated flow of 160 L/min
* Maximum pressure of 350 bar
* Operating viscosity range of 12 - 400 mm²/s
* Durable construction for long-lasting performance
**Applications:**
The SDS180 Sectional Valve is suitable for a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
The SDS180 Sectional Valve is commonly used in the following types of equipment:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
