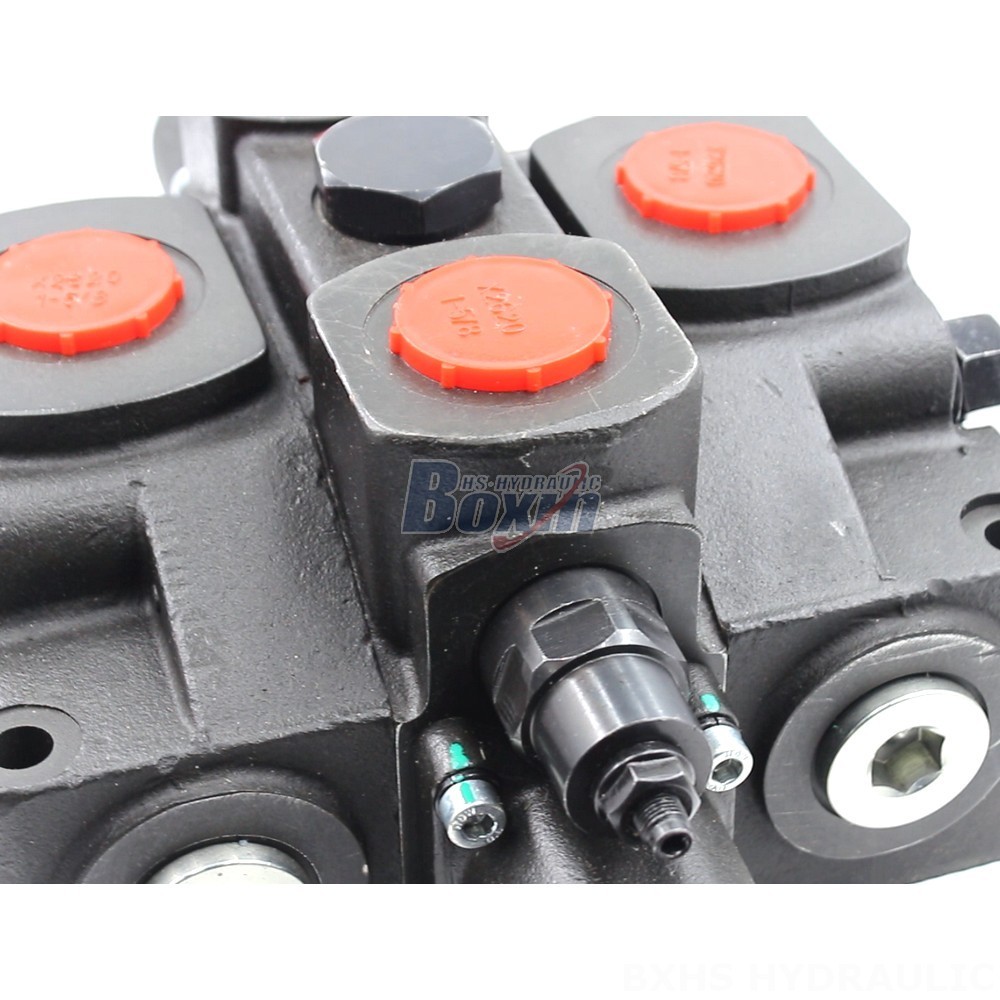

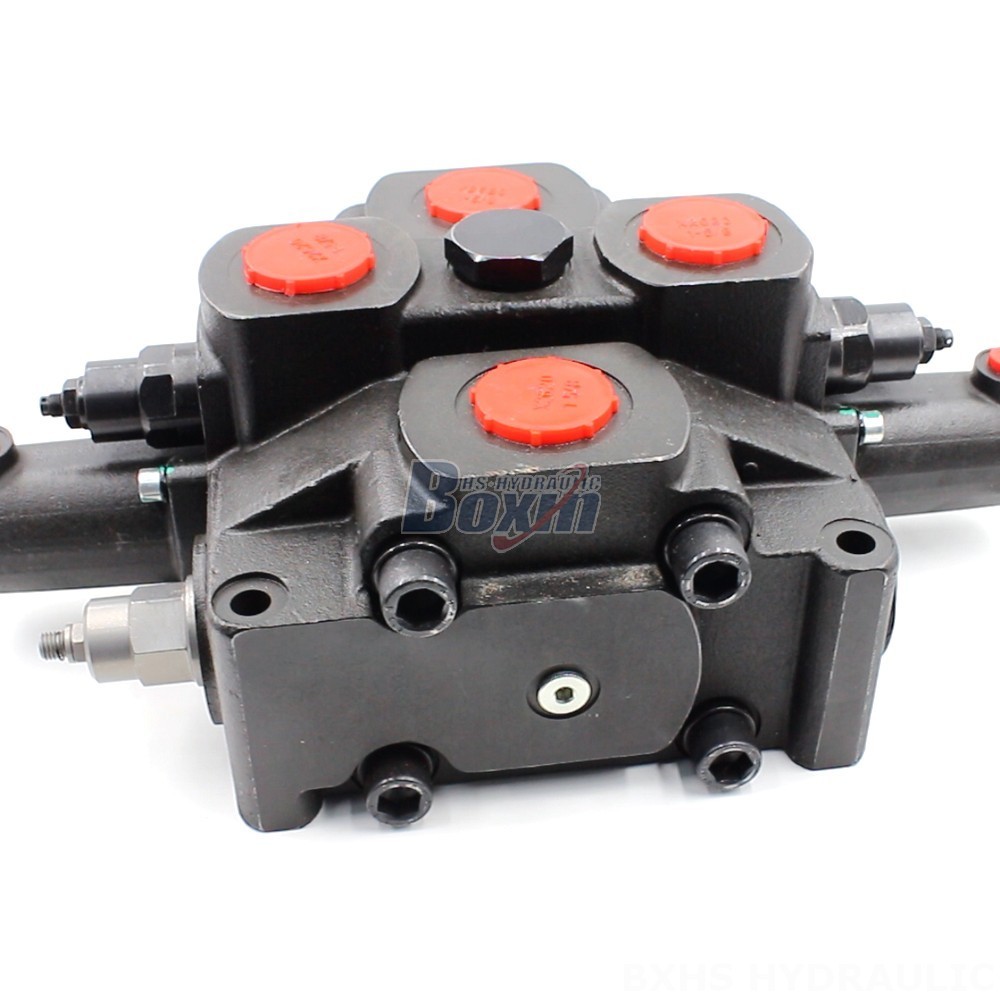

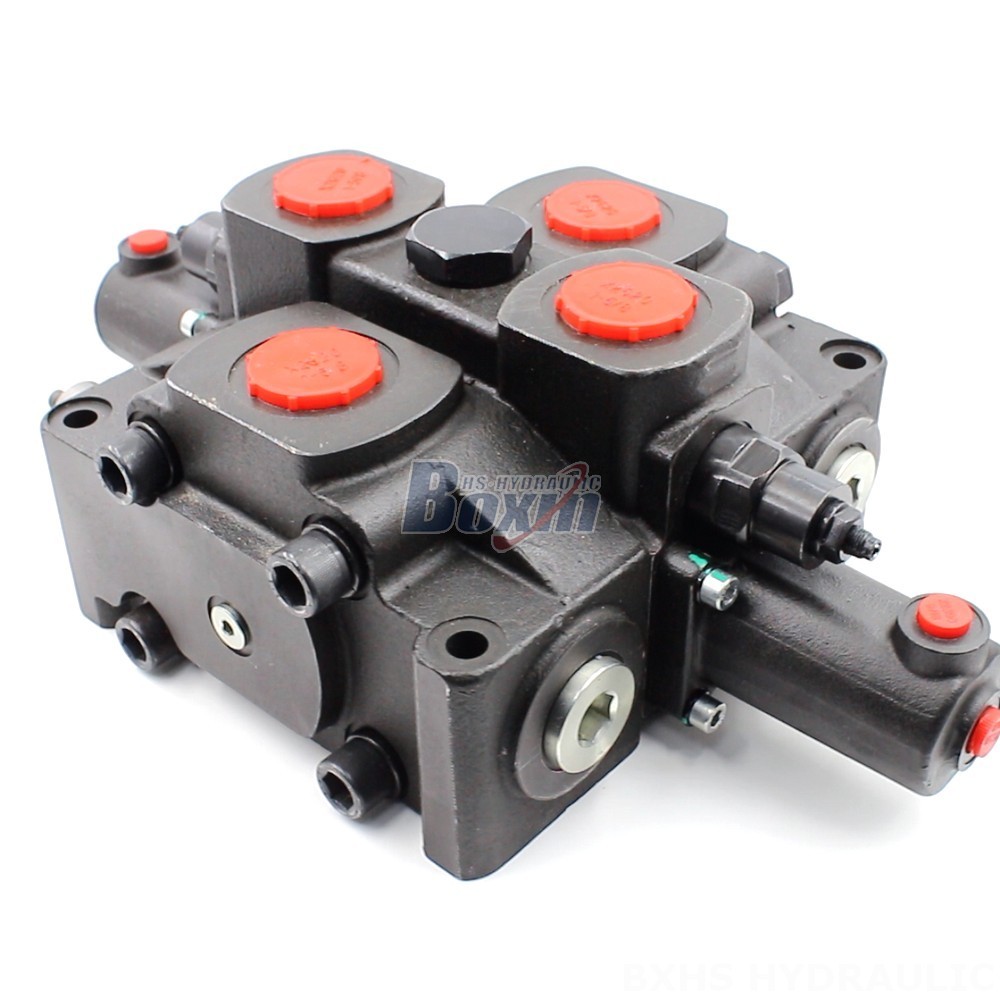

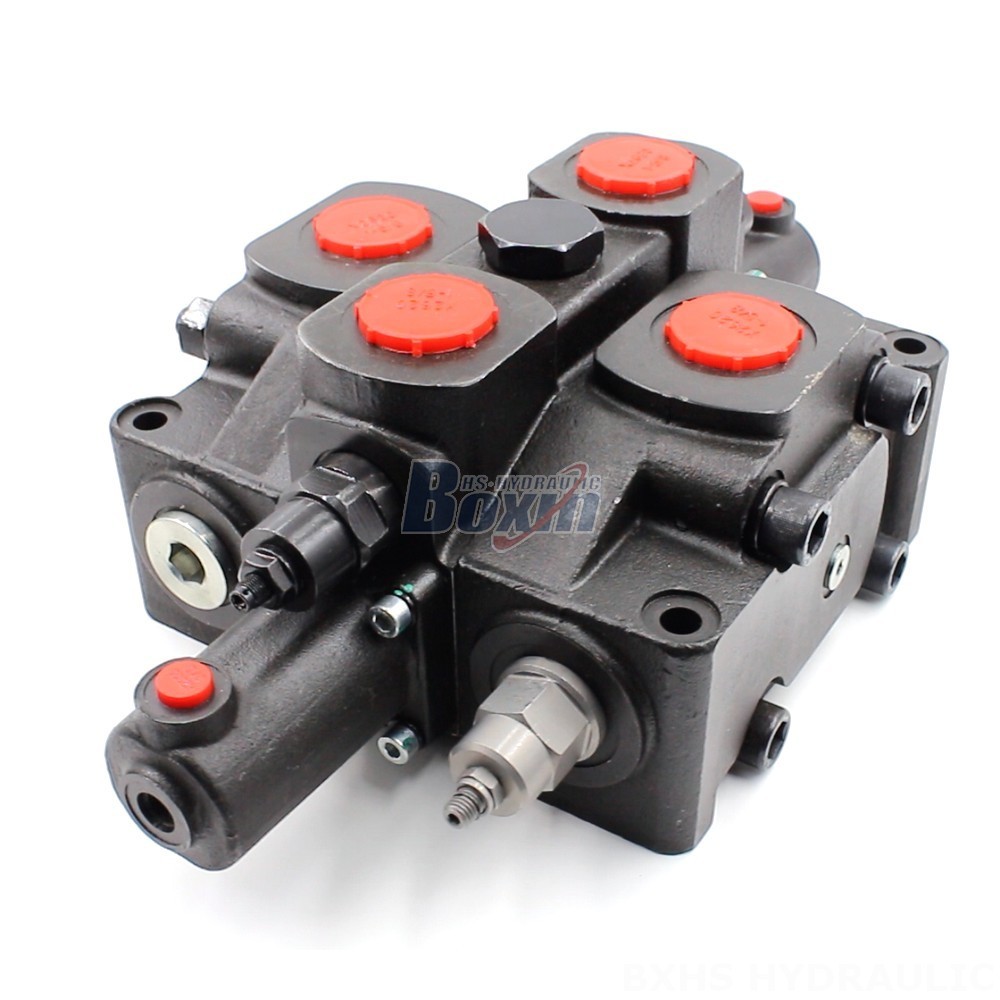

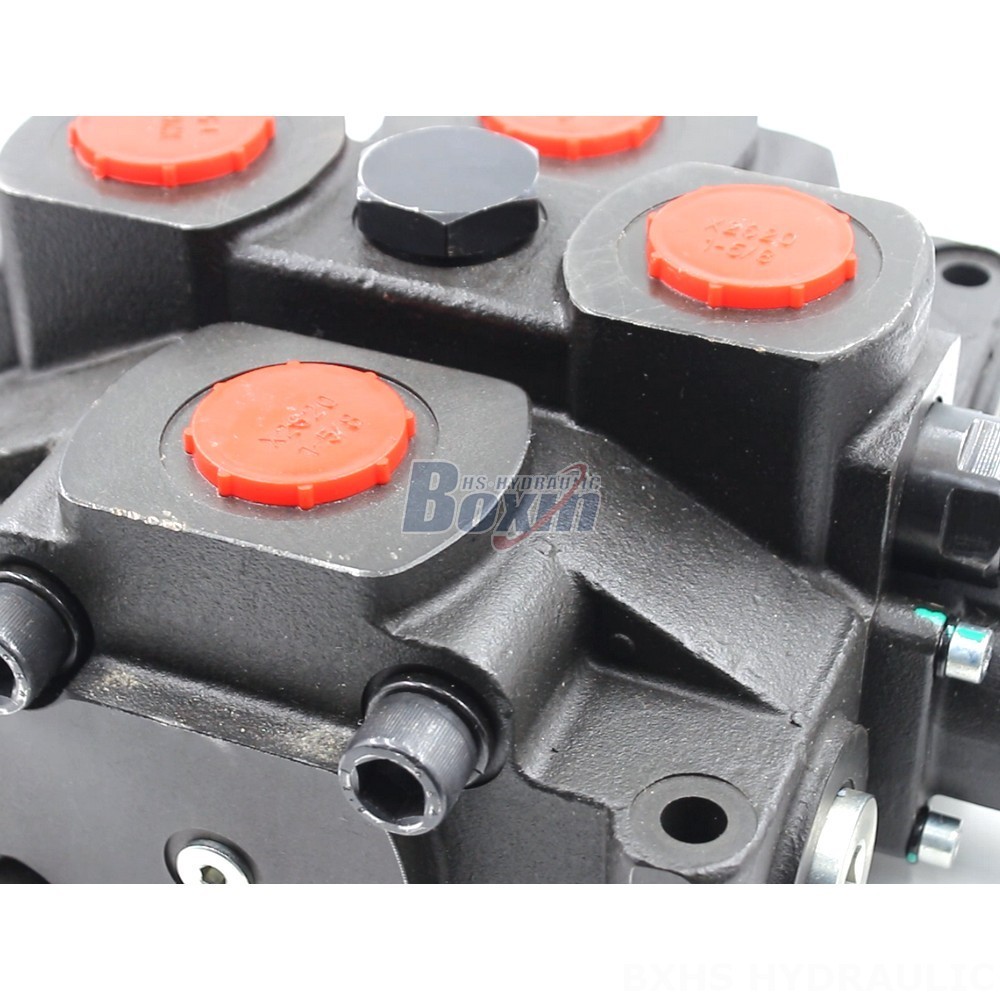

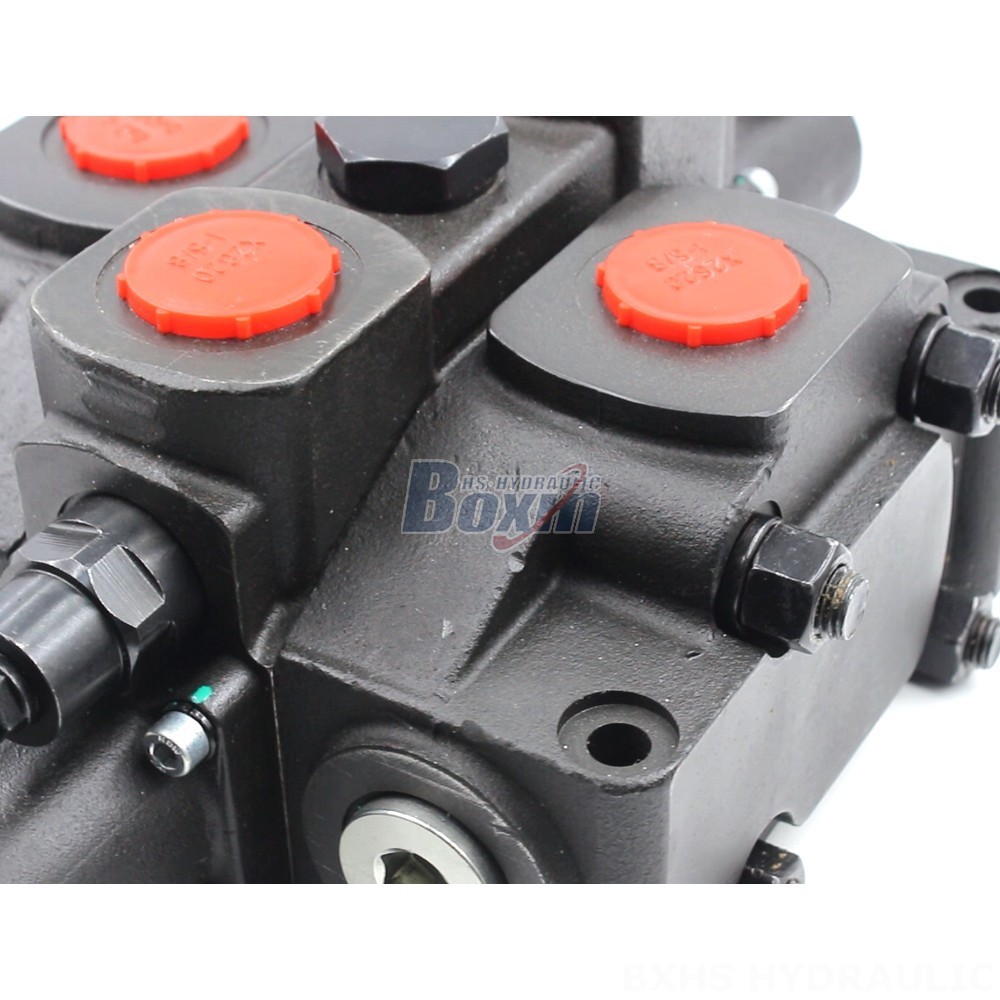

The SDS380 Hydraulic Valve is a precision-engineered component designed to enhance the performance of hydraulic systems in various applications. With a rated flow of 380 L/min and a maximum pressure of 350 bar, this valve offers exceptional flow capacity and pressure handling capabilities. Its sectional valve structure provides flexibility and customization options, making it suitable for a wide range of hydraulic applications.
| SDS380-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Kabel |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen, 11 Spulen, 12 Spulen |
| Nennfluss | 380 l/min (100,4 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1-1/2, SAE 20 |
| Auslassanschluss | G1-1/2 |
| Anschlussgröße | G1-1/2 |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt, 11 Abschnitt, 12 Abschnitt |
| Strukturtyp | Schieberventil |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
**SDS380 Hydraulic Valve: Precision Engineered for Enhanced System Performance**
The SDS380 Hydraulic Valve is a high-performance component meticulously engineered to deliver exceptional flow capacity and pressure handling capabilities. With a rated flow of 380 L/min and a maximum pressure of 350 bar, this valve is ideally suited for demanding hydraulic applications. Its sectional valve structure offers versatility and customization options, allowing it to be tailored to specific system requirements.
**Key Features and Benefits:**
* **High Flow Capacity:** Rated flow of 380 L/min (100.4 US gpm) ensures efficient fluid flow, maximizing system performance.
* **High Pressure Handling:** Maximum pressure of 350 bar (5100 psi) enables the valve to withstand high system pressures.
* **Sectional Valve Structure:** Modular design allows for flexible customization and easy maintenance.
* **Precision Engineered:** Advanced manufacturing techniques ensure precision and reliability.
* **Wide Application Range:** Suitable for various industries, including material handling, construction, earth moving, agriculture, and industrial vehicles.
**Applications:**
The SDS380 Hydraulic Valve finds application in a wide range of hydraulic systems, including:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Wheel loaders
* Tractors and front-end loaders
* Harvesters
**Customization and Support:**
We offer customized solutions to meet specific customer requirements. Our team of experienced engineers can assist with valve design, selection, and integration to ensure optimal system performance. We also provide comprehensive technical support and after-sales service to ensure customer satisfaction.
