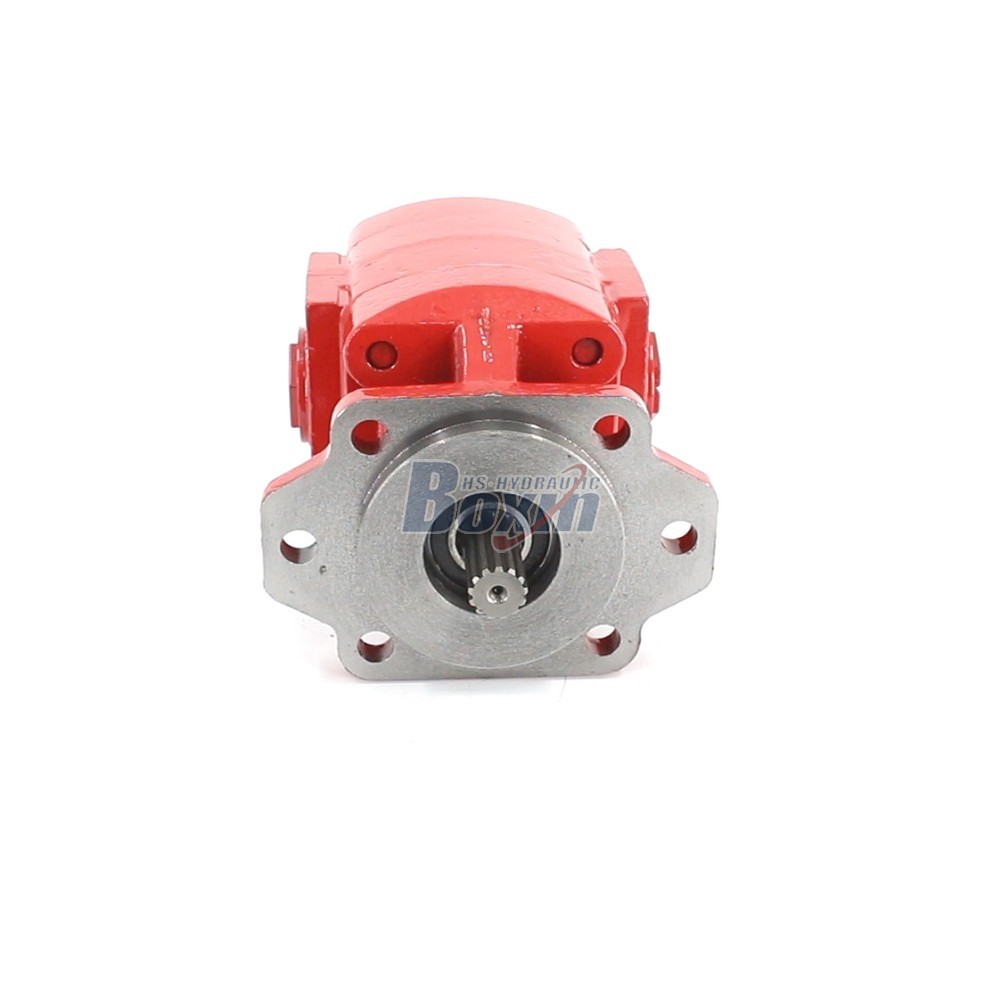

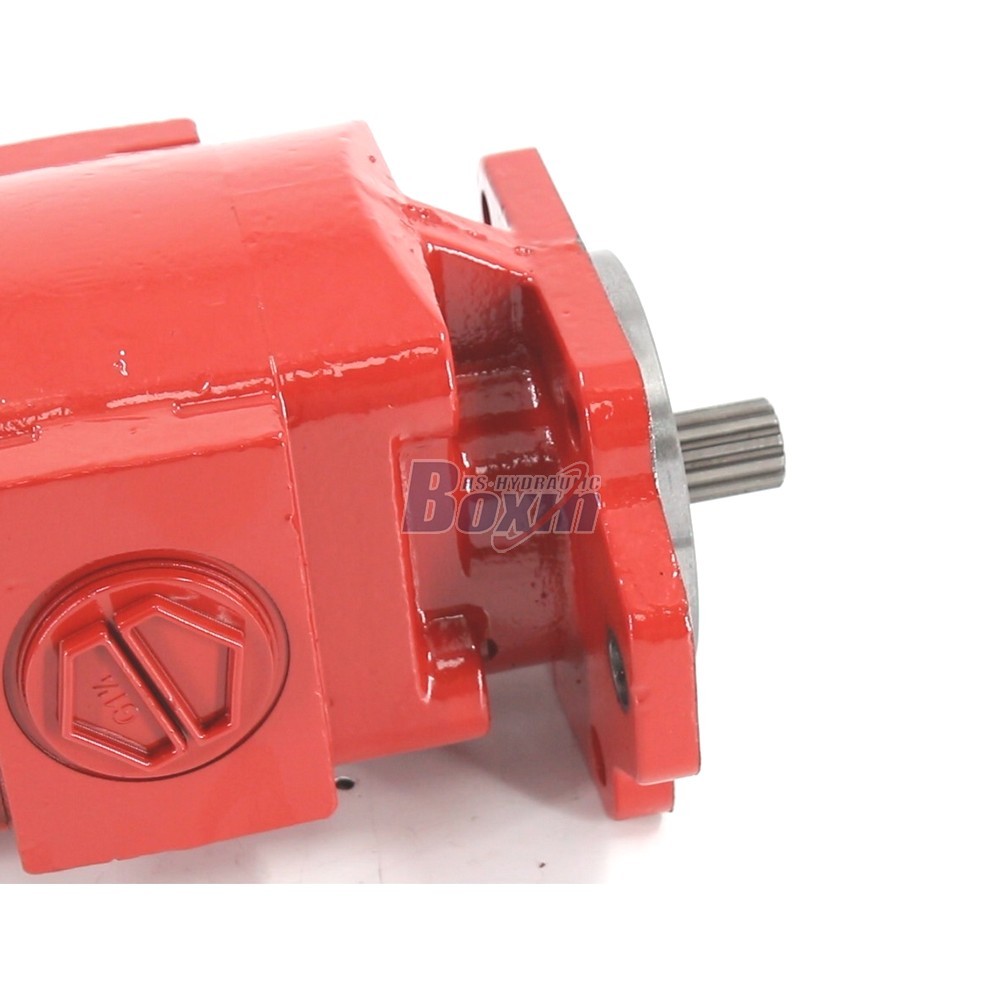

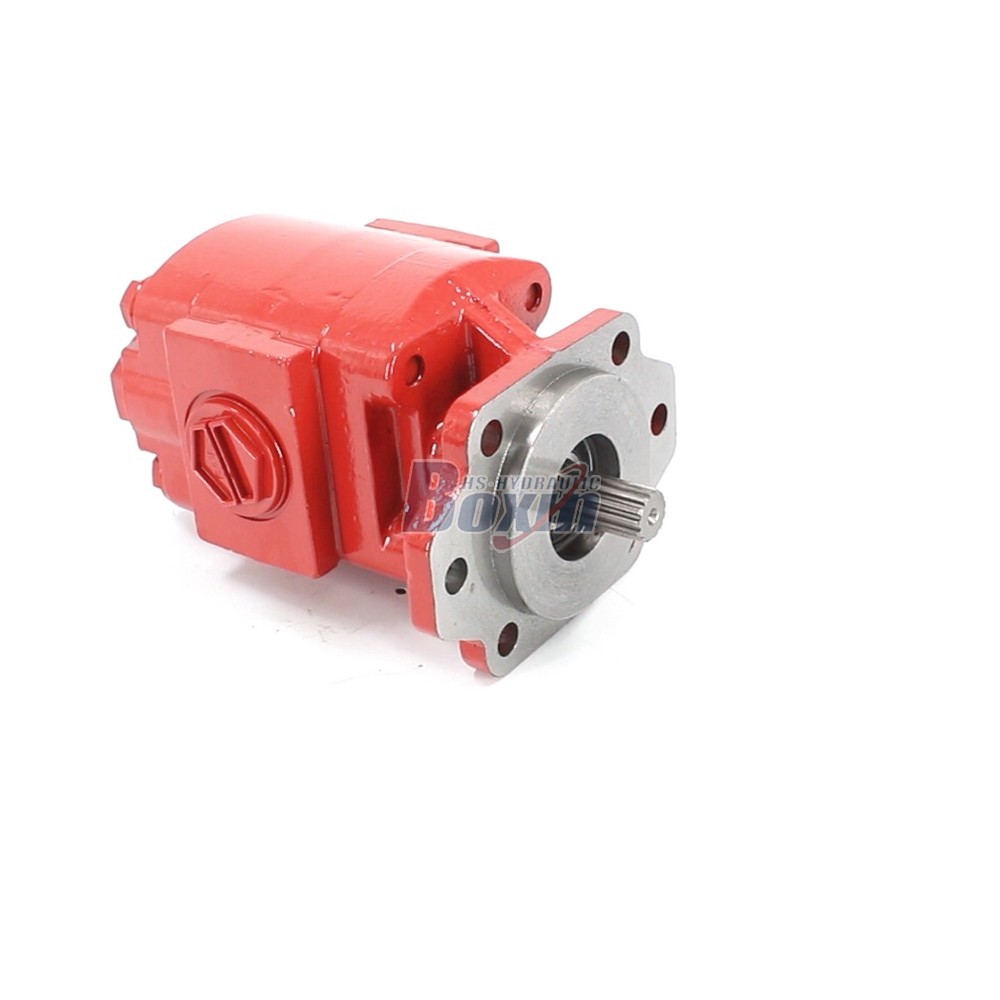

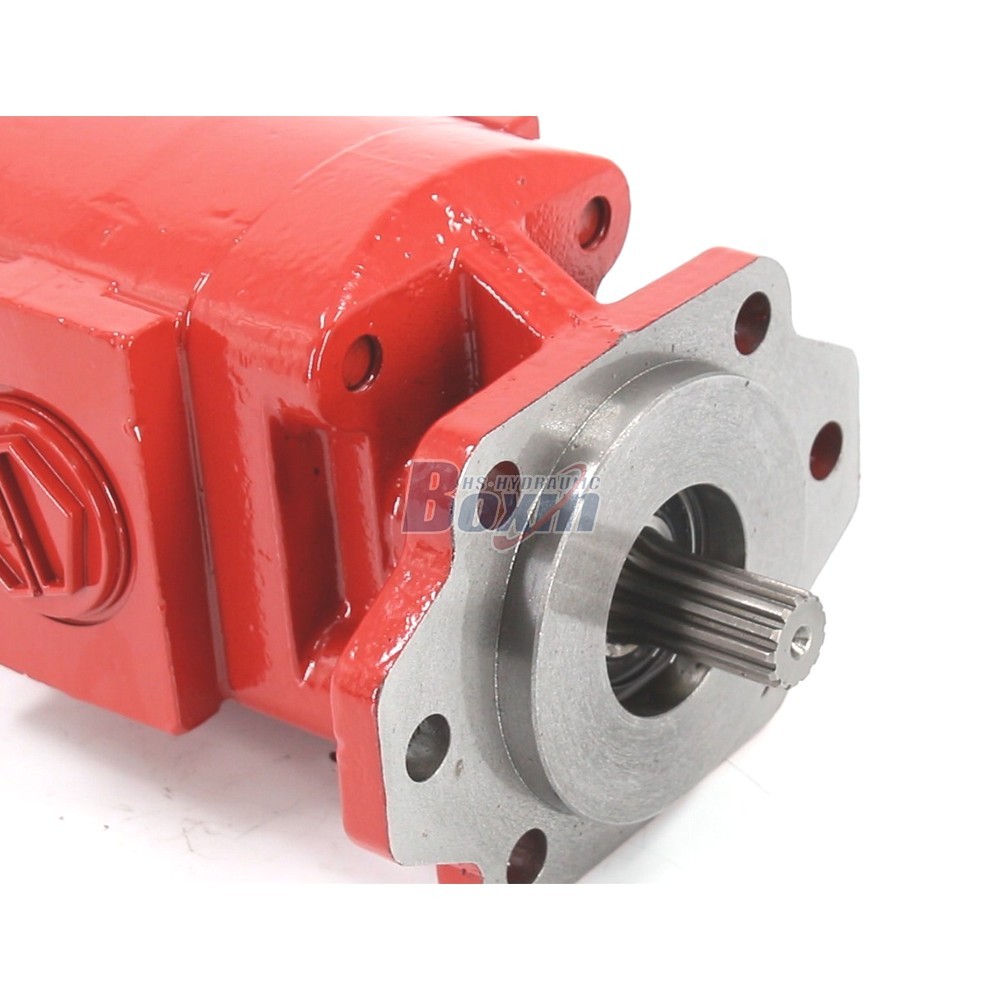

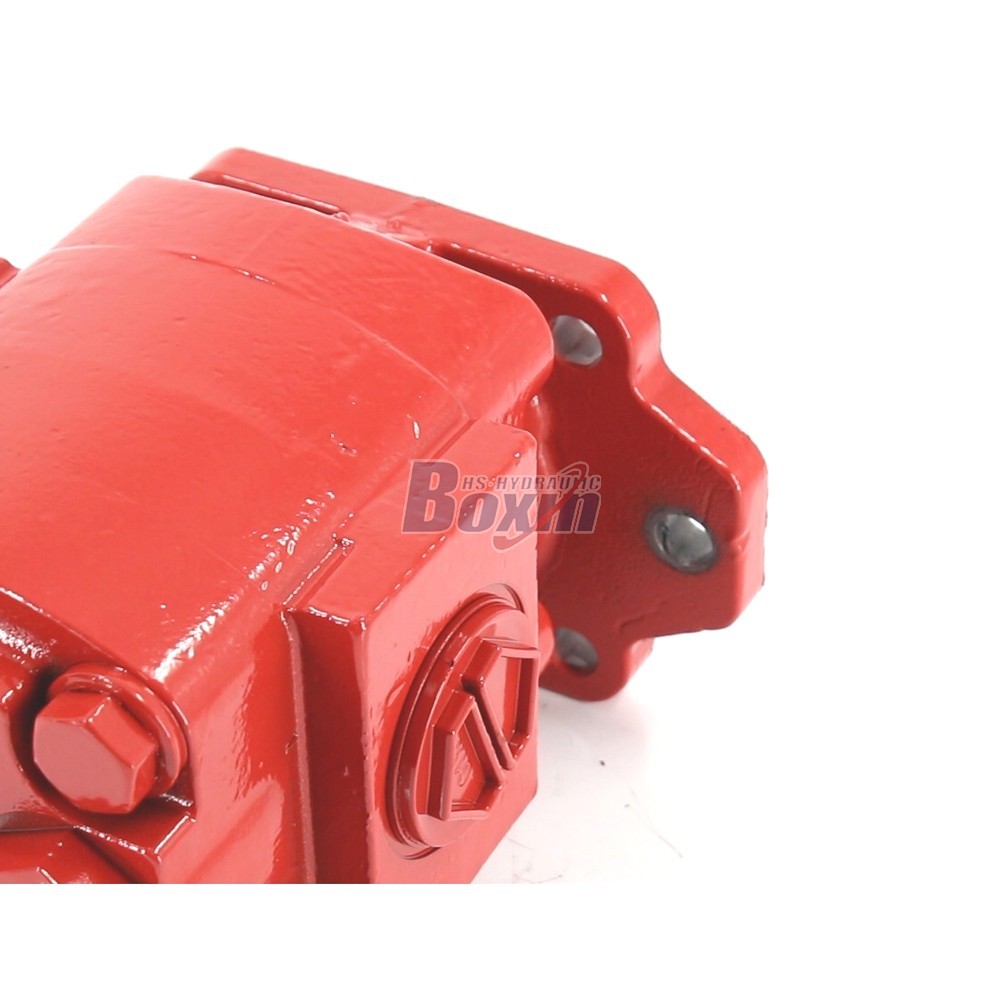

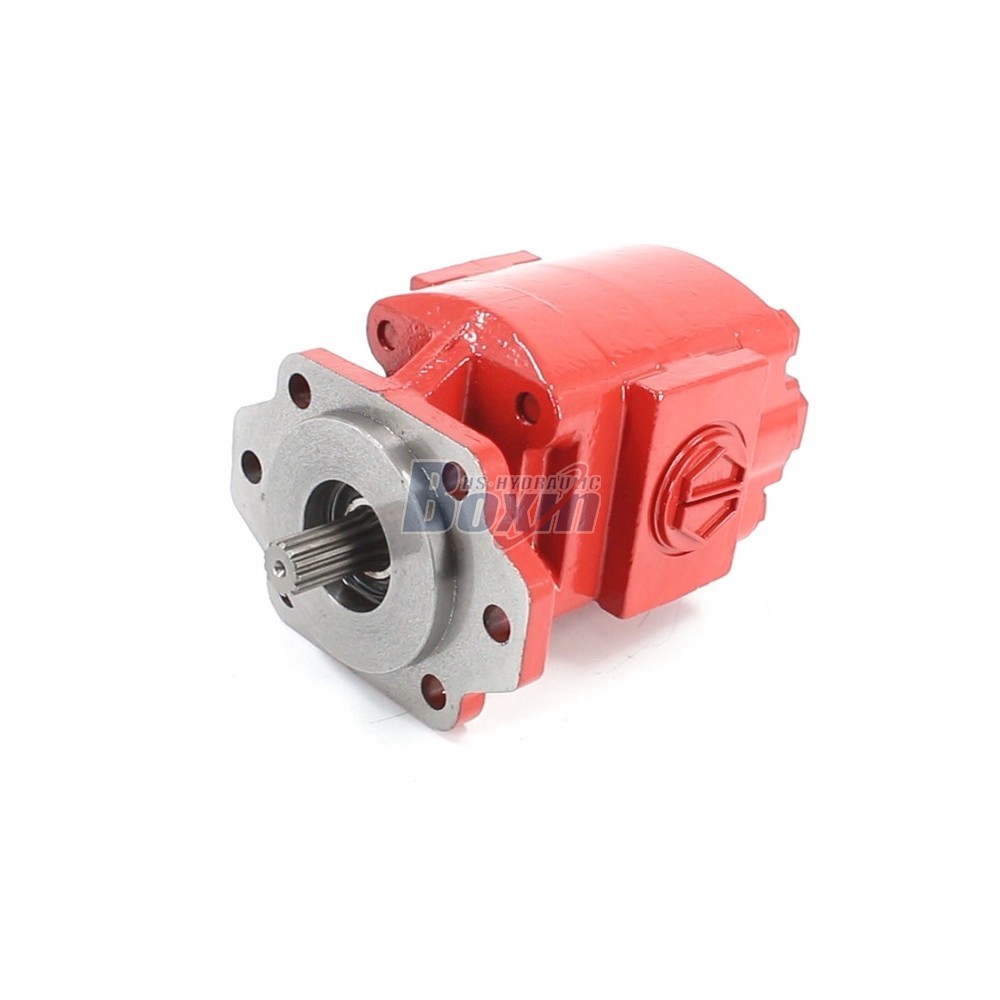

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for forklifts and construction machinery. Backed by a Professional Manufacturer with 25+ years of experience and IATF 16949 certification, it ensures reliable OEM/ODM solutions and Factory Direct Sales quality.
| P21-Serie Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 64,6 cm³/U |
| Nenndruck | 16 MPa (2320 psi) |
| Maximaldruck | 17 MPa (2465 psi) |
| Nenndrehzahl | 600 U/min |
| Maximaldrehzahl | 2400 U/min |
| Drehrichtung | Bidirektional |
| Material | Gusseisen |
| Struktur | Außenverzahnte Pumpe |
| Flanschversion | A-Ovalflansch, B-Vierkantflansch, ISO-4-Befestigungslöcher, UNI-3-Befestigungslöcher, SAE-Flansch |
| Wellentyp | X: Evolventenverzahnte Keilwelle |
**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise 64.6 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa, ensuring stable power output for heavy-duty applications.
- Operates efficiently at a rated speed of 2000 r/min (max 2200 r/min) with bidirectional rotation capability, offering versatile installation options for diverse hydraulic systems.
**2. Versatile P21 Series Gear Pump Applications**
- Specifically engineered for material handling and earth-moving equipment, including forklifts, telehandlers, skid steer loaders, and backhoe loaders.
- Compatible with agricultural and industrial vehicles like tractors, sprayers, and waste compactors, providing a direct replacement for international mainstream brands with perfect fitment.
**3. Reliable Bidirectional Gear Pump Quality Control**
- Manufactured in our 68,000 sqm facility with 260+ vertical machining centers, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity before shipment.
- Certified under IATF 16949 and CE standards, with SGS professional detection and 25+ autonomous patents, guaranteeing zero-defect performance and long service life.
**4. Customizable OEM/ODM Available Solutions**
- Supported by 35+ senior engineers with 10+ years of experience, we offer full customization including appearance, casting modifications, and exclusive logo laser marking for your Private Label needs.
- As a China Wholesale hub, we provide flexible OEM/ODM services to meet specific technical requirements, helping distributors build their own brand identity with Factory Direct support.
**5. Secure Factory Direct Sales & Logistics**
- Enjoy Wholesale Direct Sales advantages from a source factory with an annual capacity of 1,500,000 units, ensuring timely delivery and competitive pricing for bulk orders.
- Products are protected with anti-rust treatment and heavy-duty wooden crates/pallets, ensuring safe global transit and making us the preferred partner for Exported Worldwide projects.
