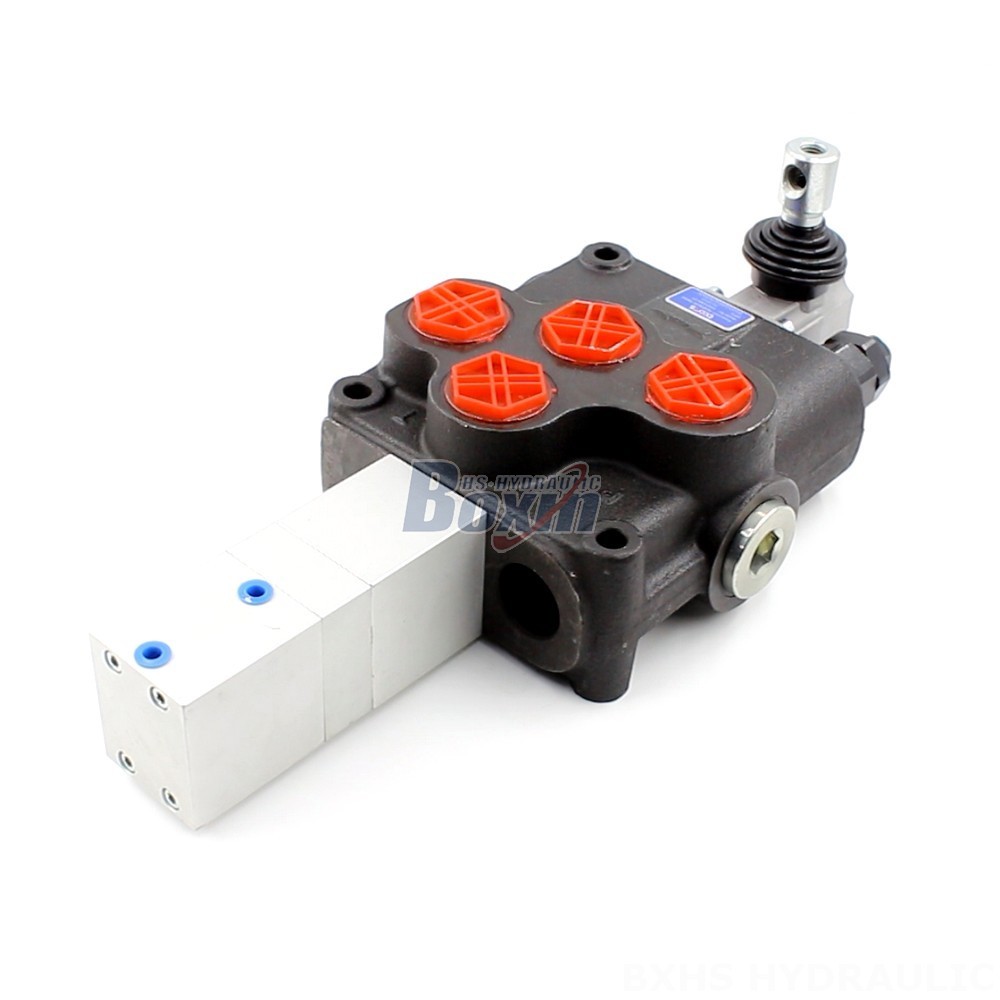

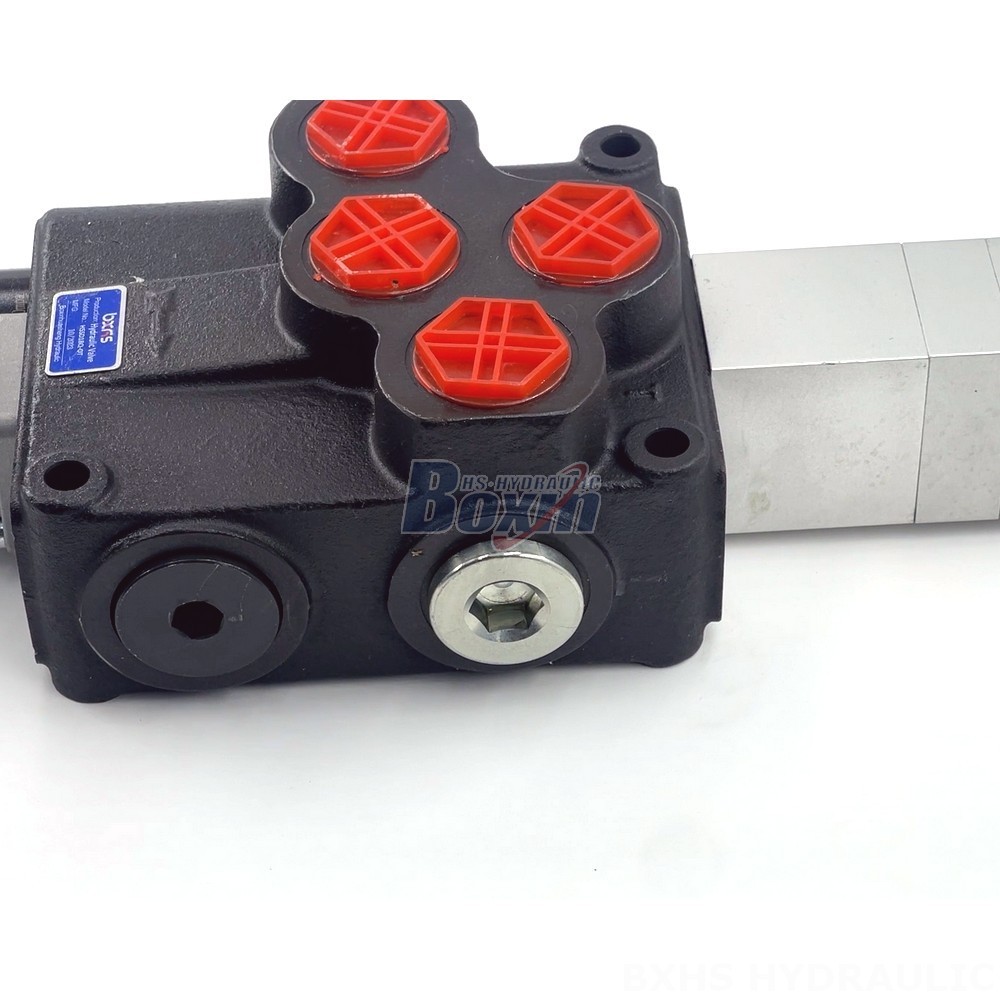

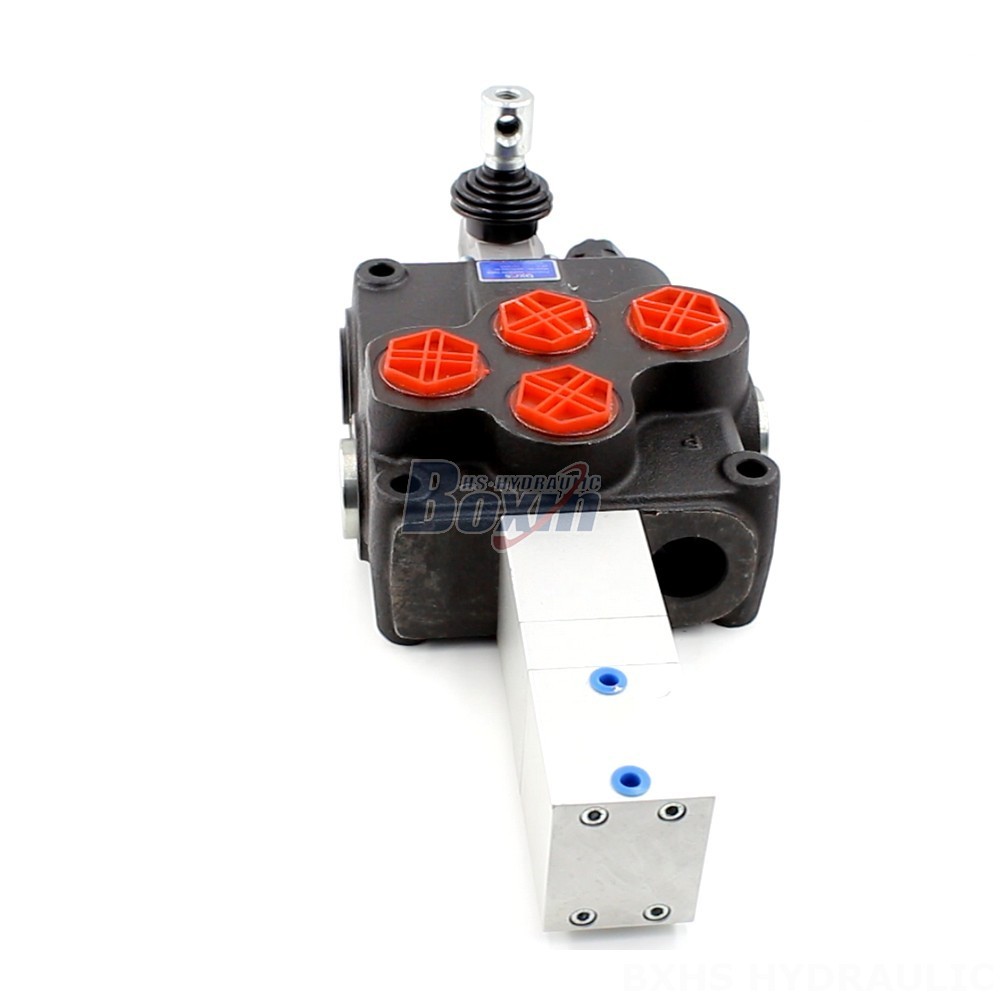

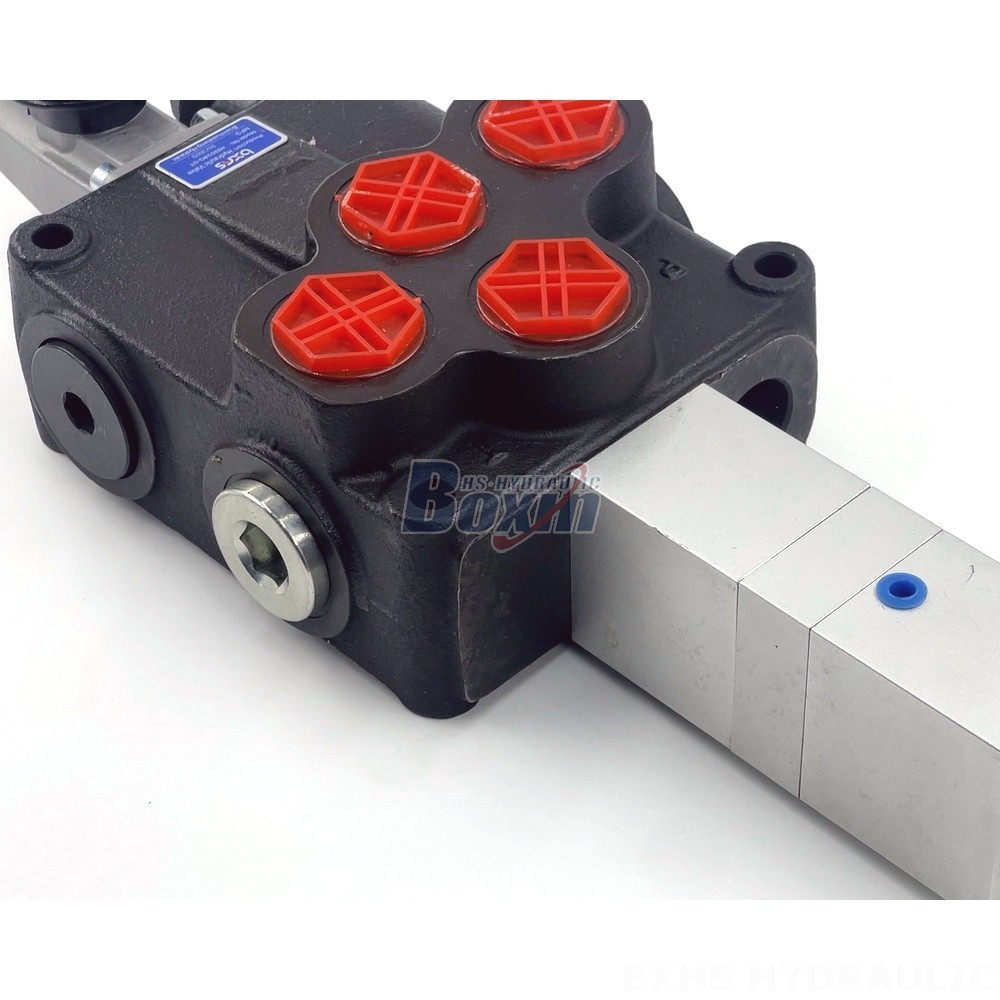

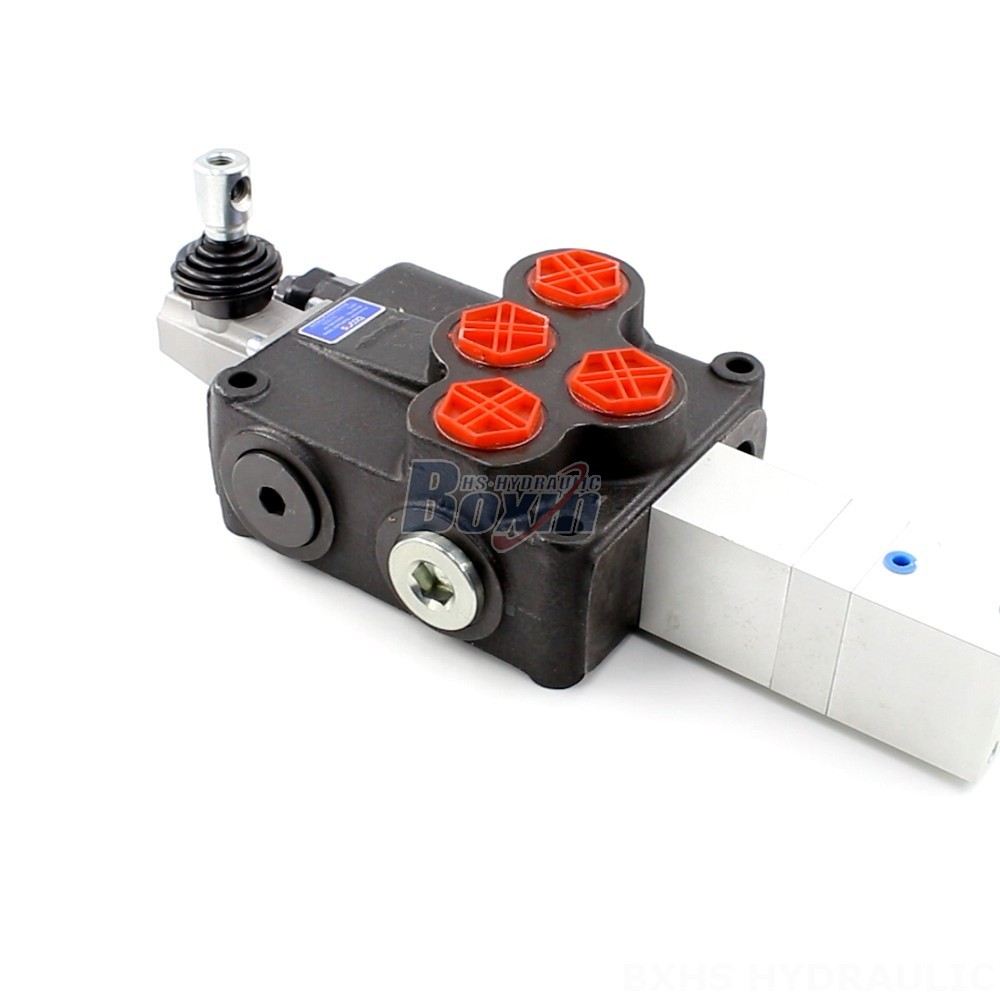

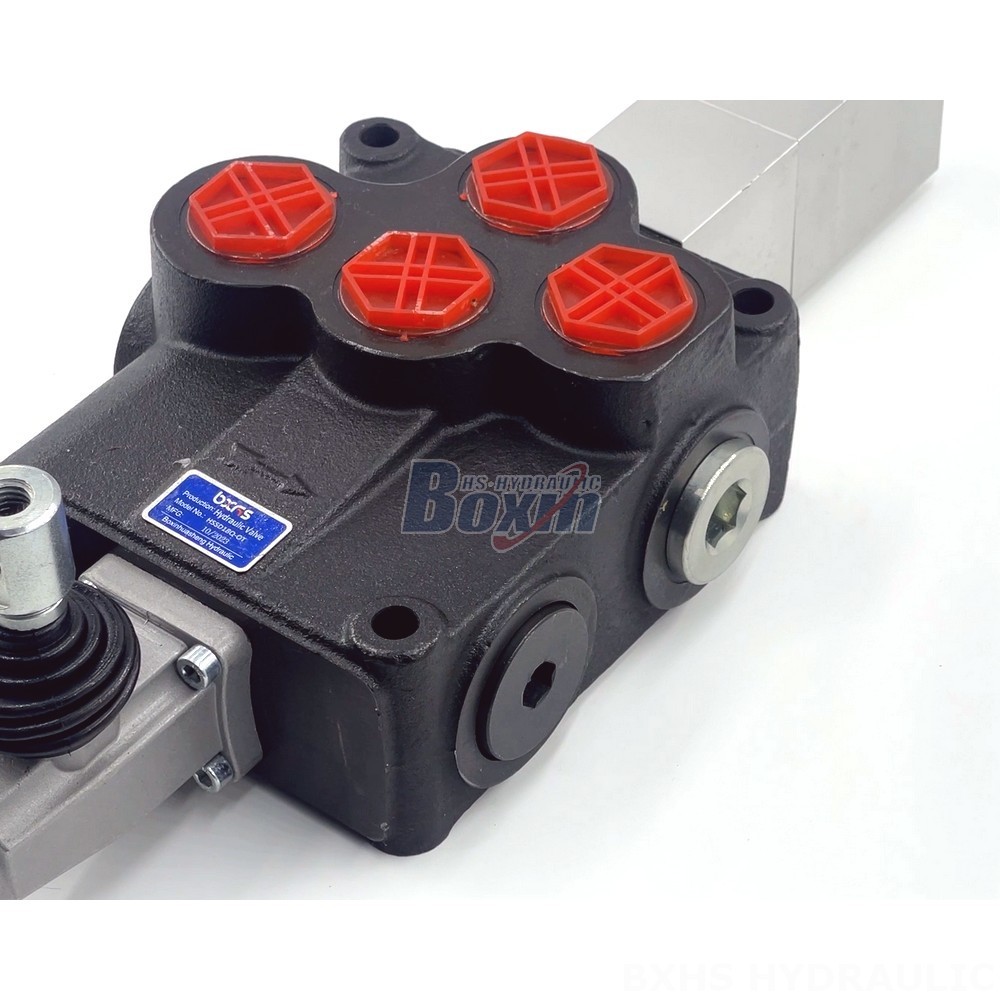

Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Steuermethode:Pneumatisch

Steuerkolben:1 Spule

Nennfluss:160 l/min (42,2 US gal/min)

Maximaldruck:315 bar (4600 psi)

Einlassanschluss:G1

Auslassanschluss:G1

Anschlussgröße:G1

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:SD18-Serie Monoblock-Wegeventil

Verpackungsgröße:27*44*16

Bruttogewicht:16.00 kg

Verfügbarkeit: Auf Lager

975 Personen sehen sich dieses Produkt an

Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Pneumatic Valve | SD18 Model | Factory Direct & Customizable drawing image

The SD18 Series Hydraulic Direction Control Valve is a pneumatic, monoblock valve designed for a variety of applications including material handling, construction, agriculture, and industrial vehicles. This high-performance valve offers a rated flow of 120 L/min and a maximum pressure of 315 bar.

SD18-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen
Nennfluss 160 l/min (42,2 US gal/min)
Maximaldruck 305 bar (4400 psi)
Einlassanschluss G1/2, G1, SAE 16
Auslassanschluss G1, SAE 16
Anschlussgröße G1, SAE 16
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt
Strukturtyp Monoblockventil
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Bereich der Betriebsviskosität 12 - 400 mm²/s (12 cSt bis 400 cSt)

This SD18 Series Hydraulic Direction Control Valve is a robust and reliable solution for controlling hydraulic systems. Its pneumatic control method provides precise and responsive operation. The monoblock valve construction ensures durability and minimizes leakage. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this valve is suitable for various applications in material handling, construction, agriculture, and industrial vehicles. It is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve features a wide operating viscosity range and can withstand a wide range of ambient temperatures.
