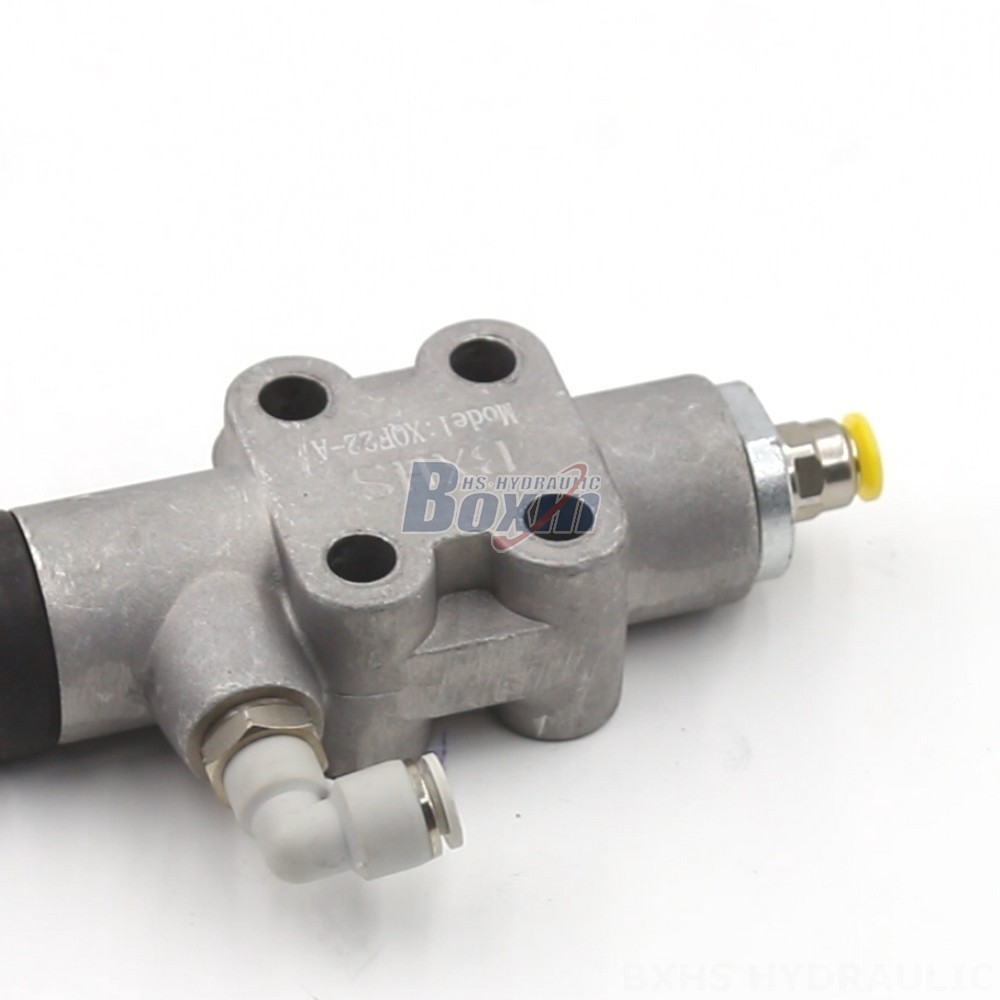

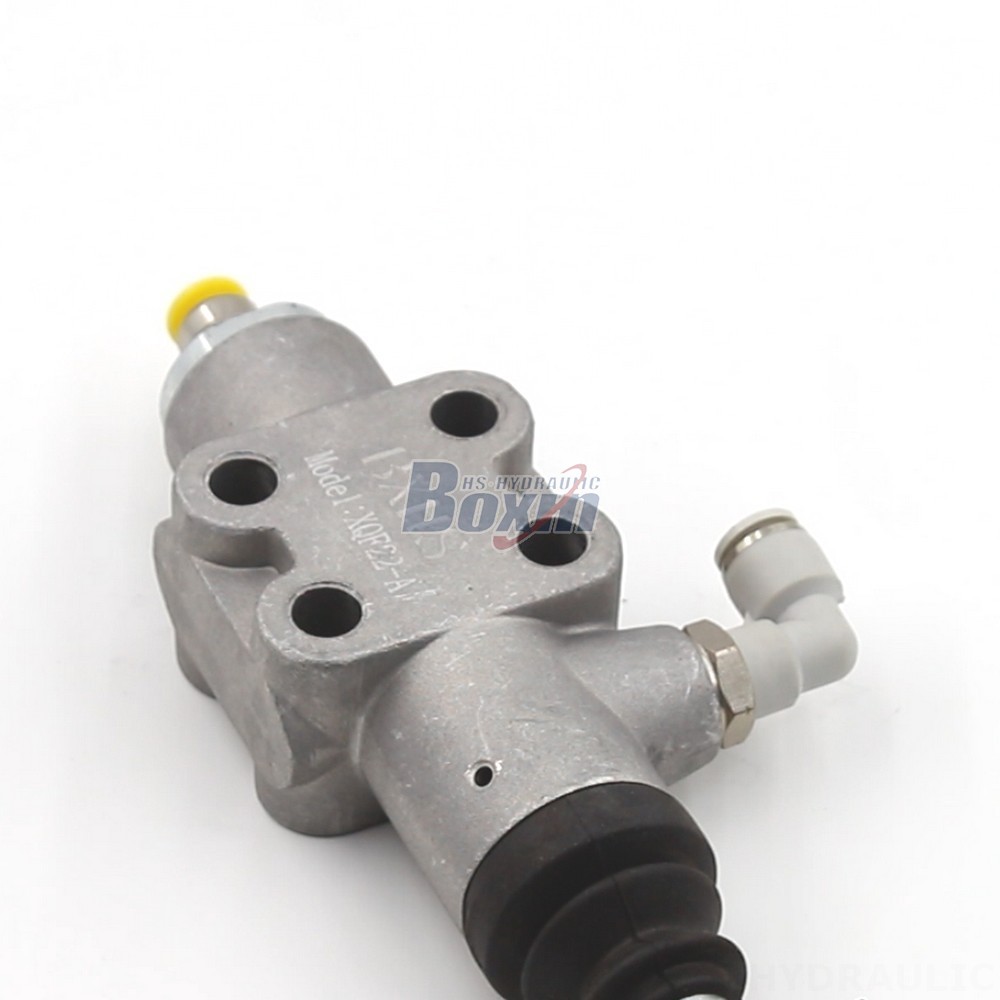

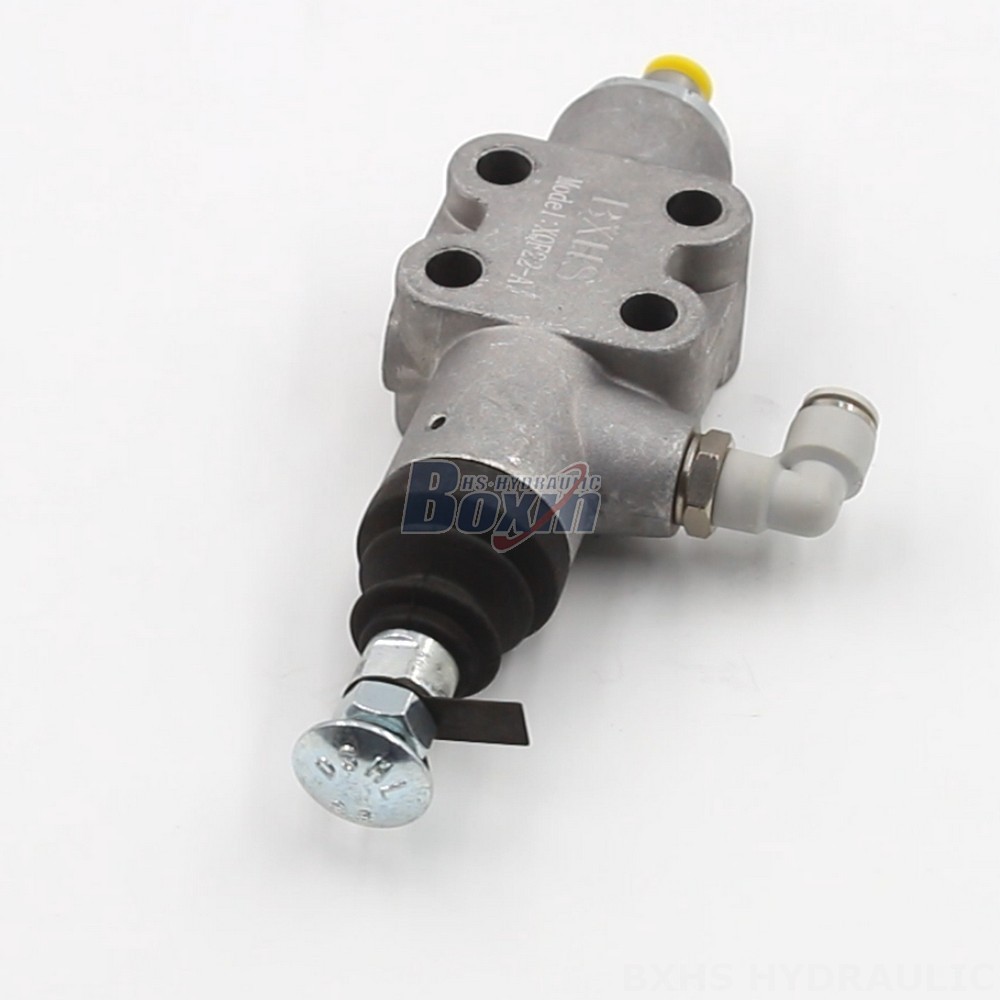

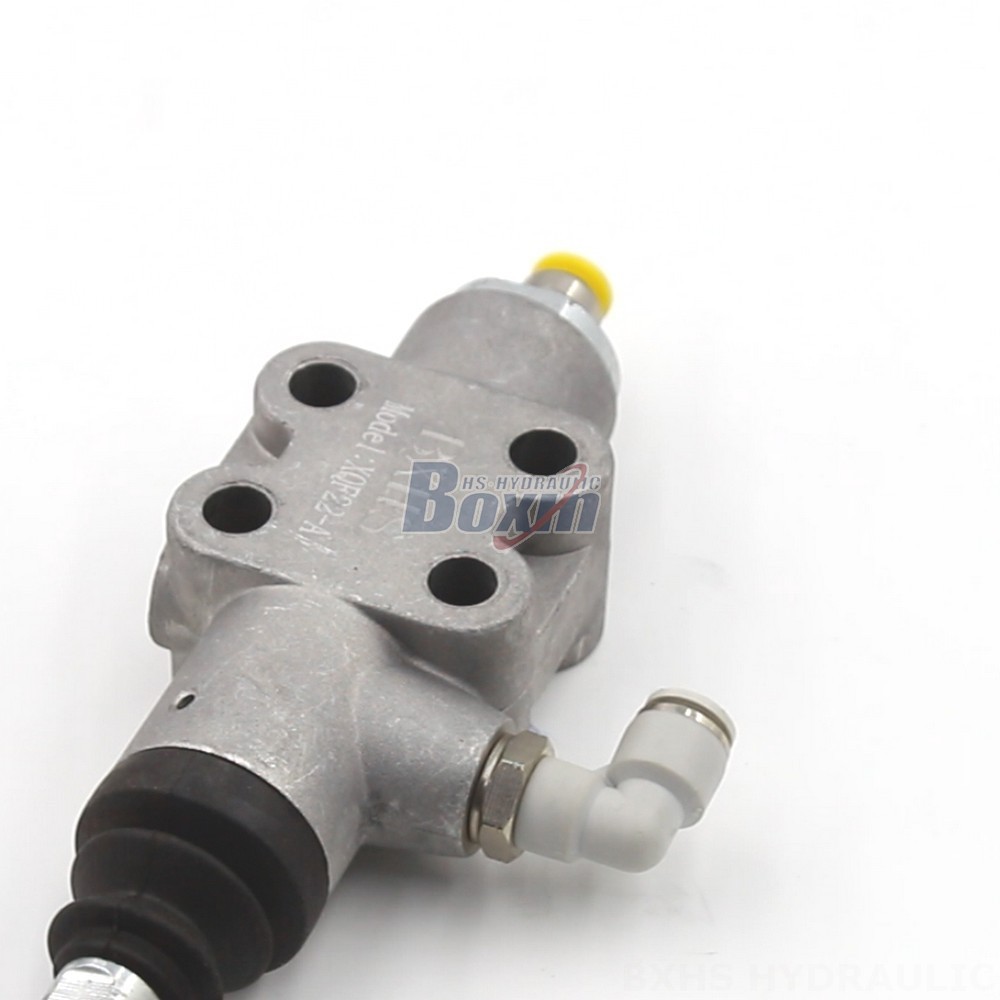

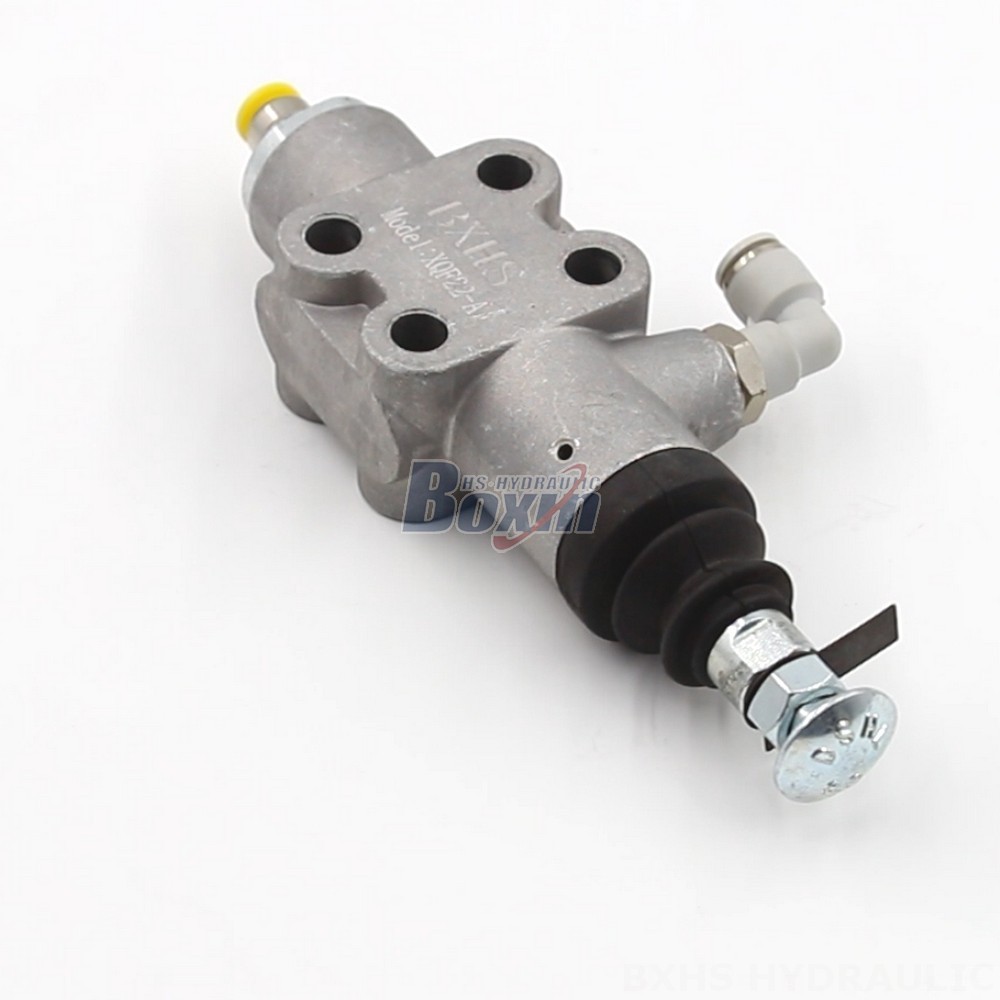

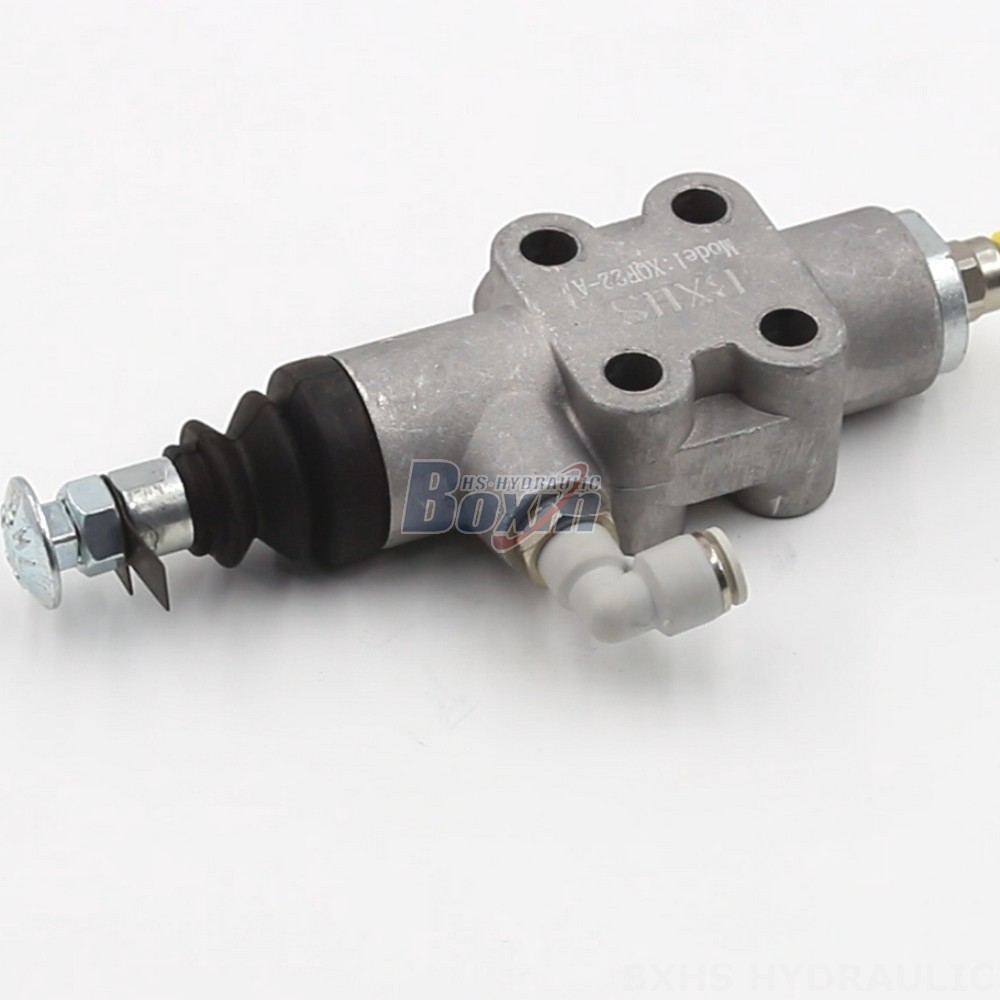

The XQF22-A Pneumatic Valve is a high-performance valve designed for use in material handling, construction, agriculture, and industrial vehicle applications. With a rated flow of 60 L/min, a maximum pressure of 200 bar, and an operating viscosity range of 12 - 400 mm²/s, this valve is suitable for a wide range of applications.
| XQF-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Pneumatisch |
| Steuerkolben | 1 Spule |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 50 l/min (13,2 US gal/min) |
| Maximaldruck | 200 bar (2900 psi) |
| Einlassanschluss | G1/4 |
| Auslassanschluss | G1/4 |
| Anschlussgröße | G1/4 |
The XQF22-A Pneumatic Valve features a monoblock design for increased durability and reliability. The valve is also equipped with a 1 spool for precise control of fluid flow. The valve's wide operating temperature range of -40°C to +60°C makes it suitable for use in a variety of environments.
Key features of the XQF22-A Pneumatic Valve include:
* Pneumatic control
* 1 section
* 60 L/min rated flow
* 200 bar max pressure
* 12 - 400 mm²/s operating viscosity range
* -40°C to +60°C ambient temperature range
* 1 spool
* Monoblock design
* Material handling, construction, agriculture, and industrial vehicle applications
