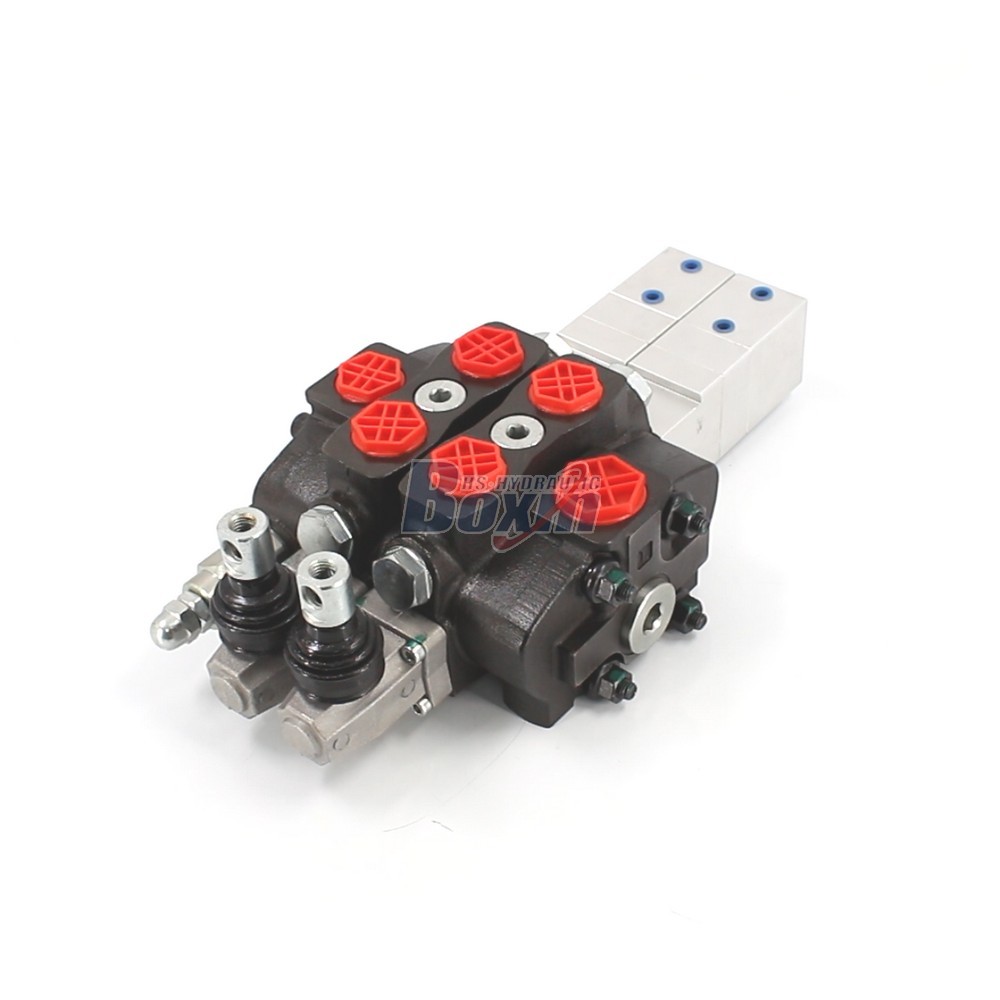

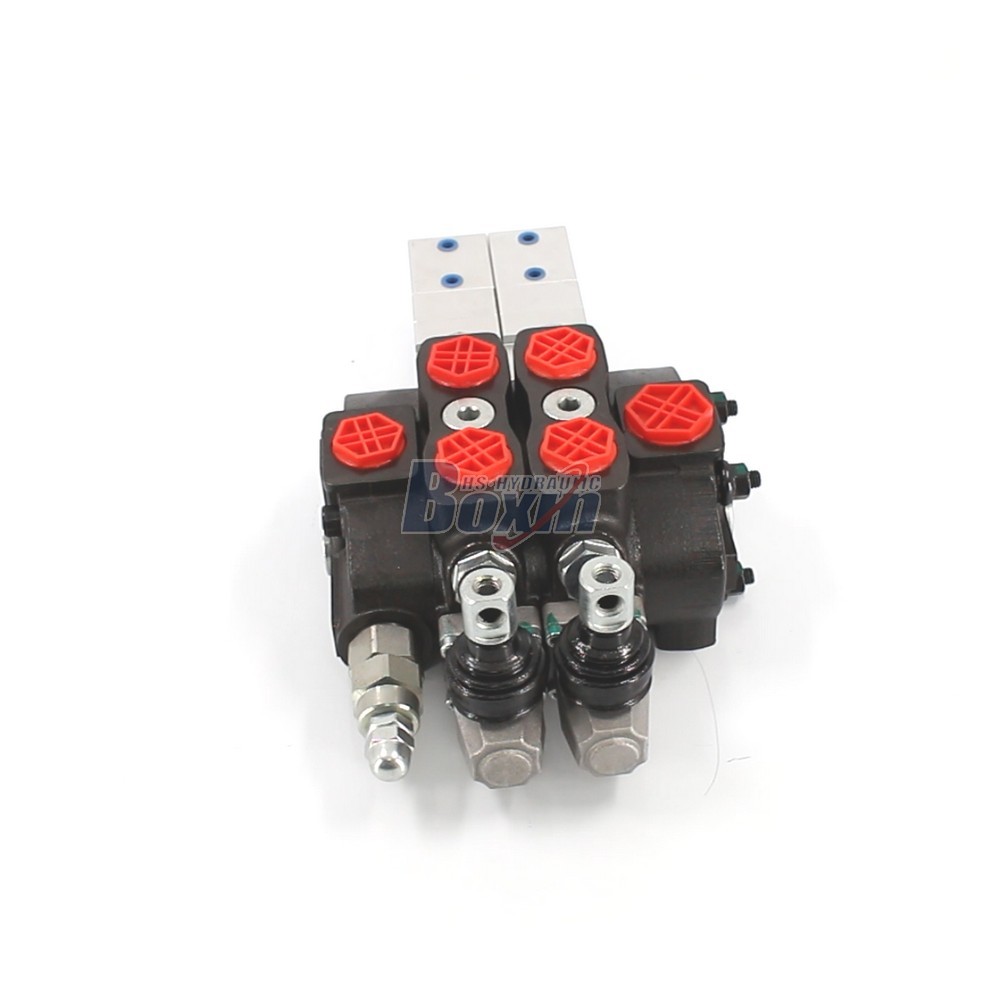

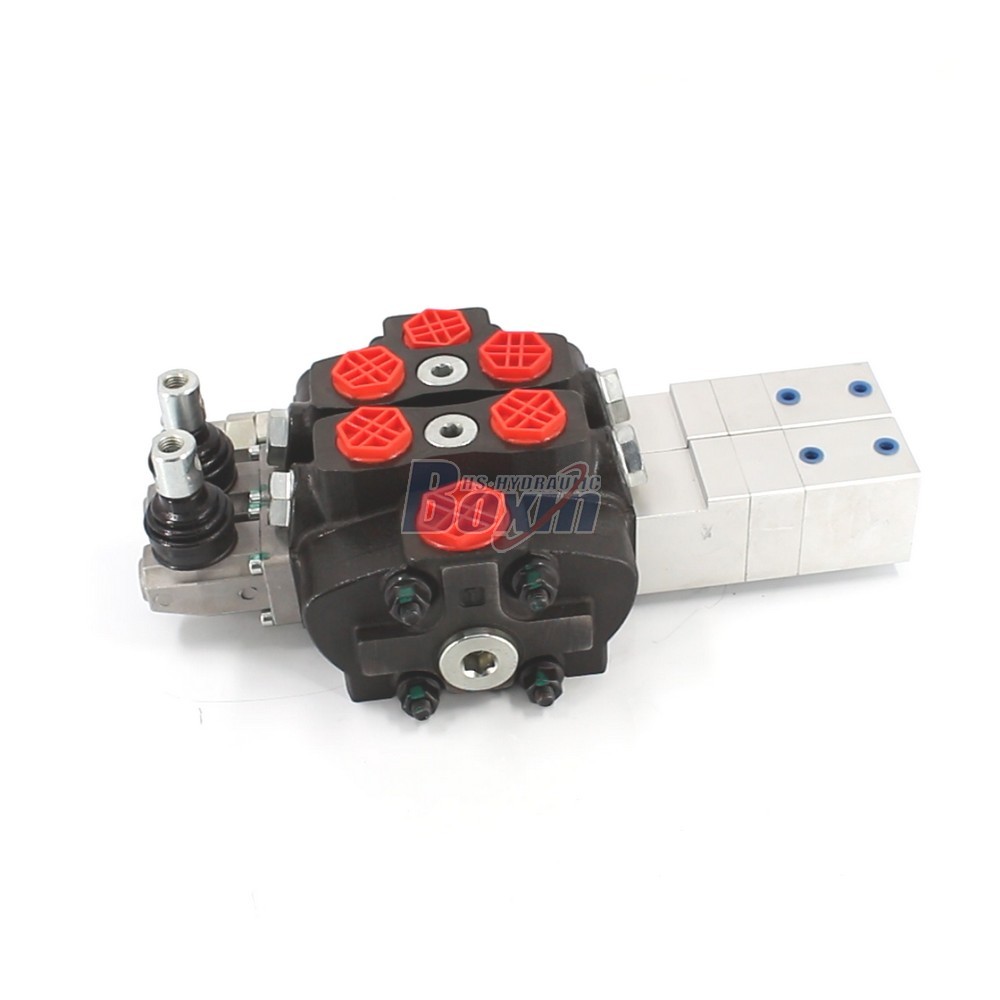

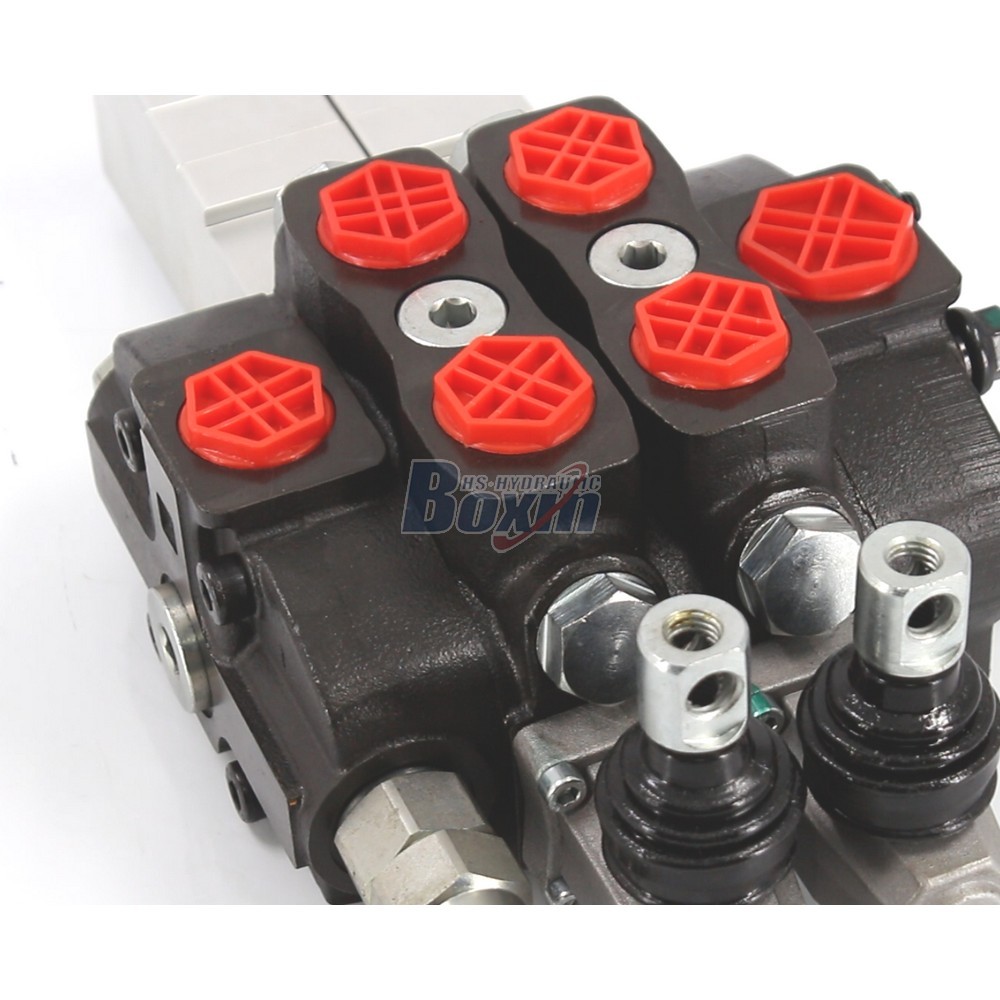

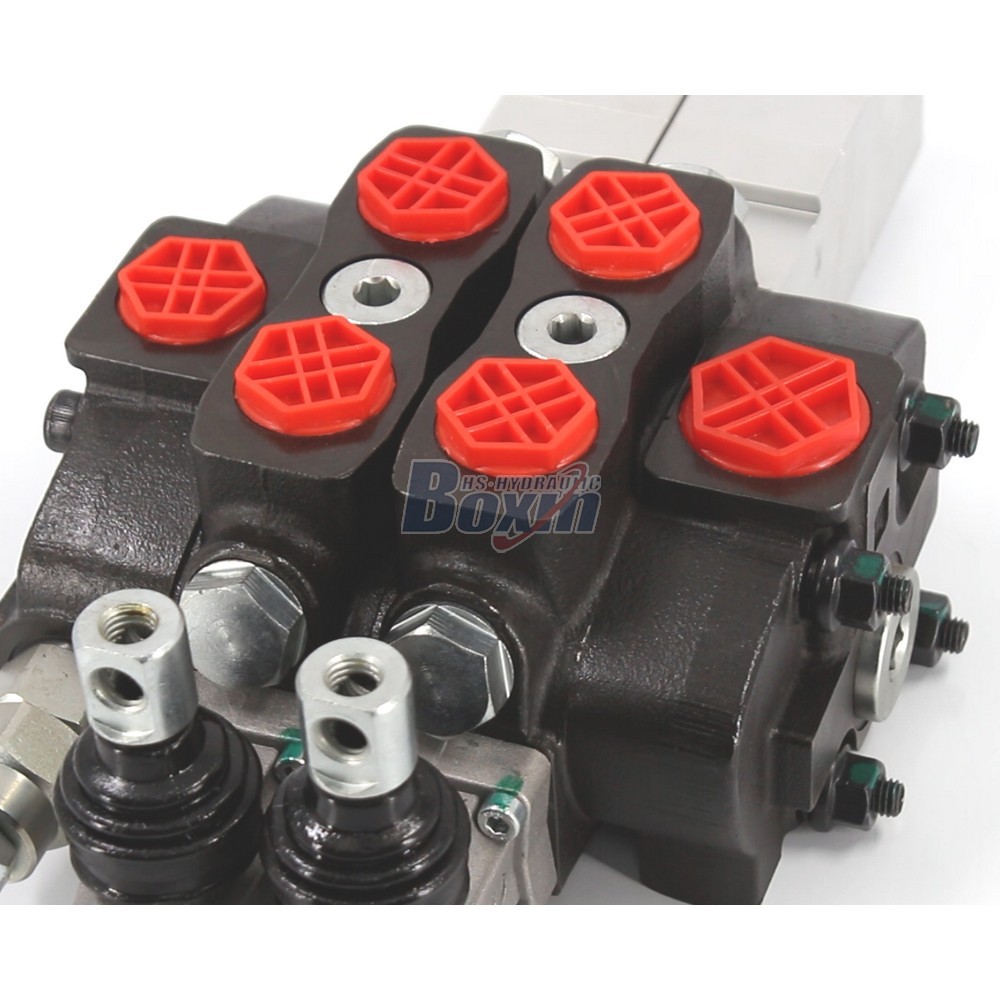

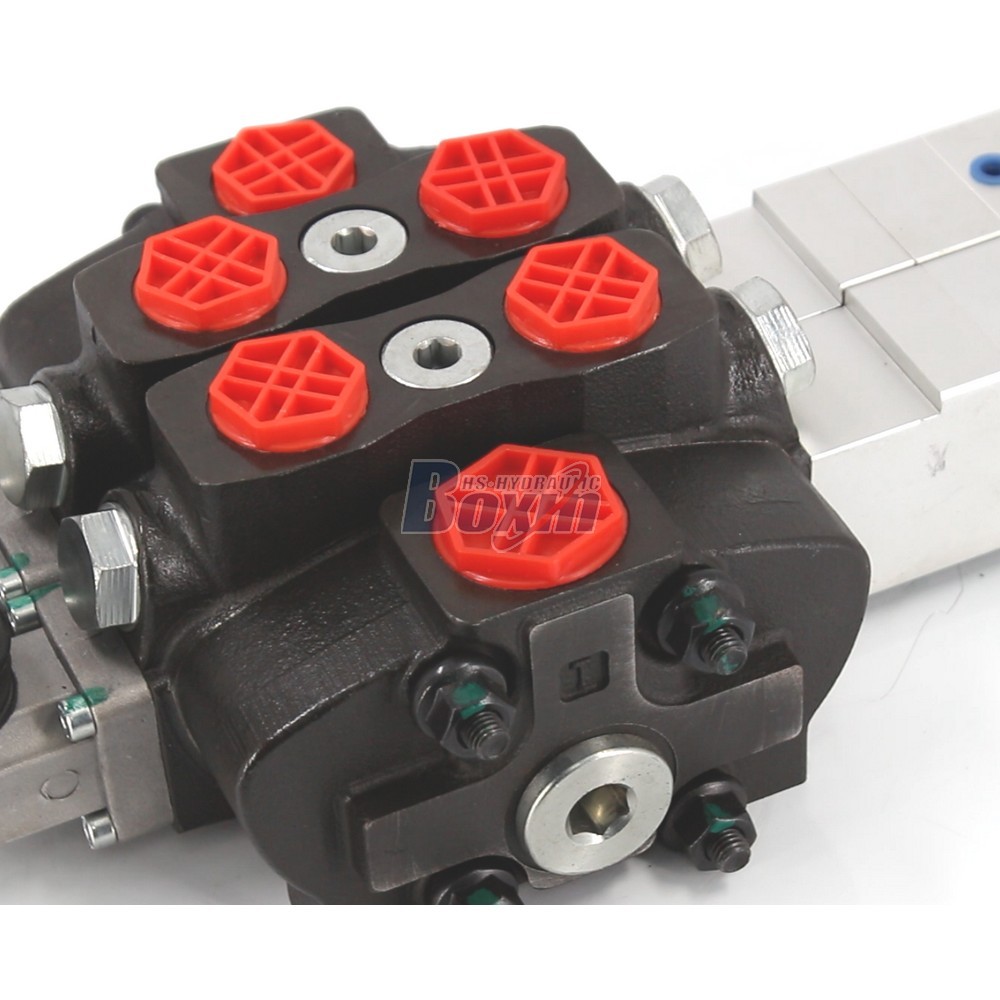

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Steuermethode:Pneumatisch

Steuerkolben:2 Spulen

Nennfluss:90 l/min (23,8 US gal/min)

Maximaldruck:315 bar (4600 psi)

Einlassanschluss:SAE 10

Auslassanschluss:SAE 10

Anschlussgröße:SAE 10

Hersteller:BXHS

Produkttyp:Sektionalwegeventil

Produktserie:SD8-Serie Sektionalwegeventil

Verpackungsgröße:34*24*15.5

Bruttogewicht:12.50 kg

Verfügbarkeit: Auf Lager

97 Personen sehen sich dieses Produkt an

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Pneumatic Sectional Directional Valve SD8 2 Spool Design drawing image

As a leading hydraulic manufacturer, we offer the SD8 Series Pneumatic Sectional Directional Valve featuring a 2-spool design. Engineered for high-precision control in mobile and industrial machinery, this valve handles a rated flow of 80 L/min and operating pressures up to 350 bar. It is ideal for material handling, agriculture, and construction equipment.

SD8-Serie Sektionalwegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Strukturtyp Schieberventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt
Bereich der Betriebsviskosität 12 - 400 mm²/s (12 cSt bis 400 cSt)
Nennfluss 90 l/min (23,8 US gal/min)
Maximaldruck 315 bar (4600 psi)
Einlassanschluss G1/2, G3/4, SAE 10
Auslassanschluss G1/2, G3/4, SAE 10, 3/4 NPT
Anschlussgröße G1/2, SAE 10

Our factory specializes in high-performance hydraulic solutions, presenting the SD8 Series 2 Spool Pneumatic Sectional Directional Valve. Built for versatility and durability, this valve supports a rated flow of 80 L/min (21.2 US gpm) and reaches a maximum pressure of 350 bar. It features G1/2 inlet and G3/4 outlet ports, making it suitable for a wide range of applications including forklifts, mini-excavators, tractors, and waste compactors. As a large-scale manufacturer, we provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. We offer competitive wholesale pricing directly from our factory, ensuring cost-effective supply for large-scale projects. We are actively seeking global partners including distributors, wholesalers, agents, and traders to expand our international presence. Whether you need private labeling (white label) services or bulk wholesale supply, our facility is equipped to deliver reliable hydraulic components for construction, forestry, and agricultural machinery.
