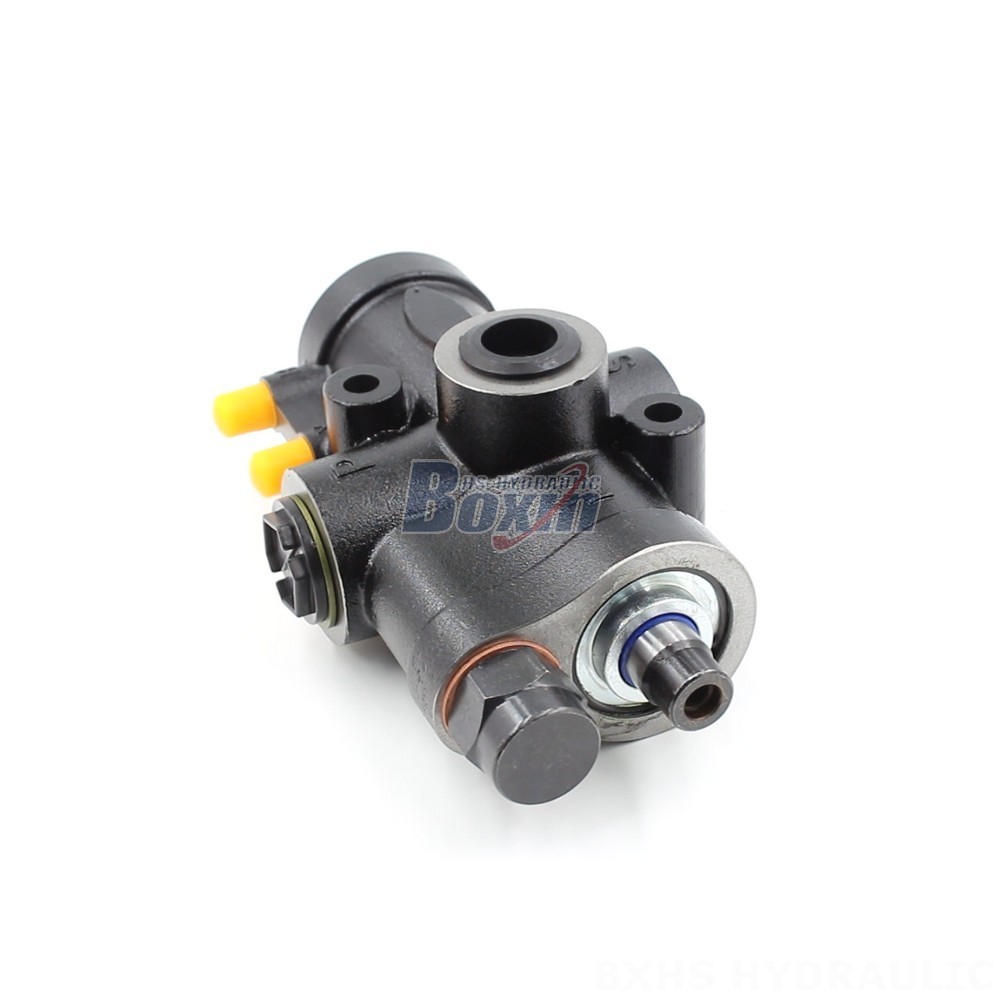

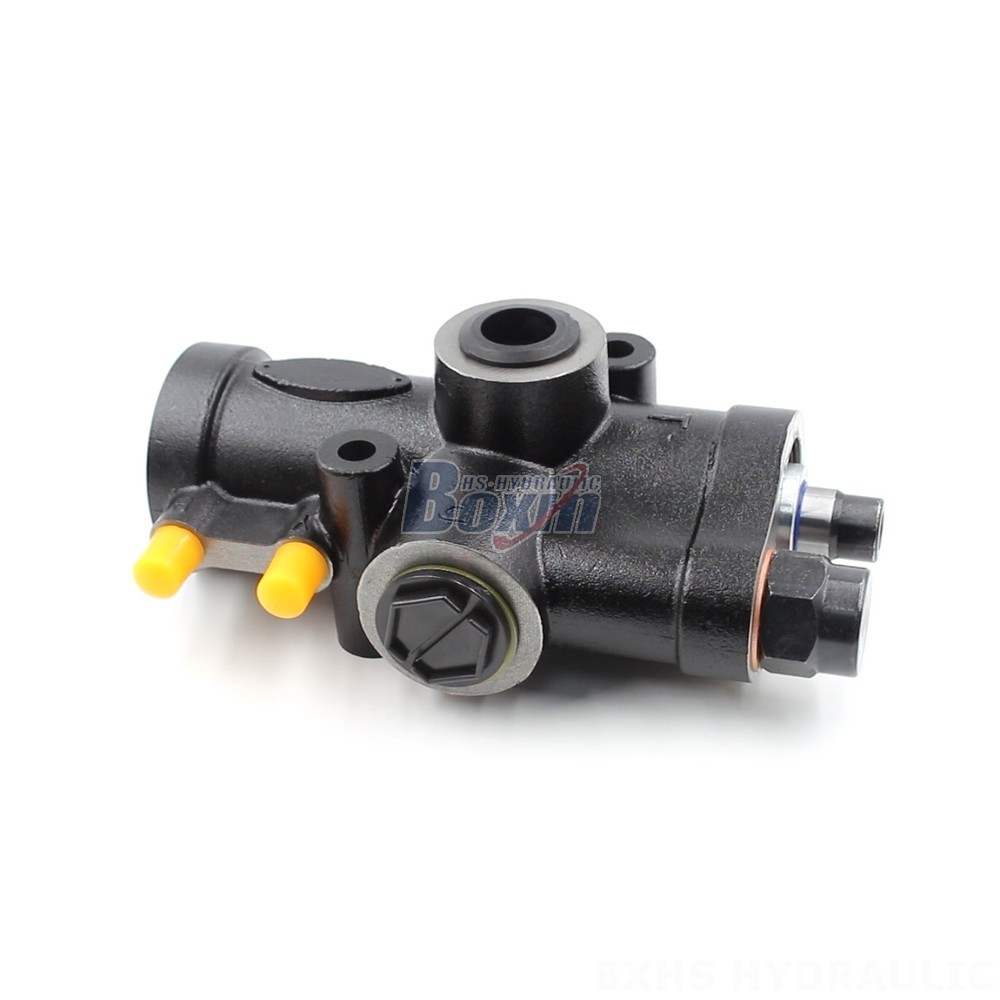

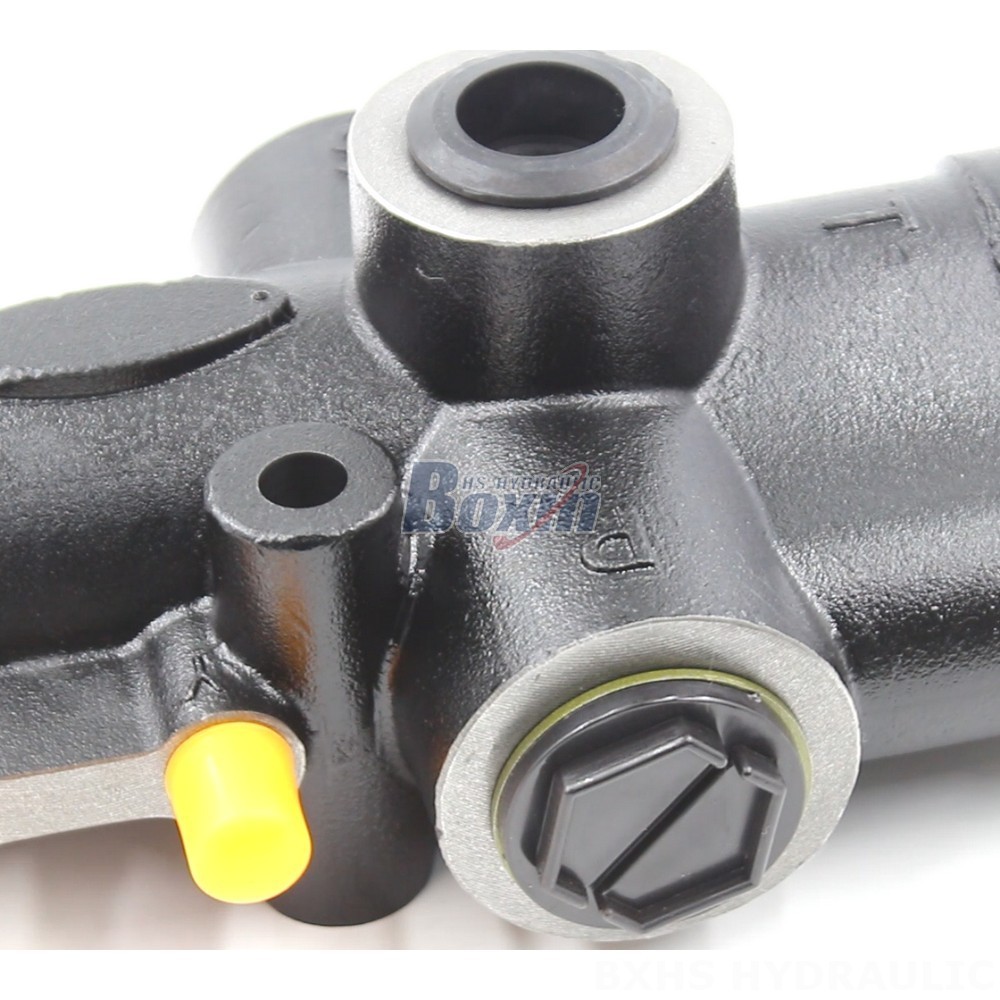

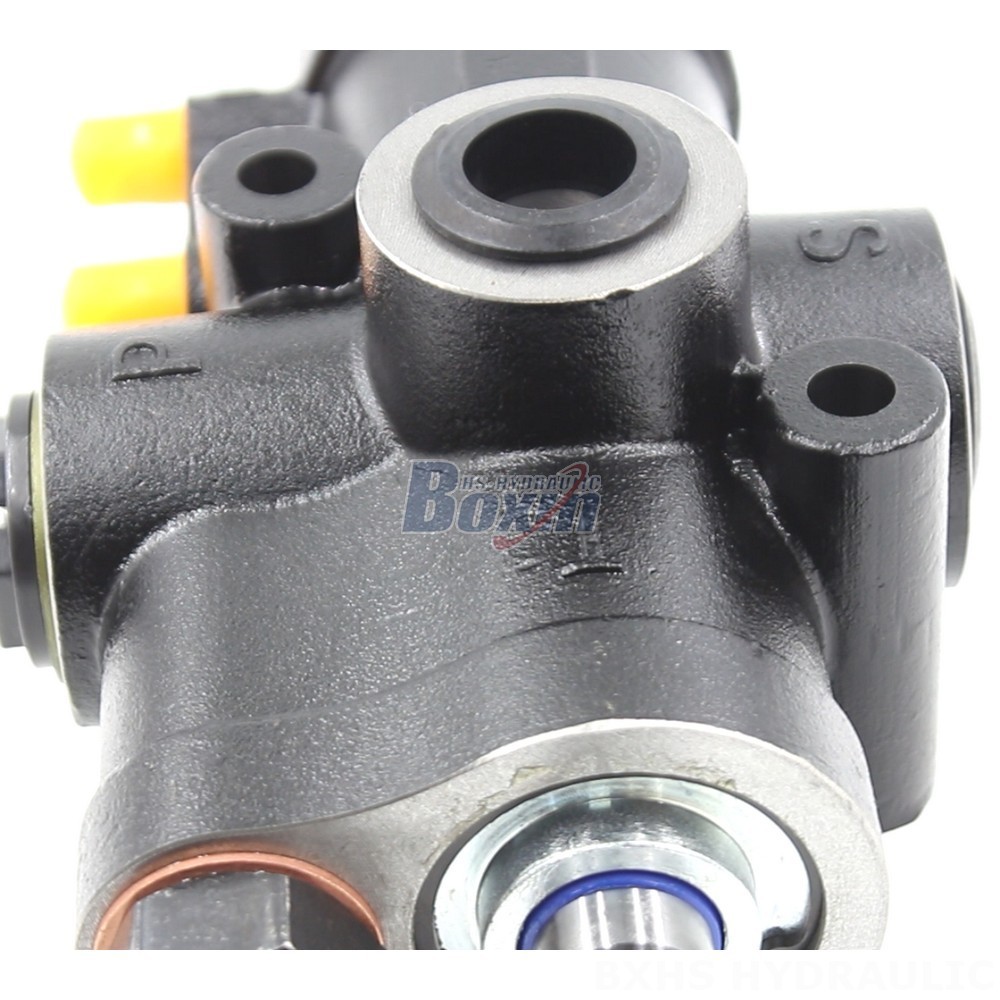

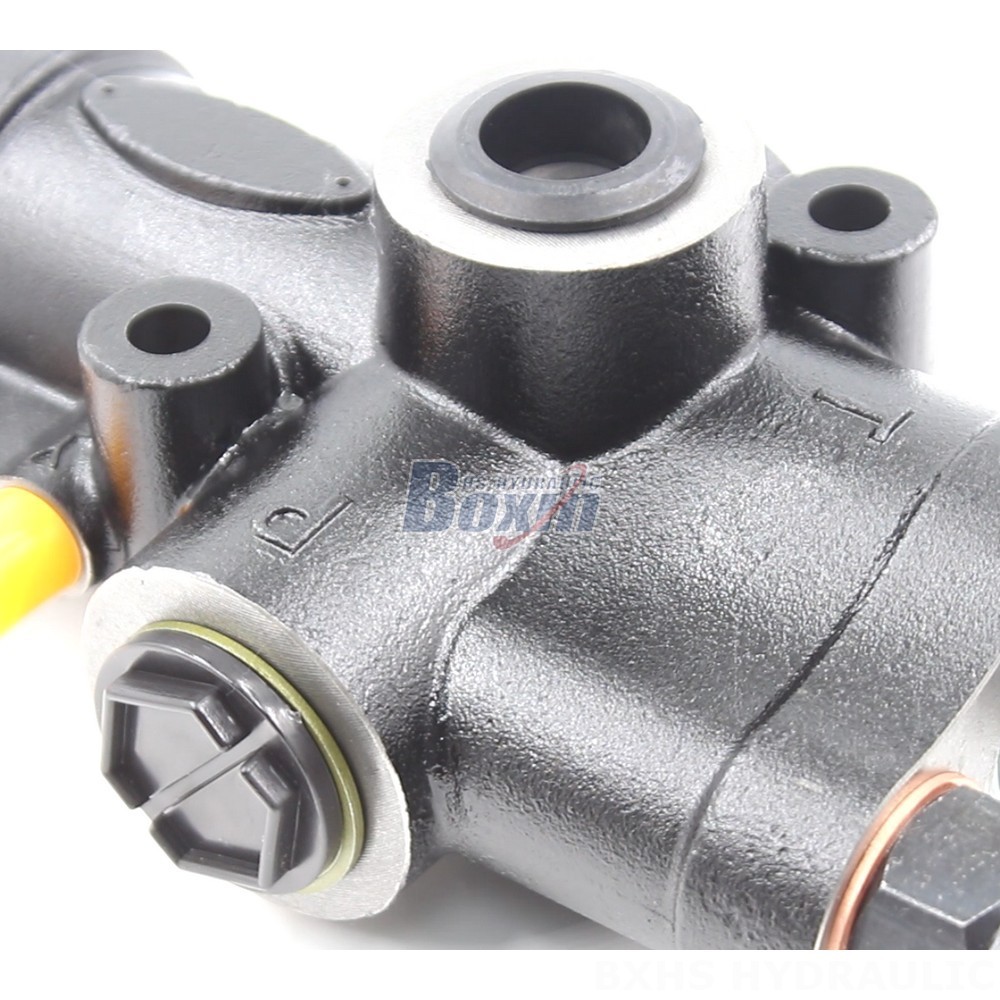

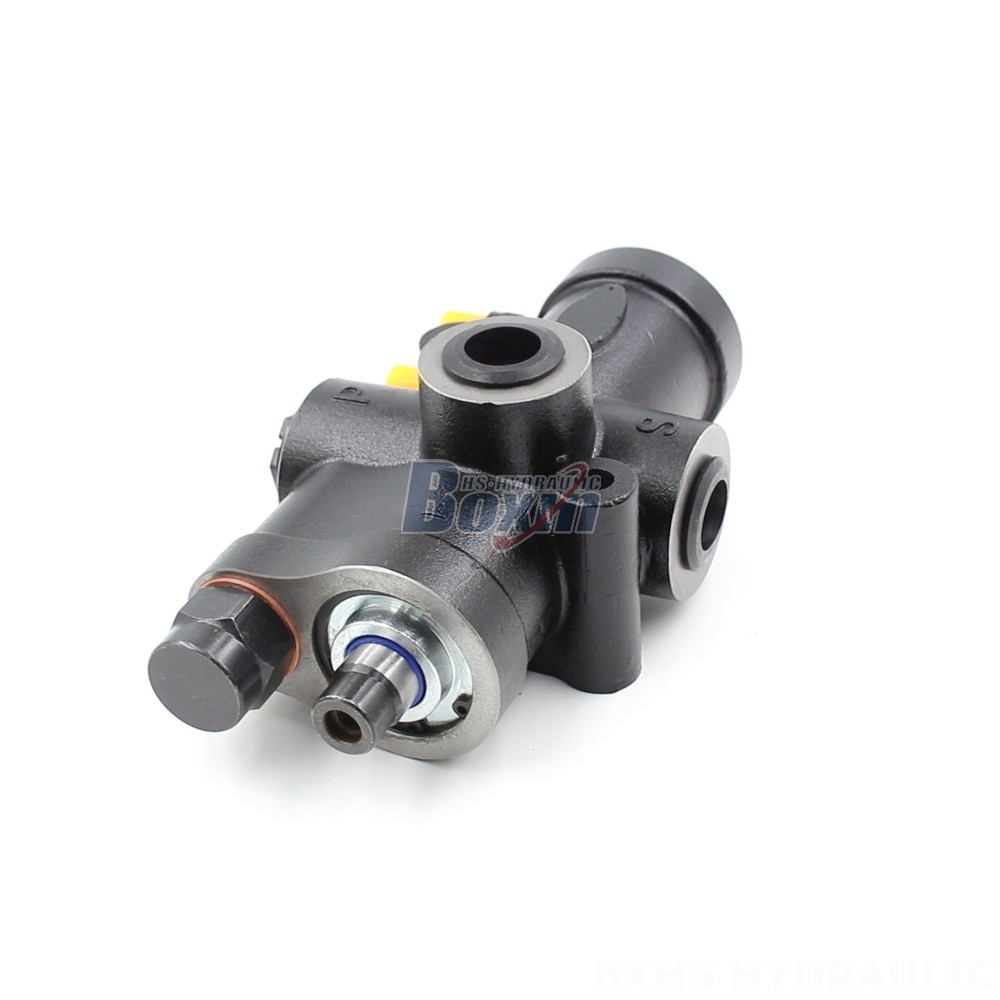

The QFCK-F20L is a high-quality, customizable pneumatic hydraulic directional control valve designed for use in various construction, agriculture, and industrial vehicles. With a rated flow of 140 L/min and a maximum pressure of 210 bar, this valve offers reliable performance for demanding applications.
| QFCK-F20L Serie Kippventil Parameter | |
|---|---|
| Steuermethode | Pneumatisch |
| Steuerkolben | 1 Spule |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | Maximaler Durchfluss |
| Maximaldruck | 210 bar (3045 psi) |
| Einlassanschluss | G3/4 |
| Auslassanschluss | G1 |
| Anschlussgröße | G3/4, G1, G1/4 |
This robust directional control valve features a monoblock construction and a single spool design. It is suitable for operating pressures up to 210 bar (3045 psi) and has a rated flow of 140 L/min (37 US gpm). The valve operates with a wide viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its versatility makes it ideal for use in a wide range of applications, including telehandlers, forklifts, mini and midi excavators, skid steer loaders, wheel loaders, backhoe loaders, dumpers, tractors and front-end loaders, and harvesters.
