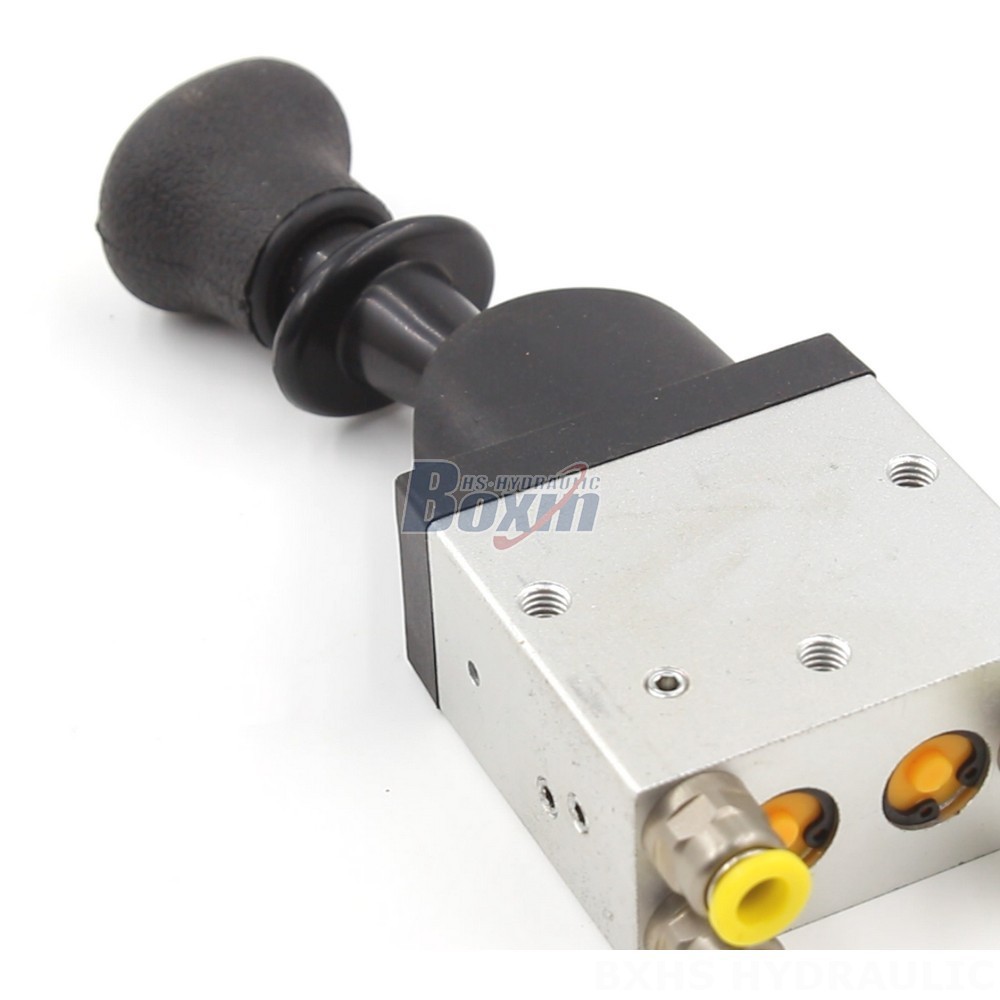

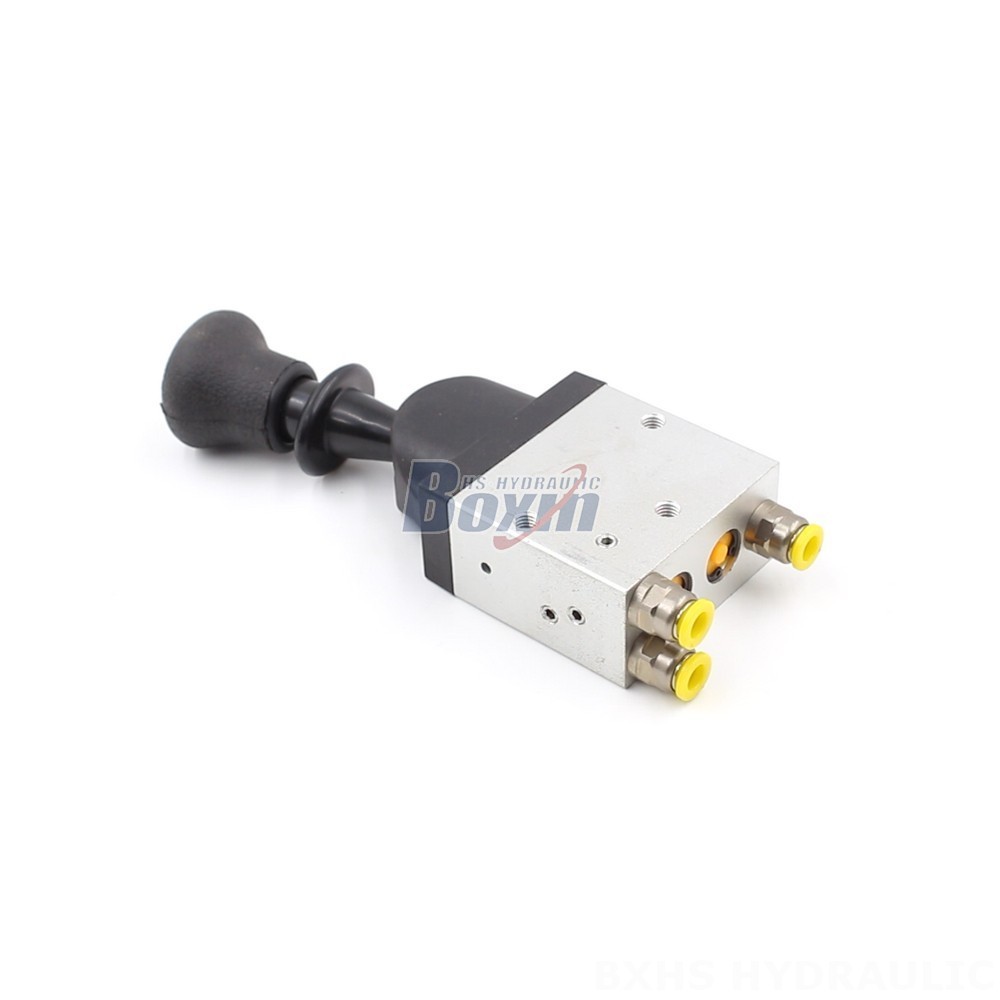

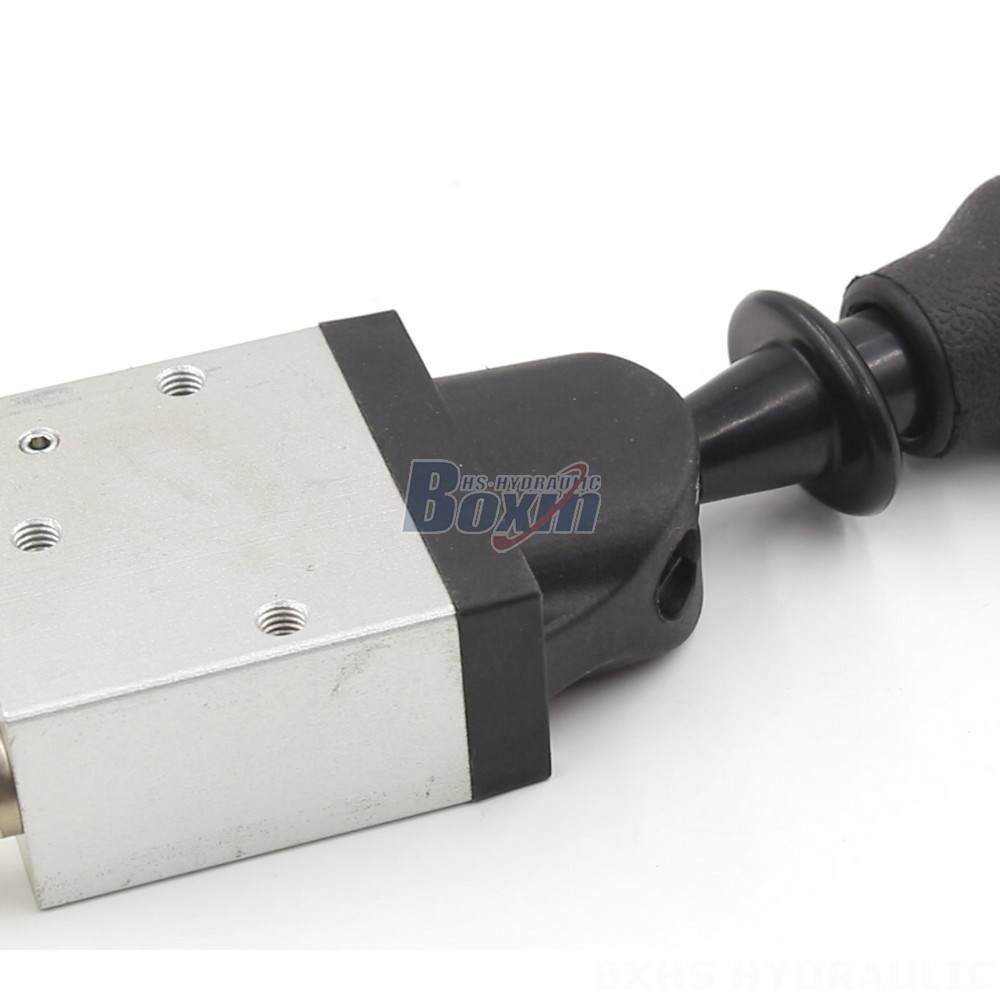

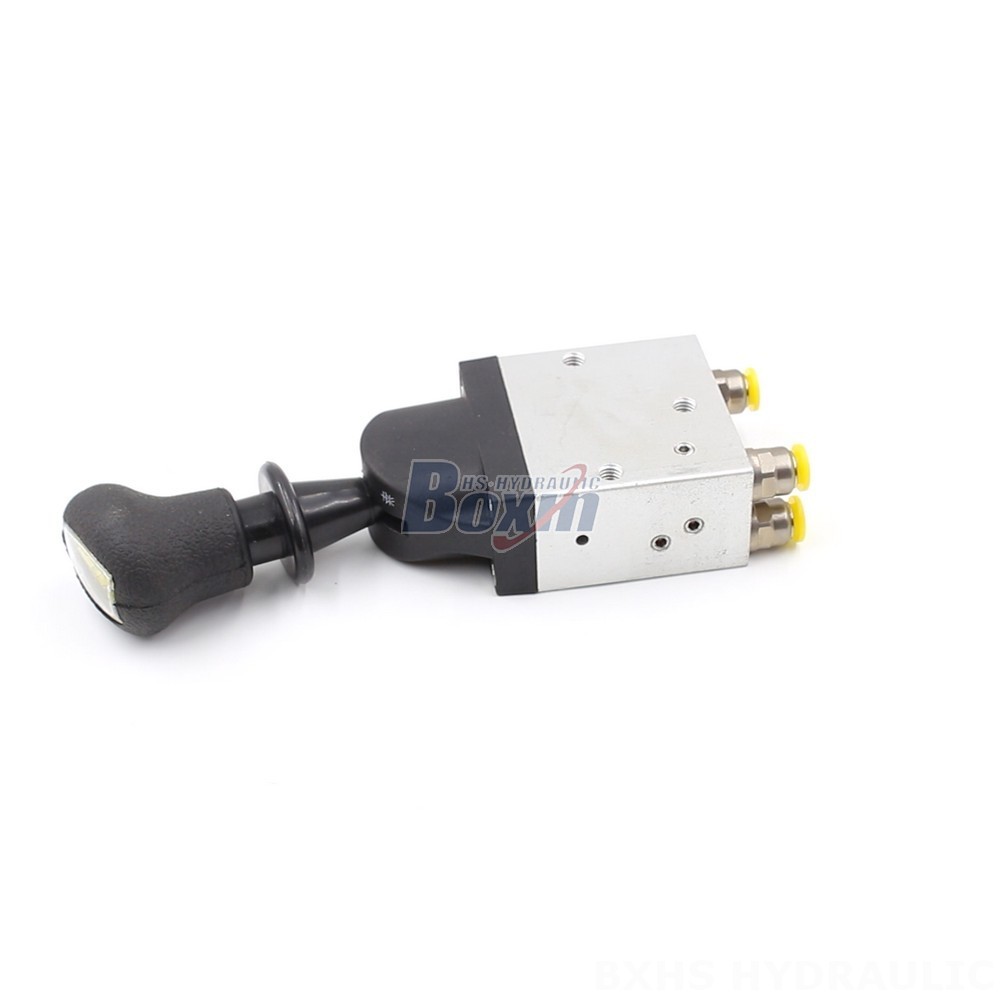

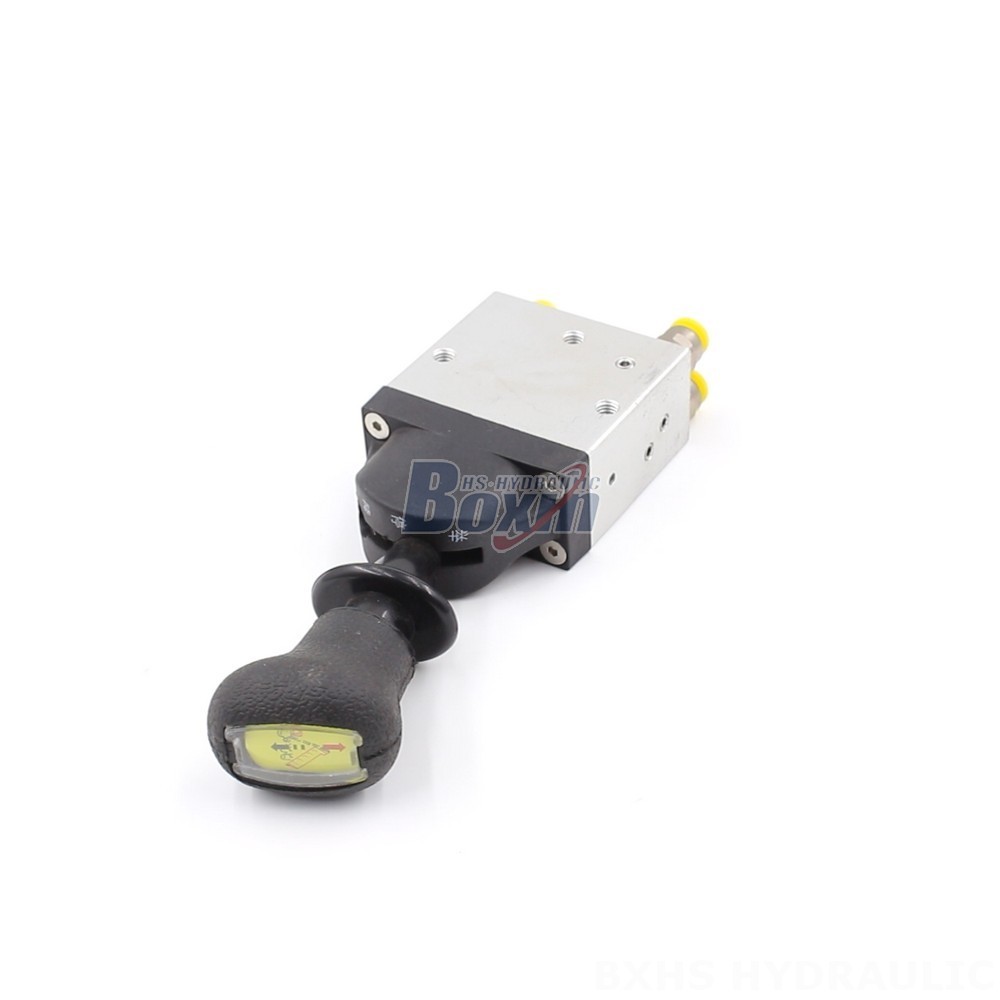

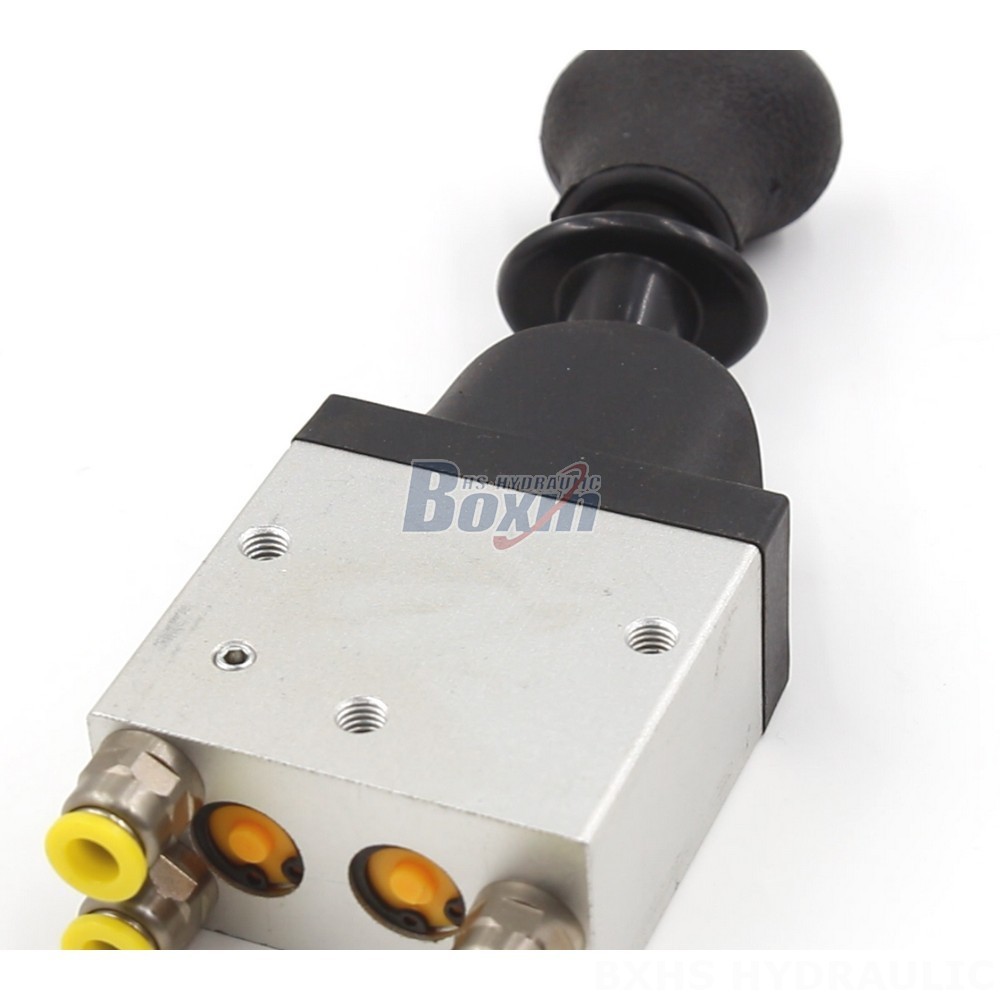

The BKQF34 Series multi-channel directional valve is a high-performance pneumatic control valve designed for a variety of construction and industrial applications. It offers a rated flow of 40 L/min and a maximum pressure of 1 MPa, making it ideal for use in forklifts, telehandlers, skid steer loaders, and other heavy equipment.
| BKQF34 Serie Pneumatisches Regelventil Parameter | |
|---|---|
| Steuermethode | Pneumatisch |
| Steuerkolben | 1 Spule |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | Mindestdruck |
| Einlassanschluss | G1/4 |
| Auslassanschluss | G1/4 |
| Anschlussgröße | G1/4 |
This 1-section, monoblock valve features a single spool and is designed for use in harsh environments, with an operating temperature range of -40°C to +80°C. Its compact design and reliable performance make it a popular choice for manufacturers of construction, material handling, and agricultural equipment. The BKQF34 Series is available in a variety of configurations to meet specific application requirements. It is widely used in forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers.
