Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit
Innovation treibt Entwicklung voran Technologie gestaltet die Zukunft
786 Personen sehen sich dieses Produkt an

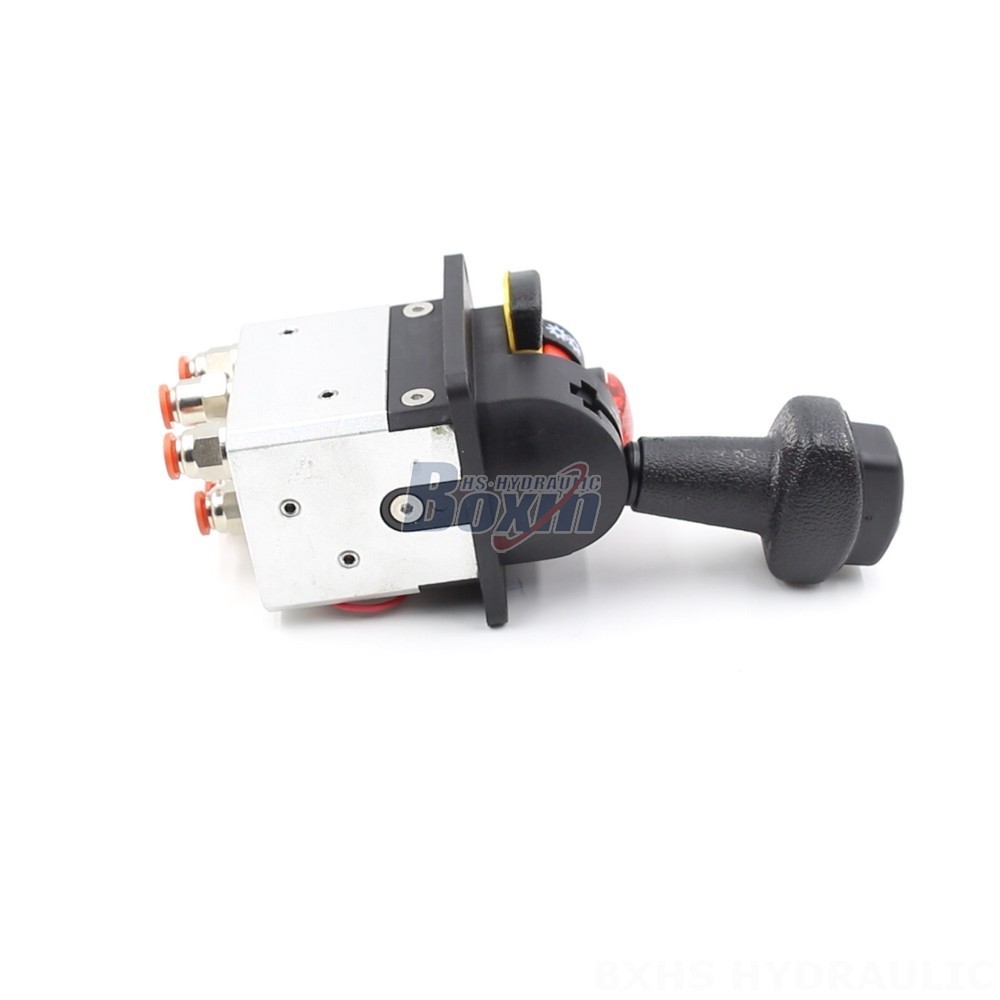

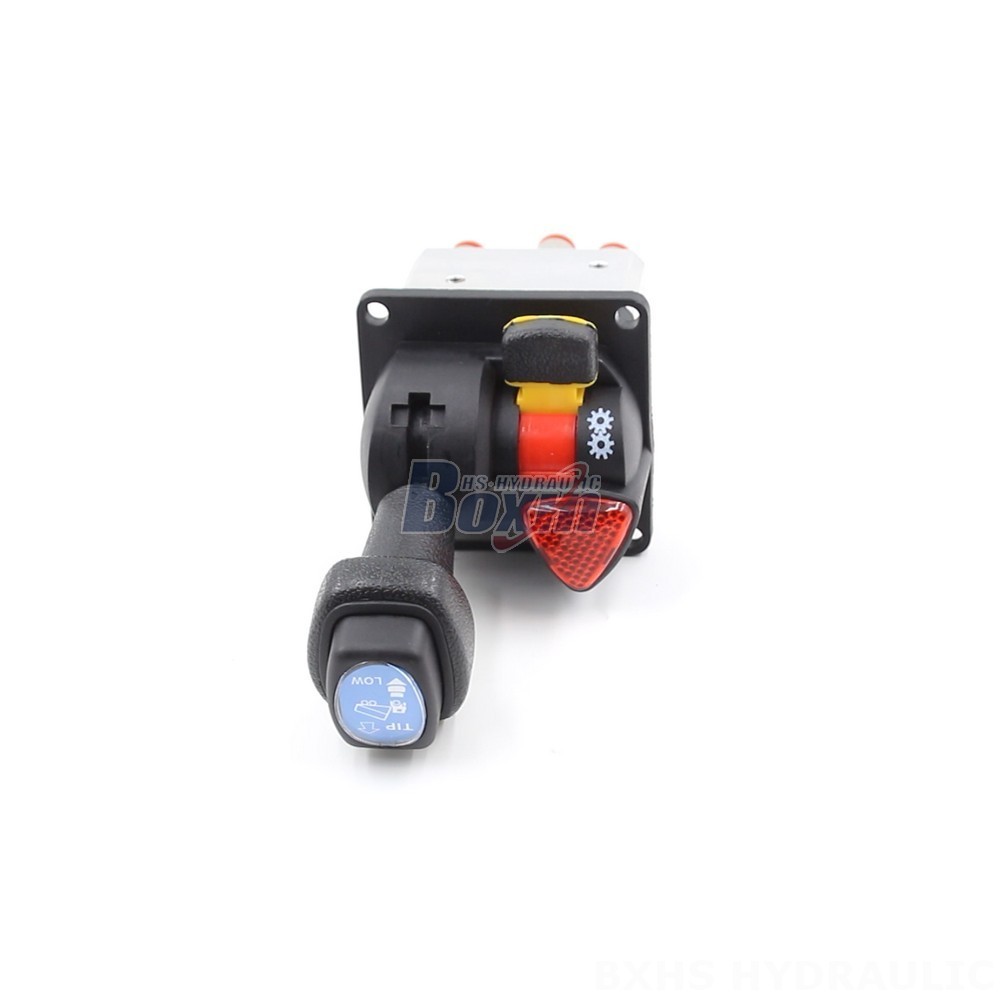

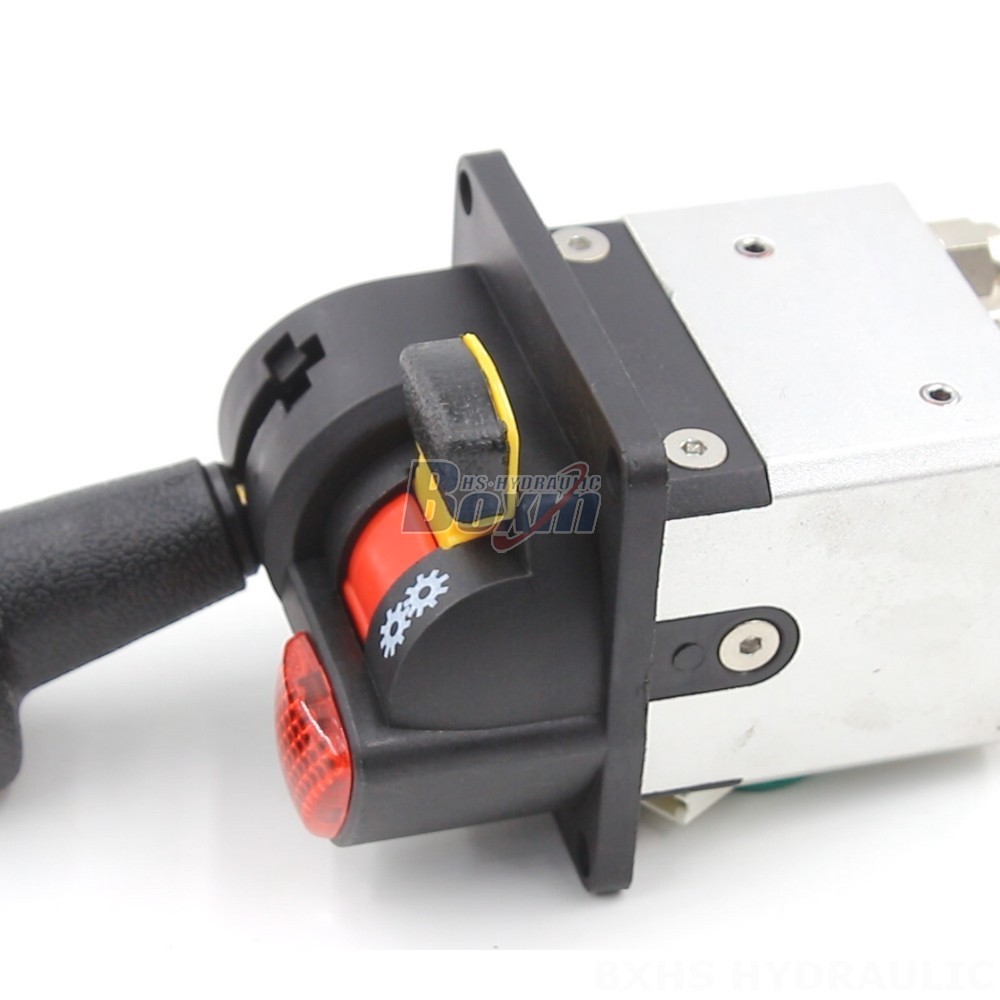

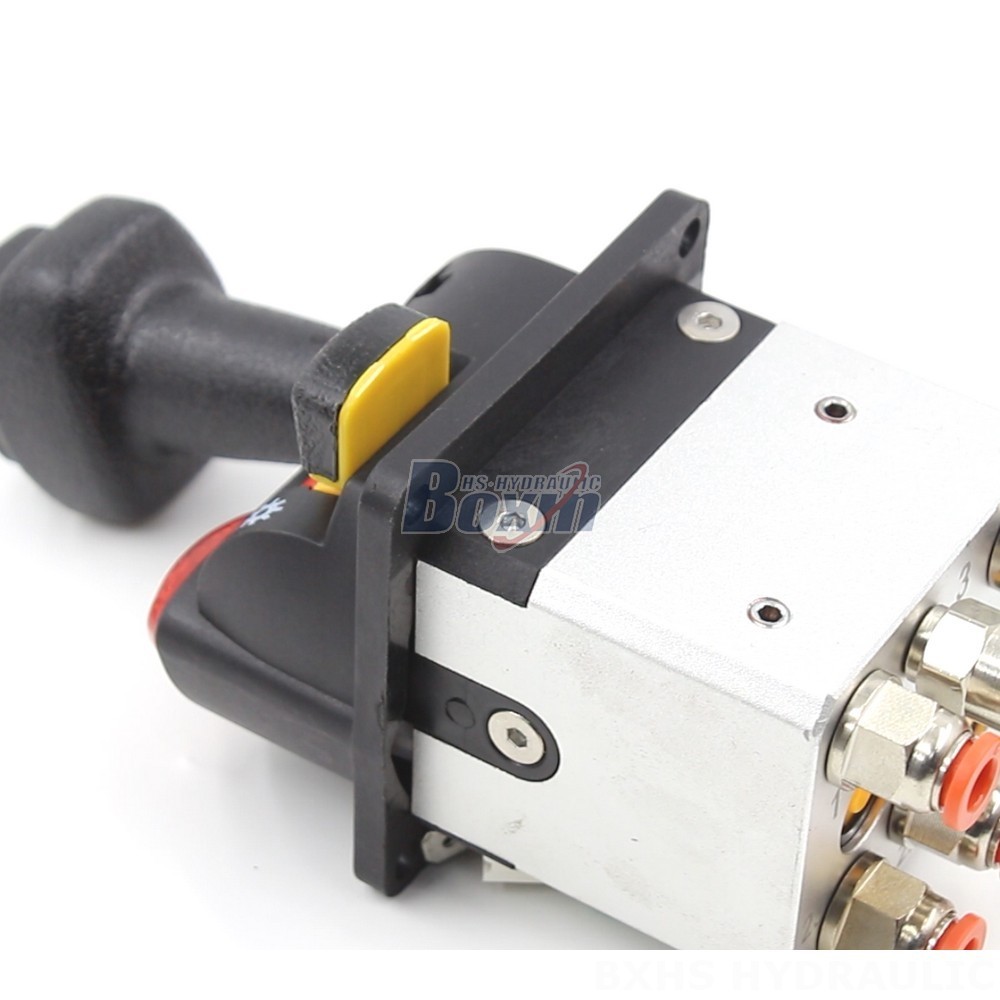

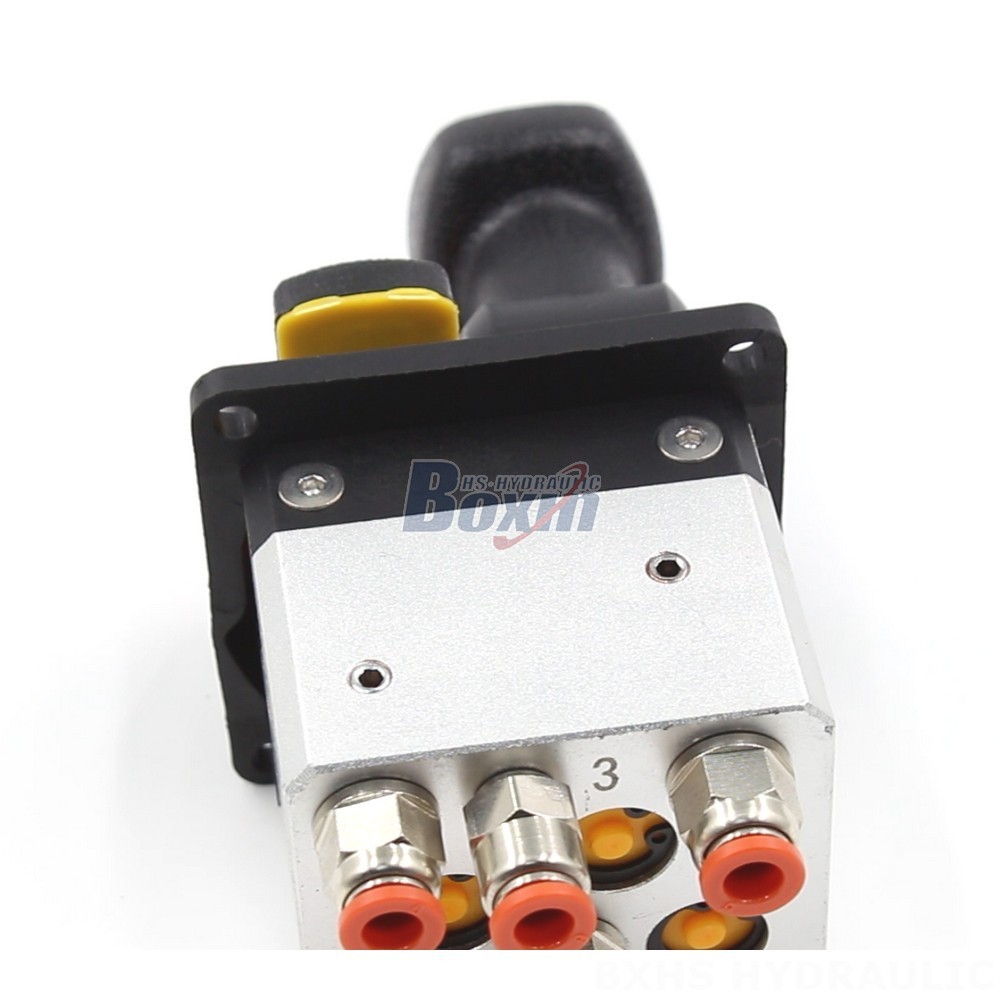

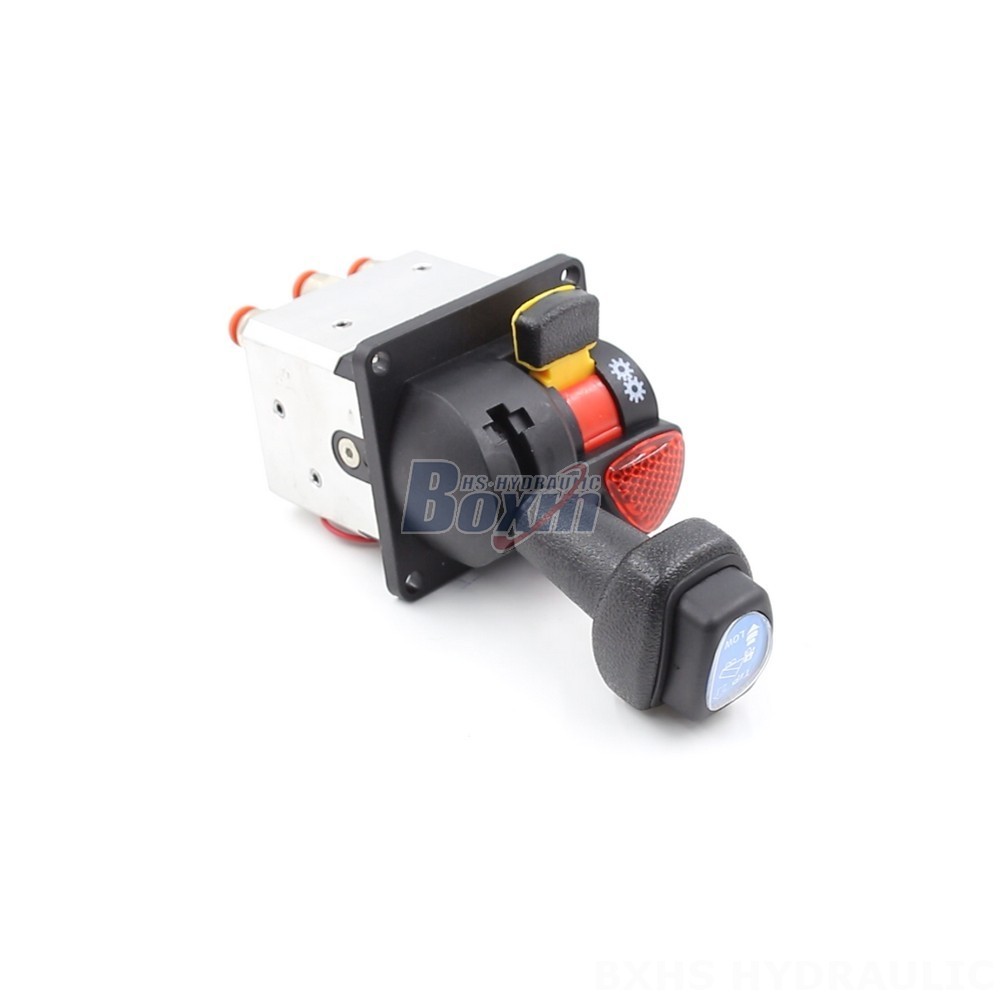

This BKQF34 series hydraulic selector valve is a pneumatic controlled monoblock valve with 1 spool, designed for various construction and agricultural applications. It features a rated flow of 40 L/min, max pressure of 1 MPa, and operating viscosity range of 12-400 mm²/s.
| BKQF34 Serie Pneumatisches Regelventil Parameter | |
|---|---|
| Steuermethode | Pneumatisch |
| Steuerkolben | 1 Spule |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | Mindestdruck |
| Einlassanschluss | G1/4 |
| Auslassanschluss | G1/4 |
| Anschlussgröße | G1/4 |
The BKQF34 series hydraulic selector valve is a robust and reliable solution for controlling hydraulic systems in various applications. This 1 spool, pneumatic controlled monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 1 MPa. It is suitable for a wide range of operating temperatures, from -40°C to +80°C. This valve is commonly used in construction and earth moving, material handling, agriculture, and industrial vehicles. Typical applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers. The BKQF34 series valve is a factory direct product and can be customized to meet specific requirements.
