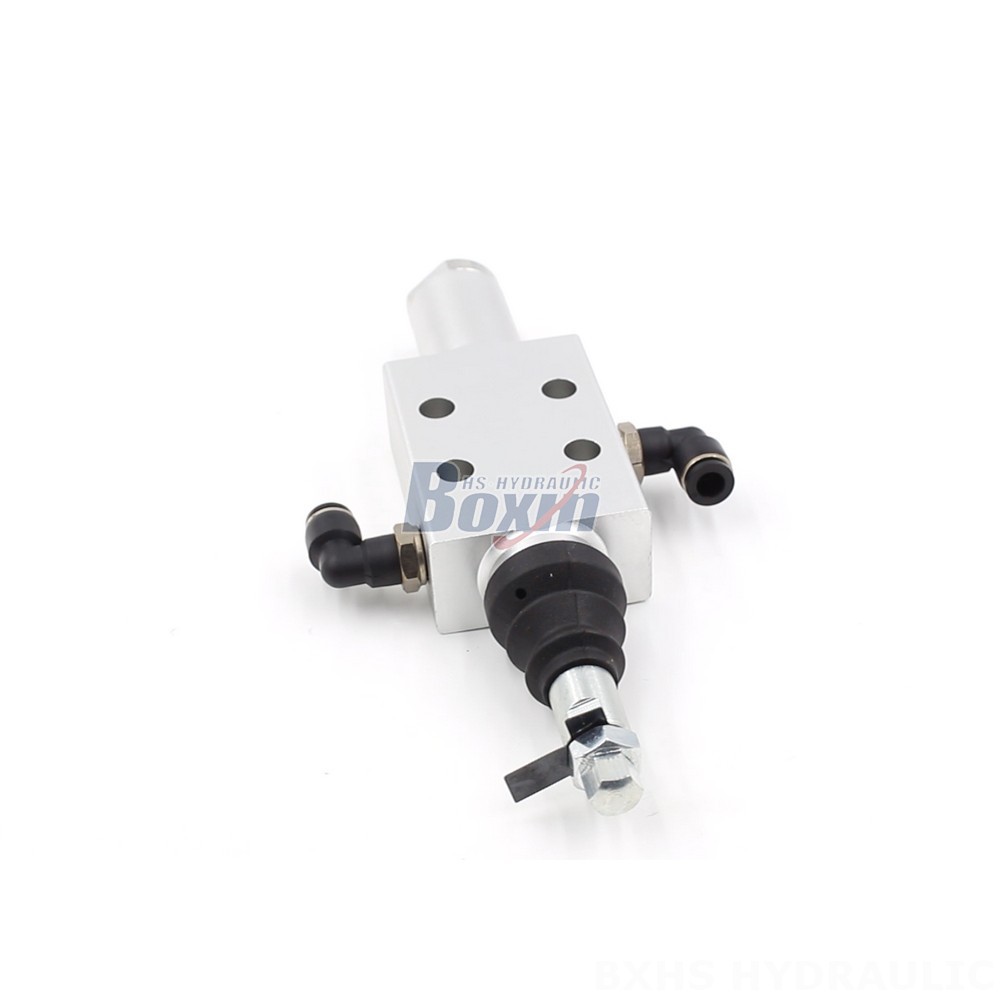

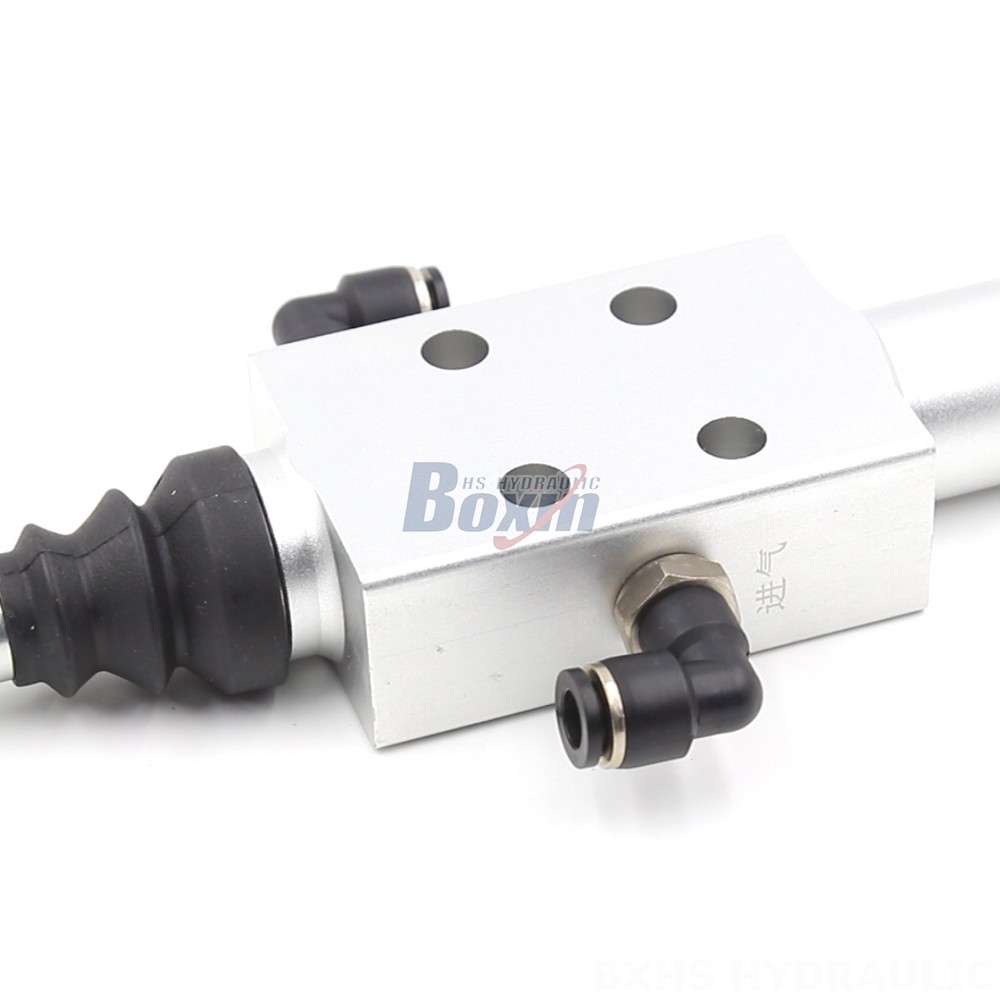

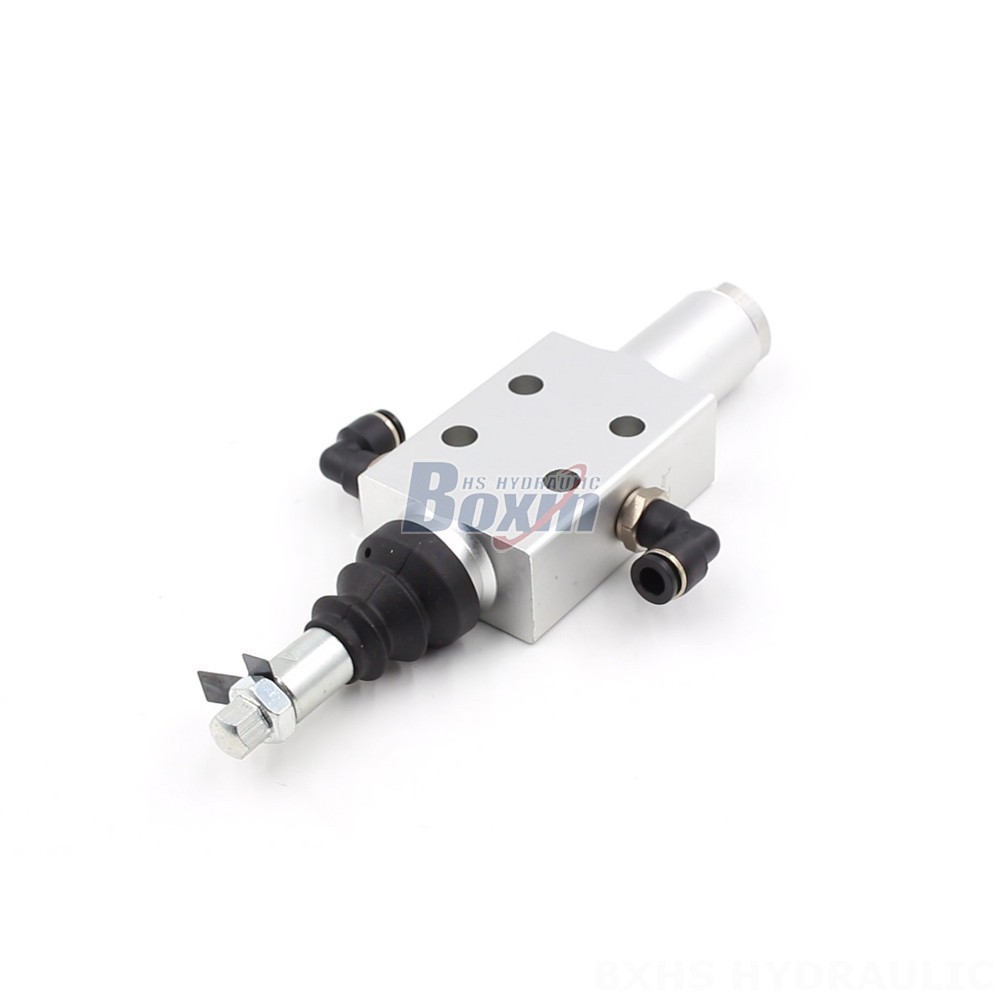

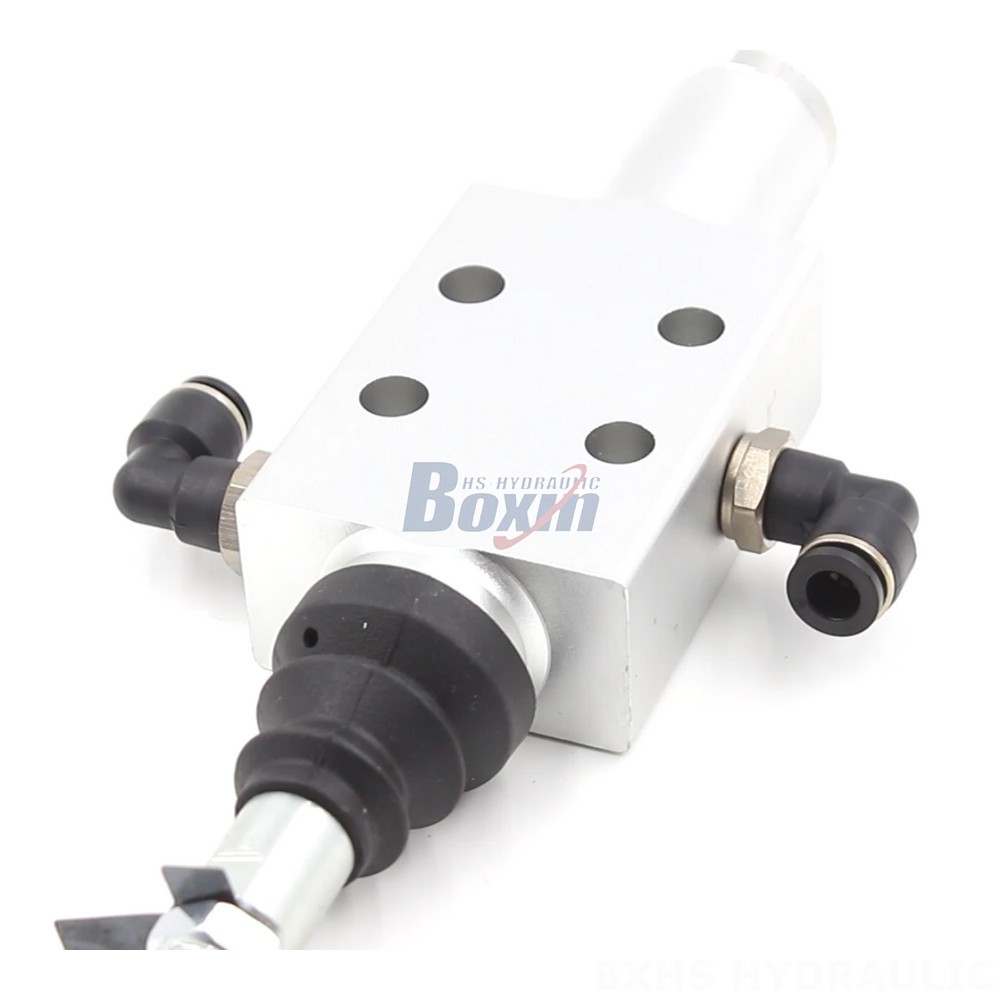

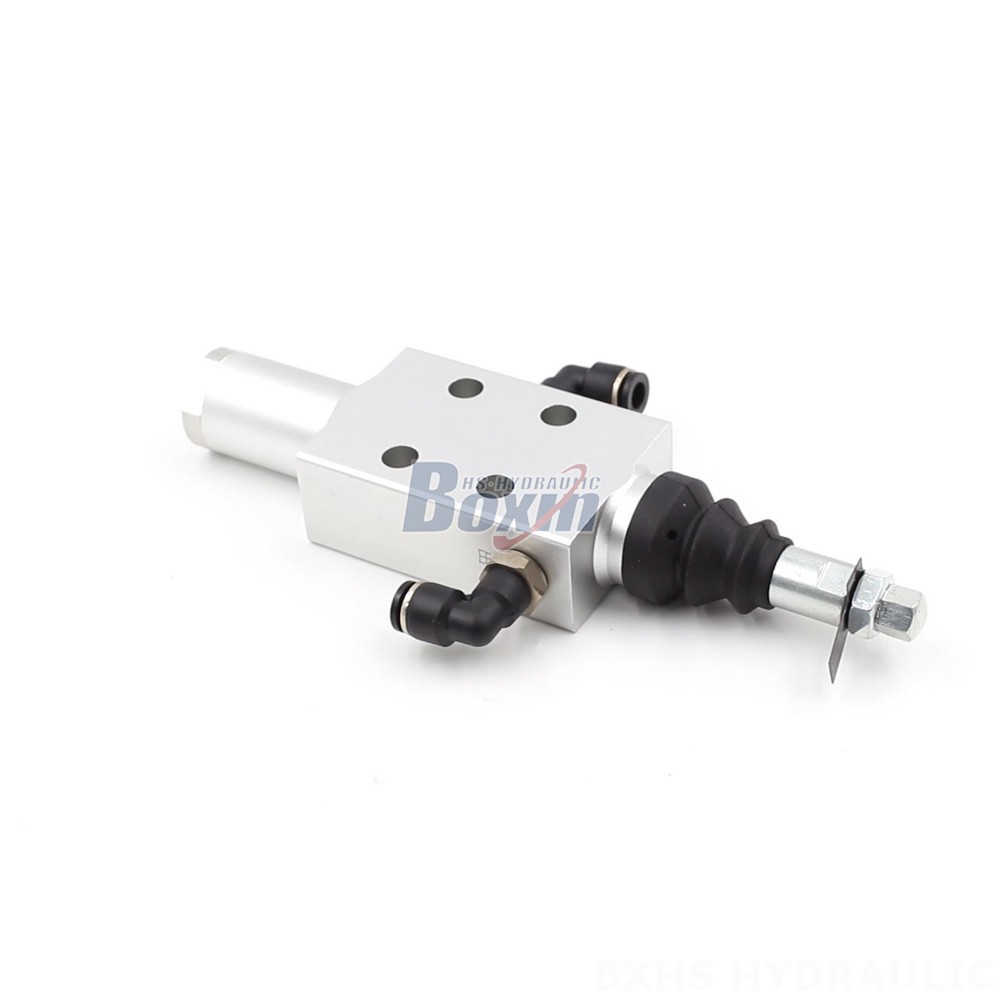

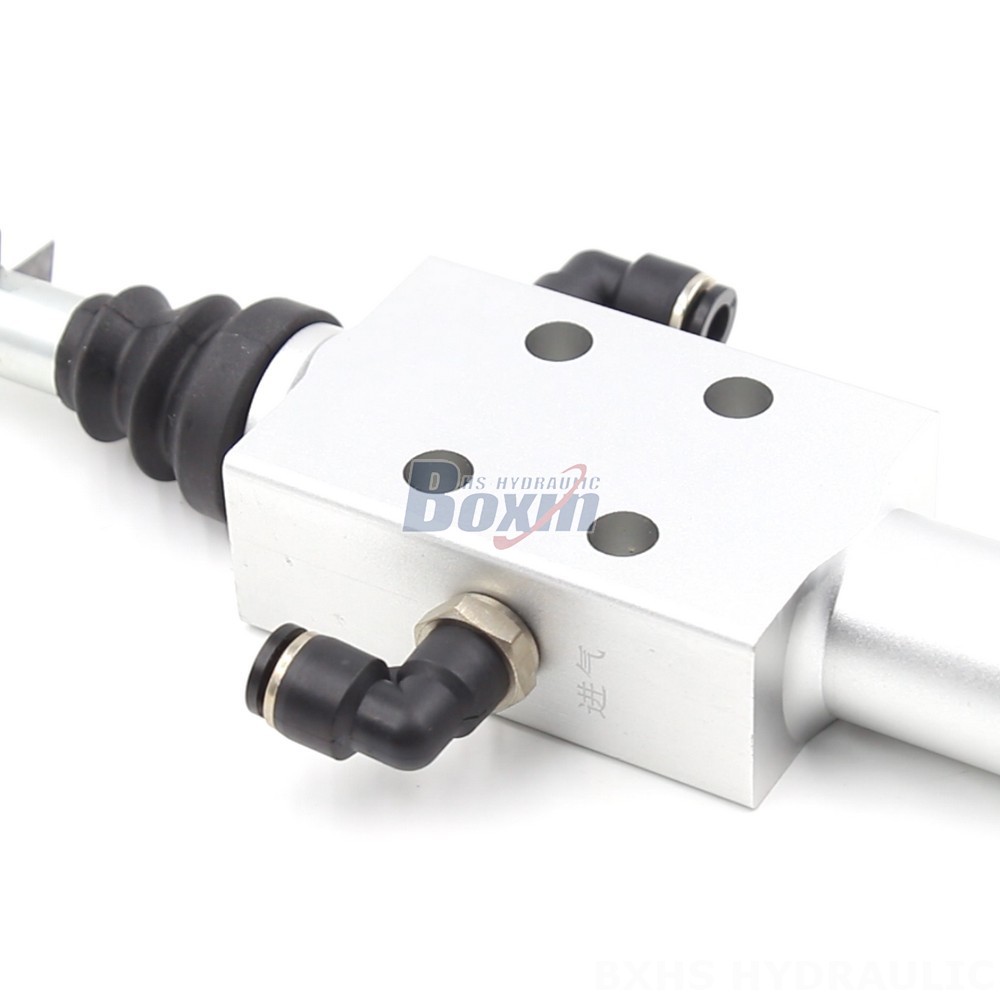

This XQF Series 24v pneumatic solenoid valve is a heavy-duty, monoblock directional valve designed for use in material handling, construction and earthmoving, agriculture, and industrial vehicles. It features a 1 spool design and operates at pressures up to 200 bar (2900 psi) with an operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt).
| XQF-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Pneumatisch |
| Steuerkolben | 1 Spule |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 50 l/min (13,2 US gal/min) |
| Maximaldruck | 200 bar (2900 psi) |
| Einlassanschluss | G1/4 |
| Auslassanschluss | G1/4 |
| Anschlussgröße | G1/4 |
The XQF Series 24v pneumatic solenoid valve is a reliable and durable option for a wide range of applications. It is constructed with a monoblock structure, offering a robust and compact design. The valve features a single spool, providing precise directional control. With a maximum pressure rating of 200 bar (2900 psi) and an operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt), this valve is suitable for heavy-duty applications. The valve is designed to withstand ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in a variety of environments. This 24v pneumatic solenoid valve is ideal for use in forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
