Partner with us and distribute the P80 Solenoid 5 Spool Monoblock Directional Valve, engineered for demanding hydraulic applications. This robust valve offers precise control, high flow capacity (80 L/min), and durability under extreme conditions (-40°C to +80°C). Ideal for material handling, construction, agriculture, and industrial vehicles, it seamlessly integrates into various systems, including telehandlers, forklifts, and excavators.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

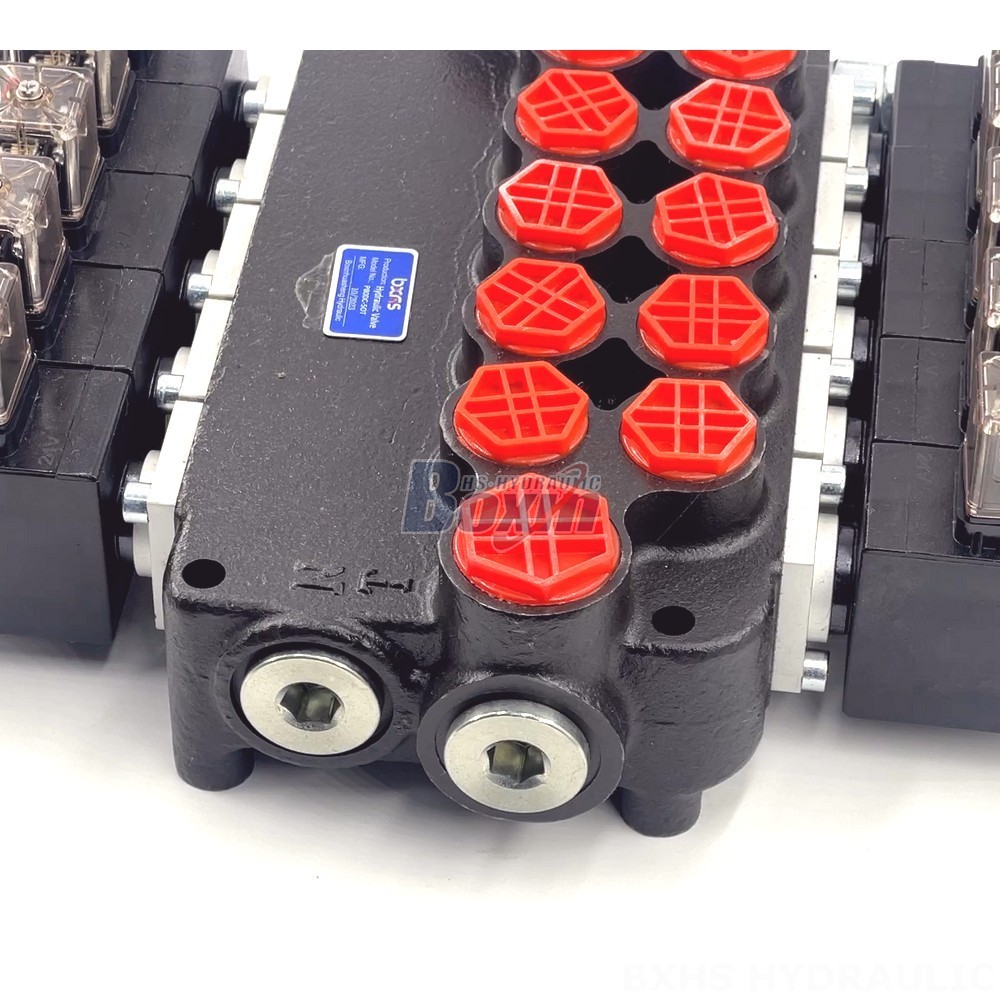

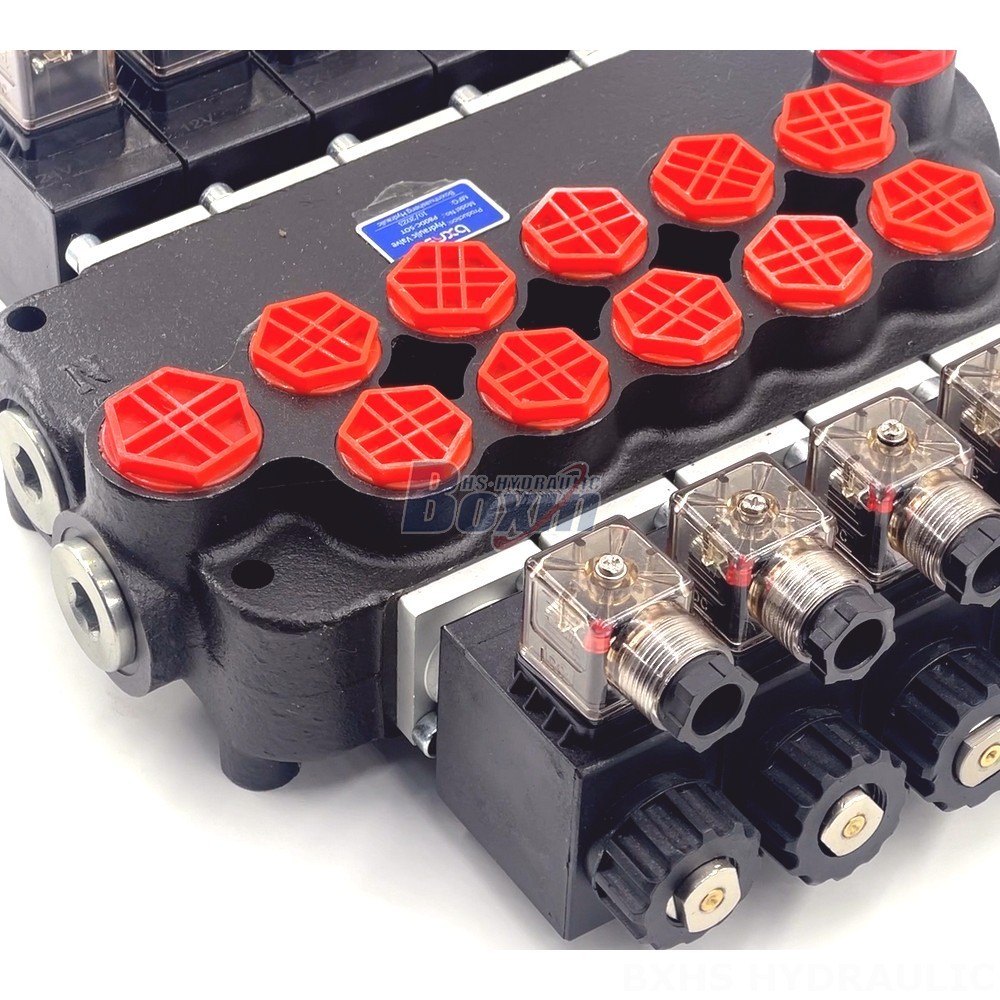

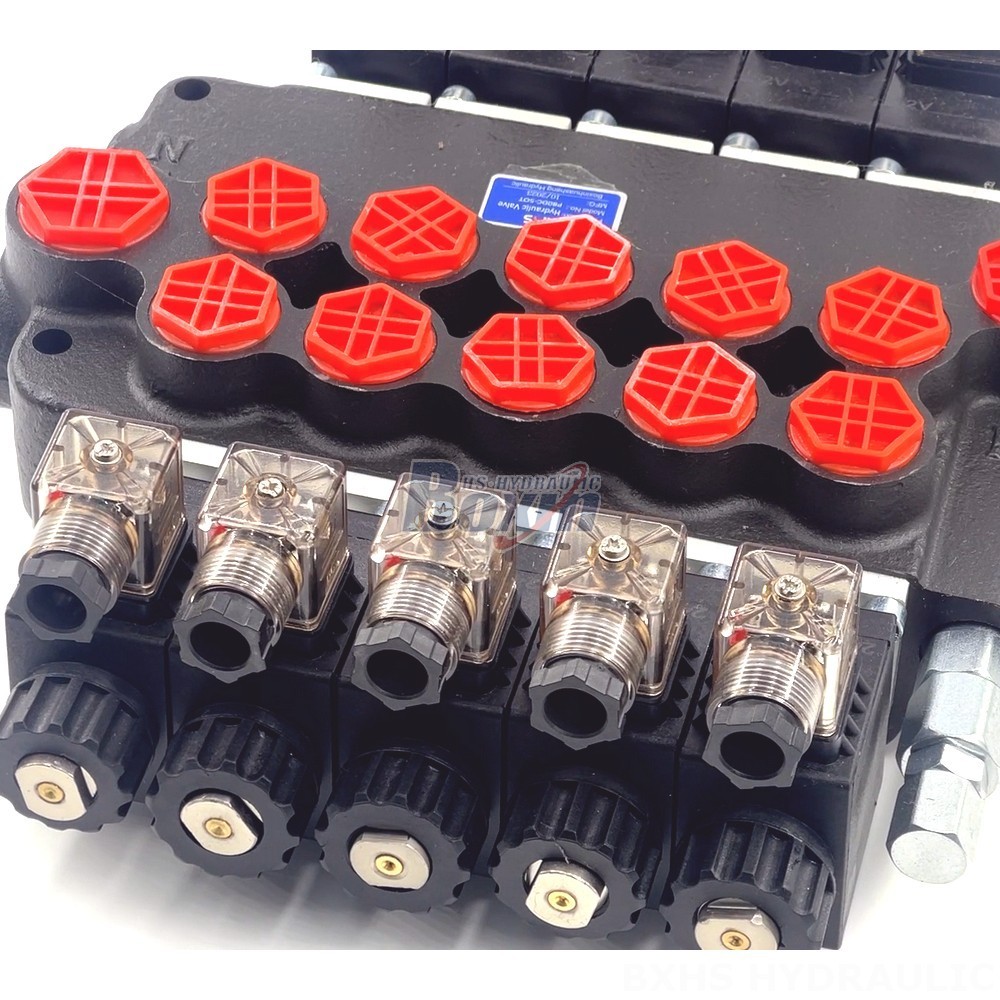

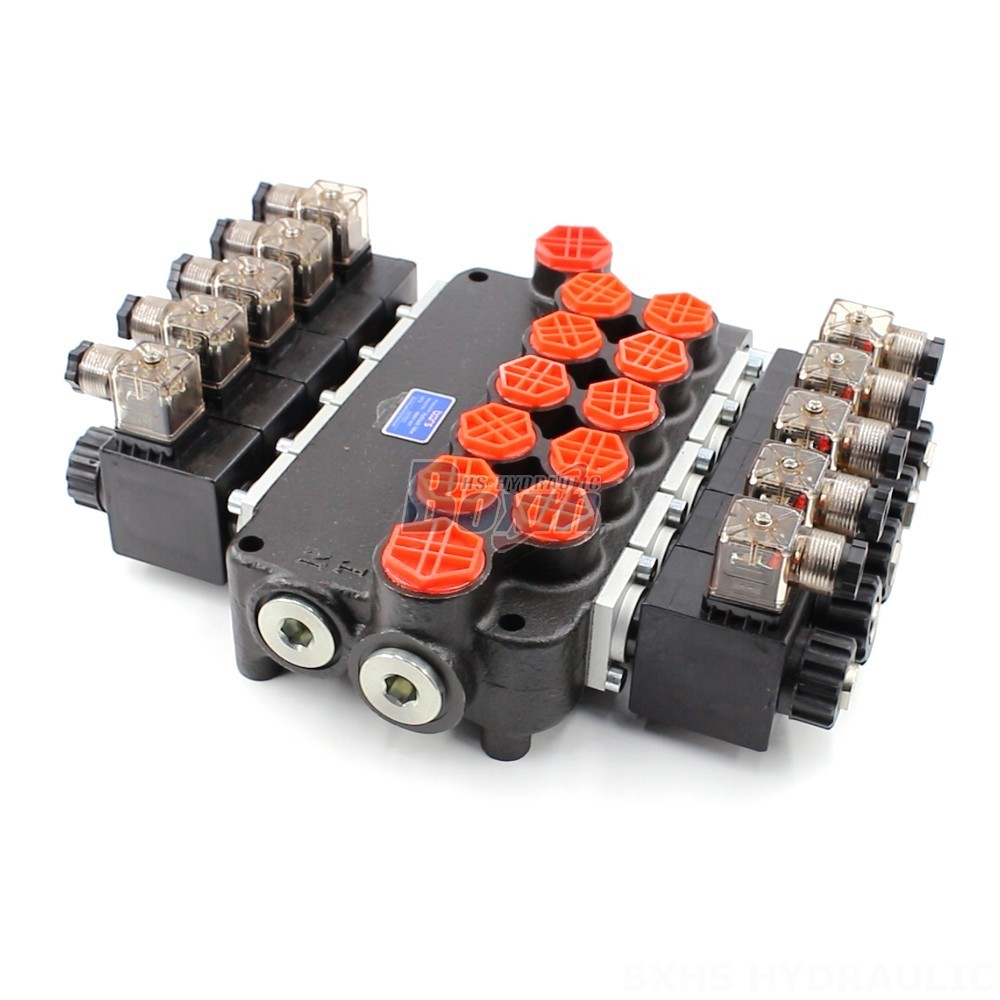

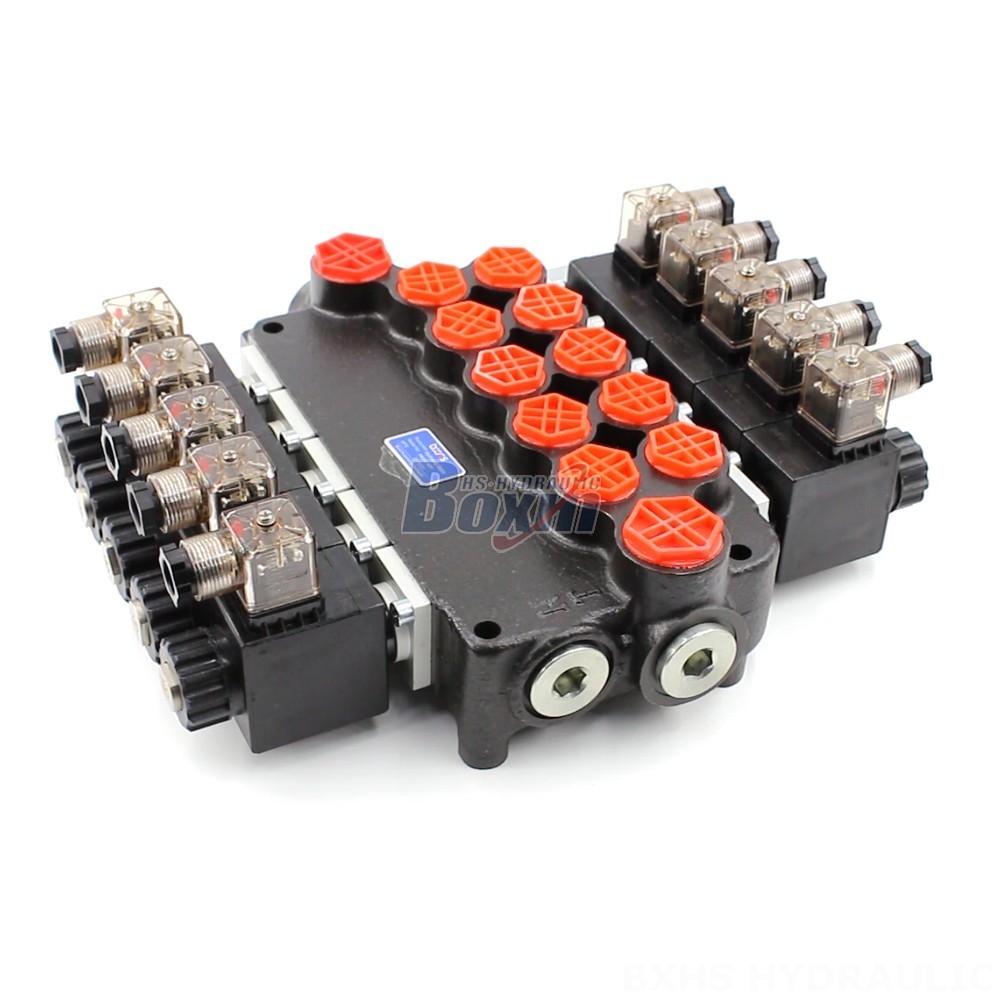

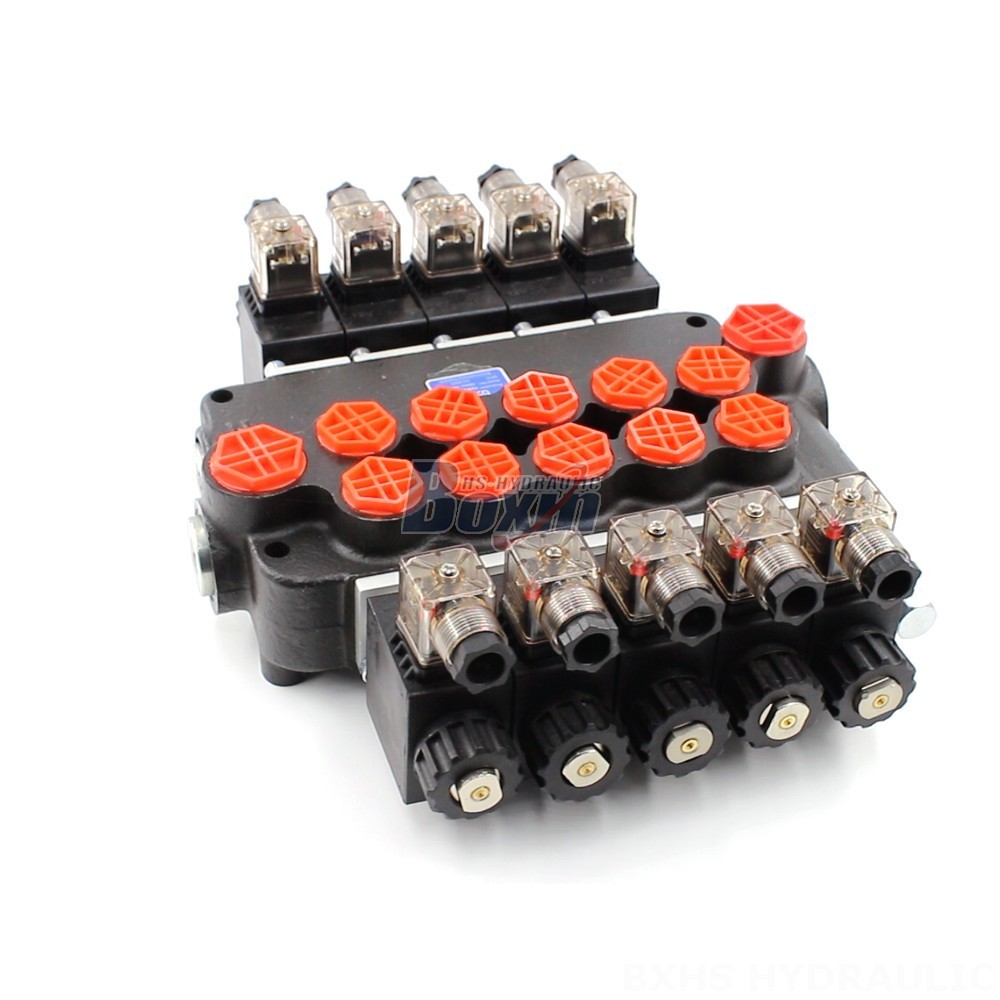

**P80 Solenoid 5 Spool Monoblock Directional Valve**
**Key Features:**
* Solenoid control for precise operation
* 5 spool design for versatile flow management
* Monoblock construction for compact and reliable performance
* Rated flow of 80 L/min (21.2 US gpm) for efficient hydraulic systems
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for reliable operation in harsh environments
**Application Areas:**
* Material Handling: Telehandlers, forklifts, stackers
* Construction and Earth Moving: All-terrain cranes, motor graders, excavators
* Agriculture: Tractors, harvesters, sprayers
* Industrial Vehicles: Sweepers, scrubbers, aerial platforms
**Partnership Opportunities:**
We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach. Our flexible partnership models include:
* Distribution agreements
* Private label (OEM) manufacturing
* Custom engineering solutions
* Technical support and training
Contact us today to explore the opportunities and collaborate in delivering cutting-edge hydraulic solutions to your customers.
