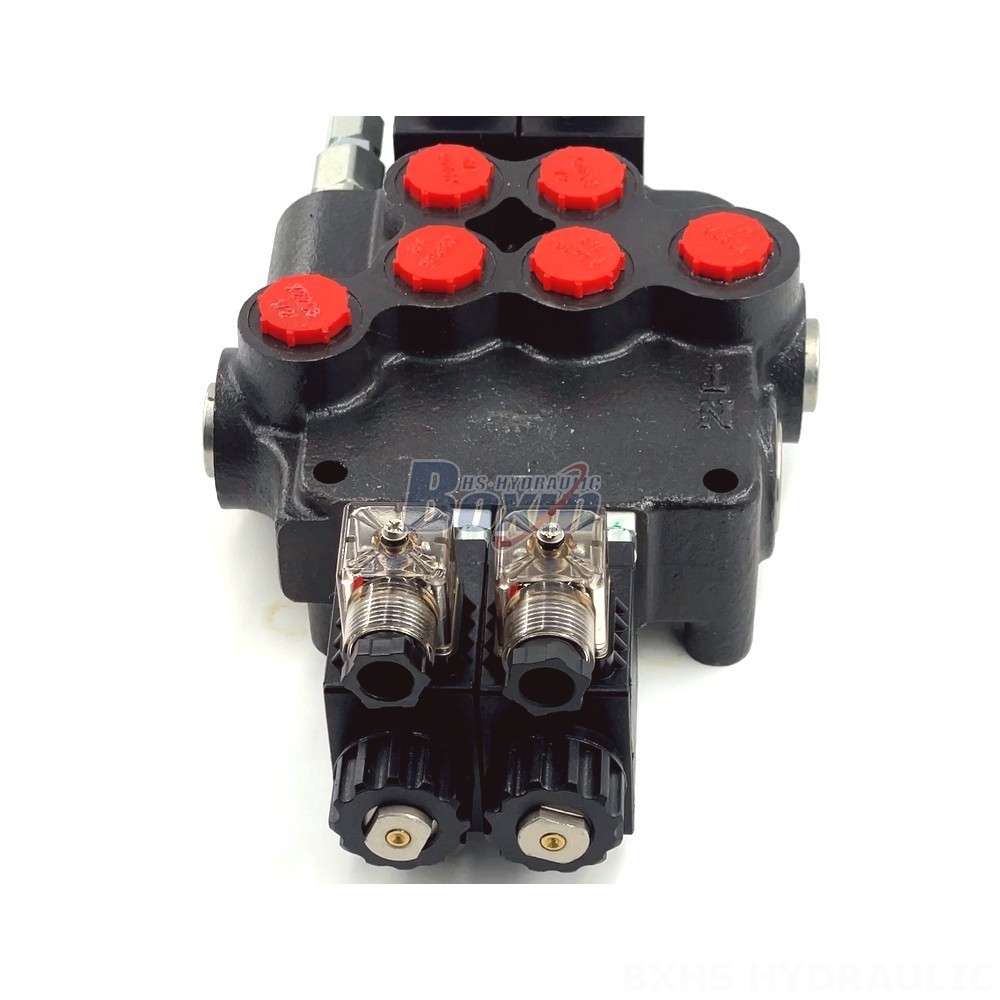

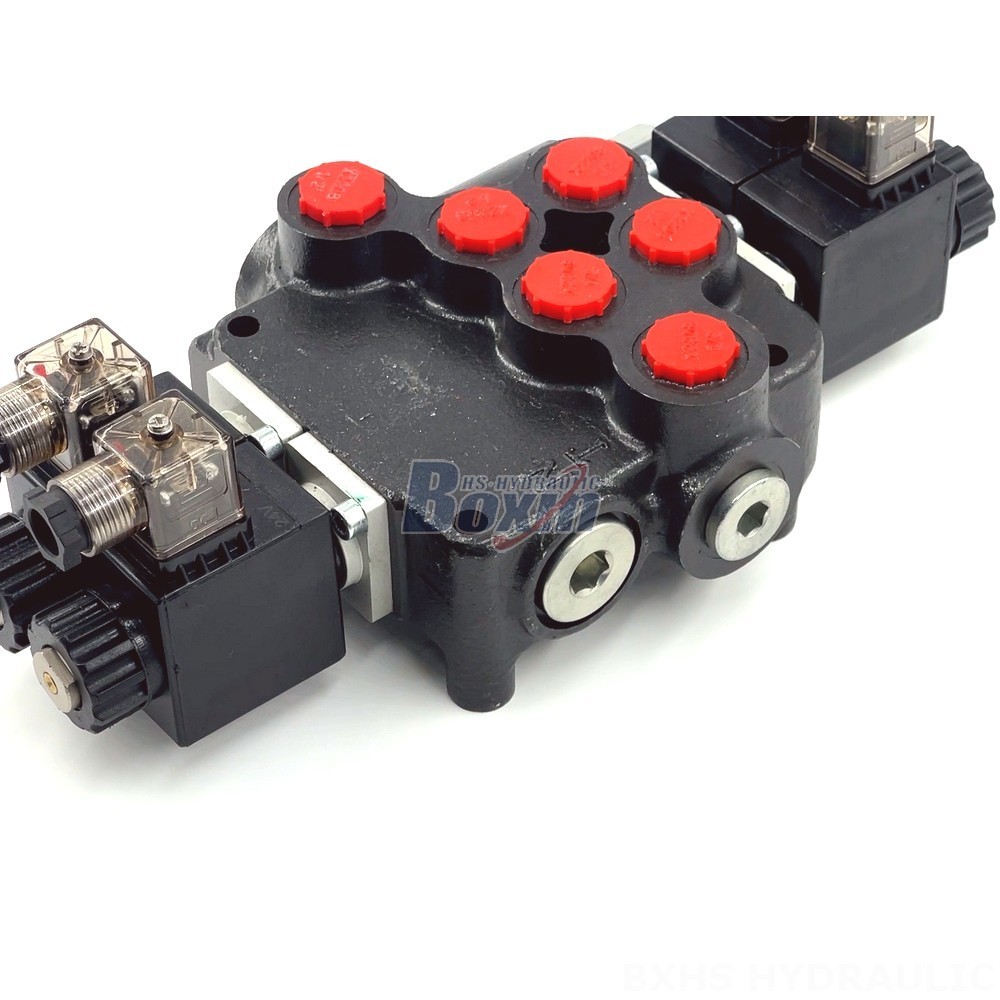

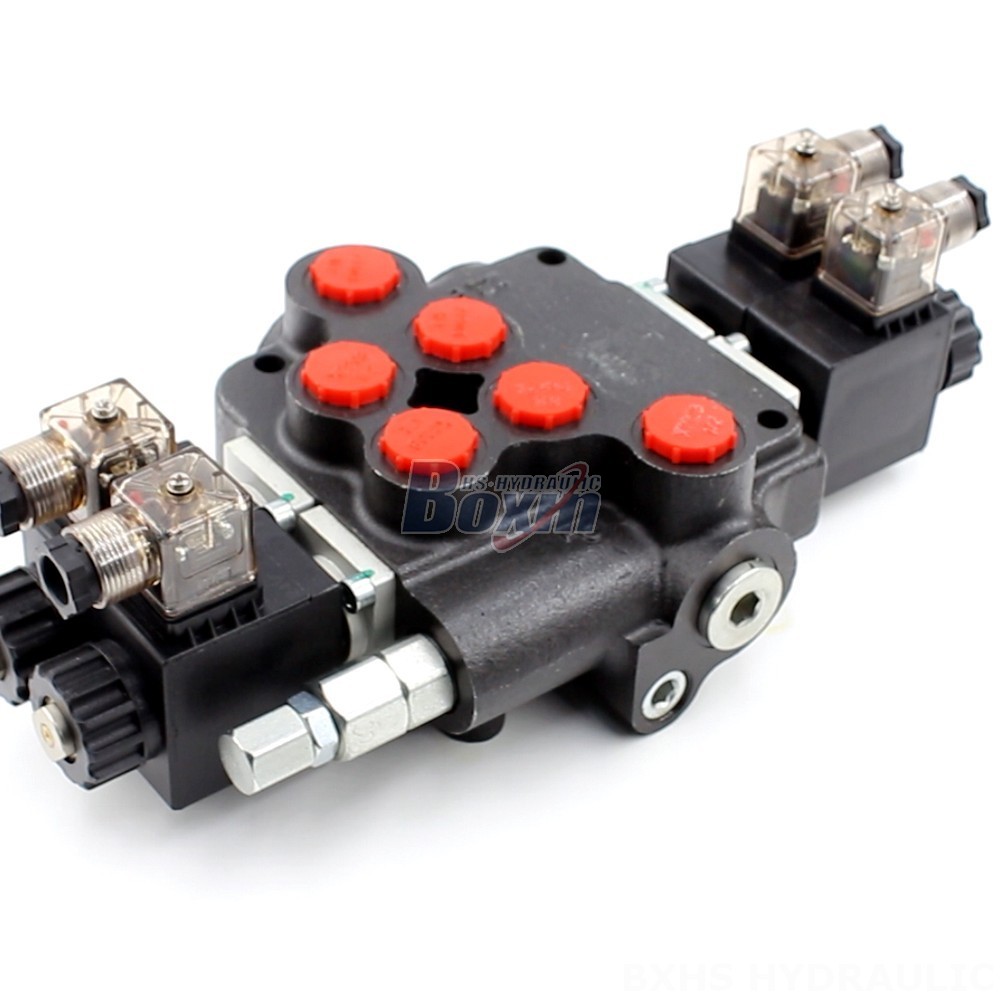

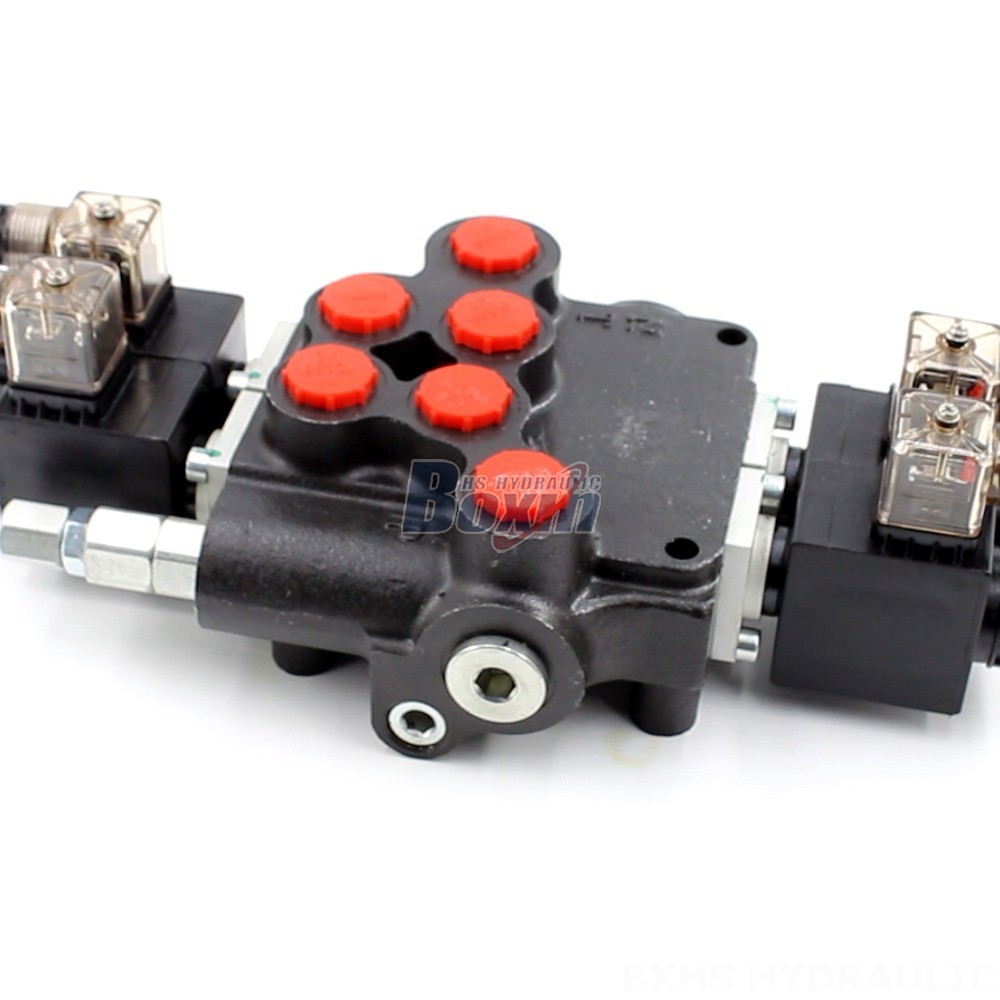

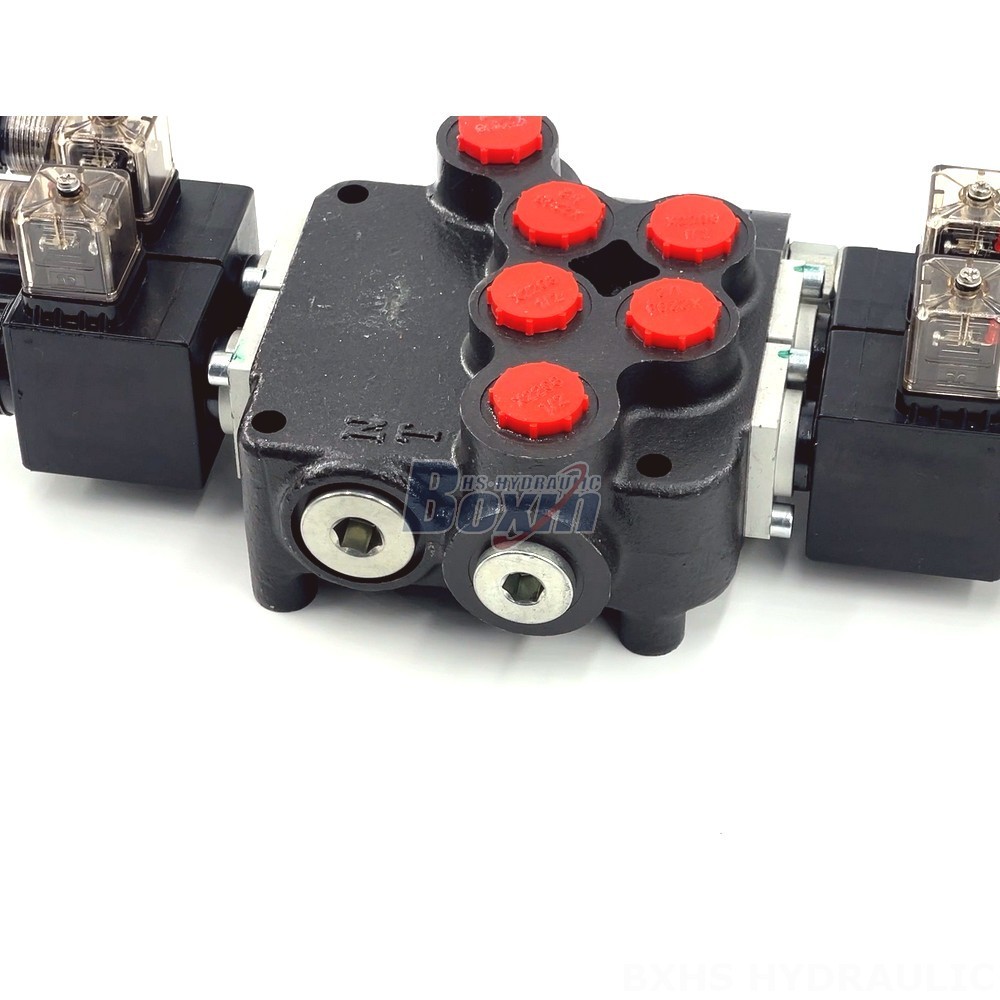

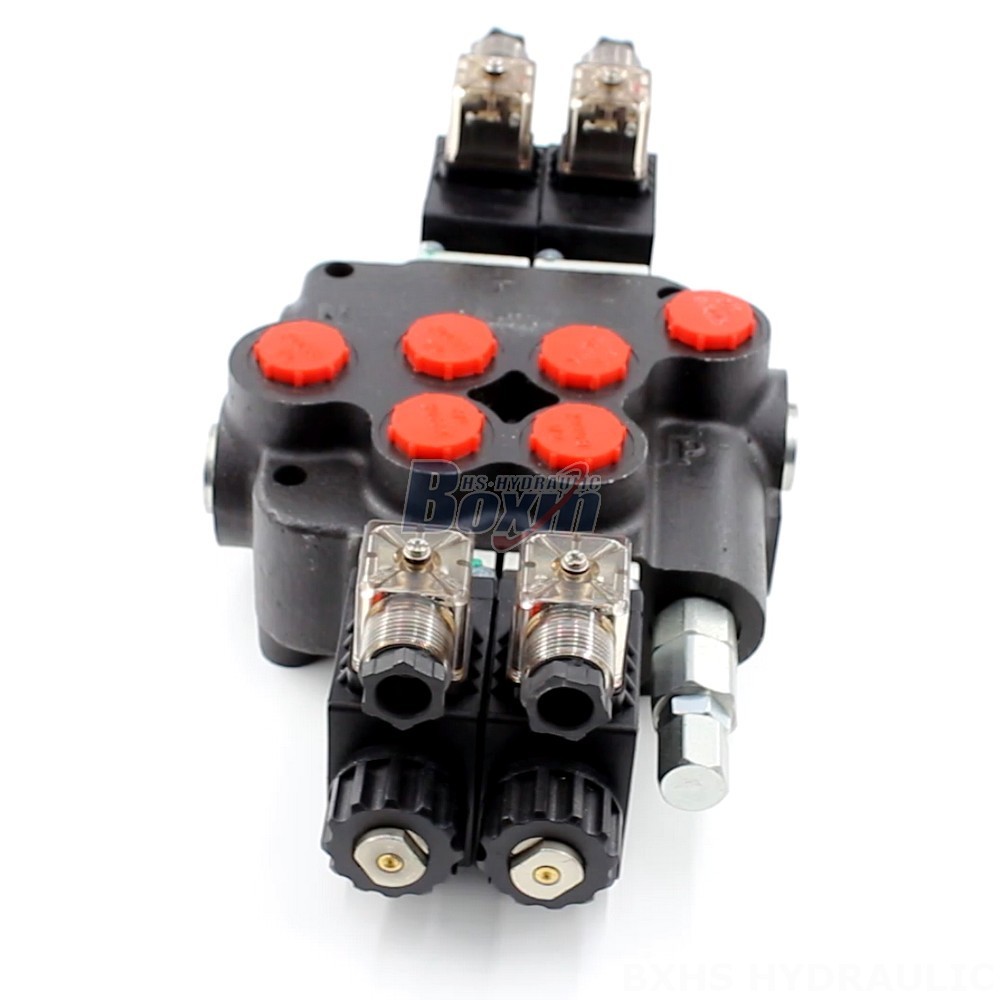

The Partner with Us: Distribute the P80 Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. It features a solenoid control method, 2 section monoblock structure, 80 L/min rated flow, 250 bar max pressure, and 15-75 mm²/s operating viscosity range. It also has a wide ambient temperature range of -40 to 80°C and is available in 2 spool and P80 Series configurations. The valve is suitable for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The Partner with Us: Distribute the P80 Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
The valve features a solenoid control method, 2 section monoblock structure, 80 L/min rated flow, 250 bar max pressure, and 15-75 mm²/s operating viscosity range. It also has a wide ambient temperature range of -40 to 80°C and is available in 2 spool and P80 Series configurations.
The valve is suitable for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
We are looking for distributors, wholesalers, agents, and traders to help us distribute the P80 Solenoid 2 Spool Monoblock Directional Valve to a global market. We offer a variety of support services to our partners, including marketing materials, technical support, and training. If you are interested in becoming a partner, please contact us today.
