Manual 5 Spool Monoblock Directional Valve, part of the P80 series, is ideally suited for various industries including material handling, construction, and agriculture. With a rated flow of 80 l/min and a max pressure of 250 bar, it ensures efficient and reliable operation in demanding applications.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

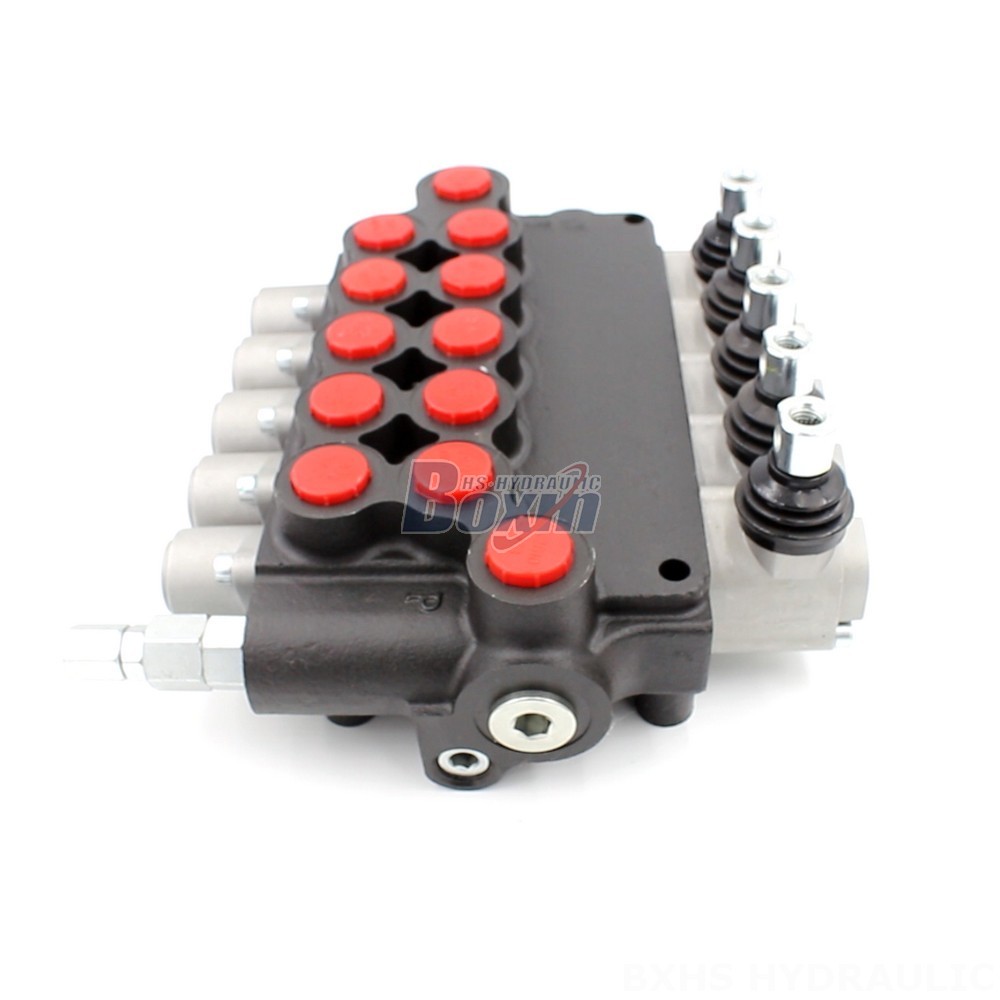

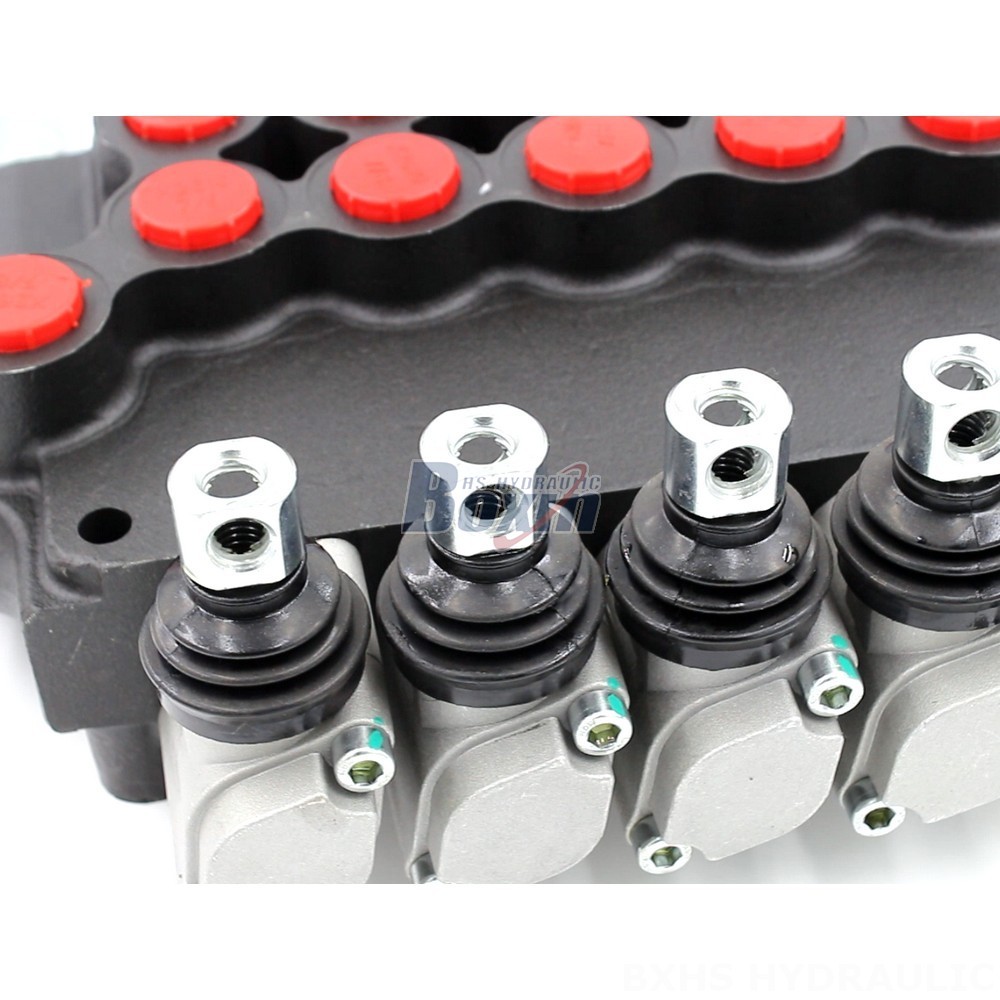

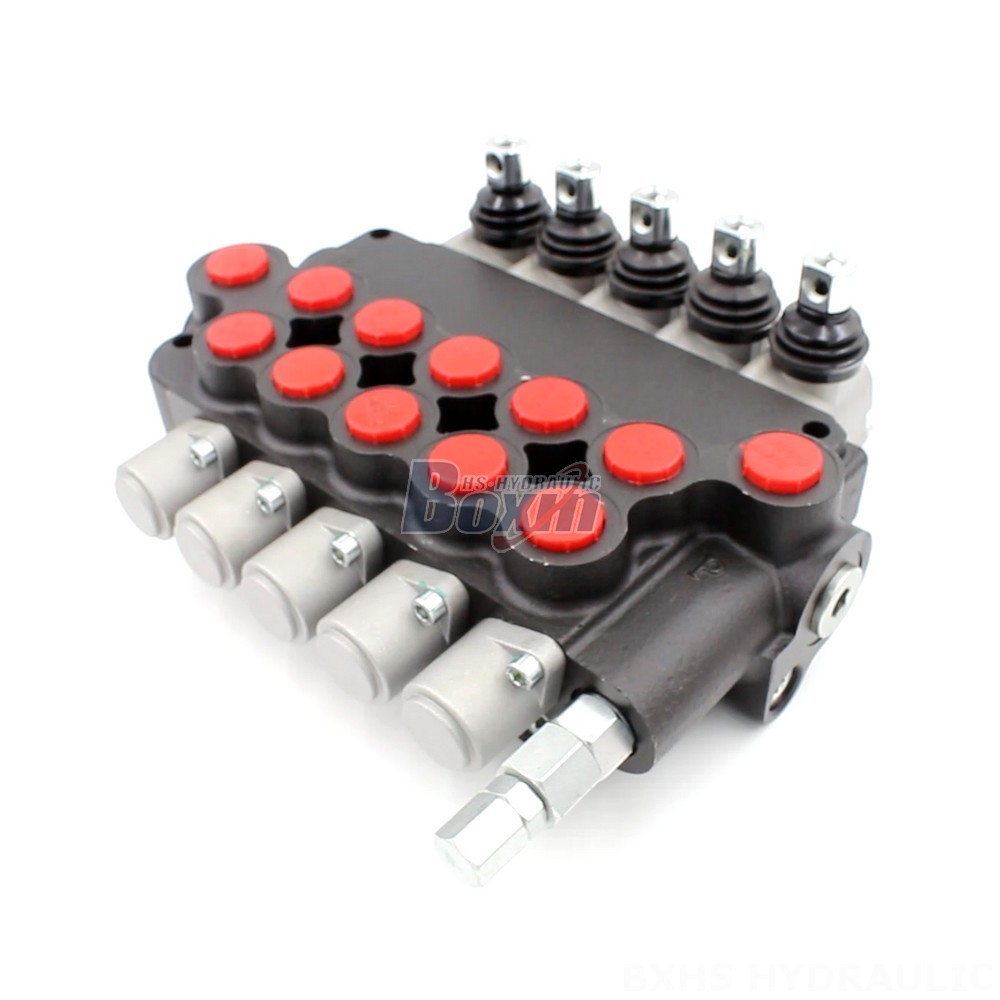

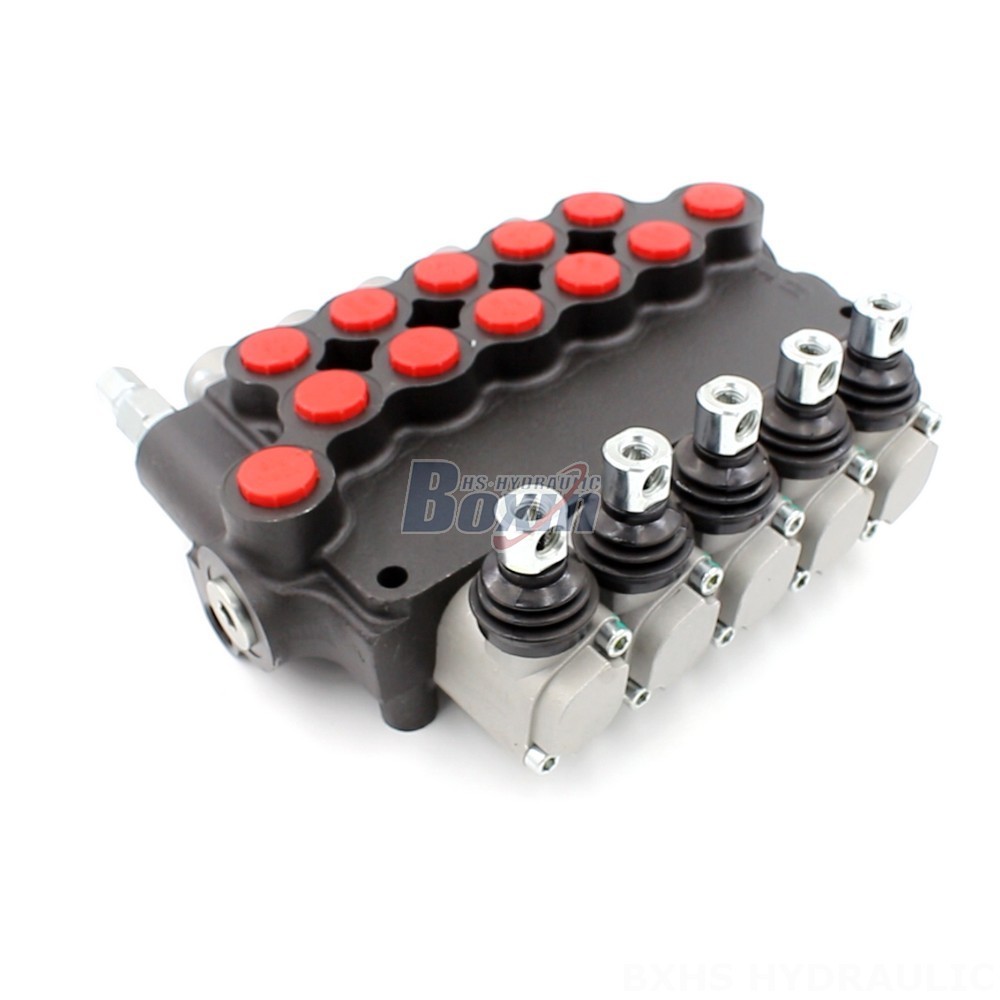

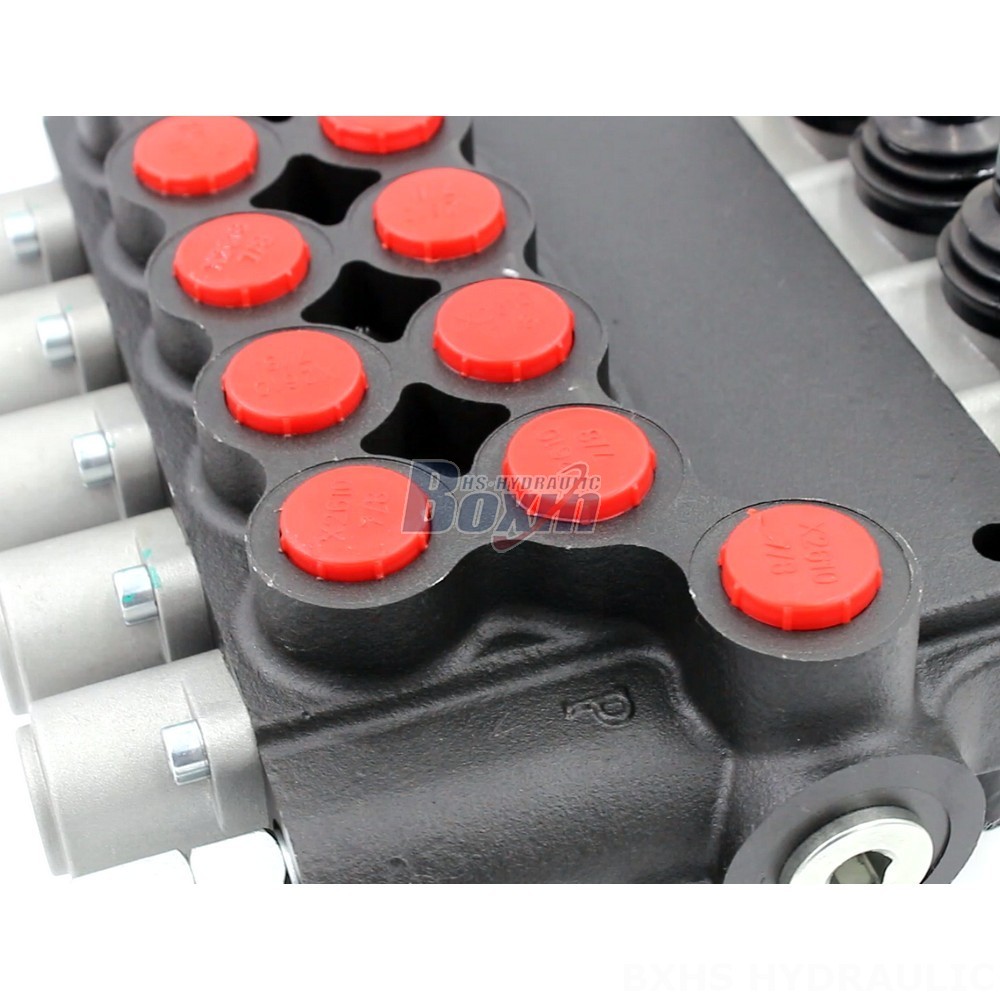

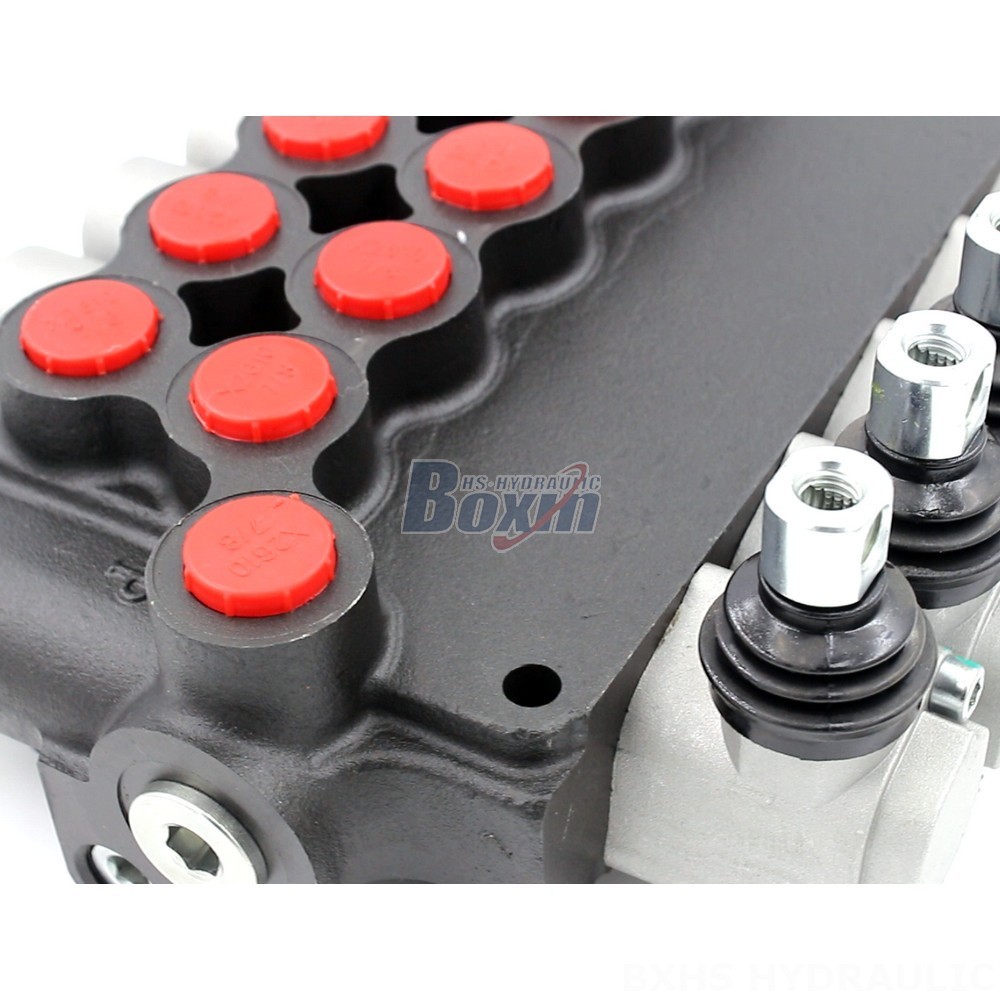

**P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve**
This valve features a manual control method and a monoblock structure, providing high durability and ease of maintenance. It boasts a 5 section design, enabling precise control of multiple hydraulic functions simultaneously. The valve's operating viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in diverse operating conditions.
**Key Features:**
- Manual control method for precise operation
- Monoblock design for enhanced durability and compactness
- 5 spool configuration for versatile hydraulic control
- Rated flow of 80 l/min for efficient hydraulic system operation
- Max pressure of 250 bar for demanding applications
- Wide operating viscosity range (15 - 75 mm²/s) for adaptability to various hydraulic fluids
- Extended ambient temperature range (-40°C to +80°C) for reliable performance in harsh environments
**Applications:**
This valve finds application in a wide range of industries, including:
- Material handling: forklifts, telehandlers, stackers
- Construction and earth moving: excavators, wheel loaders, motor graders
- Agriculture: tractors, harvesters, sprayers
- Industrial vehicles: aerial platforms, sweepers, scrubbers
