Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit
Innovation treibt Entwicklung voran Technologie gestaltet die Zukunft
1187 Personen sehen sich dieses Produkt an

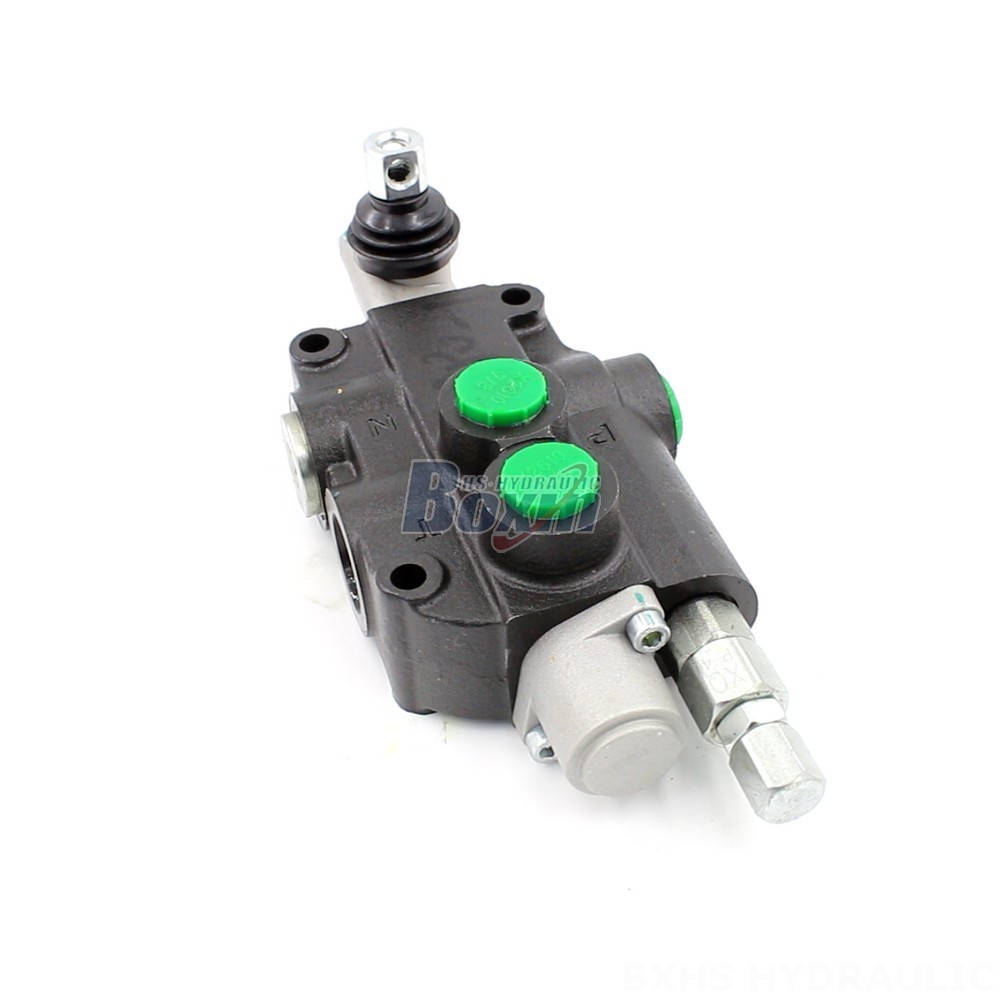

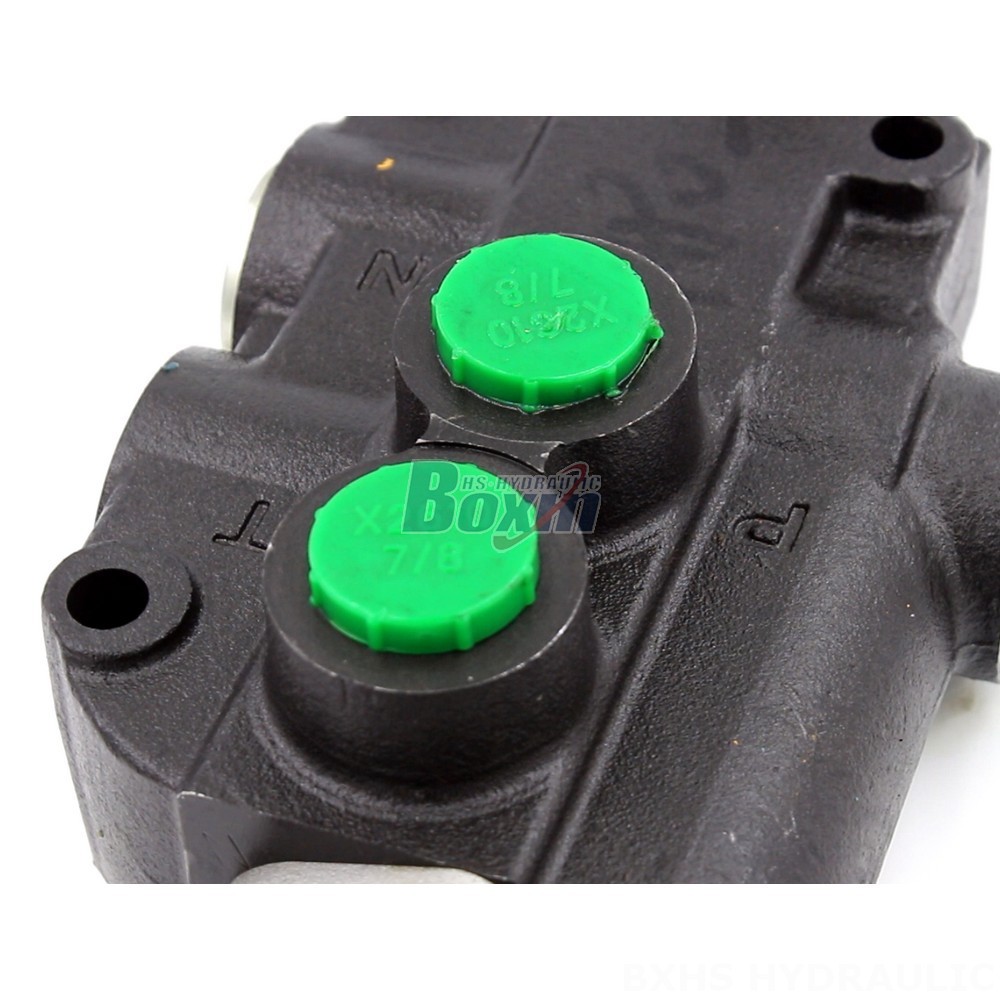

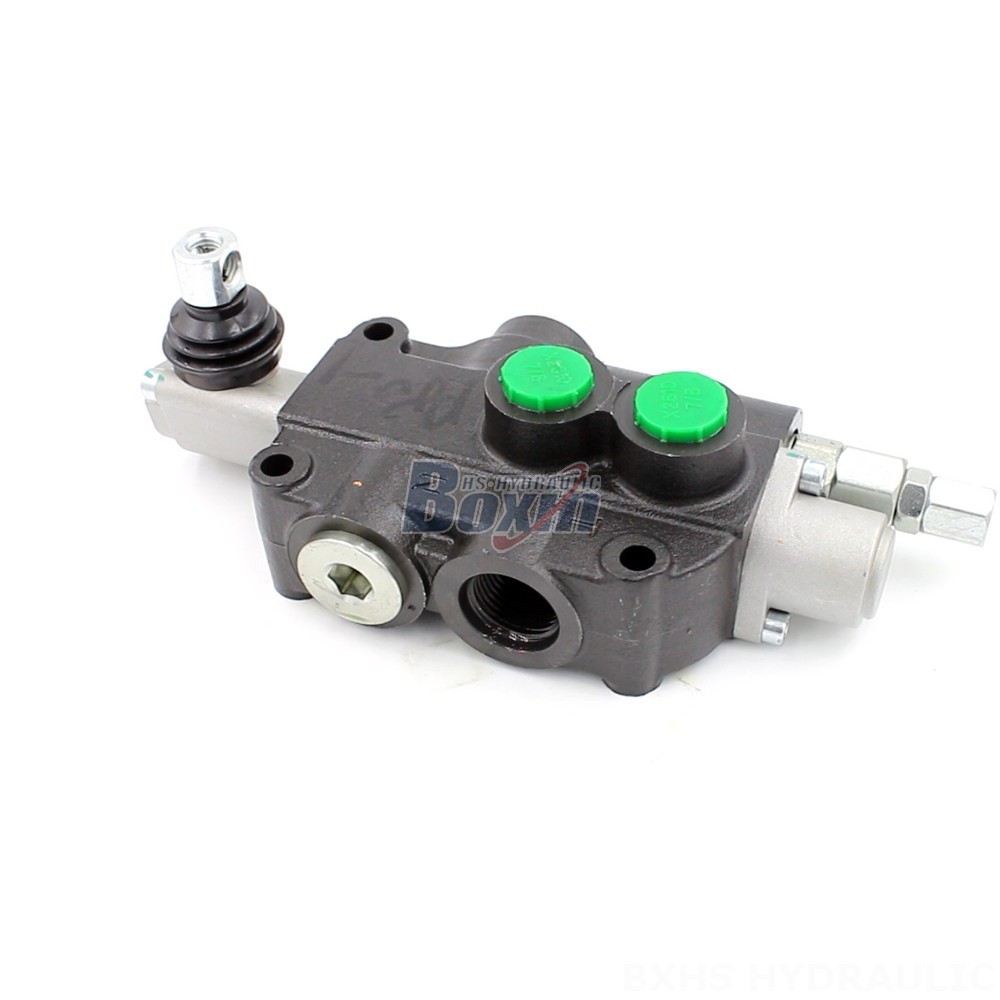

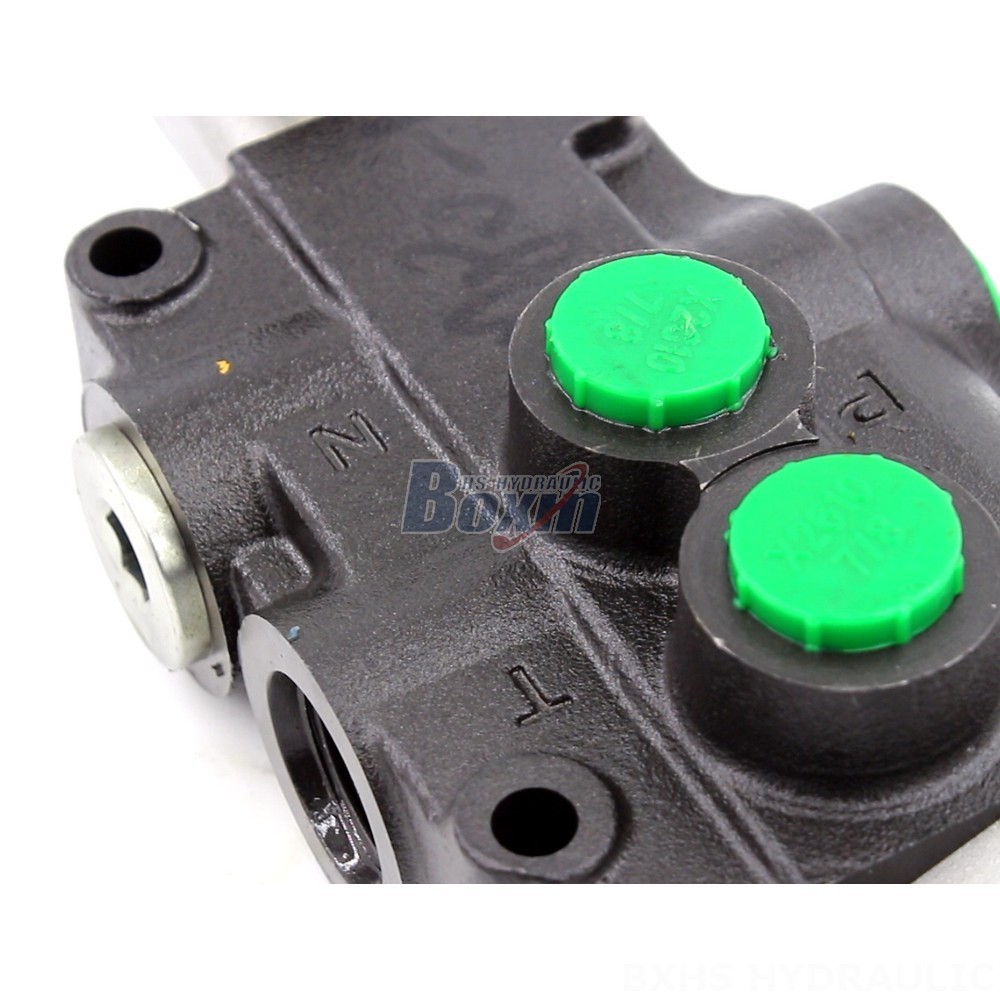

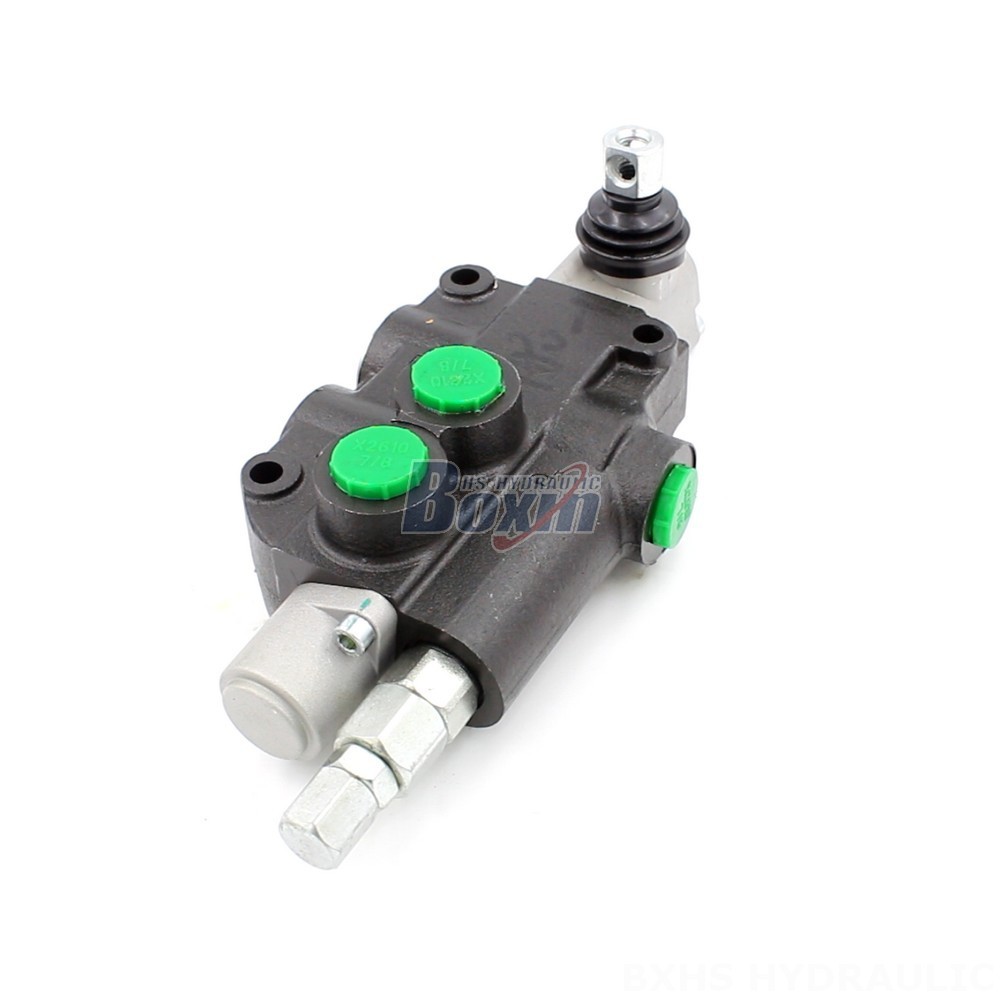

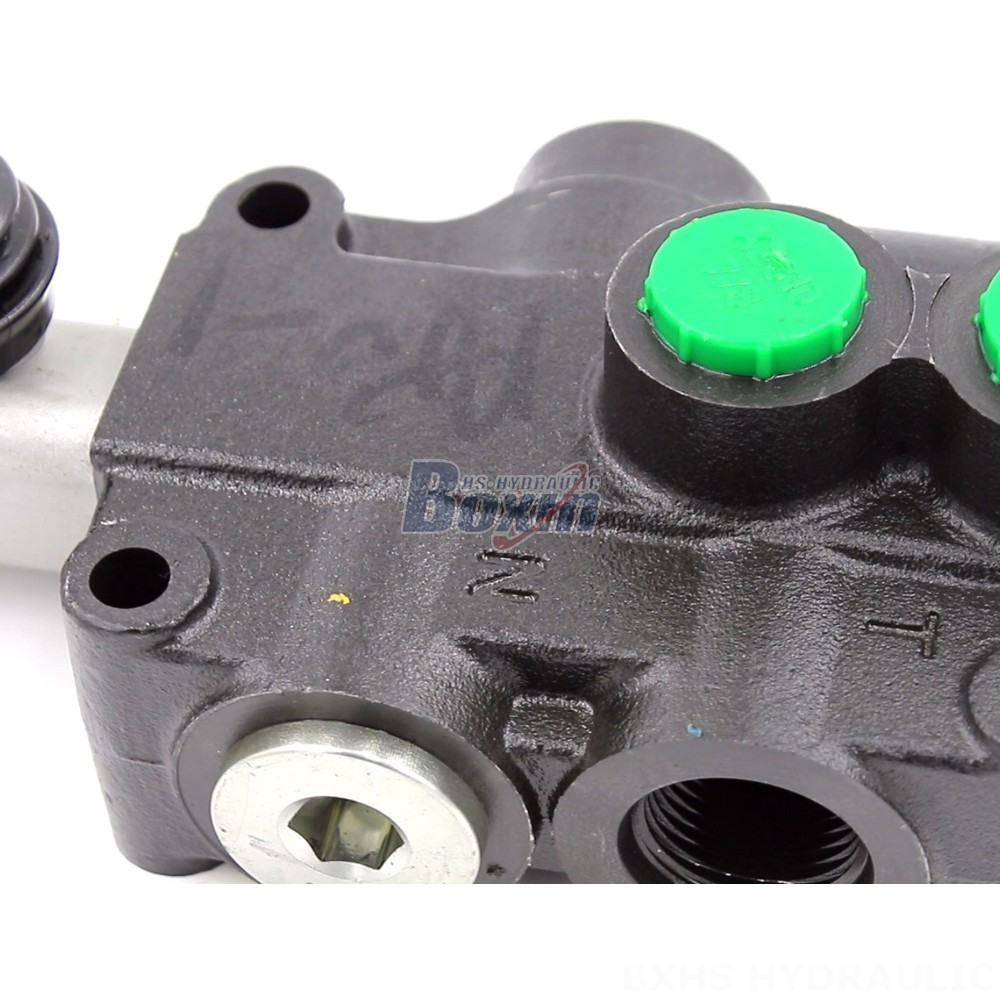

The P80-LDG-U78-OT Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides exceptional flow control and pressure regulation capabilities.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- Manual control for precise and responsive operation
- Monoblock construction for durability and compact size
- 80 L/min rated flow for high-volume applications
- 250 bar maximum pressure for demanding hydraulic systems
- Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C for use in harsh environments
- 1 spool for simple and efficient flow control
- P80 Series for compatibility with other P80 valves and components
**Applications:**
- MATERIAL HANDLING: Forklifts, telehandlers, stackers, aerial platforms
- CONSTRUCTION AND EARTH MOVING: Excavators, motor graders, skid steer loaders, compact wheel loaders
- AGRICULTURE: Tractors, harvesters, sprayers, irrigation systems
- INDUSTRIAL VEHICLES: Cranes, boom trucks, lift trucks, mobile work platforms
