The P80-G34-OT Manual 7 Spool Monoblock Directional Valve is a high-performance hydraulic control solution designed for demanding applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it provides exceptional flow capacity and pressure handling capabilities.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

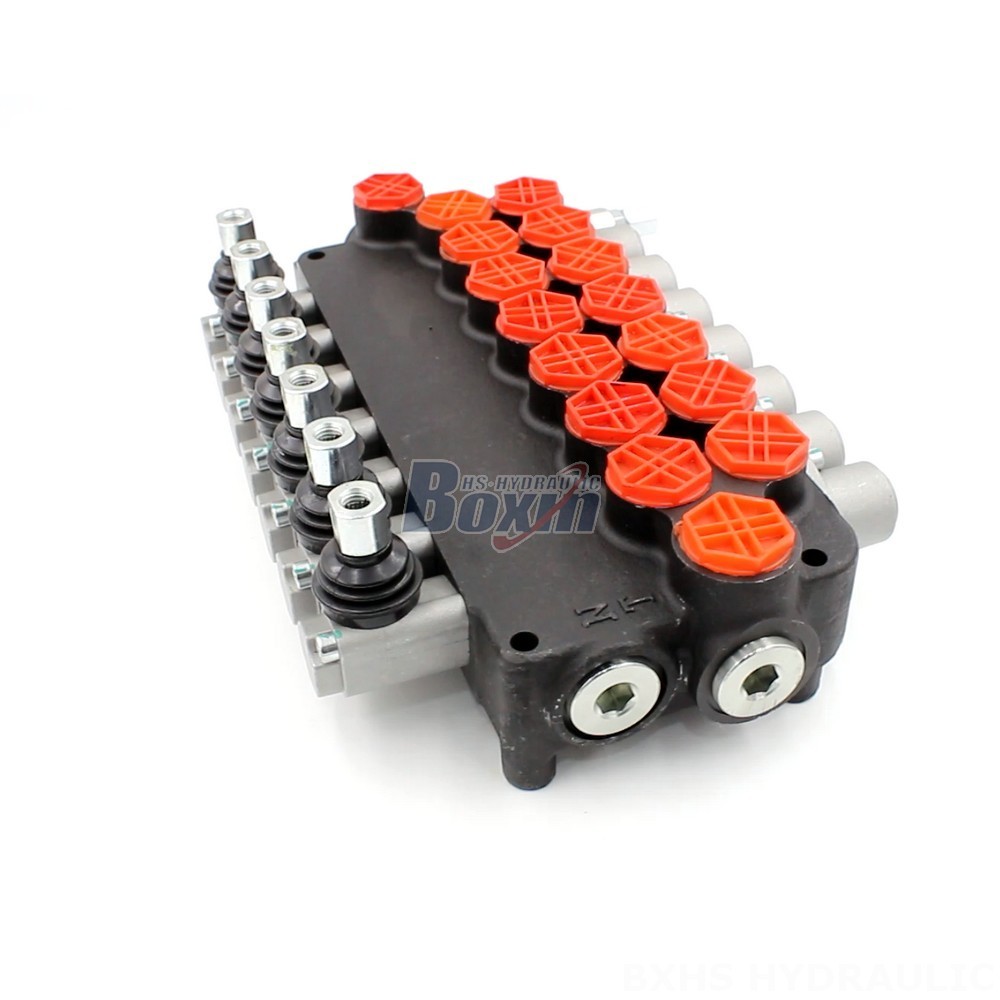

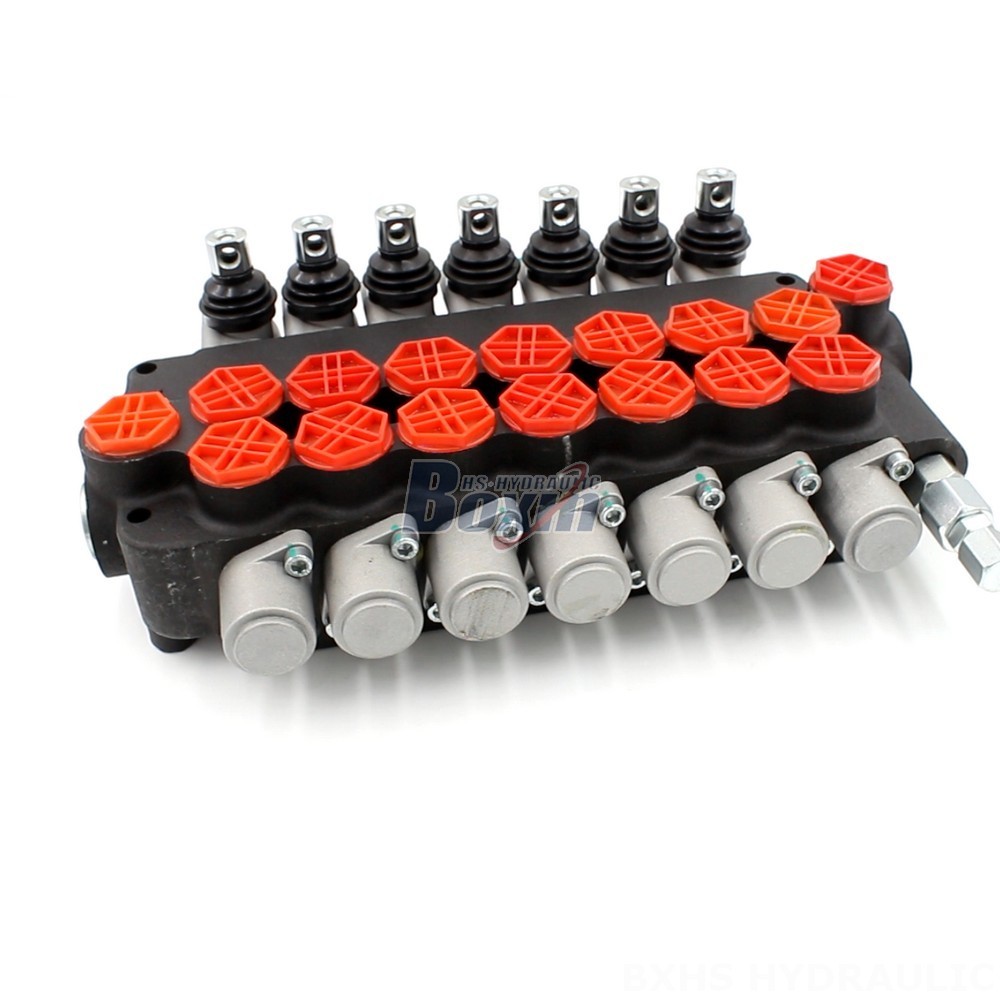

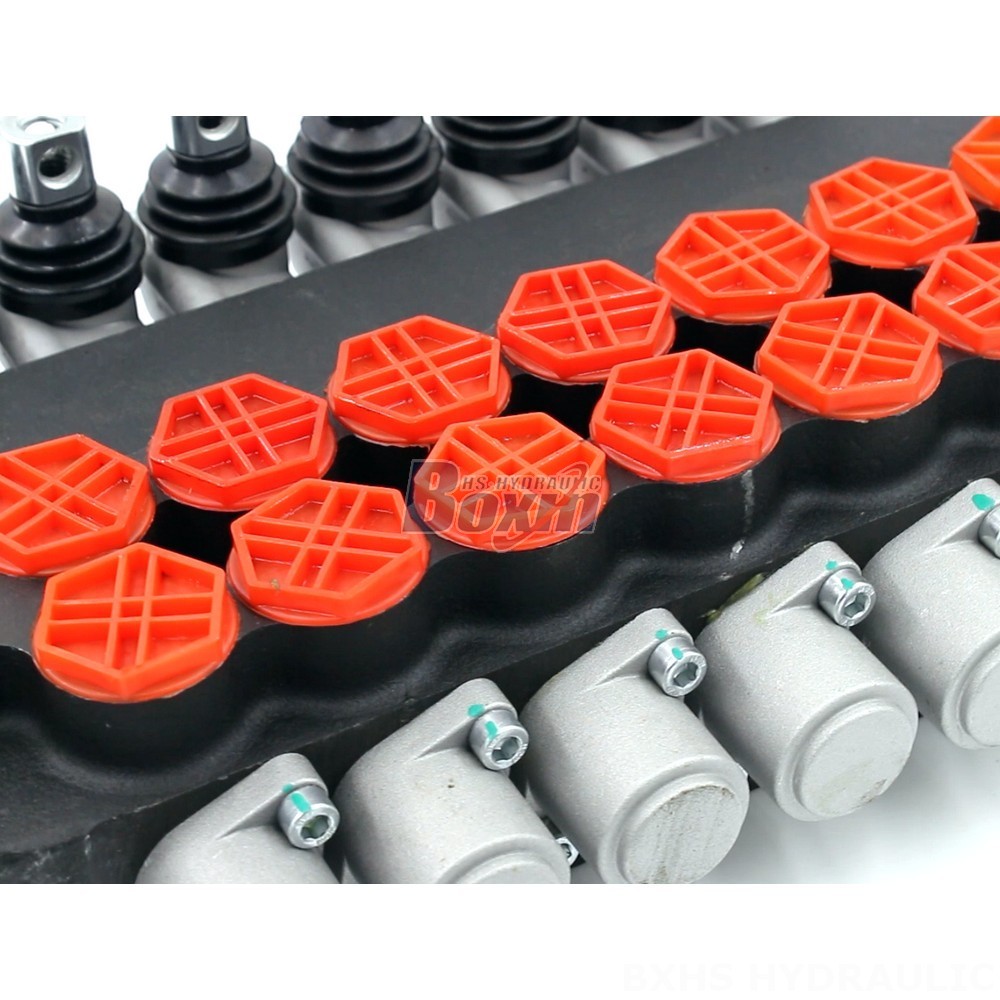

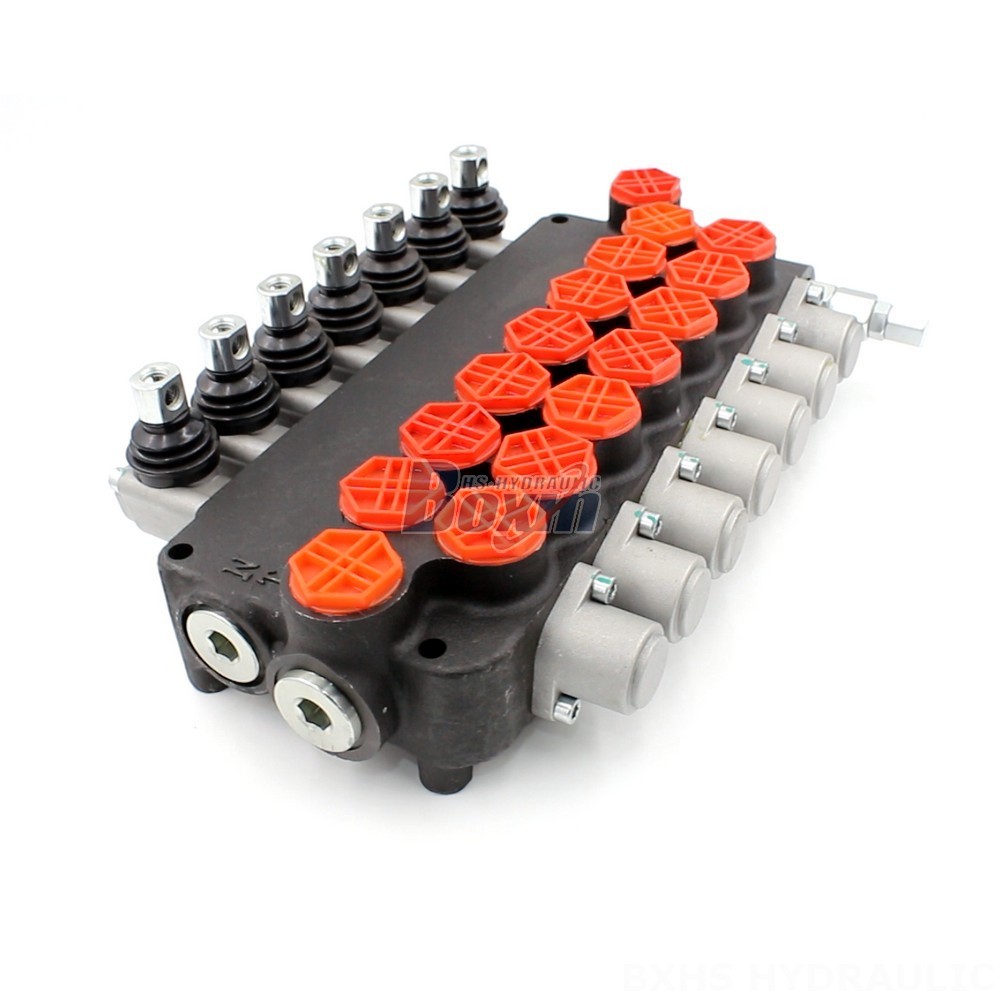

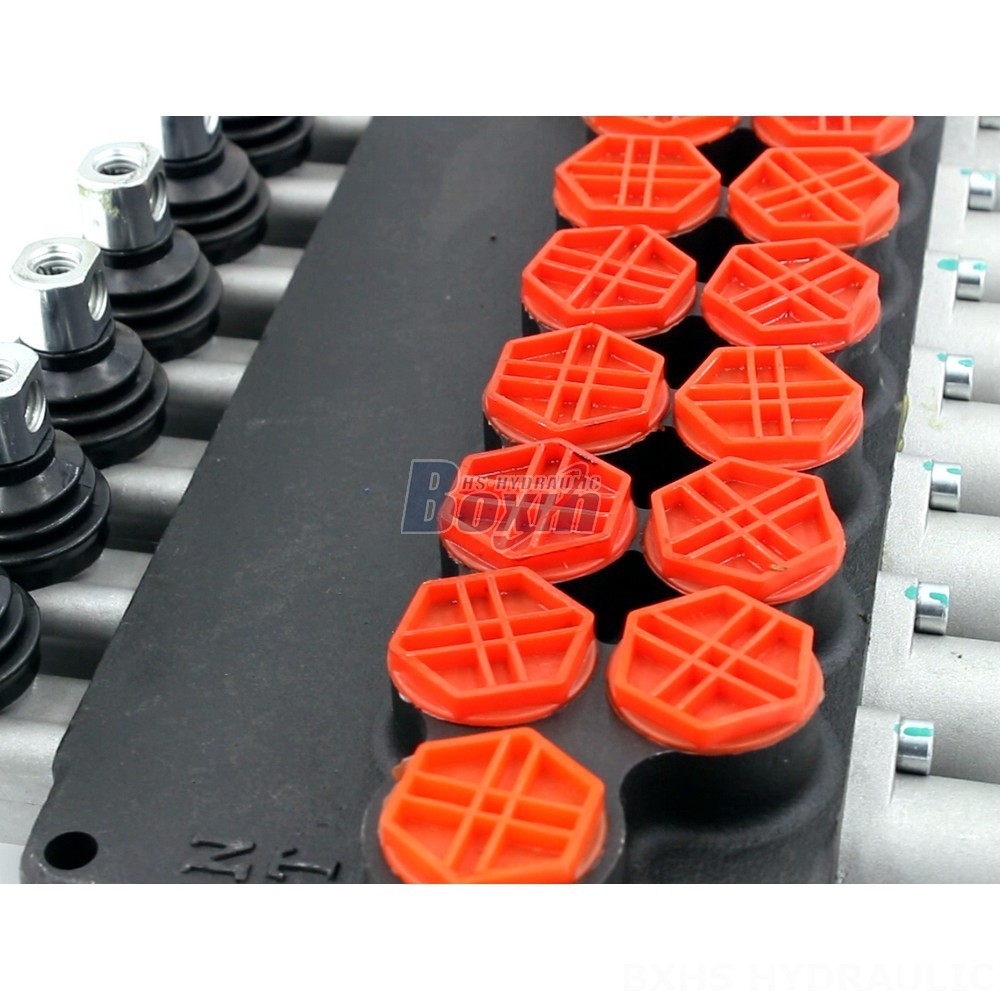

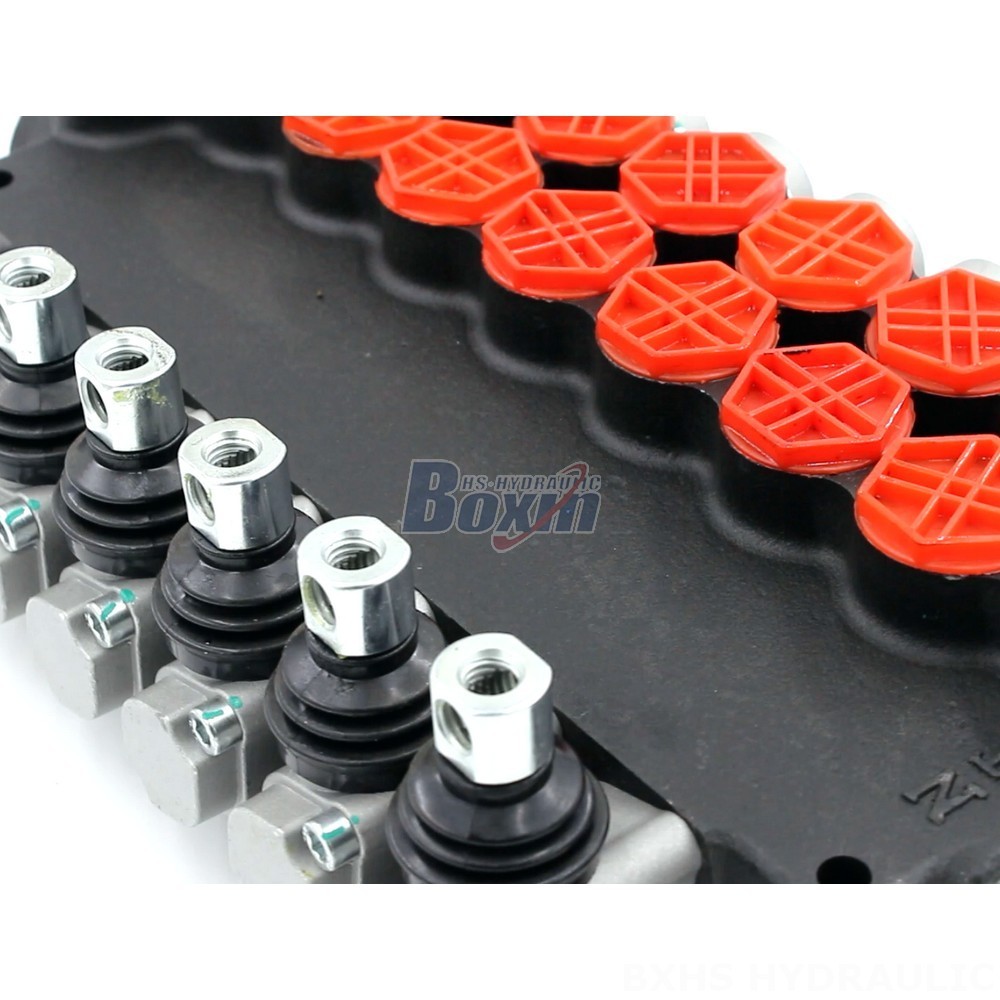

**P80-G34-OT Manual 7 Spool Monoblock Directional Valve**
The P80-G34-OT Manual 7 Spool Monoblock Directional Valve is a robust and reliable hydraulic control component engineered for precision and efficiency. Key features and specifications include:
* **Manual Control:** Allows for precise and responsive operation of the valve.
* **7 Spool Design:** Provides versatile flow control with multiple spool configurations.
* **Monoblock Construction:** Offers a compact and integrated design for space optimization.
* **High Flow Capacity:** Rated flow of 80 L/min ensures efficient fluid transfer.
* **Exceptional Pressure Handling:** Maximum pressure of 250 bar enables operation in high-pressure hydraulic systems.
* **Wide Viscosity Range:** Suitable for applications with operating viscosities ranging from 15 to 75 mm²/s.
* **Durable Construction:** Manufactured with high-quality materials and components for extended service life.
* **Versatile Applications:** Ideal for demanding hydraulic systems in industries such as material handling, construction, agriculture, and industrial vehicles.
