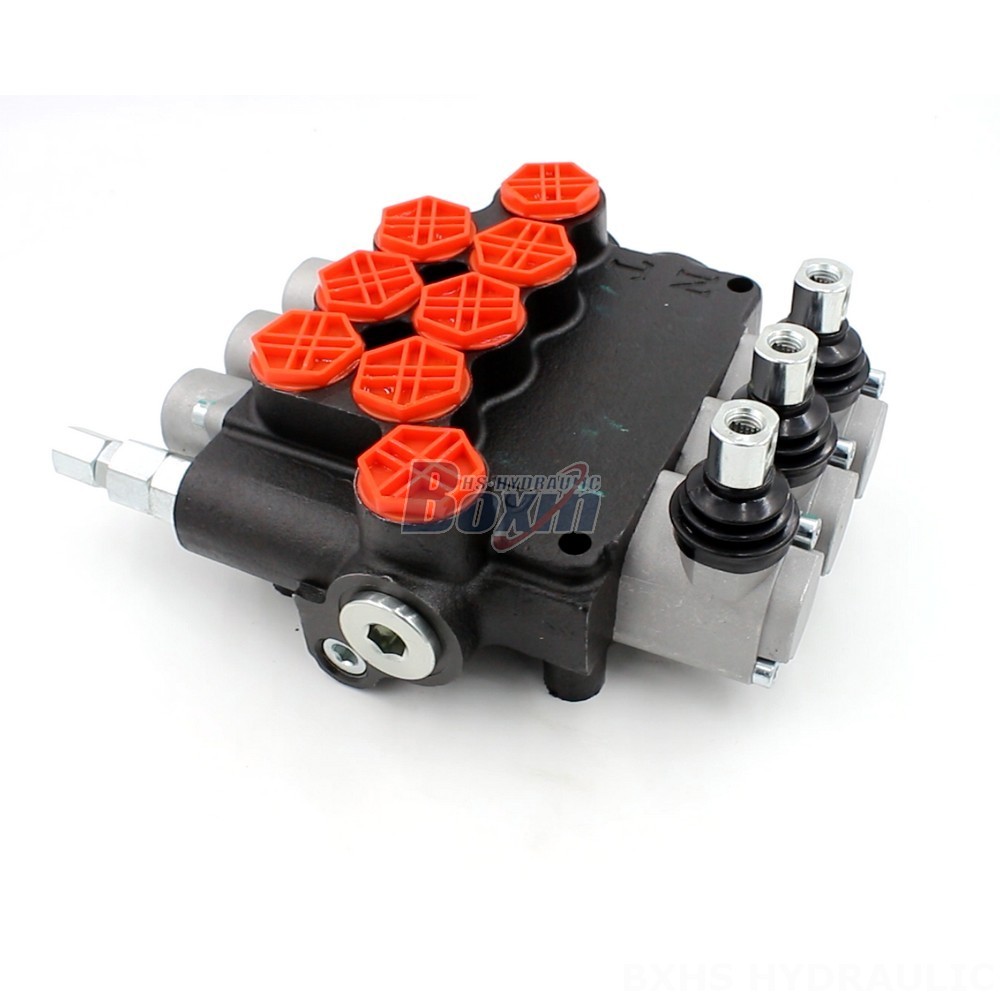

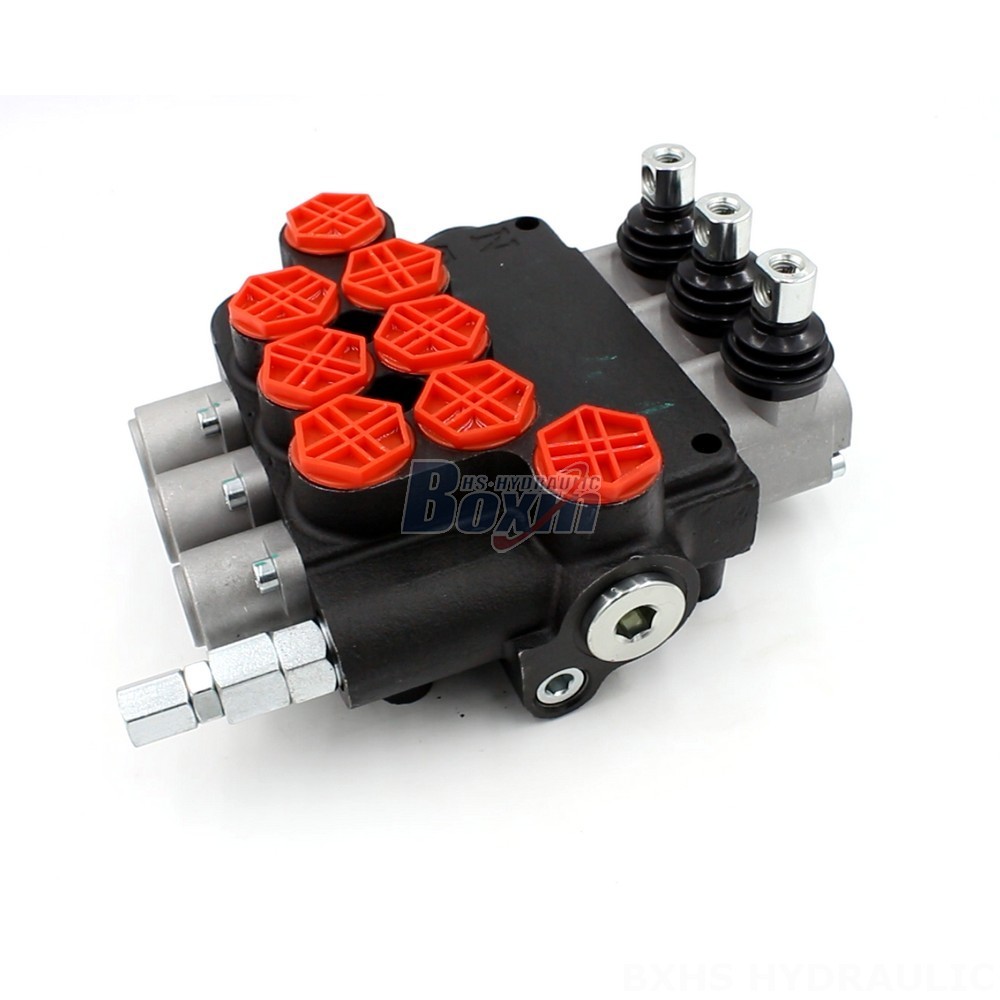

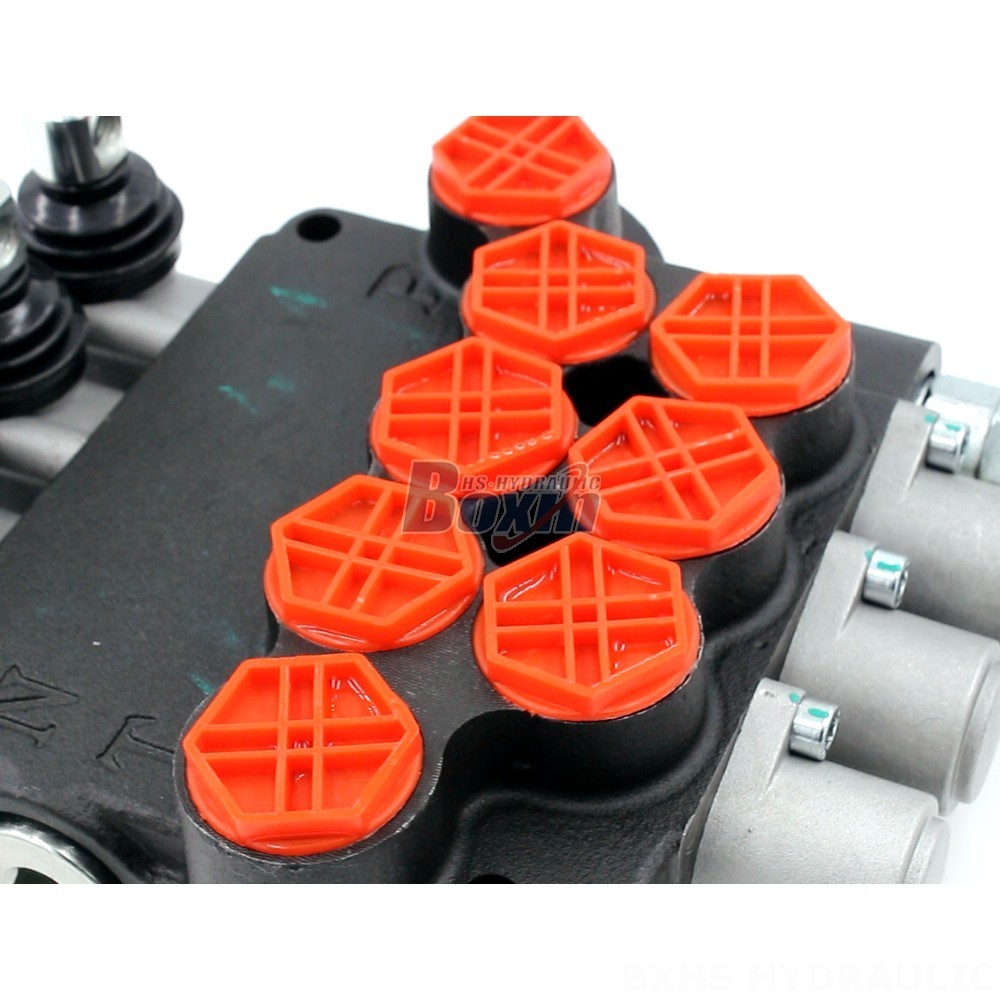

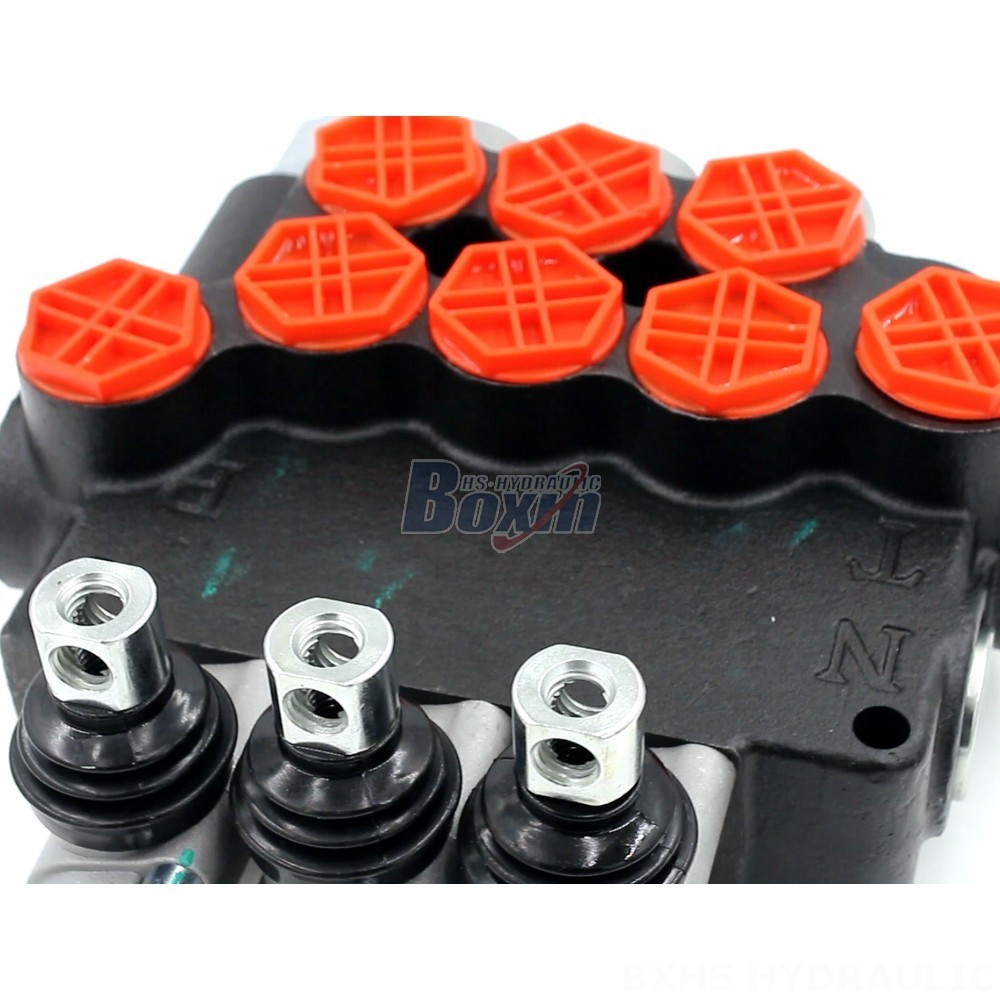

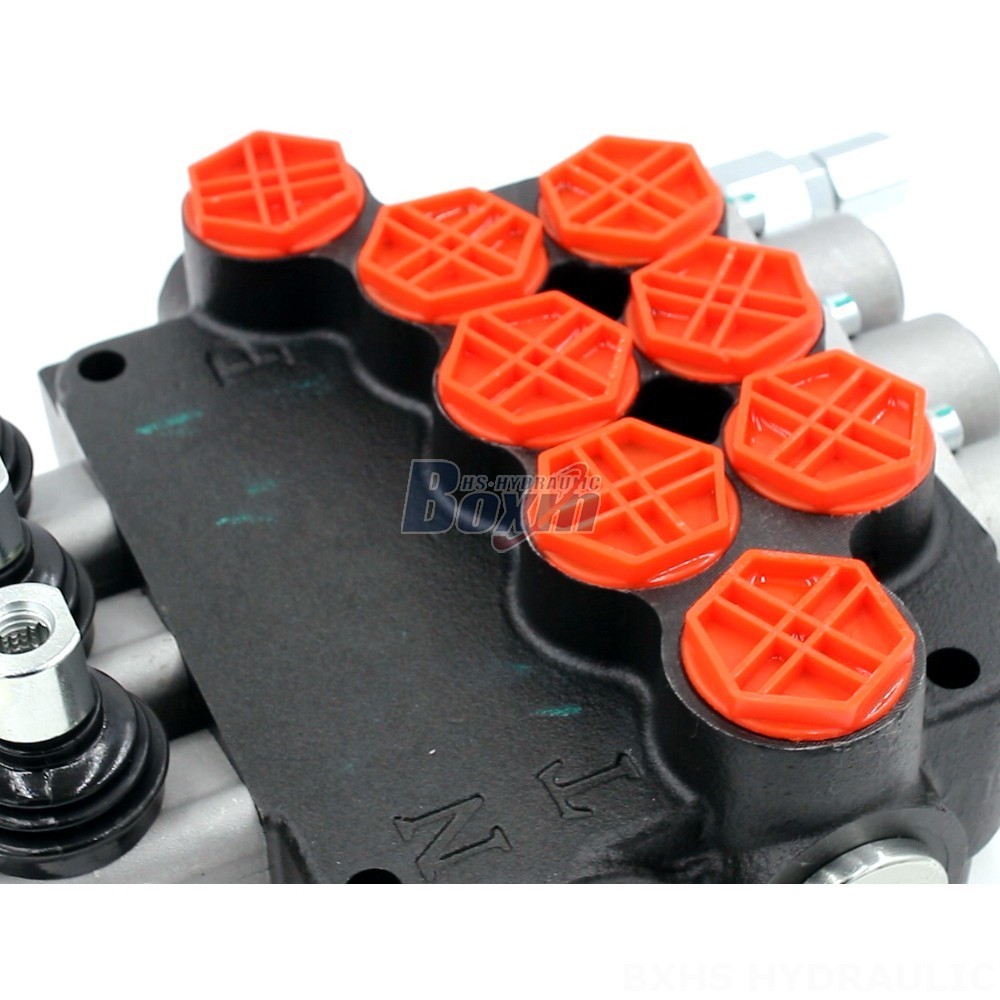

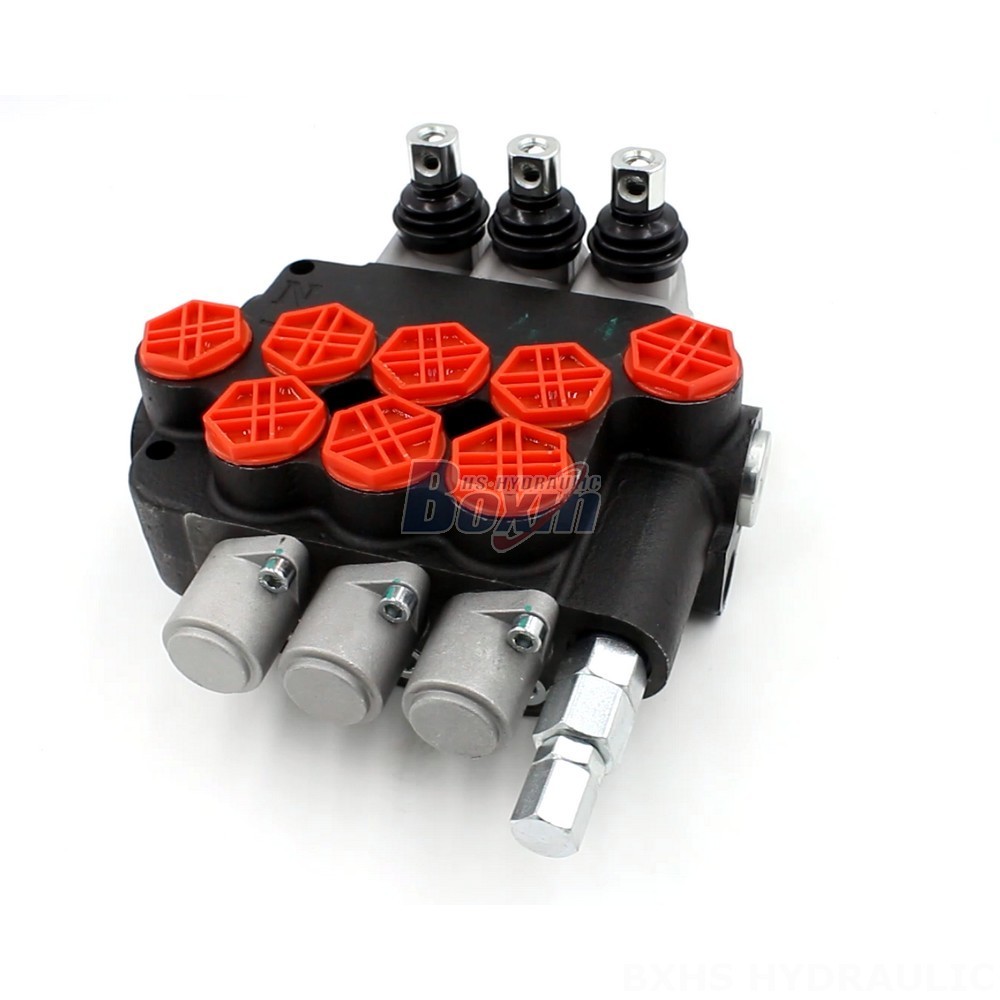

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

Steuermethode:Manuell

Steuerkolben:3 Spulen

Nennfluss:80 l/min (21,2 US gal/min)

Maximaldruck:250 bar (3600 psi)

Einlassanschluss:G3/4

Auslassanschluss:G3/4

Anschlussgröße:G3/4

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:P80 Serie Monoblock-Wegeventil

Verpackungsgröße:26*23*11

Bruttogewicht:10.70 kg

Verfügbarkeit: Auf Lager

1216 Personen sehen sich dieses Produkt an

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve drawing image

The Hydraulic Flow Control Valve with Relief P80-G34-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in construction, material handling, and industrial vehicles. This manual control, 3-section, monoblock valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi).

P80 Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Strukturtyp Monoblockventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)
Nennfluss 80 l/min (21,2 US gal/min)
Maximaldruck 315 bar (4600 psi)
Einlassanschluss G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Auslassanschluss G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Anschlussgröße G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 series hydraulic flow control valve is a 3-spool monoblock directional valve with manual control. It is designed to regulate the flow of hydraulic fluid in various applications such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This reliable and durable hydraulic valve is ideal for demanding applications in construction, material handling, and industrial settings.
