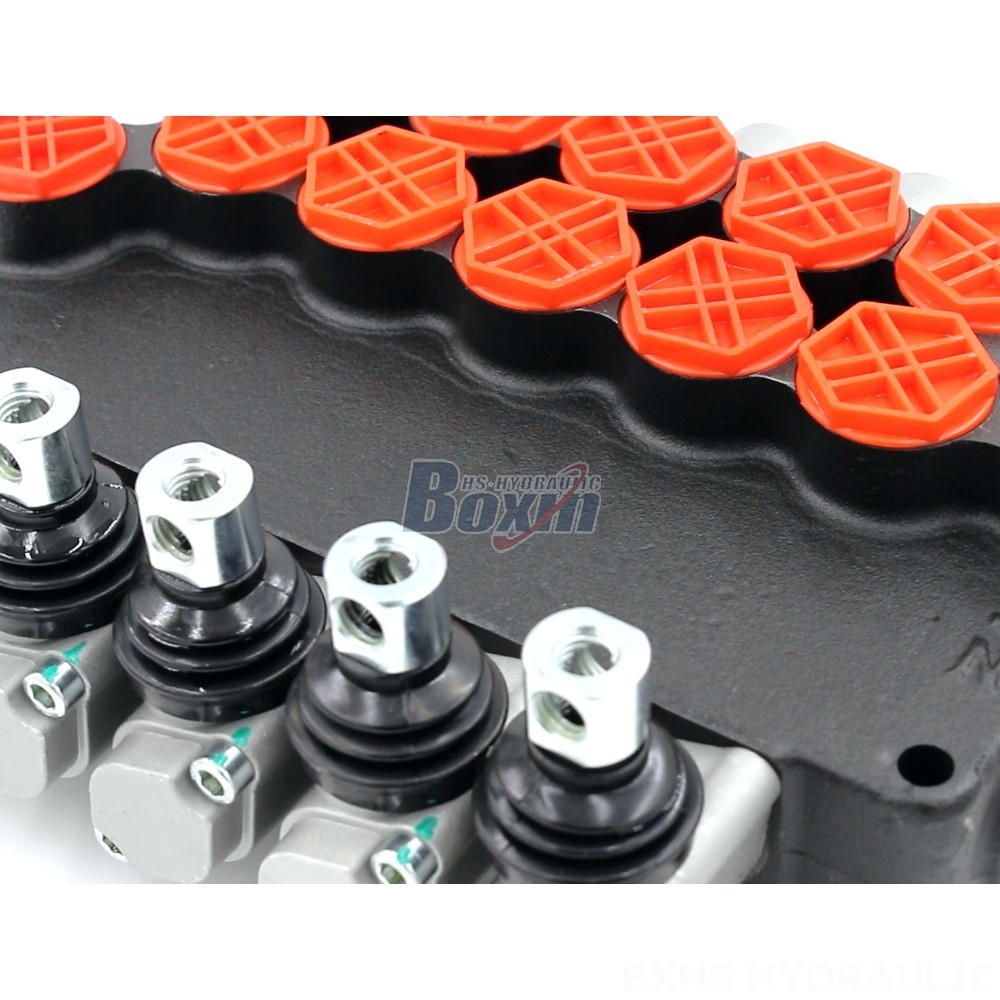

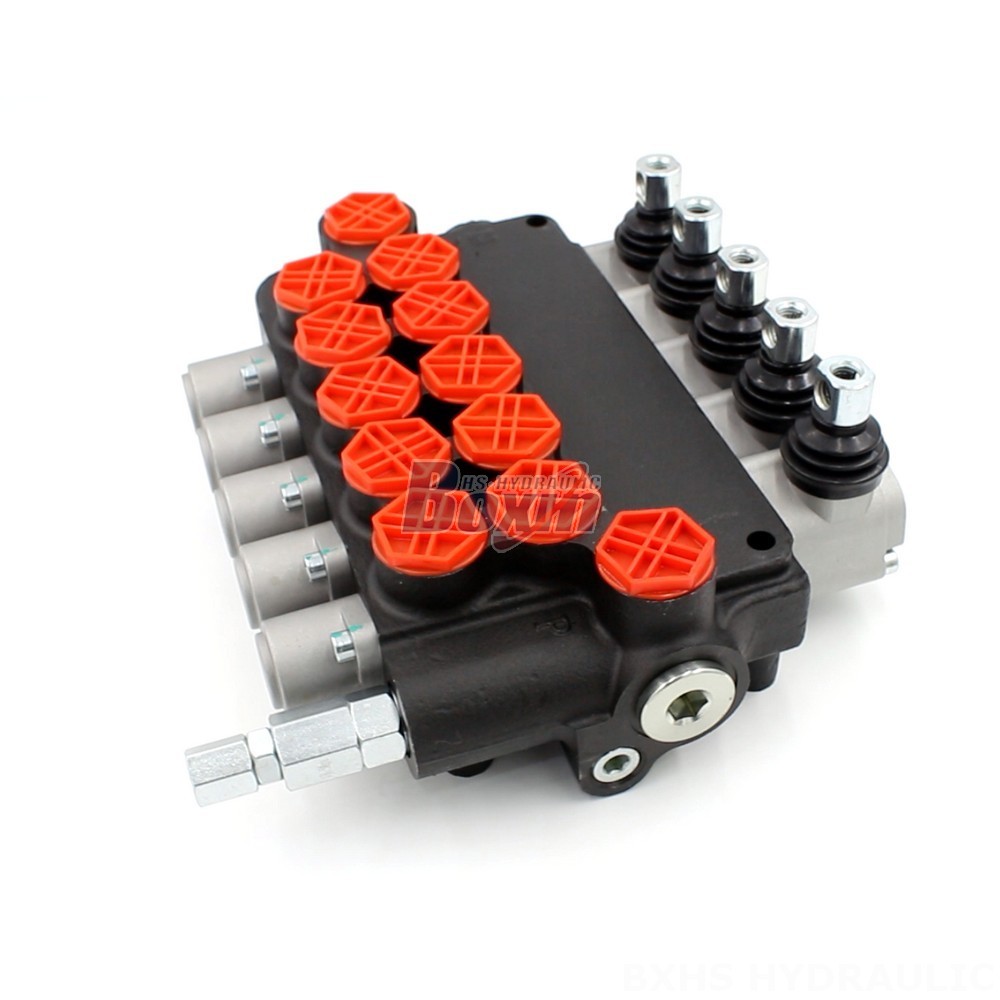

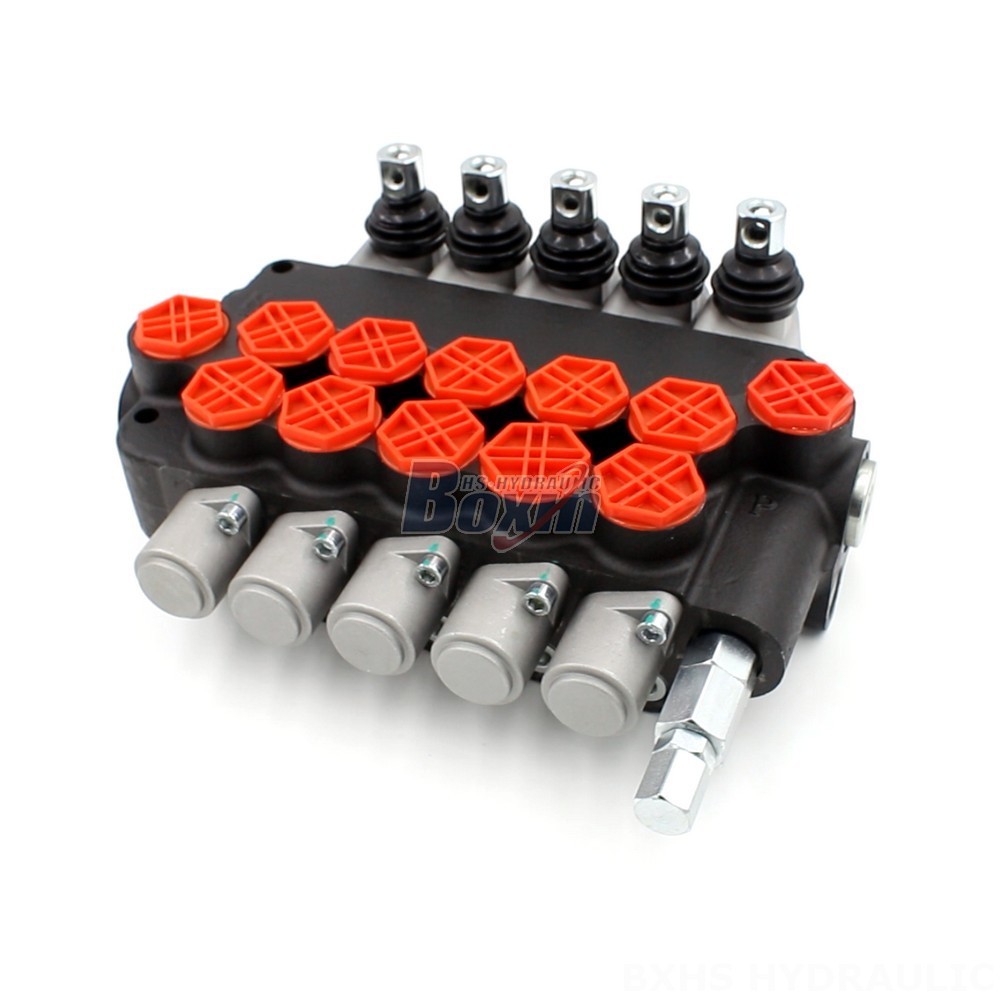

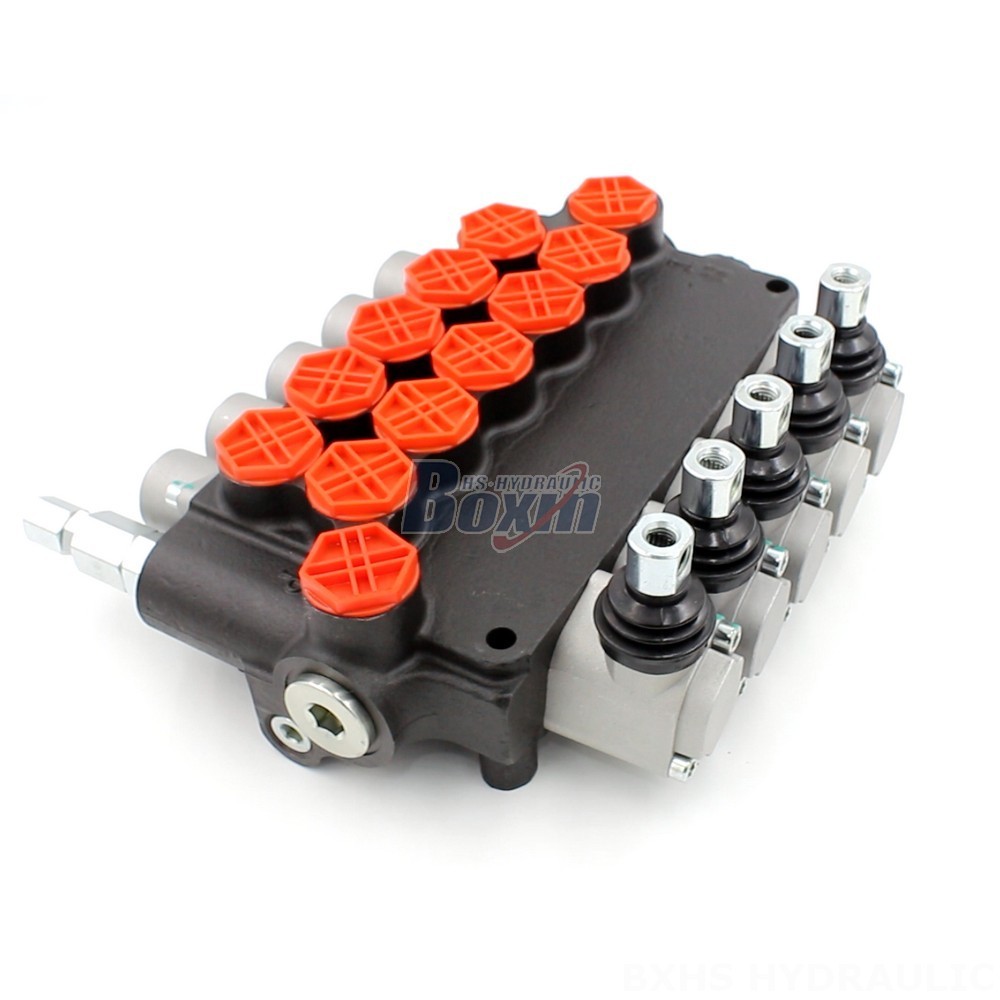

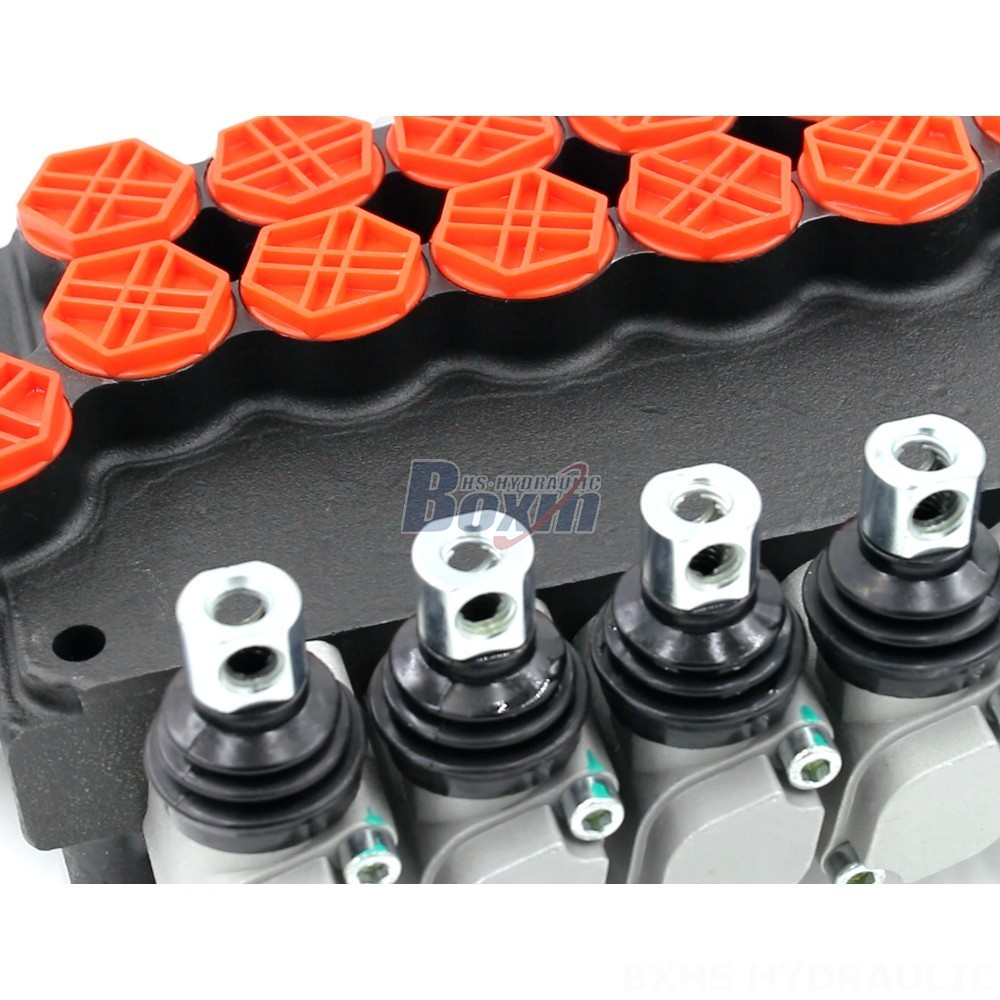

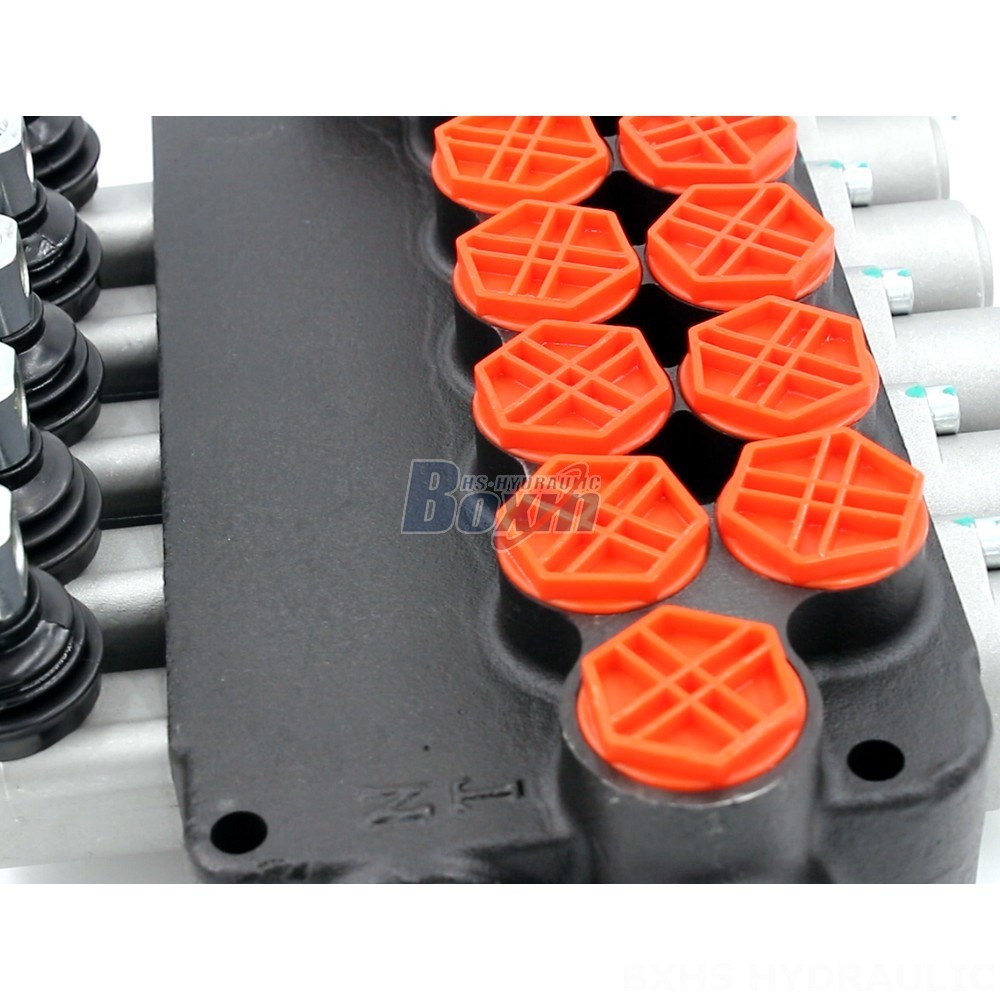

The P80-G34-5OT 5 Spool Directional Valve is a high-performance, manual control valve designed for use in a wide range of construction and material handling equipment. It features a 5-section monoblock design with a rated flow of 80 L/min and a maximum pressure of 250 bar. This valve is ideal for applications that require precise control and reliable operation in demanding environments.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This 5-spool directional control valve from the P80 Series offers exceptional performance and durability. It boasts a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for demanding applications in construction and material handling. The monoblock design ensures high strength and rigidity, while the manual control method provides precise operation. It is specifically designed for use in various equipment such as telehandlers, forklifts, mini excavators, wheel loaders, backhoe loaders, and dumpers. This versatile valve is engineered to meet the rigorous demands of the industry, ensuring long-lasting performance and reliability.
