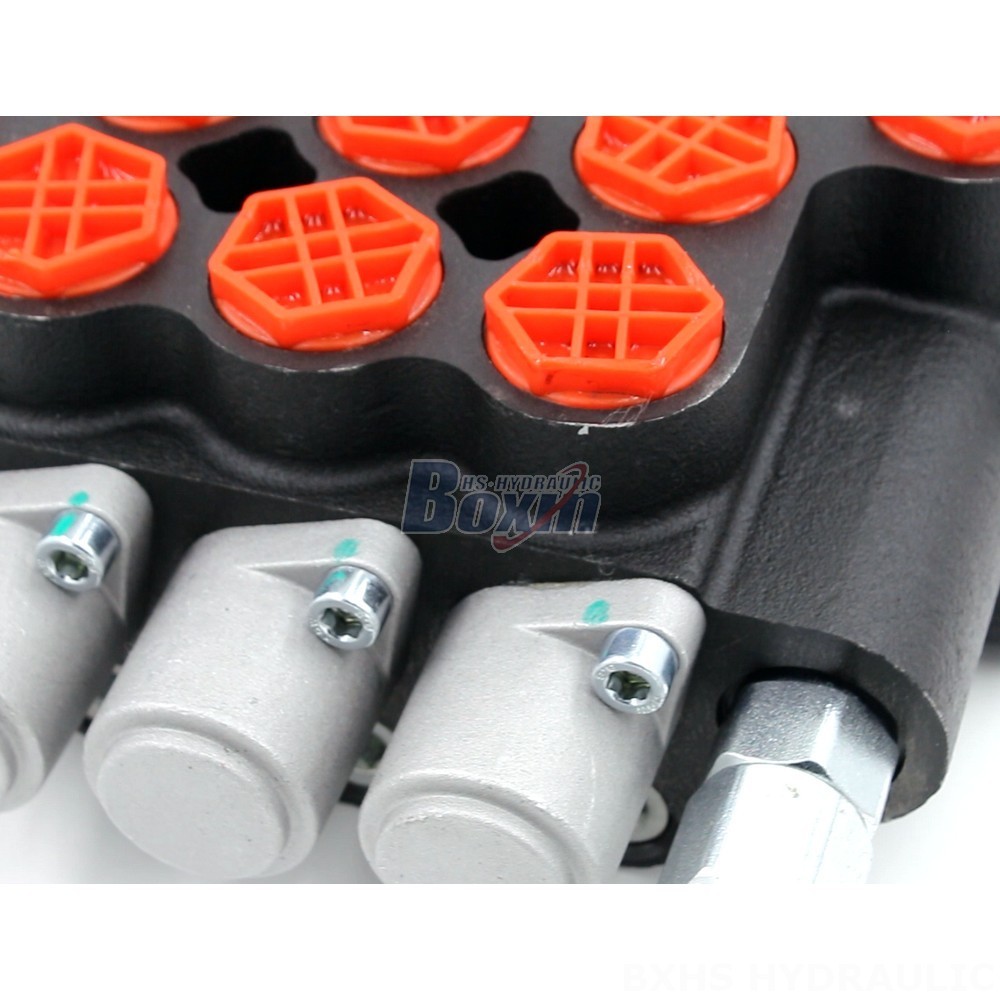

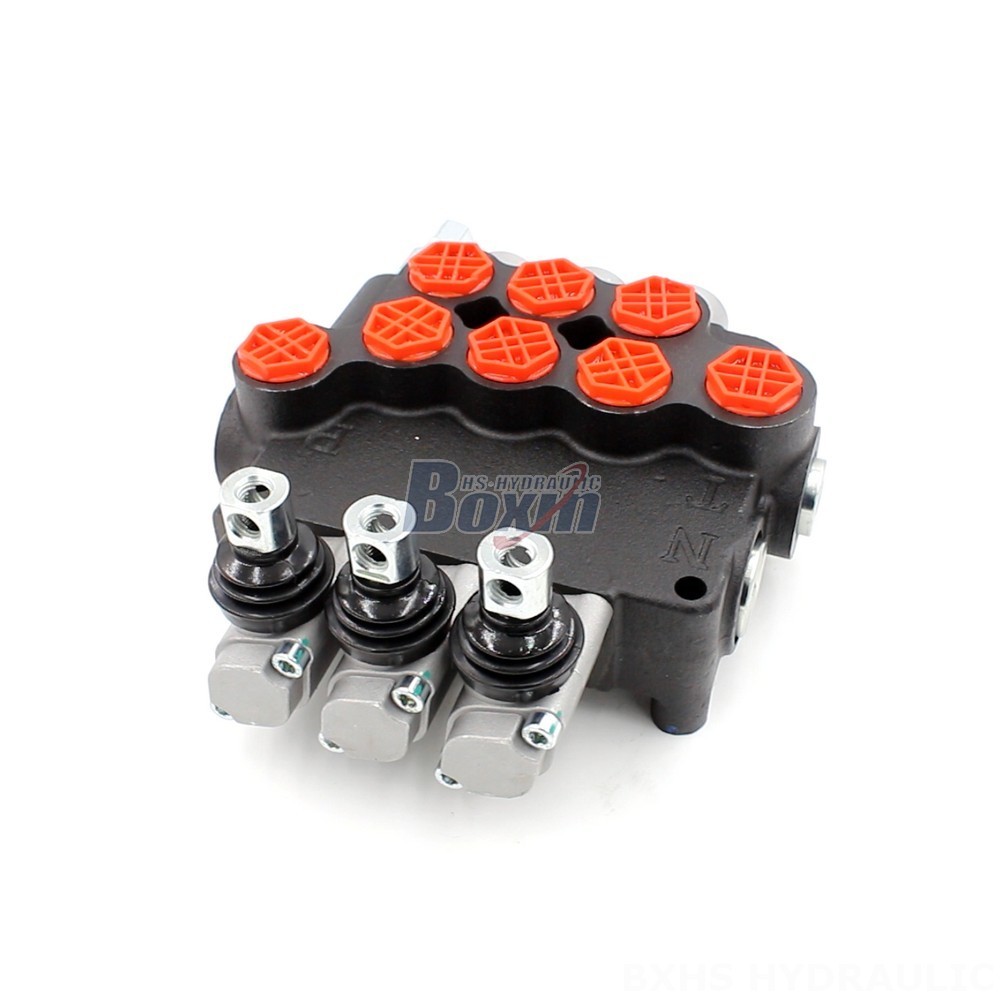

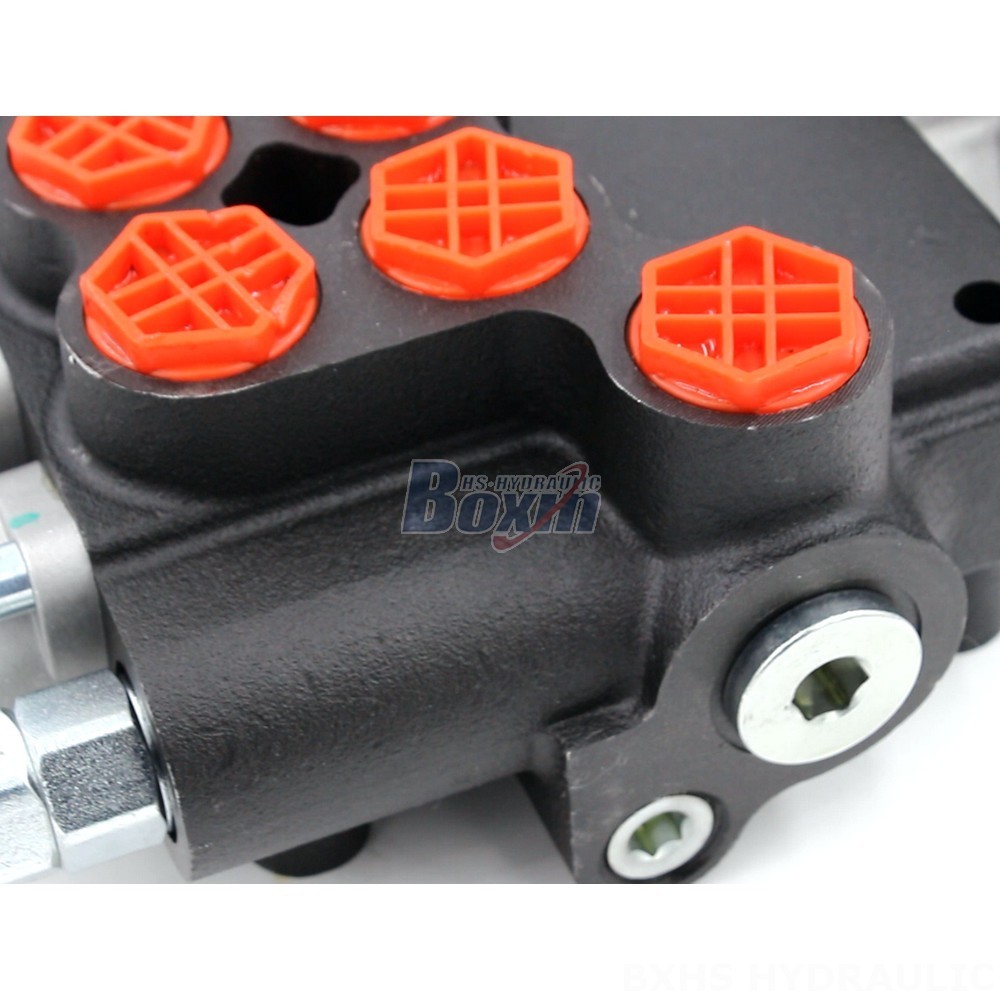

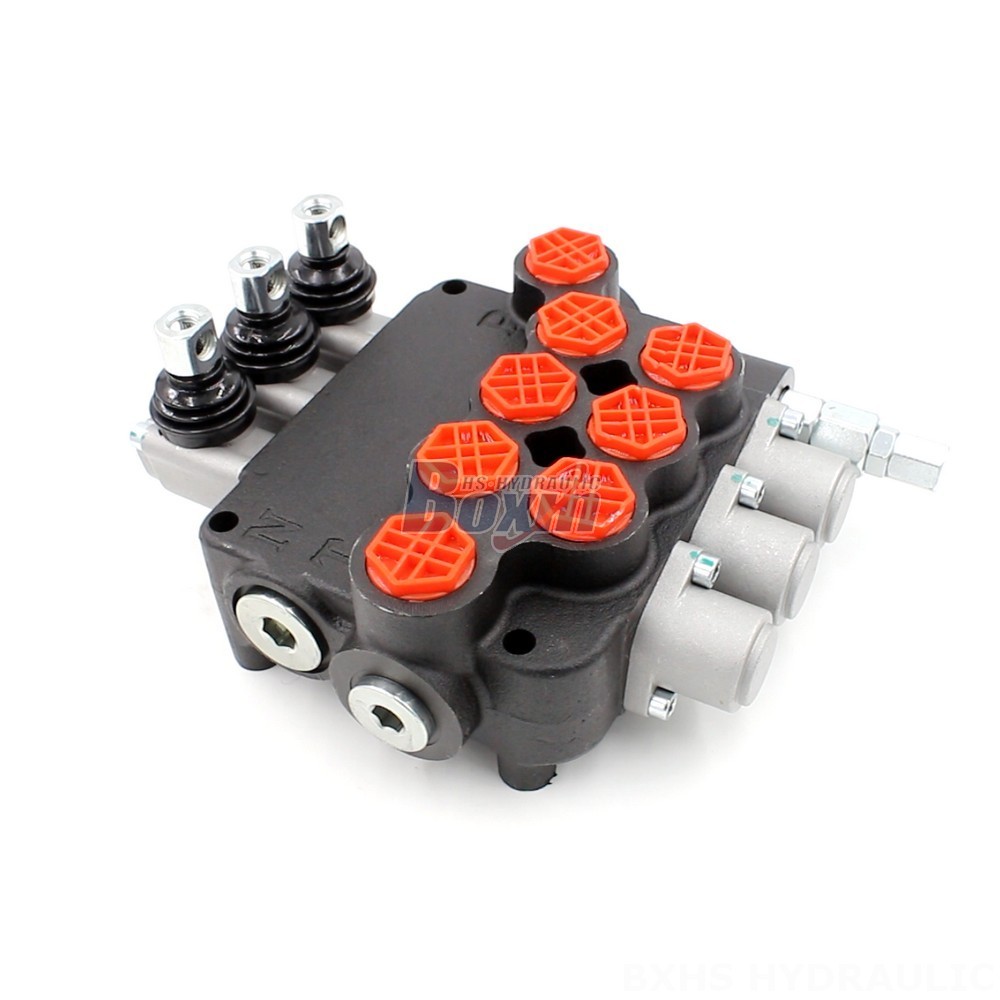

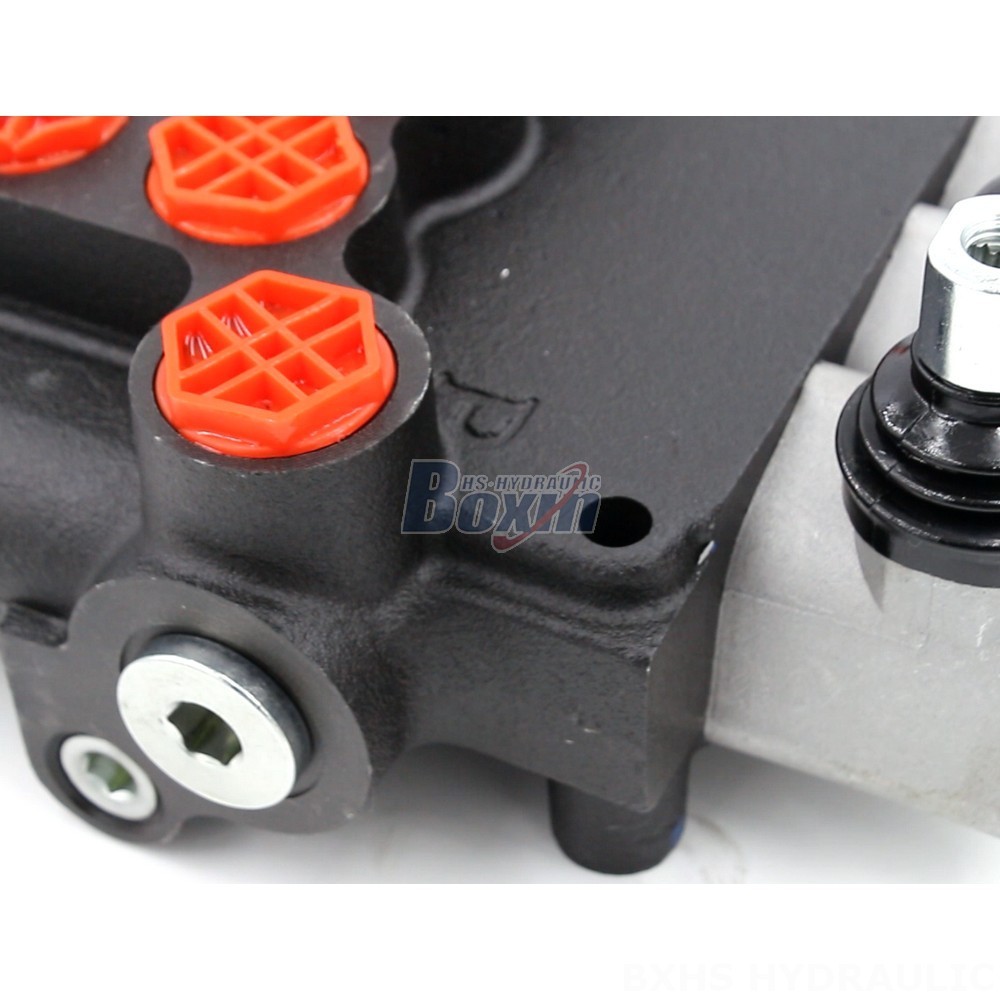

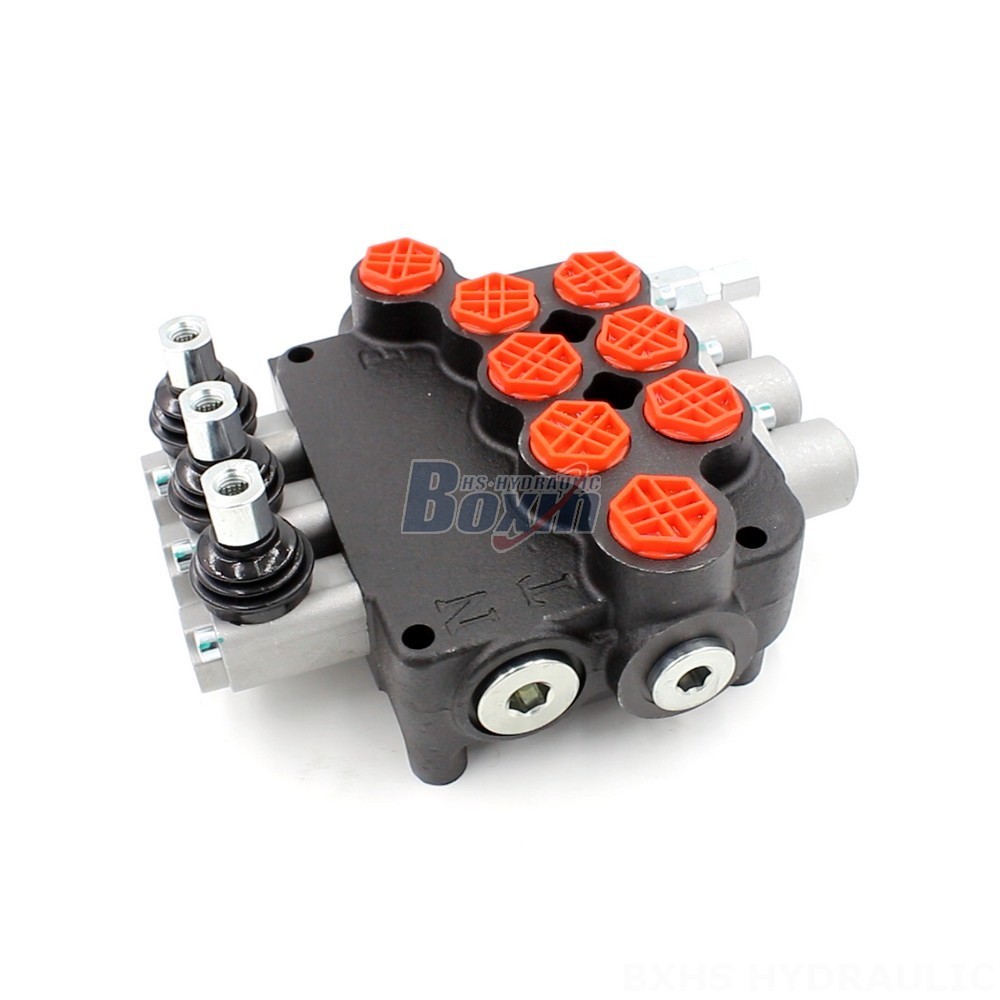

The P80-G34-3OT Monoblock Directional Control Valve is a high-performance hydraulic valve designed for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise and reliable control of hydraulic systems.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual control for precise operation
* Monoblock construction for compact design and durability
* Rated flow of 80 L/min (21.2 US gpm) for efficient hydraulic flow
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme conditions
* 3 spool design for versatile control options
* Part of the P80 Series, known for its reliability and performance
* Applications in material handling, construction and earth moving, agriculture, and industrial vehicles
* Suitable for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders
