Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

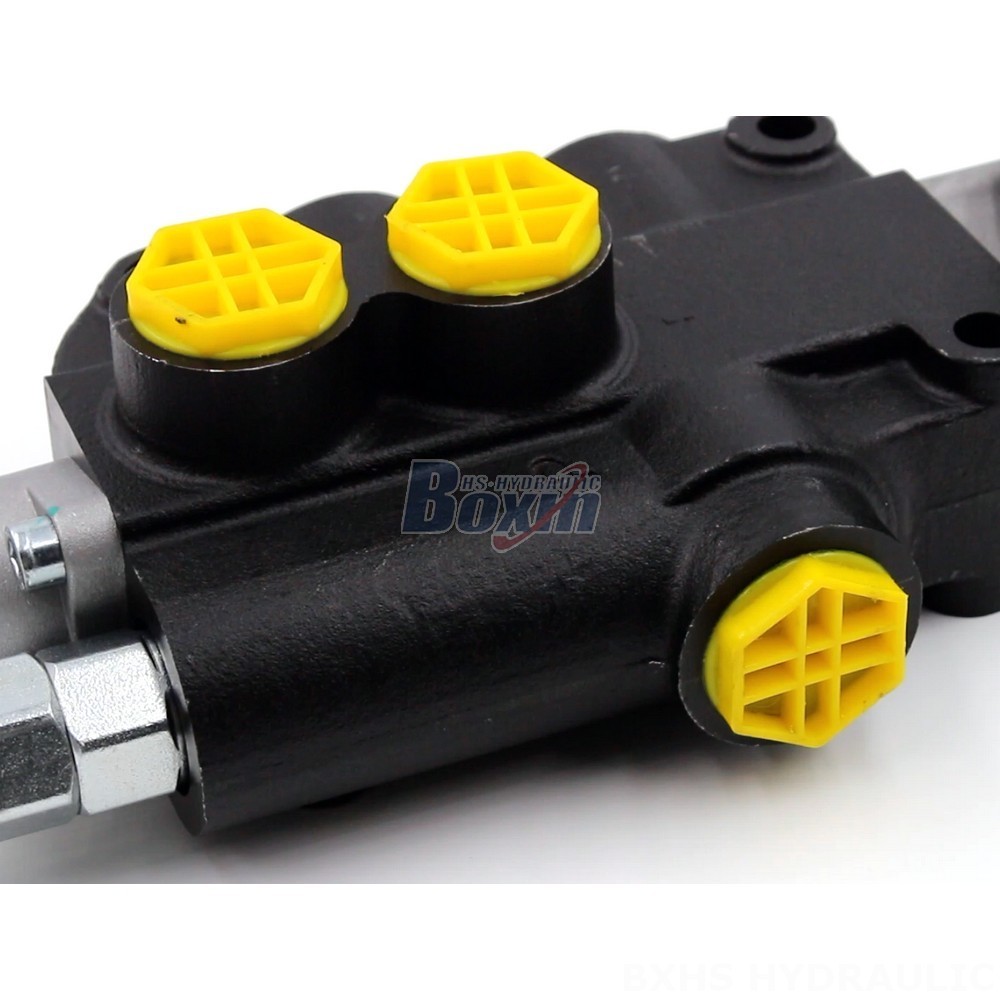

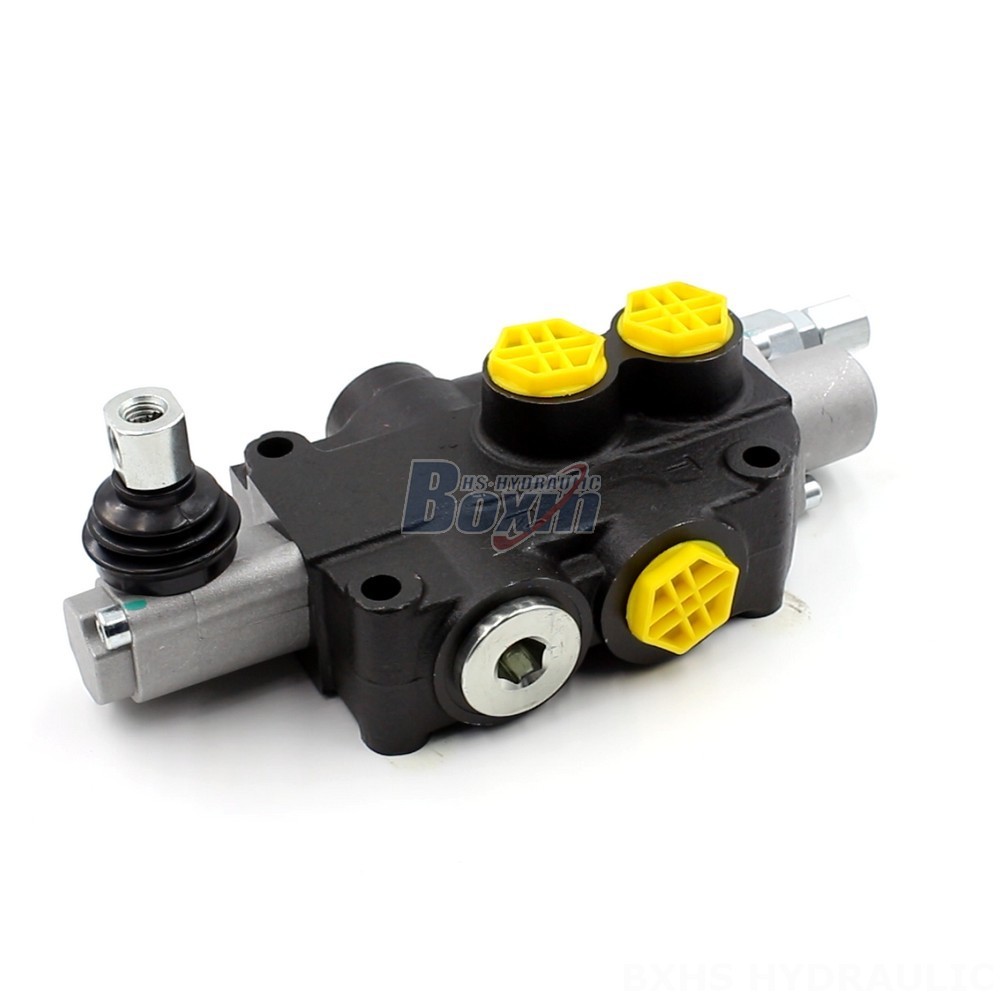

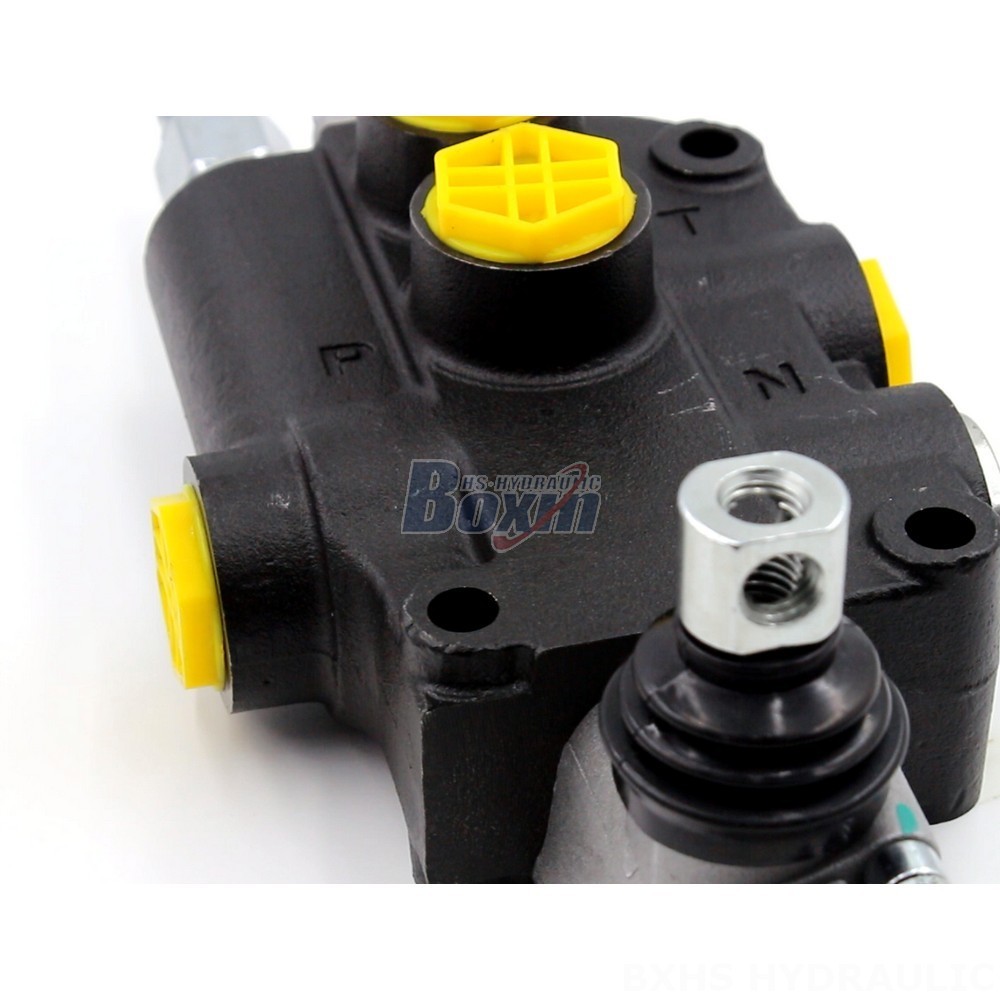

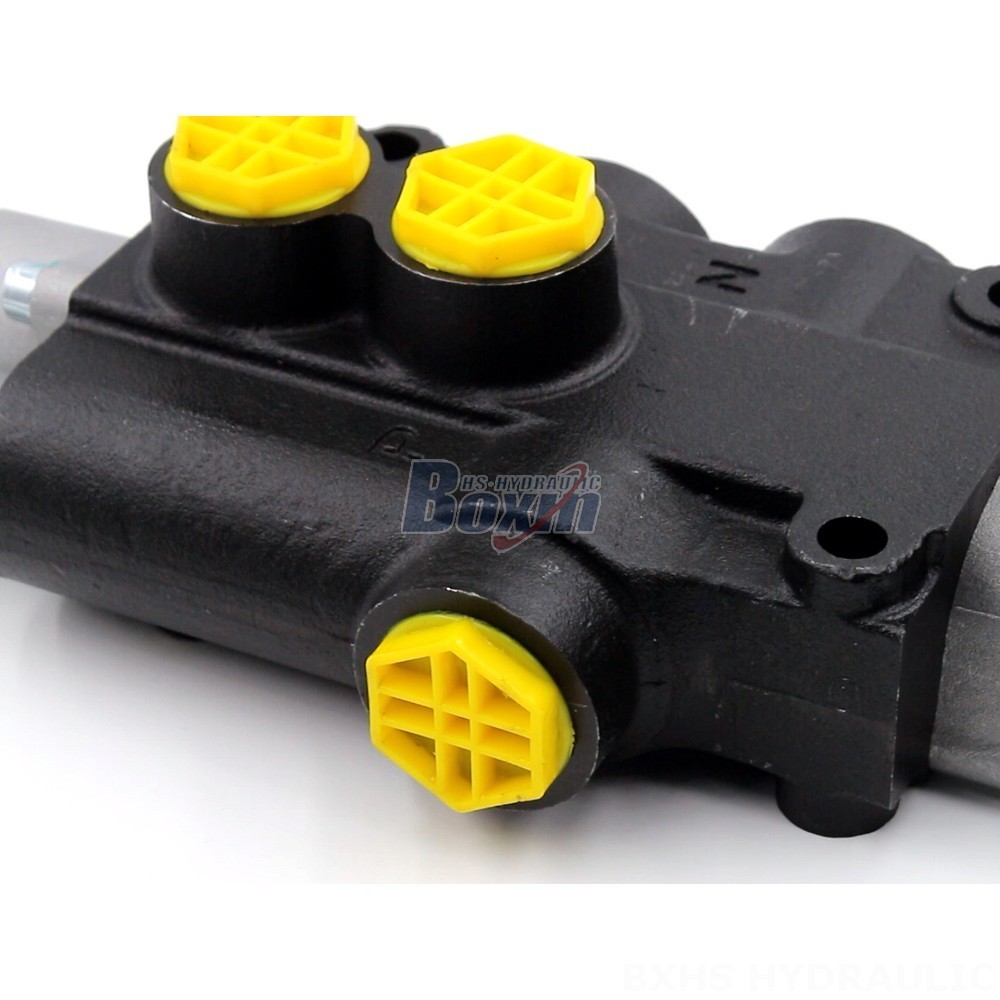

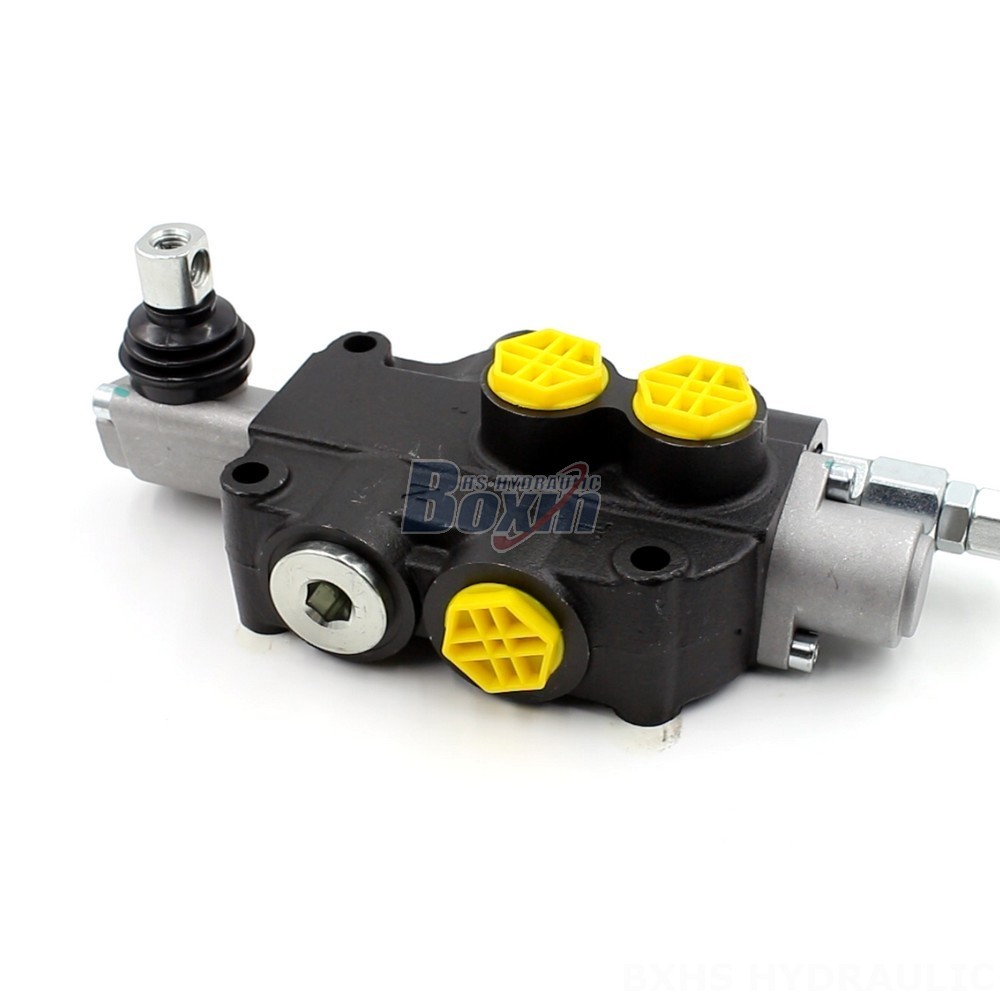

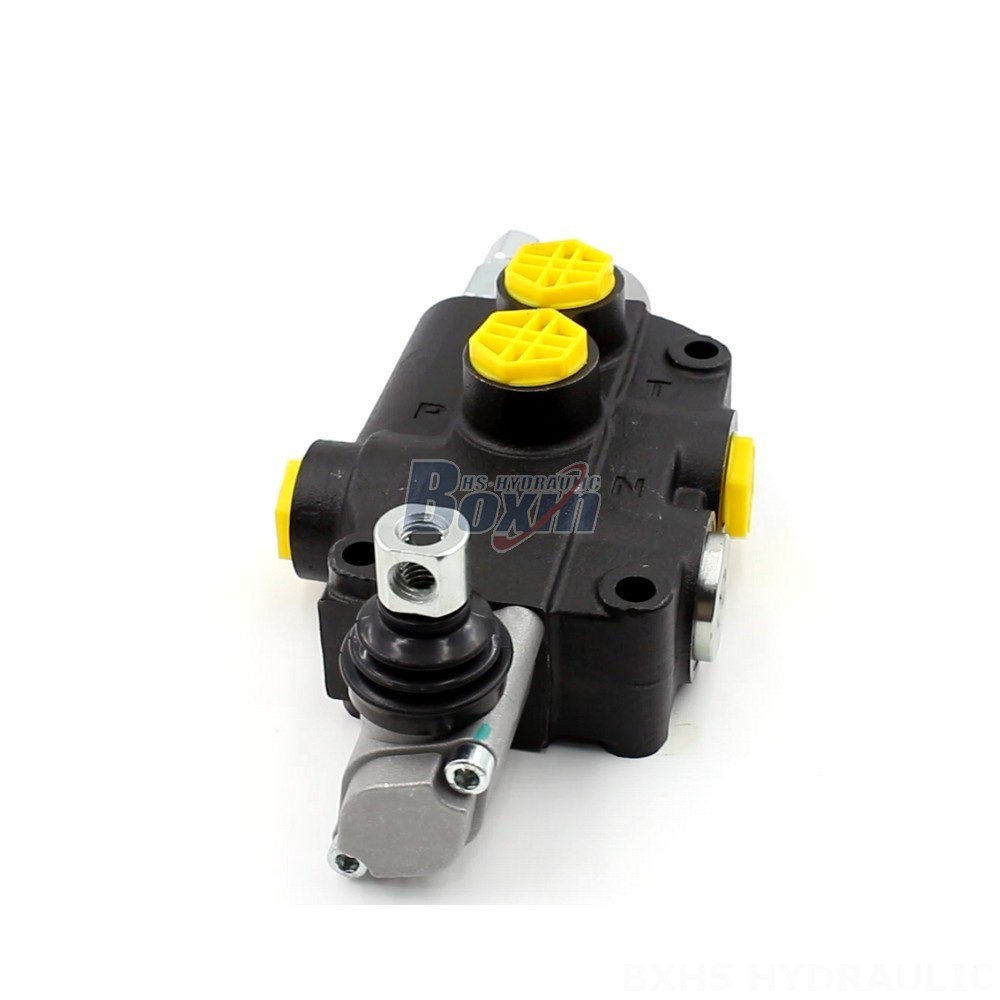

The P80-G12 Manual 1 Spool Monoblock Directional Valve is a reliable and durable hydraulic component designed for use in various applications, including material handling, construction, and agriculture. This manual control valve features a single spool and a maximum pressure rating of 250 bar, making it suitable for a wide range of hydraulic systems.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G12 Manual 1 Spool Monoblock Directional Valve is a high-quality hydraulic component manufactured for global markets. This valve is designed for manual control with a single spool and a monoblock structure, offering a compact and efficient design. It has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for various demanding applications. The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). This valve is specifically designed for use in various applications, including material handling, construction, and agriculture. It is compatible with a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. As a leading hydraulic product manufacturer, we offer a comprehensive range of services including manufacturing, OEM, private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
