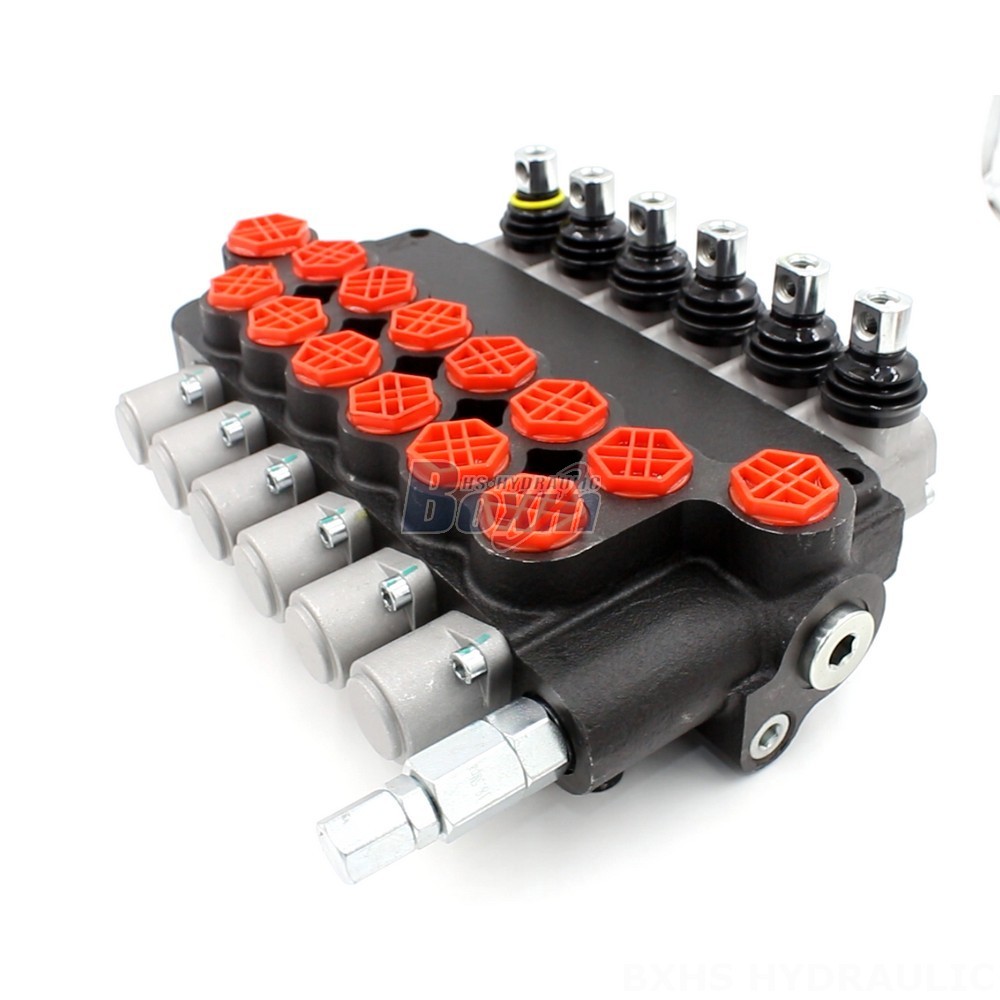

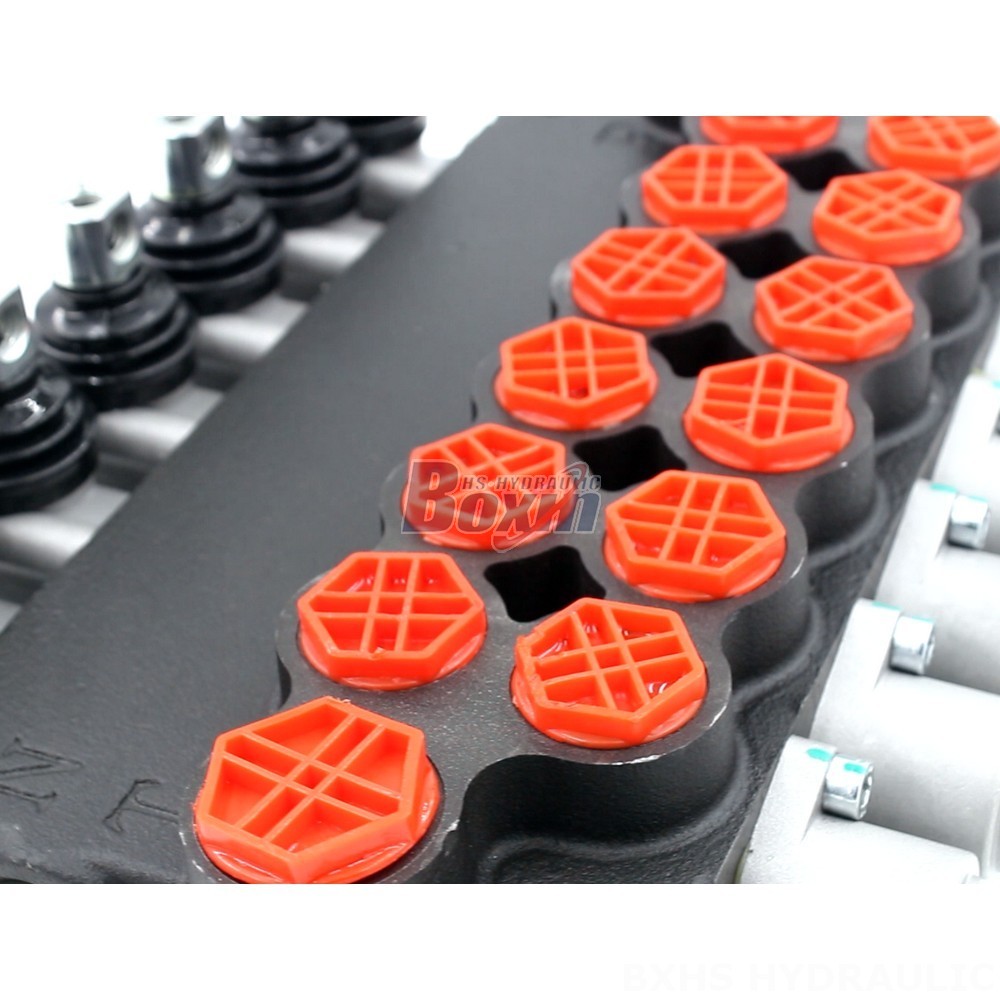

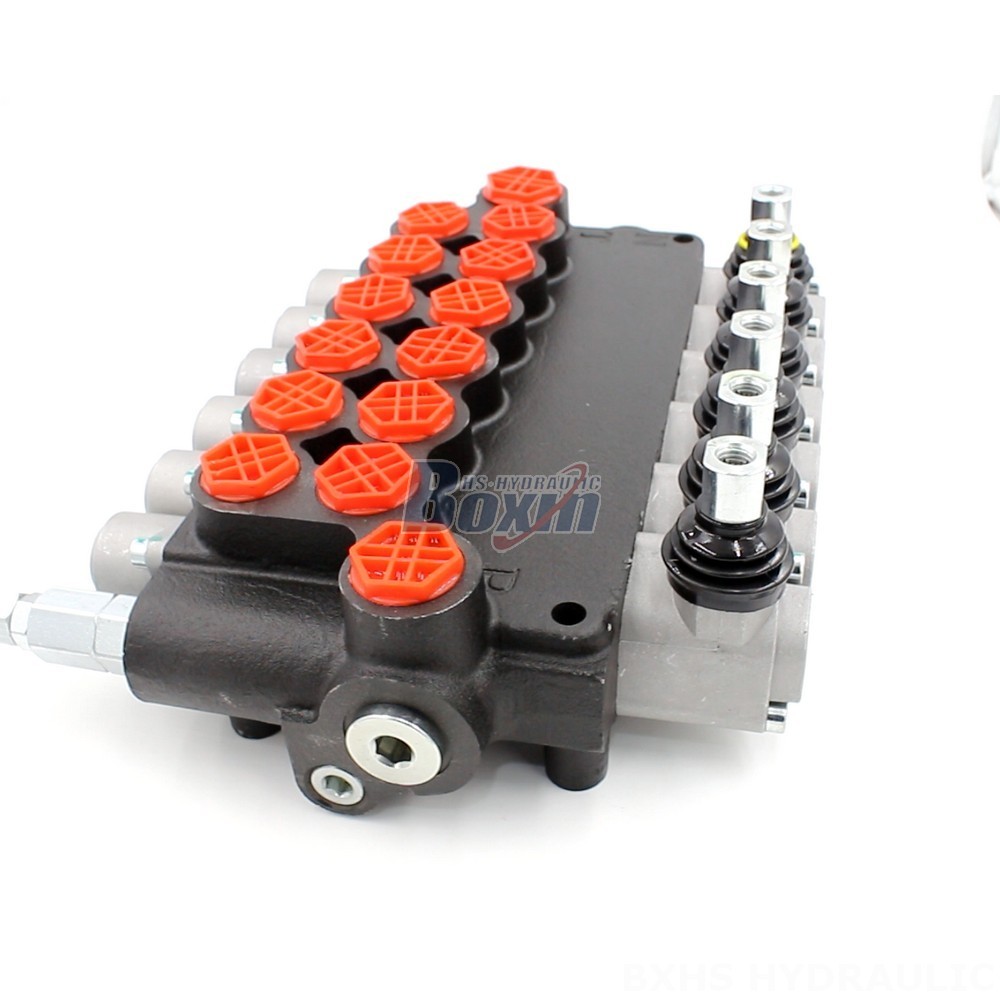

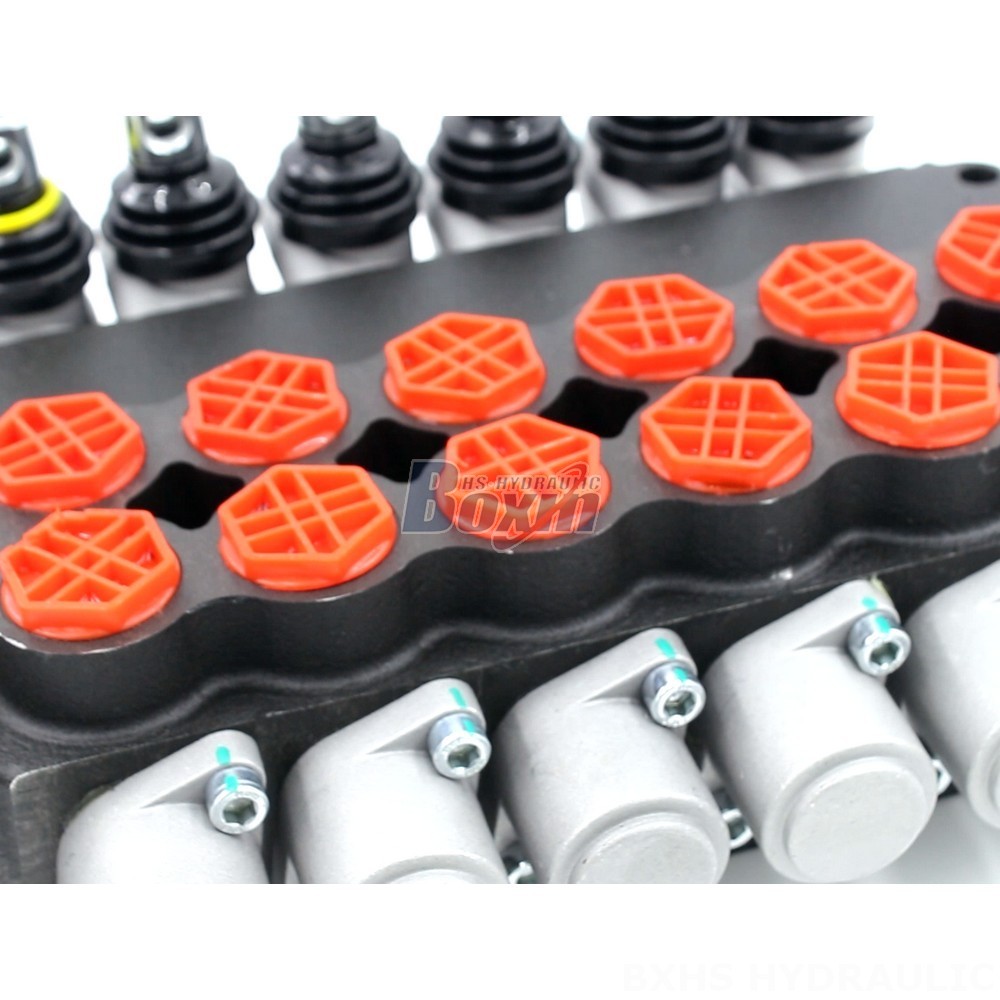

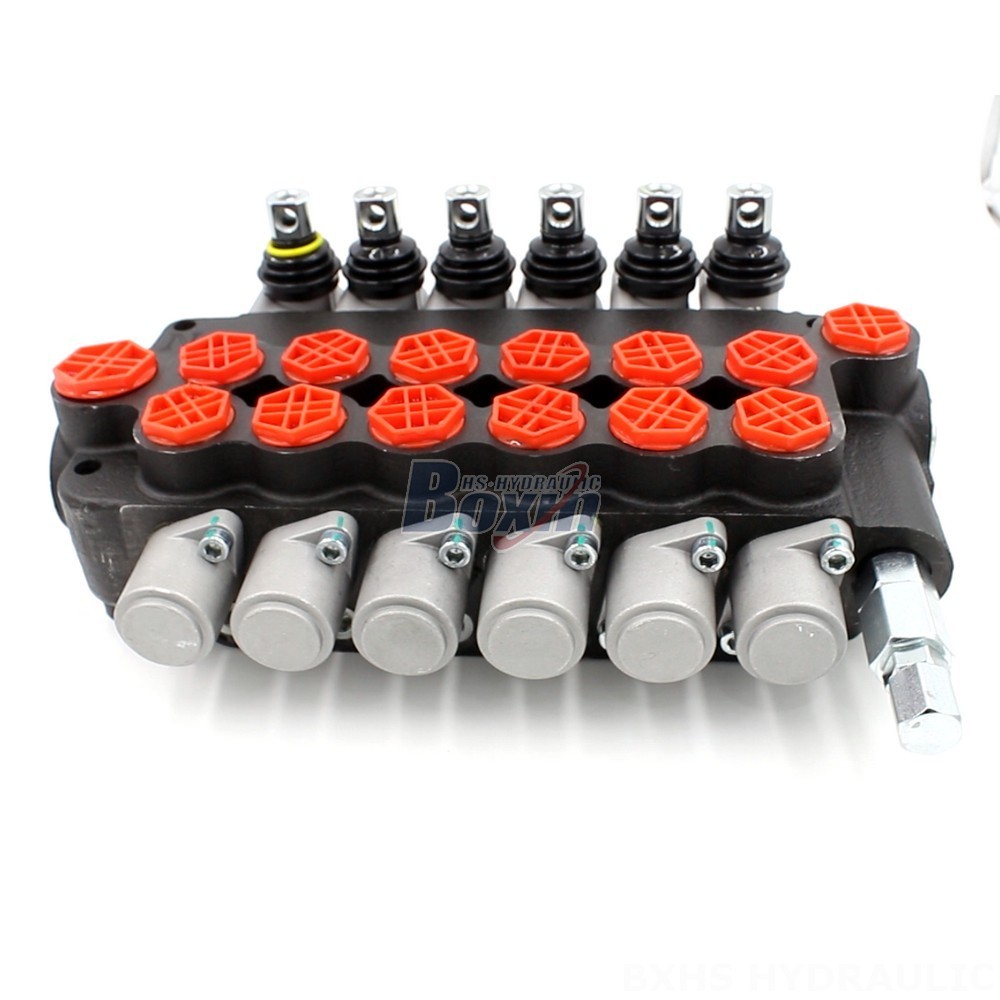

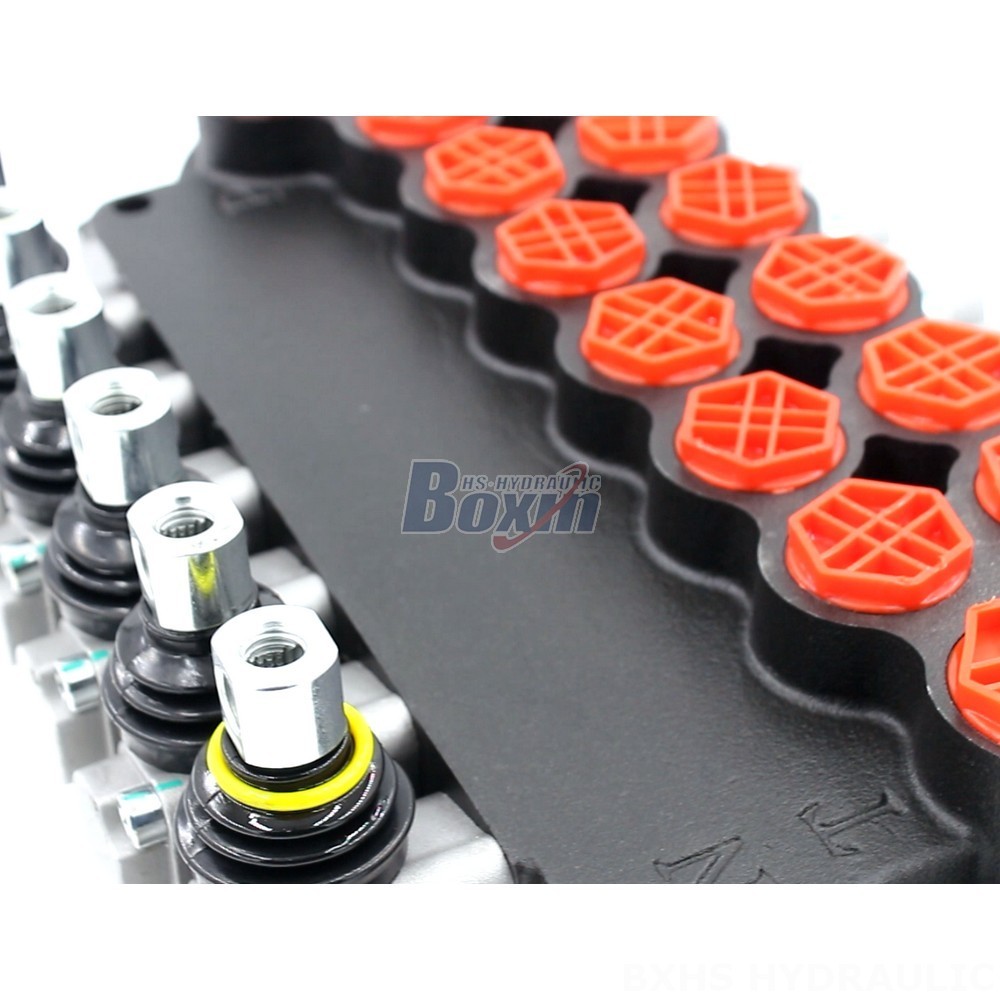

P80-G12-G34 6-Spool Hydraulic Directional Valve is a high-performance valve designed for use in various hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications. Its manual control provides precise and responsive operation, while its monoblock construction ensures durability and reliability. This valve finds applications in material handling, construction, agriculture, and industrial vehicles.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G12-G34 6-Spool Hydraulic Directional Valve features a compact and efficient design, making it ideal for space-constrained applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows for compatibility with a wide range of hydraulic fluids. The valve operates within an ambient temperature range of -40°C to +80°C (-40°F to +176°F), ensuring reliable performance in diverse operating conditions. This valve is commonly used in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
