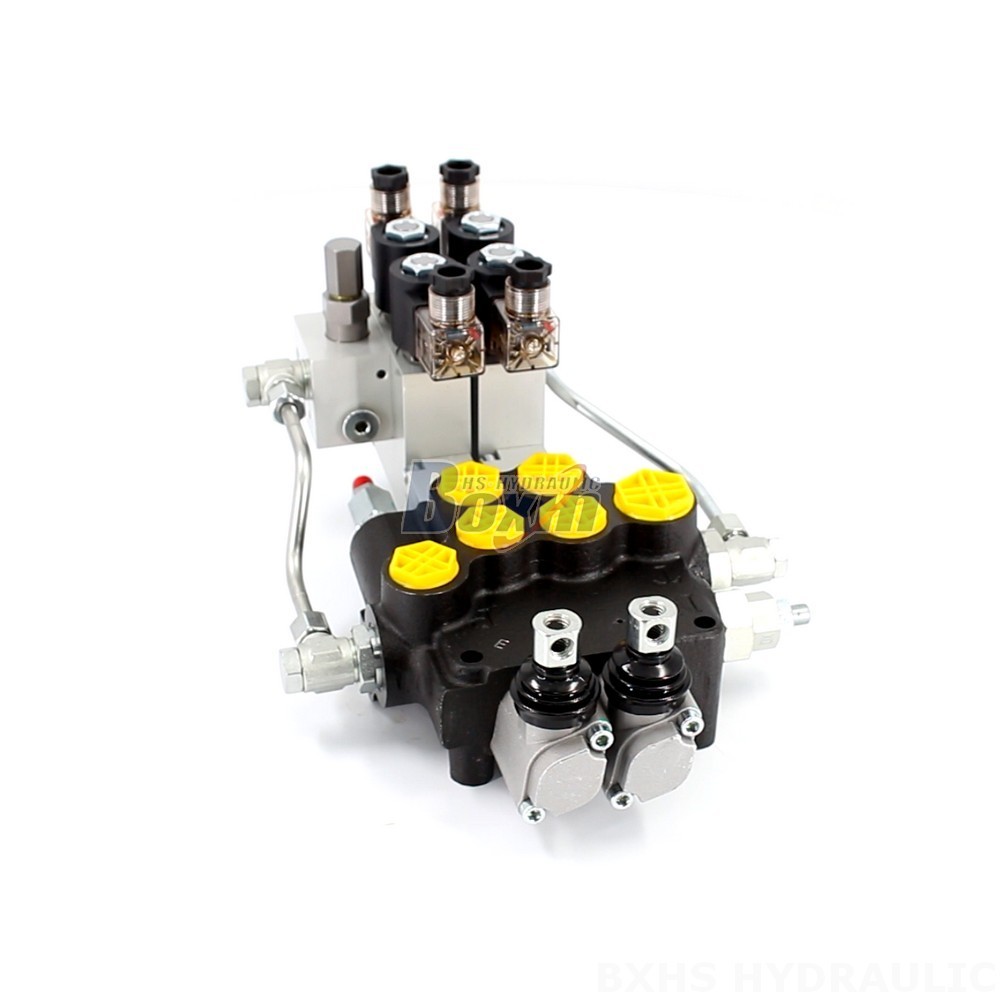

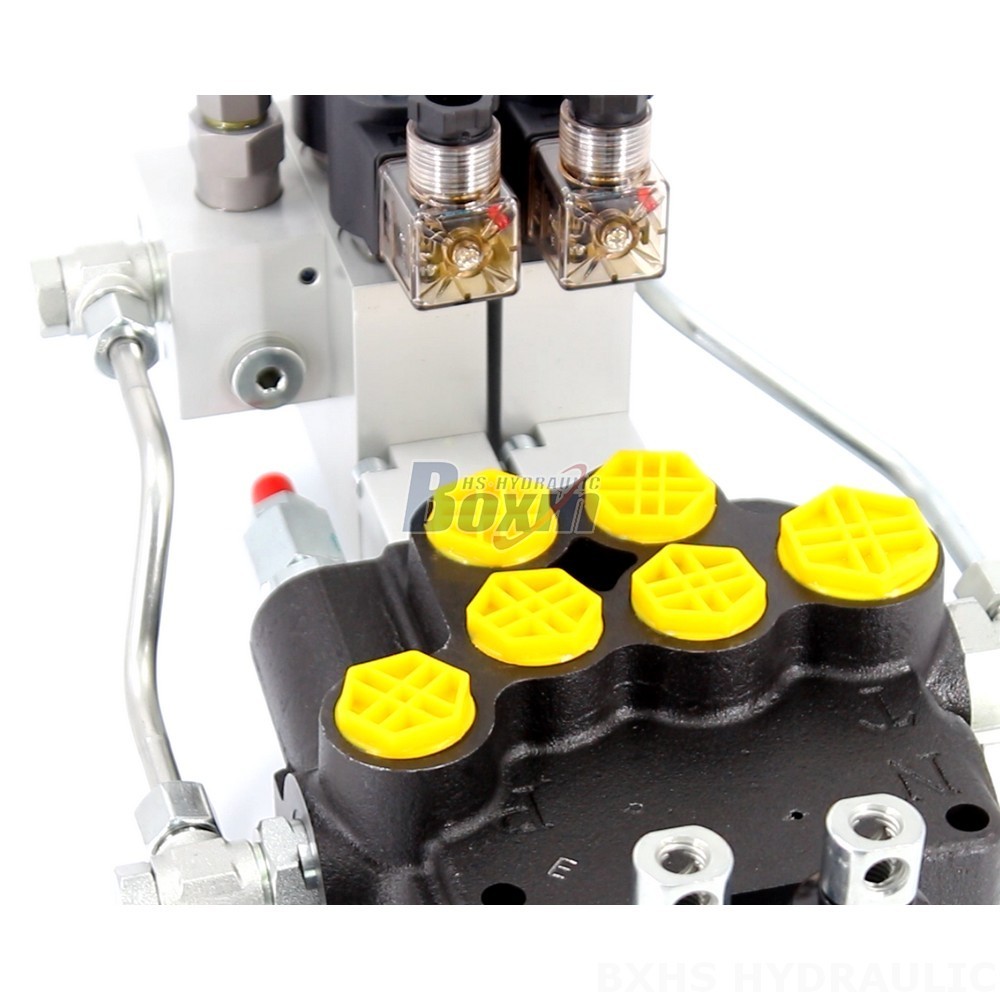

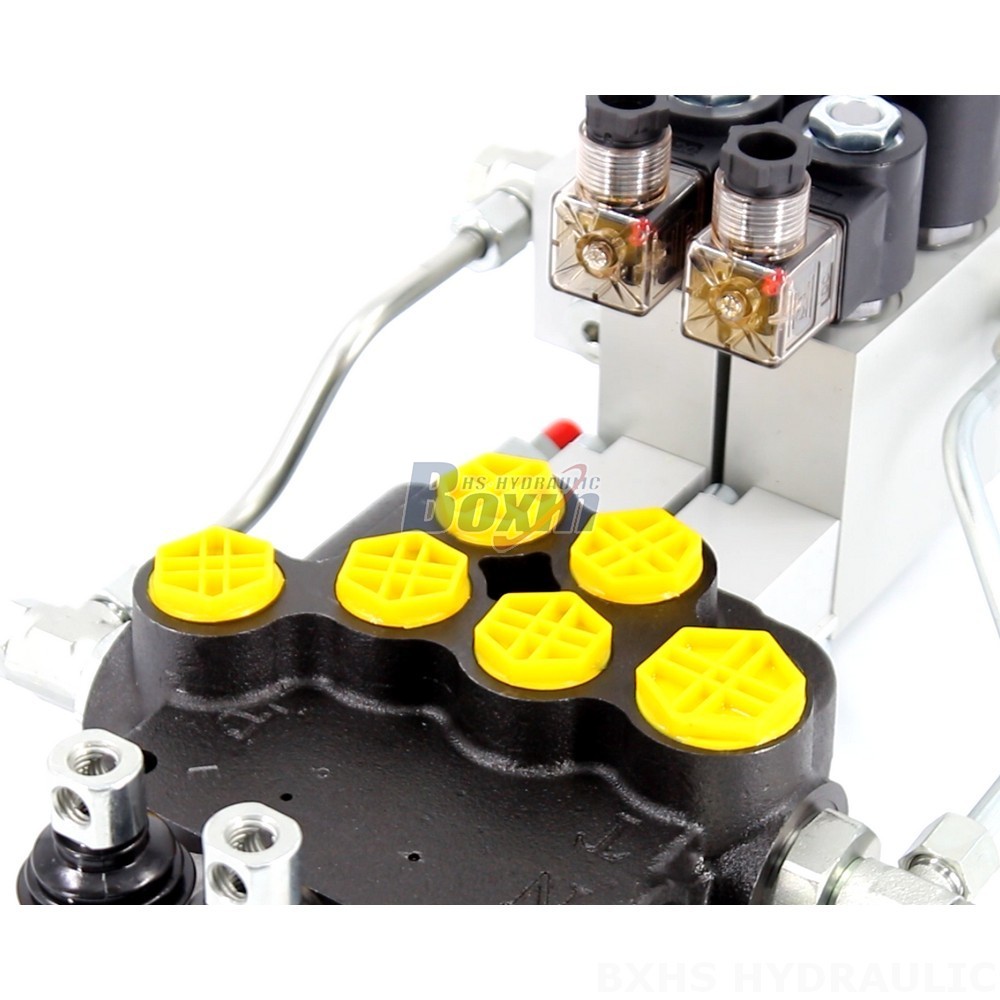

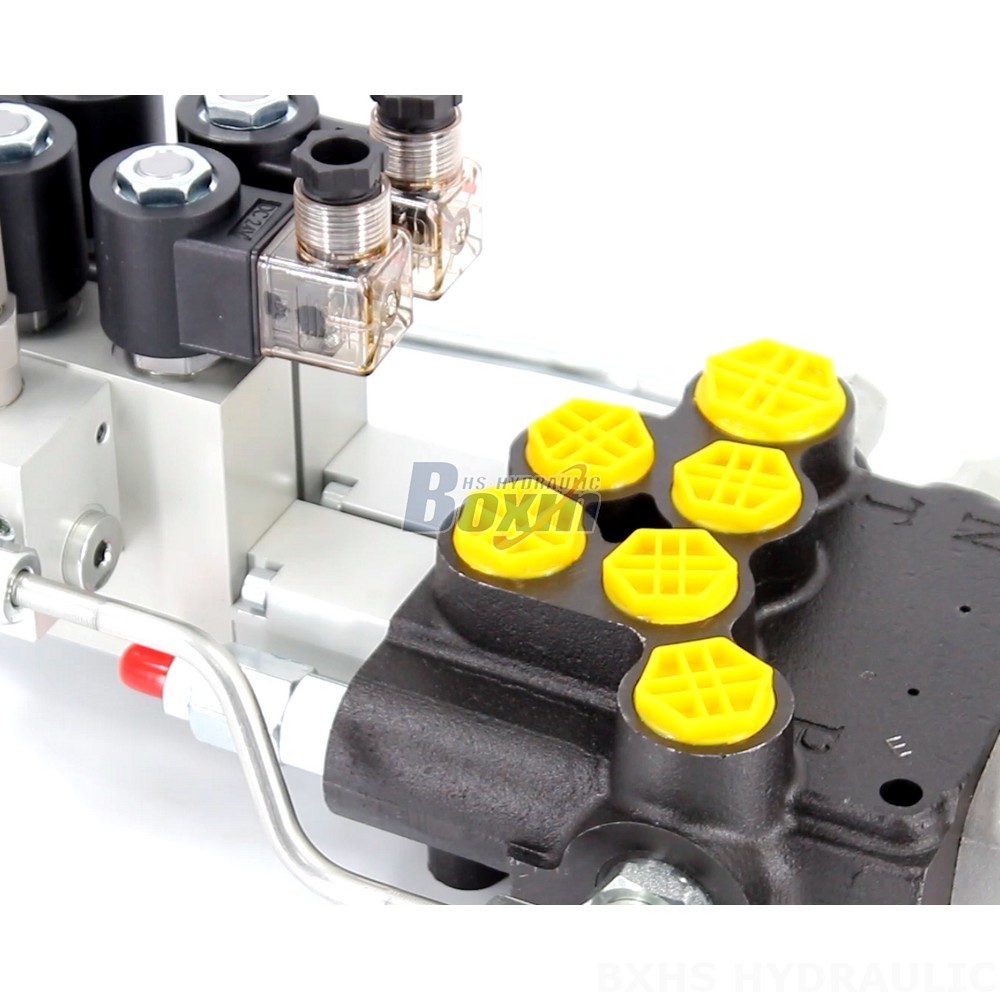

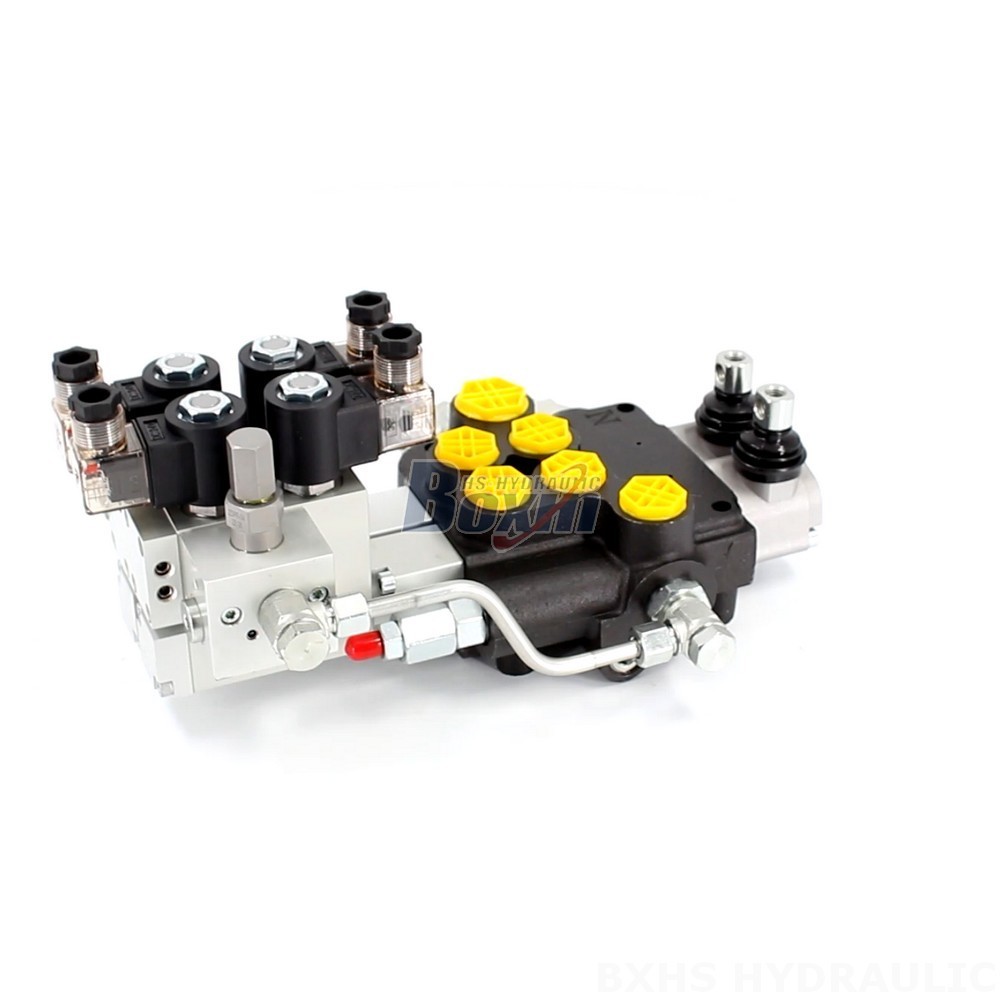

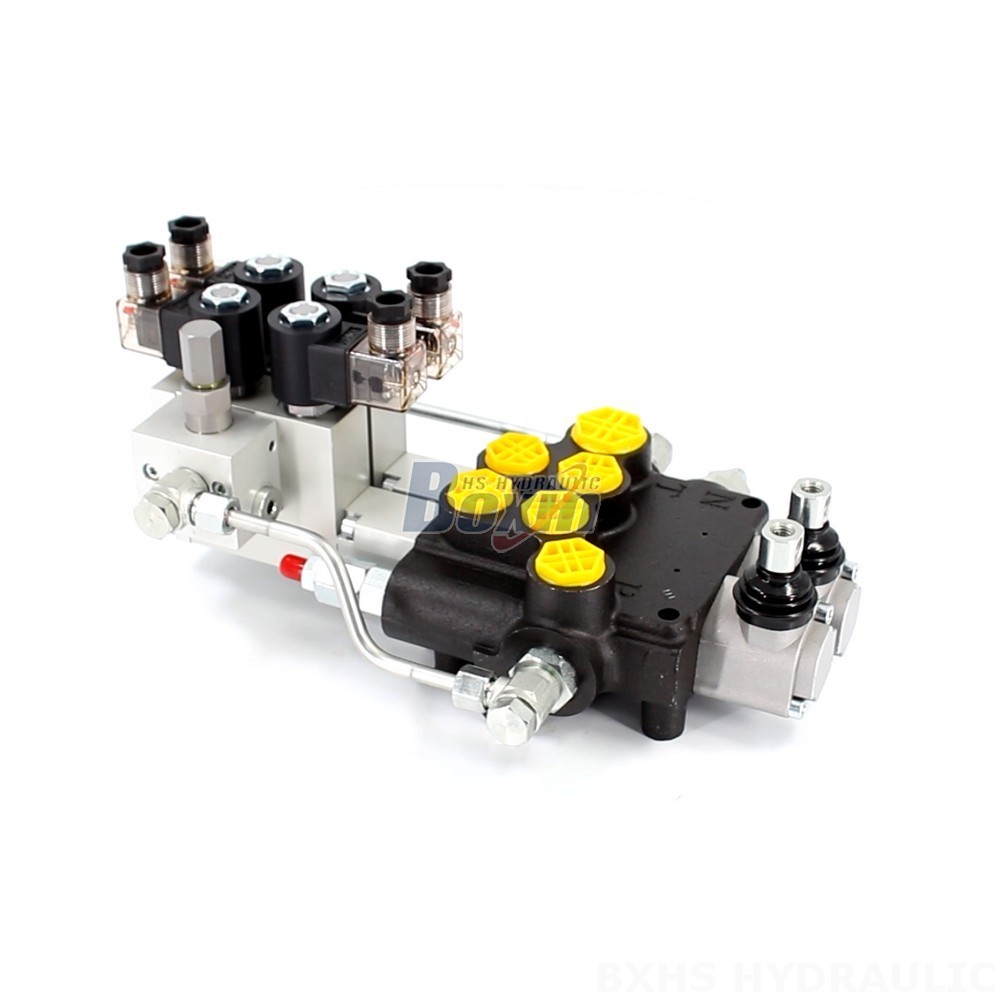

The P80 Electro-Hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. With its advanced electro-hydraulic control system, 2 section design, and robust monoblock construction, the P80 valve provides precise and reliable control of hydraulic systems.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features and Benefits:**
* Electro-hydraulic control for precise and responsive operation
* 2 section design for increased flexibility and control
* Monoblock construction for durability and reliability
* Rated flow of 80 L/min for high flow capacity
* Max pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of fluids
* Ambient temperature range of -40°C to +80°C for use in extreme conditions
* 2 spool design for increased control options
* P80 Series for compatibility with other P80 series components
* Ideal for use in material handling, construction, earth moving, agriculture, and industrial vehicles
* Common applications include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
