Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit
Innovation treibt Entwicklung voran Technologie gestaltet die Zukunft
1661 Personen sehen sich dieses Produkt an

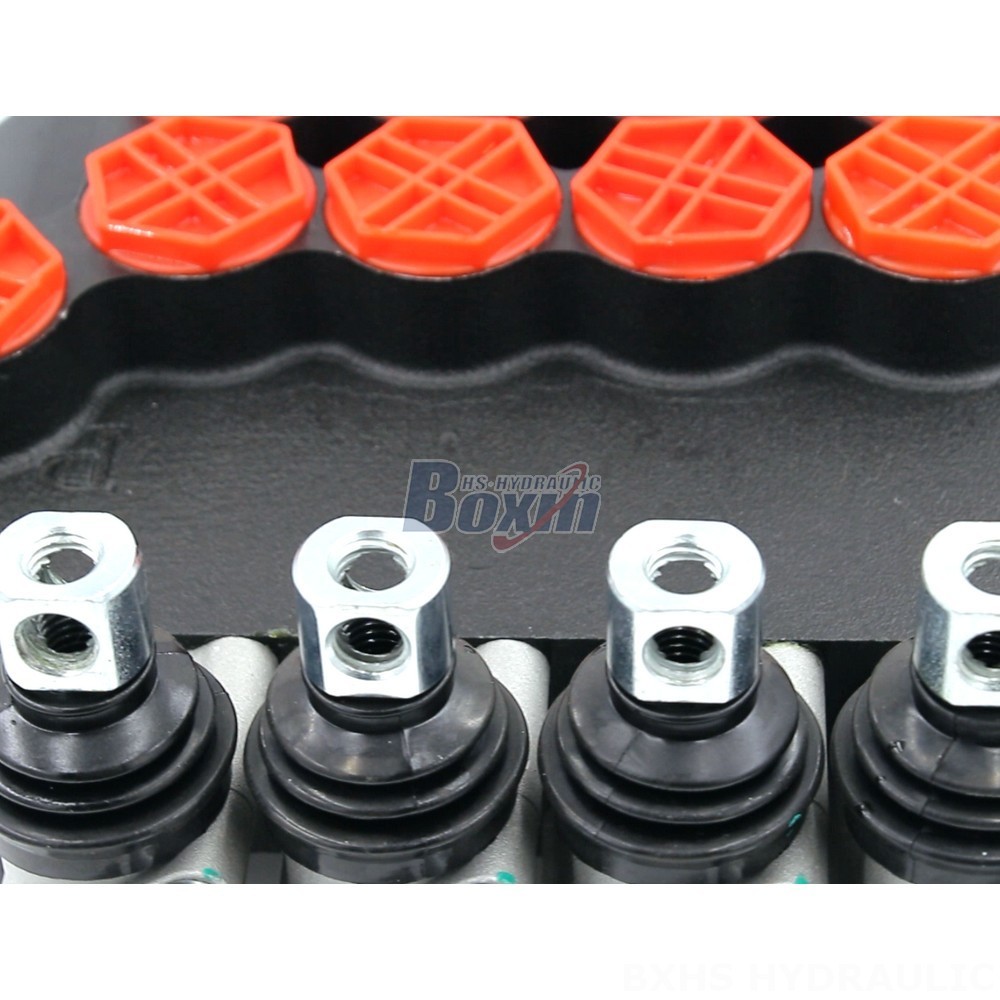

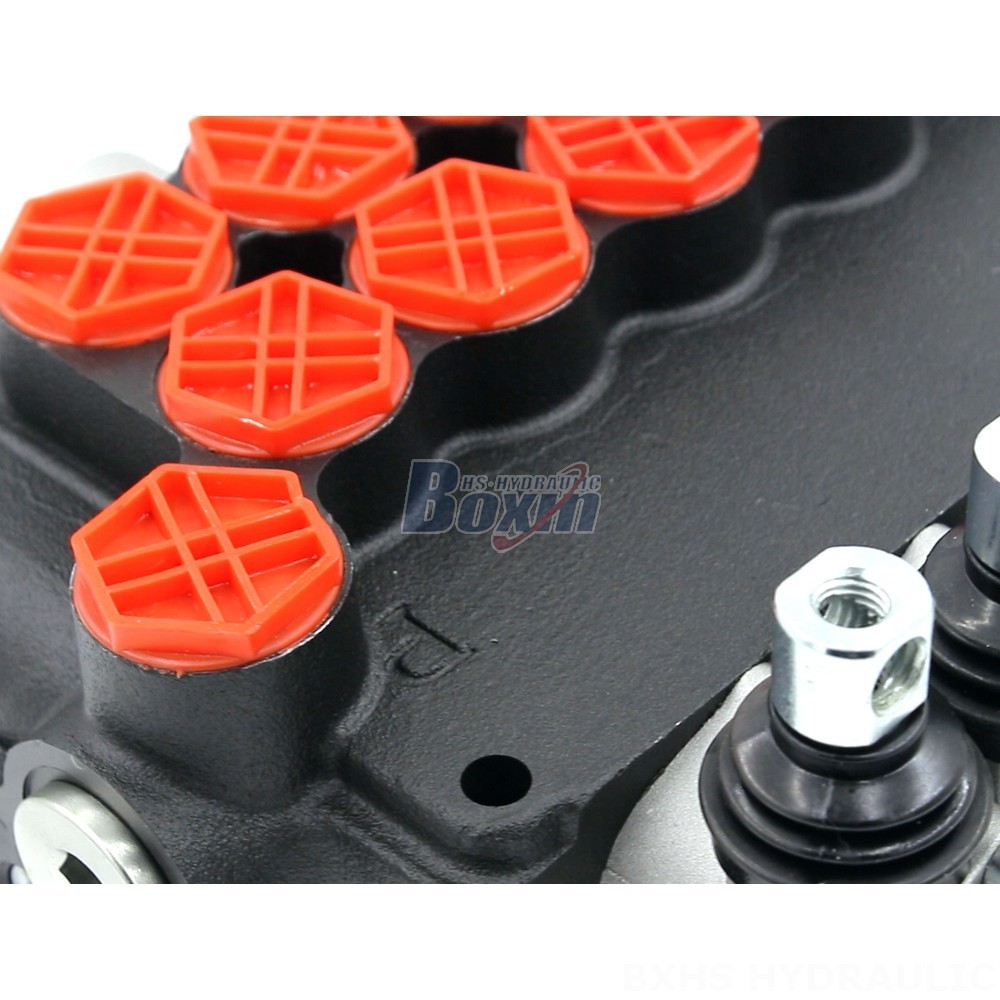

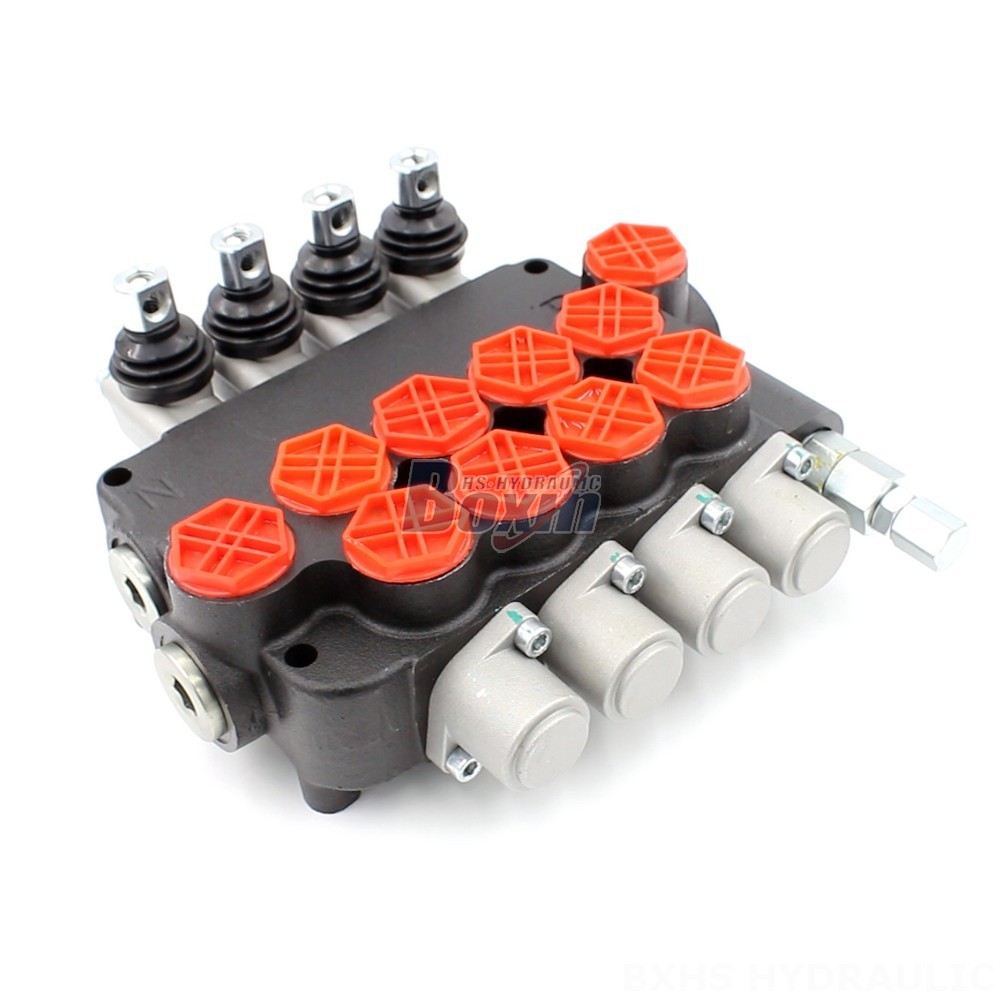

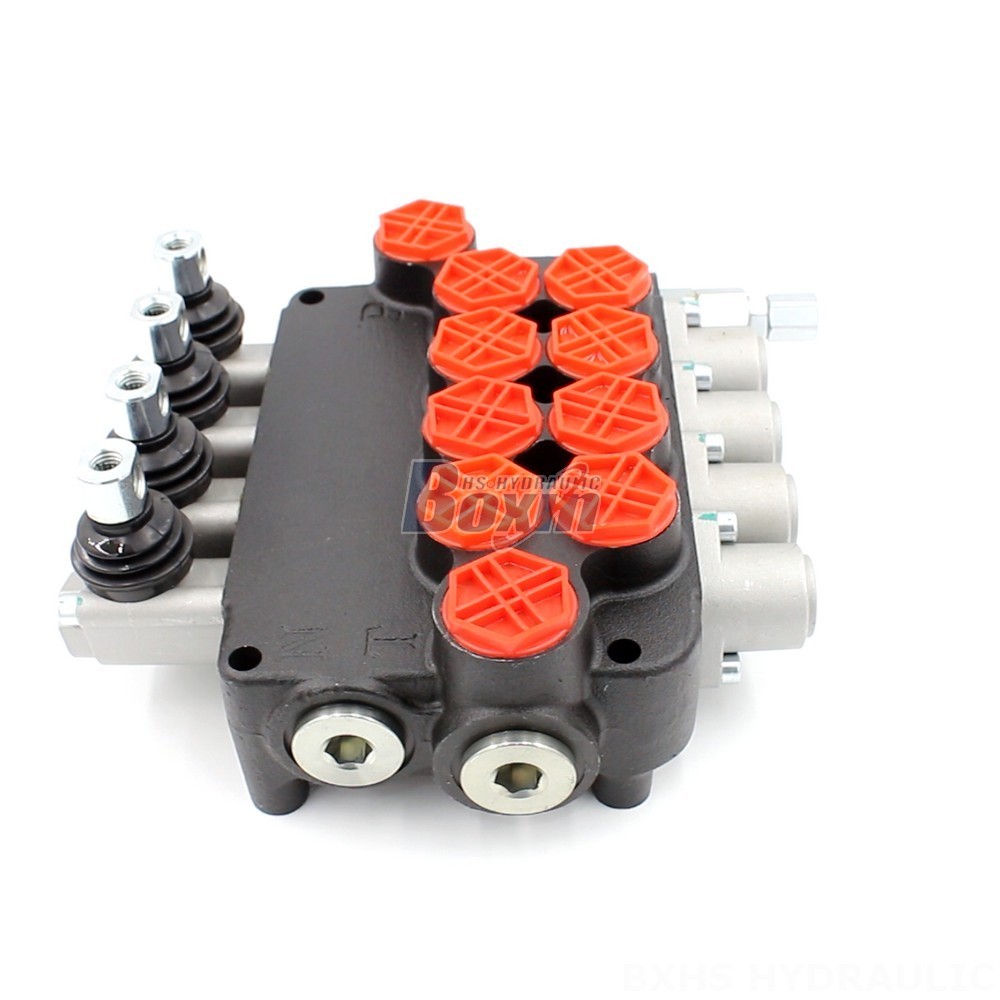

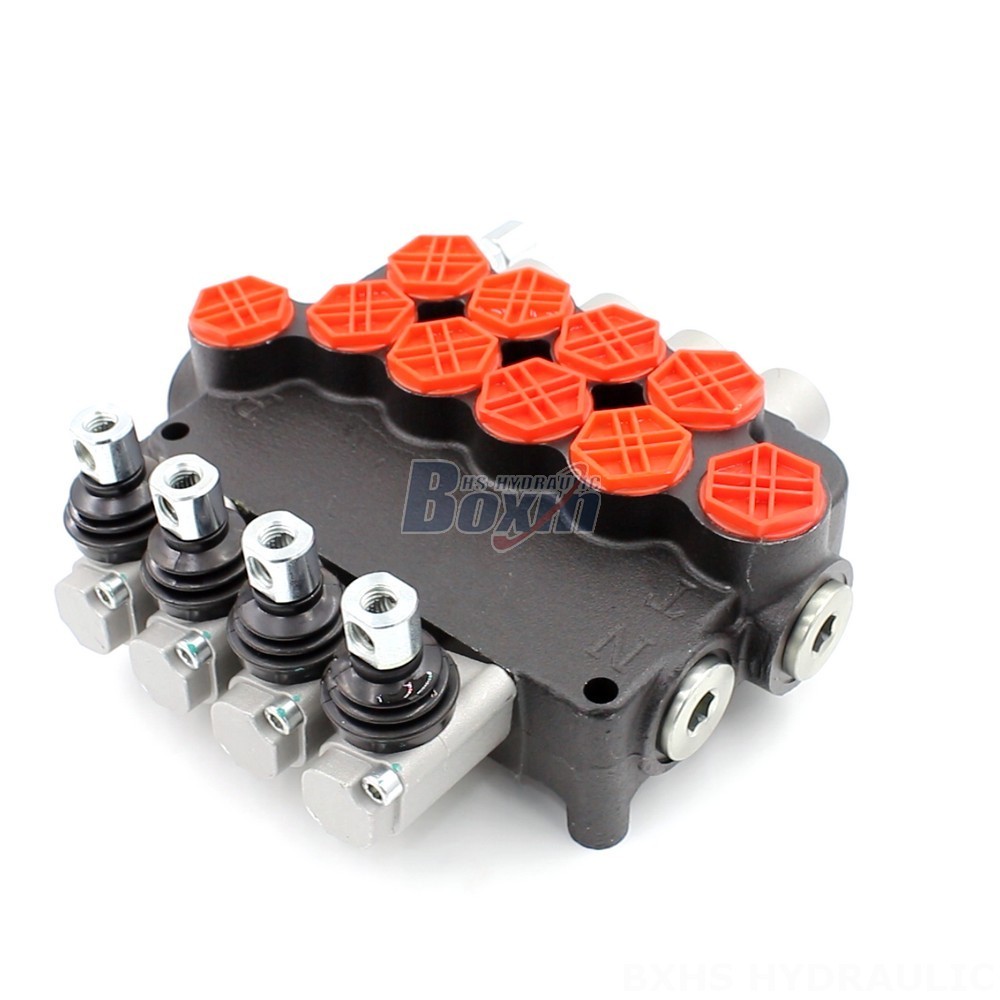

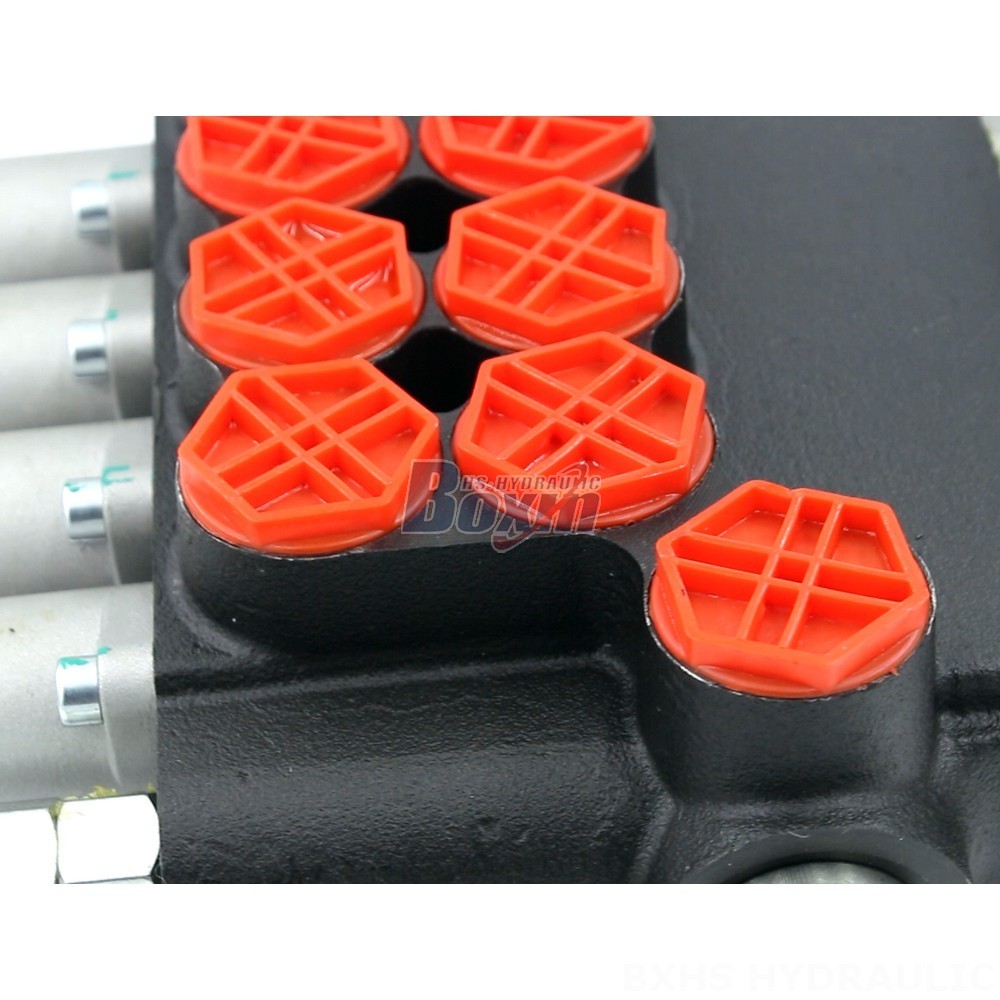

The P80 Series Hydraulic Directional Valve is a high-performance, 4-section monoblock valve designed for heavy-duty applications in construction, material handling, and industrial vehicles. It features manual control, a rated flow of 80 L/min, and a max pressure of 250 bar. This versatile valve is customizable to meet specific requirements and is available direct from the factory.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series Hydraulic Directional Valve is a powerful and reliable solution for controlling hydraulic systems in various applications. It's a 4-section monoblock valve with manual control, providing precise and efficient operation. The valve boasts a high flow rate of 80 L/min, making it suitable for demanding applications. Its maximum pressure rating of 250 bar ensures robust performance under pressure. This valve is ideal for a wide range of applications, including telehandlers, forklifts, excavators, wheel loaders, and other construction and industrial equipment. It's customizable to meet specific requirements and is available direct from the factory.
