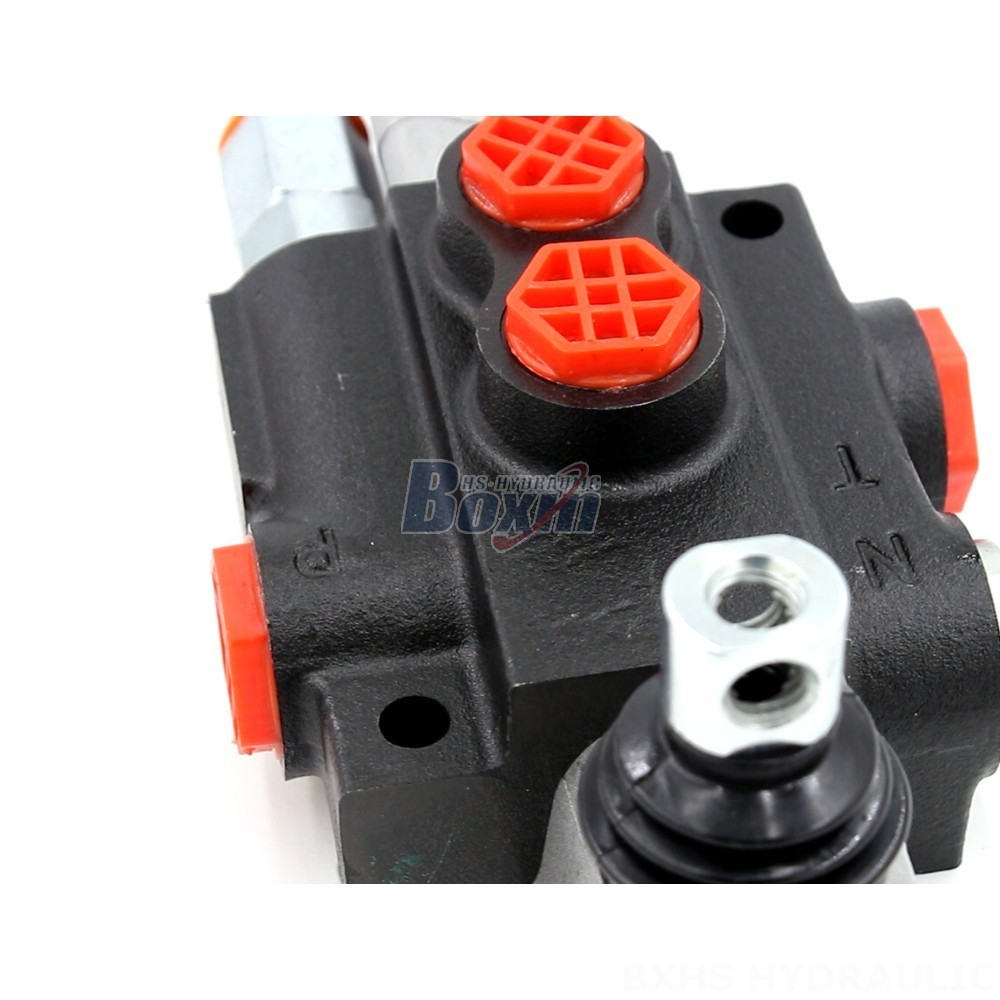

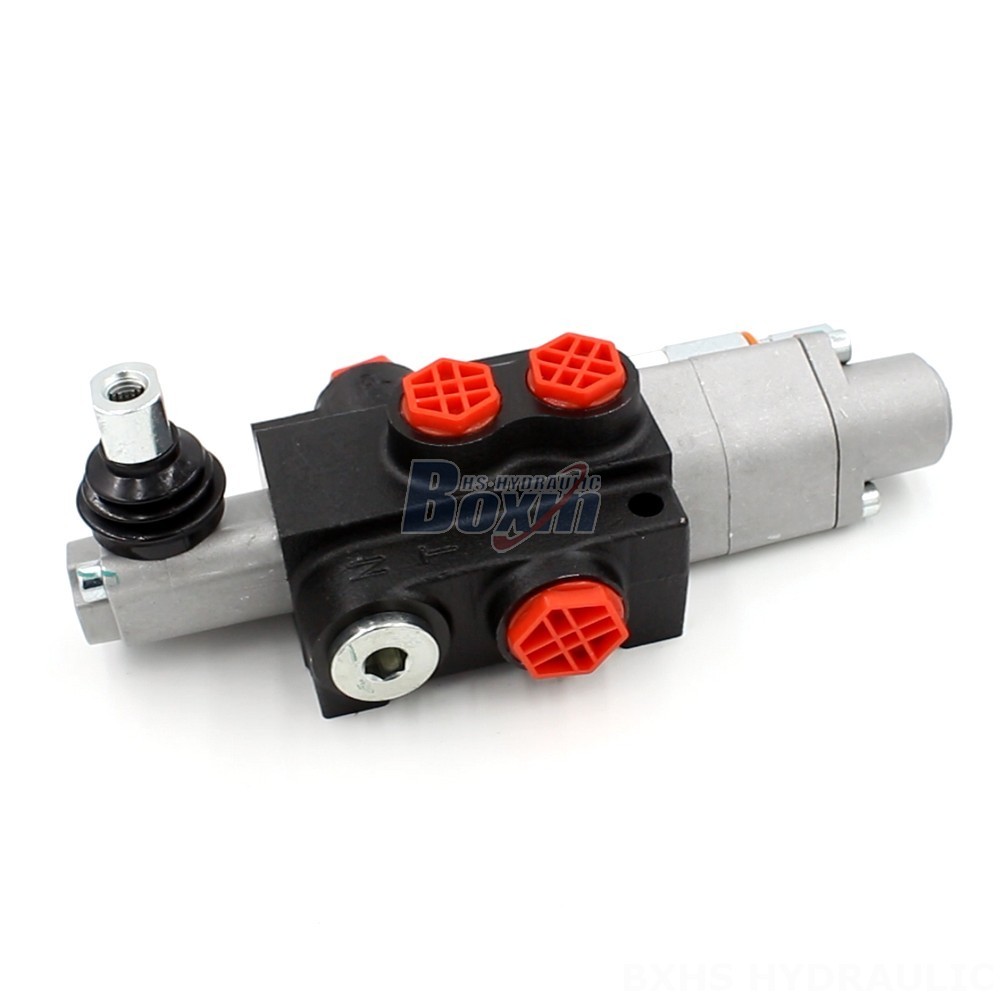

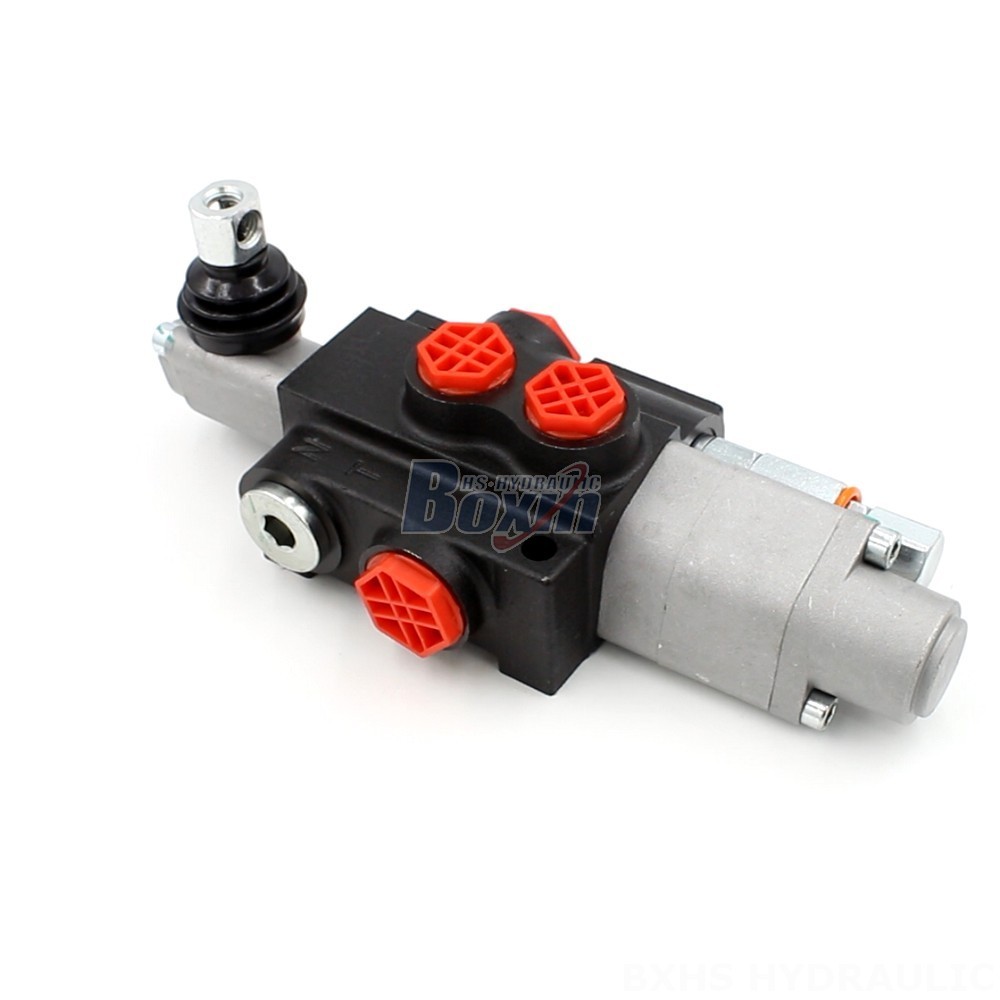

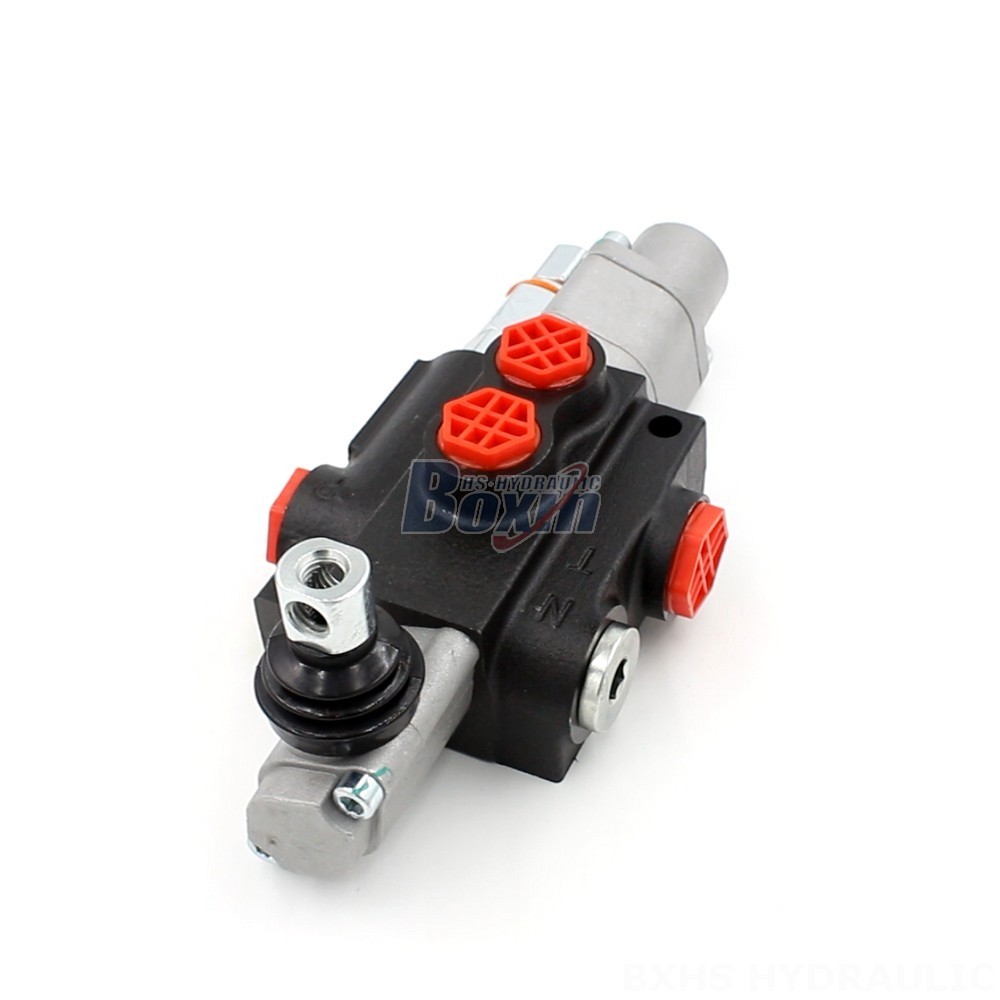

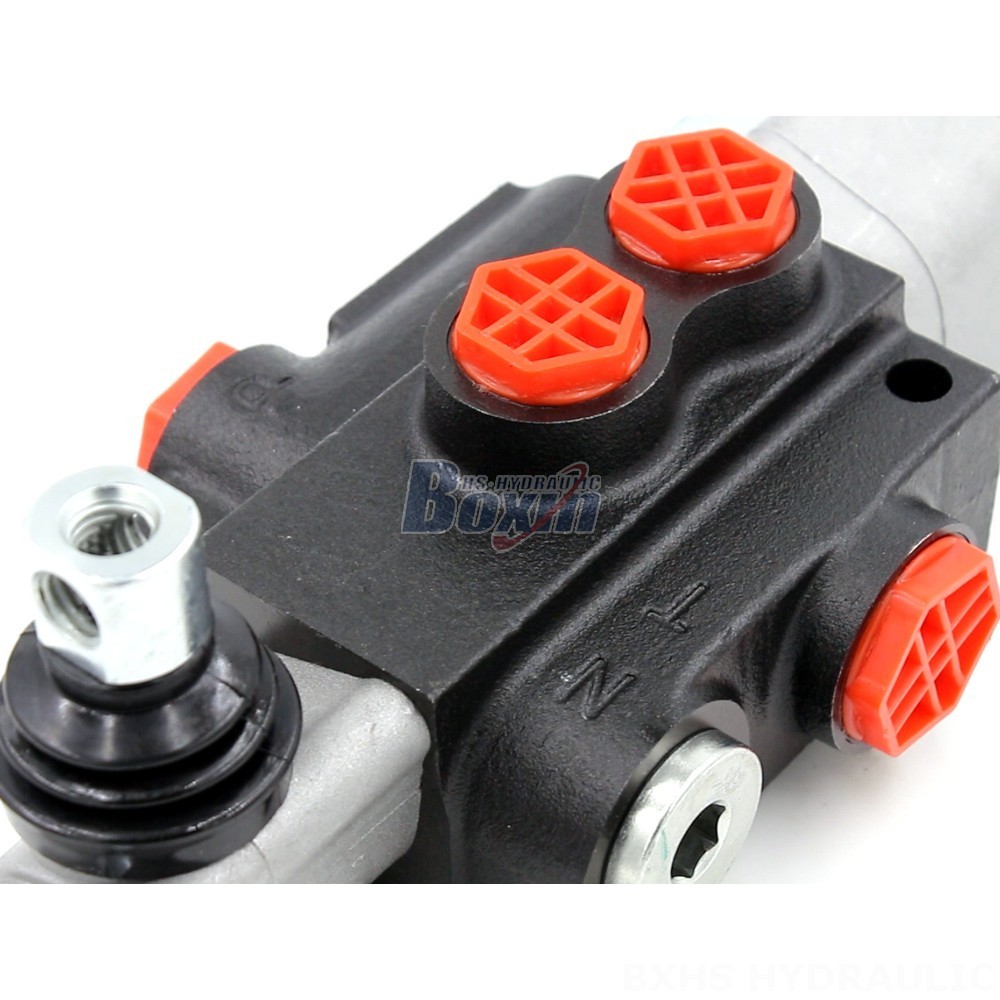

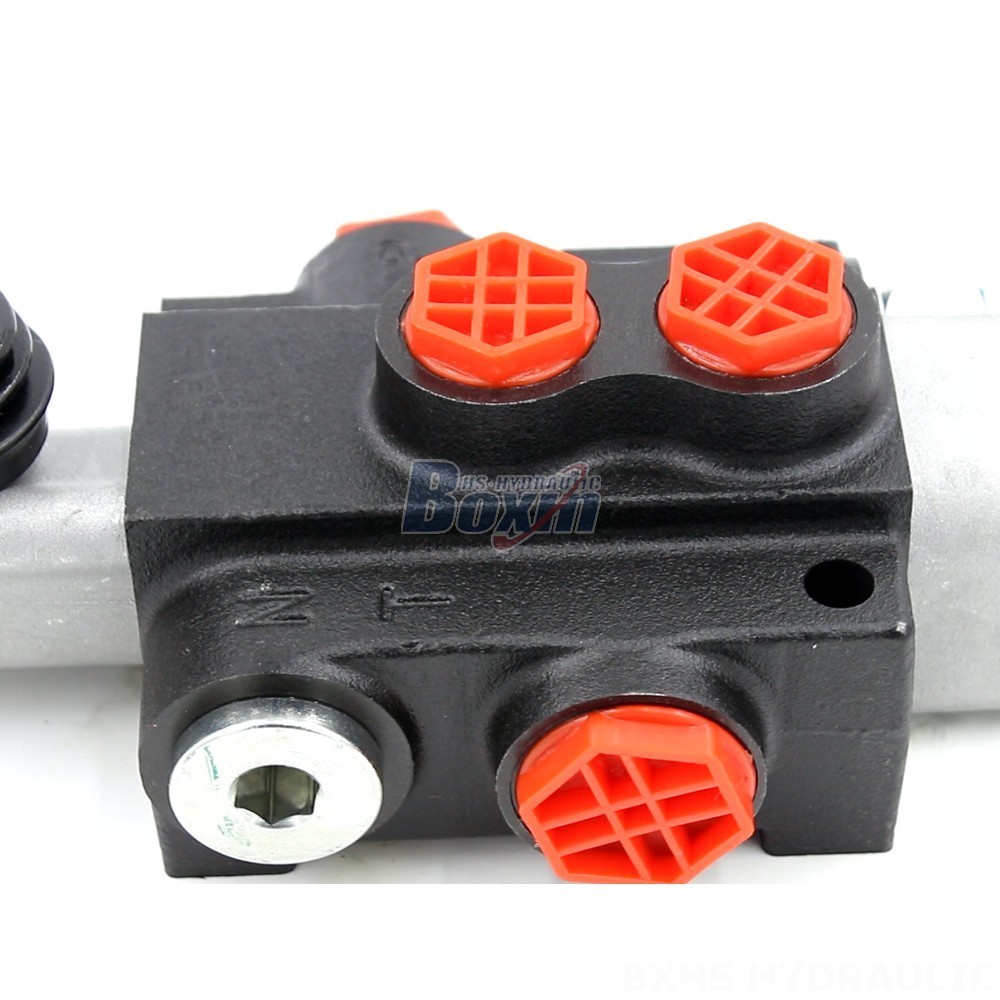

The P40-QTW1 is a reliable and efficient hydraulic flow control valve designed for a variety of applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve offers manual control and a rated flow of 40 L/min, ideal for telehandlers, forklifts, and other equipment.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-QTW1 Hydraulic Flow Control Valve is a high-performance, 1-section, monoblock valve with manual control. This valve offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its operating viscosity range spans from 15 to 75 mm²/s (15 cSt to 75 cSt), allowing for operation in various conditions. The P40-QTW1 is designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is suitable for various equipment types, such as telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders. The valve's robust design and reliable performance make it an ideal choice for demanding applications.
