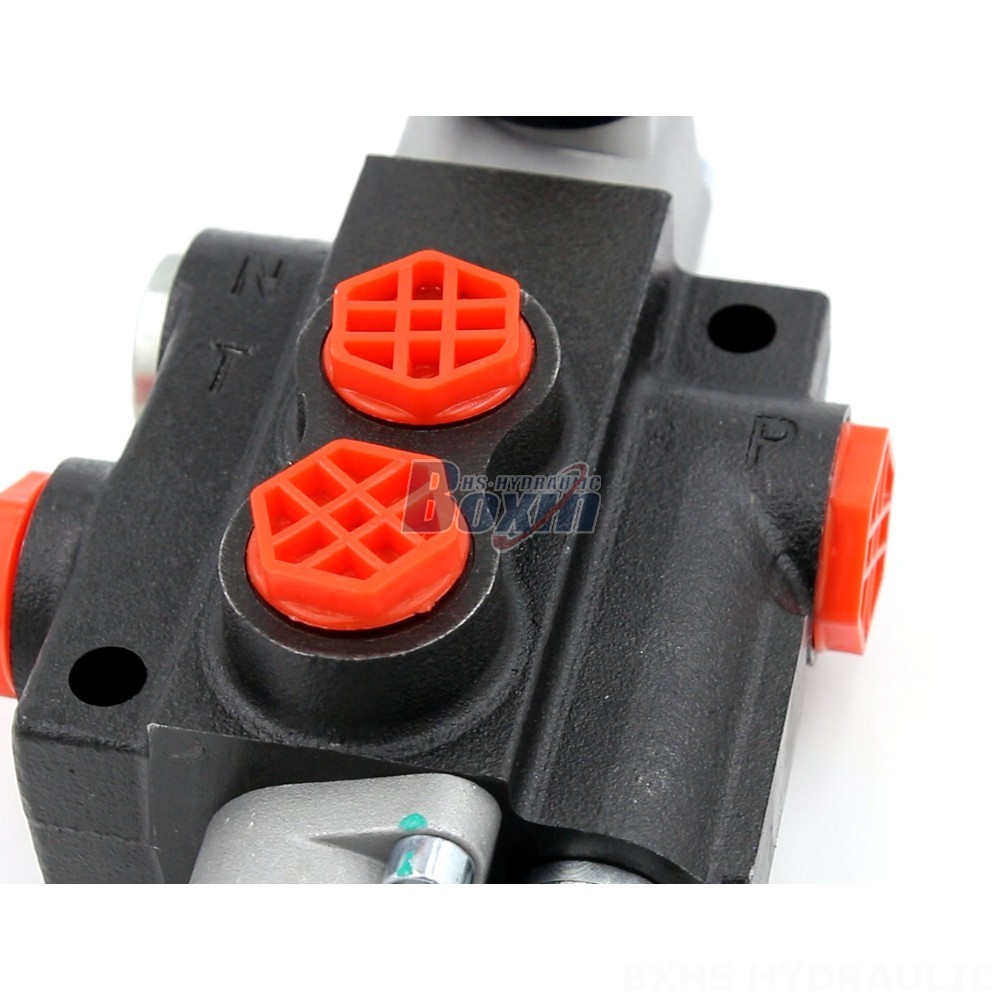

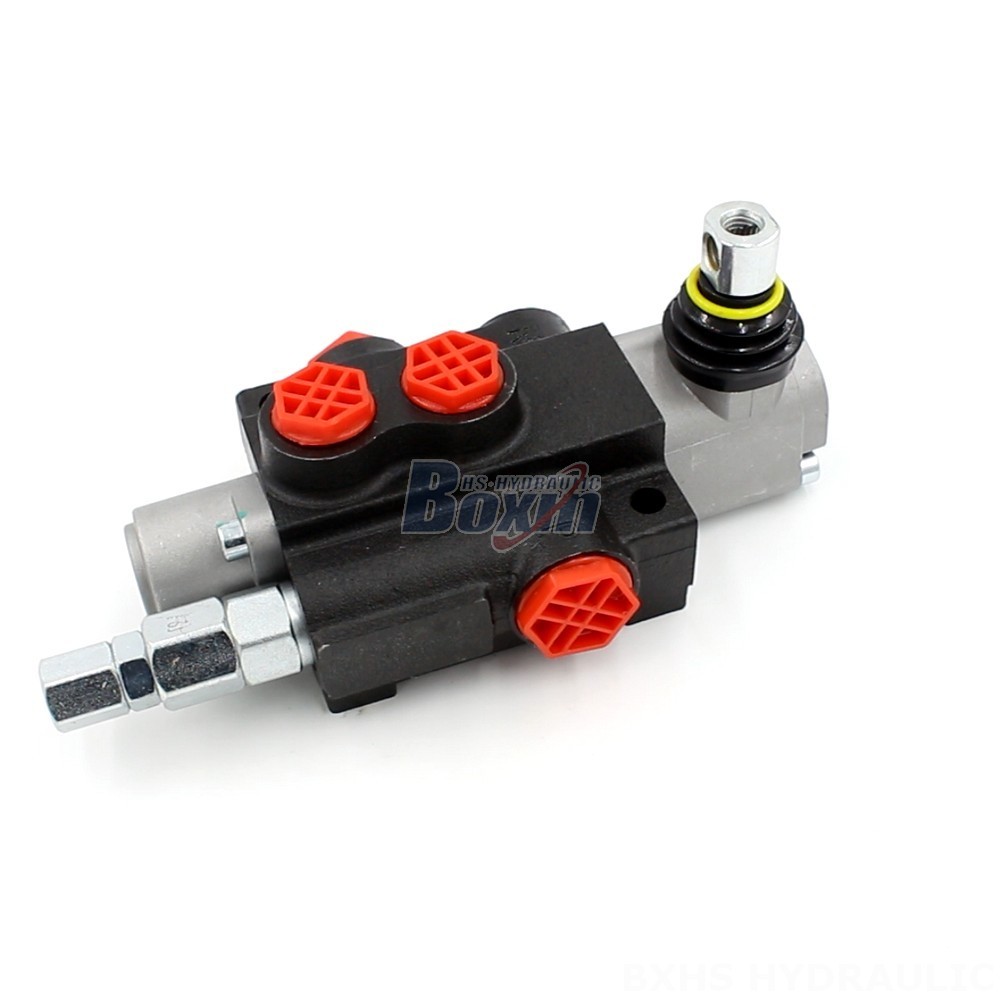

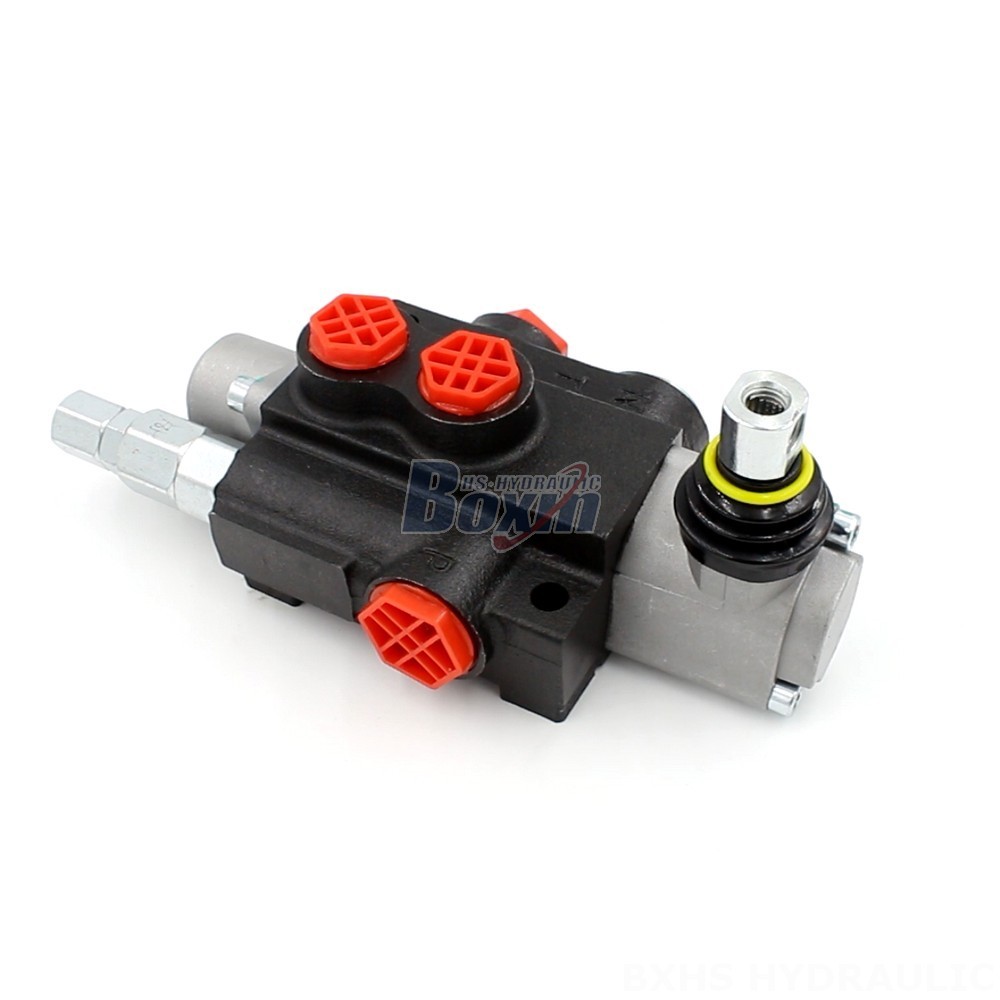

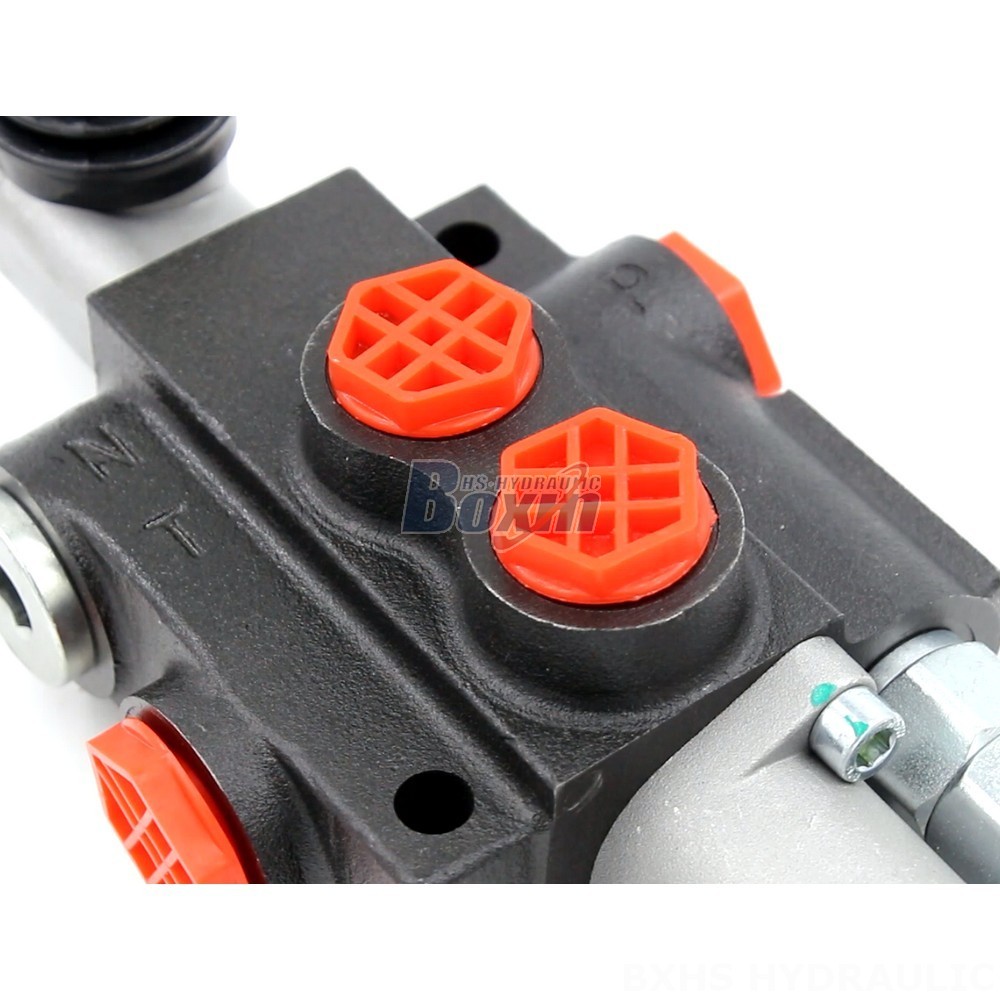

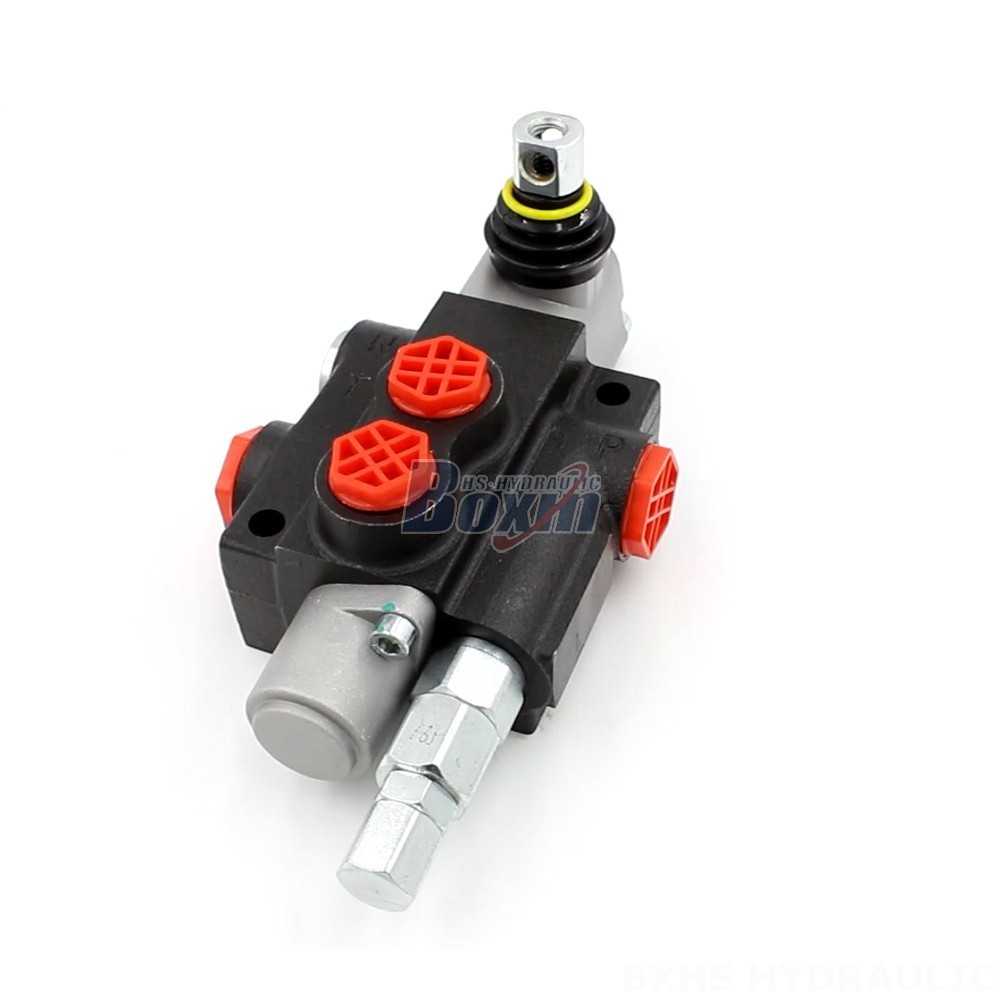

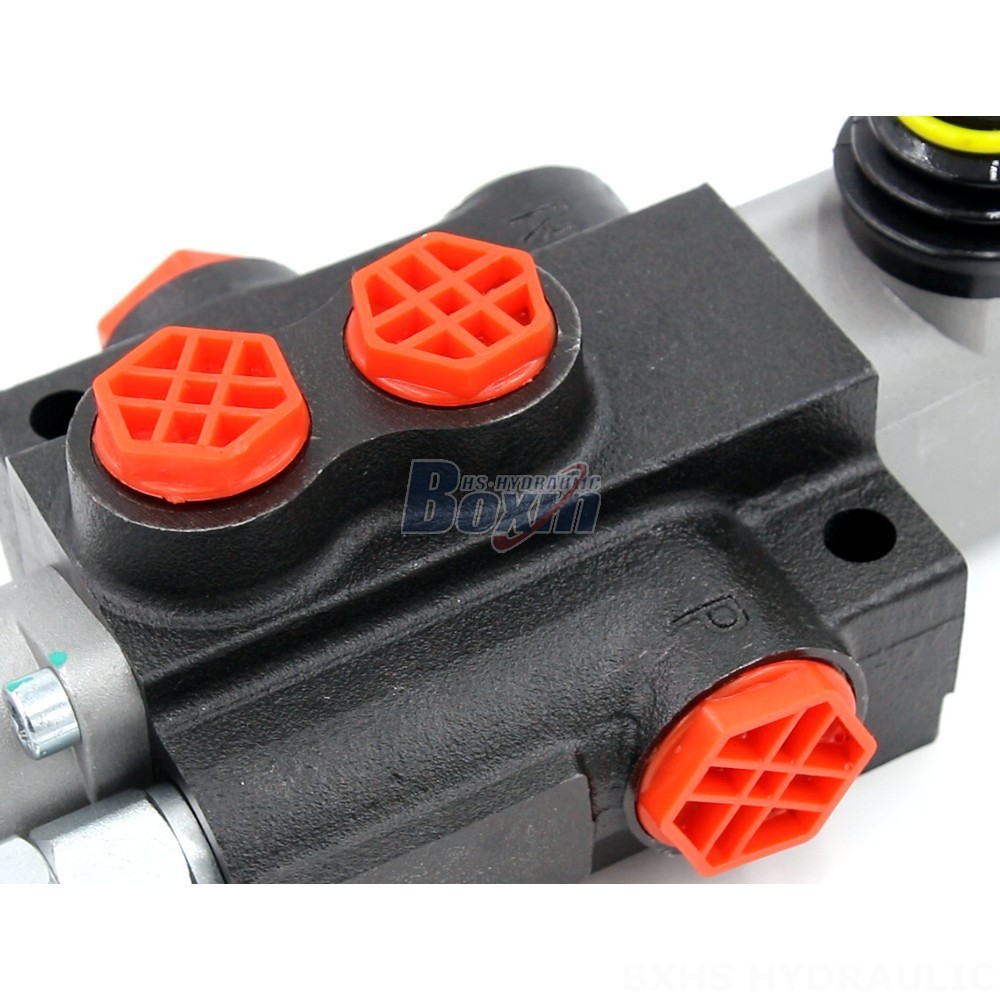

Our P40-OW Manual 1 Spool Monoblock Directional Valve is a high-performance valve designed to control fluid flow in hydraulic systems. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers excellent flow capacity and pressure handling capabilities. Its manual control mechanism provides precise and reliable flow regulation, making it ideal for various applications.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-OW Manual 1 Spool Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P40 Series
**Key Features:**
* Compact and lightweight monoblock design
* Manual control for precise flow regulation
* High flow capacity and pressure handling capabilities
* Wide operating viscosity and temperature range
* Suitable for various applications in industries such as material handling, construction, agriculture, and industrial vehicles
**Applications:**
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
This valve is part of our P40 Series of directional valves, which are known for their reliability, durability, and performance. It is backed by our commitment to quality and customer satisfaction, ensuring you receive a product that meets your expectations.
