P40 Manual 3 Spool Monoblock Directional Valve

Steuermethode:Manuell

Steuerkolben:3 Spulen

Nennfluss:40 l/min (10,5 US gal/min)

Maximaldruck:250 bar (3600 psi)

Einlassanschluss:G1/2

Auslassanschluss:G1/2

Anschlussgröße:G3/8

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:P40-Serie Monoblock-Wegeventil

Verpackungsgröße:23*20*12

Bruttogewicht:6.60 kg

Verfügbarkeit: Auf Lager

2495 Personen sehen sich dieses Produkt an

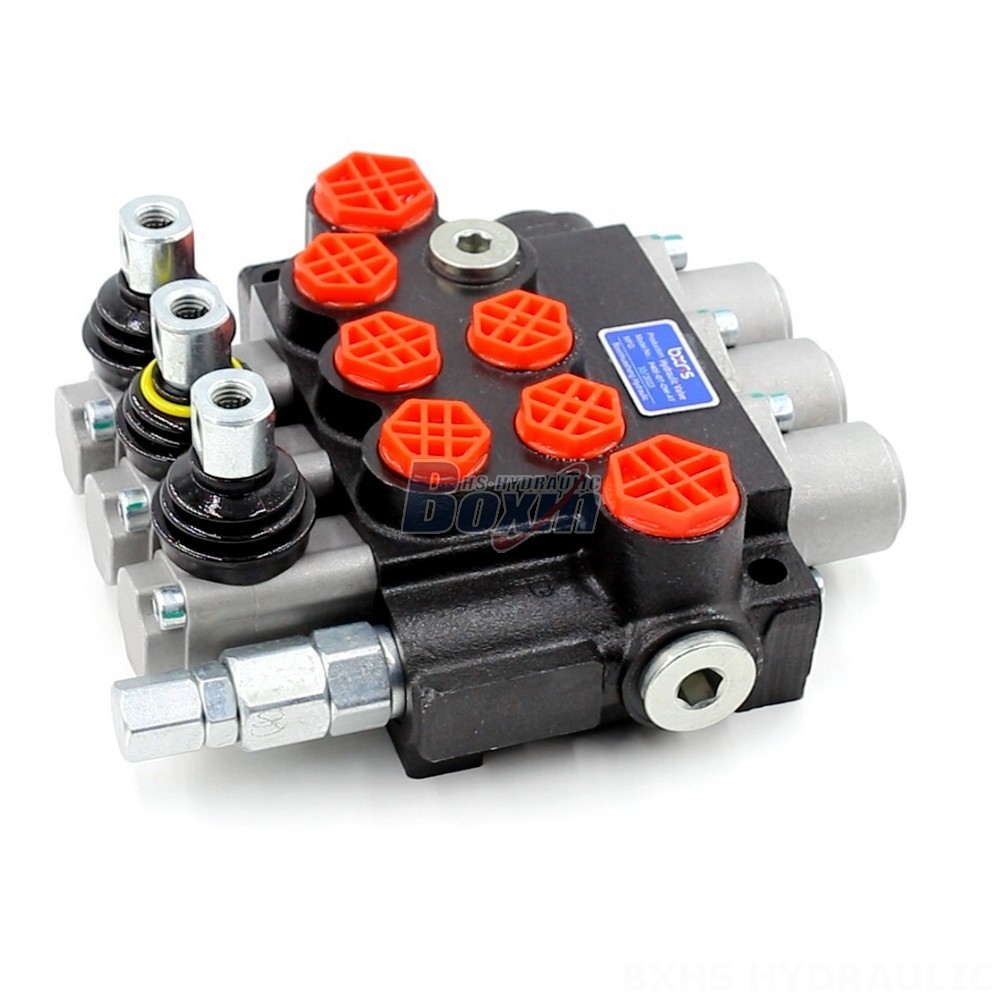

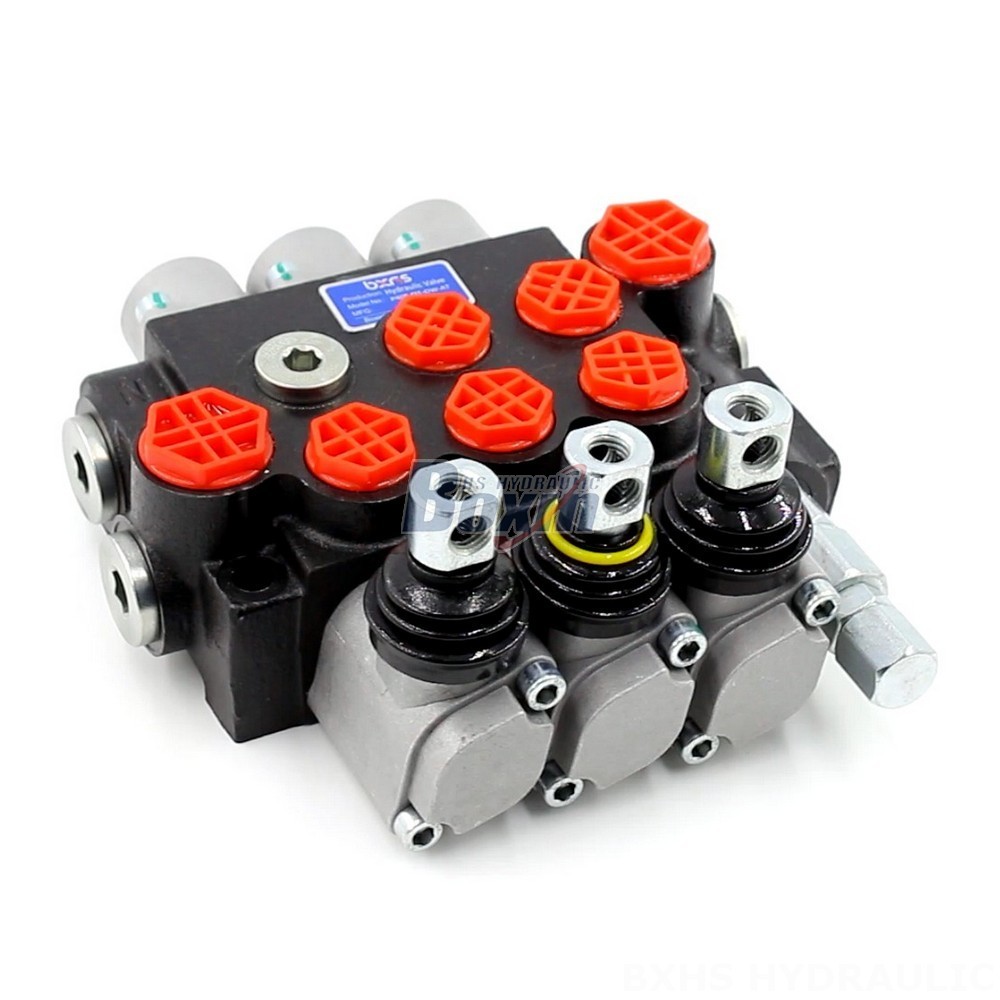

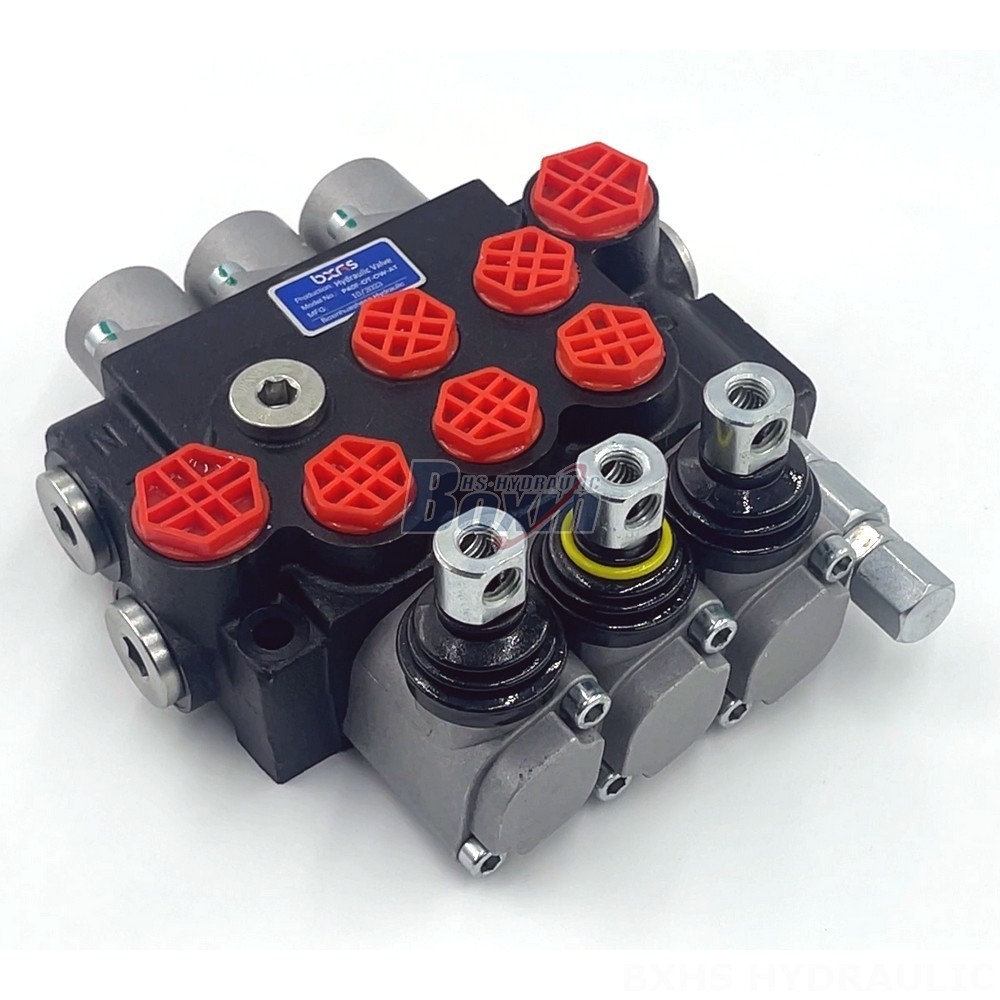

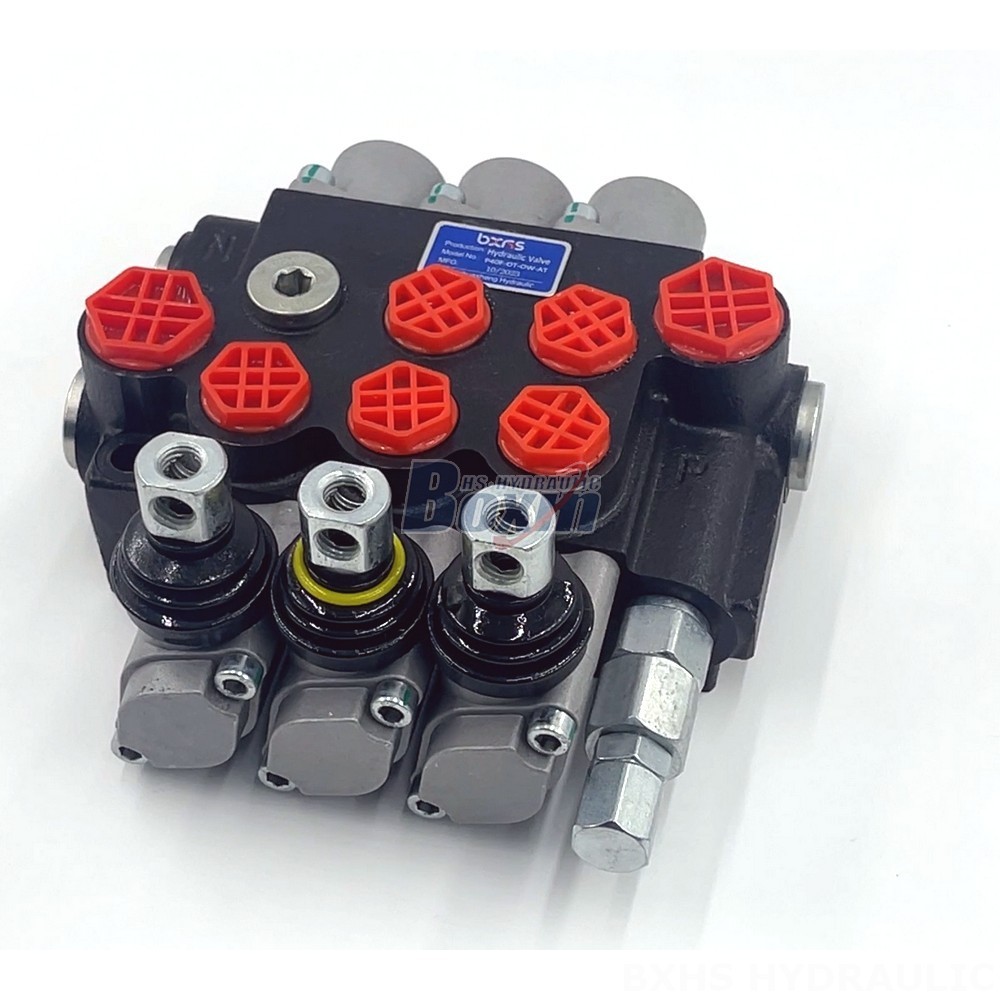

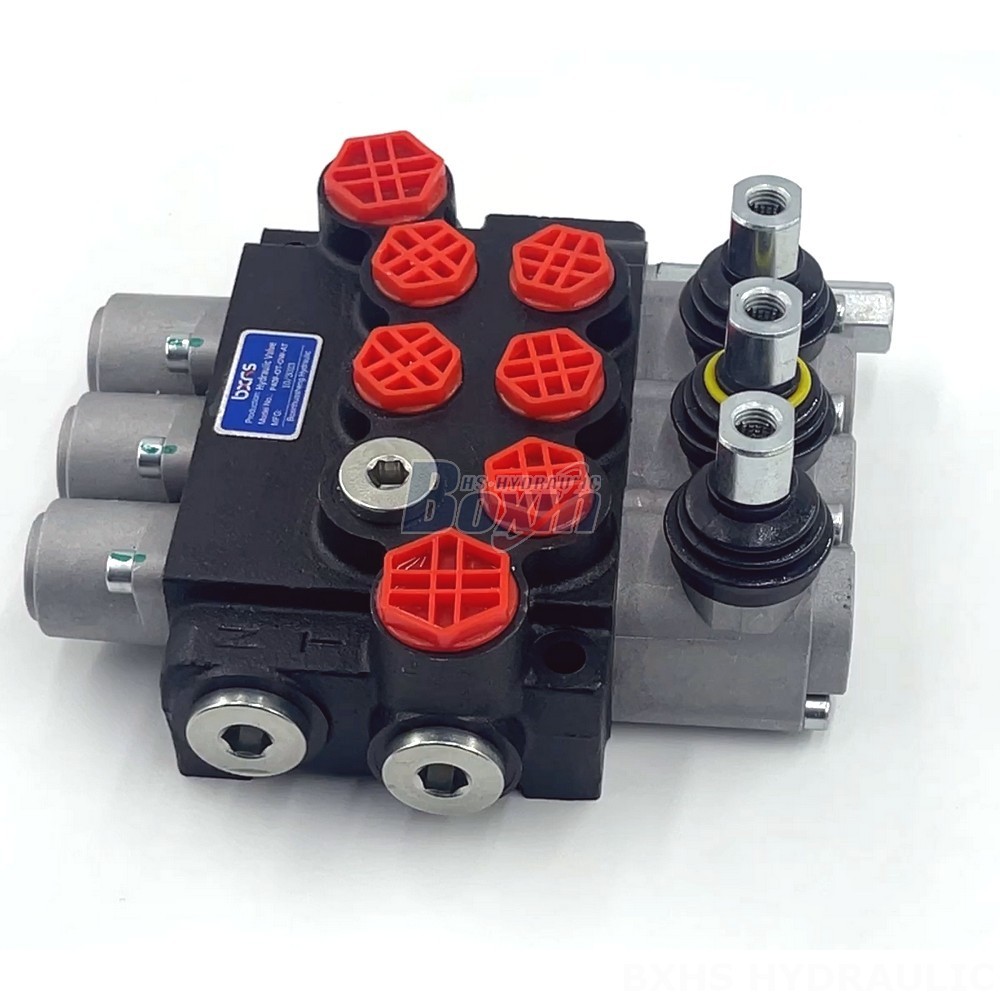

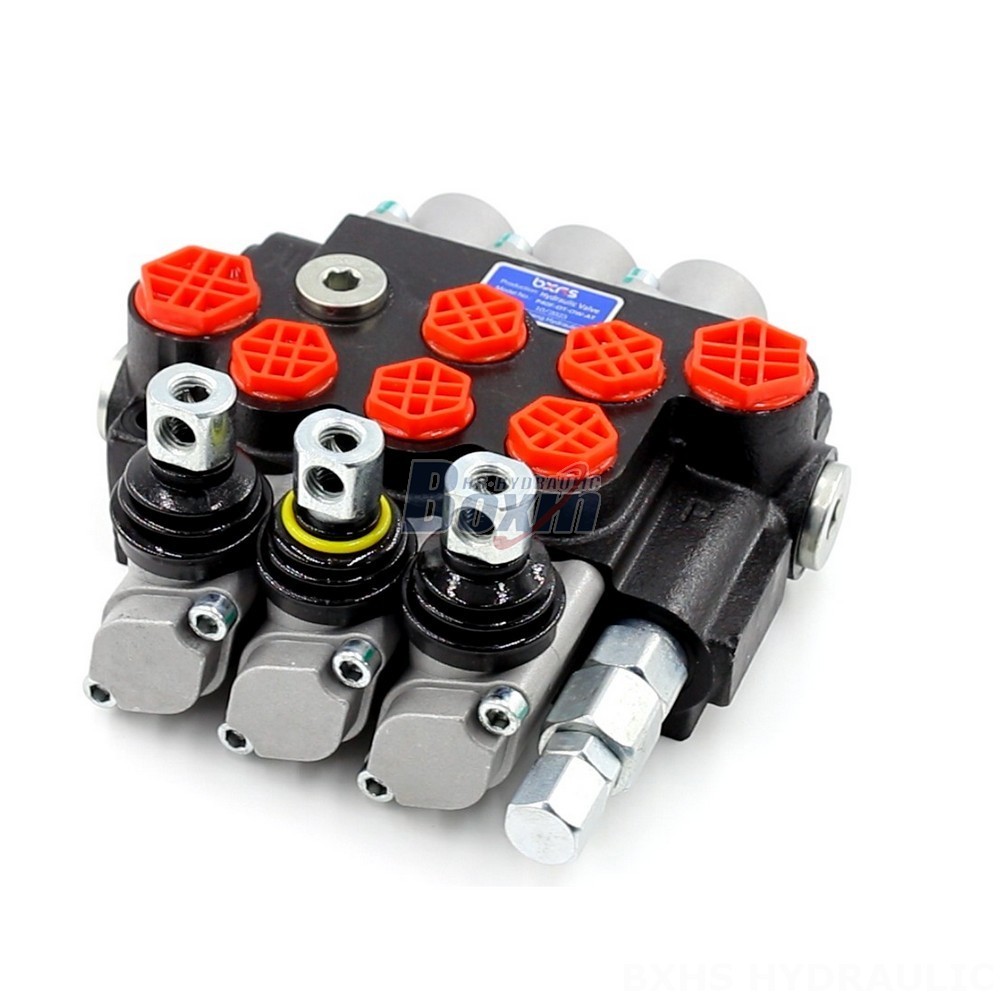

P40 Manual 3 Spool Monoblock Directional Valve

P40 Manual 3 Spool Monoblock Directional Valve

P40 Manual 3 Spool Monoblock Directional Valve drawing image

The P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve designed for use in construction equipment, material handling, agriculture, and industrial vehicles. It features a compact design and high flow rate, making it ideal for a wide range of applications.

P40-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Strukturtyp Monoblockventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)
Nennfluss 40 l/min (10,5 US gal/min)
Maximaldruck 250 bar (3600 psi)
Einlassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Auslassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Anschlussgröße G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve that offers reliable and precise control of hydraulic fluid flow. It is designed for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. This valve features a compact design and high flow rate, making it ideal for demanding applications. The valve is also equipped with a manual control lever for easy operation. Key features include a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 250 bar (3600 psi), an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
