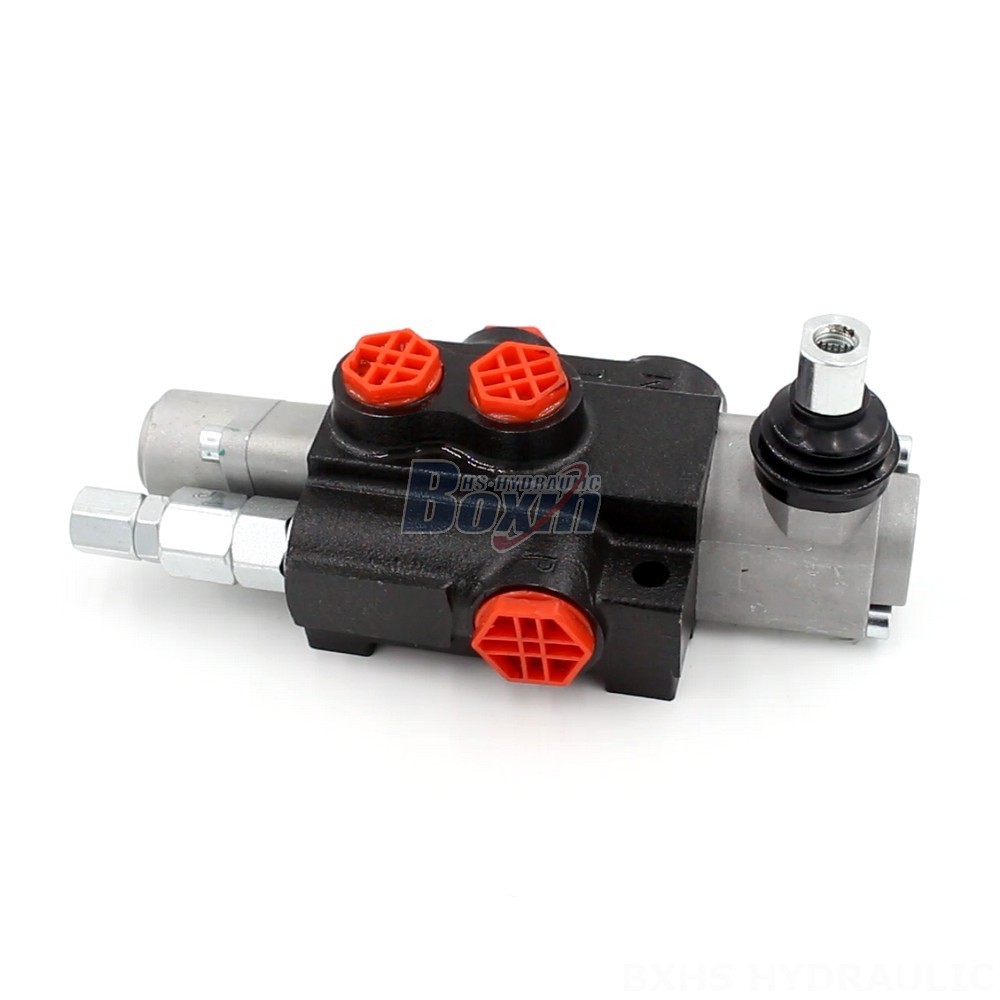

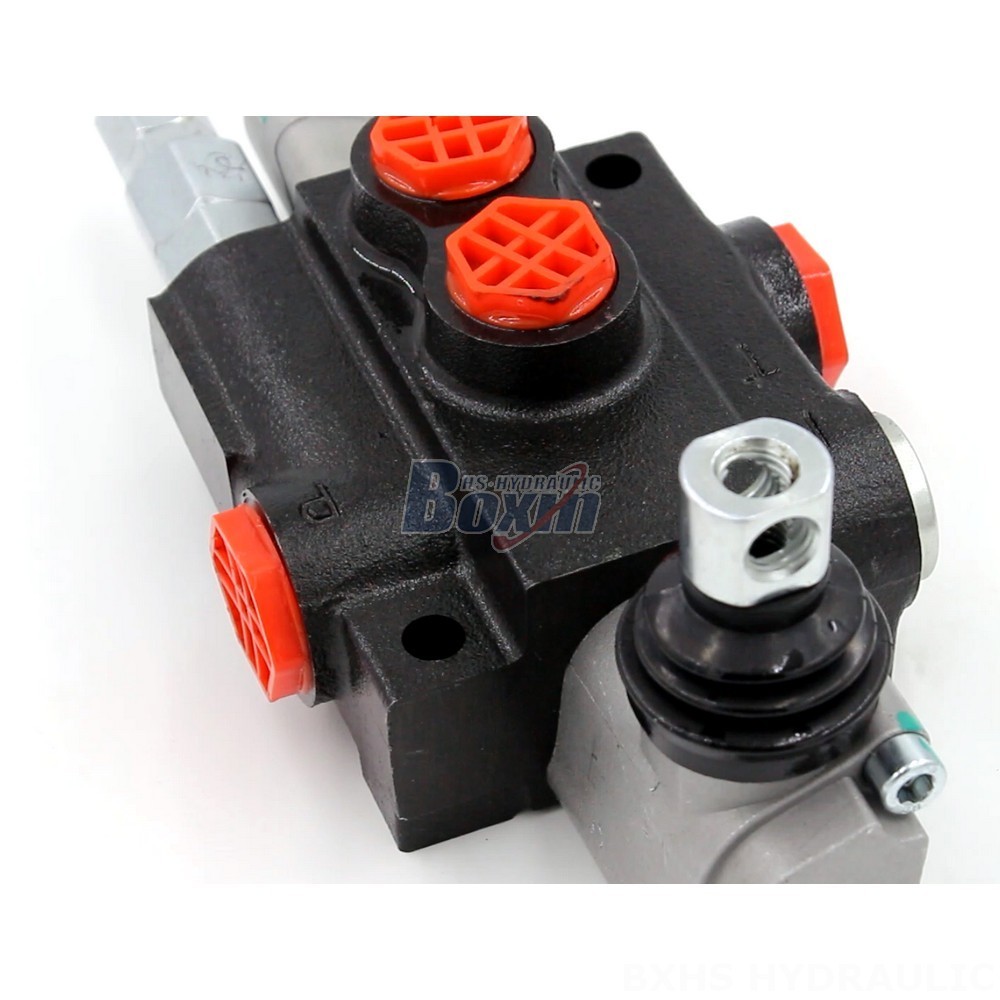

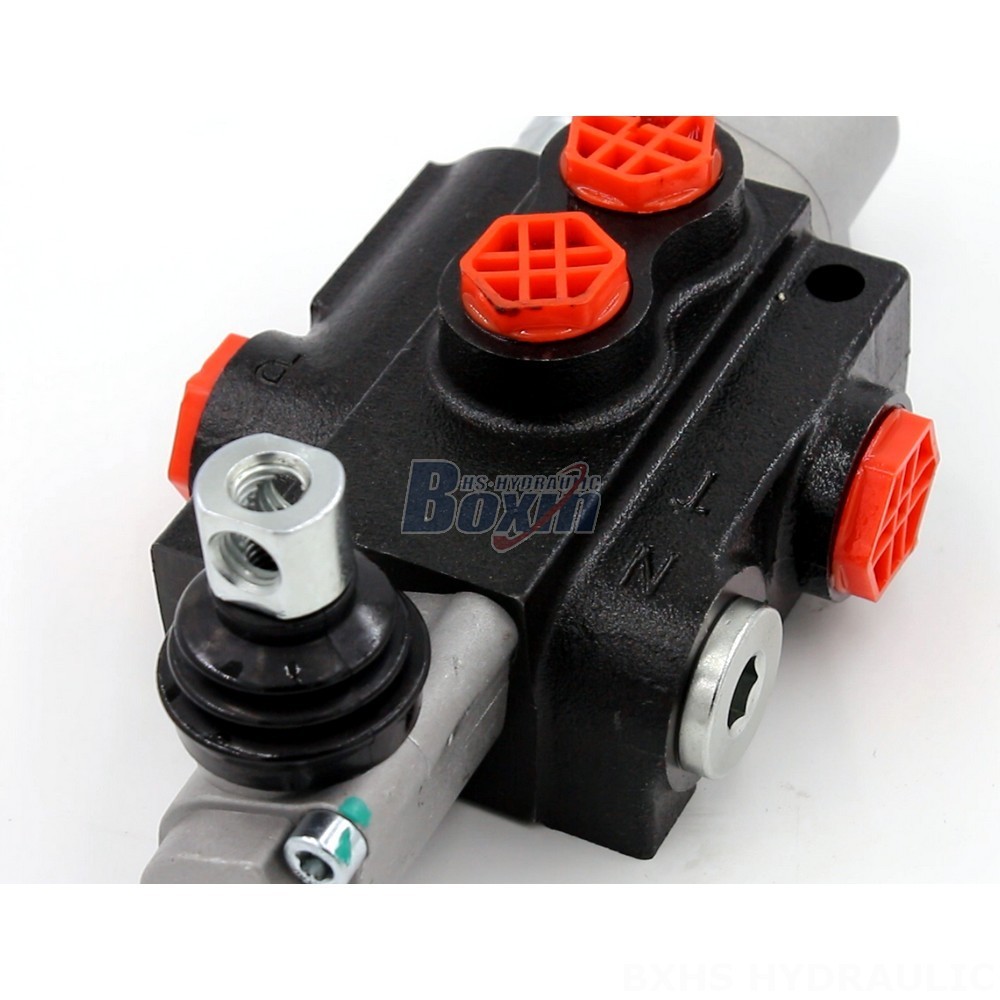

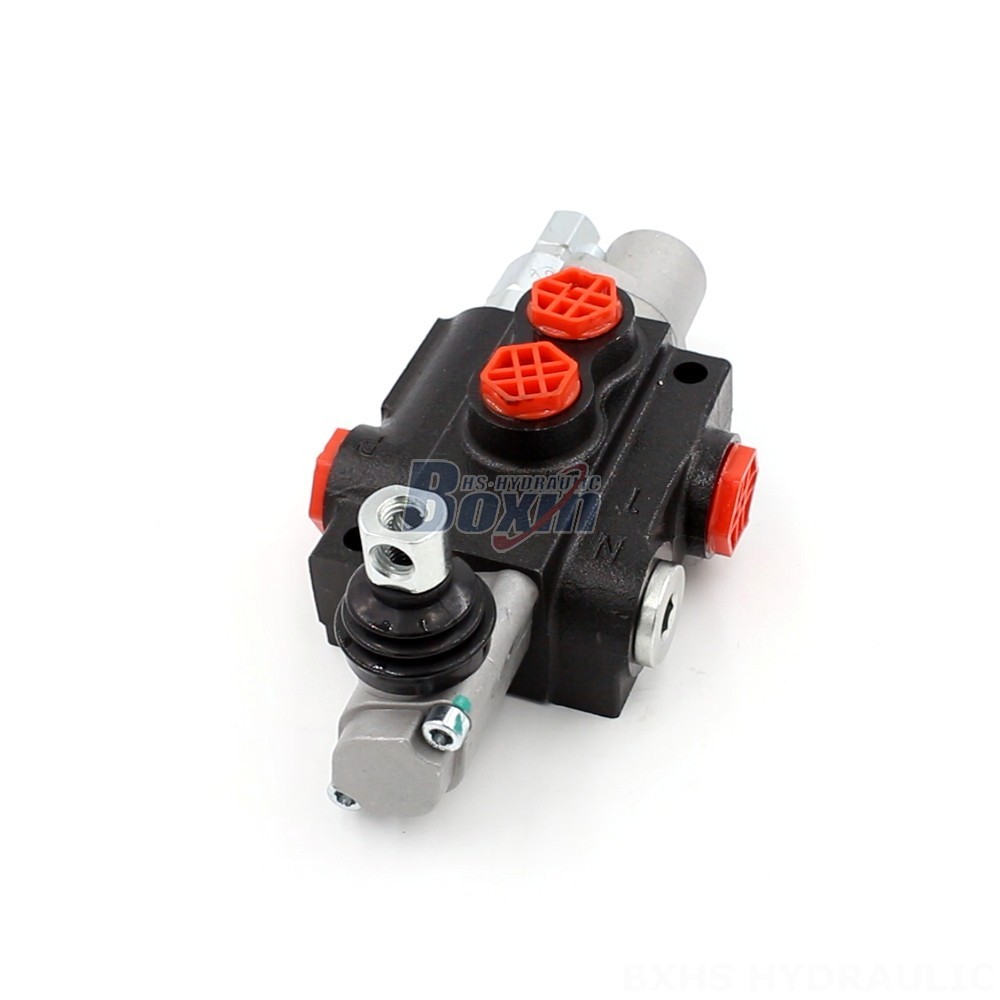

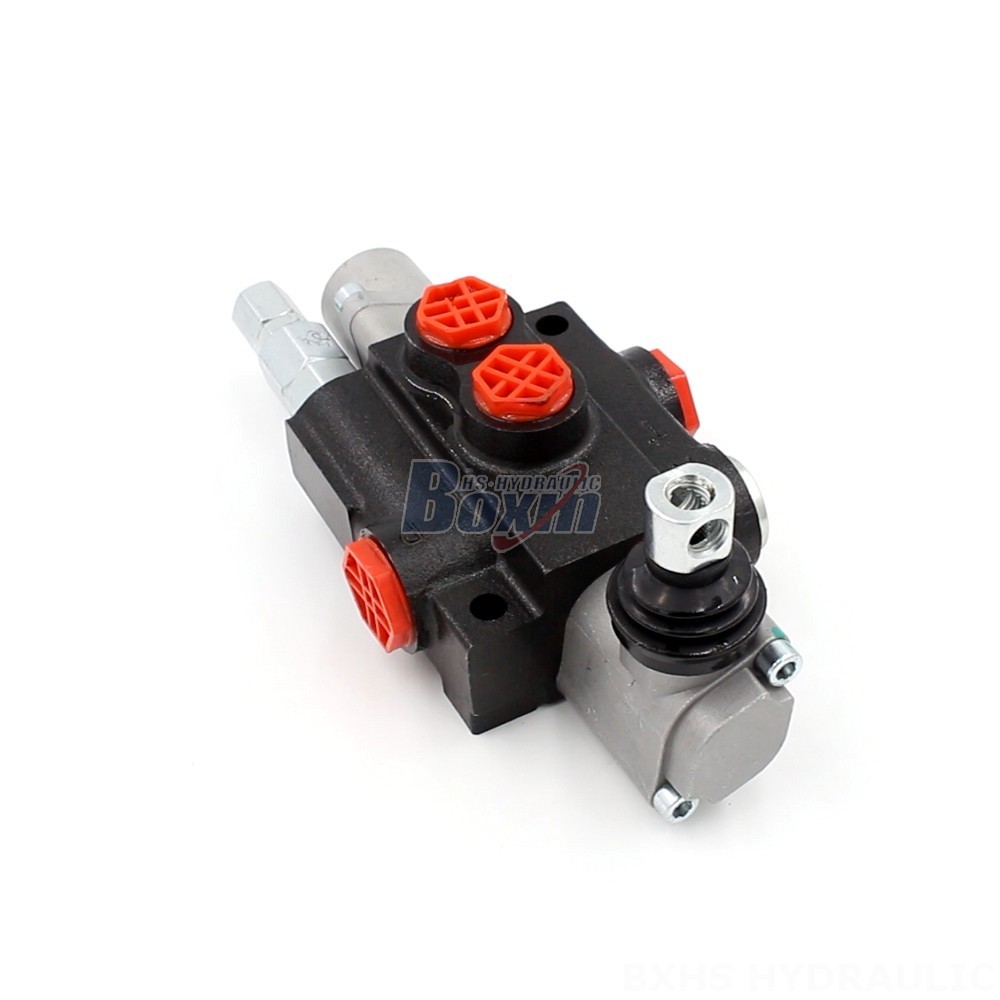

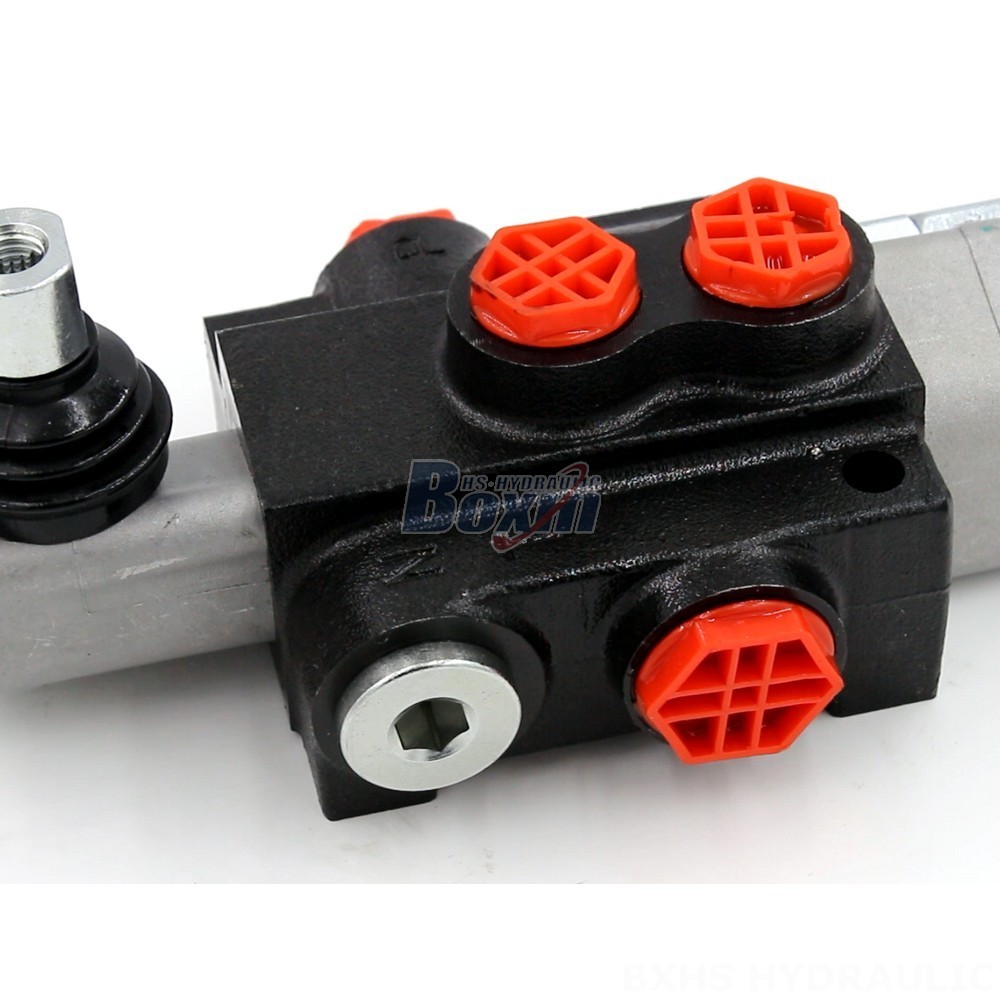

The P40-G38-OT is a manually operated, monoblock directional valve designed for a wide range of industrial applications, including construction, material handling, agriculture, and industrial vehicles. It features a flow rate of 40 L/min, a maximum pressure of 250 bar, and a temperature range of -40°C to +80°C.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G38-OT is a versatile directional valve that offers precise control and reliability in demanding hydraulic systems. Its key features include:
* **Manual Operation:** Allows for direct and intuitive control of fluid flow.
* **Monoblock Construction:** Provides a compact and robust design, ensuring durability and leak-free performance.
* **High Flow Rate:** Delivers up to 40 L/min of flow, suitable for a variety of applications.
* **High Pressure Rating:** Withstands pressures up to 250 bar, making it ideal for heavy-duty applications.
* **Wide Temperature Range:** Operates effectively in temperatures ranging from -40°C to +80°C, ensuring performance in diverse environments.
* **Single Spool Design:** Offers simple and efficient flow control with a single spool.
* **Versatile Applications:** Suitable for a range of industrial applications, including construction, material handling, agriculture, and industrial vehicles.
