Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

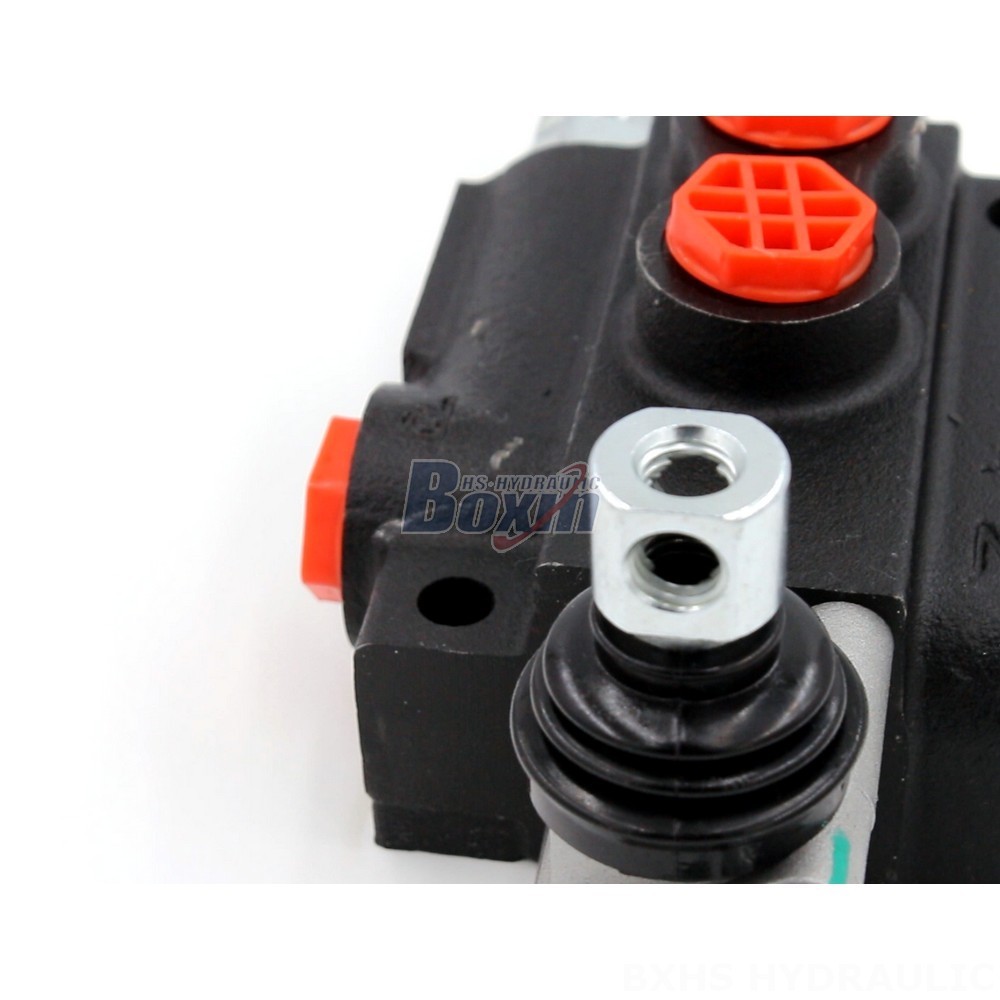

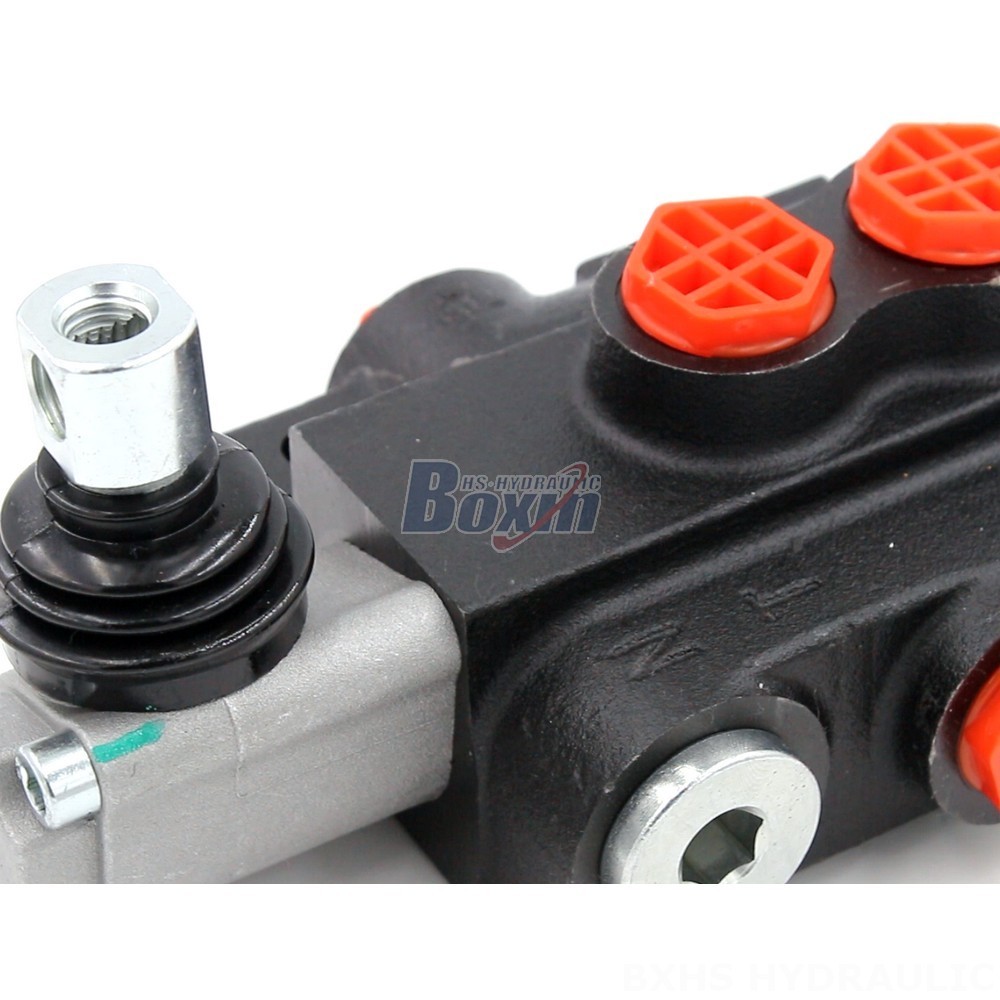

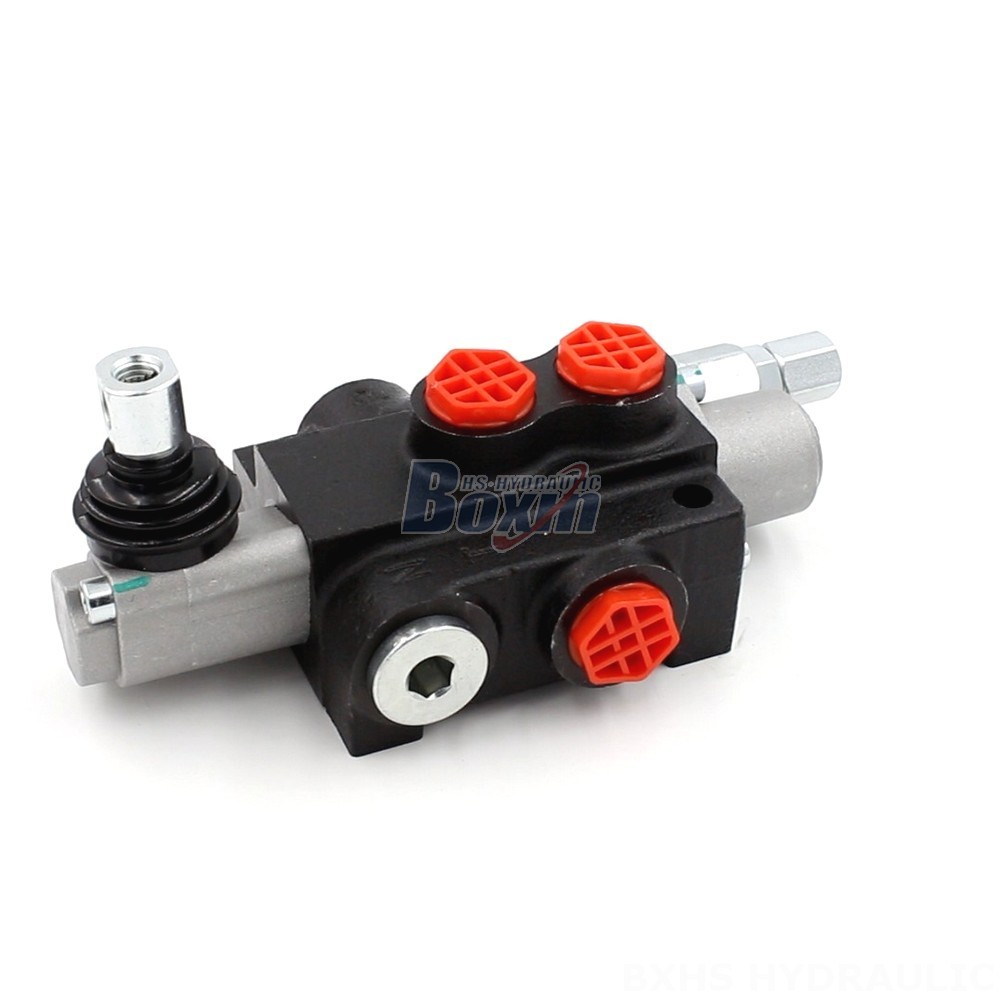

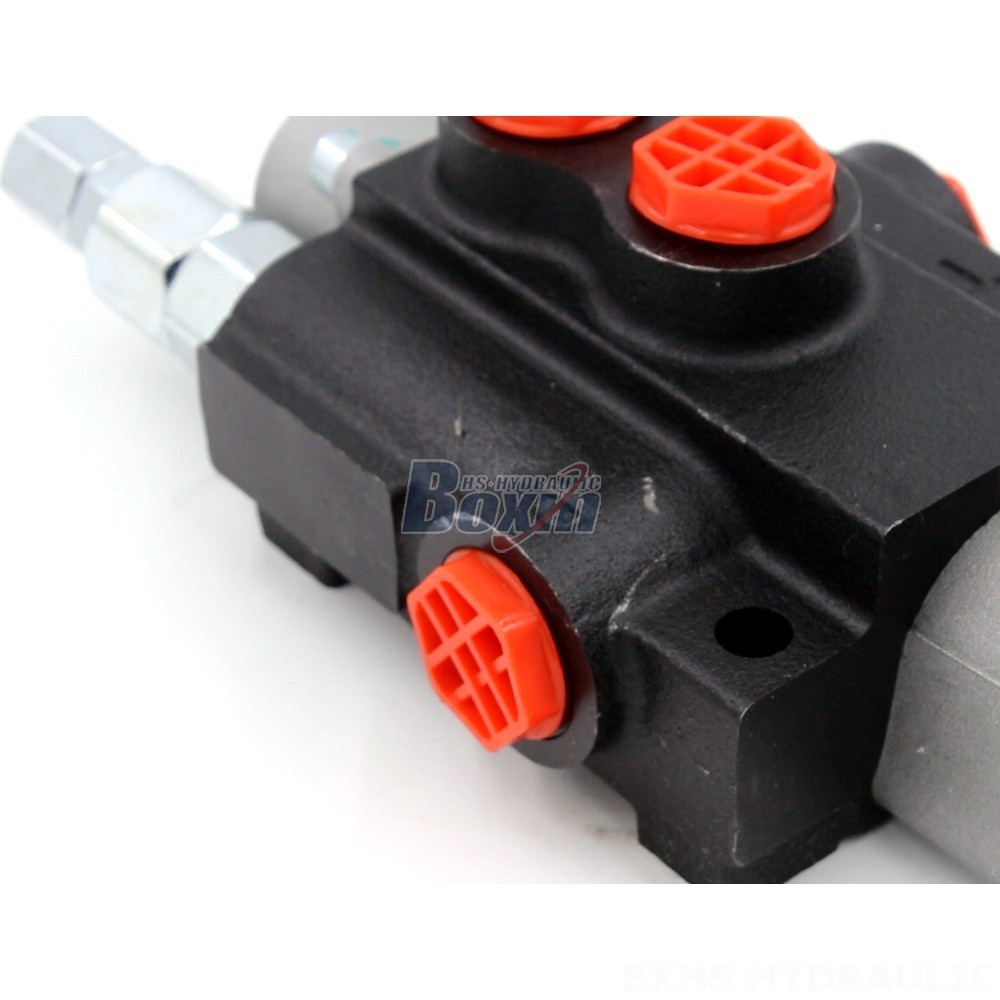

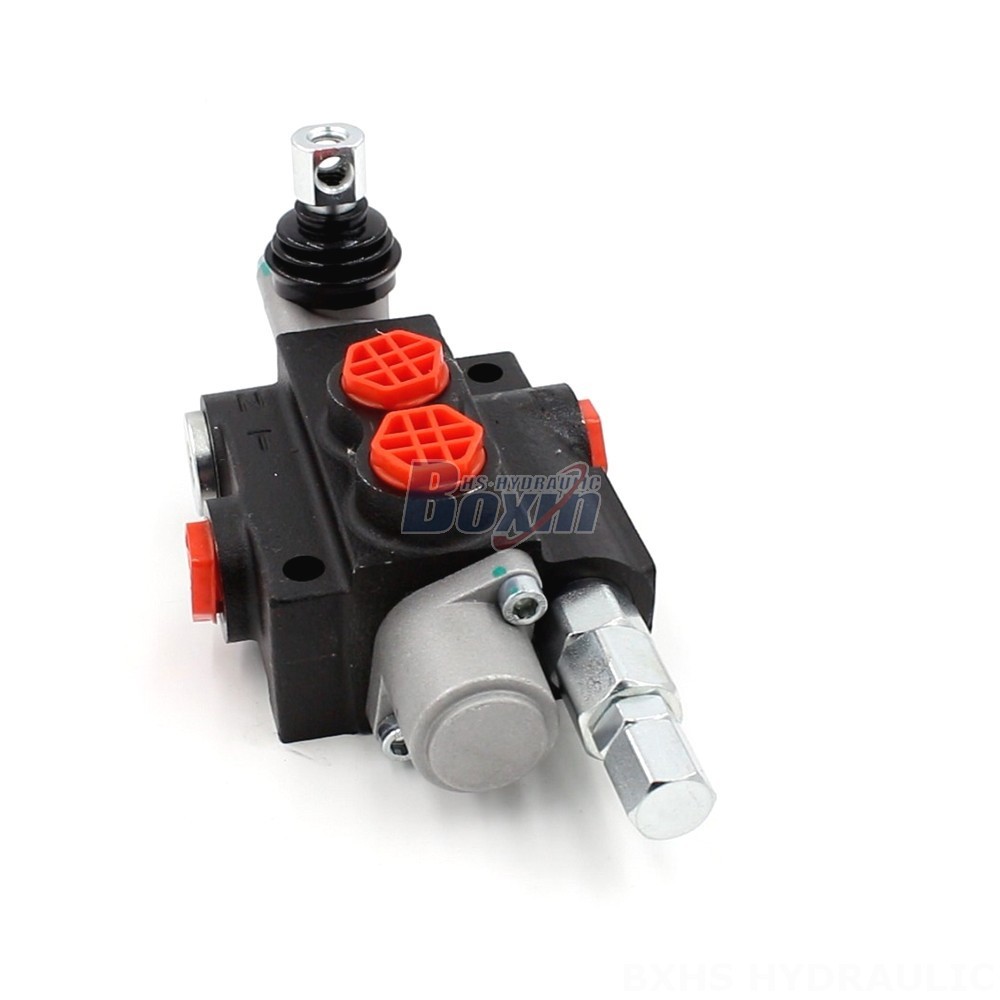

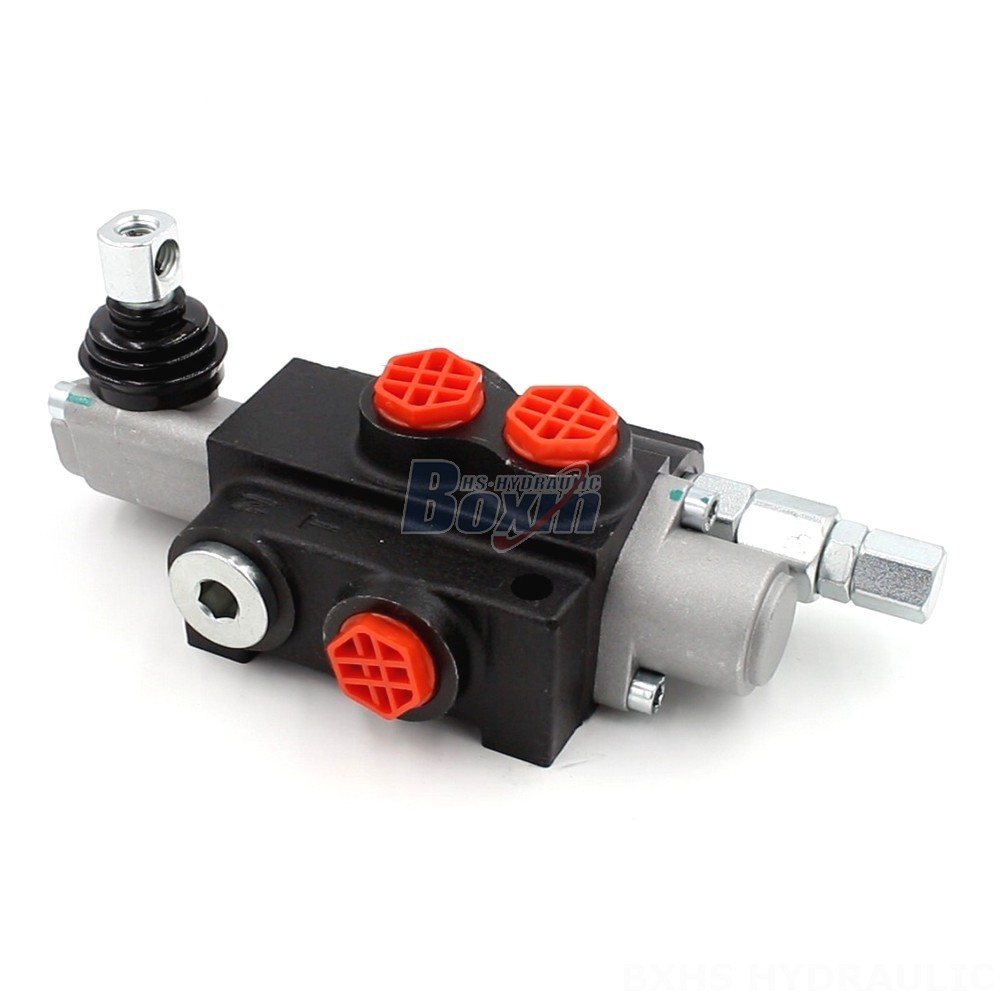

The P40-G38 6 Port Hydraulic Valve is a high-performance, manual, monoblock valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This valve features a rated flow of 40 L/min and a maximum pressure of 250 bar.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G38 6 Port Hydraulic Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. This manual, monoblock valve provides superior performance with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its robust design ensures durability and long-lasting operation in demanding environments. The valve is suitable for operating viscosities between 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its compact and versatile design makes it ideal for use in various machines, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This advanced hydraulic valve offers reliable control and precision, enhancing the overall performance of your equipment.
