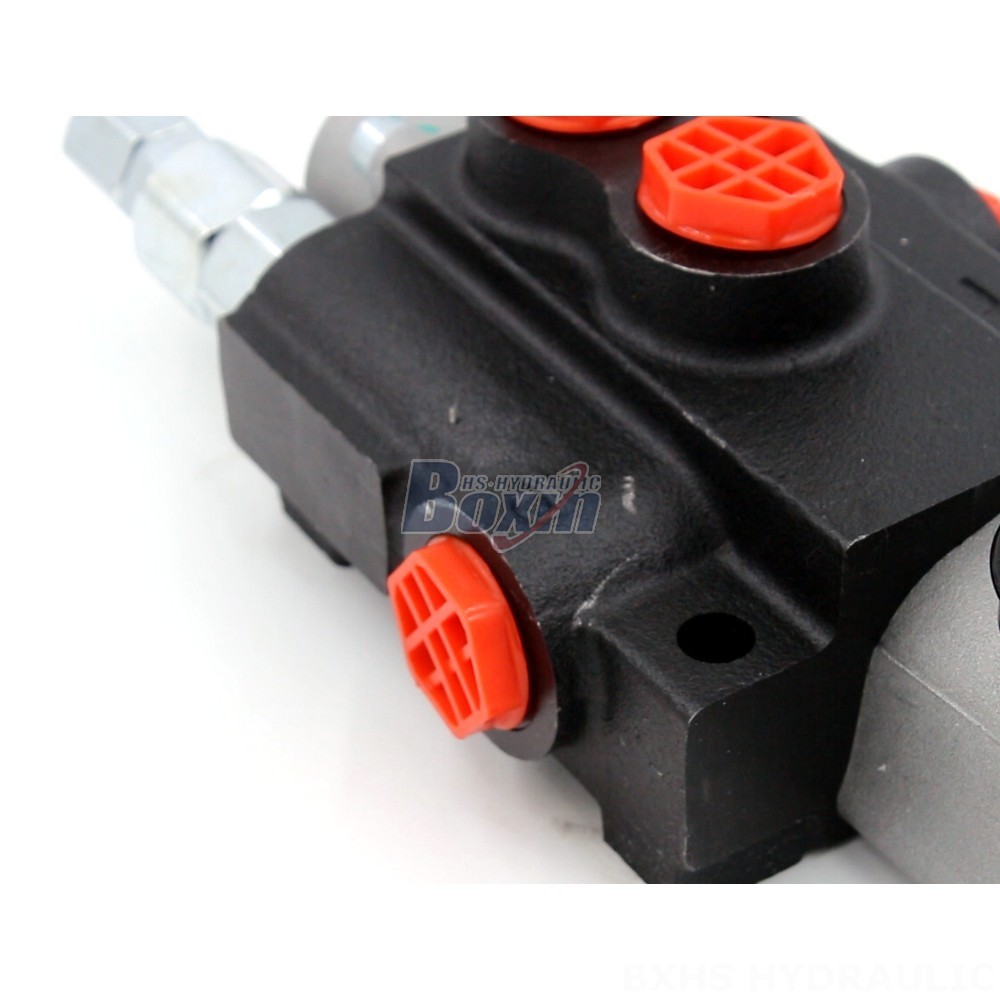

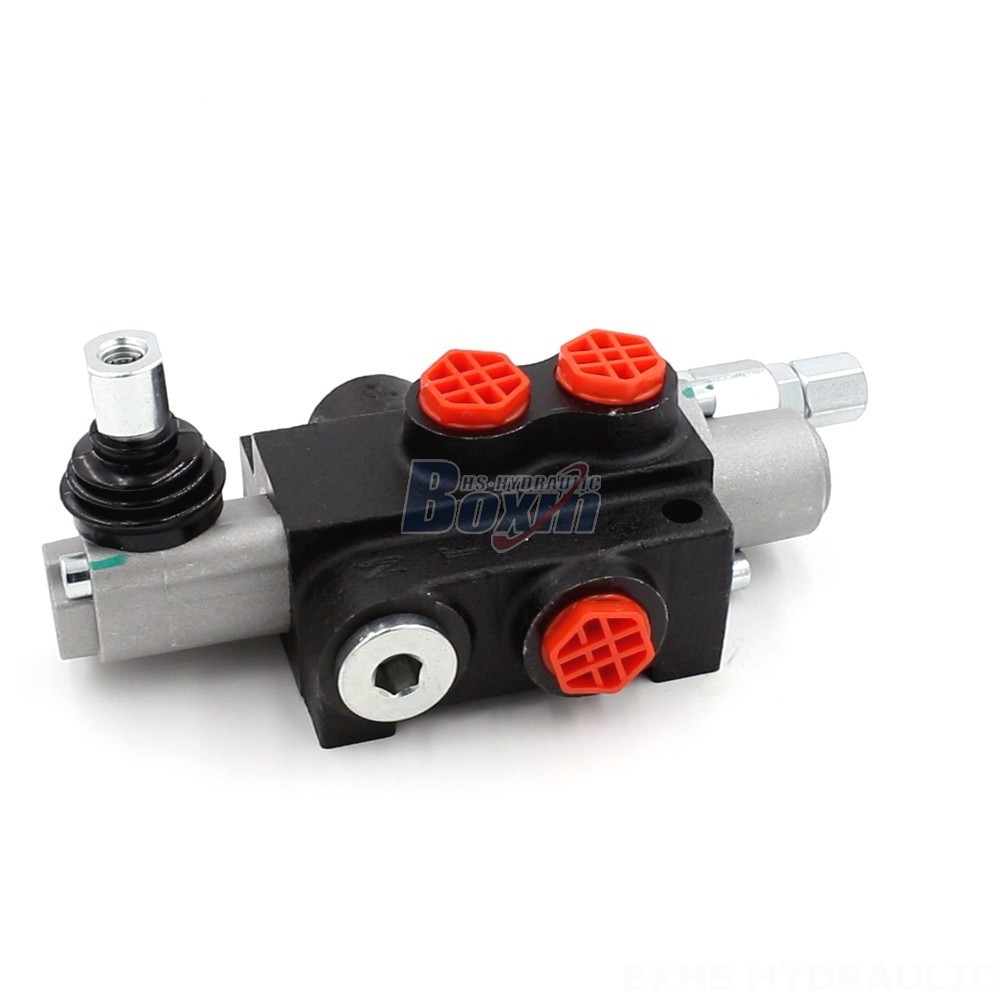

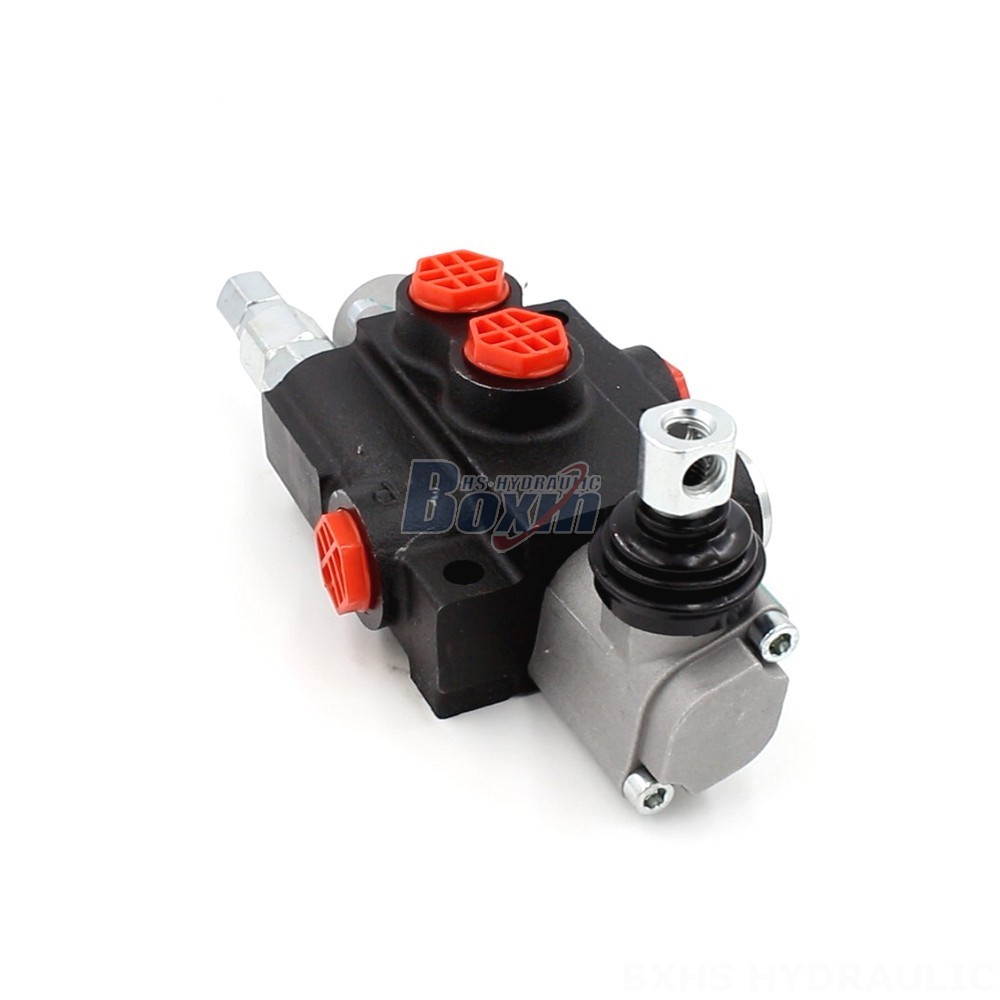

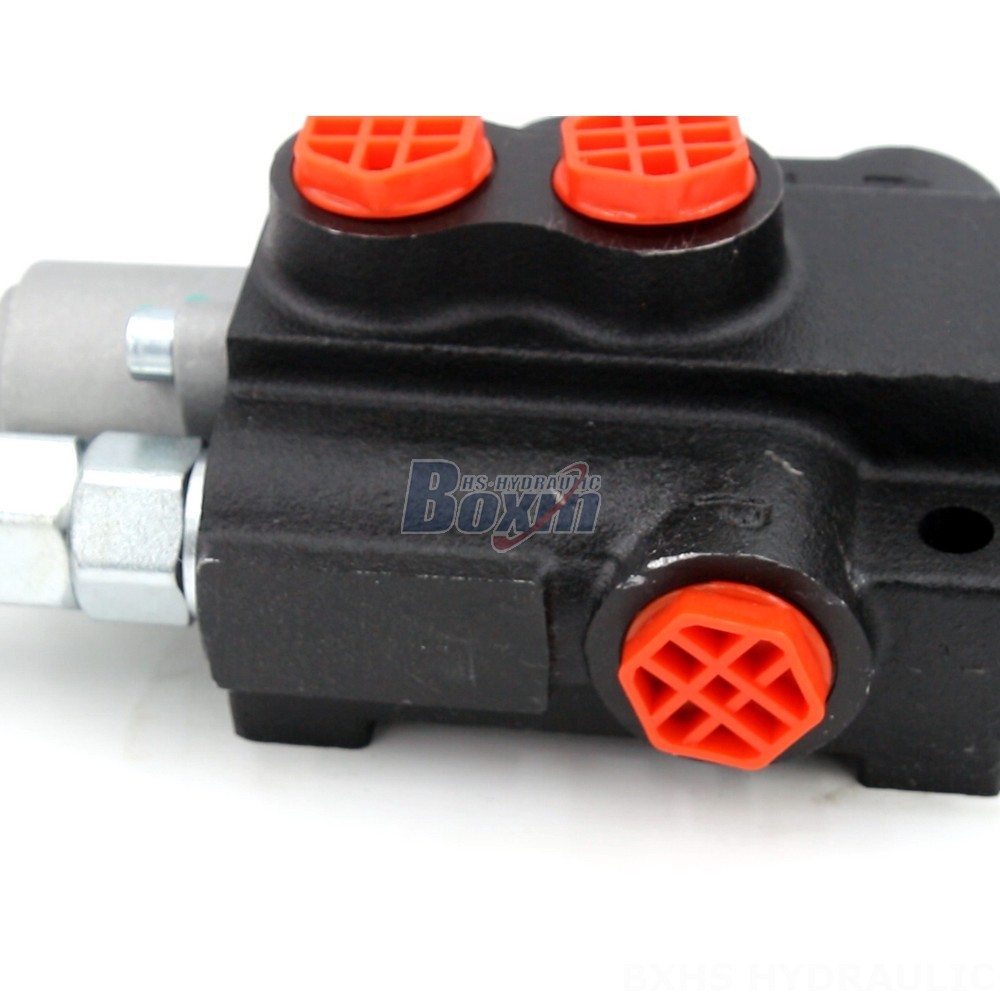

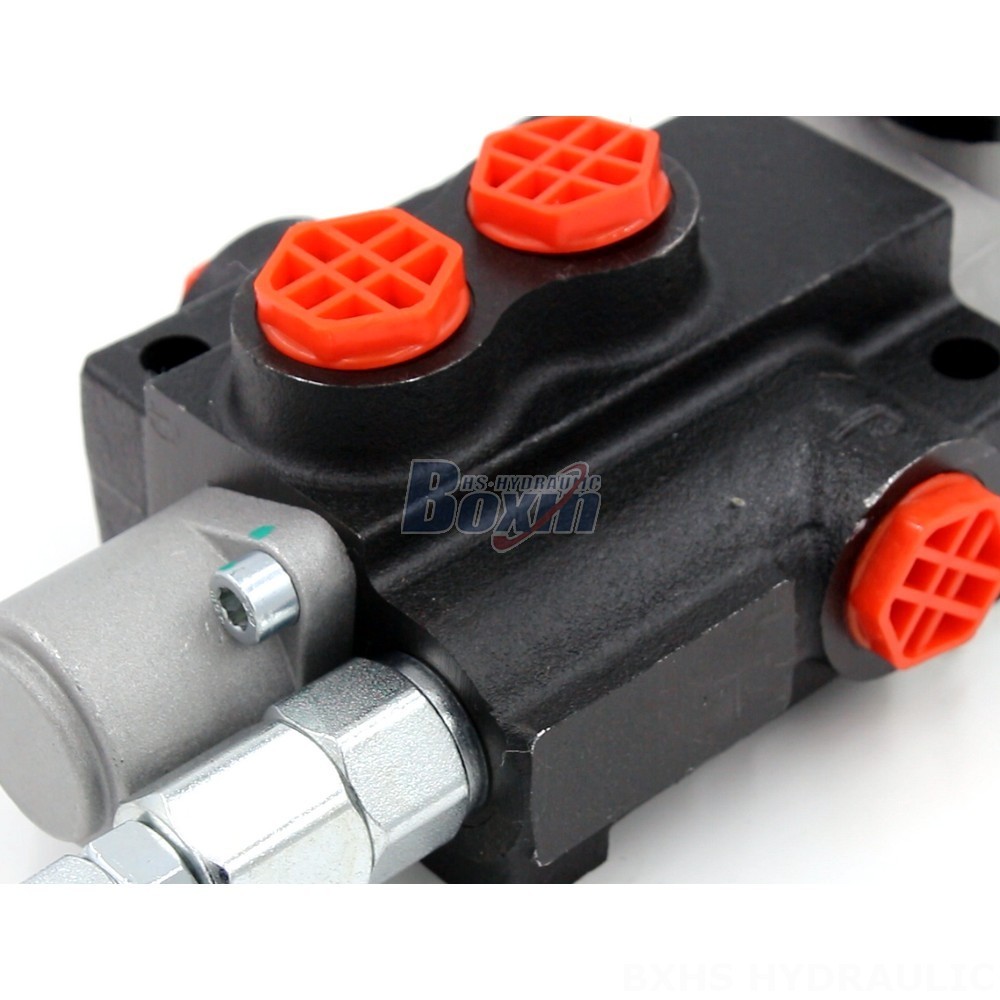

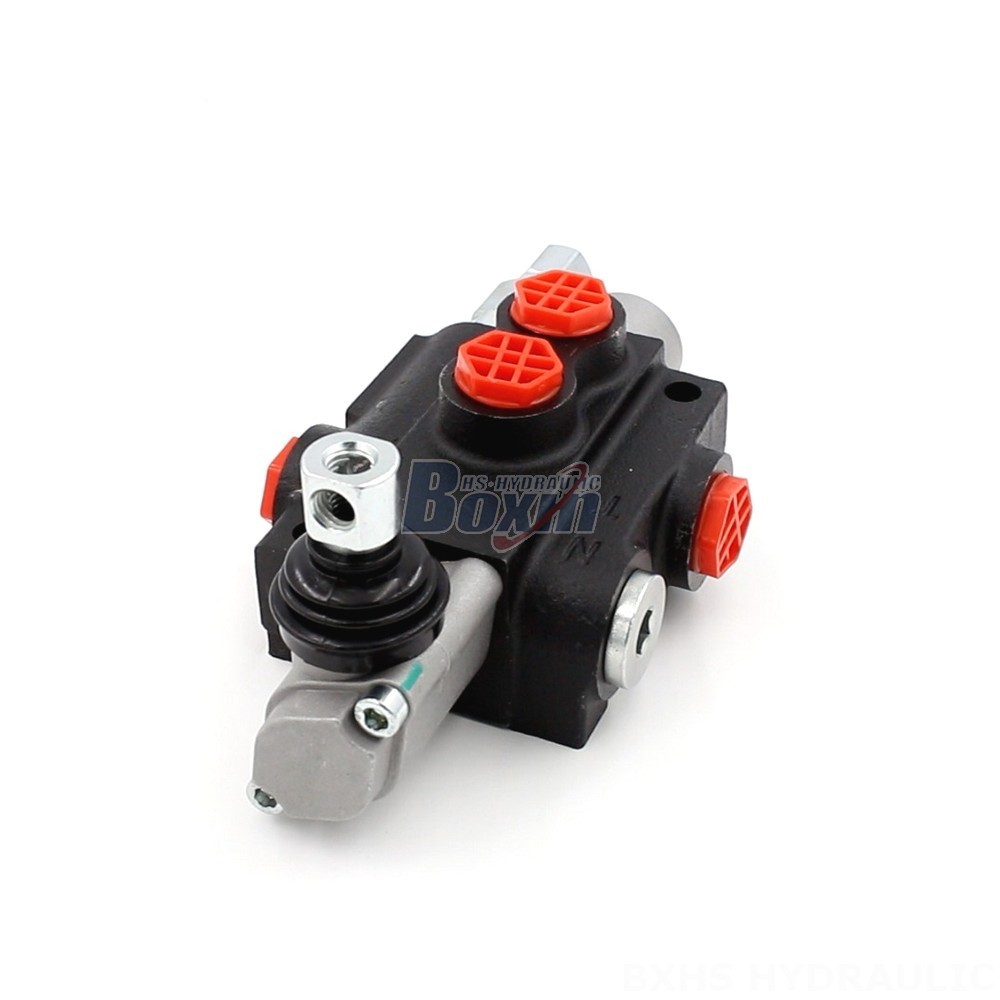

The Hydraulic Flow Divider P40-G38 Directional Valve is a reliable and efficient solution for controlling hydraulic flow in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This manual control valve features a monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 250 bar, making it suitable for telehandlers, forklifts, cranes, stackers, aerial platforms, and more.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G38 Directional Valve is a 1-section monoblock valve designed for manual control of hydraulic flow. It features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve is compatible with operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its 1-spool design ensures precise control of hydraulic flow, while its robust construction ensures long-lasting performance. The P40-G38 Directional Valve is an ideal choice for a variety of applications, including material handling, construction, agriculture, and industrial vehicles, such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
