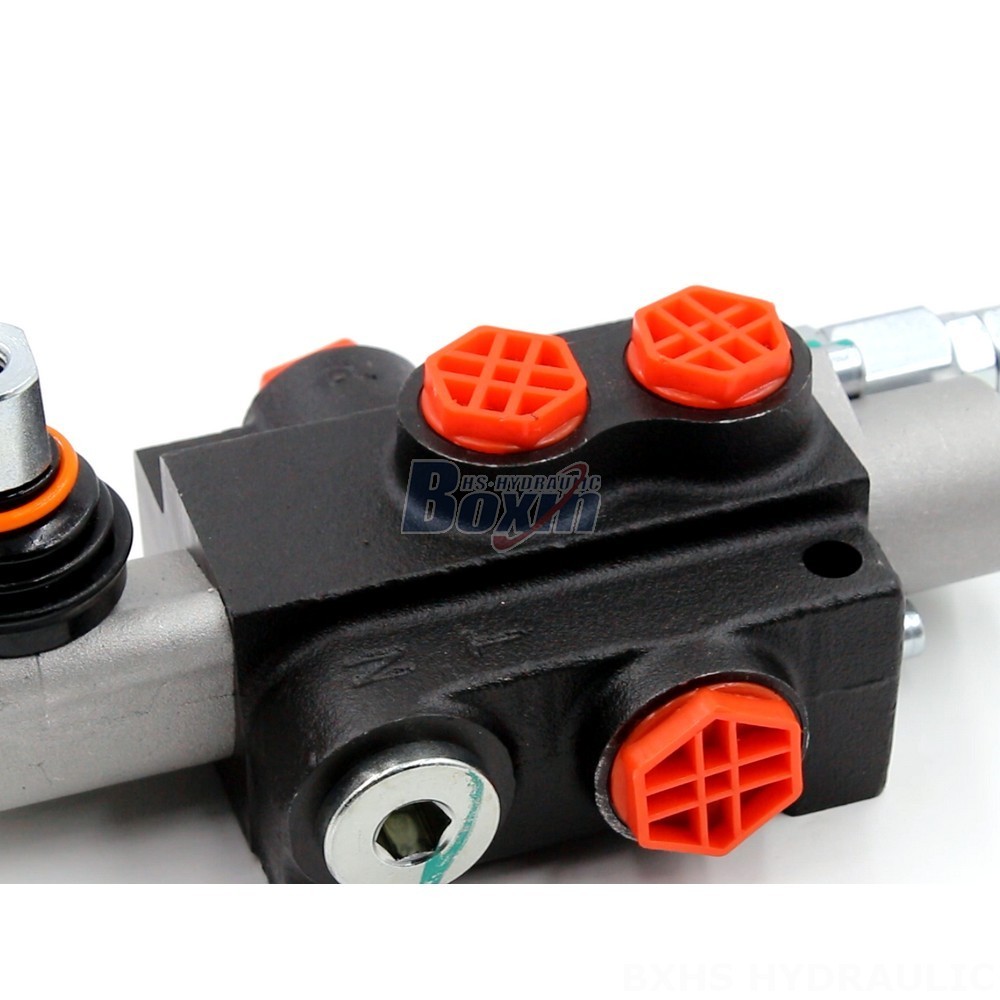

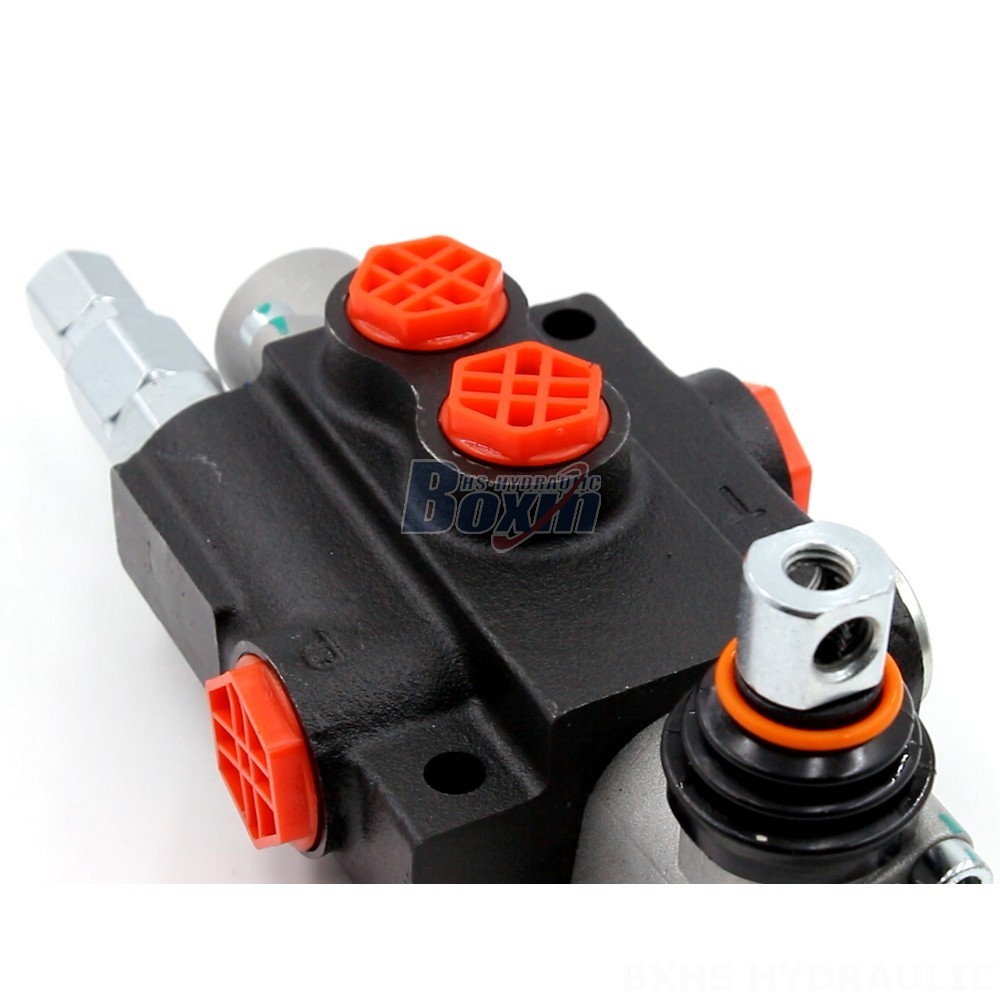

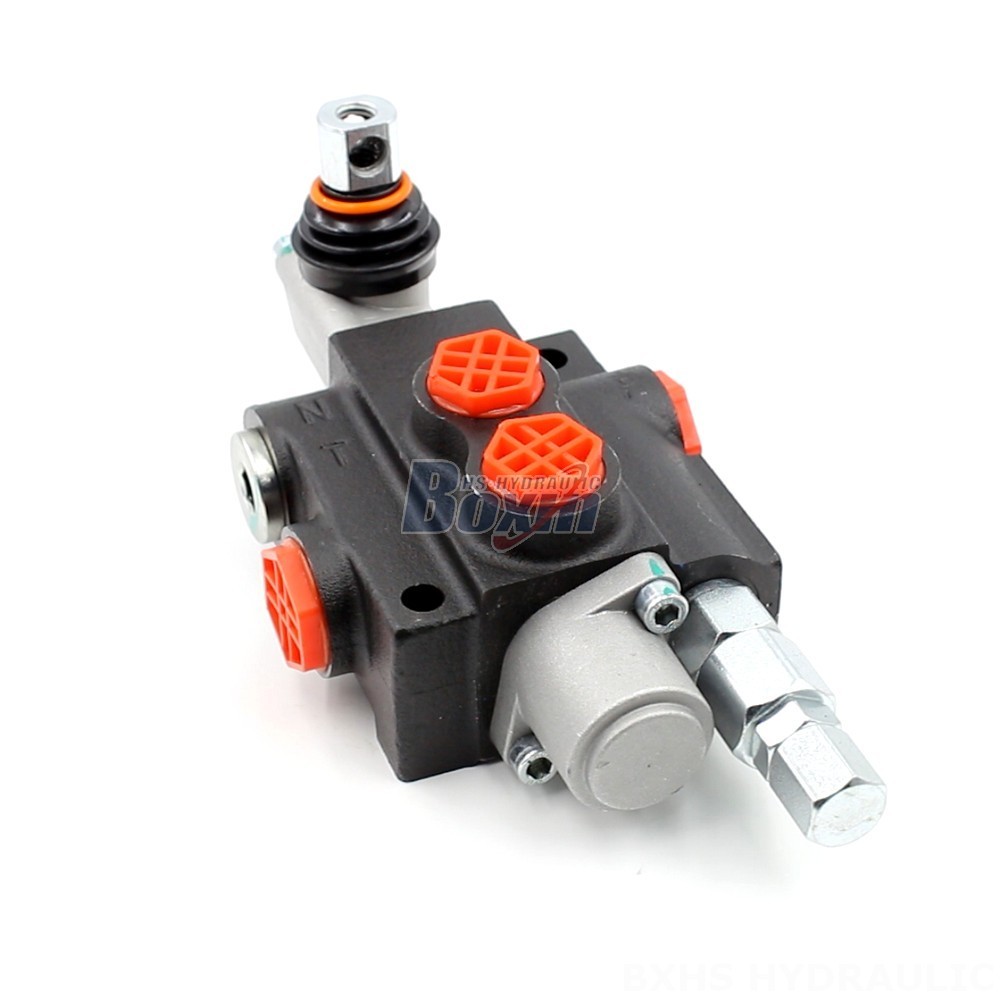

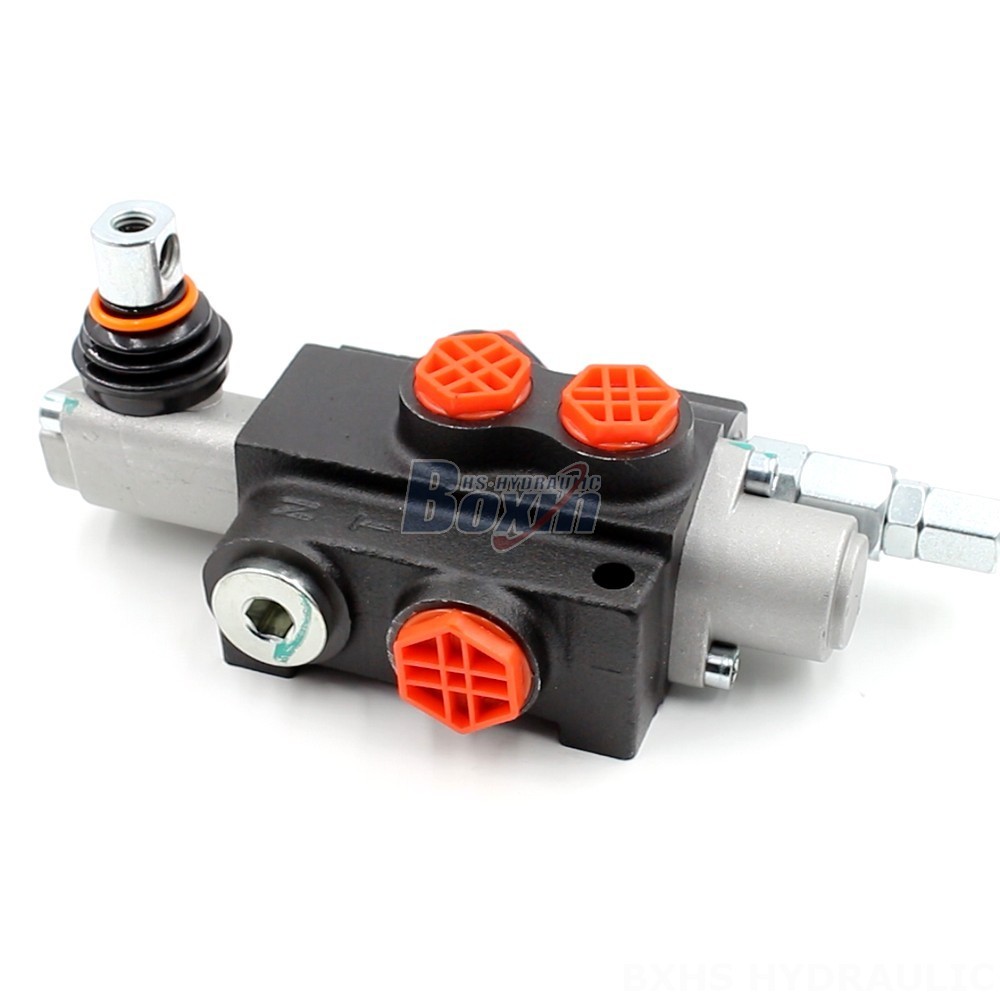

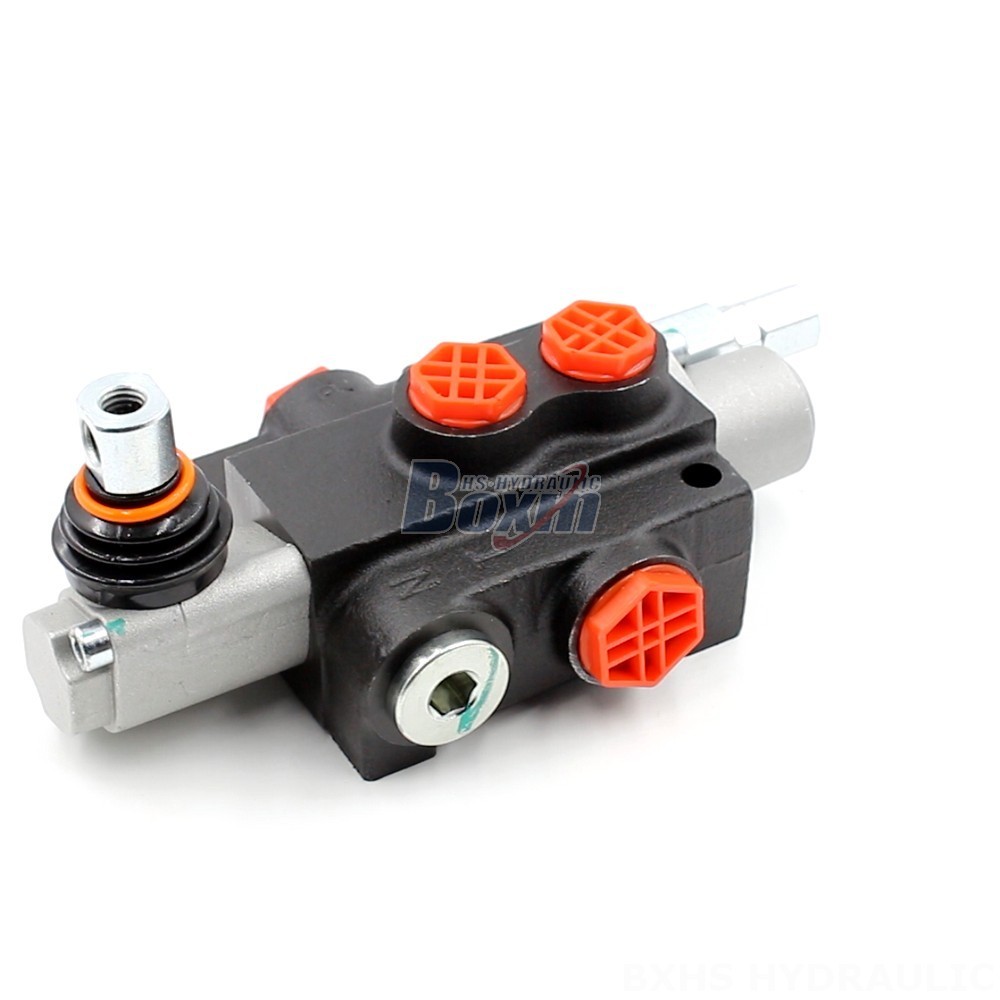

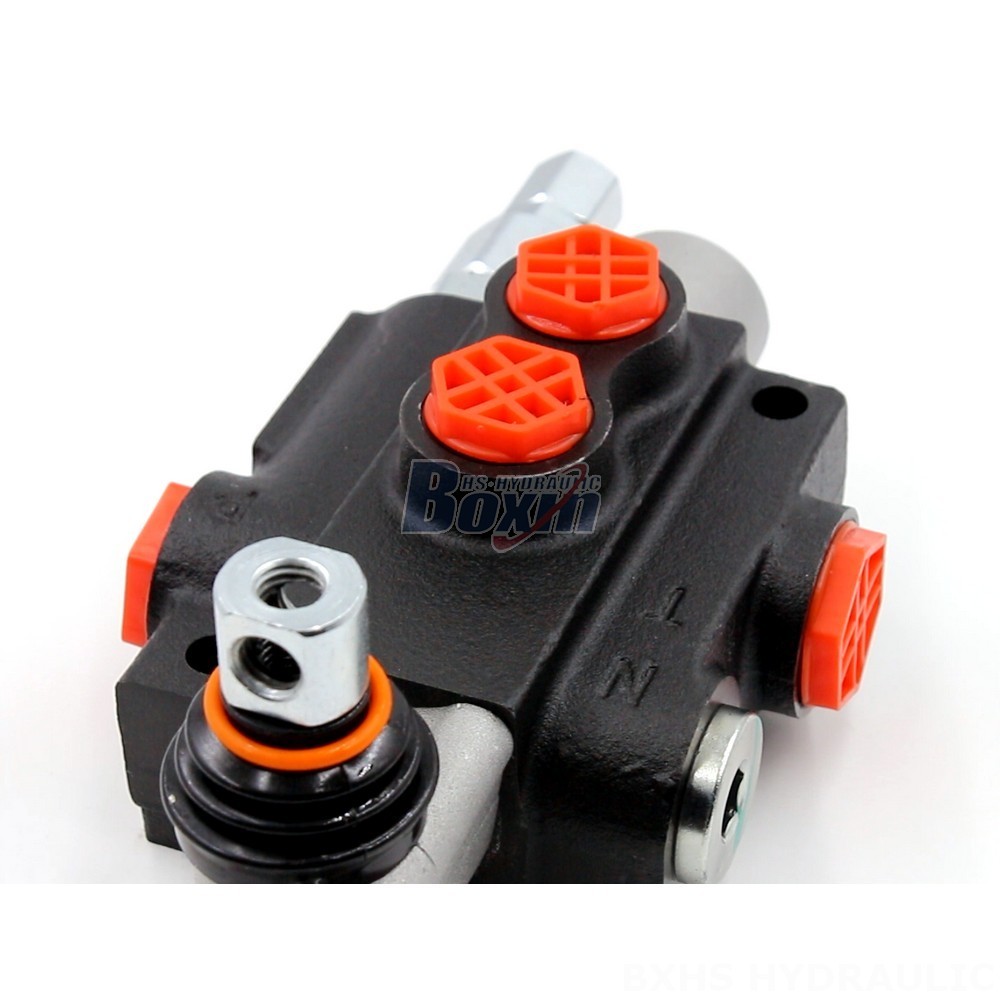

The P40-G12-YW Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control and offers a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi). Its operating viscosity range spans from 15 to 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F).
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features and Benefits:**
* **Manual Control:** Allows for precise and responsive operation.
* **Monoblock Valve:** Provides a compact and durable design with reduced leakage potential.
* **High Flow Capacity:** Delivers up to 40 L/min (10.5 US gpm) to meet the demands of demanding applications.
* **Robust Construction:** Built to withstand harsh operating conditions, ensuring long-lasting performance.
* **Wide Operating Range:** Can handle a wide range of fluid viscosities and temperatures, making it suitable for diverse applications.
**Applications:**
The P40-G12-YW Directional Control Valve finds applications in a variety of hydraulic systems, including:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
