P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

Steuermethode:Manuell

Steuerkolben:2 Spulen

Nennfluss:40 l/min (10,5 US gal/min)

Maximaldruck:250 bar (3600 psi)

Einlassanschluss:G1/2

Auslassanschluss:G1/2

Anschlussgröße:G1/2

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:P40-Serie Monoblock-Wegeventil

Verpackungsgröße:23*18*13

Bruttogewicht:5.00 kg

Verfügbarkeit: Auf Lager

1269 Personen sehen sich dieses Produkt an

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions drawing image

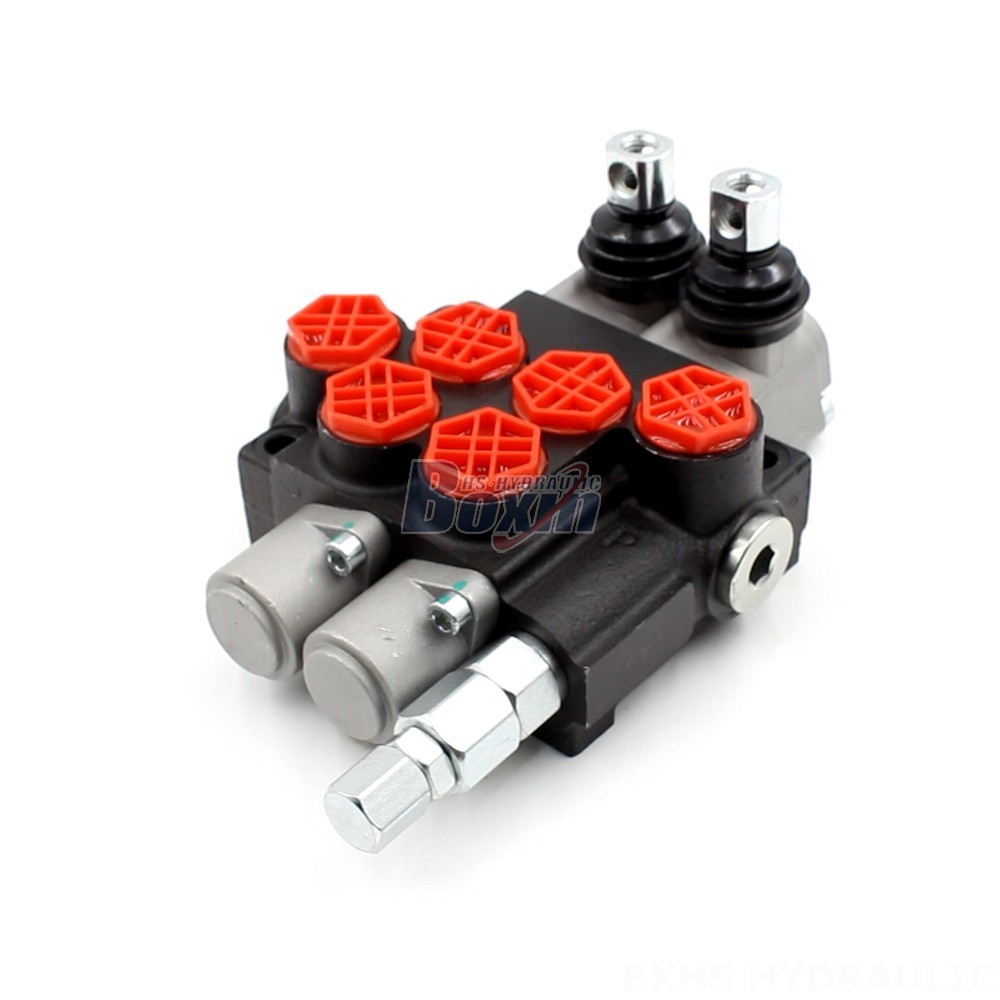

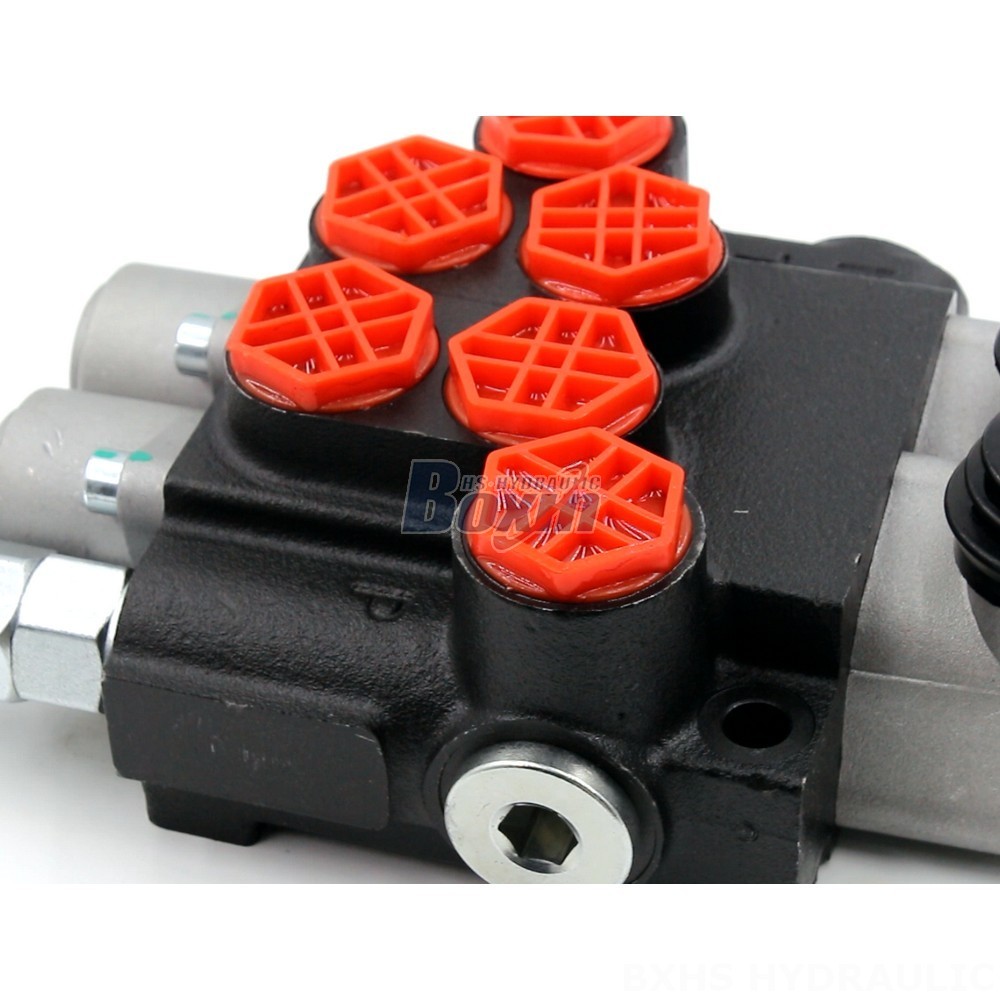

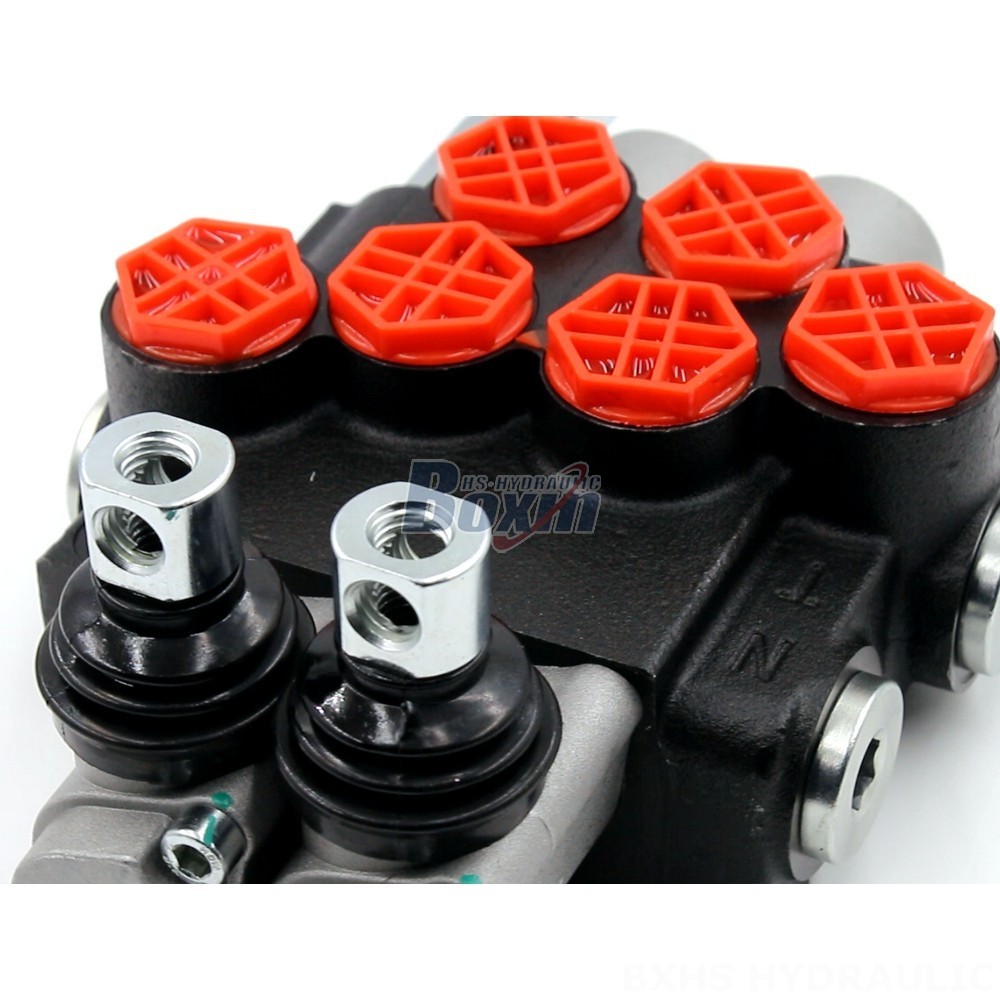

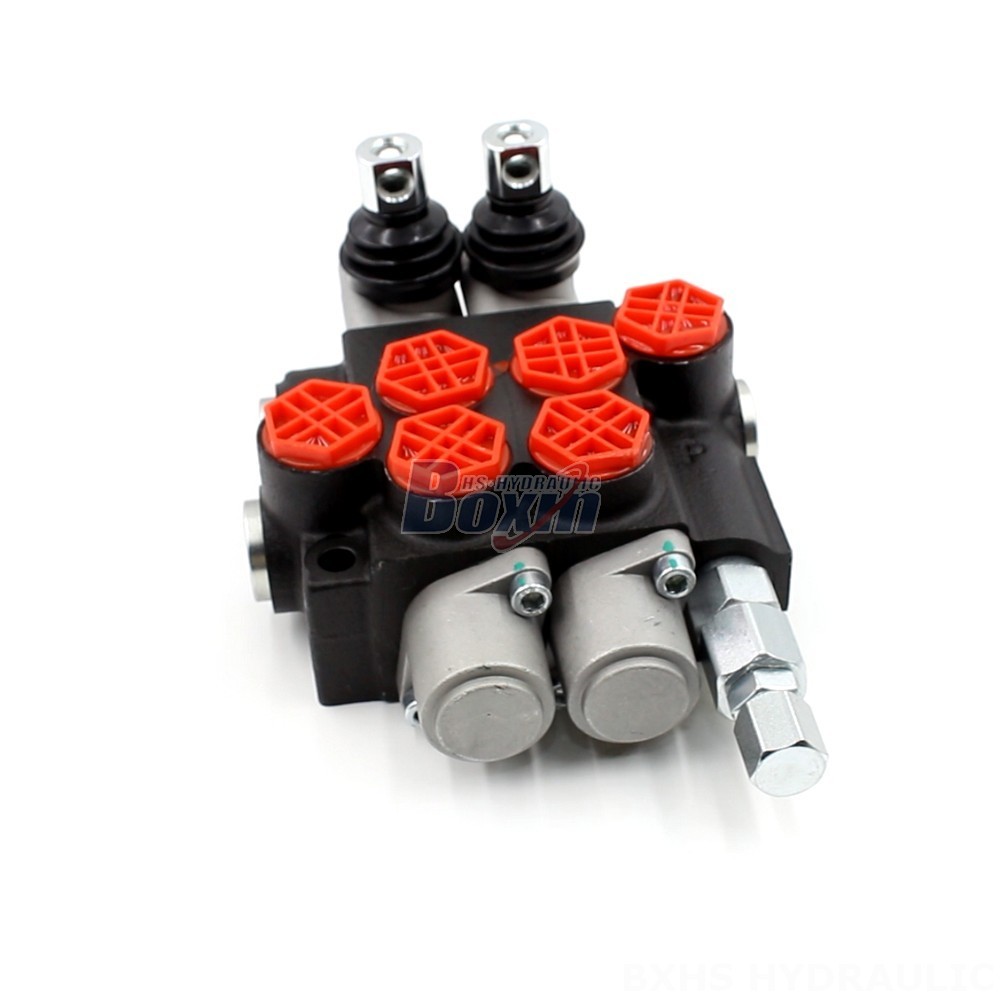

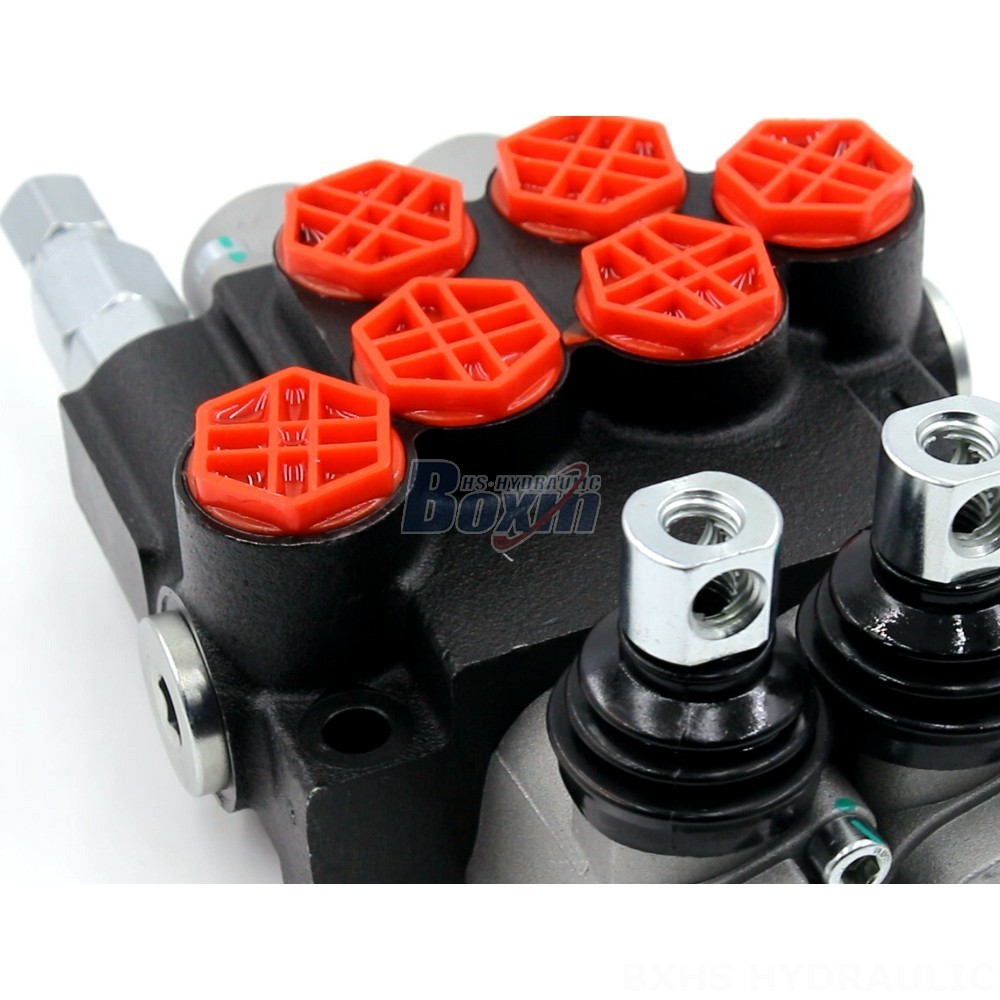

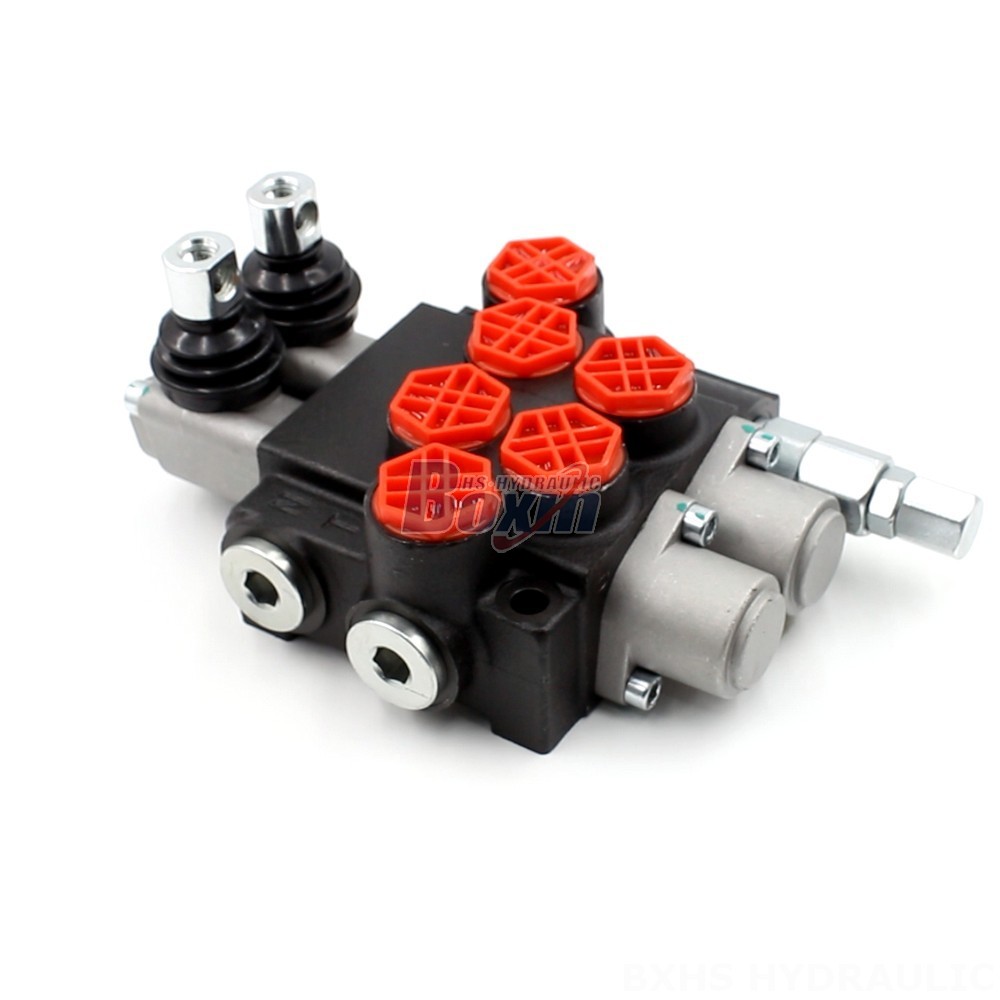

The P40-G12 Monoblock Directional Valve is a reliable and versatile hand operated hydraulic valve designed for a wide range of applications. It features a 2-section design, 40 L/min rated flow, and 250 bar maximum pressure, making it suitable for material handling, construction, earthmoving, agriculture, and industrial vehicles.

P40-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Strukturtyp Monoblockventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)
Nennfluss 40 l/min (10,5 US gal/min)
Maximaldruck 250 bar (3600 psi)
Einlassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Auslassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Anschlussgröße G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This hand-operated hydraulic valve is a 2-section monoblock valve offering a rated flow of 40 L/min and a maximum pressure of 250 bar. Designed for demanding applications in industries like material handling, construction, earthmoving, agriculture, and industrial vehicles, this valve is compatible with various equipment types including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. The valve boasts a robust construction and an operating viscosity range of 15-75 mm²/s, ensuring reliable operation in diverse environments and temperature ranges from -40°C to +80°C. The P40-G12 valve is a valuable component for various hydraulic systems, offering reliable control and efficiency.
